TV Ears Headphone User Manual

The Original System Installation Instructions

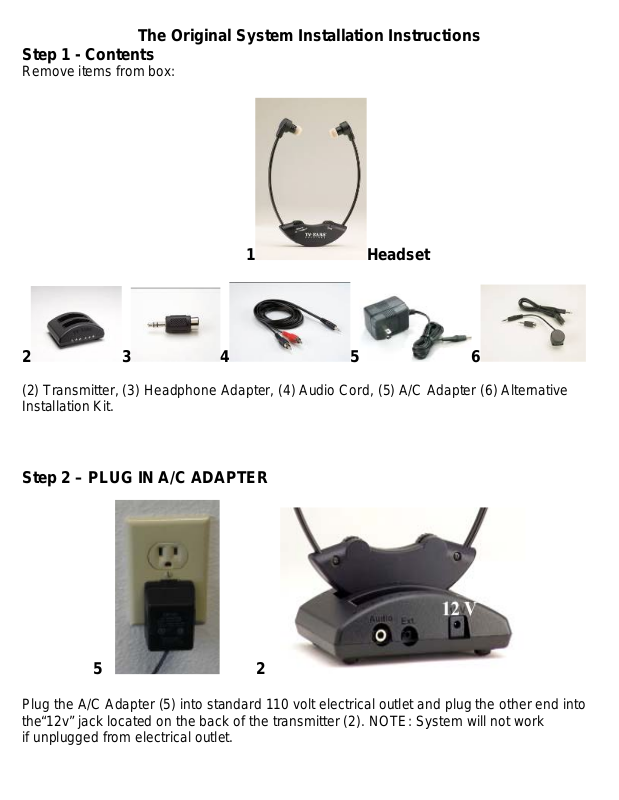

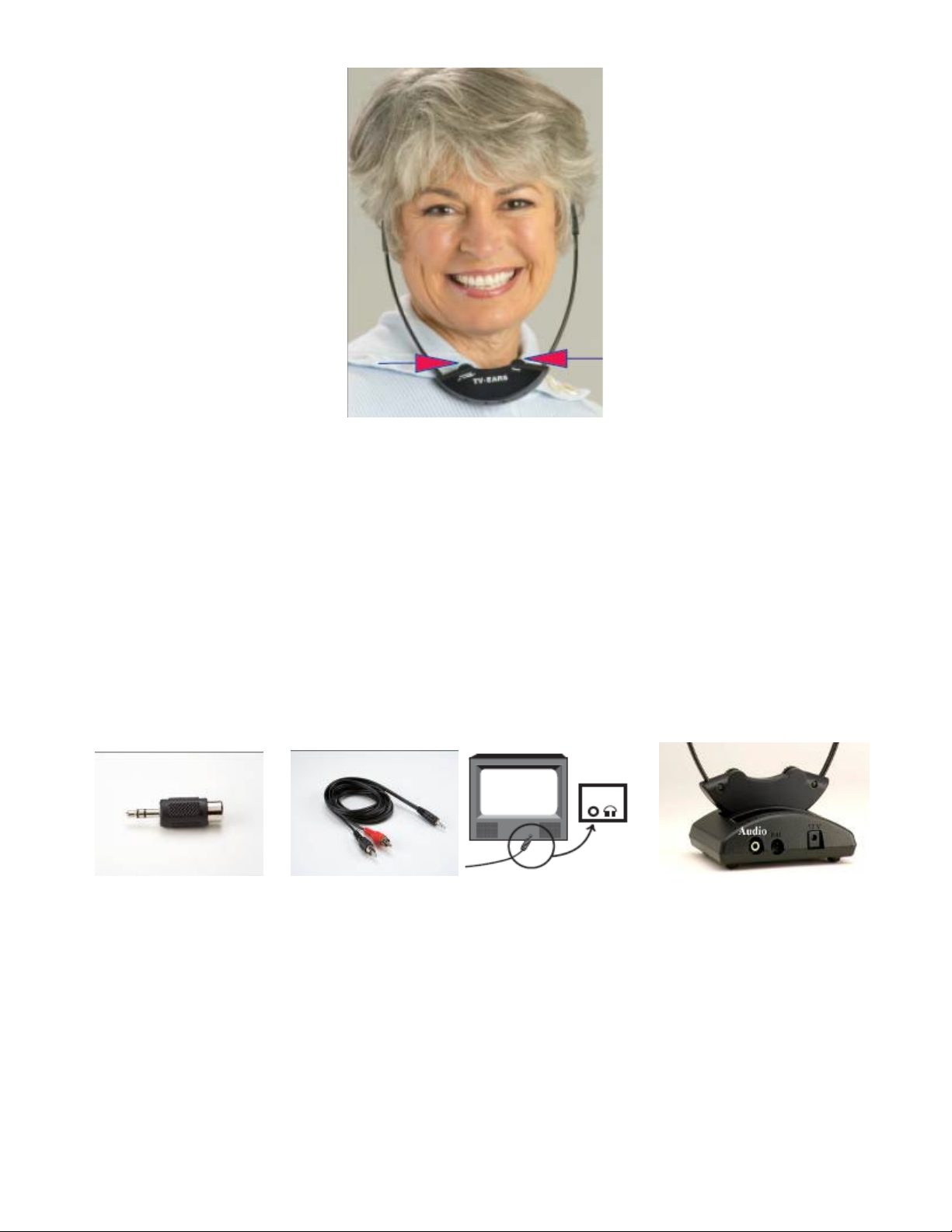

Step 1 - Contents

Remove items from box:

1 Headset

2

(2) Transmitter, (3) Headphone Adapter, (4) Audio Cord, (5) A/C Adapter (6) Alternative
Installation Kit.

3 4 5 6

Step 2 – PLUG IN A/C ADAPTER

5 2

Plug the A/C Adapter (5) into standard 110 volt electrical outlet and plug the other end into
the“12v” jack located on the back of the transmitter (2). NOTE: System will not work
if unplugged from electrical outlet.

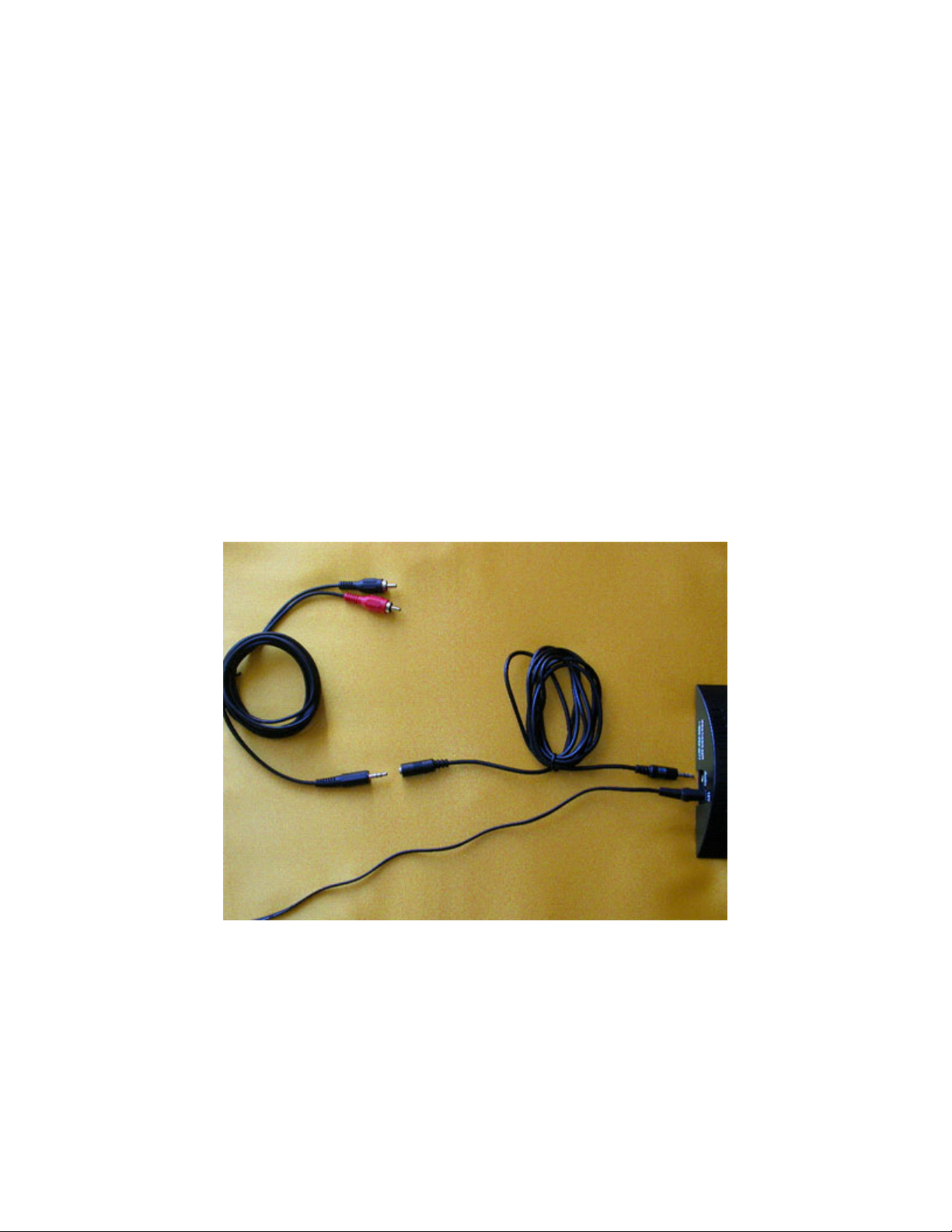

Step 3 – PLUG IN AUDIO CORD

4

2

Plug the single end of the Audio Cord (4) into the "Audio" jack located on the back of the

transmitter (2).

8

Plug the other end (RED & BLACK) into the "Audio Out" ports located on the back of your

(8) television set……or….

9

…..plug the other end (RED & BLACK) into the "Audio Out" ports located on the back of
your (9) satellite box, or cable box. Audio Out ports are labeled "Audio Out" or "Out".

Tips – PLUG IN AUDIO CORD
Tip 1

Satellite or Cable Box to DVD or VCR

If you chose to plug the Audio Cord (4) into the back of your satellite box or cable box and
you want TV Ears to also work with your DVD or VCR, then plug the RED wire of the Audio
Cord (4) into the "Audio Out" of your satellite or cable box and BLACK wire of the Audio
Cord (4) into the "Audio Out" port on the back of your DVD or VCR.

Tip 2
