tcs compact manual
page 2
TCS Compact series
Introduction
Congratulations, you have just purchased a professional loudspeaker product from the
TCS Compact Series sound contracting loudspeaker range, designed to give you the best
in audio quality and many years of reliable, trouble free operation. It offers excellent
pattern control, superior audio quality, integral rigging and flying hardware options, full
technical documentation including EASE data, and a comprehensive warranty against
manufacturing defects. Please read through this manual carefully before you attempt to
operate the loudspeaker system. It contains valuable information enabling you to quickly
and easily connect the loudspeakers to your amplifiers, important system and set-up
checks together with positioning and mounting instructions.
Thanks
Thank you for choosing a TURBOSOUND TCS Compact Series loudspeaker product for
your application. Please spare a little time to read the contents of this manual, so that you
obtain the best possible performance from this unit.
user manual
All TURBOSOUND products are carefully engineered for world class performance and
reliability.
If you would like further information about this or any other TURBOSOUND product,
please contact us. Detailed product information is available on our web site at
www.turbosound.com
We look forward to helping you in the near future.
Unpacking
After unpacking the unit please check carefully for damage. If damage is found, please
notify the carrier concerned at once. You, the consignee, must instigate any claim. Please
retain all packaging in case of future re-shipment.
tcs compact manual
page 3
user manual
TCS Compact series
Product Range Summary
General Features
TCS Compact series loudspeakers are designed for use in a wide variety of fixed
installation applications that require professional sound quality, ranging from cafés,
pubs, bars and restaurants to retail stores, nightclubs, live music venues and houses of
worship.
• Cabinets are constructed from high quality birch plywood; rebated, glued and
screwed together for maximum strength and rigidity.
• The enclosures are supplied with a durable black or white semi-matt textured
paint finish as standard. Optional finishes include TurboBlue™ and a whole
spectrum of other custom colours. Cabinets can also be supplied in raw birch
plywood for painting, varnishing or staining on site to match venue décor
requirements.
• Powder-coated perforated steel mesh grilles, backed with reticulated foam (or
white acoustically transparent cloth on white cabinets) protect the drive units
from damage and provide an unobtrusive and aesthetically pleasing apperance.
• Multiple rigging points enable a wide variety of installation methods: with
standard eyebolts, OmniMount™ hardware and specifically created Turbosound
wall and ceiling brackets. The enclosures are fitted with internal M10 threaded
rigging points on the top, sides, bottom and rear, that allow single cabinets to be
suspended and angled in fixed installations.
• High quality components are used throughout. Cast-frame low frequency drivers
give the combined benefits of high strength and low weight.
• Speakon NL4MP connectors and 4-way terminal / barrier strips are provided on
recessed rear panels for input and loop-through / parallel connections to
additional TCS Compact series speakers.
• Weather-resistant options, to IP54 rating (protected against dust and sprays of
water from all directions), enable the TCS Compact series to be used outdoors or
in humid conditions.
tcs compact manual
page 4
TCS Compact series
General Features for Two Way Enclosures
• High-grade speaker components are matched with an internal passive crossover
to ensure a seamless transition between the HF and LF drivers.
• The crossover network incorporates a two-stage thermal overload protection
system which prevents damage to the high frequency driver by reacting
instantly to large transient peaks while still allowing wide dynamic range to be
maintained. The protection system is transparent at normal operating levels and,
as the level increases, the signal is gradually and almost imperceptibly
compressed once the critical threshold has been reached.
• High frequency drivers have been selected for consistent and reliable
performance.
• High power line transformer versions are optionally available for use in 70v or
100v line distributed systems.
user manual
• The rigging points on the bottom of the cabinets enable them to be hung upside
down in order to position the HF driver closer to the audience.
• TCS Compact Series full-range enclosures are designed to give good pattern
control down to crossover frequency, and are fully supported with EASE polar
data (available to download from the Turbosound website at
www.turbosound.com). This enables accurate and predictable results when
specifying sound systems in a given venue.
tcs compact manual
page 5
user manual
TCS Compact series
Model Information
TCS-081C
The TCS-081C is a compact passive two-way loudspeaker designed for use in a wide
range of fixed installations. It consists of an 8” reflex-loaded low frequency driver and a
1” high frequency compression driver on a 100°H x 60°V Converging Elliptical
Waveguide™ in an optimally tuned trapezoidal enclosure constructed from 12mm (1/2”)
birch plywood.
The cabinet is fitted with M8 internal rigging points on the rear panel which enable it to
be permanently installed using the Turbosound WB-20 wall bracket, or CB-55 ceiling
bracket. Four M6 internal rigging points are also provided for use with OmniMount™
series 30 brackets.
tcs compact manual
page 6
TCS Compact series
TCS-101C
The TCS-101C is a compact passive two-way loudspeaker enclosure. It consists of a 10”
reflex-loaded low frequency driver and a 1” high frequency compression driver on a
rotatable 100°H x 60°V Converging Elliptical Waveguide™ in an optimally tuned
trapezoidal cabinet constructed from 15mm (5/8”) birch plywood.
M8 rigging points are provided on the back panel to enable fixed installation use with
optional Turbosound WB-20 wall and CB-55 ceiling brackets. M6 rigging points are
provided for use with OmniMount™ 60 series brackets. The SB-101 swivel bracket can be
used to mount the cabinet horizontally to walls or ceilings with a wide range of
downward angle.
user manual
tcs compact manual
page 7
user manual
TCS Compact series
TCS-121C
The TCS-121C is a compact passive two-way loudspeaker enclosure designed for use in a
wide variety of live sound and fixed installation applications that require professional
sound quality. It consists of a 12” reflex-loaded low frequency driver and, a 1” high
frequency compression driver on a 70°H x 40°V dispersion HF horn, in an optimally tuned
trapezoidal cabinet constructed from 15mm (5/8”) birch plywood.
M8 rigging points are provided on the back panel to enable fixed installation use with
optional Turbosound WB-20 wall brackets or CB-55 ceiling brackets. M6 rigging points are
also provided for use with OmniMount™ 60 series brackets.
tcs compact manual
page 8
TCS Compact series
TCS-151C
The TCS-151C is a passive two-way loudspeaker enclosure designed for use in a wide
variety of fixed installation applications that require professional sound quality. It
consists of a 15” reflex-loaded low frequency driver and a 1” high frequency compression
driver on a 70°H x 40°V dispersion HF horn in an optimally tuned trapezoidal cabinet
constructed from 15mm (5/8”) birch plywood.
M8 rigging points are provided on the back panel to enable fixed installation use with the
Turbosound WB-55 wall bracket or CB-55 ceiling bracket and OmniMount™ 120 series
brackets.
user manual
tcs compact manual
page 9
user manual
TCS Compact series
TCS-115C
The TCS-115C is a front-loaded, high efficiency low frequency loudspeaker designed to
give bass and sub-bass reinforcement to the TCS Compact series two way models. It is
envisaged to form part of a two-way active system in conjunction with a Turbosound
LMS series loudspeaker management system.
It consists of a single 15” reflex-loaded low frequency driver in an optimally tuned
enclosure. The cabinet is constructed from 18mm (3/4”) birch plywood. Recommended
amplifier power is 600 watts at a nominal impedance of 8 ohms.
tcs compact manual
page 10
TCS Compact series
TCS-118C
The TCS-118C is a front-loaded, high efficiency low frequency loudspeaker designed to
give bass and sub-bass reinforcement to the TCS Compact series two way models. It is
envisaged to form part of a two-way active system in conjunction with a Turbosound
LMS series loudspeaker management system.
It consists of a single 18” reflex-loaded low frequency driver in an optimally tuned
enclosure. The cabinet is constructed from 18mm (3/4”) birch plywood. Recommended
amplifier power is 600 watts at a nominal impedance of 8 ohms.
user manual
tcs compact manual
page 11
user manual
TCS Compact series
TCS-215C
The TCS-215C is a front-loaded, high efficiency low frequency loudspeaker designed to
give bass and sub-bass reinforcement to the TCS Compact series two way models. It is
envisaged to form part of a two-way active system in conjunction with a Turbosound
LMS series loudspeaker management system.
It consists of two 15” reflex-loaded low frequency drivers in an optimally tuned
rectangular cabinet constructed from 18mm (3/4”) birch plywood. Recommended
amplifier power is 1200 watts at a nominal impedance of 4 ohms.
tcs compact manual
page 12
TCS Compact series
TCS-218C
The TCS-218C is a front-loaded, high efficiency low frequency loudspeaker designed to
give bass and sub-bass reinforcement to the TCS Compact series two way models. It is
envisaged to form part of a two-way active system in conjunction with a Turbosound
LMS series loudspeaker management system.
It consists of two 18” reflex-loaded low frequency drivers in an optimally tuned enclosure
constructed from 18mm (3/4”) birch plywood. Recommended amplifier power is 1200
watts at a nominal impedance of 4 Ohms.
user manual
tcs compact manual
page 13
user manual
TCS Compact series
System Considerations
Choosing the best location
When using any loudspeaker system certain room parameters will affect the resultant
sound quality and coverage. For example, any boundary like a wall or floor will lift certain
frequencies. If you are placing speakers in a corner, then a lift at the bass end is to be
expected and it may sound rather ‘boomy’. This can be compensated for by moving the
speaker or cutting low frequencies with an equaliser.
TCS Compact series speakers are designed to be flown in free space or mounted on
specialist wall and ceiling brackets. When speakers are flown in free space then
boundary effects are minimised. The result is a smooth frequency response without any
boost at odd frequencies, but the bass end may appear subjectively light. In this case
increase the sub-bass level to bring the low end up or add sub bass enclosures as
necessary.
Dispersion
TCS COMPACT series enclosures are designed to provide respectably wide horizontal
coverage; the TCS-151C and TCS-121C offer 70° and the TCS-101C and TCS-081C 100° .
This allows the majority of live sound applications to be covered with single enclosures
placed individually to take advantage of this performance feature, for example either side
of a stage in a pub, or small club environment, as shown below.
tcs compact manual
page 14
TCS Compact series
Calculating the sound pressure level at a known distance from the PA
Sound intensity reduces rapidly as the distance from the source increases according to
the inverse square law which, predicts that a doubling of distance will result in a
reduction of ¼ the original, equal to a drop of 6dB, providing there are no reflections or
reverberation. For every 3dB increase of speaker output you need a doubling of input
power.
For example, in an open space where the front seats are 6 meters (20 ft) from the sound
source and the back seats are 60m (200 ft) from the sound source, you would expect the
sound pressure to drop by a factor of 100 (= 20 decibels) between the front seats and the
back seats.
In a ‘real world’ enclosed auditorium, this reduction is partially mitigated by the effects of
reverberation in the distant field and, in the near field, because the speaker looks more
like a wall source than a point source. Therefore the sound field in a room only behaves
according to the inverse square law in a relatively narrow distanced range.
user manual
It should be possible to make considered decisions regarding the particular models of
speakers that are required based on their sensitivity and SPL (sound pressure level) in
order to achieve the desired coverage and level.
Equalisation
TCS COMPACT series enclosures are designed to provide smooth and even frequency
response. They do not need excessive amounts of external equalisation to overcome the
sonic deficiencies often found in many lesser designs.
In order to compensate for room acoustics, TCS Compact series enclosures require only
minimal equalisation. As in any system, over-equalisation introduces phase shifts,
distortion and a reduction in headroom, usually causing more problems than it cures. It is
good practice to use as little equalization as possible, aiming to ‘cut’ frequencies rather
than adding large amounts of ‘boost’.
Most rooms will have resonances that will be excited at particular frequencies needing
some cut to help tame the sound. These problems are most pronounced at the lower
frequencies where loudspeakers generally exhibit very little directional control. Under
most circumstances a 1/3 or 1/2 octave graphic equaliser will generally be adequate, with
the fader settings applied smoothly and sparingly for the required room compensation.
If you find that the system needs a lot of boost at lower frequencies you probably need
additional sub-bass units.
tcs compact manual
page 15
user manual
TCS Compact series
Amplifier Requirements
Turbosound loudspeaker enclosures should be driven by high quality power amplifiers
designed for true professional use. Such amplifiers will have balanced inputs, DC and RF
fault protection, and well designed cooling systems for reliability.
The ‘program’ power, listed in the loudspeaker’s technical specification, is the best guide
to the size of amplifier required for general purpose applications. The amplifier should be
capable of delivering long term broadband power equal to the loudspeaker’s program
power rating at the loudspeaker’s stated nominal impedance. This approach allows
sufficient headroom to generate good dynamic range.
RECOMMENDED AMPLIFIER POWER RATINGS:
The amplifier's rated r.m.s. continuous power output (20Hz – 20kHz, per
channel) should be equal to the program power handling of the
loudspeaker at its nominal impedance.
It should be understood that overdriving an insufficiently powered amplifier is more likely
to cause loudspeaker damage – the total energy in a heavily clipped signal is far higher
than in an unclipped signal – than operating a more powerful amplifier within its ratings.
In general, the more powerful the amplifier the better it will sound, provided that it is not
also driven into sustained clipping.
All the equipment in the system before the system controller should be set up for 0dBV
(775mV) maximum output. One controller can be used to feed several amplifiers as long
as all the amplifiers are the same (or have the same gain ratings). More than one
controller may be required if the amplifiers are of different gain or type. Please contact
your dealer if you require help in this area.
Turbosound recommends the T-series amplifiers for use with the TCS Compact series
system.
tcs compact manual
page 16
TCS Compact series
System Configurations
TCS Compact Series 2-way enclosures are passive loudspeaker systems. This means that
they require only one amplifier channel for correct operation, the frequency splitting
between the low frequency driver and the high frequency driver being accomplished by
the internal passive crossover network in each enclosure. If subwoofers are used in a biamplified system in conjunction with TCS Compact Series 2-way enclosures, additional
amplifier channels and external electronic crossovers will be required. The Turbosound
LMS-D24/26 digital management systems are recommended for this purpose.
Many different system configurations of TCS Compact Series loudspeaker enclosures are
possible to suit various installation requirements, ranging from cafes, bars and
restaurants to theme parks, theatres and houses of worship. Listed below are a few
common examples.
System1 – Basic stereo set up
user manual
FROM MIXER
LR
EQ
POWER AMPLIFIER
A single amplifier supporting two TCS Compact series 2-way speakers creates a standard
stereo system. A further pair of TCS mid/tops could be connected using the loop-through
connections, although this will result in a corresponding drop in impedance. With TCS
Compact 2-way speakers with a nominal impedance of 8 ohms this would make a
combined 4 ohm load that should be suitable for any good quality power amplifier (see
amplifier considerations for more information).
NB: A stereo configuration is shown but this system could be run in mono.
NB: The EQ block is shown for tuning the room.
L
R
tcs compact manual
page 17
user manual
TCS Compact series
System 2 – Stereo with bass units and Active Crossover
FROM MIXER
L
R
EQ
MID/HI
LEFT
BASS
LMS-D24
POWER AMPLIFIERS
MID/HI
RIGHT
BASS
In this case a crossover is needed to separate the bass and mid / high frequencies. The
Turbosound LMS series is recommended as the units are preconfigured with presets to
match the TCS Compact series requirements.
This system can be scaled up with the addition of further amplifiers and processors. If
using the LMS-D26 processor there will be two extra channels available for adding say
another pair of mid/top cabinets through an extra stereo power amplifier.
If using TCS-218C or TCS-215C dual-driver bass bins then note that the impedance for
each of these is already 4 ohms and only some very powerful amplifiers are capable of
driving loads at 2 ohms or below. Consider using extra amplifiers for this purpose rather
than the loop through connections. The TCS-115C or TCS-118C bass speakers are 8 ohms
so it is possible to run two cabinets from one amplifier, providing the amplifier is
powerful enough, although extra amplifiers will still provide the best performance.
tcs compact manual
page 18
It is recommended to use a bass cabinet and a mid/top with each stereo amplifier as this
helps distribute the load across the power supplies better.
NB: The EQ shown is for tuning the system to the room / venue.
TCS Compact series
Crossovers and Processors
In order to correctly set up your sound system a selection of audio processing devices are
necessary to divide the frequencies between the speakers, apply equalisation and limit
the dynamic headroom. These duties can be performed by proprietary units such as
standalone crossovers, graphic equalisers and limiters, and a TCS Compact series
installation can be built in this way by paying careful attention to details such as
appropriate crossover settings. This information is provided in the Technical
Specifications for each TCS Compact series speaker.
Active and Passive systems
Passive crossover networks split the frequency range between drivers after the amplifier.
Although this an economical method for many general purpose applications, problems
associated with this approach include the loss of energy (watts) as heat in the
components of the crossover. Also, it is not possible to design steep roll-offs, as a broad
range of frequencies has to be covered by both components. This causes smearing
between the drivers and potentially raises the distortion from the individual components.
If the headroom limit of the amplifier is reached the HF component can be heard
,
‘pumping’
as large amounts of energy are consumed by the low frequency transients.
user manual
In an active system the crossover is placed before the amplifiers to gain particular
advantages. More amplifier channels are needed to deal with the split of frequency bands
but this separation also helps to deliver a cleaner, more controlled sound from the
speakers. The HF cannot be modulated by power drains needed by the LF speakers.
Loudspeaker Management Systems
The concept of a Loudspeaker Management System is to provide all the processing
electronics you might need in one box. This typically includes crossover functions,
equalisation, limiters, delays and preset memories, that can store different set ups for
various applications. A loudspeaker management system offers potentially better audio
quality, more precise control and protection against unwanted changes in settings.
Digital processing enables steeper roll-offs through the crossover areas to be designed,
allowing more output from the speakers, as they are individually handling more
appropriate bandwidths. Also, the addition of delay to the LF signal to match the arrival
of the HF can help to make the image more intelligible. Therefore, it is much easier, and
more efficient, to manipulate audio digitally in low voltage electronics than in the passive
crossover networks found inside speakers.
The TCS Compact series has a range of sub bass units (TCS-115C, TCS-118C, TCS-215C,
TCS-218C) that are designed to be used actively with the mid/top cabinets (TCS-081C,
TCS-101C, TCS-121C, TCS-151C). The Turbosound LMS-D24 and LMS-D26 loudspeaker
management systems contain custom presets for the TCS Compact series along with a
world-class audio specification.
tcs compact manual
page 19
user manual
TCS Compact series
Turbosound LMS series loudspeaker management systems
The Turbosound LMS-D24 and LMS-D26 series are powerful DSP-based audio processing
units designed for use with Turbosound loudspeaker systems and associated bass
enclosures. The functions of multiple conventional products are combined in a compact
1U high 19” rack unit. They offer EQ, both for the room and the drivers, delay to align the
wave front, and limiters that can be set for each individual component to ensure against
damage and to protect the long term reliability of your speakers.
The LMS-D26 has two inputs and six outputs and the LMS-D24 has four outputs. The
units are configured to provide specific equalisation and crossover points aimed at
optimizing the performance of these Turbosound loudspeaker systems. In addition,
limiters, delays, eq, gain, polarity, and crossover filter controls are accessible to the user
in order to match specific operation environments. The LMS series crossovers are
designed for quick setup and adjustment via easy-to use front panel controls and, are
ideally suited to both live sound and fixed installation.
Features
• Minimal signal path design, providing exceptional audio quality with carefully
optimised processing and high performance converters for a >111dB dynamic
range.
• Sonically superb ADC / DAC combination; a carefully matched pairing of the best
devices from Burr Brown and Wolfson. Analogue Devices SHARC chip for DSP
• Extended bandwidth; 96 kHz sampling frequency provides for a nominally flat
response to 40 kHz with minimal filtering.
• Audio-grade capacitors used in the analogue signal path for true audiophile
performance and superior accuracy.
• Input delays of up to 400ms and output delays of up to 80ms can be set up on
each output (mono) or pair of outputs (stereo) with fine resolution of 21µs steps
to ensure perfect driver alignment.
• LF shelving filters to allow adjustment of the response in order to match
variations of the acoustic conditions.
tcs compact manual
page 20
• Switching power supply that automatically adjusts to mains input voltages from
85 volts to 240 volts, allowing it be used anywhere in the world without
inconvenient mains transformer adjustment.
TCS Compact series
LMS-D24/6 Quick Reference Set Up
(LMS-D26 shown)
The LMS-D24 and LMS-D26 are designed for quick setup and adjustment via an easy-touse menu structure accessed by front panel buttons and 3 rotary encoders. A high
resolution backlit LCD display provides the user interface to the menu options and
parameters being adjusted.
Input Signal Indicators - three pairs of LED’s indicate signal present, +4dBu and input clip
for both channels. The signal present LED’s operate at approximately –40dBu, giving a
useful indication of even relatively low input signal levels. The +4dBu LED’s are intended
to show nominal operating level and can also be useful for setting system gain structure.
Clip LEDs warn the user of input overload and operate at +19dBu.
Starting up
user manual
The unit will energise as soon as power is applied to the IEC inlet; there is no power
switch. During the start up process the firmware application model number and version
numbers are displayed and the outputs are muted until the unit has completed its internal
checks. Once the start-up routines are complete and the unit is ready to pass audio, the
DSP signal path will be restored to the current settings when it was last powered down
and the audio signal is gradually ramped up to its correct level. At this stage the display
shows the default screen with the memory location and name of the current Preset on the
lower line of text.
About Presets
The unit has 45 memory locations and there is a library of around thirty ‘Factory’ Presets
to suit a range of Turbosound enclosures. Factory Presets are locked so they cannot be
over-written although edited versions can be stored in the free preset locations. Details of
all the Factory Presets can be found in Appendix A in the LMSD2x pdf in the downloads
section of www.turbosound.com.
Factory Presets contain some parameters that are fixed and hidden from view; typically
crossover frequencies, output delay and some EQs; those settings that are a function of
the loudspeaker cabinet design and should not require adjustment for different
applications. The number and type of hidden parameters is dependant on the Factory
Preset. The remainder of the DSP parameters are available for user manipulation.
tcs compact manual
page 21
user manual
TCS Compact series
Preset Recall
• To select a Preset, press the Recall Button so the indicator above it illuminates.
• Turn the left of the three parameter knobs (a) until the required Preset number is
shown on the display.
NB: Factory presets are indicated by a box symbol appearing after the Preset
number.
• Press the Recall Button again to activate the Preset.
NB: Pressing any other button will cancel the operation.
This process is deliberately in three stages in order to guard against accidental recall of
incorrect Presets.
Creating a user defined crossover
In addition to the Factory Presets the unit has two further ‘Base Presets’ for mono and
stereo usage. These Base Presets are stored in locations 1 and 2 respectively, they can be
used to develop settings for any loudspeaker combination and are recalled in the same
way as the Factory Presets described above. These Presets are also locked but the user
can name and store their own edited versions in any free preset location.
Store button
tcs compact manual
page 22
To store a preset in a location, press the store button and use the encoders to select the
memory location and name the preset. Pressing the store button again completes the
task. Pressing any button other than store during the process cancels the procedure.
The store button allows the user to name a preset and choose which memory location it
will be held in. Pressing store button again completes the process.
TCS Compact series
LMS-D24/D26 Audio Connections
Audio Input connectors
These are fully balanced and are wired pin 1 ground, pin 2 hot and pin 3 cold. The two
inputs have pin 1 connected directly to the chassis and feed the signal processing chains.
If an unbalanced source is used, a connection should be made between the pin 3 ‘cold’
signal and the ground connection of the unbalanced source.
Audio Output connectors
The processed outputs are impedance balanced, and are wired pin 1 ground, pin 2 hot
and pin 3 cold. An unbalanced input may be driven by connecting pin 3 ‘cold’ signal to
the ground connection of the unbalanced destination input. Note that output pins 1 are
ground lifted at audio frequencies but connected to ground at RF for good EMC
performance. The intention being that the amplifiers the processor is driving should be
responsible for the grounding of their input cable shields.
user manual
Presets and Secure mode
A momentary button is fitted on the rear panel, between the output XLRs and the RS232
port. When activated, this will disable all the front panel controls so they cannot affect the
signal path, making the unit secure against tampering. When in secure mode, the
indicators still operate normally however; Presets cannot be stored or recalled. If the unit
is not responding then check that Secure Mode is not active.
Note that the communications port is still active in secure mode.
tcs compact manual
page 23
user manual
TCS Compact series
Speaker Connections
TCS Compact Series enclosures are provided with a recessed connector panel housing a
single Neutrik Speakon NL4MP connector wired in parallel with a 4-way terminal strip.
Either can be used for the input, the other being available as an output for looping to
further TCS enclosures.
1-
Speakon connections
1+2+2-
(Pins 2+ and 2- not connected)
Negative (-ve)
Positive (+ve)
Positive (+ve)
Negative (-ve)
Low Impedance
+-+-
LOOP IN LOOP OUT
Note that looping out to additional enclosures has the effect of reducing the load
impedance on the amplifier. For example, two 8 ohm cabinets in parallel give a combined
total impedance of 4 ohms. Never connect loudspeakers whose total combined
impedance is lower than the amplifier’s recommended minimum load impedance. Do not
use the loop-out connection to connect other types of loudspeaker, especially when their
impedance is not known, as permanent damage could result!
The cable end Speakon NL4 connector should be wired as follows:
Positive output Pin 1 +
Negative output Pin 1 -
tcs compact manual
page 24
Please take care if XLRs, binding posts, or other dual connector systems, are used at the
amplifier end of the loudspeaker cables (jack plugs/sockets should not be used) where
there is a possibility of the cables being reversed. It is highly recommended that Neutrik
Speakon or other heavy duty non-reversible connectors are used.
TCS Compact series
70/100V Line Distributed Systems
Line transformer models are supplied with step-down transformers with voltage taps at
P, P/2, and P/4 watts, where P is the maximum power rating of the line transformer, and
these are accessed via the 4-way barrier strip only.
70v/100v Line
user manual
COMMON
P/4
P
P/2
tcs compact manual
page 25
user manual
note : Figures based on specifications supplied by Van Damme Cables (VDC)
TCS Compact series
Cable Recommendations
Heavy duty loudspeaker cable should always be used, with a minimum wire size of 12
gauge (1.5mm²), and preferably 10 gauge (2.5mm²) for longer runs, keeping the run as
short as possible. This helps to avoid wasting amplifier power in the resistance of the
cable. High cable resistance also lowers the damping factor of the amplifier which affects
its ability to control loudspeaker cone movement.
Losses due to undersized cable and long runs are clearly illustrated in the table below.
Please use this table to determine the most suitable cable size and maximum run for your
particular application.
Area (mm
1.5
2.5
4.0
2
)
Cable Length
(m)
5 0.07 0.8 1.6 -0.1 -0.1
10 0.13 1.6 3.2 -0.1 -0.3
25 0.33 4.0 7.7 -0.4 -0.7
50 0.67 7.7 14.3 -0.7 -1.3
100 1.33 14.3 25.0 -1.3 -2.5
5 0.04 0.5 1.0 0.0 -0.1
10 0.08 1.0 2.0 -0.1 -0.2
25 0.20 2.4 4.8 -0.2 -0.4
50 0.40 4.8 9.1 -0.4 -0.8
100 0.80 9.1 16.6 -0.8 -1.6
5 0.02 0.3 0.6 0.0 -0.1
10 0.05 0.6 1.2 -0.1 -0.1
25 0.12 1.5 3.0 -0.1 -0.3
50 0.25 3.0 5.8 -0.3 -0.5
100 0.50 5.8 11.0 -0.5 -1.0
Cable Resistance
(W)
Voltage Drop (%) 8 ohms Sensitivity Loss (dB)Nominal Cable
8W 4W 8W 4W
tcs compact manual
page 26
TCS Compact series
Flying & Lifting / Rigging
A versatile set of rigging parts has been designed for TCS Compact Series enclosures in
order to give the installer a cost effective approach to flying and mounting, ranging from
a single enclosure up to multi-box arrays and clusters.
All riggable products are fitted with metric internal fixings. It is expected that external
parts such as eye nuts, flying bridles, scaffold clamps, safety chains etc. will be obtained
locally from the usual suppliers and used with the parts available from Turbosound.
Any installation, whether temporary or permanent, must be securely attached to the
structure of the building using chain, steel wires or web straps which are certified and
load rated for the purpose. The combined weight of the sound system, its cables and the
rigging system must be safely carried by the points at which attachment is made to the
building or structure. Great care must be taken in selecting the attachment points and
methods, being absolutely sure of the load carrying capacity of points chosen.
user manual
IMPORTANT NOTE: The rigging of loudspeaker systems is an extremely serious matter
with potentially lethal consequences should anything go wrong. It is of vital importance
that you, or other people rigging the system, are suitably qualified to do so and have a
full understanding of all the factors involved with safety as a number one priority.
Turbosound accept no responsibility for any accident, damage or failure of any rigged
system. This rigging information is specifically related to the requirements of the TCS
Compact Series products only. For more detailed information on the whole topic of
rigging various handbooks are available. If you are in any doubt contact your
Turbosound dealer who will be able to refer you to an experienced rigging company.
All the sets and parts have been type tested and will be covered by ‘certificates of
conformity’ as to their ability to safely meet their design specification. These certificates
are available on request.
tcs compact manual
page 27
user manual
WB-55
SB-101 swivel bracket
TCS Compact series
Flying Single Enclosures
Single enclosures may be flown using a variety of different methods:
M10 eyebolts
All TCS COMPACT series cabinets, including low frequency enclosures, can be rigged in
permanent installations using optional M10 shoulder eyebolts (available from
Turbosound or third party suppliers). These can be attached to the rigging points
provided on the top and back of the cabinet. The rigging point at the rear of the cabinet is
used to alter the downward angle of the enclosure.
wall bracket
CB-55 ceiling bracket
(TCS-101C only)
tcs compact manual
page 28
As supplied, these rigging points are fitted externally with M10 countersunk slot-head
screws. To facilitate rigging of the enclosure simply remove these M10 screws and
replace them with M10 x 18mm shoulder eyebolts using a suitable thread locking
compound to avoid the possibility of loosening.
Note: Eyebolts must have a thread length of at least 18mm (3/4”).
NOTE: The rigging points are designed to suspend single enclosures only. There is no
facility to hang an additional cabinet below a flown TCS COMPACT series enclosure.
TCS Compact series
SPEAKER
Flying Accessories
EB-10 M10 x 18mm shoulder eyebolt
Model TCS-151C TCS-121C TCS-101C TCS-081C
Wall Bracket
WB-55 WB-20 WB-20 WB-20
user manual
Ceiling Bracket
Swivel Bracket
OmniMount™
Internal Rigging
Points
CB-55 CB-55 CB-55 CB-55
SB-101
120 series 60 series 60 series 30 series
(9) M10
(4) M8 for WB-55
or CB-55 brackets
(4) M8 for
OmniMount™
series brackets
WB-20 wall bracket (exploded view)
(9) M10
(4) M8 for WB-20
or CB-55 brackets
(4) M6 for
OmniMount™
series brackets
(9) M10
(4) M8 for WB-20
or CB-55 brackets
(4) M6 for
OmniMount™
series brackets
(2) M10 for SB-101
(9) M10
(4) M8 for WB-20
or CB-55 brackets
(4) M6 for
OmniMount™
series brackets
PLATE
WALL
PLATE
tcs compact manual
page 29
user manual
TCS Compact series
Use of Thread Locking Compounds
When assembling flying hardware to TCS Compact Series loudspeaker enclosures it is
advisable to use thread-locking compounds to eyebolts and other bolts in order to avoid
any possibility of loosening.
The recommended thread-locking compound is Loctite 222.
The threaded rigging points used in TCS Compact Series enclosures are manufactured
from zinc-plated mild steel. Therefore, and additionally if the external bolts used are zincplated, zinc-passivated, stainless steel or anodised (as the majority are), then the
corresponding activator, Loctite 7471, should be used to achieve 100% performance.
Application: Spray Loctite 7471 into the thread holes and allow to evaporate. Apply
Loctite 222 thread locking compound to the bolts prior to fitting, allowing sufficient to fill
all the engaged threads. Assemble components and tighten as necessary.
The parts may be disassembled by hand if required.
tcs compact manual
page 30
TCS Compact series
Servicing Information
If any of the drive units in your TCS COMPACT series cabinet should cease functioning
and need a replacement re-cone or diaphragm, you are advised to remove the faulty unit
from the cabinet and send it to a professional service centre authorised to repair
Turbosound loudspeakers.
Removal of the low frequency driver(s)
user manual

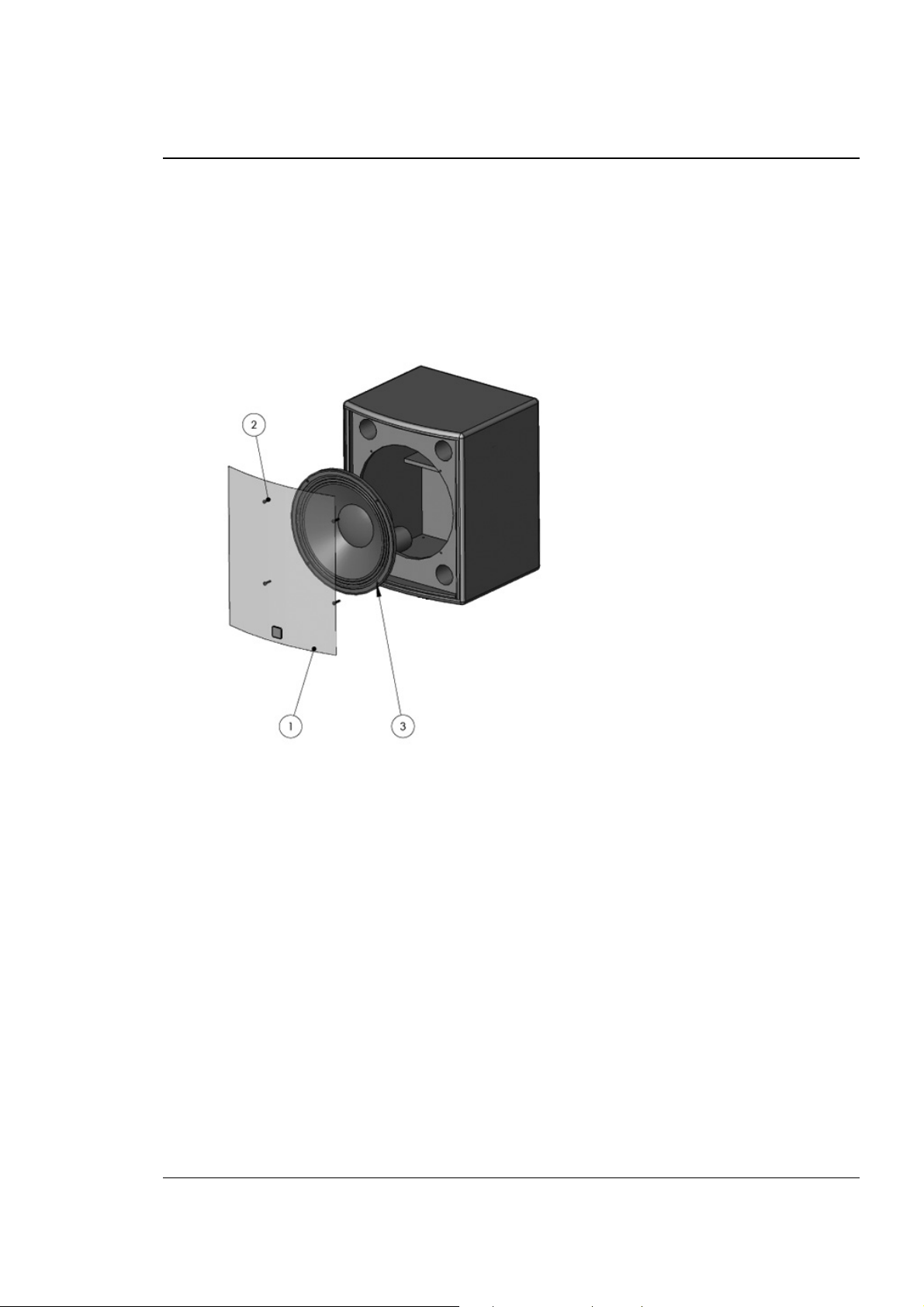

The perforated steel loudspeaker grille (1) is held in place under tension only, fitting into
slots at either side of the baffle. There are no screws or other fixings holding the grille in
place. Lay the cabinet on its back and, using two small screwdrivers inserted through the
mesh of the grille, firmly pull the grille away from the slot at one side of the baffle until it
is free. Set the grille aside for later re-assembly.
Undo the screws (2) holding the driver in place and carefully lift it out and away from the
cabinet. Make a note of the driver terminal polarity for later reconnection. Disconnect the
cables from the drive unit and completely remove the driver from the cabinet being
careful not to damage the cone or suspension. Do not place the driver near to any
equipment or media that may be adversely affected by strong magnetism, e.g. CRT
monitors or magnetic tape of any kind.
To reinstate the speaker simply reverse the above procedure, making sure you observe
the correct polarity when reconnecting the cables back into the terminals of the drive
units.
tcs compact manual
page 31
user manual
TCS Compact series
Removal of the HF compression driver and LF driver
The perforated steel loudspeaker grille (1) is held in place under tension only, fitting into
slots at either side of the baffle. There are no screws or other fixings holding the grille in
place. Lay the cabinet on its back and, using two small screwdrivers inserted through the
mesh of the grille, firmly pull the grille away from the slot at one side of the baffle until it
is free. Set the grille aside for later re-assembly.
Undo the screws (2) holding the driver (5) in place and carefully lift it out and away from
the cabinet. Make a note of the driver polarity for later reconnection. Disconnect the
cables from the drive unit and completely remove the driver from the cabinet being
careful not to damage the cone or suspension. Do not place the driver near to any
equipment or media that may be adversely affected by strong magnetism, e.g. CRT
monitors or magnetic tape of any kind.
Remove the horn/driver (4) assembly by unscrewing the four screws (3) holding the
flange in place. Lift it out and away from the cabinet. The high frequency driver can now
be disassembled from the HF horn.
To reinstate the driver(s) simply reverse the above procedure, making sure you observe
the correct polarity when reconnecting the cables back into the terminals of the drive
units.
tcs compact manual
page 32
TCS Compact series
About EASE Data
Sound system projects are more likely to go to plan when you have a reliable indicator in
advance of how the speaker system will perform in the venue. Turbosound engineers are
able to assist you with your system design using the industry-standard EASE program to
aid in the quest to find the perfect system for the job. Although we cannot replace the
role of an acoustical consultant, we can provide a good indication of system performance
to back up the proposal.
Statistically, more jobs are won and more sales are made when a project has been
properly and scientifically designed, along with the facility to show the client a convincing
visual representation of the finished design. This cuts a large amount of guesswork out of
the process, and is the reason why we actively encourage you to make use of our design
resources to help you or your customers to win that next job. EASE is also a useful tool
for addressing acoustic issues in the venue, for example to justify adding acoustic
treatment to a room such as cladding a wall or balcony face. Having a graphical model
can strengthen the proposal and ultimately ensure a better result.
user manual
Overview
EASE (Enhanced Acoustic Simulator for Engineers) is a sophisticated sound system
design tool and acoustic simulation software package for Windows PCs, created by SDA
(Software Design Ahmert GmbH, Berlin). It enables extremely accurate acoustic
calculations to be realised both for indoor venues and outside spaces. In this way
acoustic parameters and properties can be calculated for audience areas or even
particular listener seats. EASE is particularly useful where a large number of speakers
may be used, i.e. in concert halls, stadiums and public buildings.
The EASE application itself is comprehensive and can account for a wide range of surface
properties, i.e. absorption and dispersion and also early reflections, directivity and phase
characteristics. 3D acoustical models can be created for computing parameters such as
RT (Reverb Time), IR (Impulse Response) and SPL (Sound Pressure Level) distribution for
sound reinforcement and speech intelligibility.
There are a variety of module upgrades that enhance EASE’s capabilities, such as AURA
(Analysis Utility for Room Acoustics) which has become a standard for modelling spaces
in three dimensions along with the VISION rendering engine. EASE VIEW loads OpenGL
and Mapping files as used in the design
EARS is an auralisation module that allows the determination of audio quality, and the
comparison of old against new sound system installs, by locating sound sources in the
virtual room, or open air space, using convolving and binaural techniques.
tcs compact manual
page 33
user manual
TCS Compact series
EASERA is used for evaluating and measuring the transmission properties of both spaces
and electrical equipment.
EASE FOCUS is a free 2D ‘aiming’ program that can be used for aligning speaker stacks
and particularly arrays. It uses configuration files in ASCII format made using compiler
software which have the extension .efo.
Use of Turbosound EASE data
Turbosound provides pre-measured EASE data to aid sound system designers in making
appropriate choices with the type and positioning of speakers in the required venue. The
suitability of certain models can be assessed and the installation can be improved by
adapting the frequency response consequently.
The speakers are measured from the centre of an entire globe with 5 degree resolution
and third octave frequency resolution.
EASE data is available from our download FTP server at ftp://ftp.turbsound.com
tcs compact manual
page 34
TCS Compact series
Technical Specifications
Sub Bass Enclosures
Model TCS-218C TCS-215C TCS-118C TCS-115C
Dimensions
HxWxD
1035x602x532mm
40.7”x23.7”x20.9”
891x550x506mm
35.1”x21.7”x19.9”
652x540x484mm
25.7”x21.3”x19.1”
652x465x423mm
25.7”x18.3”x16.7”
user manual
Net weight
LF Driver
Components
Frequency
Response
±4dB
Power Handling
Recommended
Amplifier Power
Sensitivity
1 watt @ 1metre
Maximum SPL
Continuous->
Peak->
Recommended
Crossover
Nominal
Impedance
Construction
Grille
54.5kg(119.9lbs) 47kg (103.4lbs) 30kg (66lbs) 25kg (55lbs)
2 x 18” (457mm) 2 x 15” (381mm) 1 x 18” (457mm) 1 x 15” (381mm)
36Hz - 150Hz 40Hz - 150Hz 36Hz - 150Hz 43Hz - 150Hz
600 watts r.m.s.
1200 watts program
1200 watts @ 4 ohms
101dB 99dB 98dB 96dB
129dB
135dB
4 Ohms 8 Ohms
Powder coated perforated steel mesh, backed with black reticulated foam on black cabinets
and white acoustically transparent cloth on white cabinets.
127dB
133dB
12dB/octave low-pass at 150Hz
18mm (3/4”) birch plywood
300 watts r.m.s.
600 watts program
600 watts @ 8 ohms
123dB
129dB
121dB
127dB
Connectors
Flying
Hardware
Finishes
IP54 Weather
Resistant
Version
(1) Neutrik Speakon NL4MP, wired pin1+: positive, pin 1-: negative, pins 2+ and 2- N/C
(1) 4-way barrier strip connector
(9) M10 internal threaded rigging points
Black semi-matt textured paint (standard), white, raw birch plywood, and custom colours
TCS-218CW TCS-215CW TCS-118CW TCS-115CW
tcs compact manual
page 35
user manual
TCS Compact series
2-Way Enclosures
Model TCS-151C TCS-121C TCS-101C TCS-081C
Dimensions
HxWxD
652x468x423mm
25.7”x18.4”x16.7”
553x407x352mm
21.8”x16”x13.9”
508x366x319mm
20”x14.4”x12.5”
415x308x270mm
16.3”x12.1”x10.6”
Net Weight
LF driver
HF compression
driver
Frequency Response
±4dB
Nominal Dispersion
Power Handling
Recommended
amplifier power @ 8
Ohms
Sensitivity
1 watt @ 1 metre
Maximum SPL
continuous->
peak->
Internal Crossover
High Pass
Low Pass
25.5kg (56.1lbs) 19kg (41.8lbs) 16.5kg (36.3lbs) 12kg (26.4lbs)
1 x 15” (381mm) 1 x 12” (305mm) 1 x 10” (254mm) 1 x 8” (203mm)
1 x 1” (25mm)
45Hz - 20kHz 60Hz - 20kHz 65Hz - 20kHz 70Hz - 20kHz
70°H x 40°V @ -6dB points 100°H x 60°V @ -6dB points
300 watts r.m.s.
600 watts program
600 watts
99dB 97dB 95dB 93dB
124dB
130dB
1.8kHz 2.2kHz 3kHz
24dB/octave 12dB/octave
122dB
128dB
12d/B octave low-pass
250 watts r.m.s.
500 watts program
500 watts
119dB
125dB
200 watts r.m.s.
400 watts program
400 watts
116dB
122dB
tcs compact manual
page 36
Nominal Impedance
Construction
Grille
Connectors
Finishes
IP54 Weather
Resistant Version
15mm (5/8”) birch plywood enclosure 12mm (1/2”)
Powder coated perforated steel mesh, backed with black reticulated foam on black
cabinets; backed with white acoustically transparent cloth on white cabinets
(1) Neutrik Speakon NL4MP, wired pin1+: positive, pin 1-: negative, pins 2+ and 2- N/C
(1) 4-way barrier strip connector
Black semi-matt textured paint (standard), white, raw wood and custom colours
TCS-151CW TCS-121CW TCS-101CW TCS-081CW
8 ohms
Notes:
TCS-101C has a rotatable Converging Elliptical Waveguide™ for use with swivel bracket.
TCS-081C has a fixed Converging Elliptical Waveguide™
TCS Compact series
70v/100v Line Transformer versions
(Specifications as standard models accept for the following)
Model TCS-151CT TCS-121CT TCS-101CT TCS-081CT
user manual
Tappings (Watts)
Frequency Response
±4dB
Net Weight
Connectors
Technical Specification Notes:
1.
Frequency response is measured on axis
2.
Nominal Dispersion and sensitivity are an average over stated bandwidth
3.
Maximum continuous SPL is measured by using unweighted diode-clipped pink
noise in a half space environment.
Maximum peak SPL is verified by subjective listening tests of familiar program
4.
material, before the onset of perceived signal degradation
NB: Due to continuing product improvement these specifications are subject to change.
240, 120 and 60 120, 60 and 30 120, 60 and 30 60, 30 and 15
45Hz - 17kHz 60Hz - 17kHz 65Hz - 17kHz 75Hz - 17kHz
28kg (61.6lbs) 20.5kg (45.1lbs) 18kg (39.6lbs) 13kg (28.6lbs)
(1) 4-way barrier strip connector with voltage taps at P, P/2, and P/4 watts
tcs compact manual
page 37
user manual
TCS Compact series
Spares List
Model TCS-218C TCS-215C TCS-118C TCS-115C TCS-151C TCS-121C TCS-101C TCS-081C
LF Driver
Complete
Re-cone Kit
LS-1811 LS-1523 LS-1811 LS-1514 LS-1521 LS-1219 LS-1023 LS-8010
RC-1811 RC-1523 RC-1811 RC-1514 RC-1521 RC-1219 RC-1023 RC-8010
1” (25mm) HF
Compression
Driver
HF Diaphragm
Passive
Crossover
Network
CD-111
RD-111
TXD-
TCS-
151-PX-
A
TXDTCS-
121-PX-
A
TXD-
TCS-
101-PX-
A
TXDTCS-
081-PX-
A
tcs compact manual
page 38
TCS Compact series
Warranty
Limited Warranty
This Turbosound loudspeaker product is warranted to the original end-user purchaser
and all subsequent owners for a period of two (2) years from the original date of
purchase.
Warranty Coverage
Warranty coverage includes defects in materials and workmanship. It does not include:
•
damage caused by accident, misuse, abuse, neglect or modification by any other
person other than an authorised Turbosound representative,
damage caused by overdriving, use with unsuitable amplifiers or amplifier
•
failure,
damage caused by failure to operate the product in accordance with the
•
instructions contained in the user’s manual,
user manual
damage occurring during shipment in transit,
•
•
claims based upon any misrepresentations by the seller,
•
products which do not have the original components as specified in the product
engineering information,
products on which the serial number has been removed or defaced.
•
Shipping
Should any fault develop with a component of your Turbosound system, please return
the product, freight pre-paid, in its original packing carton, along with proof of purchase
such as the original bill of sale or receipted invoice, and a description of the suspected
fault to:
Turbosound Ltd. (Att: Customer Service), Star Road, Partridge Green, West Sussex RH13
8RY, United Kingdom, or your local authorised Turbosound representative.
The product serial number must be quoted in all correspondence relating to the claim.
Insurance is recommended, as Turbosound or its representatives are not liable for loss or
damage in transit. Turbosound will pay for return freight costs should repairs be covered
under warranty.
tcs compact manual
page 39
user manual
TCS Compact series
Incidental and consequential damages
Turbosound's liability is limited to the repair or replacement, at our option, of any
defective product, and shall not be liable for any incidental and consequential damages
including, without limitation, injury to persons or property or loss of use.
Limitation of implied warranties
All implied warranties, including warranties of merchantability and fitness for a particular
purpose, are limited in duration to the length of this warranty.
This warranty is in addition to, and in no way detracts from, your statutory rights as a
consumer. No other warranty is expressed or implied.
Please record your purchase information below for future reference:
Dealer Name ..................................................................................................................................
Dealer Address ..............................................................................................................................
.........................................................................................................................................................
.........................................................................................................................................................
Post / Zip Code ..............................................................................................................................
Dealer telephone / fax ...................................................................................................................
Invoice number .............................................................................................................................
Date of purchase ...........................................................................................................................
tcs compact manual
page 40
Unit serial number ........................................................................................................................
Notes
user manual
TCS Compact series
tcs compact manual
page 41
Loading...
