IMPORTANT NOTES:
• Please thoroughly read and understand these instructions before commencing this installation.
• The thread on the cap for the vacuum source is AN#3. The standard swivel nipple can be changed to an AN#3 fitting if desired.
• The Nissan GTR series requires 2 Dual Port BOV kits to replace the 2 standard Bypass valves. Each BOV kit is sold
separately.
RECOMMENDATIONS
• Turbosmart recommends that your Blow off valve (BOV) is fitted and adjusted by an appropriately qualified technician
• Turbosmart recommends that a boost gauge be permanently fitted to the vehicle
------------------------------------------------------------------------------------------------------------------------
HOW TO INSTALL YOUR BOV
Please check that the following items have been provided in your Skyline Dual port kit.
Quantity
Description
Use
1
Skyline Dual port BOV
Model Specific blow off valve
1
Port Blanking plug
To blank off a port to convert the BOV to full atmospheric or plumb back
2
6mm Hose clamps
To secure the vacuum lines to the BOV and the engine
1
400mm of 6mm Silicone vacuum line
To connect vacuum source to the BOV

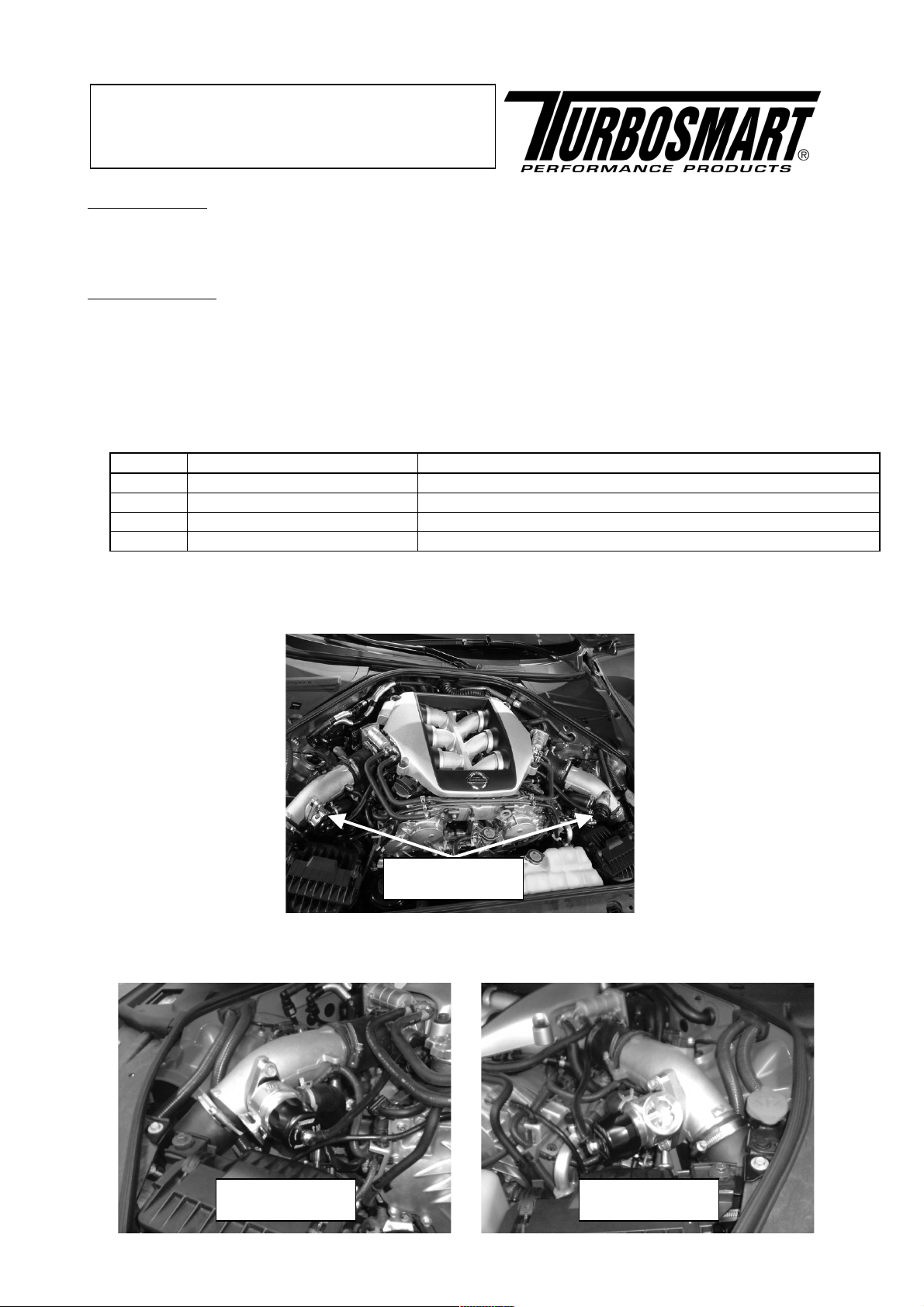

Installation on a R35 GTR
1) Remove the two standard BOV’s by removing the securing bolts, plumb back hose and vacuum source.
2) Install the Dual Port BOV’s using the standard bolts. Remember to put in the provided gaskets between the flange and the
BOV. Replace the plumb back hose and sec ure with the standard clamp.
Product Name: Skyline Dual port
Product Description: Fits Skyline GTS-t R33- R34,
Skyline GT-T R34, Skyline GTR R32 – R34, GTR R35
Product Number: TS-0205-1026
Remove standard
BOV’S
Left side BOV
Right side BOV
2

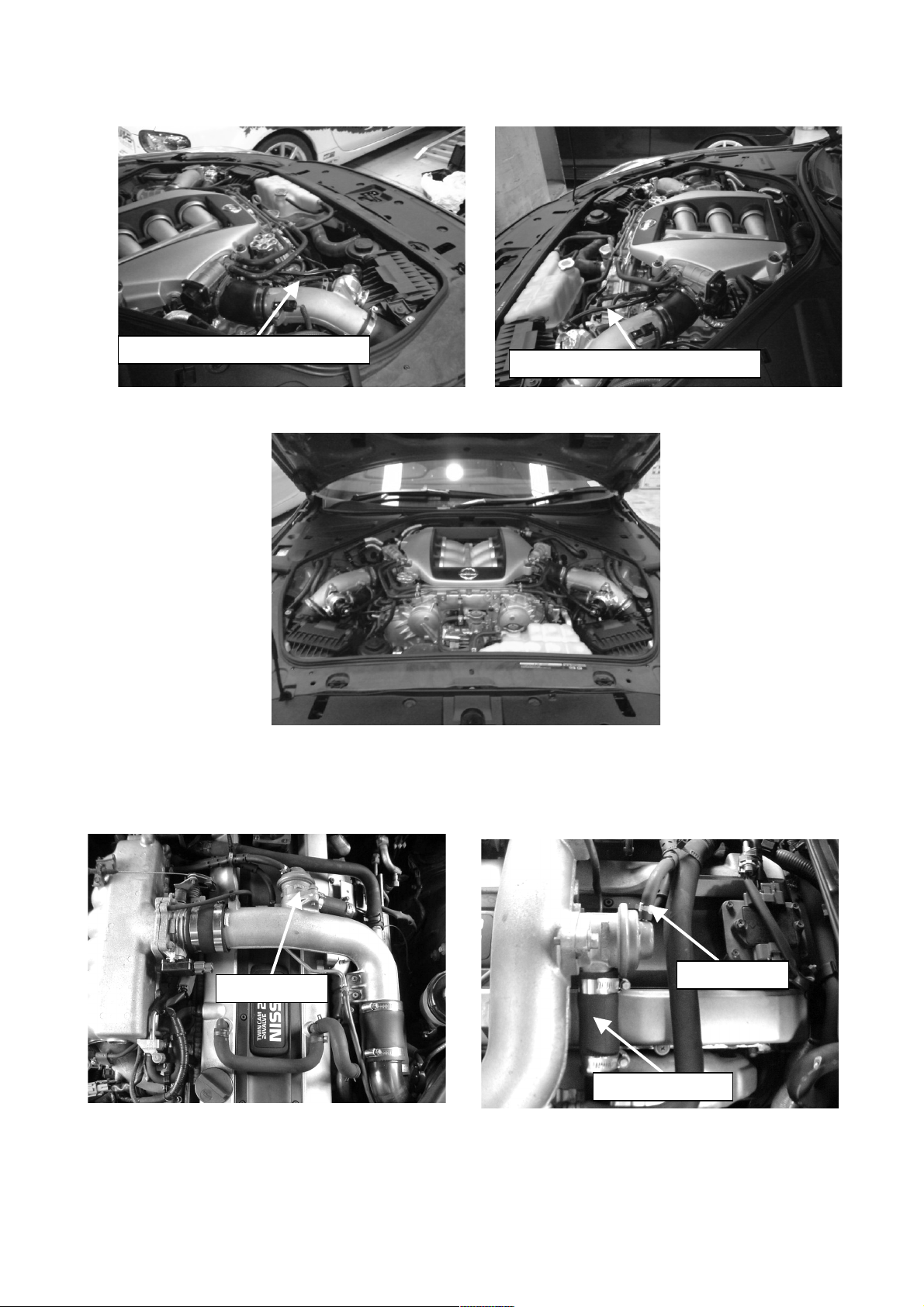

3) Replace the standard vacuum lines with the hose provided in each kit. Use the spring clamps to secure the lines.
4) Start the car and check for leaks. Proceed in adjusting spring tension
Installation on a Skyline GTS-t and GT-T (Diagrams from a R33 Skyline GTS-t)
1) Locate standard BOV on the inlet manifold. Remove the plumb back hose and vacuum nipple by removing the hose clamps.
Unbolt the BOV flange and remove the standard BOV.
Left side BOV vacuum line
Right side BOV vacuum line
Standard BOV
Plumb back hose
Vacuum hose
