TurboChef i3 Touch User Manual

Proj ect _______________________________________________________

2

3

4

6

5

1

1

7

Item No. ______________________________________________________

Quantity _____________________________________________________________________

i3 Touch

THE

i3 Touch

PERFORMANCE

Utilizing TurboChef’s patented
technology to rapidly cook food without
compromising quality, the i3 Touch oven
provides superior cooking performance
while requiring less space and consuming

less energy.

VENTILATION

n

UL (KNLZ) listed for ventless operation.†

n

EPA 202 test (8 hr):

- Product: Pepperoni Pizzas

- Results: 0.32 mg/m

- Ventless Requirement: <5.00 mg/m

n

Internal catalytic filtration to limit smoke,

grease, and odor emissions.

3

3

TM

EXTERIOR CONSTRUCTION

n

Two-tone stainless steel front, top and sides

n

304 stainless steel removable grease collection pan

n

Ergonomic door handle

n

Rubber seal for surface mounting

n

Side hand grips for lifting

n

7-inch capacitive touch screen with tempered glass cover

INTERIOR CONSTRUCTION

n

304 stainless steel

n

Fully insulated cook chamber

n

Removable rack

n

Top and bottom jetplates

STANDARD FEATURES

n

Simple and intuitive touch controls

n

Integral recirculating catalytic converter for UL (KNLZ) listed

ventless operation

n

Independently-controlled dual motors for vertically-recirculated

air impingement

n

Top-launched microwave system

n

Stirrer to help ensure even distribution of air and microwave

n

External air filtration

n

Smart menu system capable of storing up to 200 recipes

n

Flash firmware updates via USB

n

Programmable via USB or smart card

n

Single or multiple-temperature interface

n

Smart Voltage Sensor Technology* (U.S. only)

n

Vent catalyst to further limit emissions

n

Self-diagnostics for monitoring oven components and performance

n

Stackable (requires stacking stand)

n

Field-configurable for single or 3-phase operation

n

Includes plug and cord (6 ft. nominal)

n

Warranty – 1 year parts and labor

COMES WITH STANDARD ACCESSORIES

n

1 Aluminum Paddle (NGC-1478)

n

1 Bottle Oven Cleaner (103180)

n

1 Bottle Oven Guard (103181)

n

2 Trigger Sprayers (103182)

n

2 PTFE Baskets (NGC-1331)

TM

1. Blower Motors

2. Microwave System

3. Stirred Impinged Air (Top) and Microwave

4. Impinged Air (Bottom)

5. Catalytic Converter

6. Impingement Heater

7. Vent Tube Catalyst

This product conforms to the ventilation recommendations set forth by NFPA96 using
EPA202 test method.

* Smart Voltage Sensor Technology does not compensate for lack of or over voltage situations. It is the

 responsibilityoftheownertosupplyvoltagetotheunitaccordingtothespecicationsonthebackofthissheet.

†

Ventlesscerticationisforallfooditemsexceptforfoodsclassiedas“fattyrawproteins.”Suchfoodsinclude

bone-in, skin-on chicken, raw hamburger meat, raw bacon, raw sausage, steaks, etc. If cooking these types of
foods, consult local HVAC codes and authorities to ensure compliance with ventilation requirements.

Ultimate ventless allowance is dependent upon AHJ approval, as some jurisdictions may not recognize the
UL certification or application. If you have questions regarding ventless certifications or local codes please
email [e-mail]

 TurboChefreservestherighttomakesubstitutionsofcomponentsorchangespecicationswithoutpriornotice.

DOC-1502/Revision B/August 2016

TM

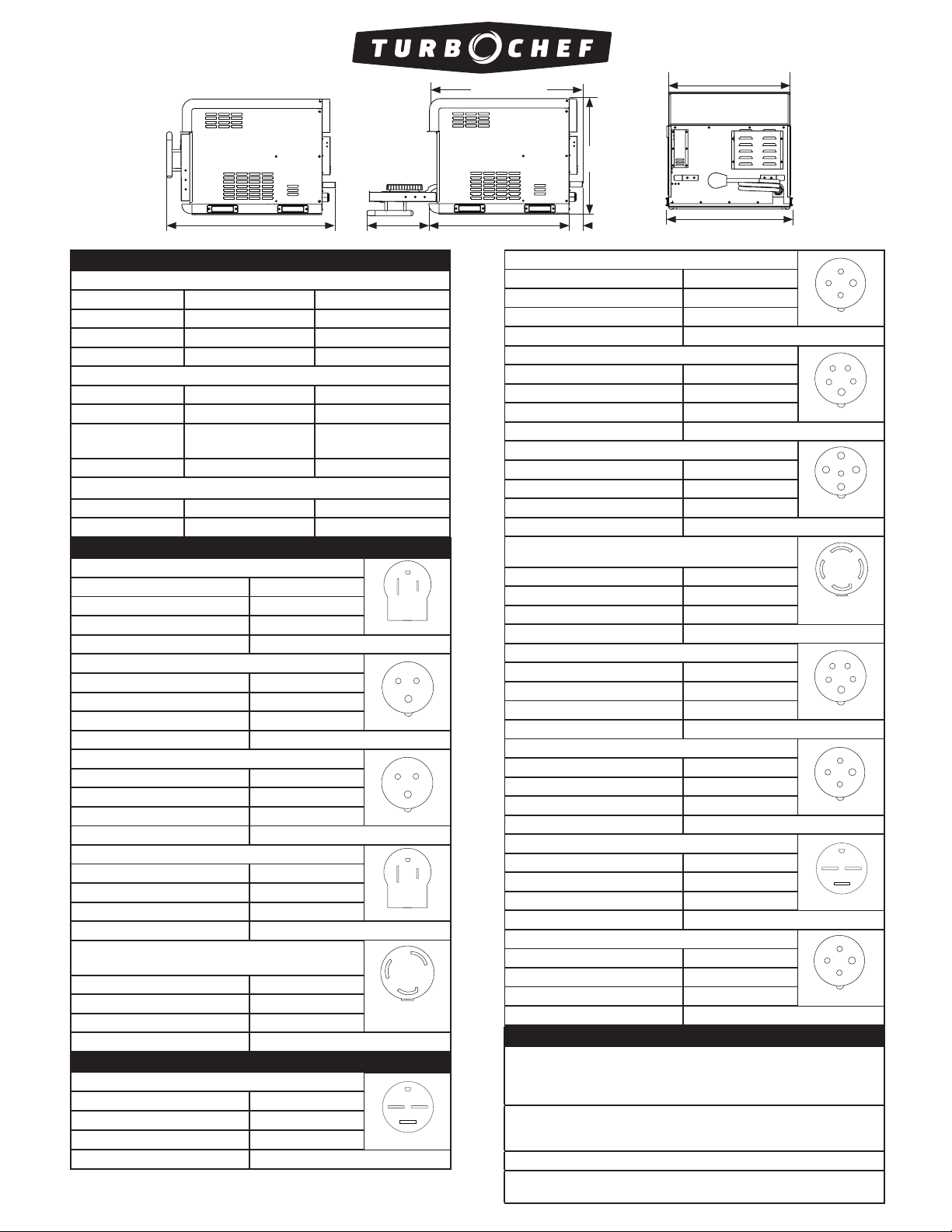

i3 Touch

28.25” (718 mm)

21.25”

(540 mm)

23.5” (597 mm)

PLUG

PLUG

PLUG

31.25” (794 mm)

11.4” (290 mm)

DIMENSIONS

Single Units

Height 21.25” 540 mm

Width 24.5” 622 mm

Depth 31.25” 794 mm

Weight 245 lb. 111 kg

Cook Chamber

Height 6.9” 175 mm

Width 19.4” 493 mm

Depth

(Door Open / Closed)

Volume 1.14 cu.ft. 32.3 liters

Wall Clearance (Oven not intended for built-in installation)

Top 19” 483 mm

Sides 2” 51 mm

14.75” / 12.75” 375 mm / 324 mm

ELECTRICAL SPECIFICATIONSSINGLE PHASE

i3 US Model (i3-9500-401) - United States

Voltage 208/240 VAC

Frequency 60 Hz

Current (Max Circuit Requirement) 40 amp (40 amp)

Max Input 8300/9600 watts

i3 UK Model (i3-9500-402-UK) - United Kingdom

Voltage 230 VAC

Frequency 50 Hz

Current (Max Circuit Requirement) 40 amp (62 amp)

Max Input 9200 watts

i3 BK Model (i3-9500-406-BK) - Brazil

Voltage 220 VAC

Frequency 60 Hz

Current (Max Circuit Requirement) 40 amp (50 amp)

Max Input 8800 watts

i3 LA Model (i3-9500-407-LA) - Latin America

Voltage 220 VAC

Frequency 60 Hz

Current (Max Circuit Requirement) 40 amp (50 amp)

Max Input 8800 watts

i3 JK Model - 50 Hz (i3-9500-408-JK) - Japan

60 Hz (i3-9500-410-JK) - Japan

Voltage 200 VAC

Frequency 50 Hz or 60 Hz

Current (Max Circuit Requirement) 40 amp (40 amp)

Max Input 8000 watts

NEMA 6-50P

IEC 309, 3-pin, 62A

IEC 309, 3-pin, 62A

NEMA 6-50P, 50A

NEMA L6-50, PSE,

3-blade, 50A

ELECTRICAL SPECIFICATIONSMULTI PHASE

i3 DL Model (i3-9500-414-DL) - United States

Voltage 208/240 VAC

Frequency 60 Hz

Current (Max Circuit Requirement) 24 amp (30 amp)

Max Input 8600/9900 watts

TurboChef recommends installing a type D circuit breaker for all installations.
TurboChef reserves the right to substitute components or change specications without notice.

© 2015-2016 TurboChef Technologies, Inc.

NEMA 15-30P, 30A

25.75” (654 mm)

i3 ED Model (i3-9500-403-ED) - International

Voltage 230 VAC

Frequency 50 Hz

Current (Max Circuit Requirement) 24 amp (32 amp)

Max Input 9500 watts

i3 EW Model (i3-9500-404-EW) - International

Voltage 400 VAC

Frequency 50 Hz

Current (Max Circuit Requirement) 14 amp (20 amp)

Max Input 9500 watts

i3 AU Model (i3-9500-405-AU) - Australia

Voltage 400 VAC

Frequency 50 Hz

Current (Max Circuit Requirement) 14 amp (20 amp)

Max Input 9500 watts

i3 JD Model - 50 Hz (i3-9500-409-JD) - Japan
60 Hz (i3-9500-411-JD) - Japan

Voltage 200 VAC

Frequency 50 Hz or 60 Hz

Current (Max Circuit Requirement) 23 amp (30 amp)

Max Input 8000 watts

i3 KW Model (i3-9500-412-KW) - Middle East & Korea

Voltage 400 VAC

Frequency 60 Hz

Current (Max Circuit Requirement) 14 amp (20 amp)

Max Input 9500 watts

i3 SD Model (i3-9500-413-SD) - Middle East & Korea

Voltage 230 VAC

Frequency 60 Hz

Current (Max Circuit Requirement) 24 amp (30 amp)

Max Input 9200 watts

i3 LD Model (i3-9500-415-LD) - Latin America

Voltage 220 VAC

Frequency 60 Hz

Current (Max Circuit Requirement) 24 amp (30 amp)

Max Input 9100 watts

i3 BD Model (i3-9500-416-BD) - Brazil

Voltage 220 VAC

Frequency 60 Hz

Current (Max Circuit Requirement) 24 amp (30 amp)

Max Input 9100 watts

2.5” (64 mm)

24.5” (622 mm)

SHIPPING INFORMATION

U.S.: All ovens shipped within the U.S. are packaged in a double-wall corrugated
box banded to a wooden skid.
International: All International ovens shipped via Air or Less than Container Loads
are packaged in wooden crates.

Box size: 34” (L) x 30” (W) x 32” (H) / 864 mm x 762 mm x 813 mm
Crate size: 37” (L) x 33” (W) x 34” (H) / 940 mm x 838 mm x 864 mm
Item class: 110 NMFC #26710 HS code 8419.81

Boxed weight: 290 lb. (132 kg) Crated weight: 365 lb. (166 kg)

Minimum entry clearance required for box: 30.5” (775 mm)
Minimum entry clearance required for crate: 33.5” (851 mm)

IEC 309, 4-pin, 32A

IEC 309, 5-pin, 20A

Clipsal, 5-pin, 20A

NEMA L6-50, PSE

4-blade, 30A

IEC 309, 5-pin, 20A

IEC 309, 4-pin, 32A

NEMA 15-30P, 30A

IEC 309, 4-pin, 32A
