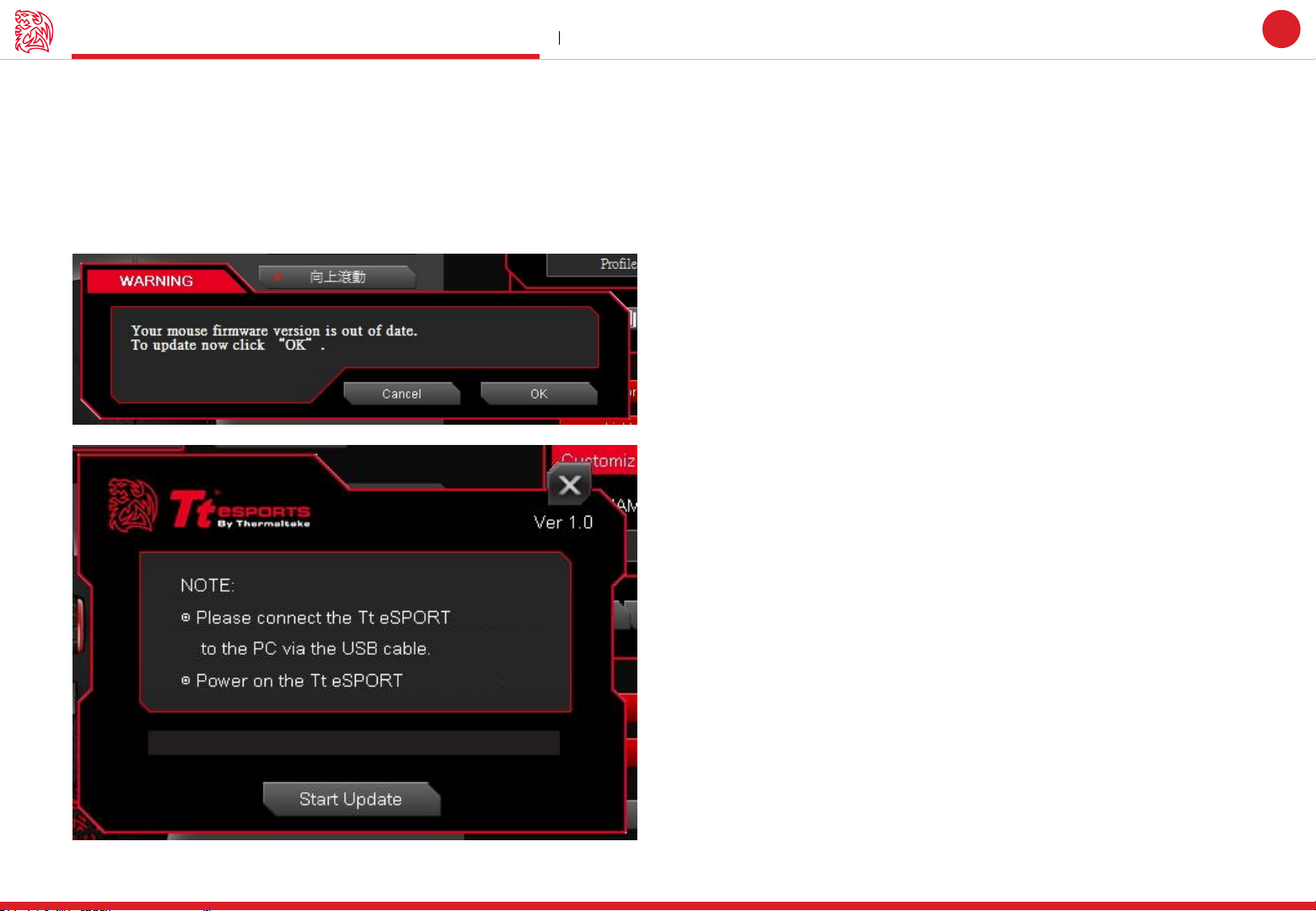

Firmware Update
How to Update Firmware
--------------------------------------- 27
--------------------------------------- 28
Page 3
CONTENT ONE
Main Interface
GUI Software User Guide Tt eSPORTS | BLACK V2
Page 4
Main Main Interface
Reset / Register / Guide / Close
Reset : Reset all setting
Register : Register as Tt eSPORTS’s follower and receive updates from Tt eSPORTS via E-mail.
Guide : Configuration software manual
Close : Close Tt eSPORTS BLACK V2 GUI Software
Challenger is the Game
Tt eSPORTS | BLACK V2
GUI Software User Guide
Page : 02
01
Page : 04
Switch Normal/Battle Mode
The light frame indicates the Mode
(Normal/Battle) you have selected
Page : 05
Key Assignment
Assign function to each button
Apply / Cancel / OK
Apply: Click Apply after completing profile setting and it will import setting into BLACK V2
Cancel: Click Cancel if you wish to cancel the setting
OK: Click OK after setting has been completed
Profile
BLACK V2 has 5 profiles setting .
Now you can turn on or turn off
profile on your command.
Profile / Macro Manager
Profile Manager:
Naming / Changing Profile and
add / delete / duplicate / import /
export profile.
Macro Manager:
Page : 02
Page : 17
Performance / Light /
Link to Program
Performance :
Adjust BLACK V2’s
DPI / Polling Rate / Lift-off
Light Option :
Change BLACK V2 light
Link to Program:
Set a program and BLACK V2 will
turn on Profile automatically if you
launch the particular program
Page : 23
Page : 27
Page : 03
Page 5
Challenger is the Game
Profiles Main Interface
Tt eSPORTS | BLACK V2
GUI Software User Guide
Tt eSPORTS 2015 New GUI
Tt eSPORTS unveils the new GUI Software in 2014. Many feedbacks from gamers received and we noted all suggestions and experiences from
gamers. In 2015, Tt eSPORTS launches an enhanced version of GUI. The software has been improved, user-friendly for everyone and can
disable profile if you don’t need it. Turn on / off Profile is one of Tt eSPORTS’s new GUI feature and this allow gamers to switch profile quickly
with just one click!
We believe Less is More.
Switch to Profile
Choose the Profile you wanted to change to
Turn On or Turn Off Profile
Click the BLUE BOX to enable/disable:
Turn On - Light Blue Box
Turn Off - Grey Blue Box
02
Naming Profile
Click the field [NAME Profile_1] to name the profile
Manage Profile
Click the Triangle icon to see all profiles created
Macro Setting
Click Macro Setting for Macro Advanced Settings
Create / Delete / Duplicate / Import / Export Profile
Page 6
Link to Program Main Interface
Tt eSPORTS | BLACK V2
Sync Profile with Game
Do you ever feel frustrated or forget to switch profile manually while you were in game?
Now, with Tt eSPORTS 2015 new GUI, profile can be automatically switched once you launches a game or a program.
No more frustration and no more fail to remember. Auto Sync Profile with Game now!
Link to Program
Turn On or Turn
Turn ON - RED : Automatically turn ON with the pre-set program when it is enabled (A program has to be assigned beforehand)
Turn OFF – GREY : Will not turn ON with the pre-set program when it is disabled (A program has to be assigned beforehand)
Assign Program (Profile will enabled automatically once the program has been launched)
Click the [LINK TO PROGRAM] button and system will pop out a file browser for you to choose which program you want to assign.
Turn Off
Challenger is the Game
GUI Software User Guide
03
Turn On
Page 7
Challenger is the Game
Normal / Battle Mode Main Interface
Tt eSPORTS | BLACK V2
GUI Software User Guide
Light Effect into Game
Tt eSPORTS develop a fancy light effect. Just switch the mode and you can experience a different sensation in your place.
When you are in Battle Mode, higher A.P.M (Action Per Minute) will have a higher frequency flashes, while in lower A.P.M, the flash frequency
decreases. This make BLACK V2 a gaming weapon that will enhance your gaming experience!
Normal Mode
In Normal Mode
Scroll Wheel lights up.
Tt Dragon light with Pulse-break lighting effect.
Two lights can turn on or off independently.
Battle Mode
In Battle Mode light flash frequency depend on current A.P.M
Scroll Wheel with Pulse-break lighting effect.
Tt Dragon light with Pulse-break lighting effect.
04
Once mode switched to Battle Mode, reminder as below will pop up:
Page 8
Key Assignment Main Interface
Tt eSPORTS | BLACK V2
Customization for each of BLACK V2’s button
Each BLACK V2’s button can be customized as your preferred, even the Scroll Wheel’s function can be changed!
Customize it and make the BLACK V2 your very own ultimate weapon to conquer!
BLACK V2 Can Do More than You Expect!
Buttons Configuration
Click on each button to change its function (See right picture)
Click each button to assign functions.
Key Assignment
Challenger is the Game
GUI Software User Guide
05
Page 9
Challenger is the Game
Key Assignment Main Interface
Tt eSPORTS | BLACK V2
GUI Software User Guide
6 Key Functions to be Assigned!
Each of buttons of BLACK V2 can be assigned by six function (Default / Macro(T Key) / Single Key / Sensitivity / Launch Program /
Disable).
06
Default :
Macro(T Key) :
Single Key :
Sensitivity :
Launch Program :
Disable :
All buttons function will be set as default setting. ( i.g : Left button as the Click action)
Assign macro that has been recorded from Macro Manager.
Set be mouse click function or keyboard per key signal.
Change DPI function there are 5 mode can be selected.
Launch the pre-set program directly
Disable button (No signal no function)
Page 10
Challenger is the Game
Key Assignment Main Interface
Tt eSPORTS | BLACK V2
GUI Software User Guide
Default
BLACK V2 has its own pre-configured functions, which is the default. If you wanted to change back to the default setting, you can just
choose Default and it will be changed back to the pre-configured functions.
07
Page 11
Key Assignment Main Interface
Macro (T Key)
T Key is the Macro key that you programmed.
Challenger is the Game
Tt eSPORTS | BLACK V2
GUI Software User Guide
08
Assign macro
Select a programmed macro that already recorded from Macro Manager (Macro record detail, see Page 17)
Repeat
Customize the times that you want to have the macro repeats..
Once :
Multiple Times :
When press & hold :
Until press next time :
Macro will repeat once.
Macro will repeat depends on the repeat count set.
Macro will keep repeating while pressing and holding.
Macro will start repeating when you click and stop unless you click again
Page 12
Key Assignment Main Interface

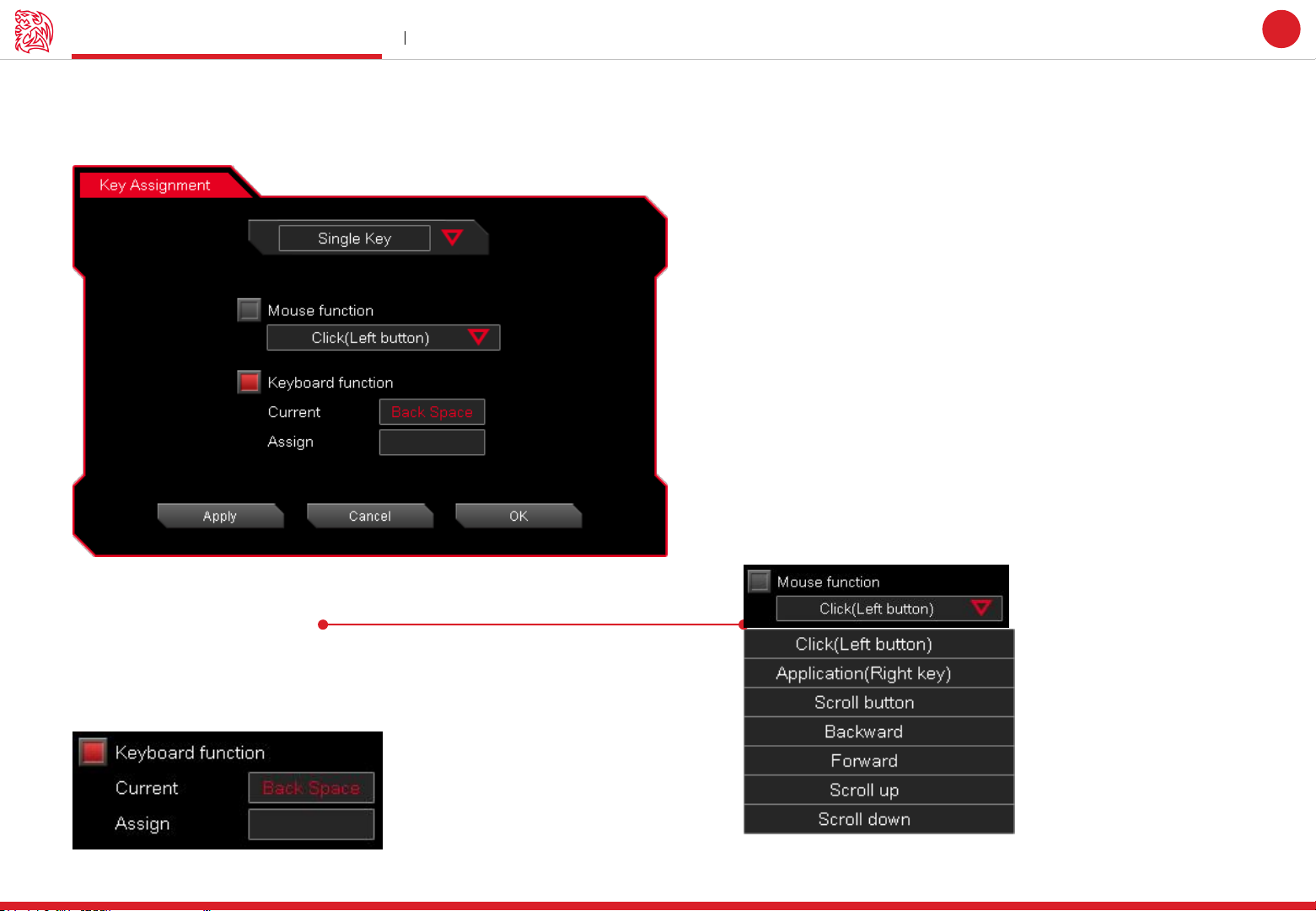

Single Key
Set only one key per button (function can be chose from mouse or keyboard function)
Challenger is the Game
Tt eSPORTS | BLACK V2
GUI Software User Guide
09
Mouse function
Mouse Function include left picture.
Keyboard function
You can type any keyboard signal into mouse button.
(i.g : If you set “Space” as one of the button, when you click on the button, it will act as “Space”)
Page 13
Key Assignment Main Interface
Sensitivity
Adjust DPI sensitivity, there are 5 different modes to change DPI.
Challenger is the Game
Tt eSPORTS | BLACK V2
GUI Software User Guide
10
Five different Mode to change DPI as below
Page 14
Challenger is the Game
Key Assignment Main Interface
Tt eSPORTS | BLACK V2
GUI Software User Guide

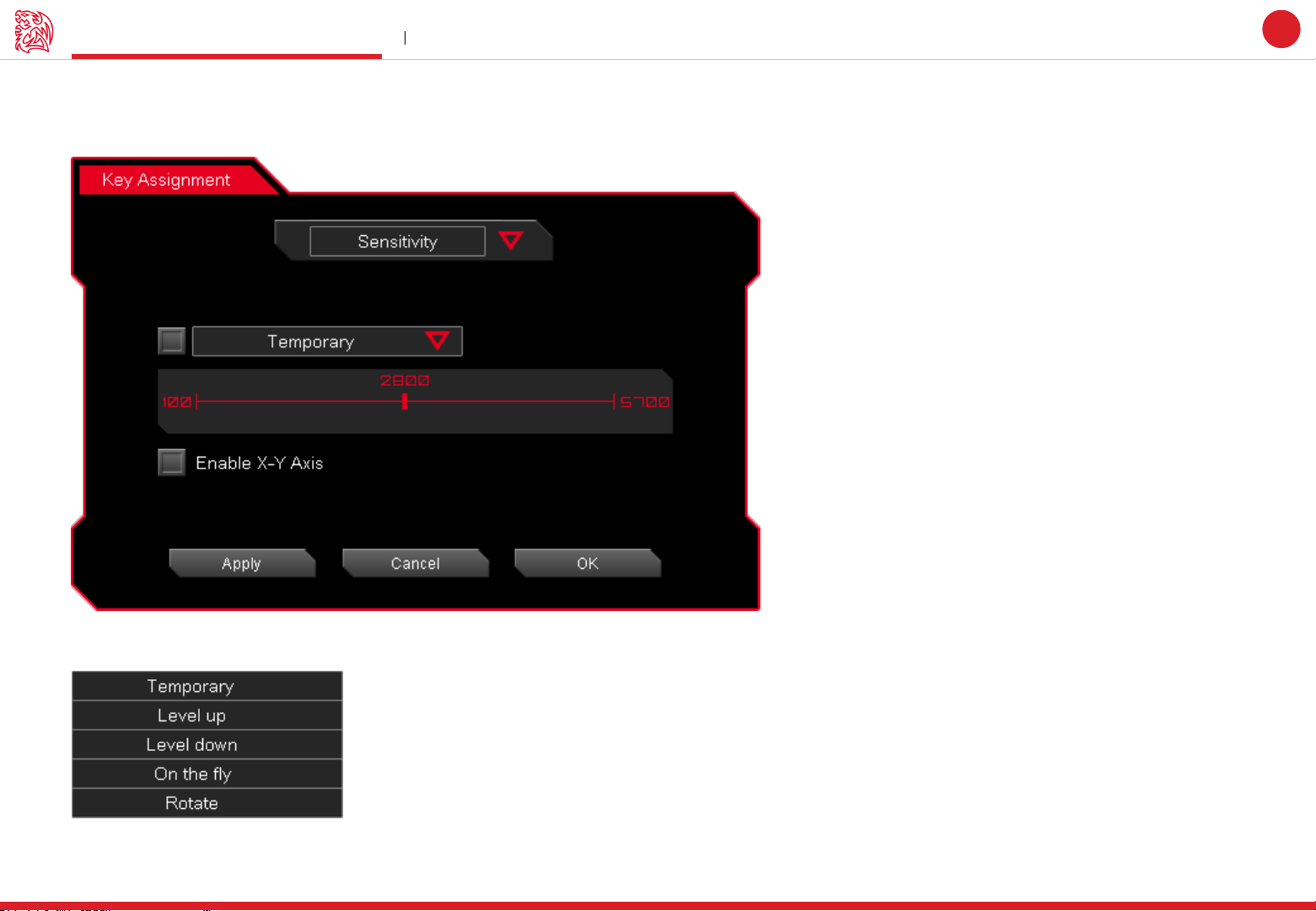

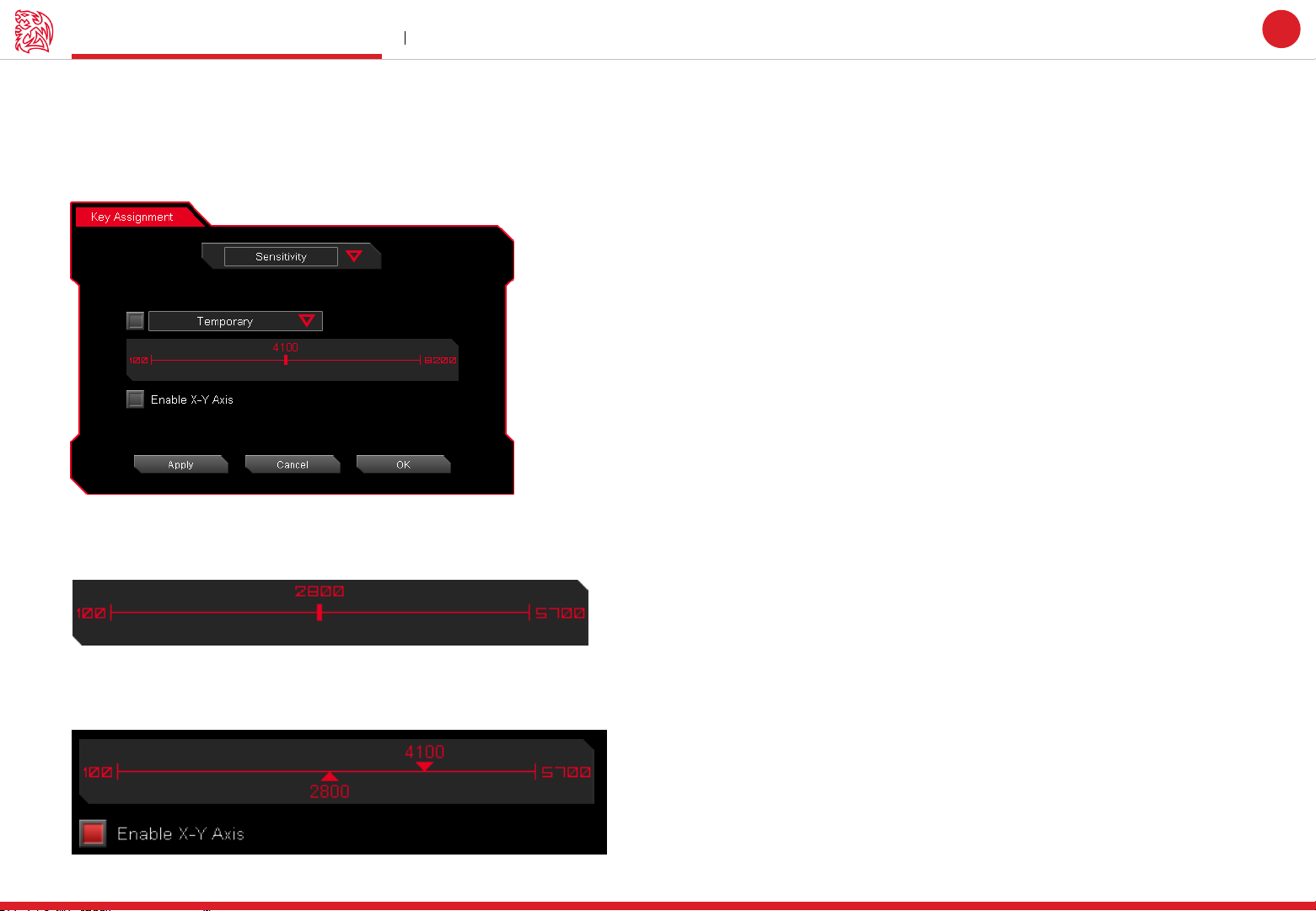

Sensitivity - Temporary Mode
Once DPI level has been set, pre-set DPI will start when you HOLD the button, pre-set DPI will stop and back to the original DPI once you
RELEASE the button.
11
Temporary DPI
Drag the RED point on the line to adjust DPI.
Enable X-Y Axis
Setting X (Horizontal movement) and Y (Vertical movement) to have different DPI.
Page 15
Key Assignment Main Interface

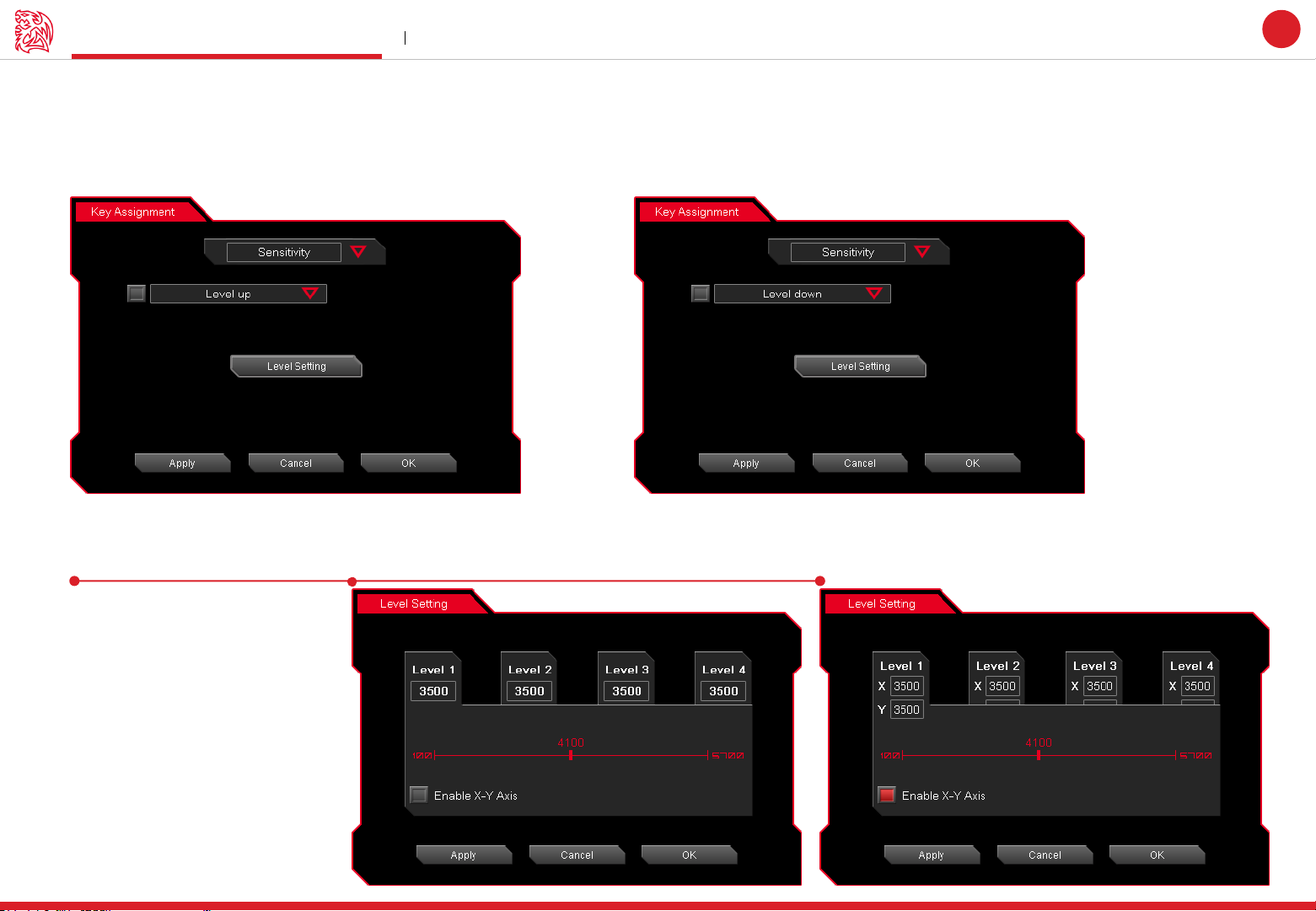

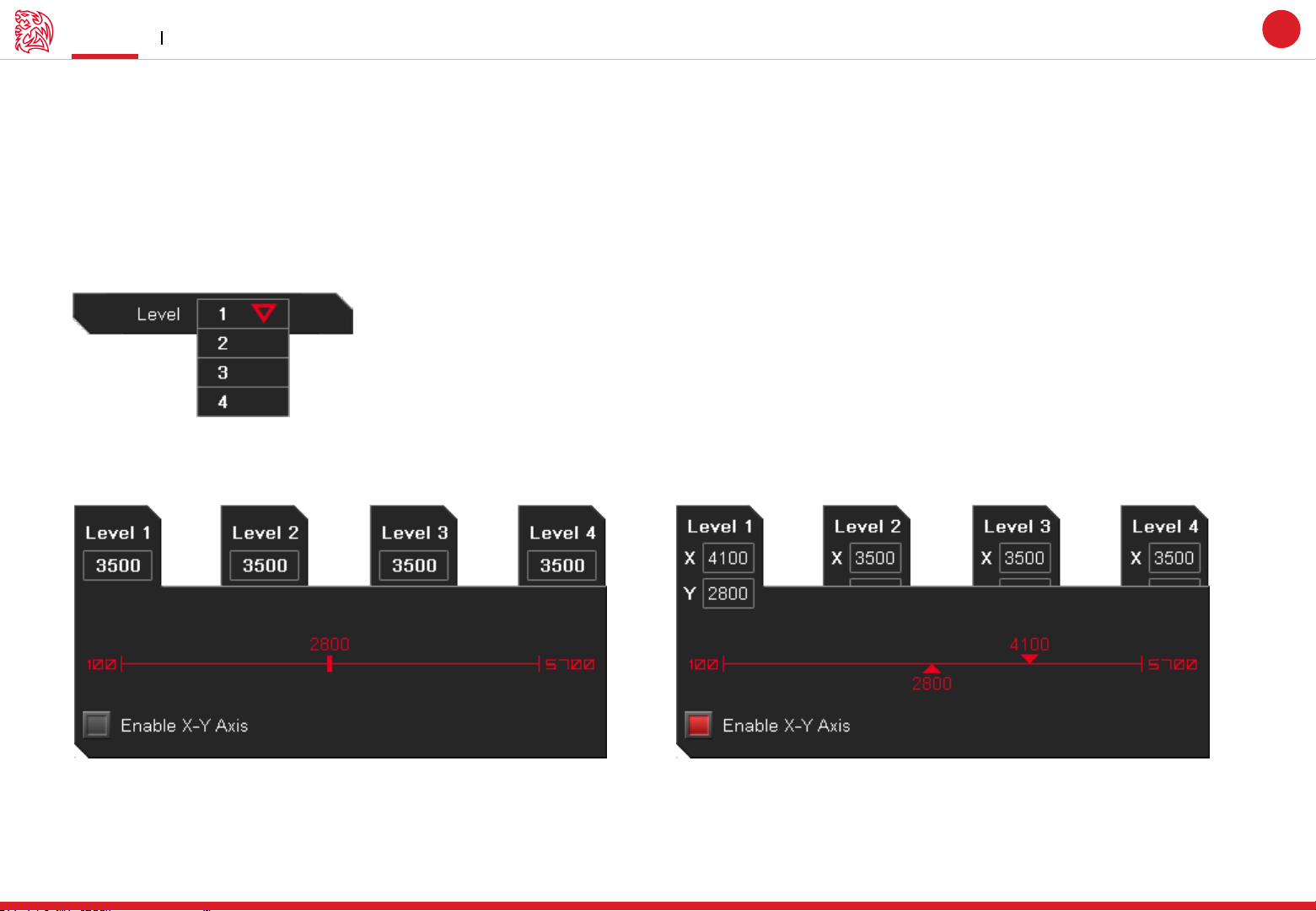

Sensitivity - Level Up / Level Down
Setting Four Levels of DPI and change DPI by clicking the button.
Note: DPI level will not be cycling back to the first level when it reaches the last DPI
Challenger is the Game
Tt eSPORTS | BLACK V2
GUI Software User Guide
12
Level Up
Click the Level Setting button to set the DPI level
Level Setting
Click to manage DPI levels.
You can choose to enable the
sensitivity for X-Y Axis too.
Level Down
Click the Level Setting button to set the DPI level
Page 16
Challenger is the Game
Key Assignment Main Interface
Tt eSPORTS | BLACK V2
GUI Software User Guide

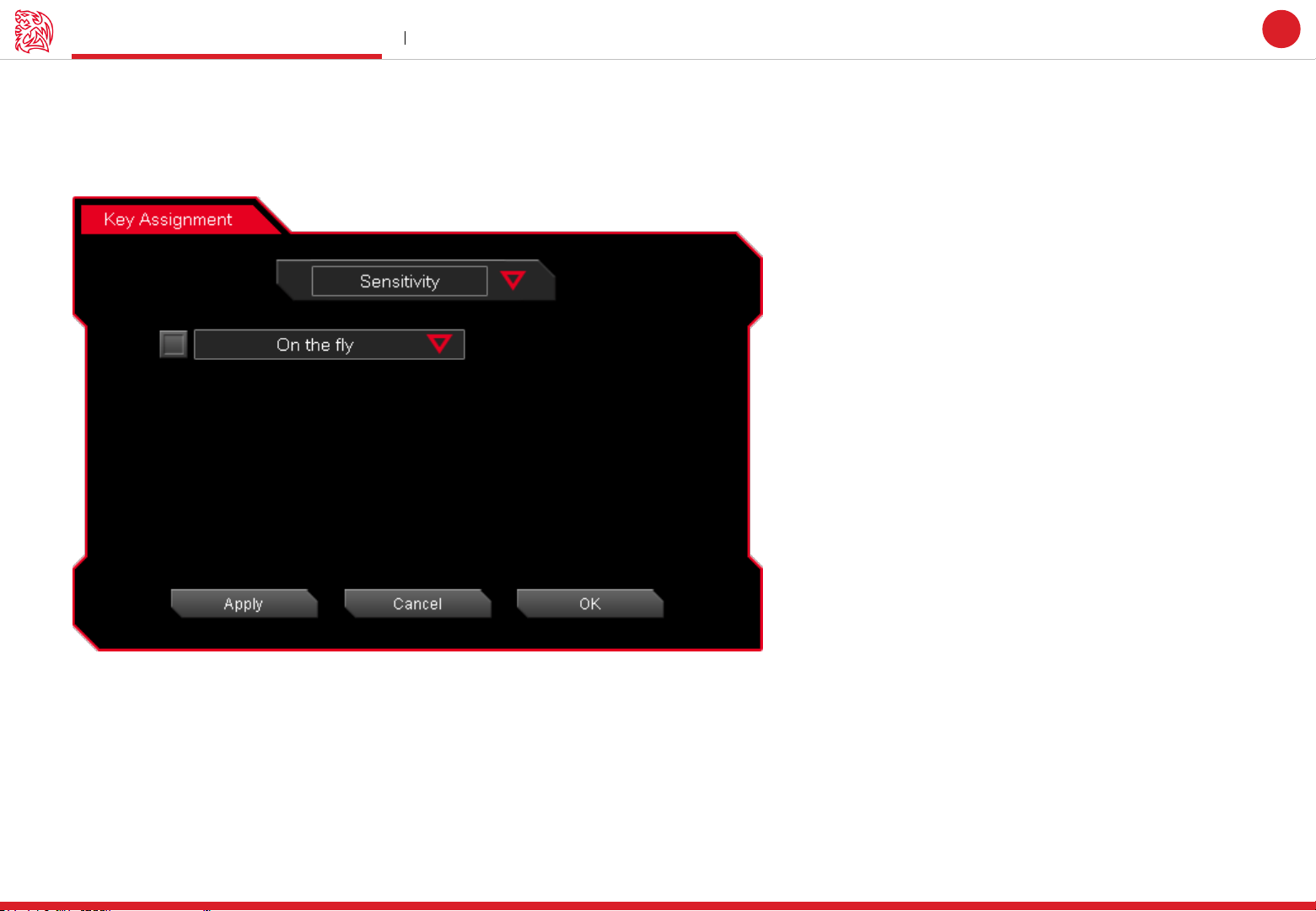

Sensitivity - On The Fly
Adjusting DPI level on the fly. You can set sensitivity by holding the assignment button and scroll up or down to adjust. So you don’t need
to go through GUI to change your DPI.
13
Page 17
Key Assignment Main Interface

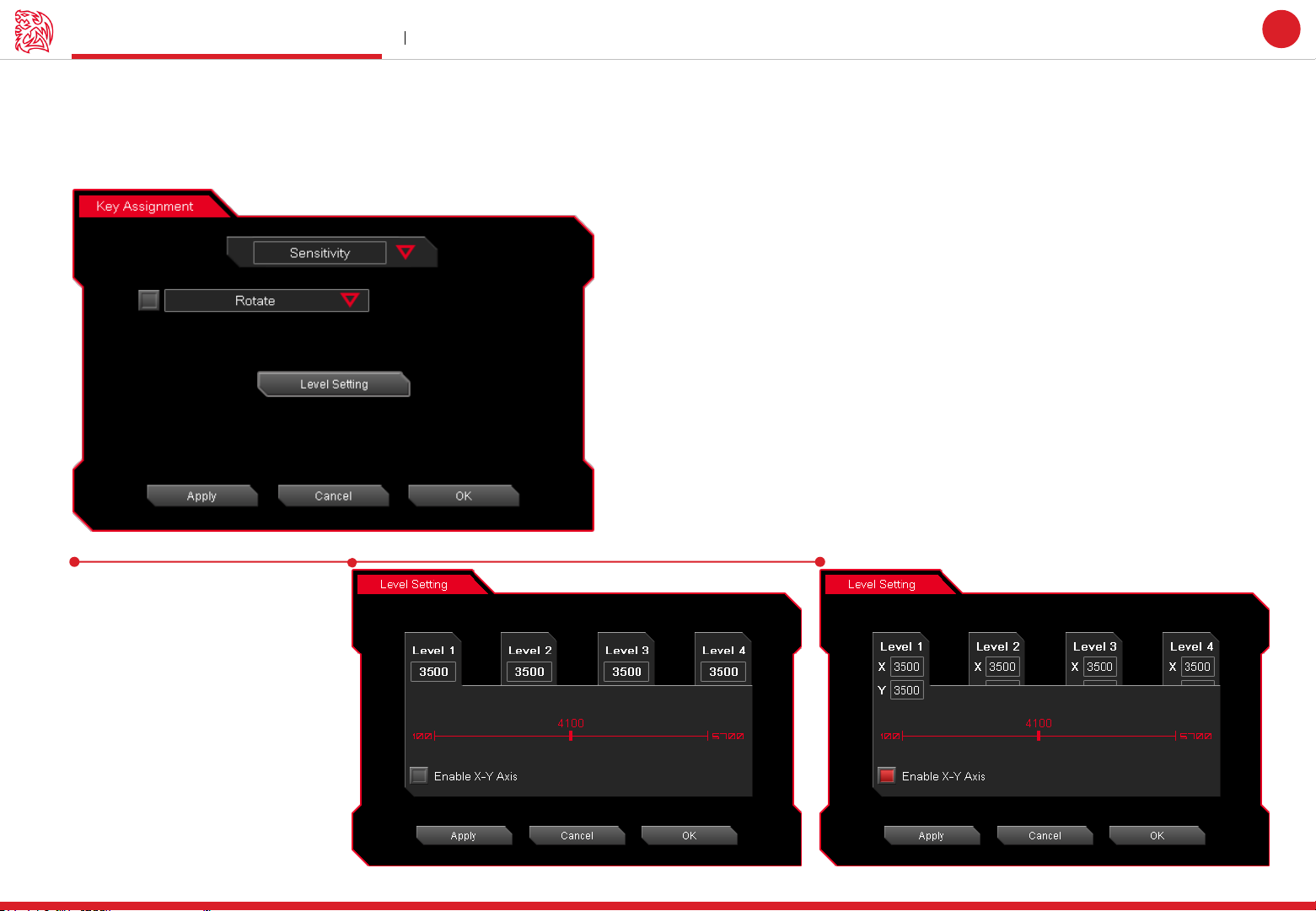

Sensitivity - Rotate
DPI level will cycle back to the first level when it reaches the highest DPI.
Challenger is the Game
Tt eSPORTS | BLACK V2
GUI Software User Guide
14
Level Setting
Click to manage DPI levels.
You can choose to enable the
sensitivity for X-Y Axis too.
Page 18
Key Assignment Main Interface
Tt eSPORTS | BLACK V2

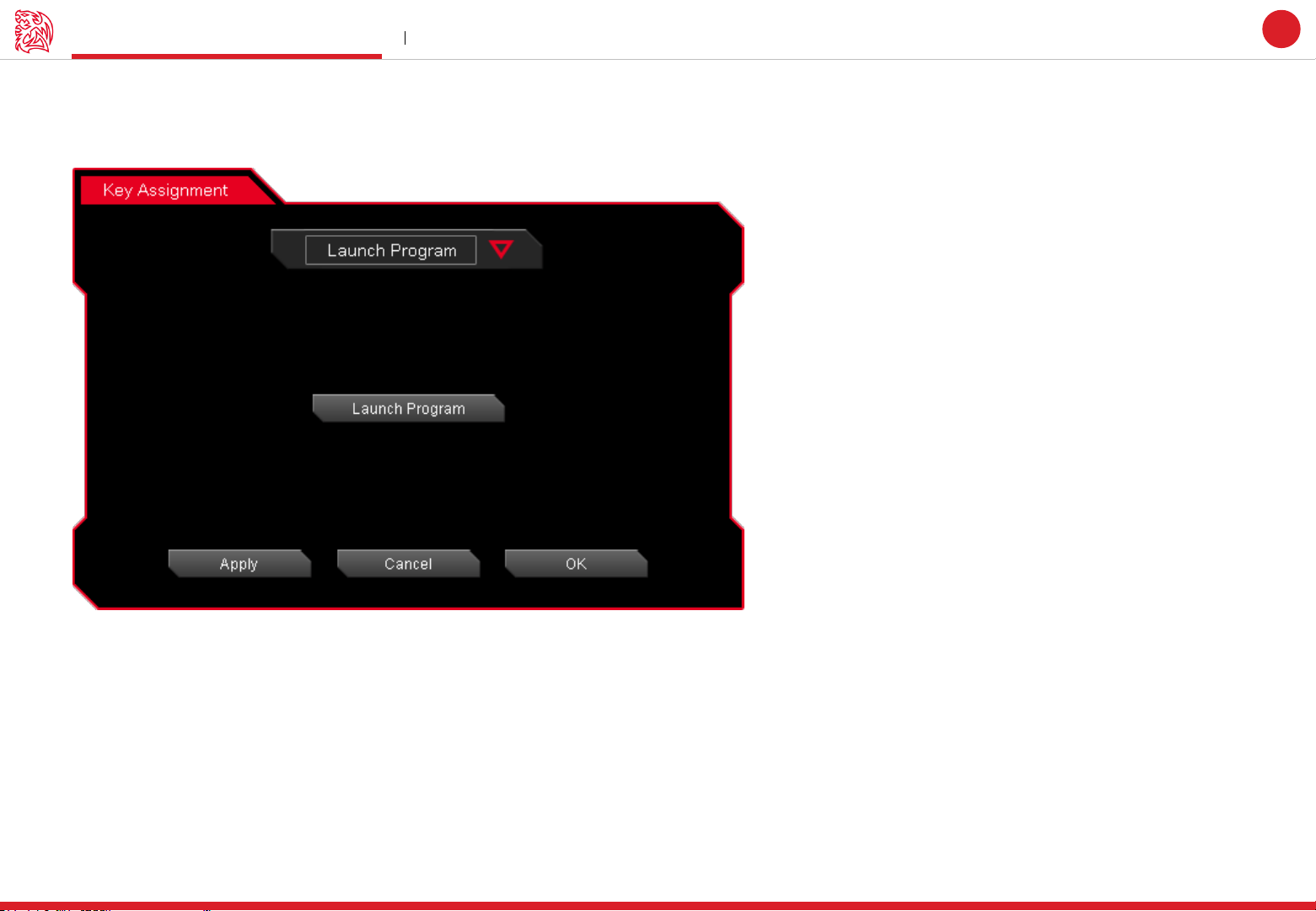

Launch Program
Pre-set a program and the program will showed up whenever you click on the button that has been programmed.
Challenger is the Game
GUI Software User Guide
15
Launch Program button
Click the Launch Program button and system will pop out file manager for you to choose the program that you want to launch.
Page 19
Key Assignment Main Interface

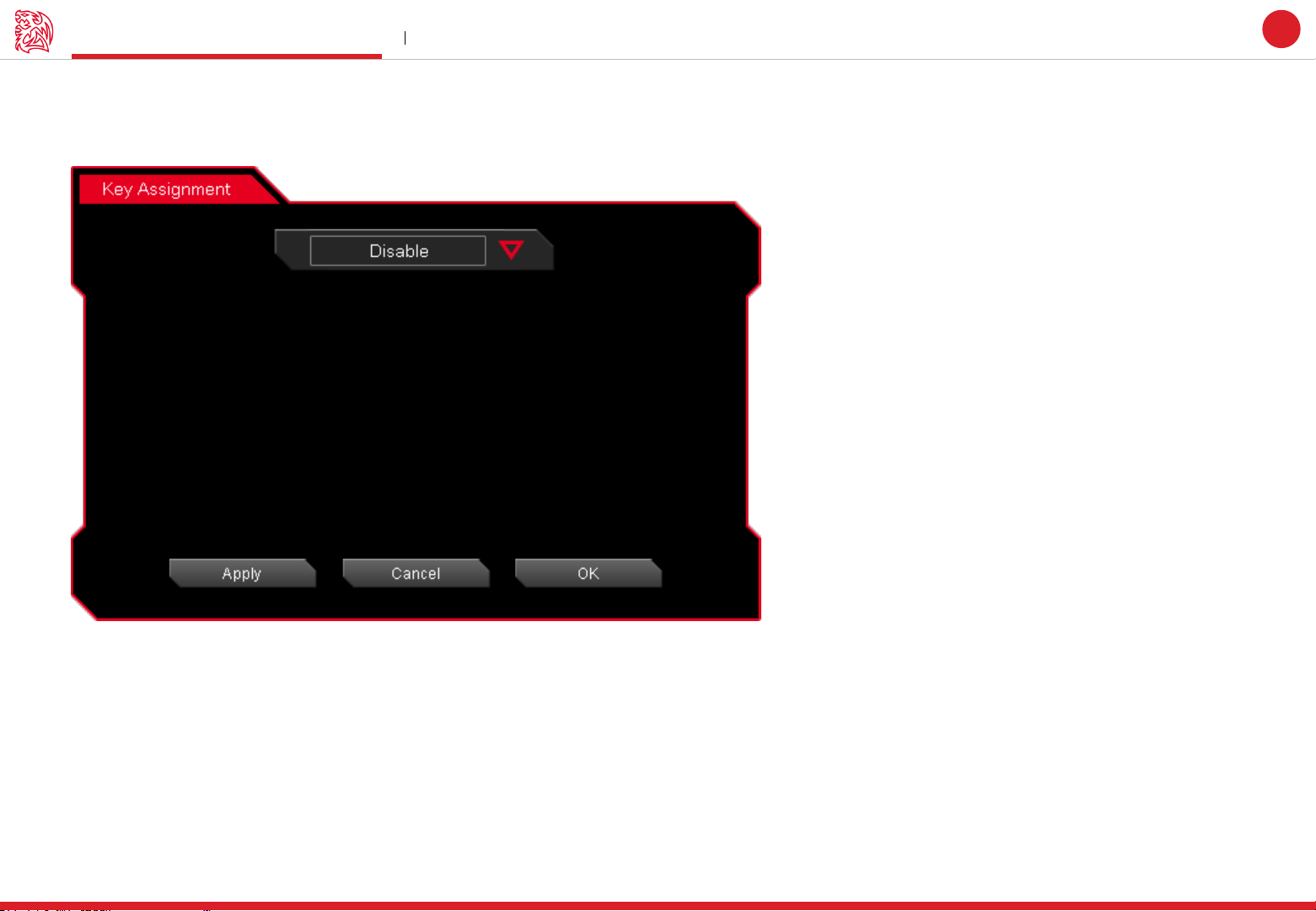

Disable
Choose “Disable” if you do not want the button have any function for particular buttons.
Challenger is the Game
Tt eSPORTS | BLACK V2
GUI Software User Guide
16
Page 20
CONTENT TWO
Macro Setting
GUI Software User Guide Tt eSPORTS | BLACK V2
Page 21

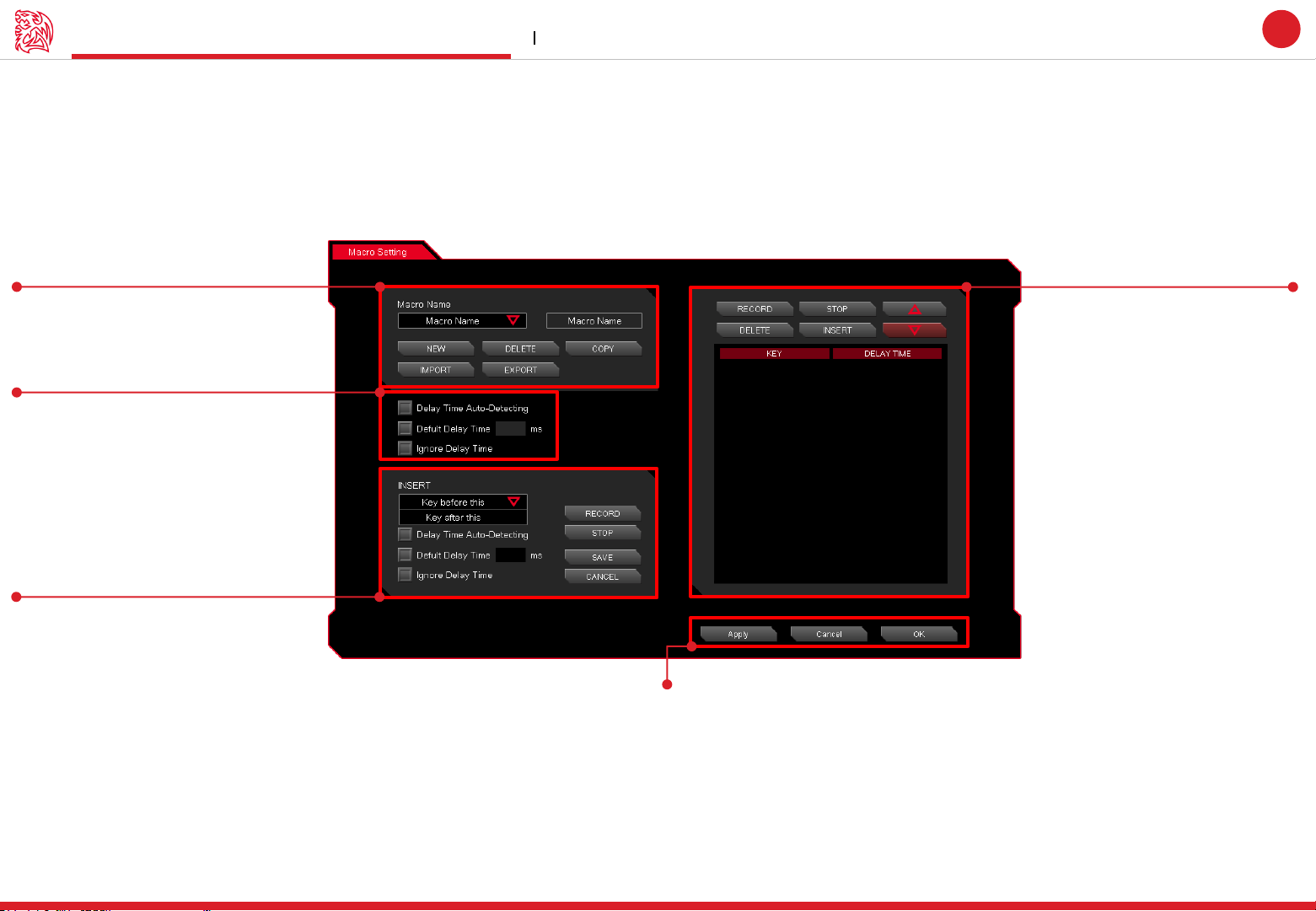

Macro setting Interface Macro Setting
Challenger is the Game
Tt eSPORTS | BLACK V2
GUI Software User Guide
17
Page : 18
Macro Manager
Create / Delete / Copy / Import / Export
Macro and Modifying Macro Name.
Page : 19
Macro Record Setting
3 selections for delay time
Page : 22

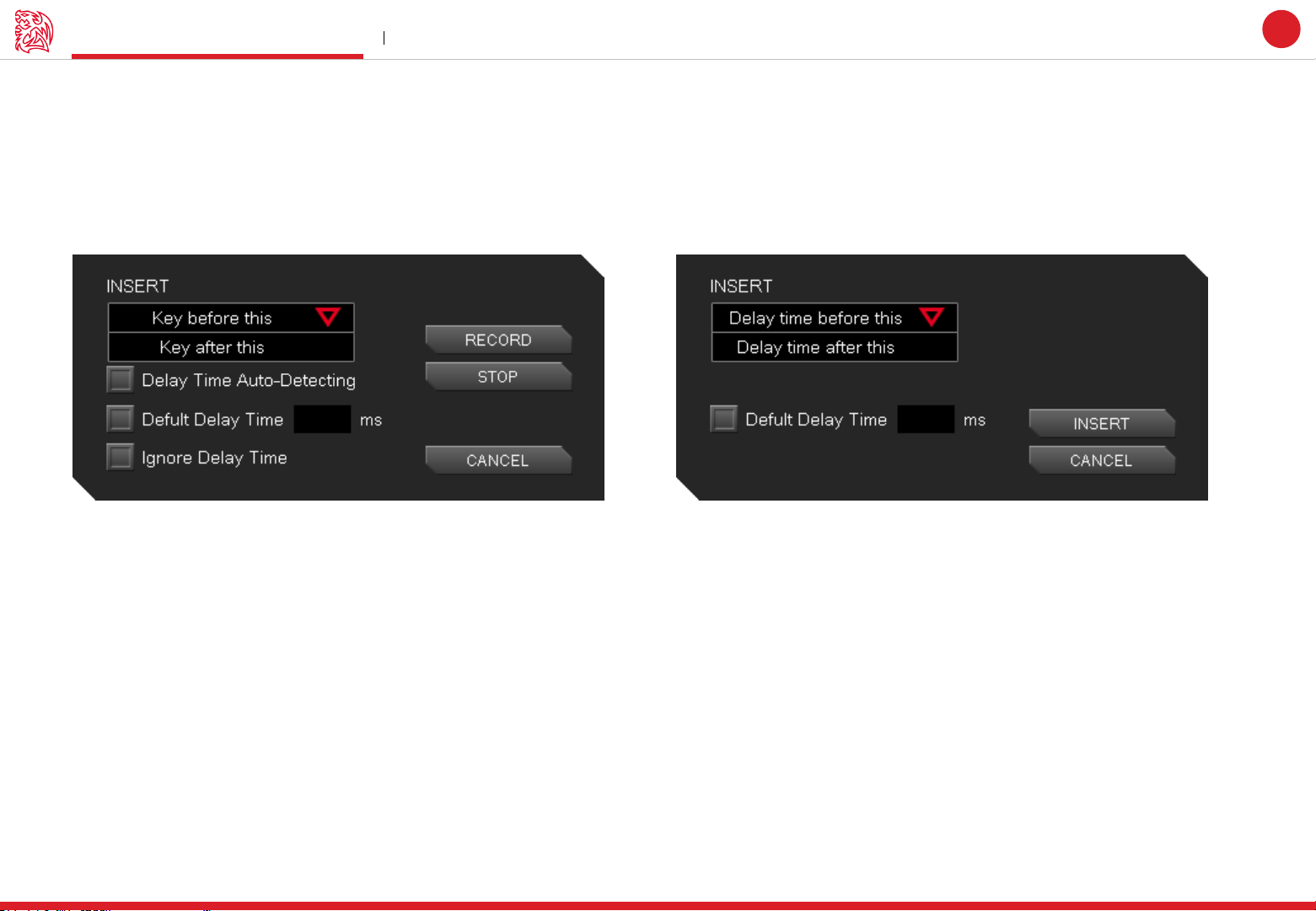

Insert function
Here are many function let you insert
time or modify it. If you want to insert
time or modify program that already set.
Page : 20

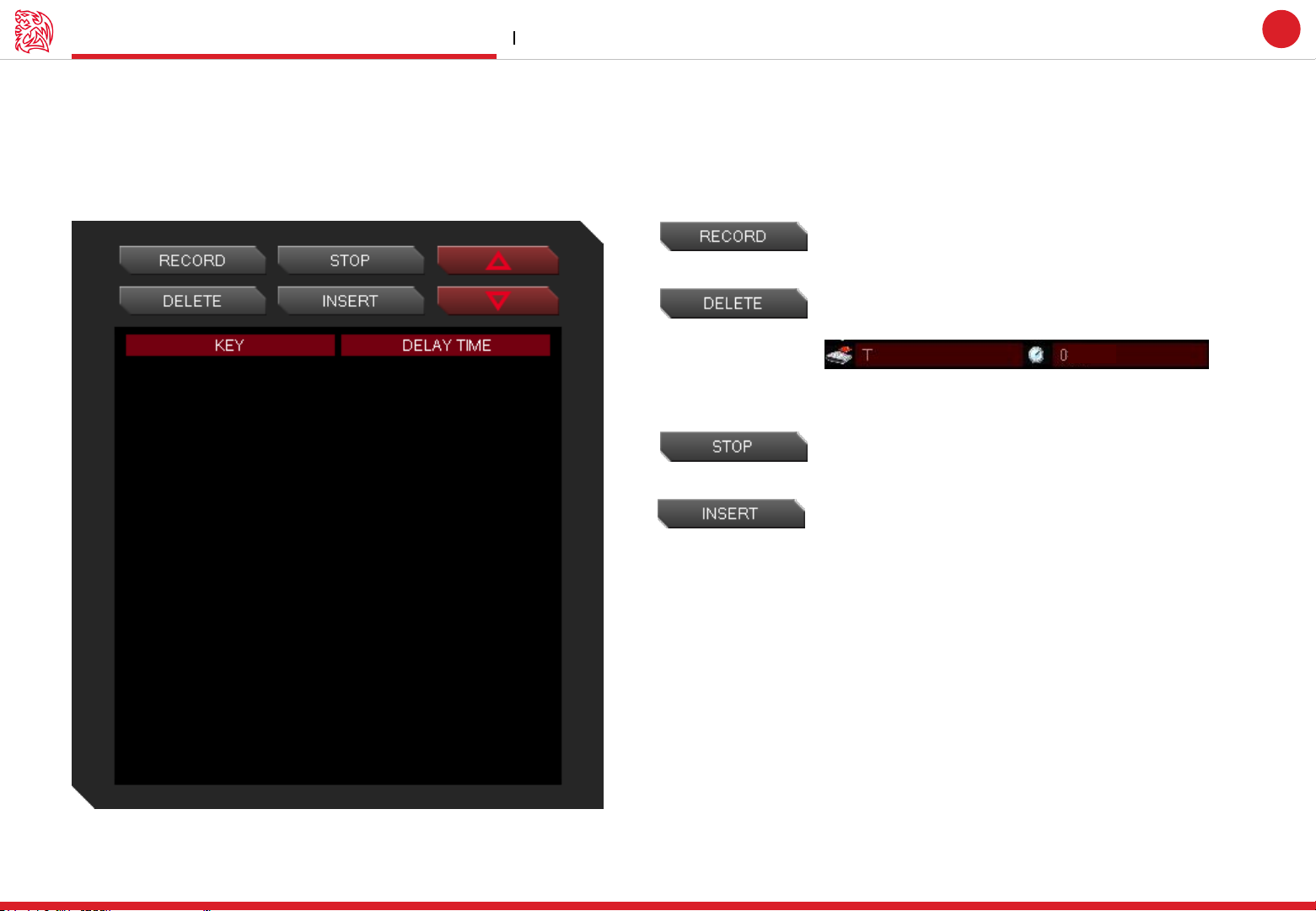

Record Macro Timeline
Record program here.
Apply / Cancel / OK
APPLY: Click Apply when Macro Setting completed
CANCEL: Click Cancel to cancel the setting
OK: Click OK after Macro Setting has been fully completed
Page 22
Macro Manager Macro Setting

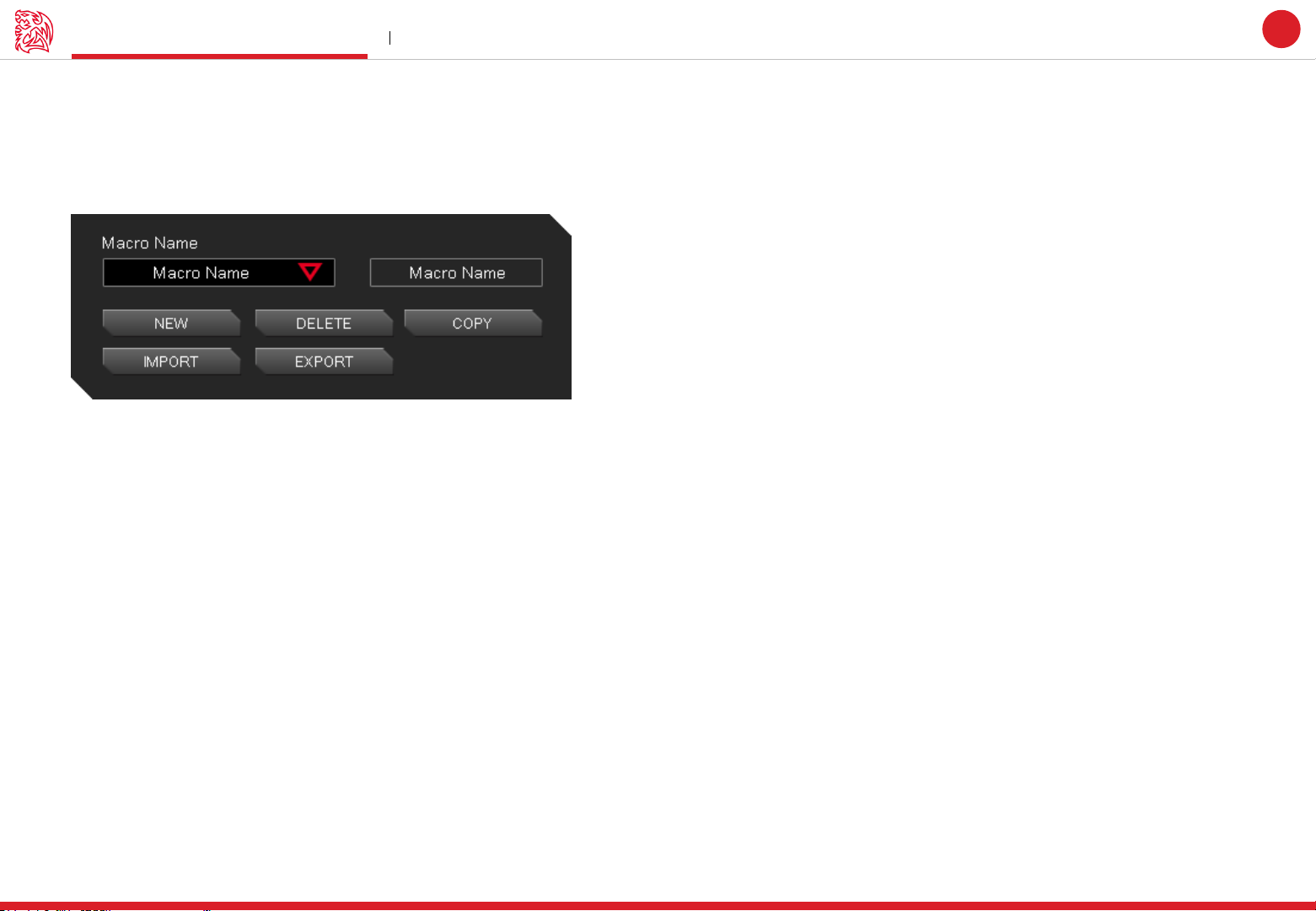

Macro Manager
Macro manager allows you to create, delete, copy, import and export a profile.
Manage Macro
NEW / DELETE / COPY / IMPORT / EXPORT macro
NEW - Create a new Macro
DELETE - Delete existing macro
COPY - Duplicate an existing macro into a new macro.
IMPORT - Import a macro that has been exported
EXPORT - Export macro into a file.
Naming Macro
You will need to click on the box to change the name for the macro
Challenger is the Game
Tt eSPORTS | BLACK V2
GUI Software User Guide
18
Page 23
Macro record setting Macro Setting
Macro Record Setting
3 selections provided for you to choose for setting the Delay Time.
Macro Delay Time Setting
Delay Time Auto-Detecting : Delay time depend on the time you set the key at.
Default Delay Time ___ ms : Delay time depend on the preferred time set.
Ignore Delay Time : No delay time between key signal.
Challenger is the Game
Tt eSPORTS | BLACK V2
GUI Software User Guide
19
Page 24
Macro record timeline Macro Setting
Macro Record Timeline
Allow you to program your macro as preferred.
Challenger is the Game
Tt eSPORTS | BLACK V2
Record program : Click Record to start recording via your
keyboard or mouse and all signal will be recorded on this
timeline.
Delete signal : Choose the recorded signal that you wish to
delete (Once signal has been chosen, the background will turn
RED as below picture)
Click Delete and the selected signal will be removed.
Stop program : Click Stop whenever recording has been
completed.
Insert signal : Click Insert to modify/ insert signal to existing
recorded signal.
GUI Software User Guide
ms
20
Page 25
Macro record timeline Macro Setting
Tt eSPORTS | BLACK V2
Macro Record Timeline
Once Macro Name and Recording have been completed, you can proceed to programming your macro now.
Switch signal up or down

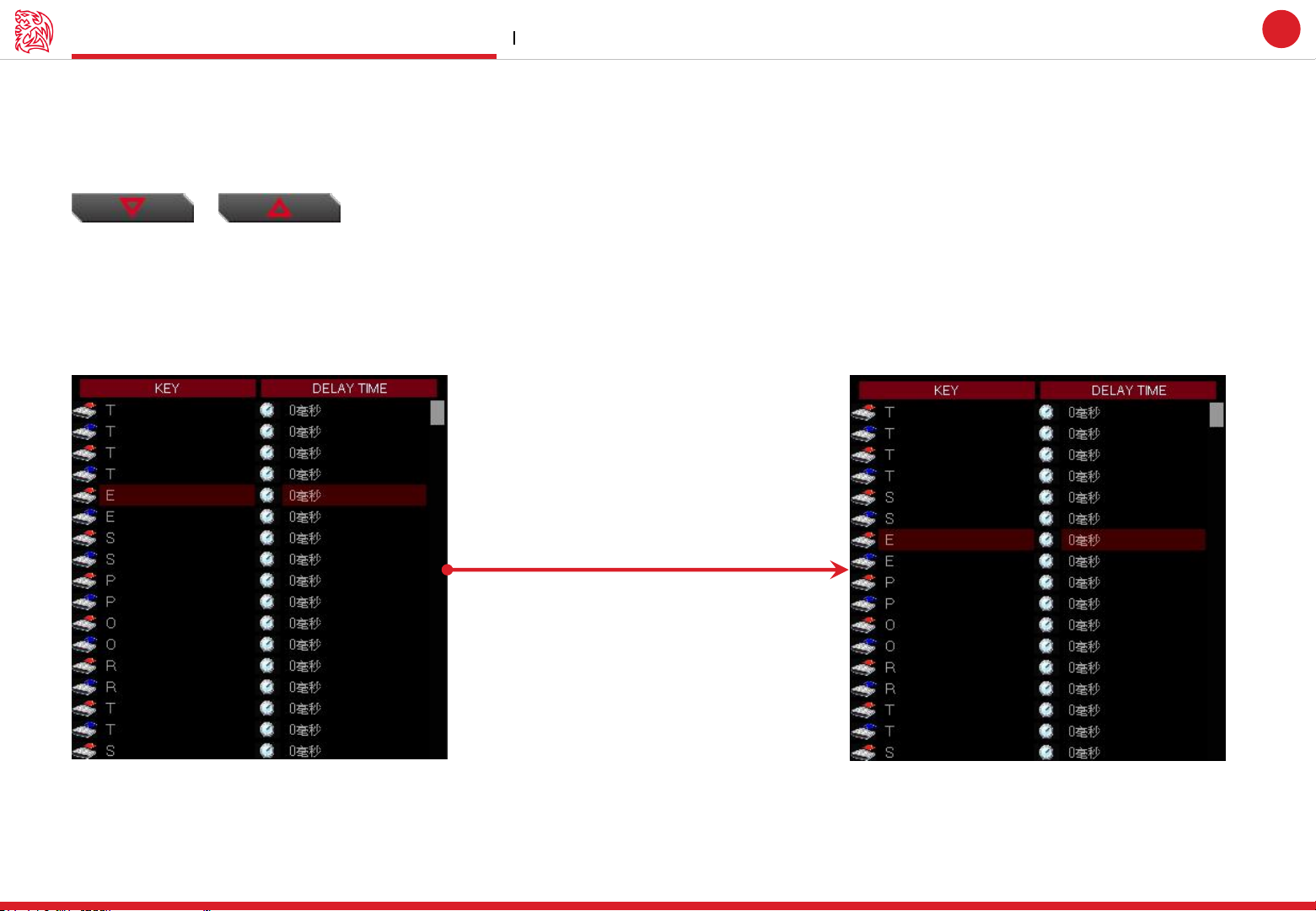

Select the signal and click Up/ Down to rearrange the recorded signals
Note : Please be careful while arranging the “Press” & “Release” signal
Challenger is the Game
GUI Software User Guide
21
Choose “E” and press “UP” or “ DOWN” to arrange
Page 26
Challenger is the Game
Insert Function Macro Setting
Tt eSPORTS | BLACK V2
GUI Software User Guide
Insert Delay Time or Signal between Key signal
If you want to modify or insert Delay time and Key signal to the programmed macro, please click the INSERT button to modify the
programmed macros.
22
Insert Key Signal before and after
Insert key signal in macros that already programmed.
First : Choose a key that you want in Macro Timeline
Second : Click the INSERT button.
Third : Select Insert Function [Key before this] or [Key after this].
Fourth : Select Delay Time mode.
Fifth : Click RECORD button and record the macro you wanted to modify.
End : Click STOP to complete
Insert Delay Time
Insert Delay Time in macros that already programmed
First : Choose a key that you want in Macro Timeline
Second : Click the INSERT button.
Third : Select Insert Function [Delay time before this] or [Delay time after this].
Fourth : Fill in the time for [Default Delay Time __ ms] that you want to Delay.
Fifth : Click INSERT to change the delay time.
Page 27
CONTENT THREE
Performance Setting
GUI Software User Guide Tt eSPORTS | BLACK V2
Page 28

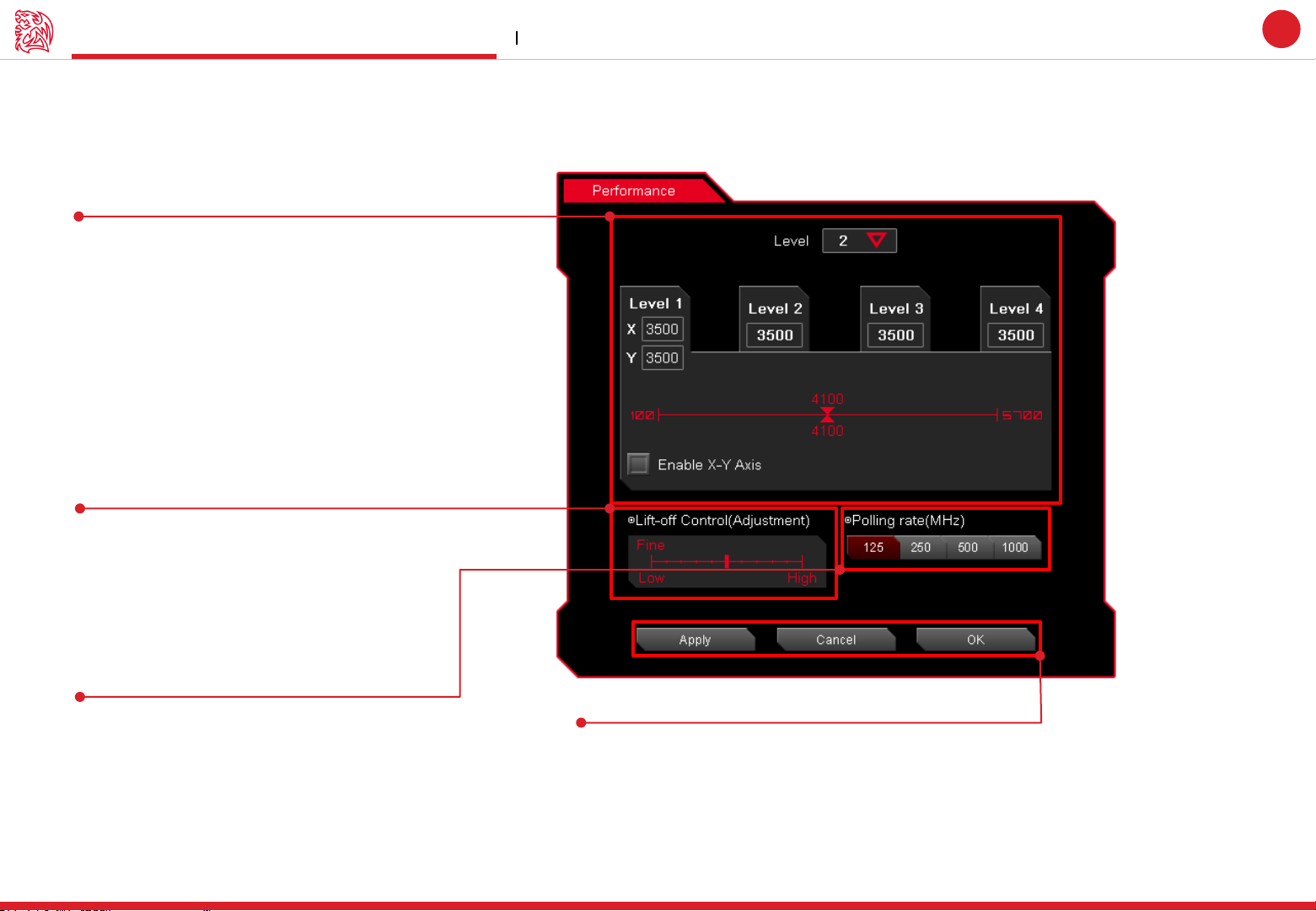

Performance Interface Performance Setting
Page : 24
DPI
DPI setting
Page : 26
Challenger is the Game
Tt eSPORTS | BLACK V2
GUI Software User Guide
23
Lift-Off Control
Adjust the sensor distance
Page : 25
Polling Rate
Adjust Polling Rate
Apply / Cancel / OK
APPLY: Click Apply you completed the setting
CANCEL: Click Cancel to cancel the setting
OK: Click OK after DPI Setting has been fully completed
Page 29
Challenger is the Game
DPI Performance Setting
Tt eSPORTS | BLACK V2
GUI Software User Guide
Dot Per Inch – The Mouse DPI
Do you know what is DPI meaning?
DPI stands for Dot Per Inch, is a measurement of how sensitive a mouse is. The higher a mouse’s DPI, the farther the cursor on your
screen will move when you move the mouse. A mouse with a higher DPI setting detects and reacts to smaller movements.
DPI levels for each Profile
You can choose how many levels of DPI you need for your Profile and you can use up to 4 DPI levels for each profiles!
24
Configure a DPI
Choose the DPI level by adjusting RED point to your preferred DPI level
Configure a DPI for X-Y Axis
Choose the DPI level by adjusting both X & Y-Axis (Horizontal & Vertical) to your
preferred DPI level. You can have different DPI level when you move for mouse
horizontally and vertically by adjusting the DPI level for both X-Y Axis.
Page 30
Challenger is the Game
Polling Rate Performance Setting
Tt eSPORTS | BLACK V2
GUI Software User Guide

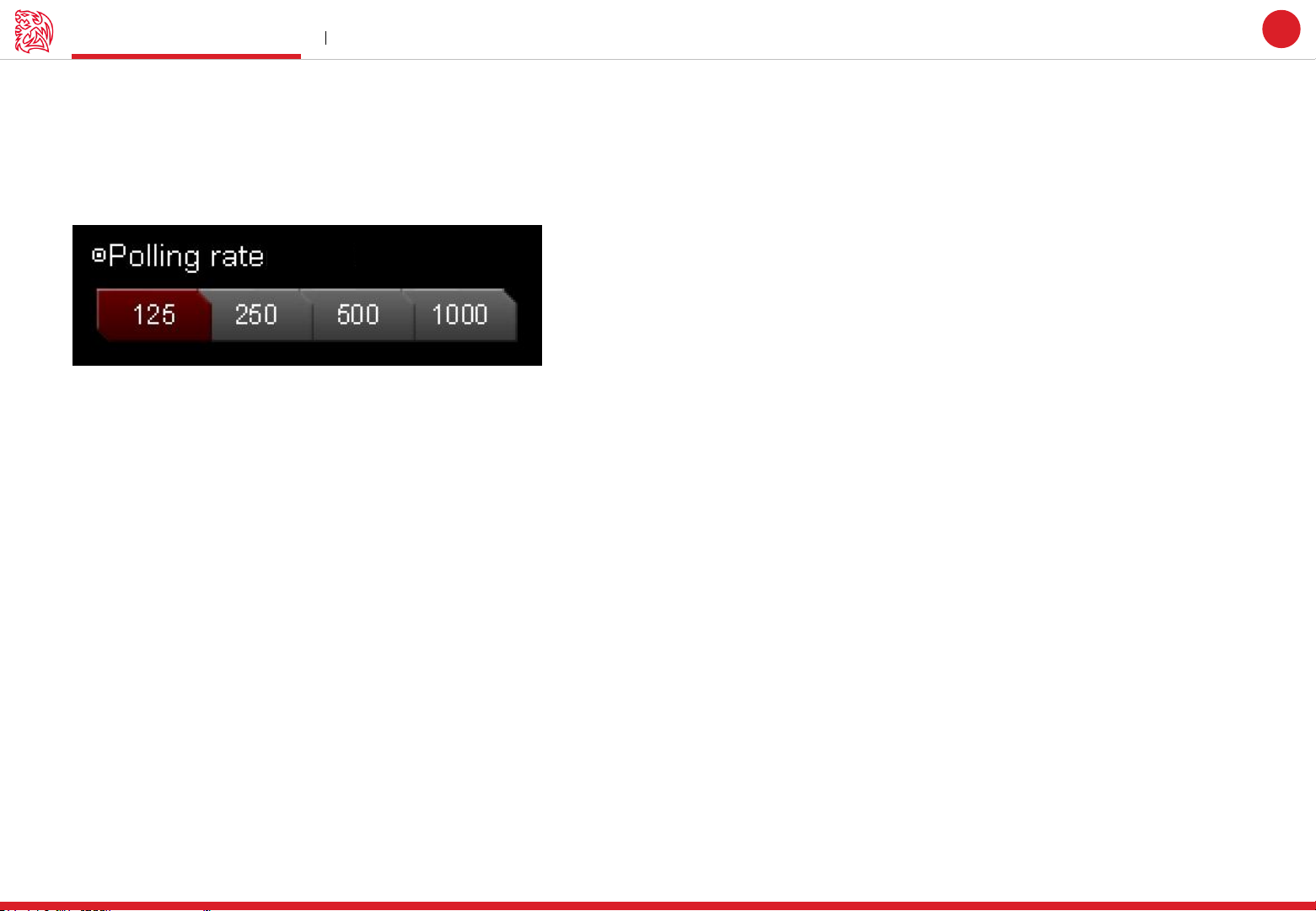

Polling Rate
A higher polling rate could decrease the lag that occurs between when you move your mouse and when the movement shows up on your
screen. Higher Polling Rate does not mean that you can move fast, that will depends on what DPI level.
(Hz)
Adjust your BLACK V2 Polling Rate
There are 4 levels for Polling Rate to choose from:
125 Hz polling rate, it’s reporting BLACK V2’s position to the computer 125 times every second (Also known as 8ms)
250 Hz polling rate, it’s reporting BLACK V2’s position to the computer 250 times every second (Also known as 4ms)
500 Hz polling rate, it’s reporting BLACK V2’s position to the computer 500 times every second (Also known as 2ms)
1000 Hz polling rate, it’s reporting BLACK V2’s position to the computer 1000 times every second (Also known as 1ms)
25
Page 31
Challenger is the Game
Lift-Off Control Performance Setting
Tt eSPORTS | BLACK V2
GUI Software User Guide

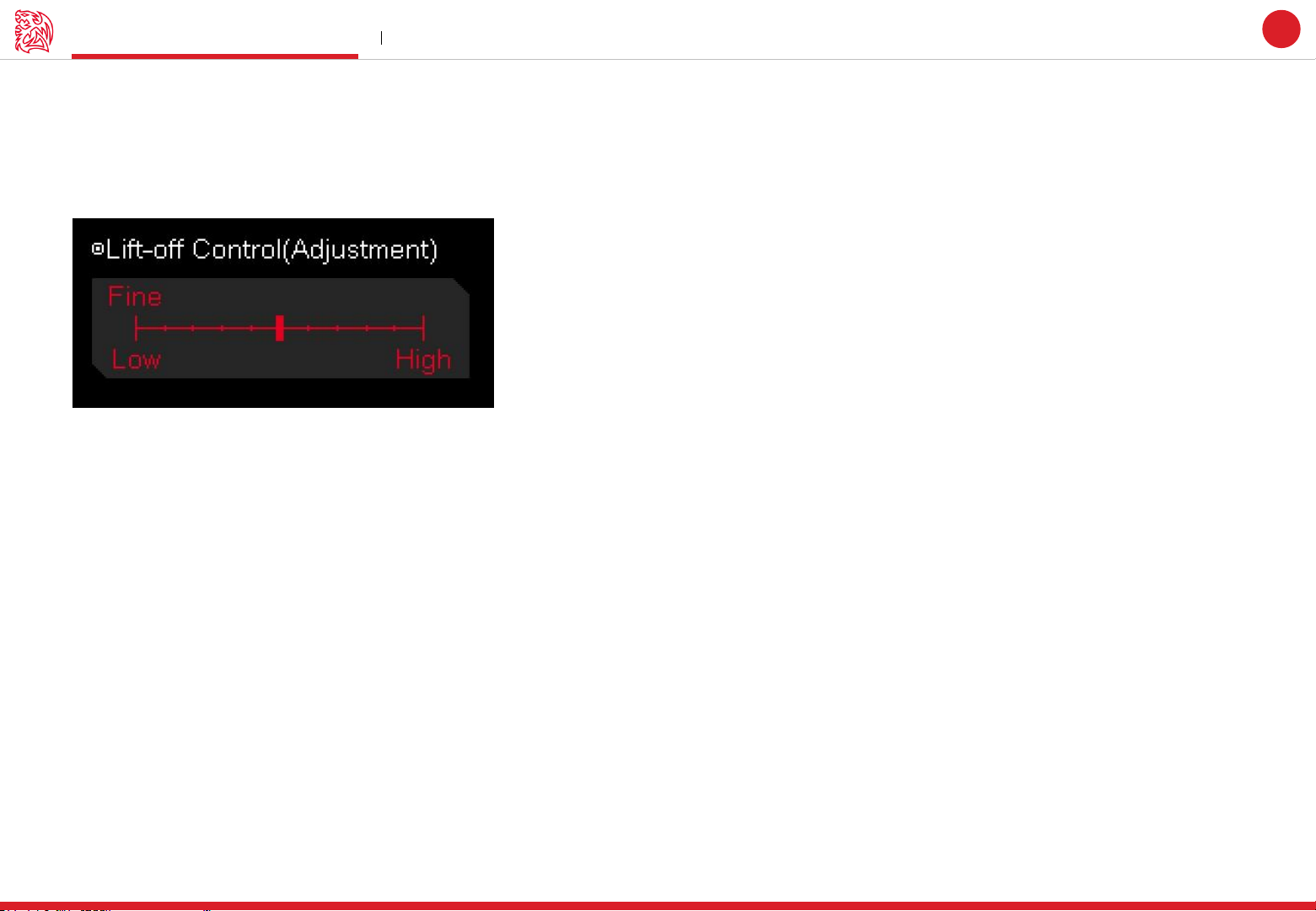

Lift-Off Control
Lift-off trace sometimes required for particular games and some mouse-pads that will influence the trace distance and affected gameplay.
Now with BLACK V2, this allow gamers to adjust the distance to the best distance they want while gaming!
Adjust your BLACK V2 Lift-Off
Adjust the sensitivity by adjusting the level.
CAUTION : Lowest is not recommended as BLACK V2 might not be able to sense the mouse pad.
26
Page 32
CONTENT FOUR
Light Setting
GUI Software User Guide Tt eSPORTS | BLACK V2
Page 33

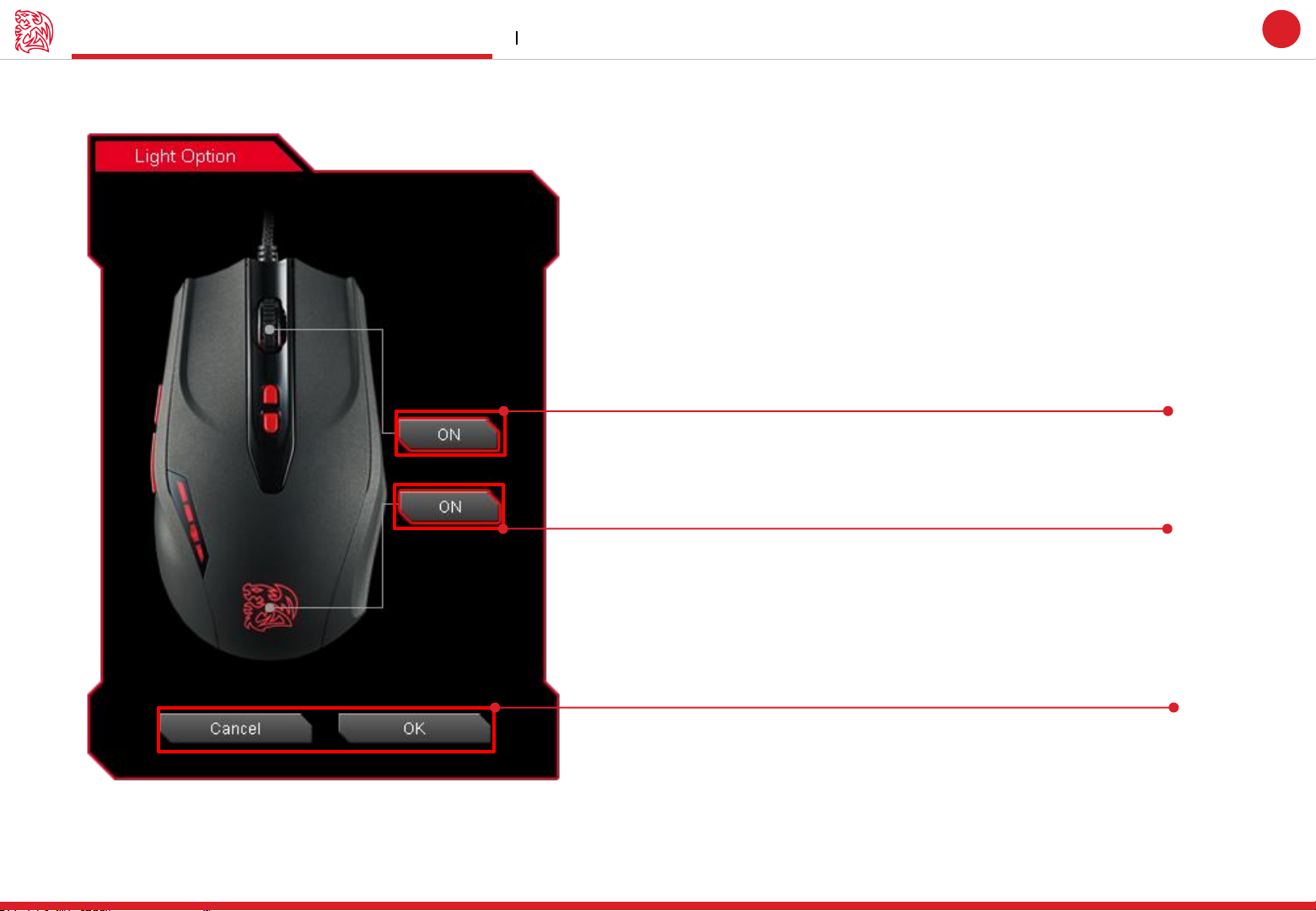

Light Option Interface Light Setting
Challenger is the Game
Tt eSPORTS | BLACK V2
GUI Software User Guide
BLACK V2 Scroll Wheel Light Option
You can select ON or OFF for Scroll Wheel light.
Note: Scroll wheel will still flash to indicate Profile
although Scroll Wheel light has been turned off.
27
BLACK V2 Tt DRAGON LOGO Light Option
You can select ON or OFF for Tt DRAGON LOGO light.
Note: Tt DRAGON LOGO will have a pulse-break light effect.
Cancel / OK
OK: Click OK to save the setting
CANCEL: Click CANCEL to cancel the setting
Page 34
CONTENT FIVE
Firmware Update
GUI Software User Guide Tt eSPORTS | BLACK V2
Page 35
Challenger is the Game
How to update Firmware Firmware Update
Tt eSPORTS | BLACK V2
Update Your BLACK V2 Firmware
The New GUI can automatically detect new updates whenever there is new update available for installation.
You will just need to plug the BLACK V2 and launch BLACK V2’s GUI and system will notify you about the new update.
If you missed or closed the update, just re-plug in BLACK V2 and launch BLACK V2 GUI and system will notify you again.
GUI Software User Guide
28
MOUSE
MOUSE
Loading...
