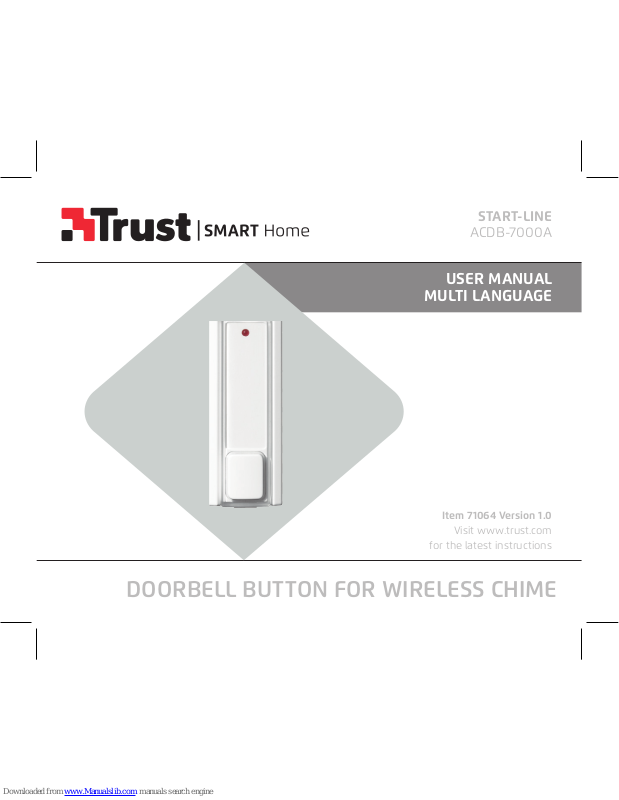

START-LINE
ACDB-7000A
DOORBELL BUTTON FOR WIRELESS CHIME
Item 71064 Version 1.0
Visit www.trust.com
for the latest instructions
USER MANUAL
MULTI LANGUAGE
1.2
2
1.1
1.3
3
a
b
1
ACDB-7000A DOORBELL BUTTON FOR WIRELESS CHIME
1. Place battery
(1.1) Place a screwdriver into the notch on the side of the button. Press gently so that the bottom
snaps o the top.
(1.2) Place the included 3V CR2032 battery in the holder. Ensure correct polarity.
(1.3) Place the top of the button back on the bottom. First slide the bottom agains the top and then
click the top onto the bottom.
2. Pair Trust Smart Home transmitters
While the pair mode of the receiver is active, send an ON signal by pressing the button to pair it to the
receiver.
3. Mount button
(a) Place double-sided tape on the back of the wireless button and paste it on a flat surface, or
(b) Fasten the back of the wireless button with screws on a flat surface.
EN
SECURITY PLUS-LINE
ACDB-7000A
DOORBELL BUTTON FOR WIRELESS CHIME
IMPORTANT INFORMATION
MULTI LANGUAGE
Item 71064 Version 1.0
Visit www.trust.com
for the latest instructions
1
ACDB-7000A DOORBELL BUTTON FOR WIRELESS CHIME
EN
Read these simple instructions. Failure to follow these instructions can be dangerous.
Incorrect installation will void any warranty on this product.
COMPATIBILITY
This transmitter works with all
Trust Smart Home receivers, but
only transmits ON signals.
FUNCTIONALITY
Transmits on signals to Trust Smart Home receivers. Works
directly with the ACDB-7000C, ACDB-6600C and the AMU-500.
TECHNICAL SPECIFICATIONS
Power supply 1x CR2032 3V lithium (Doorbell button)
Frequency 433,92 MHz
RF Range Up to 70m (under optimal conditions)
Water-resistance IP44
Legal information
CE: Trust declares this device complies with the Directives as listed in Section 2 of this document.
WEEE: Dispose of the device at a recycling centre. More information: www.trust.com
Warranty information: www.trust.com/warranty
WIRELESS RADIO SIGNAL
• The 433.92 MHz radio signal passes through walls, windows and doors.
• Indoor 433.92 MHz range: up to 30 m. Outdoor 433.92 MHz range: up to 70 m (optimal conditions).
• The strength depends on local conditions, such as the presence of metals. The metal particles in for
example, double glazing (HR glass), can provide a reduction in the range of wireless signals.
• There may be restrictions on the use of this device outside the EU. Check, if applicable, whether this
device meets local regulations.
2
ACDB-7000A DOORBELL BUTTON FOR WIRELESS CHIME
EN
SHOCK HAZARD
Exercise caution when installing a receiver.
Voltage may be present, even when a receiver is
switched o.
LIFE-SUPPORT
Never use Trust Smart Home products for lifesupport systems or other applications in which
equipment malfunctions can have life-threatening
consequences.
INTERFERENCE
All wireless devices may be subject to
interference, which could aect performance. The
minimum distance between 2 receivers should be
at least 50 cm.
REPAIRING
Do not attempt to repair this product. There are
no user-serviceable parts inside.
WATER-RESISTANCE
This product is IP-44 water-resistant
CLEANING
Use a dry cloth to clean this product. Do not use
harsh chemicals, cleaning solvents, or strong
detergents.
HANDLING
Do not drop, knock, or shake the device. Rough
handling can break internal circuit boards and fine
mechanics.
ENVIRONMENT
Do not expose the product to excessive heat
or cold, as it can damage or shorten the life of
electronic circuit boards.
ACDB-7000A DOORBELL BUTTON FOR WIRELESS CHIME
50
EN
Declaration of conformity
Trust International B.V. declares that the
TrusT smarT Home
-product:
model: ACDB-7000A Doorbell button for wireless chime
item number: 71064
intended use: Indoor/Outdoor
is in compliance with the essential requirements and other relevant provisions of the following directives:
EMC Directive (2014/30/EU), Low Voltage Directive (2014/35/EU), ROHS Directive (2011/65/EC), R&TTE
Directive (1999/5/EC). The product is compatible with the following norms/standards:
Manufacturer/Authorised representative,
H. Donker, Procurement Director
Dordrecht, April 28 2016
Trust International B.V.
LAAN VAN BARCELONA 600
3317DD DORDRECHT
NETHERLANDS
EN 301 489-1 V1.9.2 (2011-09)
EN 301 489-3 V1.6.1 (2013-08)
EN 300 220-1 V2.4.1 (2012-05)
EN 300 220-2 V2.4.1 (2012-05)
EN 62479:2010
EN 55022: 2010 +AC: 2011 Class B
EN 61000-4-2: 2009
EN 61000-4-3: 2006 +A1: 2008 +A2: 2010
IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013
EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
EN 50581:2012
