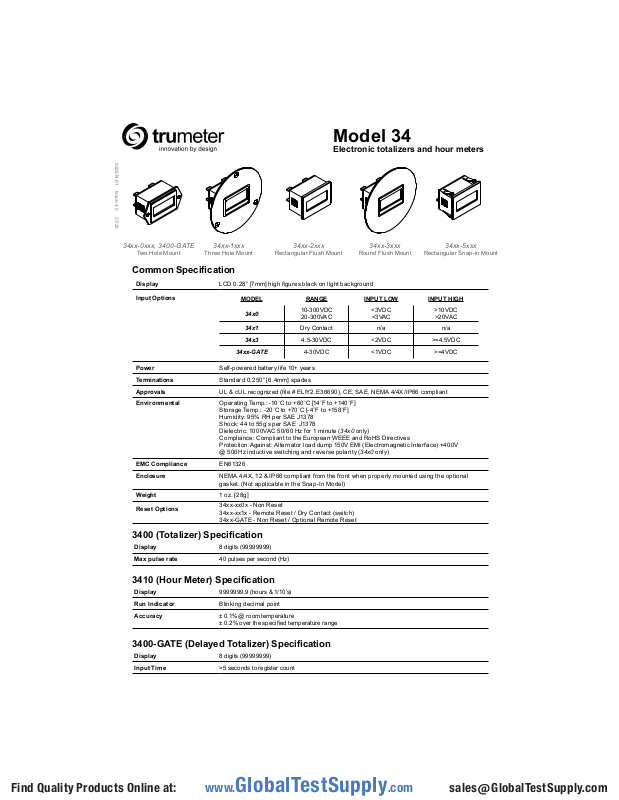

Trumeter 3400-1010, 3403-0010, 3410-3010, 3400-3000, 3403-3000 User manual

...
022874-01 Issue 4.0 07/20
Model 34
Electronic totalizers and hour meters
34xx-0xxx, 3400-GATE
Two Hole Mount
34xx-1xxx
Three Hole Mount
34xx-2xxx
Rectan gular Flu sh Mount
34xx-3xxx
Round Flu sh Mount
Rectangular Snap-in Mount
Common Specication
Display LCD 0.28 ” [7mm] high  gures black on ligh t background
Input Options
Power Self- powered batter y life 10+ years
Terminations Standa rd 0.25 0” [6.4mm] spades
Approvals UL & cUL recognized (le # ELI Y2.E36 690), CE, SAE, NEMA 4/4X /IP66 compliant
Environmental
EMC Compliance EN61326
Enclosure NEM A 4/4X, 12 & IP66 comp liant fro m the fron t when pro perly mo unted using the opti onal
Weight 1 oz. [28g]
Reset Options
MODEL RANGE INPUT LOW INPUT HIGH
34x1 Dry Contact n/a n/a
34x3 4.5-30VDC <2VDC >=4.5VDC
34xx-GATE 4-30VDC <1VDC >=4VDC
Operating Temp.: -10˚C to +60˚C [14˚F to +140˚F ] Storag e Temp.: -20˚C to +70˚C [-4˚F to +158˚F] Humidi ty: 95% RH per SAE J1378 Shock : 44 to 55g ’s per SAE J1378 Dielectric: 10 00VAC 50/ 60 Hz for 1 minute (34x0 on ly) Compliance: Co mpliant to the European WEEE an d RoHS Dir ectives Protection Against: Alternator l oad dump 150V EMI (Elec tromag netic Interfac e) +400V @ 500Hz induct ive switc hing and reverse pol arity (34x0 only)
gasket. (N ot appli cable in t he Snap -In Model)
34xx-x x0x - No n Reset 34xx-x x1x - Remote Reset / Dry C ontact (sw itch) 34xx- GATE - Non Res et / Optio nal Remote Reset
10-300VDC 20-300VAC
<3VDC <3VAC
>10VDC >20VAC
3400 (Totalizer) Specication
Display 8 digits (99999999)
Max pu lse rat e 40 pulses per seco nd (Hz)
34xx-5xxx
3410 (Hour Meter) Specication
Display 9999999. 9 (hours & 1/10’s)
Run Indicator Blinking decimal point
Accuracy ± 0.1% @ room temperat ure
± 0.2% over the specifi ed temperature range
3400-GATE (Delayed Totalizer) Specication
Display 8 digits (99999999)
Input Time >5 secon ds to register count
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Dimensions
.118 [3.00]
.062 [1.57]
(All dimensions are nominal)
0.157
C
L
27.90
1.750
44.45
0.78
19.70
1.44
36.6
TWO HOLE MOUNT
(34xx-0xx, 3400-GATE)
2.87
72.90
4
1.09
27.6
1.26
32.13
0.94
23.9
2.19
55.65
0.78
19.70
THREE HOLE MOUNT
0.63
16.07
0.152
3.85
(34xx-1xx)
1.09
27.6
50.30
1.98
0.03
0.70
0.78
19.70
2.21
56.1
0.776
19.70
50.3
1.98
0.03
0.70
ROUND FLUSH MOUNT
(34xx-3xx)
1.60
40.60
1.10
27.90
0.25
6.35
RECTANGULAR
FLUSH (34xx-2xx)
AND SNAP-IN
0.78
19.70
0.88
22.40
1.09
27.6
(34xx-5xx)
0.94
23.9
Panel Cut-out
0.965
0.949
24.50
24.10
Max panel thickness, snap-in housing: .125” [3.18] Max panel thickness, without gasket: .375” [9.5] Min panel thickness, with or without gasket: .04” [1.0]
Wiring Diagrams
Inputs do not have a polarity and can be wired either way round.
34x3-xxxx
1 2
4.5-30VDC Input
CAUTION: RISK OF ELECTRIC SHOCK. INSTALLATION
MUST BE CARRIED OUT BY SUITABLY QUALIFIED AND
COMPETENT PERSONEL ONLY. HAZARDOUS VOLTAGES
MAY BE PRESENT ON THE CONNECTION. THIS PRODUCT
CONTAINS AN INTERNAL LITIUM BATTERY. DISPOSE OF IN
ACCORDANCE WITH LOCAL REQUIREMENTS
34x0-xxxx
1 2
10-300VDC / 20-300VAC Input
1.476
1.461
37.50
37.10
34x1-xxxx
1 2
Dry Contact Input
Mounting Clip
Gaskets (Optional)
WITH RESET (4 TERMINAL)
34xx-xx1x
1 2
3 4
Note: Do not connect AC or DC
voltages to terminals 3 or 4
!
Clip included with ush mounting models. Through hole mounting models supplied with #4 machine screws, nuts and washers.
Gasket 5003-009
Max panel thickness: .275” [7.9] Gasket thickness: .118” [3.00]
Gasket 5003-010
Max panel thickness: .275” [7.9] Gasket thickness: .118” [3.00]
Gasket 5003-017
Max panel thickness: .313” [6.5] Gasket thickness: .062” [1.57]
34xx-GATE
1 2
Reset
40-30VDC nput
COMPLIANT
