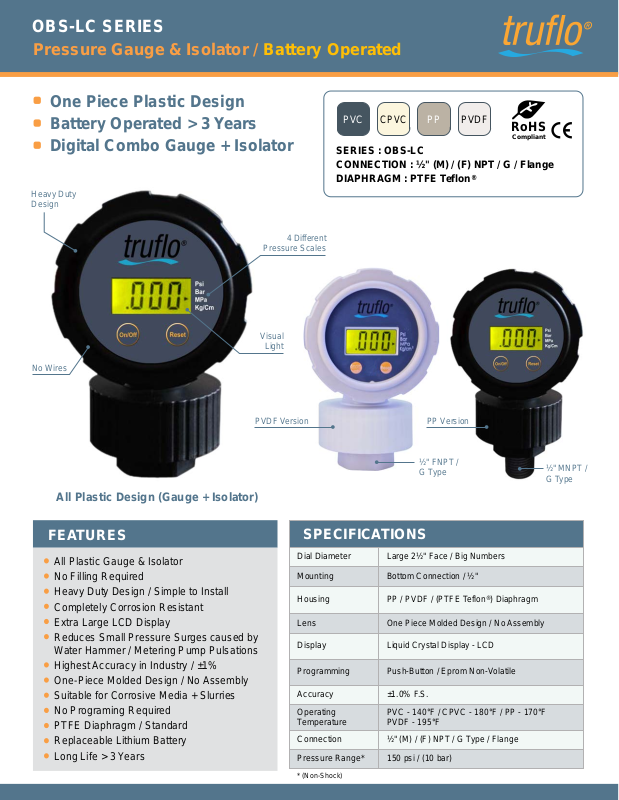

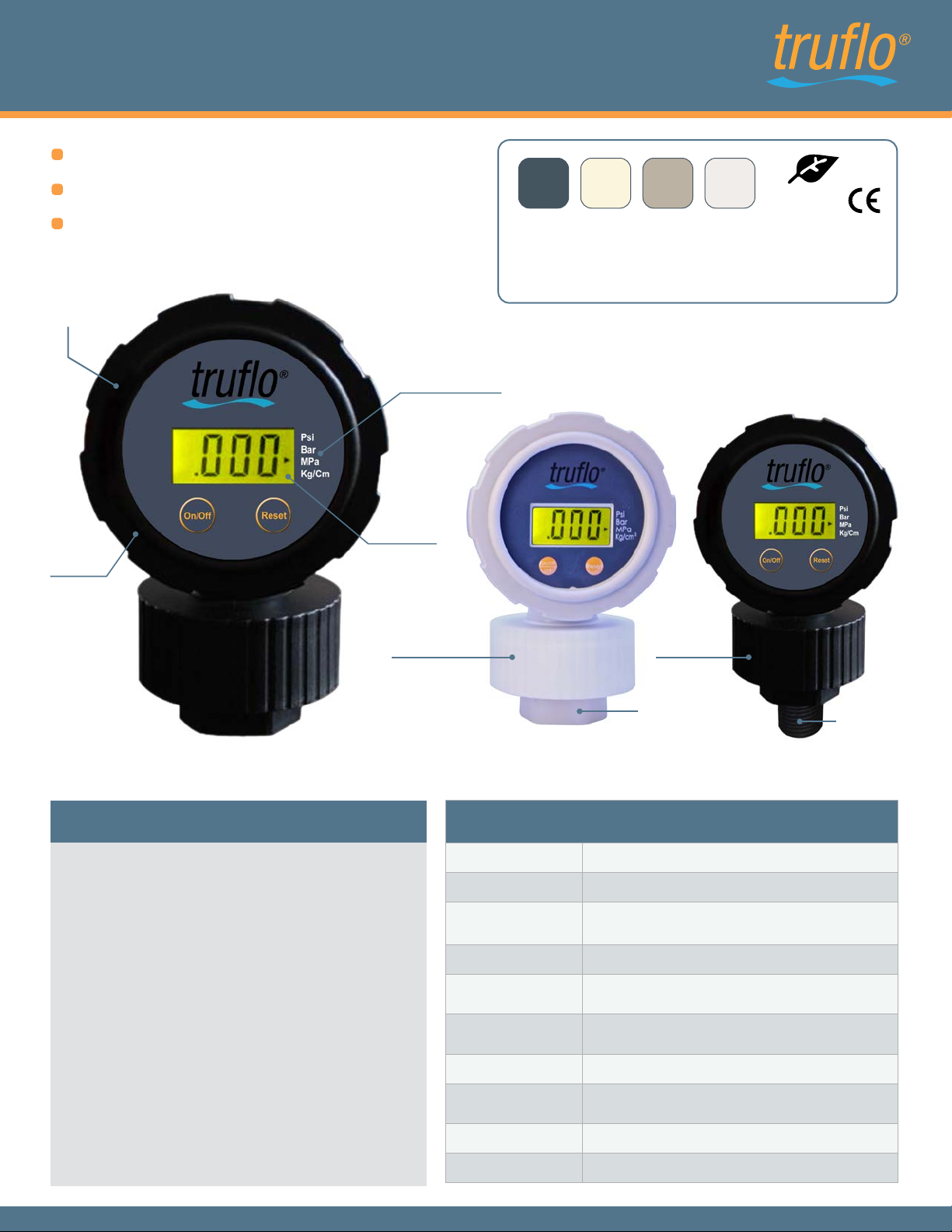

OBS-LC SERIES
Pressure Gauge & Isolator / Battery Operated
One Piece Plastic Design
Battery Operated > 3 Years
Digital Combo Gauge + Isolator
Heavy Duty
Design
PVC
SERIES : OBS-LC
CONNECTION : ½" (M) / (F) NPT / G / Flange
DIAPHRAGM : PTFE Teflon
4 Different
Pressure Scales
CPVC
PP PVDF
®
RoHS
Compliant
No Wires
All Plastic Design (Gauge + Isolator)
FEATURES
•
All Plastic Gauge & Isolator
•
No Filling Required
•
Heavy Duty Design / Simple to Install
•
Completely Corrosion Resistant
•
Extra Large LCD Display
•
Reduces Small Pressure Surges caused by
Water Hammer / Metering Pump Pulsations
Highest Accuracy in Industry / ±1%
•
One-Piece Molded Design / No Assembly
•
Suitable for Corrosive Media + Slurries
•
No Programing Required
•
PTFE Diaphragm / Standard
•
Replaceable Lithium Battery
•
Long Life > 3 Ye
•
ars
Visual
Light
PVDF Version PP Version
½" FNPT /
G Type
SPECIFICATIONS
Dial Diameter
Mounting
Housing
Lens
Display
Programming
Accuracy
Operating
Temperature
Connection
Pressure Range*
* (Non-Shock)
Large 2½" Face / Big Numbers
Bottom Connection / ½"
PP / PVDF / (PTFE Teflon®) Diaphragm
One Piece Molded Design / No Assembly
Liquid Crystal Display - LCD
Push-Button / Eprom Non-Volatile
±1.0% F.S.
PVC - 140°F / CPVC - 180°F / PP - 170°F
PVDF - 195°F
½" (M) / (F) NPT / G Type / Flange
150 psi / (10 bar)
½" MNPT /
G Ty
pe
Page 2
OBS-LC SERIES
Pressure Gauge & Isolator / Battery Operated
HOW TO ORDER
OBS-LC

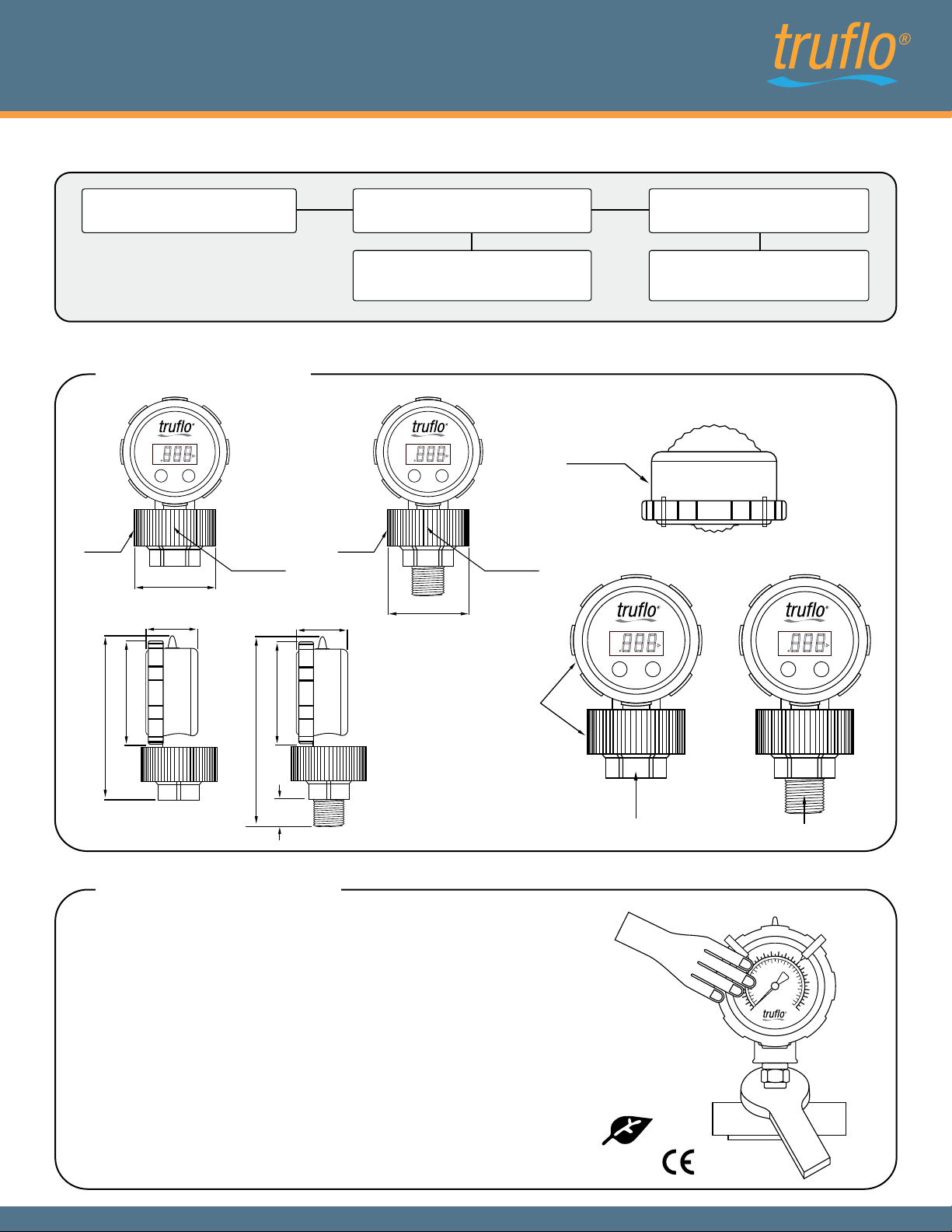

DIMENSIONS
Psi
Bar
MPa
Kg/Cm
Reset
On/Off
PP
PVDF
2.32"
2.13"
3.17"
5.35"
Diaphragm
TEFLON®
6.07"
3.17"
2.13"
PP
PVDF
PVC (P) / CPVC (C)
PP (PP) / PVDF (PF)
Body Material
Psi
Bar
MPa
Kg/Cm
Reset
On/Off
Diaphragm
TEFLON®
2.32"
One Piece
No Assembly
Require
(M) - ½" MNPT
(F) - ½" FNPT
NPT
Connection
PP / PVDF
Psi
Bar
MPa
Kg/Cm
Reset
On/Off
d
On/Off
Reset
Psi
Bar
MPa
Kg/Cm
0.72"
INSTALLATION
Do not tighten by grasping the case of the gauge as this
may cause damage.
Before i
1.
attention is given to the Process Liquid, Chemical
Compatibility, Temperature, Vibration, Pressure Spikes
and other climatic and application conditions that may
adversely affect the performance.
2.
The user shall ensure that the correct gauge pressure
range and the correct materials of construction are
selected.
nstalling the OBS Series pressure gauge, ensure
½" FNPT
RoHS
Compliant
NO
½" MNPT
30
40
2
20
1
3
10
0
0
50
4
60
YES
Loading...
