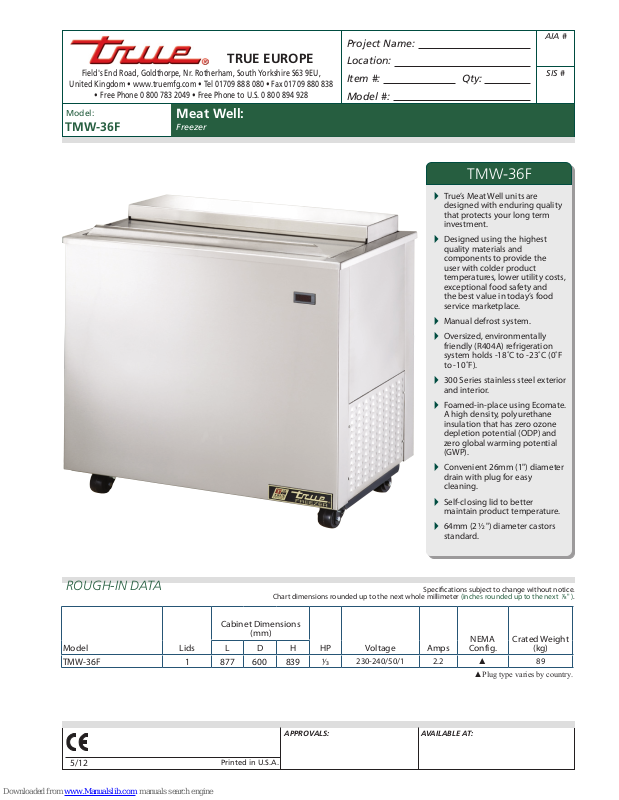

True EUROPE TMW-36F Specifications

Specications subject to change without notice.

Chart dimensions rounded up to the next whole millimeter (inches rounded up to the next ⁄" ).

Rough-In Data

Model:

TRUE EUROPE

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Printed in U.S.A.

ApprovAls: AvAilAble At:

TMW-36F

Meat Well:

Freezer

TMW-36F

True’s Meat Well units are



designed with enduring quality
that protects your long term
investment.

Designed using the highest



quality materials and
components to provide the
user with colder product
temperatures, lower utility costs,
exceptional food safety and
the best value in today’s food
service marketplace.

Manual defrost system.



Oversized, environmentally



friendly (R404A) refrigeration
system holds -18˚C to -23˚C (0˚F
to -10˚F).

300 Series stainless steel exterior



and interior.

Foamed-in-place using Ecomate.



A high density, polyurethane
insulation that has zero ozone
depletion potential (ODP) and
zero global warming potential
(GWP).

Convenient 26mm (1") diameter



drain with plug for easy
cleaning.

Self-closing lid to better



maintain product temperature.

64mm (2 ½") diameter castors
standard.

Model Lids

Cabinet Dimensions

(mm)

HP Voltage Amps

NEMA

Config.

Crated Weight

(kg)L D H

TMW-36F 1 877 600 839 ⁄

230-240/50/1 2.2 ▲ 89

▲Plug type varies by country.

Field's End Road, Goldthorpe, Nr. Rotherham, South Yorkshire S63 9EU,

United Kingdom • www.truemfg.com • Tel [phone] • Fax [phone]

• Free Phone [phone] • Free Phone to U.S. 0 800 894 928

5/12

StanDaRD FeatuReS

Model:

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

Plan VIew

KCL

TMW-36F

DESIGN

True’s Meat Well units are

•

designed with enduring
quality that protects your
long term investment.
Designed using the

•

highest quality materials
and components
to provide the user
with colder product
temperatures, lower
utility costs, exceptional
food safety and the best
value in today’s food
service marketplace.

REFRIGERATION
SYSTEM

Oversized,

•

environmentally friendly
(R404A) refrigeration
system holds -18˚C to

-23˚C (0˚F to -10˚F).
Manual defrost system.

•

CABINET
CONSTRUCTION

300 series stainless steel

•

exterior and interior.
Insulation - entire cabinet

•

structure is foamed-in­place using Ecomate. A
new, innovative, high
density, polyurethane
insulation that has zero
ozone depletion potential
(ODP) and zero global
warming potential (GWP).

64mm (2•½") diameter
castors standard.
Convenient 26mm (1")

•

diameter drain with plug
for easy cleaning.

LID

Self-closing lid to better

•

maintain product
temperature.

•

ELECTRICAL

Unit completely pre-wired

•

at factory and ready for
nal connection to a 230­240/50/1 phase dedicated
outlet.
Plug type varies by

•

country.

Meat Well:

Freezer

Model Elevation Right Plan 3D Back

TMW-36F TFQY84E TFQY84S TFQY84P TFQY1843

TRUE EUROPE

Field's End Road, Goldthorpe, Nr. Rotherham, South Yorkshire S63 9EU, United Kingdom • 01709 888 080 • Fax [phone] • Free Phone [phone] • Free Phone to U.S. 0 800 894 928 • www.truemfg.com
