Illustrated Parts Manual
Printed In USA
Self-Propelled Mowers
TROY-BILT LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Form No. 769-09430
(October 21, 2013)
To The Owner
Thank You
Thank you for purchasing an MTD Lawn Mower. It was carefully
engineered to provide excellent performance when properly
operated and maintained.
All information in this manual is relative to the most recent
product information available at the time of printing. Please be
aware that this Illustrated Part’s Manual may cover a range of
product specifications for various models.
Table of Contents
Model TB200 (12A-A2B) .......................................... 4
Model TB280 ES (12AGA25/B) ................................. 6
Model TB220/230 (12AVB22/5) ............................... 8
Model TB330 (12AKC35) .........................................10
Components listed and/or illustrated in this manual may not be
applicable to all models. We reserve the right to change product
specifications, designs and equipment without notice and
without incurring obligation.
Throughout this manual, all references to right (RH) and left (LH)
are observed from the operating position.
Model TB370 (12ABD35) .........................................12
Model TB380ES (12ACC35) .....................................14
Model TB360 (12ABD3B) ........................................16
Engine Model 5X65RU ............................................18
Record Product Information
To ease in ordering replacement parts, please locate the model
plate on the equipment and record the information in the
provided area to the right. You can locate the model plate by
looking beneath the seat.
Model NuMber
Serial NuMber
Painted Parts
When ordering painted service parts, a four digit color suffix must be added to the part number (e.g. 783-XXXXX-0637).
Please refer to the table below for current color codes:
0637 Black
0709 Dark Green (Bolens, Yard-Man)
0662 Oyster Gray (MTD Gold)
0638 Red (Yard Machines, Huskee, Troy-Bilt, MTD)
0691 Black Jack (MTD Gold, MasterCut)
0674 Yellow (Yard-Man)
0650 Metallic Red (White Outdoor)
0629 Silver Flake (MTD Platinum)
04038 Day Orange (Daedong)
04033 Flint Mica (Troy-Bilt XP)
2
Page Left Blank Intentionally
3
Model TB200 (12A-A2B)
1
26
2
5
6
32
27
9
34
39
11
7
4
22
13
8
3
37
42
30
51
41
45
46
47
48
44
46
57
18
42
49
54
58
53
50
23
24
31
25
13
16
10
12
21
15
28
59
4
38
29
14
33
36
40
59
42
19
20
56
52
43
29
17
46
35
54
55
Model TB200 (12A-A2B)
Ref
No.
1 747- 05214 D Blade Control
2 749 -04681 Upper Handle
3 647- 04271 Grass Catcher Frame
4 749 -04608 A Lower Handle
5 720-0279 Wing Nut
6 710 -1205 Rope Guide
7 710-04998 Carriage Screw ,5/16-18
8 96 4 -0 4117B Grass Bag
9 72 0 -0 4124 Wing Knob
10 731- 07131 Side Chute
11 72 5- 0157 Cable Tie
12 712-04222 Nut, Sq., 1/4-20
13 631-04369A Rear Discharge Door Assembly
14 747- 0710A Hinge Pin
15 787-01779 Chute Deector Bracket
16 732- 05061A Torsion Spring - RH
17 634-05039 Front Wheel
18 732- 04675A Transmission Wire
19 710 - 05073 Screw, 1/4-20 x .500
20 787-01872B Deck , 21”
21 987-02516A Hinged Mulch Plug Assembly
22 732-05062A Torsion Spring - LH
23 687- 02539 Blade Adapter Assembly
24 9 42-0741A Mulching Blade
25 710-104 4 Screw , 3/8-24 x 1.50
26 747-05210 B Drive Control
27 738 -04419A Sldr. Screw, .375 x .126 x 1/4-20
28 712 - 04217 Flange Lock Nut, 3/8-16
29 720 - 0 4131A Adjustment Lever Knob
Part Number Description
631-04371A Rear Discharge Door Assembly-
(Lowes)
Ref
No.
30 720-05066 Wing Nut
31 736 -0524B Blade Bell Support
32 712- 04 064 Nut, Flange Lock, 1/4-20
33 634-04660 Rear Wheel
34 946 -1113A Control Cable
35 710 - 046 83A TT Sems Screw, 3/8-16 x 1.0
36 731-07203 Trail Shield
37 731- 0779 0 Front Cover
38 732-1014 C Torsion Spring
39 946-04728 Drive Cable
40 911- 0 4142A Rear Axle Assembly
41 911- 04150 Front Axle Assembly
42 710 -04995A Screw, 5/16-14 x .750
43 731-07240A Wheel Dust Cover
44 954- 04259A V-Belt
45 787-01793 Front Axle Clip
46 738- 04278 Scr., Shldr., 1/4-20 x .50
47 7 31- 07487 Water Nozzle
48 921-04041 Water Nozzle Adapter
49 918 -04881A Transmission Assembly
50 931- 04535B Engine Bae
51 941-00019 Bearing Assembly
52 710 -04531 Screw, 1/4-20 x .390
53 732-04704 Compression Spring
54 710-0 895 Screw, 1/4-15 x .750
55 715-040 99 Dowel Pin
56 917-04801 Spur Gear, 14T - RH
57 731-07789 Lower Tray
58 731-07355 Spring Body
59 731- 07198 Hubcap, 8”
Part Number Description
917-04802 Spur Gear, 14T - LH
5

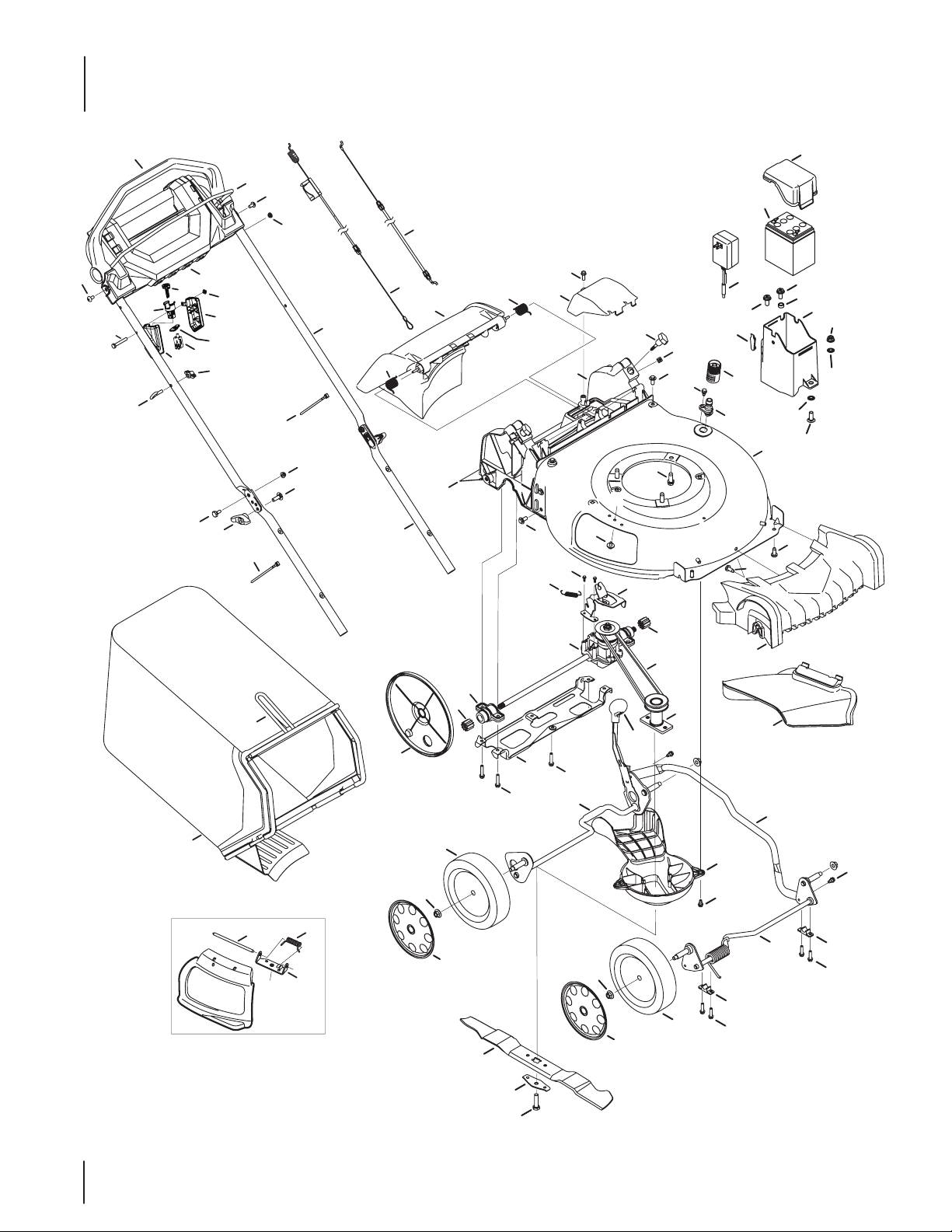

Model TB280 ES (12AGA25/B)
68
26
44
1
39
34
71
62
6
76
12
75
77
5
32
27
9
11
2
11
7
4
22
8
3
37
61
72
42
10
21
15
38
29
14
16
12
36
40
42
13
20
43
19
13
29
52
56
35
55
54
46
51
66
30
41
46
47
48
65
57
46
59
60
49
63
42
64
67
58
23
54
45
50
42
74
69
53
70
18
73
28
33
73
17
31
25
24
6
Model TB280 ES (12AGA25/B)
Ref
No.
1 747- 05267C Blade Control
2 749 -04679 Upper Handle
3 647- 04271 Grass Catcher Frame
4 749 -04608 A Lower Handle
5 720-0279 Wing Nut
6 710 -1205 Rope Guide
7 710-04998 Carriage Screw ,5/16-18
8 96 4 -0 4117B Grass Bag
9 72 0 -0 4124 Wing Knob
10 731- 07131 Side Chute
11 72 5- 0157 Cable Tie
12 712-04222 Nut, Sq., 1/4-20
13 631-04369A Rear Discharge Door Assembly
14 747- 0710A Hinge Pin
15 787-01779 Chute Deector Bracket
16 732- 05061A Torsion Spring - RH
17 634-05039 Front Wheel
18 736 -0242 Washer, Bell, .340 x .872 x .080
19 710 - 05073 Screw, 1/4-20 x .500
20 787-01875B Deck , 21”
21 987-02516A Hinged Mulch Plug Assembly
22 732-05062A Torsion Spring - LH
23 687-02528 Blade Adapter Assembly
24 9 42-0741A Mulching Blade
25 710-104 4 Screw , 3/8-24 x 1.50
26 753-06060A Control Lever Assembly
27 738 -04419A Sldr. Screw, .375 x .126 x 1/4-20
28 712 - 04217 Flange Lock Nut, 3/8-16
29 720 - 0 4131A Adjustment Lever Knob
30 720-05066 Wing Nut
31 736 -0524B Blade Bell Support
32 712- 04 064 Nut, Flange Lock, 1/4-20
33 634-04660 Rear Wheel
34 946-04661A Control Cable
35 710 - 046 83A TT Sems Screw, 3/8-16 x 1.0
36 731-07203 Trail Shield
37 731- 0779 0 Front Cover
38 732-1014 C Torsion Spring
39 946-04655A Drive Cable
Part Number Description
631-04371A Rear Discharge Door Assembly-
(Lowes)
Ref
No.
40 911- 0 4142A Rear Axle Assembly
41 911- 04150 Front Axle Assembly
42 710 -04995A Screw, 5/16-14 x .750
43 731-07240A Wheel Dust Cover
44 931-05131 Key Switch
45 726- 0201 Speed Nut
46 738- 04278 Scr., Shldr., 1/4-20 x .50
47 7 31- 07487 Water Nozzle
48 921-04041 Water Nozzle Adapter
49 918 -04881A Transmission Assembly
50 931- 04535B Engine Bae
51 941-00019 Bearing Assembly
52 710 -04531 Screw, 1/4-20 x .390
53 731- 07135 Battery Housing
54 710-0 895 Screw, 1/4-15 x .750
55 715-040 99 Dowel Pin
56 917-04801 Spur Gear, 14T - RH
57 731-07789 Lower Tray
58 731-07355 Spring Body
59 732-04675A Transmission Wire
60 732-04704 Compression Spring
61 731- 07154A Battery Housing Top
62 731-09753 Electric Start Housing, RH
63 735- 0 4213A Lid Seal
64 738 -04431A Scr., Sldr., 5/16-14 x .972
65 954- 04260 V-Belt
66 787-01793 Front Axle Clip
67 725-06121 Battery Charger
68 710 - 0136 Screw, 1/4-20 x 1.75
69 710-0276 Bolt, Carr., 5/16-18 x 1.00
70 912 - 042 9 Nut, Flglk., 5/16-18
71 731-09728 Key
72 725-04903 Battery
73 731-0719 8 Hubcap, 8”
74 750 -05377 Spacer, .340 x .460 x .246
75 731- 09755 Electric Start Housing, LH
76 7 25 -06114 Plunger Switch
77 787-03162 Retainer Bracket
— 925-06140 Wire Harness (Not Shown)
— 725- 05106 Fuse (Not Shown)
Part Number Description
917-04802 Spur Gear, 14T - LH
7
Model TB220/230 (12AVB22/5)
1
34
10
26
2
39
8
3
5
6
11
32
7
27
9
16
13
4
37
22
13
42
30
48
46
47
42
12
21
15
28
18
8
38
29
14
33
36
40
60
42
19
20
43
29
17
52
56
35
55
54
51
41
45
46
44
57
46
59
49
54
58
53
50
23
24
31
25
Model TB230/260 (12AVB22/5)
Ref
No.
1 747- 05267C Blade Control
2 749 -04679 Upper Handle
3 647- 04271 Grass Catcher Frame
4 749 -04608 A Lower Handle
5 720-0279 Wing Nut
6 710 -1205 Rope Guide
7 710-04998 Carriage Screw ,5/16-18
8 96 4 -0 4117B Grass Bag
9 72 0 -0 4124 Wing Knob
10 731- 07131 Side Chute
11 72 5- 0157 Cable Tie
12 712-04222 Nut, Sq., 1/4-20
13 631-04369A Rear Discharge Door Assembly
14 747- 0710A Hinge Pin
15 787-01779 Chute Deector Bracket
16 732- 05061A Torsion Spring - RH
17 634-05039 Front Wheel
18 731-0719 9 Hubcap
19 710 - 05073 Screw, 1/4-20 x .500
20 787-01872B Deck , 21”
21 987-02516A Hinged Mulch Plug Assembly
22 732-05062A Torsion Spring - LH
23 687-02528 Blade Adapter Assembly
24 9 42-0741A Mulching Blade
25 710-104 4 Screw , 3/8-24 x 1.50
26 753-06060A Control Lever Assembly
27 738 -04419A Sldr. Screw, .375 x .126 x 1/4-20
28 712 - 04217 Flange Lock Nut, 3/8-16
29 720 - 0 4131A Adjustment Lever Knob
30 720-05066 Wing Nut, Black
Part Number Description
631-04371A Rear Discharge Door Assembly-
(Lowes)
720-05067 Wing Nut, Red
Ref
No.
31 736 -0524B Blade Bell Support
32 712- 04 064 Nut, Flange Lock, 1/4-20
33 634-05063 Rear Wheel
34 946-04661A Control Cable
35 710 - 046 83A TT Sems Screw, 3/8-16 x 1.0
36 731-07203 Trail Shield
37 731- 0779 0 Front Cover
38 732-1014 C Torsion Spring
39 946-04655A Variable Speed Cable
40 911- 0 414 4B Rear Axle Assembly
41 911- 04150 Front Axle Assembly
42 710 -04995A Screw, 5/16-14 x .750
43 731-07240A Wheel Dust Cover
44 954- 04260 V-Belt
45 787-01793 Front Axle Clip
46 738- 04278 Scr., Shldr., 1/4-20 x .50
47 7 31- 07487 Water Nozzle
48 921-04041 Water Nozzle Adapter
49 918 -04881A Transmission Assembly
50 931- 04535B Engine Bae
51 941-00019 Bearing Assembly
52 710 -04531 Screw, 1/4-20 x .390
53 732-04704 Compression Spring
54 710-0 895 Screw, 1/4-15 x .750
55 715-040 99 Dowel Pin
56 917-04801 Spur Gear, 14T - RH
57 731-07789 Lower Tray
58 731-07355 Spring Body
59 732-04675A Transmission Wire
60 731- 07198 Hubcap, 8”
Part Number Description
946-04703A Control Cable (5X65RU)
917-04802 Spur Gear, 14T - LH
9
Model TB330 (12AKC35)
44
41
42
37
46
39
25
62
66
43
40
70
14
1
3
3
22
19
45
47
15
4
3
50
7
29
52
8
53
54
56
18
16
17
24
6
5
12
2
29
38
23
16
A
61
3
20
30
35
31
49
10
71
67
57
69
63
68
59
36
65
64
58
60
A
34
32
51
21
9
10
11
28
32
51
33
50
27
48
55
13
26
50
48
55
Model TB330 (12AKC35)
Ref
No.
1 787-02002A Deck , 21”
2 631-04501A Bearing Assembly
3 710-04995A Screw, 5/16-14 x .750
4 712-04222 Nut, Sq., 1/4-20
5 749 -04608 A Lower Handle
6 710-04998 Carriage Screw ,5/16-18
7 710-04 683A Screw, 3/8-16 x 1.00
8 687-02220 Blade Adapter
9 942- 0741A Mulching Blade
10 736-0524B Blade Bell Support
11 710-104 4 Screw, 3/8-24 x 1.50
12 731-07203 Trailing Shield
13 949 -0 4 841B Cross Bracket
14 747- 05362 A Grass Catcher Frame
15 964- 0 4150B Grass Bag
16 631- 04553A Rear Discharge Door Assembly
17 732-050 61A Torsion Spring - RH
18 732-05062A Torsion Spring - LH
19 7 2 0 -04113 Adjustment Lever Knob
20 710 -0 4374 Screw, Hex Washer, .159 x .43
21 710 -0 47 74 Screw, 1/4-15 x 1.25
22 731-09601 Front Cover
23 731- 07799 Transmission Cover
24 712- 04 064 Nut, Flange Lock, 1/4-20
25 72 0 -0 4124 Wing Knob
26 911- 04190A Front Axle Assembly
27 631- 04512C Engine Bae
28 911 - 04189 Rear Axle Assembly
29 917-04852 Spur Gear, 10T
30 732-04826A Exten. Spring, 2.405
31 918-06000 Transmission Assembly
32 712- 04217 Flange Lock Nut, 3/8-16
33 634-04660 Front Wheel
34 934-05042 Rear Wheel
35 787-01868A Transmission Bracket
36 732-04937 Spring
Part Number Description
Ref
No.
37 749- 04701A Upper Handle
38 710-0895 Screw, 1/4-15 x .750
39 720 -0279 Knob
40 725- 0157 Cable Tie
41 710 -1205 Rope Guide
42 946 -04729 Speed Adjustment Cable
43 946-04661A Control Cable
44 747-05 4 63A Blade Control
45 720-05066 Wing Nut
46 738 -04419A Sldr. Screw, .375 x .126 x 1/4-20
47 731- 07 795 Wheel Dust Cover
48 741-0492A Bushing, Lock, .505 Dia. X .62
49 787- 01915A Rear Support Bracket
50 738-04278 Scr., Shldr., 1/4-20 x .50
51 731-0719 8 Hubcap, 8”
52 954- 04282 V-Belt
53 921-04041 Water Nozzle Adapter
54 731-07487 Water Nozzle
55 710 -1241 Screw, 1/4-15 x 1.000
56 731- 07131 Side Discharge Chute
57 987- 02516A Mulch Plug (Incl. 58-60)
58 732-1014C Torsion Spring
59 747-0710A Hinge Pin
60 787-01779 Chute Deector Bracket
61 710 -05073 Screw, 1/4-20 x .500
62 946 -04816 Drive Cable
63 710-0895 Screw, 1/4-15 x .750
64 731-07766 Control Lever LH
65 787-01851 Cable Adjust Plate
66 731- 08750 Upper Housing
67 731- 07764A Lower Housing
68 731- 0780 4 Speed Adjust Actuator
69 731-08759 Control Lever RH
70 731- 07767A Speed Select Lever
71 710 -05204 Scr., Shldr, 1/4-15 x .970
Part Number Description
11
Model TB370 (12ABD35)
60
61
13
13
31
63
43
55
50
59
53
17
28
38
10
29
43
19
42
A
57
49
56
40
41
33
43
43
2
64
32
28
30
3
62
14
4
8
6
11
7
5
12
9
34
26
36
27
51
49
48
45
18
35
37
A
47
22
25
24
54
58
54
16
46
54
18
44
20
17
23
1
19
52
15
39
21
18
19
20
17
12
Model TB370 (12ABD35)
Ref
No.
1 720 -0 4113 Adjustment Lever Knob
2 731-09601 Front Cover
3 749 -04608 A Lower Handle
4 749 -050 8 4 Upper Handle
5 710-04998 Carriage Screw ,5/16-18
6 710 -1205 Rope Guide
7 712-04064 Nut, Flange Lock, 1/4-20
8 720-0279 Knob
9 72 0 -0 4124 Wing Knob
10 720-05066 Wing Nut
11 72 5- 0157 Cable Tie
12 738 -0 4419A Sldr. Screw, .375 x .126 x 1/4-20
13 710 -1017 Screw, 1/4-14 x .625
14 931-09823 Handle Console
15 911- 04191A Front Axle Assembly
16 911 - 0419 2 Rear Axle Assembly
17 710- 0895 Screw, 1/4-15 x .750
18 712 - 04217 Flange Lock Nut, 3/8-16
19 738-04278 Scr., Shldr., 1/4-20 x .50
20 741- 0492A Bushing, Lock, .505 Dia. X .62
21 949-04840B Cross Bracket
22 942- 0741A Mulching Blade
23 687-02220 Blade Adapter
24 710 -1044 Screw, 3/8-24 x 1.50
25 736-0524B Blade Bell Support
26 964-04150B Grass Bag
27 747-05362A Grass Catcher Frame
28 631- 04553A Rear Discharge Door Assembly
29 712-04222 Nut, Sq., 1/4-20
30 731-07203 Trailing Shield
31 732- 050 61A Torsion Spring - RH
32 732-05062A Torsion Spring - LH
Part Number Description
Ref
No.
33 787-02002A Deck , 21”
34 987- 02516A Mulch Plug (Incl. 35-37)
35 732-1014C Torsion Spring
36 747- 0710A Hinge Pin
37 787-01779 Chute Deector Bracket
38 710-05073 Screw, 1/4-20 x .500
39 731-07131 Side Discharge Chute
40 921-04041 Water Nozzle Adapter
41 731- 07487 Water Nozzle
42 710 -04683A Screw, 3/8-16 x 1.00
43 710 - 04995A Screw, 5/16-14 x .750
44 731- 07198 Hubcap, 8”
45 731-07199 H u b ca ;p, 11”
46 634-04660 Front Wheel
47 934-04666 Rear Wheel
48 731-07731C Wheel Dust Cover
49 917-04849 Spur Gear, 9T
50 731- 08175 Transmission Cover
51 631-04501A Bearing Assembly
52 631- 04512C Engine Bae
53 710- 04374 Screw, Hex Washer, .159 x .43
54 710 - 04774 Screw, 1/4-15 x 1.25
55 732-05150 Exten. Spring, 2.405
56 954 -04282 V-Belt
57 787-01868A Transmission Bracket
58 787-01915A Rear Support Bracket
59 918-07000 Transmission Assembly
60 731-09730 Drive Handle
61 747- 06243 Blade Control
62 748-050 47 Shoulder Spacer, .18 x .315 x .09
63 94 6 -05105 Control Cable
64 94 6 - 05121 Drive Cable
Part Number Description
13
Model TB380ES (12ACC35)
13
45
60
73
61
13
31
63
43
55
50
53
17
28
10
29
43
19
42
A
38
57
64
32
28
30
3
62
14
74
12
70
81
8
29
76
11
9
11
4
7
5
66
75
6
77
69
65
79
40
41
43
33
71
43
43
80
67
72
68
78
34
26
27
36
44
49
56
23
1
46
52
19
17
20
2
39
21
19
16
20
17
59
51
49
48
47
18
35
44
37
A
22
54
58
54
15
18
14
25
24
Model TB380ES (12ACC35)
Ref
No.
1 720 -0 4113 Adjustment Lever Knob
2 731-10334 Front Cover
3 749 -04608 A Lower Handle
4 749 -050 8 4 Upper Handle
5 710-04998 Carriage Screw ,5/16-18
6 710 -1205 Rope Guide
7 712-04064 Nut, Flange Lock, 1/4-20
8 720-0279 Knob
9 72 0 -0 4124 Wing Knob
10 720-05066 Wing Nut
11 72 5- 0157 Cable Tie
12 738 -0 4419A Sldr. Screw, .375 x .126 x 1/4-20
13 710 -1017 Screw, 1/4-14 x .625
14 931-09823 Handle Console
15 911- 0 4189 Rear Axle Assembly
16 911 - 0419 0A Front Axle Assembly
17 710- 0895 Screw, 1/4-15 x .750
18 712 - 04217 Flange Lock Nut, 3/8-16
19 738-04278 Scr., Shldr., 1/4-20 x .50
20 741- 0492A Bushing, Lock, .505 Dia. X .62
21 949 - 0 4841B Cross Bracket
22 942- 0741A Mulching Blade
23 687-02220 Blade Adapter
24 710 -1044 Screw, 3/8-24 x 1.50
25 736-0524B Blade Bell Support
26 964-04150B Grass Bag
27 747-05362A Grass Catcher Frame
28 631- 04553A Rear Discharge Door Assembly
29 712-04222 Nut, Sq., 1/4-20
30 731-07203 Trailing Shield
31 732- 050 61A Torsion Spring - RH
32 732-05062A Torsion Spring - LH
33 787-02003A Deck , 21”
34 987- 02516A Mulch Plug (Incl. 35-37)
35 732-1014C Torsion Spring
36 747- 0710A Hinge Pin
37 787-01779 Chute Deector Bracket
38 710-05073 Screw, 1/4-20 x .500
39 731-07131 Side Discharge Chute
40 921-04041 Water Nozzle Adapter
41 731- 07487 Water Nozzle
42 710 -04683A Screw, 3/8-16 x 1.00
Part Number Description
Ref
No.
43 710 - 04995A Screw, 5/16-14 x .750
44 731- 07198 Hubcap, 8”
45 710-0136 Screw, 1/4-20 x 1.75
46 634-04660 Front Wheel
47 934-05042 Rear Wheel
48 731-07795 Wheel Dust Cover
49 917-04852 Spur Gear, 10T
50 731- 08175 Transmission Cover
51 631-04501A Bearing Assembly
52 631- 04512C Engine Bae
53 710- 04374 Screw, Hex Washer, .159 x .43
54 710 - 04774 Screw, 1/4-15 x 1.25
55 732-05150 Exten. Spring, 2.405
56 954 -04282 V-Belt
57 787-01868A Transmission Bracket
58 787-01915A Rear Support Bracket
59 918-07000 Transmission Assembly
60 731-09730 Drive Handle
61 747- 06243 Blade Control
62 748-050 47 Shoulder Spacer, .18 x .315 x .09
63 94 6 -05105 Control Cable
64 94 6 - 05121 Drive Cable
65 725 -0 6121 Battery Charger
66 931-05131 Key Switch
67 710 -0276 Bolt, Carr., 5/16-18 x 1.00
68 912- 0429 Nut, Flglk., 5/16-18
69 725- 04903 Battery
70 7 2 5- 06114 Plunger Switch
71 726-0201 Speed Nut
72 731- 07135 Battery Housing
73 731- 07154A Battery Housing Top
74 731-09728 Key
75 731- 09753 Electric Start Housing, RH
76 731- 09755 Electric Start Housing, LH
77 735-04213A Lid Seal
78 736- 0242 Washer, Bell, .340 x .872 x .080
79 738 - 04431A Scr., Sldr., 5/16-14 x .972
80 750- 05377 Spacer, .340 x .460 x .246
81 787- 03162 Retainer Bracket
— 925-06140 Wire Harness (Not Shown)
— 725- 05106 Fuse (Not Shown)
Part Number Description
15
Model TB360 (12ABD3B)
60
61
13
13
31
63
43
55
50
59
53
17
28
38
10
29
43
19
42
A
57
49
56
40
41
33
43
43
2
64
32
28
30
3
62
14
4
8
6
11
7
5
12
9
34
26
36
27
51
49
48
45
18
35
37
A
47
22
25
24
54
58
54
16
46
54
18
44
20
17
23
39
1
21
18
52
19
15
19
20
17
16
Model TB360 (12ABD3B)
Ref
No.
1 720 -0 4113 Adjustment Lever Knob
2 731-10334 Front Cover
3 749 -04608 A Lower Handle
4 749 -050 8 4 Upper Handle
5 710-04998 Carriage Screw ,5/16-18
6 710 -1205 Rope Guide
7 712-04064 Nut, Flange Lock, 1/4-20
8 720-0279 Knob
9 72 0 -0 4124 Wing Knob
10 720-05066 Wing Nut
11 72 5- 0157 Cable Tie
12 738 -0 4419A Sldr. Screw, .375 x .126 x 1/4-20
13 710 -1017 Screw, 1/4-14 x .625
14 931-09823 Handle Console
15 911- 04191A Front Axle Assembly
16 911 - 0419 2 Rear Axle Assembly
17 710- 0895 Screw, 1/4-15 x .750
18 712 - 04217 Flange Lock Nut, 3/8-16
19 738-04278 Scr., Shldr., 1/4-20 x .50
20 741- 0492A Bushing, Lock, .505 Dia. X .62
21 949-04840B Cross Bracket
22 942- 0741A Mulching Blade
23 687-02220 Blade Adapter
24 710 -1044 Screw, 3/8-24 x 1.50
25 736-0524B Blade Bell Support
26 964-04150B Grass Bag
27 747-05362A Grass Catcher Frame
28 631-04514A Rear Discharge Door Assembly
29 712-04222 Nut, Sq., 1/4-20
30 731-07203 Trailing Shield
31 732- 050 61A Torsion Spring - RH
32 732-05062A Torsion Spring - LH
Part Number Description
Ref
No.
33 787-02002A Deck , 21”
34 987- 02516A Mulch Plug (Incl. 35-37)
35 732-1014C Torsion Spring
36 747- 0710A Hinge Pin
37 787-01779 Chute Deector Bracket
38 710-05073 Screw, 1/4-20 x .500
39 731-07131 Side Discharge Chute
40 921-04041 Water Nozzle Adapter
41 731- 07487 Water Nozzle
42 710 -04683A Screw, 3/8-16 x 1.00
43 710 - 04995A Screw, 5/16-14 x .750
44 731- 07198 Hubcap, 8”
45 731-07199 H u b ca ;p, 11”
46 634-04660 Front Wheel
47 934-04666 Rear Wheel
48 731-07731C Wheel Dust Cover
49 917-04849 Spur Gear, 9T
50 731- 08175 Transmission Cover
51 631-04501A Bearing Assembly
52 631- 04512C Engine Bae
53 710- 04374 Screw, Hex Washer, .159 x .43
54 710 - 04774 Screw, 1/4-15 x 1.25
55 732-05150 Exten. Spring, 2.405
56 954 -04282 V-Belt
57 787-01868A Transmission Bracket
58 787-01915A Rear Support Bracket
59 918-07000 Transmission Assembly
60 731-09730 Drive Handle
61 747- 06243 Blade Control
62 748-050 47 Shoulder Spacer, .18 x .315 x .09
63 94 6 -05105 Control Cable
64 94 6 - 05121 Drive Cable
Part Number Description
17
Engine Model 5X65RU Air Cleaner
117
118
120
121
Ref. Part Number Description
117 710 -04969 Bolt M6X30 Af Base/Coil/E-Starter
118 951-14 439 Air Cleaner Housing Assembly
120 951-10298 Air Cleaner Kit
121 712- 05015 Nut M6X10Mm Starter/Carb/Mu
18
134
133
134
132
131
130
130
5X65RU Carburetor
a
h
g
l
i
j
f
k
b
c
d
e
128
129
179 - Carburetor Kit
Ref.
Part Number Description
126 951-14419 Air Filter Base Gasket
127 951-14420 Choke Temp Control Bracket
128 951-14422 Choke Temp Control Bracket Gasket
129 951-14421 Choke Temp Control Linkage
130 951-14423 Carburetor Assembly
131 951-14424 Carburetor Gasket
132 951 -11738 Carburetor Insulator
133 951 -11528 Carburetor Insulator Gasket
134 951-14425 Carb Stud M6×87
179 951-14446 Carburetor Kit
(Incl.e,j,k,l,o,p,q,r,s,t,u,w,z)
a n/a Choke Shaft
b n/a Choke Plate
c n/a Choke Return Spring
d n/a Choke Shaft Washer
e n/a Choke Shaft Fiber O-Ring
f n/a Throttle Plate
g n/a Throttle Plate Lock Washer
h n/a Screw M3X6 Throttle Plate
127
126
Ref.
Part Number Description
i n/a Throttle Shaft
j n/a Idle Jet Assembly
k n/a Throttle Shaft Fiber O-Ring
l n/a Idle Speed Adjusting Screw
m n/a Idle Mixture Screw
n n/a Carburetor Body
o n/a Emulsion Tube
p n/a Main Jet
q n/a Fuel Bowl O-Ring
r n/a Needle Valve
s n/a Needle Valve Spring
t n/a Float
u n/a Float Pin
v n/a Fuel Bowl
w n/a Fuel Bowl Gasket
x n/a Fuel Bowl Mounting Bolt
y n/a Fuel Drain Plug
aa n/a Fuel Drain Plug Gasket
m
n
o
p
q
r
s
t
v
w
x
u
z
y
19
5X65RU Crankcase
176 - Gasket Kit - Complete
177 - Gasket Kit -External
178 - Complete Engine
44
46
47
43
36
43
45
28
44
51
48
49
50
52
53
54
161
166
168
167
166
85
172
169
86
86
73
89
48
79
64
48
64
81
80
88
90
74
71
83
84
82
72
75
20
5X65RU Crankcase
Ref.
Part Number Description
28 951-14 402 Brake Assembly
36 712- 04219 Brake Arm Nut
38 712- 0420 9 Ground Switch Nuts M4
43 750- 05384 Brake Spacer
44 710-04980 Bolt M6X35 Af Base/Brake/Dipstick
45 710-04918 Bolt M6×20 Ignition Coil
46 951 -116 2 2 Flexible Clamp, Ignition Coil
47 951-14403 Ignition Coil Assembly
48 710 - 04916 Bolt M6X14 Multi-Purpose
49 951-14 404 Breather Cover Plate
50 951-14 405 Breather Gasket
51 951-1159 6 Upper Crankshaft Seal
52 95 1-117 30 Breather Screen
53 732-04718 Breather Valve Spring
54 9 51-11614 Breather Valve
64 710 -0 4915 Bolt M6X12 Multi-Purpose
71 951-1440 8 Choke Linkage
72 951-14 409 Throttle Linkage Spring
73 951-14410 Throttle Linkage
74 9 51-14 411 Governor Spring
75 951-14 412 Governor Arm Assembly
79 951-14413 Component Bracket
80 951-14414 Air Vane Bracket
81 951 -11529 Air Vane
Ref.
Part Number Description
82 714-04074 Governor Arm Shaft Cotter Pin
83 9 51-115 74 Governor Seal
84 951-14416 Governor Arm Shaft
85 9 51-115 2 0 Breather Hose Assembly
86 726 -04101 Breather Hose Clamp
88 951-14 415 Crankcase Cover Gasket
89 951-14447 Short Block
(Incl.48-54,82-84,88-92,95,97-100,
110-116,126,132,133,149,152,15 6,
157,159-161,16 6 -169,172)
90 951-113 6 9 Main Bearing
161 951-14 433 Piston Ring Set
166 951-116 03 Piston Pin Snap Ring
167 951-14 434 Piston
168 951-14 435 Piston Pin
169 951-14 436 Connecting Rod Assembly
172 710 - 05115 Connecting Rod Bolt
176 951-14443 Gasket Kit - Complete
(Incl.50 ,51, 83, 88,95,113,116,126,
128,131-133 ,149,152,156)
177 951-14444 Gasket Kit -External
(Incl.50 ,9 5,113,126,128,
131-133,149,152)
178 952Z5X65RU Complete Engine
21
5X65RU Crankshaft & Crankcase Cover
94
92
91
44
95
96
95
114
175
113
111
112
112
112
Ref. Part Number Description
44 710- 04980 Bolt M6X35 Af Base/Brake/Dipstick
48 710- 04916 Bolt M6X14 Multi-Purpose
91 9 51-14 417 Crankshaft Assembly
92 951-10307 Flywheel Key
94 951-14440 Oil Dipstick Assembly
95 9 51-115 46 Dipstick / Oil Fill Tube O-Ring
96 951-14441 Oil Fill Tube Assembly
97 9 51-117 33 Oil Return Seal
98 736-04 491 Crankshaft Thrust Washer
99 95 1-1160 9 Governor Gear Mounting Plate
48
48
99
9897
112
100
110
112
115
112
112
116
Ref. Part Number Description
100 951-115 49 Governor Gear/Shaft Assembly
110 715 -04092 Crankcase Cover Dowel Pin 7×14
111 715 -04089 Crankcase Cover Dowel Pin 9×14
112 710 -04931 Bolt M6X28 X65/P65 Crankcase
113 736-04440 Oil Drain Plug Washer
114 710 -04906 Oil Drain Plug
115 951-14 418 Crankcase Cover
116 951-115 45 Lower Crankshaft Seal
175 951-10370 Oil Drain Plug & Washer Assembly
22
5X65RU Flywheel & Shroud
3
2
1
26
2
2
6
16
15
19
19
19
18
15
25
20
24
27
21
Ref.
Part Number Description
1 951-14396 Starter Recoil Assembly
2 712- 0429 0 Starter Acorn Nut
3 731-07925 Starter Handle
6 9 51-11721 Recoil Pulley & Spring Assembly
15 951-14397 Starter/Shroud Rear Stud M6×78.5
16 951-14398 Starter/Shroud Front Stud M6×74
18 951-14399 Engine Shroud Assembly
Ref.
Part Number Description
19 750- 05320 Engine Shroud Spacer
20 951-14442 Carbon Canister Assembly
21 951-14126 Carbon Canister
24 951-1440 0 Carbon Canister Filter
25 951-14127 Carbon Canister Filter Cap
26 712- 04287 Flywheel Nut M14
27 951-144 01 Flywheel
23
5X65RU Cylinder Head
121
121
155
154
176 - Gasket Kit - Complete
177 - Gasket Kit -External
178 - Complete Engine
48
48
173
OPTIONAL
150
174
149
48
142
144
141
148
148
147
147
139
151
146
153
141
146
64
152
138
145
145
138
151
136
137
143
136
160
157
159
158
156
159
158
157
136
135
136
24
48
5X65RU Cylinder Head
Ref.
Part Number Description
48 710 - 04916 Bolt M6X14 Multi-Purpose
135 951-14448 Cylinder Head Asm
(I ncl.132,133,135,138-143,
145 -149,152,156)
951-14445 Cylinder Head Service Kit
(Incl.136 ,139,149,156)
136 710-04982 Bolt M8X54 Cylinder Head
137 951-14437 Spark Plug, F5Rtc
138 951-10313 Valve Kit
139 951-11818 Intake Valve Seal
140 951-10313 Valve Kit
141 951-12004 Valve Spring
142 951-11977 Valve Spring Retainer
143 95 1-11687 Push Rod Guide
144 951-116 0 6 Rocker Arm Assembly
145 710-0 49 02 Rocker Arm Stud
146 951-12001 Rocker Arm
147 751-1112 3 Fulcrum Nut
148 751-1112 4 Jam Nut
149 951-11551 Valve Cover Gasket
150 951-14426 Valve Cover
Ref.
Part Number Description
151 710-05094 Muer Stud M6X95
151 951-10342 Muer Stud Assembly
152 951-14427 Muer Gasket
153 951-14428 Choke Temp Control Thermostat
154 951-14429 Muer Assembly
155 951-14430 Muer Shield
156 951-14431 Cylinder Head Gasket
157 715- 0 410 8 Cylinder Head Dowel Pin 10×16
158 951-10314 Push Rod Kit
159 951-14432 Tappet
160 9 51-11741 Camshaft Assembly
173 951-10351 Spark Arrestor
174 710 - 04983 Spark Arrestor Screw
176 951-14443 Gasket Kit - Complete
(Incl.50 ,51, 83, 88,95,113,116,126,
128,131-133 ,149,152,156)
177 951-14444 Gasket Kit -External
(Incl.50 ,9 5,113,126,128,
131-133,149,152)
178 952Z5X65RU Complete Engine
25
5X65RU Fuel Tank
57
65
48
63
64
56
55
58
68
67
69
70
68
26
Ref. Part Number Description
48 710- 04916 Bolt M6X14 Multi-Purpose
55 731- 08133 Fuel Tank Lower Grommet
56 951-14406 Fuel Tank Upper Grommet
57 731-08104 Fuel Tank Nut
58 951-14407 Fuel Cap Assembly
63 931-04629 Fu el Tan k
64 710- 04915 Bolt M6X12 Multi-Purpose
65 951-116 80 Flexible Clamp, Vent Hose
67 951-10358A Fuel Filter
68 951-117 00 Fuel Hose Clamp
69 9 51-14 438 Fuel Line Kit
70 723- 04071 Plastic Support Clamp
Notes
27
To order replacement parts or locate your nearest service dealer call Customer Support at (800) 828-5500.
or visit www.troybilt.com to find the nearest authorized dealer in your area.
TROY-BILT LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Loading...
