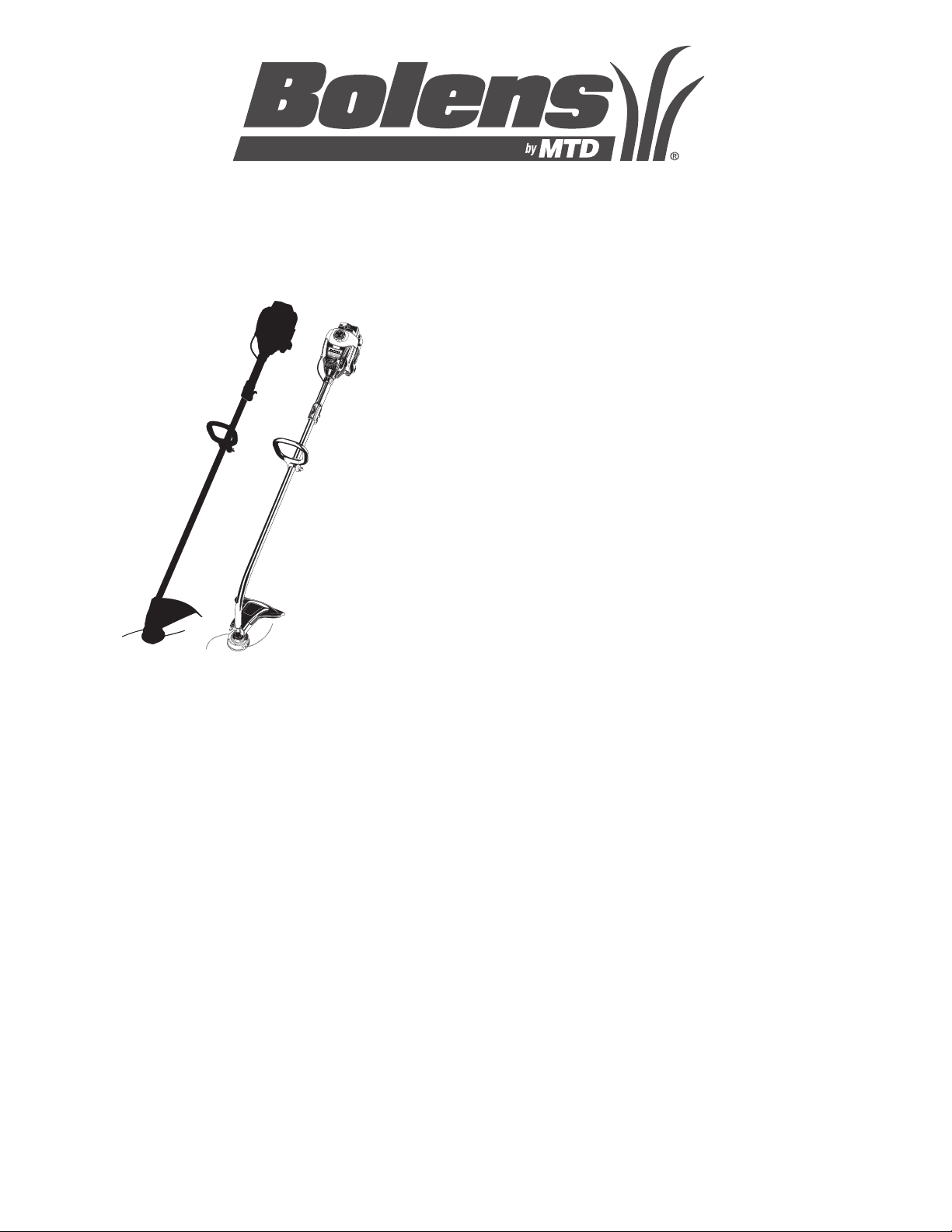

Troy-Bilt BL100, BL150 User Manual

RULES FOR SAFE OPERATION

Read the Operator’s Manual and follow all warnings and safety instructions. Failure to do so can result in serious injury to the operator and/or bystanders.

FOR QUESTIONS, CALL 1-800-345-8746 IN U.S. OR 1-800-668-1238 in CANADA

SYMBOL MEANING

WARNING:

Failure to obey a safety warning can

result in injury to yourself and others. Always follow the

safety precautions to reduce the risk of fire, electric

shock and personal injury.

CAUTION:

Failure to obey a safety warning may result

in property damage or personal injury to yourself or to

others. Always follow the safety precautions to reduce

the risk of fire, electric shock and personal injury.

READ ALL INSTRUCTIONS BEFORE OPERATING

•Read the instructions carefully. Be familiar with the controls and

proper use of the unit.

•Do not operate this unit when tired, ill or under the influence of

alcohol, drugs or medication.

•Children under the age of 15 must not use the unit; teens may

operate the unit with adult guidance.

•I

nspect the unit before use. Replace damaged parts. Check for fuel

leaks. Make sure all fasteners are in place and secure. Replace cutting

attachment parts that are cracked, chipped or damaged in any way.

Make sure the cutting attachment is properly installed and securely

fastened. Be sure that the cutting attachment shield is properly attached,

and positioned as recommended. Failure to do so can result in personal

injury to the operator and bystanders, as well as damage to the unit.

•U

se only 0.080 inch (2.03 mm) diameter original equipment

manufacturer replacement line. Never use metal-reinforced line, wire,

chain or rope. These can break off and become dangerous projectiles.

•Be aware of risk of injury to the head, hands and feet.

•Clear the area to be cut before each use. Remove rocks, broken

glass, nails, wire, string and other objects which may be thrown

or become entangled in the cutting attachment. Clear the area of

children, bystanders and pets; keep them outside a 50-foot

(15 m.) radius, at a minimum. Even then, they are still at risk from

thrown objects. Encourage bystanders to wear eye protection. If

you are approached, stop the unit immediately.

•S

queeze the throttle control and check that it returns automatically to

the idle position. Make all adjustments or repairs before using the unit.

•This unit was not designed to be used as a brushcutter. Do not

attach or operate this unit with any type of brushcutting blade or

brushcutting attachment.

SAFETY WARNINGS FOR GAS TRIMMERS

•Store fuel only in containers specifically designed and approved

for the storage of such materials.

•Always stop the engine and allow it to cool before filling the fuel tank. Never remove the fuel tank cap or add fuel when the engine is

hot. Never operate the unit without the fuel cap securely in place.

Loosen the fuel tank cap slowly to relieve any pressure in the tank.

•Add fuel in a clean, well-ventilated outdoor area where there are

no sparks or flames. Remove the fuel cap slowly, and only after

the engine stops. Do not smoke while fueling or mixing fuel. Wipe

up any spilled fuel from the unit immediately.

•Avoid creating a source of ignition for spilled fuel. Do not start

WARNING:

When using the unit, you must follow the

safety rules. Please read these instructions before

operating the unit in order to ensure the safety of the

operator and any bystanders. Please keep these

instructions for later use.

• IMPORTANT SAFETY INSTRUCTIONS •

the engine until fuel vapors dissipate.

•Move the unit at least 30 feet (9.1 m) from the fueling source and site

before starting the engine. Do not smoke. Keep sparks and open

flames away from the area while adding fuel or operating the unit.

WHILE OPERATING

•Never start or run the unit inside a closed room or building.

Breathing exhaust fumes can be fatal. Operate this unit only in a

well-ventilated outdoor area.

•Wear safety glasses or goggles that meet ANSI Z87.1 standards and

are marked as such. Wear ear/hearing protection when operating

this unit. Wear a face or dust mask if the operation is dusty.

•Wear heavy long pants, boots, gloves and a long sleeve shirt. Do

not wear loose clothing, jewelry, short pants, sandals or go

barefoot. Secure hair above shoulder level.

•The cutting attachment shield must always be in place while

operating the unit. Do not operate unit without both trimming

lines extended, and the proper line installed. Do not extend the

trimming line beyond the length of the shield.

•This unit does not have a clutch. The cutting attachment

continues rotating when the engine is idling. If it does not, have

the unit adjusted by an authorized service technician.

•Adjust the D-handle to your size in order to provide the best grip.

•Be sure the cutting attachment is not in contact with anything

before starting the unit.

•Use the unit only in daylight or good artificial light.

•Avoid accidental starting. Be in the starting position whenever

pulling the starter rope. The operator and unit must be in a stable

position while starting. Refer to Starting/Stopping Instructions.

•Use the right tool. Only use this tool for its intended purpose.

•Do not overreach. Always keep proper footing and balance.

•Always hold the unit with both hands when operating. Keep a

firm grip on both handles or grips.

•Keep hands, face, and feet at a distance from all moving parts. Do

not touch or try to stop the cutting attachment when it rotates.

•Do not touch the engine, gear housing or muffler. These parts get

extremely hot from operation, even after the unit is turned off.

•Do not operate the engine faster than the speed needed to cut, trim

or edge. Do not run the engine at high speed when not cutting.

•Always stop the engine when cutting is delayed or when walking

from one cutting location to another.

•If you strike or become entangled with a foreign object, stop the

engine immediately and check for damage. Do not operate

before repairing damage. Do not operate the unit with loose or

damaged parts.

•Stop the unit, switch the engine to off, and disconnect the spark

plug for maintenance or repair.

•U

se only original equipment manufacturer replacement parts and

accessories for this unit. These are available from your authorized service

dealer. Use of any unauthorized parts or accessories could lead to

serious injury to the user, or damage to the unit, and void your warranty.

•Keep unit clean of vegetation and other materials. They may

become lodged between the cutting attachment and shield.

•To reduce fire hazard, replace a faulty muffler and spark arrestor.

Keep the engine and muffler free from grass, leaves, excessive

grease or carbon build up.

OTHER SAFETY WARNINGS

•Never store a fueled unit inside a building where fumes may

reach an open flame or spark.

•Allow the engine to cool before storing or transporting. Be sure

to secure the unit while transporting.

•Store the unit in a dry area, locked up or up high to prevent

unauthorized use or damage, out of the reach of children.

•Never douse or squirt the unit with water or any other liquid.

Keep handles dry, clean and free from debris. Clean after each

use, see Cleaning and Storage instructions.

•Keep these instructions. Refer to them often and use them to

instruct other users. If you loan someone this unit, also loan them

these instructions.

SAVE THESE INSTRUCTIONS

WARNING:

Gasoline is highly flammable, and its

vapors can explode if ignited. Take the following

precautions:

RULES FOR SAFE OPERATION

This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's

manual for complete safety, assembly, operating and maintenance and repair information.

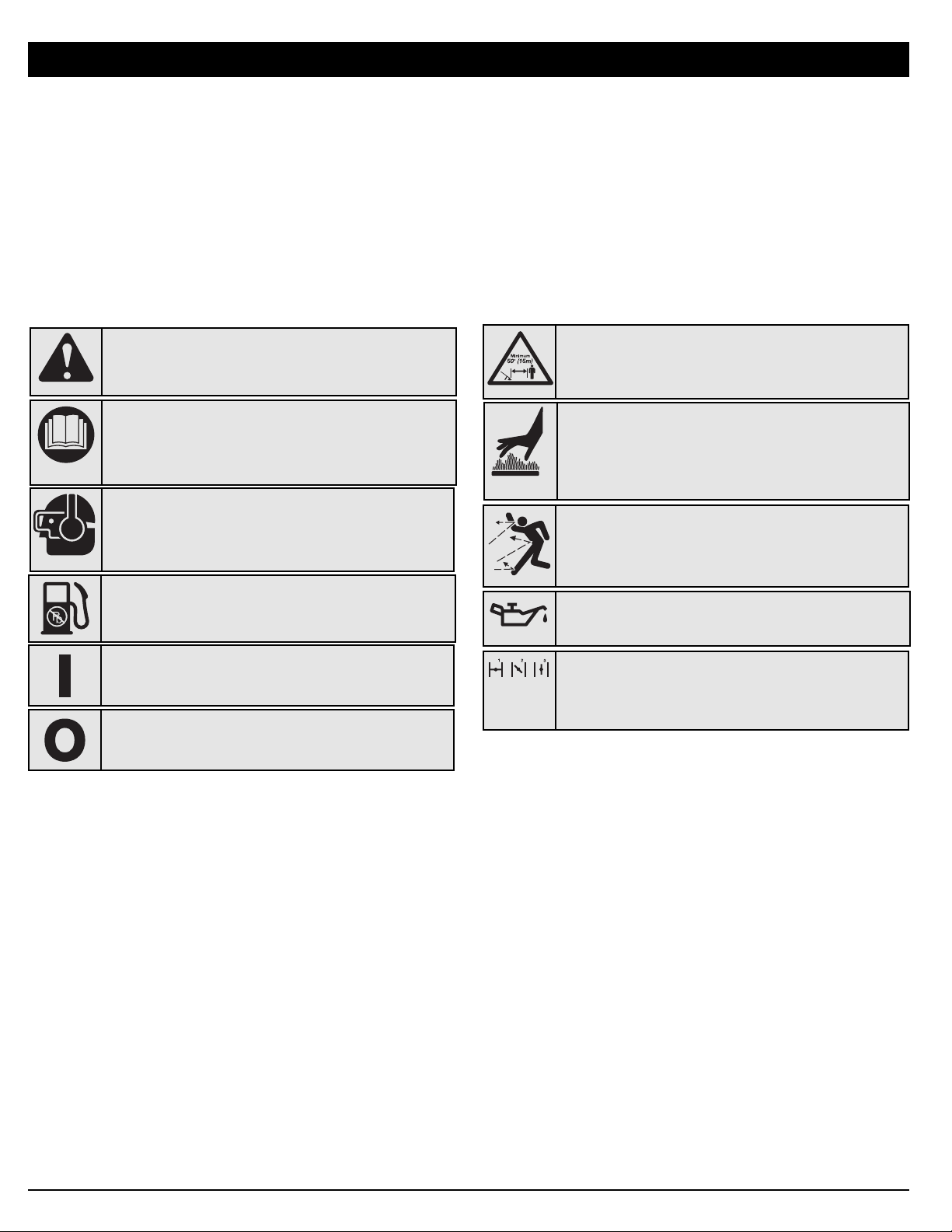

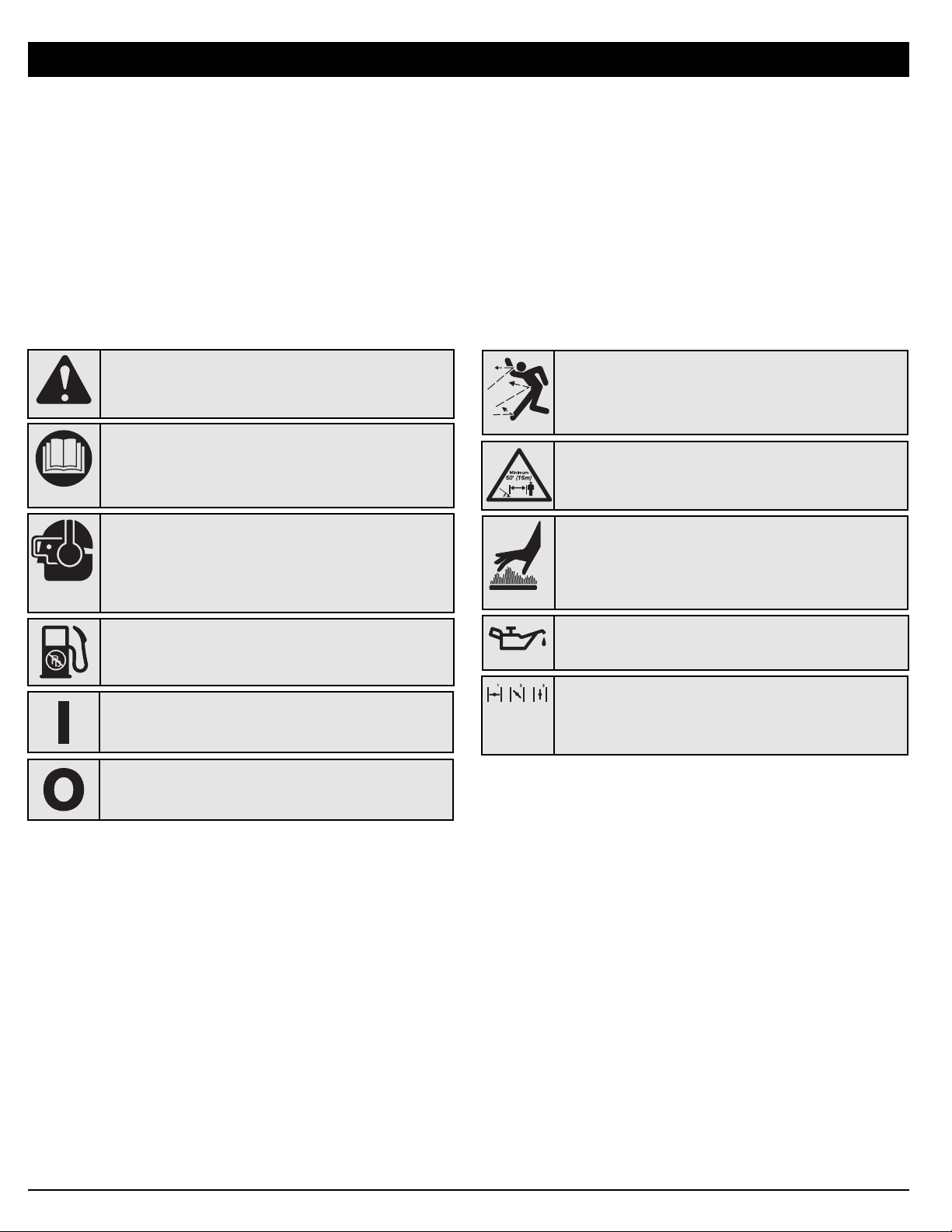

• SAFETY ALERT SYMBOL

Indicates danger, warning or caution. May be used in

conjunction with other symbols or pictographs.

• HOT SURFACE WARNING

Do not touch a hot muffler or cylinder. You may get

burned. These parts get extremely hot from operation.

When turned off they remain hot for a short time.

• WARNING - READ OPERATOR'S MANUAL

ead the operator’s manual(s) and follow all warnings

and safety instructions. Failure to do so can result in

serious injury to the operator and/or bystanders.

• WEAR EYE AND HEARING PROTECTION

WARNING: Thrown objects and loud noise can

cause severe eye injury and hearing loss. Wear eye

protection meeting ANSI Z87.1-1989 standards and

ear protection when operating this unit. Use a full face

shield when needed.

• KEEP BYSTANDERS AWAY

WARNING: Keep all bystanders, especially children

and pets, at least 50 feet (15 m.) from the operating area.

• THROWN OBJECTS AND ROTATING CUTTER CAN CAUSE SEVERE INJURY

WARNING: Small objects can be propelled at high

speed, causing injury. Keep away from the rotating rotor.

SYMBOL MEANING

• CHOKE CONTROL

1. • FULL choke position

2. • PARTIAL choke position

3. • RUN choke position

• UNLEADED FUEL

Always use clean, fresh unleaded fuel

• OIL

Refer to operator’s manual for the proper type of oil.

• ON/OFF STOP CONTROL

ON / START / RUN

• ON/OFF STOP CONTROL

OFF or STOP

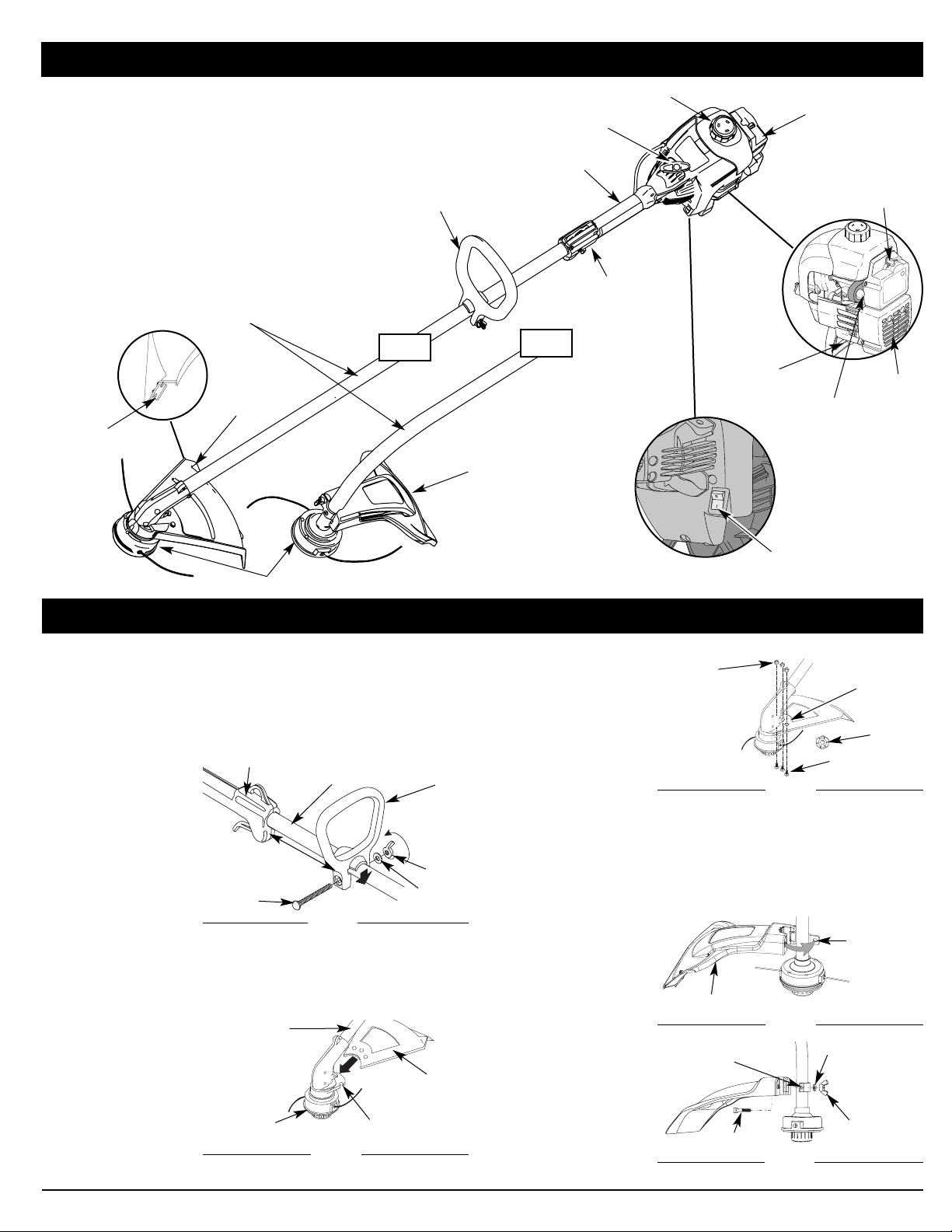

KNOW YOUR UNIT

APPLICATIONS

As a trimmer:

•Cutting grass and light weeds

•Edging

•Decorative trimming around trees,

fences, etc.

INSTALL AND ADJUST THE D-HANDLE

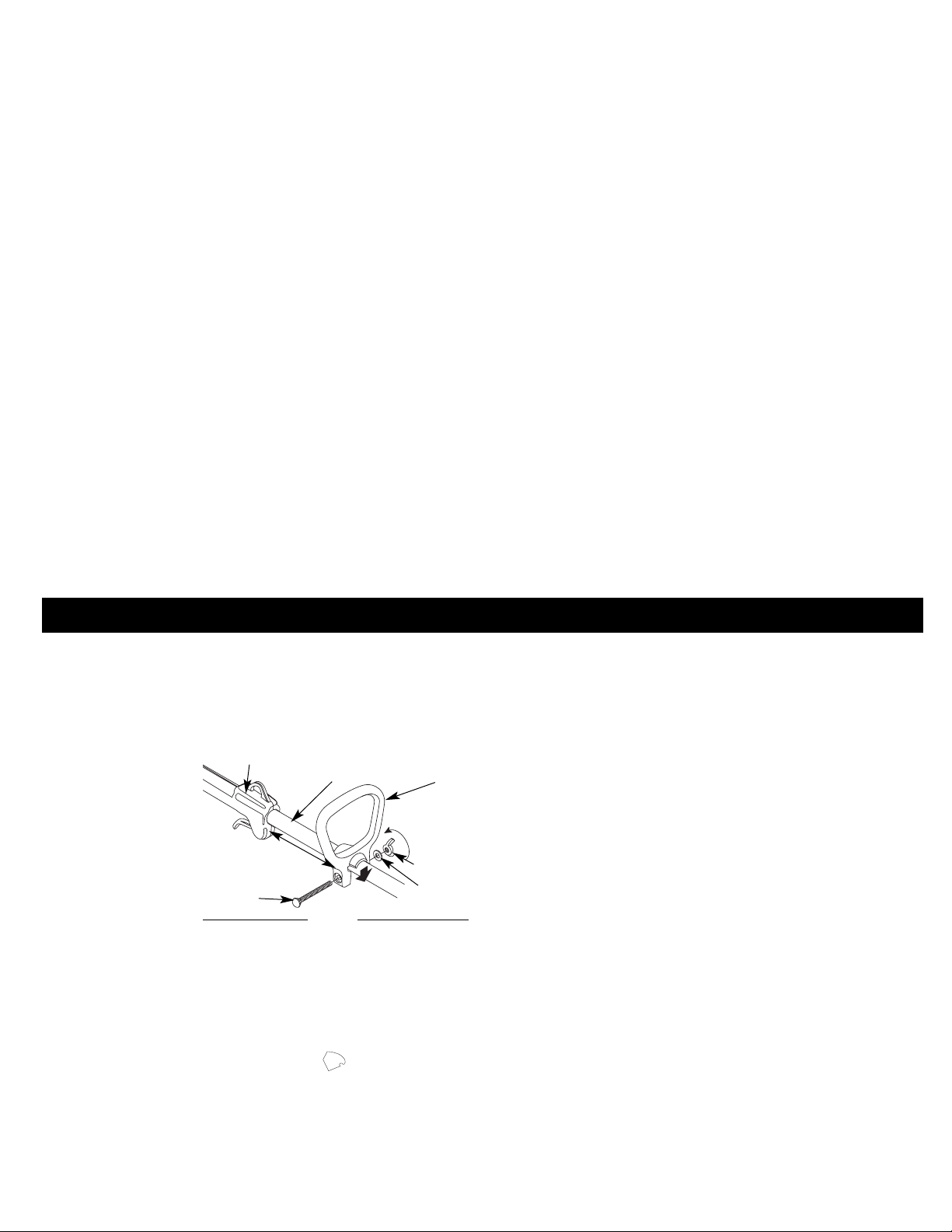

1. P

ush the D-handle down onto the shaft housing so that the handle

slants towards the shaft grip (Fig. 1). The squared bolt hole in the

handle is to the right.

2. Insert the shoulder

bolt into the squared

hole in the handle

and push through. On

the left side of the

handle, place the

washer on the bolt,

then screw the wing

nut onto the bolt. Do

not tighten until you

make the handle

adjustment.

3. R

otate the D-handle to place the grip above the top of the shaft

housing. Place it a minimum of 6 inches (15.24 cm) from the end of

the shaft grip.

4. While holding the unit in the operating position (Fig. 9), position

the D-handle to the location that provides you the best grip.

5. Tighten the wing nut until the D-handle is secure.

INSTALLING THE CUTTING SHIELD

Use the following instructions if the cutting attachment shield on

your unit is not installed or if you ever need to re-install it.

Install on a Straight Shaft (BL150)

1. Slide the cutting attachment shield into the shield mount on the

cutting attachment. Align the screw holes in the shield with the

holes in the cutting attachment shield mount (Fig. 2).

2. Place one of the

three (3) supplied

hex lock nuts into

one of the three

recessed holes on

the top of the

cutting attachment

shield (Fig 3).

3. I

nstall a screw into the

hole from the bottom

of the cutting

attachment shield.

Screw it into the nut

installed in step 2 until

it is started (Fig 3). Do

not tighten.

4. R

epeat steps 2 and 3

until all three screws

have been started.

Then tighten all screws securely with a Phillips head screwdriver.

Install on a Curved Shaft (BL100)

Place the cutting attachment shield onto the shaft housing. Be sure

the guard mounting

bracket slides into the

slot on the edge of the

cutting shield. Rotate

the shield into place,

counterclockwise (Fig.

4). The holes in the

guard mounting

bracket and cutting

attachment shield will

line up.

2. From inside the

cutting attachment

shield, push the

square bolt through

the hole until the

threaded end

protrudes through the guard mounting bracket (Fig. 5).

3. Put the washer on the bolt, then screw the wing nut onto the

bolt and tighten.

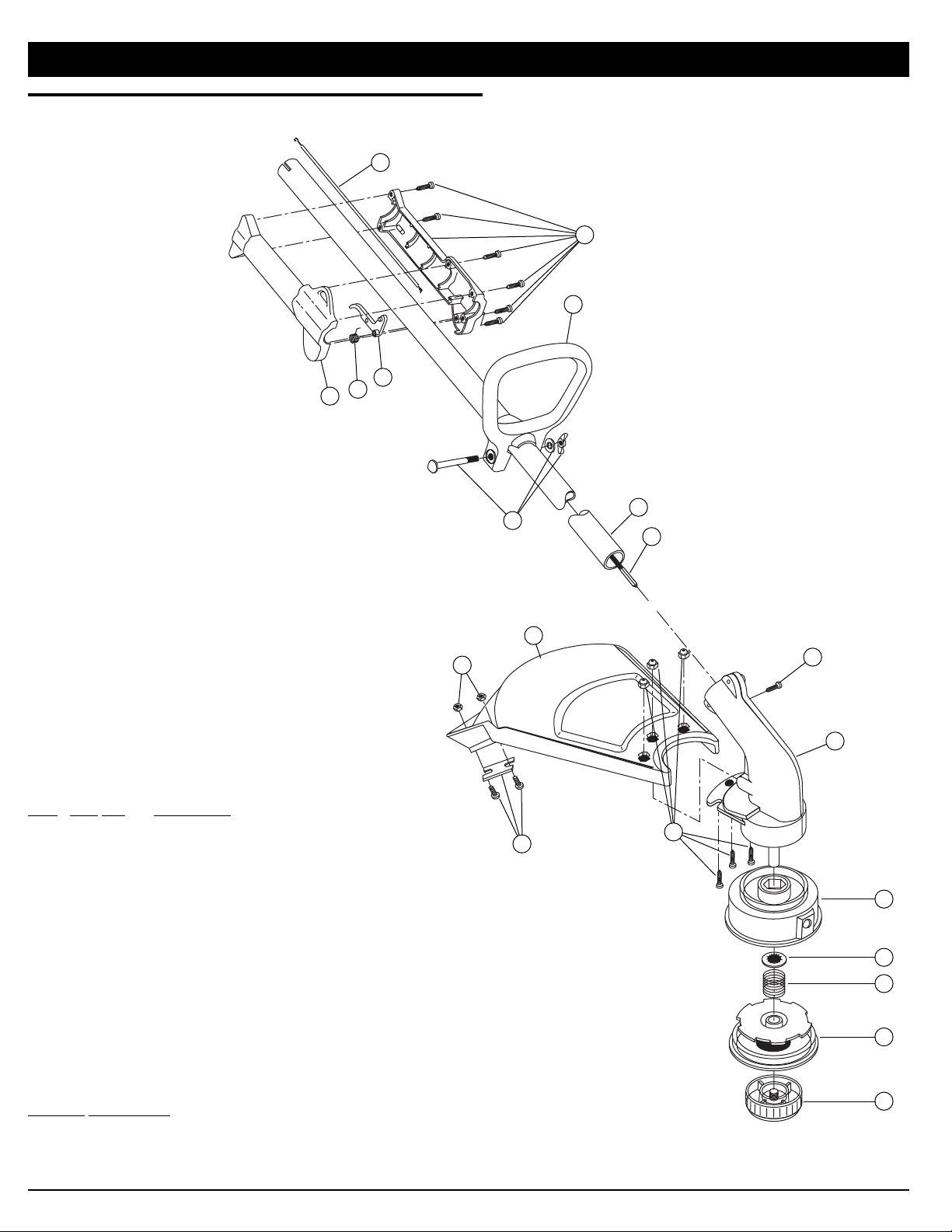

ASSEMBLY INSTRUCTIONS

Shaft Housing

Shield Mount

Cutting

Attachment

Shield

Cutting

Attachment

Fig. 2

Recessed

Holes

Hex Lock

Nut

Screws (3)

Fig. 3

Nuts (3)

Guard

Mounting

Bracket

Cutting Attachment Shield

Fig. 4

Fig. 5

Square Bolt

Guard

Mounting

Bracket

Wing Nut

Washer

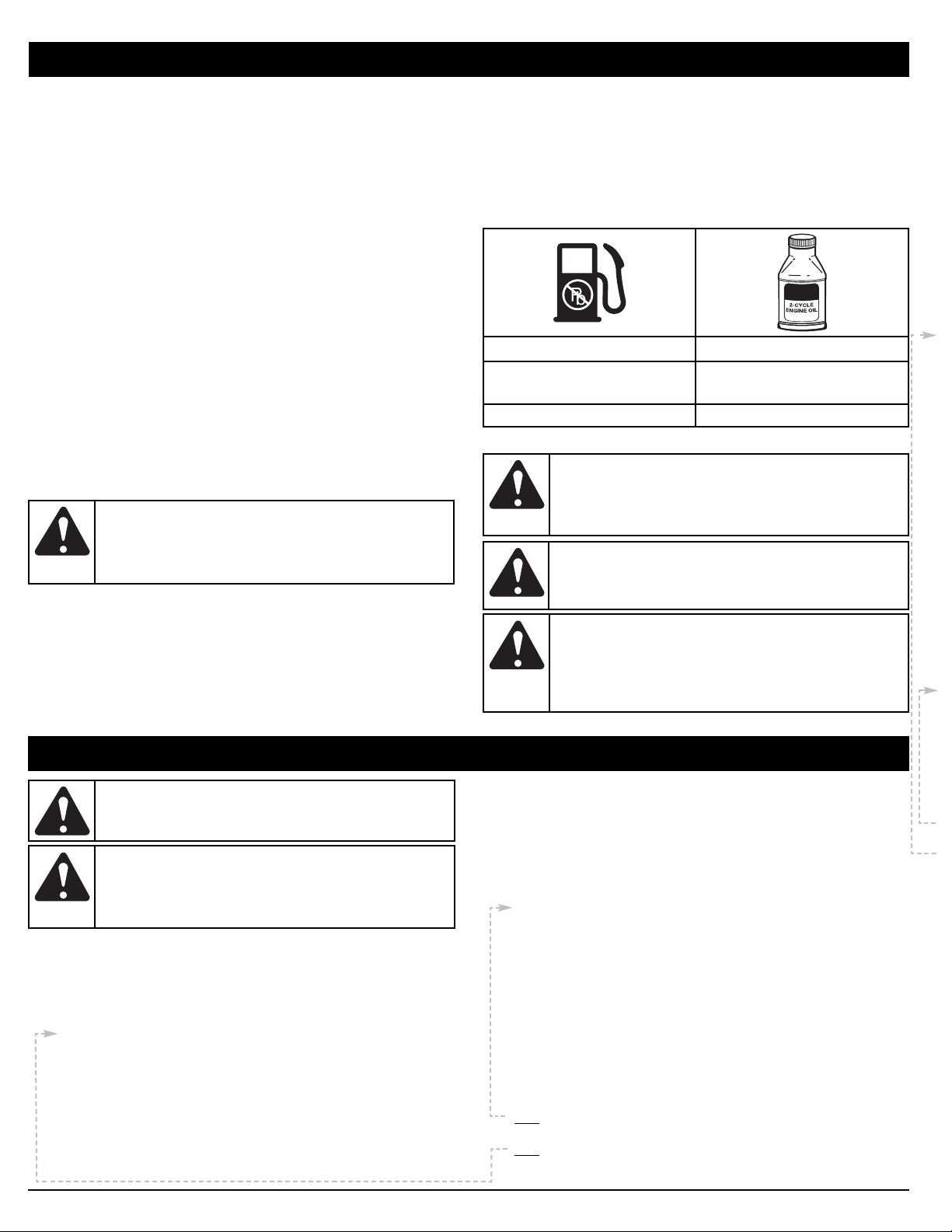

OIL AND FUEL INFORMATION

OIL AND FUEL MIXING INSTRUCTIONS

Old and/or improperly mixed fuel are the main reasons for the unit

not running properly. Be sure to use fresh, clean unleaded fuel.

Follow the instructions carefully for the proper fuel/oil mixture.

DEFINITION OF BLENDED FUELS

Today's fuels are often a blend of gasoline and oxygenates such

as ethanol, methanol, or MTBE (ether). Alcohol-blended fuel

absorbs water. As little as 1% water in the fuel can make fuel and

oil separate. It forms acids when stored. When using alcohol-

blended fuel, use fresh fuel (less than 60 days old).

USING BLENDED FUELS

If you choose to use a blended fuel, or its use is unavoidable,

follow recommended precautions:

•Always use the fresh fuel mix explained in your operator's

manual

•Always agitate the fuel mix before fueling the unit

•Drain the tank and run the engine dry before storing the unit

USING FUEL ADDITIVES

The bottle of 2-cycle oil that came with your unit contains a fuel additive

which will help inhibit corrosion and minimize the formation of gum

deposits. It is recommended that you use our 2-cycle oil with this unit.

If unavailable, use a good 2-cycle oil designed for air-cooled engines along

with a fuel additive, such as STA-BIL® Gas Stabilizer or an equivalent. Add

0.8 oz. (23 ml.) of fuel additive per gallon of fuel according to the

instructions on the container. NEVER add fuel additives directly to the

unit's fuel tank. Thoroughly mix the proper ratio of 2-cycle engine oil with unleaded

gasoline in a separate fuel can. Use a 40:1 fuel/oil ratio. Do not mix

them directly in the engine fuel tank. See the table below for

specific gas and oil mixing ratios.

NOTE: One gallon (3.8 liters) of unleaded gasoline mixed with one

3.2 oz. (95 ml.) bottle of 2-cycle oil makes a 40:1 fuel/oil

ratio.

NOTE: Dispose of the old fuel/oil mix in accordance to Federal,

State and Local regulations.

MIXING RATIO - 40:1

UNLEADED GAS 2 CYCLE OIL

1 GALLON US

(3.8 LITERS)

3.2 FL. OZ. (95 ml)

1 LITER 25 ml

CAUTION:

For proper engine operation and maximum

reliability, pay strict attention to the oil and fuel mixing

instructions on the 2-cycle oil container. Using improperly

mixed fuel can severely damage the engine.

WARNING:

asoline is extremely flammable. Ignited

vapors may explode. Always stop the engine and allow it to

cool before filling the fuel tank. Do not smoke while filling the

tank. Keep sparks and open flames at a distance from the

area.

WARNING:

Remove fuel cap slowly to avoid injury

from fuel spray. Never operate the unit without the fuel

cap securely in place.

WARNING:

Add fuel in a clean, well ventilated

outdoor area. Wipe up any spilled fuel immediately.

Avoid creating a source of ignition for spilt fuel. Do not

start the engine until fuel vapors dissipate.

Fig. 1

Bolt

Washer

Wing

Nut

Tighten

Shaft Grip

D-Handle

Minimum 6 inches

(15.24 cm)

Shaft Housing

STARTING/STOPPING INSTRUCTIONS

WARNING:

Remove fuel cap slowly to avoid injury

from fuel spray. Never operate the unit without the fuel

cap securely in place.

WARNING:

void accidental starting. Make sure you are

in the starting position when pulling the starter rope (Fig. 8).

To avoid serious injury, the operator and unit must be

in a stable position while starting.

STARTING INSTRUCTIONS

1. Mix gas with oil. Fill fuel tank with fuel/oil mixture. See Oil

and Fuel Mixing Instructions.

Make sure the On/Off Stop Control in the ON ( I ) position (Fig. 6).

3. Fully press and release the primer bulb 10 times, slowly.

Some amount of fuel should be visible in the primer bulb

and fuel lines (Fig. 7). If you can’t see fuel in the bulb,

press and release the bulb as many times as it takes

before you can see fuel in it.

4. Place the blue choke lever in Position 1 (Fig. 7).

5. Crouch in the starting position (Fig. 8) and squeeze the

throttle control. Pull the starter rope briskly 5 times.

NOTE: The unit uses EZ-Pull Version 3™, which significantly

reduces the effort required to start the engine.

6. Place the blue choke lever in Position 2.

7. While squeezing the throttle control, pull the starter rope

briskly until the engine starts.

8. Keep the throttle squeezed and allow the engine to warm

up for 15 to 30 seconds.

NOTE: Engine may take longer to warm up and reach

maximum operating speed at colder temperatures.

NOTE: Unit is properly warmed up when engine accelerates

without hesitation.

9. Once the engine is warmed up, place the blue choke lever

in Position 3 (Fig. 7). The unit is ready for use.

... The engine hesitates, return choke lever to Position 2 (Fig. 7)

and continue warm up.

... The engine does not start, go back to step 3.

...

The engine fails to start after a few attempts, place the blue

choke lever in Position 3 and squeeze the throttle control. Pull the

starter rope briskly 3 to 8 times. The engine should start. If not, repeat.

IF WARM... If the engine is already warm, make sure the On/Off Stop

control is in the ON position and start the unit with the blue choke

lever in Position 2. After the unit starts, move the blue choke lever

to Position 3.

STOPPING INSTRUCTIONS

1. Release your hand from the throttle control. Allow the engine to

cool down by idling.

2. Press and hold On/Off Stop Control in the OFF (O) position

until engine comes to a complete stop.

Fig. 6

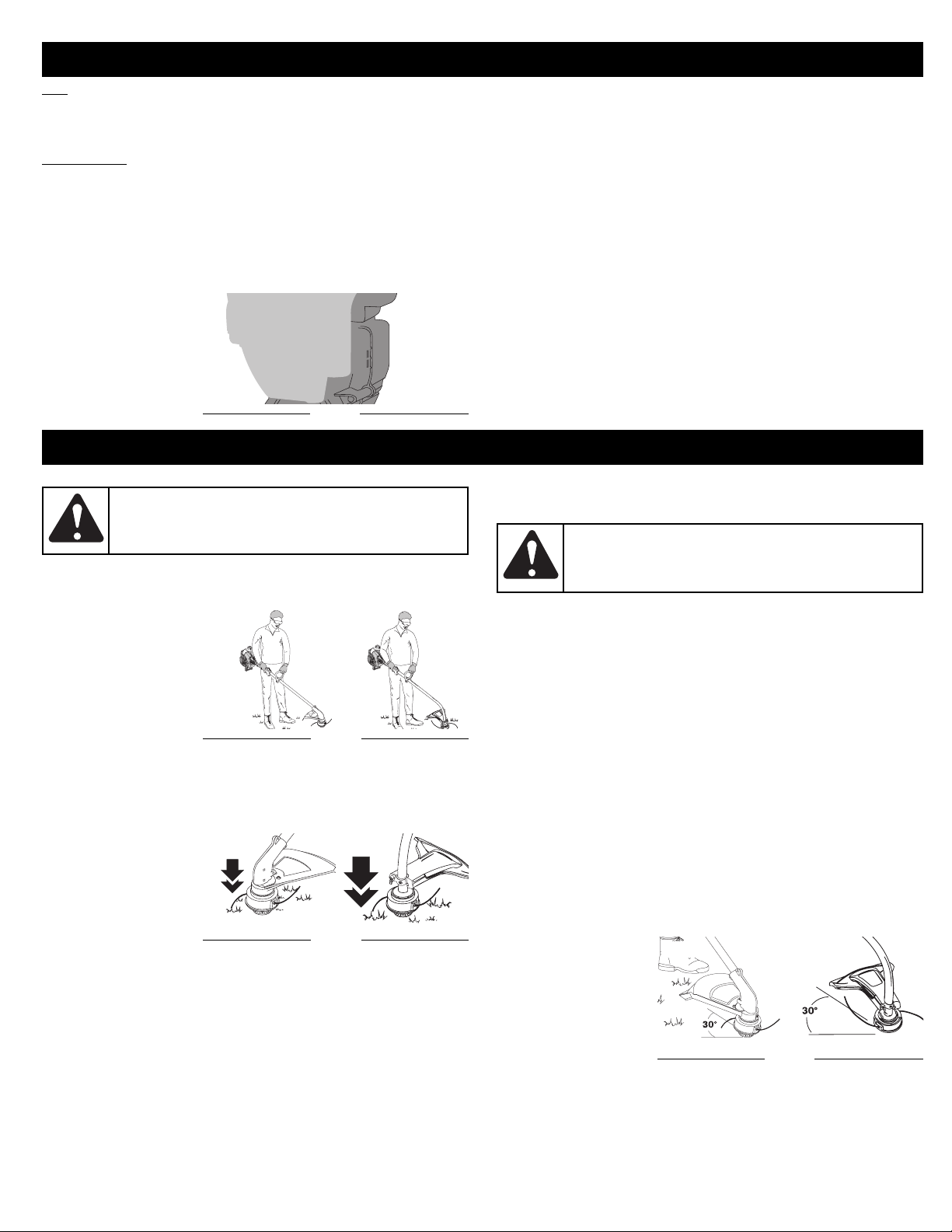

OPERATING INSTRUCTIONS

TIPS FOR BEST TRIMMING RESULTS

•Keep the cutting attachment parallel to the ground.

•Do not force the cutting attachment. Allow the tip of the line to do

the cutting, especially along walls. Cutting with more than the tip

will reduce cutting efficiency and may overload the engine.

•Cut grass over 8 inches (200 mm) by working from top to bottom

in small increments to avoid premature line wear or engine drag.

•Cut from right to left whenever possible. Cutting to the left

improves the unit's cutting efficiency. Clippings are thrown away

from the operator.

•Slowly move the trimmer into and out of the cutting area at the

desired height. Move either in a forward-backward or side-to-side

motion. Cutting shorter lengths produces the best results.

•Trim only when grass and weeds are dry.

•The life of your cutting line is dependent upon;

MAINTENANCE AND REPAIR INSTRUCTIONS

MAINTENANCE SCHEDULE

Perform these required maintenance procedures at the frequency

stated in the table. These procedures should also be a part of any

seasonal tune-up.

NOTE: Some maintenance procedures may require special tools

or skills. If you are unsure about these procedures take

your unit to any non-road engine repair establishment,

individual or authorized service dealer.

NOTE: Maintenance, replacement, or repair of the emission control

devices and system may be performed by any non-road

engine repair establishment, individual or authorized service

dealer.

In order to assure peak performance of your engine, inspection of the

engine exhaust port may be necessary after 50 hours of operation. If

you notice lost RPM, poor performance or general lack of acceleration,

this service may be required. If you feel your engine is in need of this

inspection, refer service to any non-road engine repair establishment,

individual or authorized service dealer for repair. DO NOT attempt to

perform this process yourself as engine damage may result from

contaminants involved in the cleaning process for the port.

WARNING:

To prevent serious injury, never perform

maintenance or repairs with unit running. Always service

and repair a cool unit. Disconnect the spark plug wire to

ensure that the unit cannot start.

•Adherence of the listed trimming techniques

•What vegetation is cut

•Where vegetation is cut

For example, the line will wear faster when trimming against a

foundation wall as opposed to trimming around a tree.

DECORATIVE TRIMMING

Decorative trimming is

accomplished by

removing all vegetation

around trees, posts,

fences, etc.

Rotate the whole unit so

that the cutting attachment

is at a 30° angle to the

ground (Fig. 11).

Fig. 11

BL100

BL150

FREQUENCY MAINTENANCE REQUIRED SEE

Before starting engine Fill fuel tank with fresh fuel p. 4

Every 10 hours Clean and re-oil air filter p. 7

Every 25 hours

Check and clean spark arrestor

Check spark plug condition and gap

p. 8

Every 50 hours

Inspect exhaust port and spark arrestor screen for clogging or obstruction to assure maximum

performance levels.

p. 8

LINE INSTALLATION

This section covers both SplitLine™ and standard single line

installation.

Always use original equipment manufacturer 0.080 in. (2.03 mm)

replacement line. Line other than the specified may make the

engine overheat or fail. There are two methods to replace the trimming line:

•Wind the inner reel with new line

•Install a prewound inner reel

Winding the Existing Inner Reel

1. Hold the outer spool

with one hand and

unscrew the Bump

Knob™

counterclockwise

(Fig. 12). Inspect the

bolt inside the

Bump Knob to

make sure it moves

freely. Replace the Bump Knob if damaged.

2. Remove the inner reel from the outer spool (Fig. 13).

3. R

emove spring from the inner reel (Fig. 13).

4. Use a clean cloth to clean the the inner reel, spring, shaft, and

WARNING:

ever use metal-reinforced line, wire, chain

or rope. These can break off and become dangerous

projectiles.

Fig. 12

MAINTENANCE AND REPAIR INSTRUCTIONS

Go To Step 8 for SplitLine™ Installation

6. Take approximately

20 feet (6 m) of new

trimming line, loop it

into two equal

lengths. Insert each

end of the line

through one of the

two holes in the

inner reel (Fig. 16).

Pull the line through

the inner reel so that

the loop is as small

as possible.

7. Wind the lines in

tight even layers,

onto the reel (Fig.

17). Wind the line in

the direction

indicated on the

inner reel. Place your index finger between the two lines to

stop the lines from overlapping. Do not overlap the ends of the

line. Proceed to step 11.

SplitLine™ Installation

8. Take approximately 10 feet (3 m) of new trimming line. Insert

one end of the line

through one of the

two holes in the

inner reel (Fig. 18).

Pull the line through

the inner reel until

only about 4 inches

is left out.

9. Insert the end of the

line into the open hole in the inner reel and pull the line tight to

make the loop as small as possible (Fig. 18).

10.Before winding, split the line back about 6 inches.

11.Wind the line in tight even layers in the direction indicated on the

inner reel.

NOTE: Failure to wind the line in the direction indicated will cause

the cutting attachment to operate incorrectly.

12.

Insert the ends of the

line into the two

holding slots (Fig. 19).

13.

Insert the ends of the

line through the eyelets

in the outer spool and

place inner reel with

spring inside the outer

spool (Fig. 20). Push

the inner reel and outer

spool together. While

holding the inner reel

and outer spool, grasp

the ends and pull firmly

to release the line from

the holding slots in the

reel.

NOTE: The spring must

be assembled on

the inner reel before reassembling the cutting attachment.

14.Hold the inner reel in place and install the bump knob by

turning clockwise. Tighten securely.

INSTALLING A PREWOUND REEL

1. Hold the outer spool with one hand and unscrew the bump

knob counterclockwise (Fig. 12). Inspect the bolt inside the

bump knob to make sure it moves freely. Replace the bump

knob if damaged.

2. Remove the old inner reel from the outer spool (Fig. 13).

3. Remove the spring from the old inner reel (Fig. 13).

4. Place the spring in the new inner reel.

Fig. 16

Loop

NOTE: The spring must be assembled on the inner reel before

reassembling the cutting attachment.

Insert the ends of the line through the eyelets in the outer spool (Fig. 20).

6. Place the new inner reel inside the outer spool. Push the inner

reel and outer spool together. While holding the inner reel and

outer spool, grasp the ends and pull firmly to release the line

from the holding slots in the spool.

7. Hold the inner reel in place and install the bump knob by

turning clockwise. Tighten securely.

AIR FILTER MAINTENANCE Removing the Air Filter/Muffler Cover

1. Place the blue choke lever in Position 2 (Fig. 21).

NOTE: The blue choke

lever must be in

Position 2 to

remove the air

filter/ muffler

cover.

2. Remove the four (4)

screws securing the

air filter/muffler

cover (Fig. 21). Use

a T-20 Torx bit

screwdriver.

3. Pull the cover from

the engine. Do not force.

Cleaning the Air Filter

Clean and re-oil the air filter

every 10 hours of

operation. It is an important

item to maintain. Failure to

maintain your air filter

properly can result in poor

performance or can cause

permanent damage to your

engine.

1. Remove air

filter/muffler cover.

Refer to Removing

the Air Filter/Muffler

Cover.

2. Turn cover over and

look inside to locate

the air filter. Remove

the air filter from

inside the air

filter/muffler cover

(Fig. 22).

3. Wash the filter in

detergent and water

(Fig. 23). Rinse the

filter thoroughly.

Squeeze out excess

water. Allow it to dry

completely.

4. Apply enough clean

SAE 30 oil to lightly

coat the filter (Fig.

24).

5. Squeeze the filter to

spread and remove

excess oil (Fig. 25).

6. Replace the air filter

inside the air filter/muffler cover (Fig. 22).

NOTE: Operating the unit without the air filter and air filter/muffler

cover assembly will VOID the warranty.

Fig. 17

Fig. 18

Loop

Fig. 19

MAINTENANCE AND REPAIR INSTRUCTIONS

Reinstalling the Air Filter/Muffler Cover

1. Place the air filter/muffler cover over the back of the carburetor

and muffler. Align the screw holes.

2. Insert the four (4) screws into the holes in the air filter/muffler

cover (Fig. 21) and tighten. Do not over tighten.

SPARK ARRESTOR MAINTENANCE

1. Remove air filter/muffler cover. Refer to Removing the Air

Filter/Muffler Cover.

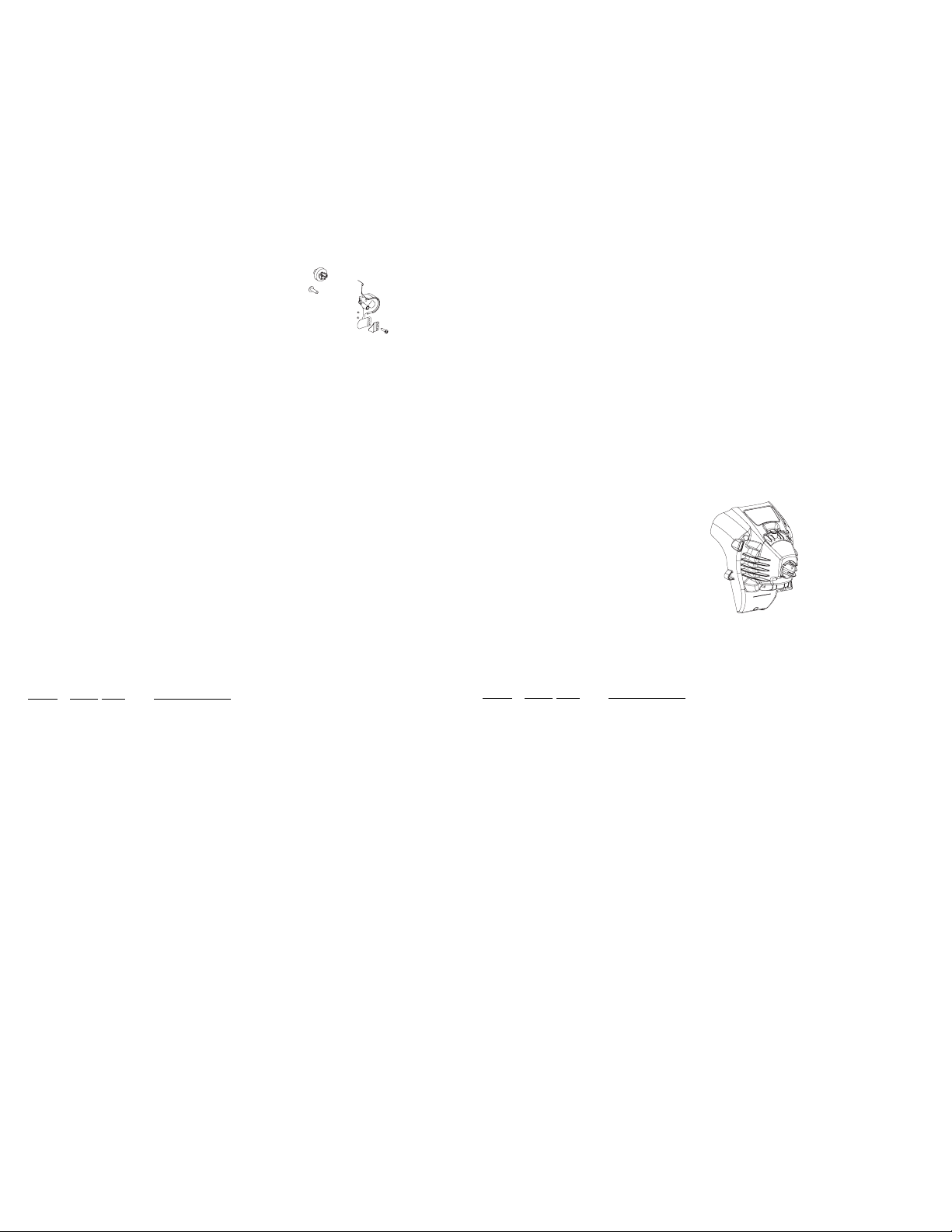

2. Locate the muffler,

but do not remove it.

Find the screw on

the bottom of the

muffler (Fig. 26).

Remove the screw

using either a torx

#20 or flat blade

screwdriver.

3. Carefully pry up the

left side spark

arrestor hood. Two tabs act as hinges on the right side of the

hood. Flip open the spark arrestor hood like a door and then

pull its tabs out of the muffler slots.

4. Using a small flat blade screwdriver, carefully pry the spark

arrestor screen out from the inside of the spark arrestor hood.

5. C

lean the spark arrestor screen with a wire brush. Replace it if it is

damaged, or if you are unable to clean it thoroughly.

Reinstall the spark arrestor screen snugly back into the spark arrestor

hood.

7. Reinstall the two hood tabs into the two muffler slots and flip

the spark arrestor hood closed.

8. Replace the screw you removed in Step 2 and tighten it securely.

9. Reinstall the air filter/muffler cover.

CARBURETOR ADJUSTMENT

The idle speed of the engine is adjustable through the air filter/muffler

cover (Fig. 27).

NOTE: Careless adjustments can seriously damage your unit. An

authorized service dealer should make carburetor

adjustments.

CHECK FUEL MIXTURE

Old and/or improperly mixed fuel is usually the reason for improper unit

performance. Drain and refill the tank with fresh, properly-mixed fuel

prior to making any adjustments. Refer to Oil and Fuel Information.

CLEAN AIR FILTER

The condition of the air filter is important to the operation of the unit. A

dirty air filter will restrict air flow and change the air/fuel mixture. This is

often mistaken for an out of adjustment carburetor. Check the condition

of the air filter before adjusting the idle speed screw. Refer to Air Filter

Maintenance.

ADJUST IDLE SPEED SCREW

If, after checking the fuel mixture and cleaning the air filter, the engine

still will not idle, adjust the idle speed screw as follows:

1. Start the engine and let it run at a high idle for a minute to warm

up. Refer to Starting/Stopping Instructions.

Release the throttle trigger and let the engine idle. If the engine

stops, insert a small phillips screwdriver into the hole in the air

filter/muffler cover (Fig. 27). Turn the idle speed screw in, clockwise,

1/8 of a turn at a time (as needed) until the engine idles smoothly.

3. If the engine appears to be idling too fast, turn the idle speed

screw counterclockwise 1/8 of a turn at a time (as needed), to

reduce idle speed.

Checking the fuel

mixture, cleaning the air

filter, and adjusting the

idle speed should solve

most engine problems. If

not and all of the

following are true:

•

the engine will not idle

•the engine hesitates

or stalls on

acceleration

•there is a loss of engine power

Have the carburetor adjusted by an authorized service dealer.

REPLACING THE SPARK PLUG

Use a Champion RDJ7Y spark plug, or equivalent. The correct air gap

is 0.025 inch (0.635 mm). Remove the plug after every 25 hours of

operation and check its condition.

1. Stop the engine and allow it to cool. Grasp the plug wire firmly

and pull it from the spark plug.

2. Clean around the spark plug. Remove the spark plug from the

cylinder head by turning a 5/8-inch socket counterclockwise.

3. Replace a cracked, fouled or dirty spark plug. Set the air gap at

0.025 in. (0.635 mm)

using a feeler gauge

(Fig. 28).

4. I

nstall a correctly-

gapped spark plug in

the cylinder head.

Tighten by turning the

5/8-inch socket

clockwise until snug.

If using a torque wrench torque to:

110-120 in.•lb. (12.3-13.5 N•m)

Do not over tighten.

CLEANING

Use a small brush to clean off the outside of the unit. Do not use strong

detergents. Household cleaners that contain aromatic oils such as pine and

lemon, and solvents such as kerosene, can damage plastic housing or

handle. Wipe off any moisture with a soft cloth.

STORAGE

•Never store a fueled unit where fumes may reach an open flame

or spark.

•Allow the engine to cool before storing.

•Store the unit locked up to prevent unauthorized use or damage.

•Store the unit in a dry, well-ventilated area.

•Store the unit out of the reach of children.

LONG TERM STORAGE

If you plan on storing the unit for an extended time, use the following

storage procedure:

1. Drain all fuel from the fuel tank into a container with the same

2-cycle fuel mixture. Do not use fuel that has been stored for

more than 60 days. Dispose of the old fuel/oil mix in

accordance to Federal, State and Local regulations.

WARNING:

If the spark arrestor hood and spark

arrestor screen are not tightened securely, they could fall

off causing damage to the unit and possible serious

personal injury.

Fig. 26

Tabs

Screw

Spark Arrestor

Hood

Spark Arrestor

Screen

Slots

Fig. 27

MAINTENANCE AND REPAIR INSTRUCTIONS

2. Start the engine and allow it to run until it stalls. This ensures

that all fuel has been drained from the carburetor.

3. Allow the engine to cool. Remove the spark plug and put 1 oz.

(30 ml) of any high quality motor oil or 2-cycle oil into the

cylinder. Pull the starter rope slowly to distribute the oil.

Reinstall the spark plug.

NOTE: Remove the spark plug and drain all of the oil from the

cylinder before attempting to start the trimmer after

storage.

4. Thoroughly clean the unit and inspect it for any loose or

damaged parts. Repair or replace damaged parts and tighten

loose screws, nuts or bolts. The unit is ready for storage.

CAUSE ACTION

On/Off control in the OFF position Turn On/Off control to ON

Empty fuel tank Fill fuel tank with properly mixed fuel

Primer bulb wasn't pressed enough

Press primer bulb fully and slowly 10 times

Engine is flooded

Squeeze the trigger and pull the starter rope

Old or improperly mixed fuel Drain gas tank and add fresh fuel mixture

Fouled spark plug Replace or clean the spark plug

Plugged spark arrestor Clean or replace spark arrestor

CAUSE ACTION

Air filter is plugged Replace or clean the air filter

Old or improperly mixed fuel Drain gas tank and add fresh fuel mixture

Improper carburetor adjustment Adjust according to the Carburetor Adjustments section

CAUSE ACTION

Old or improperly mixed fuel Drain gas tank and add fresh fuel mixture

Improper carburetor adjustment Take to an authorized service dealer for an adjustment

Cutting attachment bound with grass Stop the engine and clean the cutting attachment

Dirty air filter Clean or replace the air filter

Plugged spark arrestor Clean or replace spark arrestor

CAUSE ACTION

Old or improperly mixed fuel Drain gas tank and add fresh fuel mixture

Improper carburetor adjustment Take to an authorized service dealer for an adjustment

Fouled spark plug Replace or clean the spark plug

Plugged spark arrestor Clean or replace spark arrestor

TROUBLESHOOTING

CAUSE ACTION

Cutting attachment bound with grass

Stop the engine and clean cutting attachment

Cutting attachment out of line Refill with new line

Inner reel bound up Replace the inner reel

Cutting head dirty Clean inner reel and outer spool

Line welded Disassemble, remove the welded section and rewind

Line twisted when refilled Disassemble and rewind the line

Not enough line is exposed

Push the bump knob and pull out line until 4 inches (102 mm) of line is

outside of the cutting attachment

CAUSE

ACTION

Oil, cleaner or lubricant in cutting head

Clean and thoroughly dry the cutting head

If further assistance is required, contact your authorized service dealer.

ENGINE WILL NOT START

ENGINE WILL NOT IDLE

ENGINE WILL NOT ACCELERATE

ENGINE LACKS POWER OR STALLS WHEN CUTTING

CUTTING ATTACHMENT WILL NOT ADVANCE LINE

CUTTING LINE ADVANCES UNCONTROLLABLY

ENGINE*

DRIVE SHAFT & CUTTING ATTACHMENT*

Engine Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Air-Cooled, 2-Cycle

Stroke . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.25 in. (31.75 mm.)

Displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.9 cu in. (31 cc.)

Operating RPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6,800+ rpm

Idle Speed RPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3,200 - 4,400 rpm

Ignition Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Electronic

Ignition Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Rocker Switch

Spark Plug Gap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.025 in. (0.635 mm.)

Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fuel/Oil Mixture

Fuel/Oil Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40:1

Carburetor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Diaphragm, All-Position

Starter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EZ-Pull Version 3™

Muffler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Baffled with Guard

Throttle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Manual Spring Return

Fuel Tank Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 fl.oz. (341 ml.)

Drive Shaft Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Steel Tube

Throttle Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Finger-Tip Trigger

Approximate Unit Weight (No fuel, with cutting attachment, shield and D-handle) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 lbs. (4.5 kg.)

Cutting Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Bump Head™

Shoulder Strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Optional

Line Spool Diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 in. (76.2 mm.)

Trimming Line Diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.080 in. (2.03 mm.)

Cutting Path Diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 in. (43.18 cm.)

SPECIFICATIONS

California / EPA Emission Control Warranty Statement

YOUR WARRANTY RIGHTS AND OBLIGATIONS

The California Air Resources Board, the Environmental Protection Agency, and Troy-Bilt LLC ( Troy-Bilt) are pleased to explain the emission

control system warranty on your 2007 and later small off-road engine. In California and the 49 states, new small off-road engines must be

designed, built and equipped to meet the state’s stringent anti-smog standards. Troy-Bilt must warrant the emission control system on your

small off-road engine for the periods of time listed below provided there has been no abuse, neglect or improper maintenance of your small

off-road engine.

Your emission control system may include parts such as the carburetor or fuel-injection system, the ignition system, and catalytic converter.

Also included may be hoses, belts, connectors and other emission-related assemblies.

Where a warrantable condition exists, Troy-Bilt will repair your small off-road engine at no cost to you including diagnosis, parts and labor.

The 2007 and later small off-road engines are warranted for two years. If any emission-related part on your engine is defective, the part will

be repaired or replaced by Troy-Bilt.

OWNERS WARRANTY RESPONSIBILITIES

As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your operator’s manual.

Troy-Bilt recommends that you retain all receipts covering maintenance on your small off-road engine, but Troy-Bilt cannot deny warranty

solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance.

•As the small off-road engine owner, you should however be aware that Troy-Bilt may deny you warranty coverage if your small off-road

engine or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.

•You are responsible for presenting your small off-road engine to a Troy-Bilt Authorized Service Center as soon as a problem exists. The

warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.

If you have any questions regarding your warranty rights and responsibilities, you should call 1-800-828-5500.

MANUFACTURER’S WARRANTY COVERAGE

•The warranty period begins on the date the engine or equipment is delivered to the retail purchaser.

•The manufacturer warrants to the initial owner and each subsequent purchaser, that the engine is free from defects in material and

workmanship which cause the failure of a warranted part for a period of two years.

•Repair or replacement of warranted part will be performed at no charge to the owner at an Authorized Troy-Bilt Service Center. For the

nearest location please contact Troy-Bilt at: 1-800-828-5500.

•Any warranted part which is not scheduled for replacement, as required maintenance or which is scheduled for only for regular

inspection to the effect of “Repair or Replace as Necessary” is warranted for the warranty period. Any warranted part which is scheduled

for replacement as required maintenance will be warranted for the period of time up to the first scheduled replacement point for that part.

•The owner will not be charged for diagnostic labor which leads to the determination that a warranted part is defective, if the diagnostic

work is performed at an Authorized Troy-Bilt Service Center.

•The manufacturer is liable for damages to other engine components caused by the failure of a warranted part still under warranty.

•Failures caused by abuse, neglect or improper maintenance are not covered under warranty.

•The use of add-on or modified parts can be grounds for disallowing a warranty claim. The manufacturer is not liable to cover failures of

warranted parts caused by the use of add-on or modified parts.

•In order to file a claim, go to your nearest Authorized Troy-Bilt Service Center. Warranty services or repairs will be provided at all

Authorized Troy-Bilt Service Centers.

•Any manufacturer approved replacement part may be used in the performance of any warranty maintenance or repair of emission related

parts and will be provided without charge to the owner. Any replacement part that is equivalent in performance or durability may be used

in non-warranty maintenance or repair and will not reduce the warranty obligations of the manufacturer.

Emission Warranty Parts List:

The following components are included in the emission-related warranty of the engine: air filter, carburetor, primer, fuel lines, fuel pick up/

fuel filter, ignition module, spark plug, and muffler. Valves and Cam are additionally included if your engine is a 4-Stroke Model.

California Evaporative Emission Control Warranty Statement

Your Warranty Rights and Obligations

The California Air Resources Board and Troy-Bilt LLC ( Troy-Bilt) is pleased to explain the evaporative emission control system’s warranty on

your 2007 model year and later small off-road (equipment type) engine. In California, new equipment that use small off-engines must be

designed, built, and equipped to meet the State’s stringent anti-smog standards Troy-Bilt must warrant the evaporative emission control

system on your small off-road Lawn & Garden engine for the period listed below provided there has been no abuse, neglect or improper

maintenance of your equipment.

Your evaporative emission control system may include parts such as: carburetors, fuel tanks, fuel lines, fuel caps, valves, canisters, filters,

vapor hoses, clamps, connectors, and other associated components. For engines less than or equal to 80 cc, only the fuel tank is

subject to the evaporative emission control warranty requirements of this section. The displacement of your small off road engine is less than 80 cc.

Manufacturer’s Warranty Coverage

This evaporative emission control system is warranted for two years. If any evaporative emission-related part on your equipment is

defective, the part will be repaired or replaced by Troy-Bilt.

Owner’s Warranty Responsibilities

• As the small off-road Lawn & Garden engine owner, you are responsible for performance of the required maintenance listed in your

owner’s manual. Troy-Bilt recommends that you retain all receipts covering maintenance on your Lawn & Garden Engine but Troy-Bilt

cannot deny warranty solely for the lack of receipts.

• As the small off-road Lawn & Garden engine owner, you should however be aware that the Troy-Bilt may deny you warranty coverage if

your fuel tank has failed due to abuse, neglect, or improper maintenance or unapproved modifications.

• You are responsible for presenting your Lawn & Garden fuel tank to Troy-Bilt distribution center or service center as soon as the

problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If you have a

question regarding your warranty coverage, you should contact Troy-Bilt at 1-800-828-5500.

Defects Warranty Requirements

(a) The warranty period begins on the date the engine or equipment is delivered to an ultimate purchaser.

(b)General Evaporative Emissions Warranty Coverage. The fuel tank must be warranted to the ultimate purchaser and any subsequent

owner that the evaporative emission control system when installed was:

(1)Designed, built, and equipped so as to conform with all applicable regulations; and

(2)Free from defects in materials and workmanship that causes the failure of a warranted part for a period of two years.

(1)Any warranted part that is not scheduled for replacement as required maintenance in the written instructions must be warranted for

the warranty period defined in subsection (b)(2). If any such part fails during the period of warranty coverage, it must be repaired or

replaced by Troy-Bilt. Any such part repaired or replaced under the warranty must be warranted for a time not less than the

remaining warranty period.

(2)Any warranted part that is scheduled only for regular inspection in the written instructions must be warranted for the warranty period

defined in subsection (b)(2). A statement in such written instructions to the effect of “repair or replace as necessary” will not reduce

the period of warranty coverage. Any such part repaired or replaced under warranty must be warranted for a time not less than the

remaining warranty period.

(3)Any warranted part that is scheduled for replacement as required maintenance in the written instructions must be warranted for the

period of time prior to the first scheduled replacement point for that part. If the part fails prior to the first scheduled replacement, the

part must be repaired or replaced by the Troy-Bilt. Any such part repaired or replaced under warranty must be warranted for a time

not less than the remainder of the period prior to the first scheduled replacement point for the part.

(4)Repair or replacement of any warranted part under the warranty provisions of this article must be performed at no charge to the

owner at a warranty station.

(5)Not withstanding the provisions of subsection (4) above, warranty services or repairs must be provided at distribution centers that are

franchised to service the subject engines or equipment.

(6)The owner must not be charged for diagnostic labor that leads to the determination that a warranted part is in fact defective,

provided that such diagnostic work is performed at a warranty station.

(7)Throughout the evaporative emission control system’s warranty period set out in subsection (b)(2), Troy-Bilt must maintain a supply of

warranted parts sufficient to meet the expected demand for such parts.

(8)Manufacturer approved replacement parts must be used in the performance of any warranty maintenance or repairs and must be

provided without charge to the owner. Such use will not reduce the warranty obligations of the manufacturer issuing the warranty.

(9)The use of any add-on or modified parts will be grounds for disallowing a warranty claim made in accordance with this article. The

manufacturer issuing the warranty will not be liable under this Article to warrant failures of warranted parts caused by the use of an

add-on or modified part.

(10) Troy-Bilt shall provide any documents that describe the warranty procedures or policies within five working days of request by the Air

Resources Board.

Emission Warranty Parts List

(1)Fuel Tank

Written instructions for the maintenance and use of the evaporative emissions control system by the owner shall be furnished with each

new engine or equipment.

MANUFACTURER’S LIMITED WARRANTY FOR:

The limited warranty set forth below is given by Troy-Bilt LLC with respect to new merchandise purchased and used in the United States, its

possessions and territories.

Troy-Bilt LLC warrants this product against defects in material and workmanship for a period of two (2) years for the BL150, (one (1) year for the

BL100), commencing on the date of original purchase and will, at its option, repair or replace, free of charge, any part found to be defective in

material or workmanship. This limited warranty shall only apply if this product has been operated and maintained in accordance with the Operator’s

Manual furnished with the product, and has not been subject to misuse, abuse, commercial use, neglect, accident, improper maintenance,

alteration, vandalism, theft, fire, water or damage because of other peril or natural disaster. Damage resulting from the installation or use of any

accessory or attachment not approved by Troy-Bilt LLC for use with the product(s) covered by this manual will void your warranty as to any resulting

damage. This warranty is limited to ninety (90) days from the date of original retail purchase for any Troy-Bilt product that is used for rental or

commercial purposes, or any other income-producing purpose.

HOW TO OBTAIN SERVICE: Warranty service is available, WITH PROOF OF PURCHASE THROUGH YOUR LOCAL AUTHORIZED SERVICE

DEALER. To locate the dealer in your area, visit our website at www.troybilt.com, check for a listing in the Yellow Pages, call 1-800-828-5500 or

write to

P.O. Box 361131, Cleveland, OH 44136-0019

This limited warranty does not provide coverage in the following cases:

A.Tune-ups - Spark Plugs, Carburetor Adjustments, Filters

B.Wear items - Bump Knobs, Outer Spools, Cutting Line, Inner Reels, Starter Pulley, Starter Ropes, Drive Belts

C.Troy-Bilt LLC does not extend any warranty for products sold or exported outside of the United States of America, its possessions and territories,

except those sold through Troy-Bilt’s authorized channels of export distribution.

Troy-Bilt LLC reserves the right to change or improve the design of any Troy-Bilt Product without assuming any obligation to modify any product

previously manufactured.

No implied warranty, including any implied warranty of merchantability or fitness for a particular purpose, applies after the applicable period of express written warranty above as to the parts as identified. No other express warranty or guaranty, whether written or oral, except as mentioned above, given by any person or entity, including a dealer or retailer, with respect to any product shall bind Troy-Bilt LLC During

the period of the Warranty, the exclusive remedy is repair or replacement of the product as set forth above. (Some states do not allow

limitations on how long an implied warranty lasts, so the above limitation may not apply to you.)

The provisions as set forth in this Warranty provide the sole and exclusive remedy arising from the sales. Troy-Bilt LLC shall not be liable for incidental or consequential loss or damages including, without limitation, expenses incurred for substitute or replacement lawn care

services, for transportation or for related expenses, or for rental expenses to temporarily replace a warranted product. (Some states do not

allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.)

In no event shall recovery of any kind be greater than the amount of the purchase price of the product sold. Alteration of the safety features of

the product shall void this Warranty. You assume the risk and liability for loss, damage, or injury to you and your property and/or to others and

their property arising out of the use or misuse or inability to use the product.

This limited warranty shall not extend to anyone other than the original purchaser, original lessee or the person for whom it was purchased as a gift.

How State Law Relates to this Warranty: This warranty gives you specific legal rights, and you may also have other rights which vary from

state to state.

To locate your nearest service dealer dial 1-800-828-5500.

Troy-Bilt LLC

P.O. Box 361131

Cleveland, OH 44136-0019

Manuel de L’utilisateur

2-Cycle Gas Trimmers

BL100/BL150

TABLE DES MATIÈRES

Service technique . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .F1

Consignes de sécurité . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .F1

Familiarisez-vous avec votre appareil . . . . . . . . . . . . . . . . . . . . . .F4

Instructions de montage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .F4

Informations sur l'huile et le carburant . . . . . . . . . . . . . . . . . . . . .F5

Instructions de démarrage et d'arrêt . . . . . . . . . . . . . . . . . . . . . .F5

Mode d'emploi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .F6

Entretien et réparations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .F7

Nettoyage et entreposage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .F9

Tableau de dépannage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .F10

Caractéristiques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .F11

Garantie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .F12

Liste des pièces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E13

Toutes les informations, illustrations et spécifications contenues dans

ce manuel tiennent compte des dernières informations techniques

disponibles au moment de mettre sous presse. Nous nous réservons

le droit d'y apporter des modifications à tout moment, sans préavis.

CONSIGNES DE SÉCURITÉ

Lisez le(s) manuel(s) de l'utilisateur et suivez tous les avertissements et consignes de sécurité. Vous pourriez à défaut entraîner des blessures graves pour vous ou d'autres personnes.

SI VOUS AVEZ DES QUESTIONS, APPELEZ LE 1-800-828-5500

SYMBOLE SIGNIFICATION

AVERTISSEMENT:

e non-respect d’un avertissement

peut causer dommages matériels ou blessures graves pour

tous. Respectez les consignes de sécurité afin de réduire les

risques d'incendie, d'électrocution et de blessures.

MISE EN GARDE:

e non-respect d’un avertissement

peut causer dommages matériels ou blessures graves pour

tous. Respectez toujours les consignes de sécurité afin de

réduire les risques d'incendie, d'électrocution et de blessures.

LIRE TOUTES LES INSTRUCTIONS AVANT UTILISATION

•Veuillez lire les instructions avec soin. Familiarisez-vous avec les

commandes et l'utilisation correcte de cet appareil.

•N'utilisez pas l'appareil si vous êtes fatigué, malade ou sous

l'effet de l'alcool, de drogues ou de médicaments.

•Les enfants et adolescents de moins de 15 ans ne doivent pas

utiliser l'appareil exceptés les adolescents assistés d'un adulte.

•I

nspectez l'appareil avant utilisation. Remplacez les pièces

endommagées. Regardez s'il y a des fuites de carburant. Assurez-vous

que les fixations sont solidement en place. Remplacez les pièces de

l'accessoire de coupe qui sont fendillées, ébréchées ou endommagées.

Assurez-vous que l'accessoire de coupe est correctement installé et

solidement fixé. Assurez-vous que le protecteur d'accessoire de coupe

est correctement fixé et positionné comme recommandé. Vous risquez

sinon de causer des blessures à l'opérateur et aux spectateurs, et

d'endommager l'appareil.

•N'utilisez que du fil de remplacement d'origine de 2,03 mm

(0,080 po) de diamètre. N'utilisez jamais de fil, de chaîne ou de

cordon à renfort métallique car ils peuvent se briser et se

transformer en projectile dangereux.

•Soyez conscient des risques de blessure à la tête, aux mains et

aux pieds.

•Dégagez la zone de coupe avant chaque usage. Enlevez tous les

objets pouvant être projetés ou happés par l'accessoire de coupe :

cailloux, verre brisé, clous, fil ou ficelle. Éloignez enfants, spectateurs

et animaux de la zone de coupe. Tenez-les à au moins 15 m (50 pi)

de là mais sachez que les spectateurs risquent quand même d'être

atteints par des objets projetés. Les spectateurs doivent porter des

protections oculaires. Arrêtez immédiatement le moteur et

l'accessoire de coupe si quelqu'un s'approche de vous.

•Appuyez sur la manette des gaz et assurez-vous qu'elle revient

automatiquement en position de ralenti. Procédez à tous les

réglages ou réparations avant d'utiliser l'appareil.

•Cet appareil n'est pas conçu pour servir de débroussailleuse.

N'utilisez cet appareil avec aucun type de lame ou d'accessoire

de débroussaillage.

AVERTISSEMENTS DE SÉCURITÉ CONCERNANT LES DÉSHERBEUSES À GAZ

•Ne stockez le carburant que dans des contenants spécialement

conçus et homologués pour le stockage de ce type de matières.

•Arrêtez toujours le moteur et laissez-le refroidir avant de remplir

le réservoir de carburant. N'enlevez jamais le bouchon du

réservoir et n'ajoutez jamais de carburant pendant que le moteur

est chaud. Ne faites jamais fonctionner l'appareil sans que le

AVERTISSEMENT:

Lorsque vous utilisez la machine,

vous devez suivre les consignes de sécurité. Veuillez lire ces

instructions avant d’opérer la machine pour vous assurer de

la sécurité de l’opérateur et de tout spectateur. Veuillez

conserver ces instructions pour un usage ultérieur.

• IMPORTANTES CONSIGNES DE SÉCURITÉ •

AVERTISSEMENT:

l'essence est extrêmement

inflammable et ses vapeurs peuvent exploser si on y

met le feu. Veuillez prendre les précautions suivantes.

bouchon de carburant soit bien mis. Desserrez lentement le

bouchon afin de réduire la pression du réservoir.

•Évitez de créer une source d'allumage pour le carburant déversé.

Ne démarrez pas le moteur avant que les vapeurs de carburant

ne se soient dissipées.

•M

élangez et ajoutez le carburant dans un endroit bien aéré et propre en

plein air à l'abri des étincelles ou des flammes. N'enlevez lentement le

bouchon du réservoir d'essence qu'après avoir arrêté le moteur. Ne

fumez pas pendant le remplissage ou le mélange de carburant. Essuyez

immédiatement tout déversement de carburant de l'appareil.

•Éloignez l'appareil d'au moins 9m (30 pi) de la source de

ravitaillement en carburant avant de démarrer le moteur. Ne

fumez pas et éloignez toute source d'étincelles ou de flammes

vives du lieu de ravitaillement ou de fonctionnement de l'appareil.

PENDANT L'UTILISATION DE L'APPAREIL

•Évitez de démarrer ou de faire marcher l'appareil à l'intérieur

d'une pièce ou d'un bâtiment fermé. La respiration de fumées

d'échappement peut tuer. Ne faites fonctionner cet appareil qu'à

l'extérieur dans un endroit bien aéré.

•Portez des lunettes de sécurité conformes aux normes ANSI

Z87.1 ainsi que des protège-oreilles durant l'utilisation de

l'appareil. Portez un masque facial ou antipoussières si vous

travaillez dans un lieu poussiéreux.

•Portez des pantalons épais et longs, des bottes, des gants et

une chemise à manches longues. Ne marchez pas pieds nus et

évitez les vêtements lâches, bijoux, pantalons courts et sandales.

Relevez les cheveux au-dessus des épaules.

•Le protecteur d'accessoire de coupe doit toujours être en place

lors de l'utilisation de l'appareil. Ne faites pas marcher l'appareil

sans que les deux fils soient bien déployés, en supposant qu'un

fil approprié a été installé. Assurez-vous que le fil ne dépasse pas

le protecteur de sécurité.

•Cet appareil ne comporte pas d'embrayage. L'accessoire de

coupe continue de tourner lorsque le moteur est au ralenti.

•Ajustez la poignée selon votre taille pour mieux l'agripper.

•N'utilisez l'appareil qu'en plein jour ou avec un bon éclairage artificiel.

•Évitez tout démarrage accidentel. Mettez-vous en position de

démarrage chaque fois que vous tirez sur la corde de démarrage.

L'opérateur et l'appareil doivent tous deux être en position stable

à ce moment-là. Voir les Instructions de démarrage et d'arrêt.

•Ne vous étirez pas. Tenez-vous toujours bien sur vos pieds en

position d'équilibre.

•Tenez toujours l'appareil des deux mains lorsque vous le faites

marcher. Agrippez fermement les poignées avant et arrière.

•Gardez les mains, le visage et les pieds éloignés des pièces

mobiles. Ne touchez pas et n'essayez pas d'arrêter l'accessoire

de coupe en rotation.

•Ne touchez pas le moteur, le boîtier d'engrenages ni le silencieux.

Ces pièces deviennent très chaudes à l'utilisation. Elles restent

chaudes brièvement après l'arrêt.

•Servez-vous des outils appropriés. N'utilisez cet outil que pour

son usage prévu.

•Ne faites pas fonctionner le moteur à un régime plus élevé que

nécessaire pour couper, tailler ou faire les bordures. Ne faites pas

tourner le moteur à haut régime si vous ne vous faites pas de coupe.

•Arrêtez toujours le moteur lorsque vous suspendez la coupe ou

lorsque vous vous déplacez d'un lieu de travail vers un autre.

•Si vous heurtez un corps étranger ou que celui-ci est happé,

arrêtez le moteur immédiatement et vérifiez que rien n'a été

endommagé. Ne faites pas fonctionner avant réparation des

dommages. Ne faites pas marcher l'appareil si les pièces sont

desserrées ou endommagées.

•Arrêtez et éteignez le moteur dans les cas suivants: entretien,

réparation ou changement d'accessoires ou autres.

•N'utilisez que des pièces de équipement original rechange et

accessoires d'origine du fabricant pour cet appareil. Elles sont

disponibles auprès de votre concessionnaire agréé. L'utilisation

de pièces ou accessoires autres que ceux de éqiupement original

peut causer des blessures graves, endommager l’appareil et

annuler sa garantie.

•Gardez l'appareil exempt d'accumulation de végétation ou autres

+ 30 hidden pages
