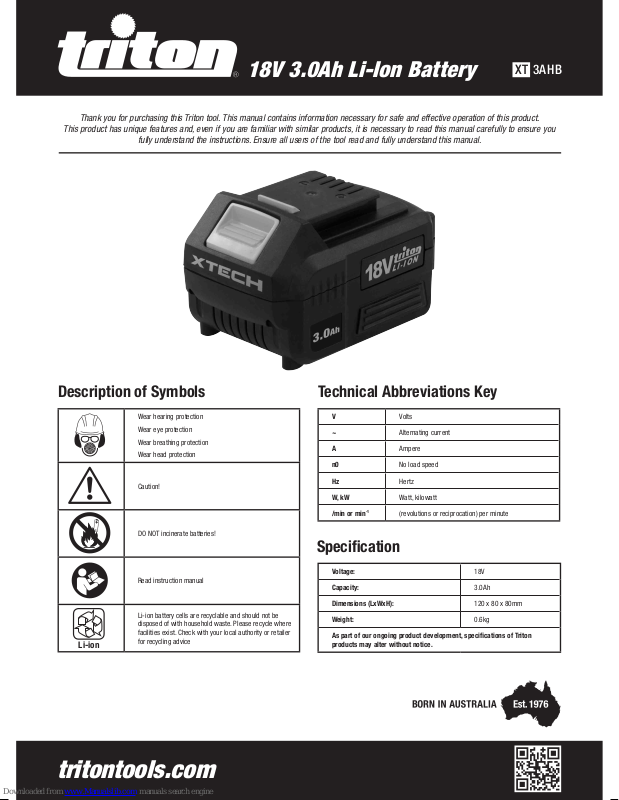

Triton XT3AHB User Manual

18V 3.0Ah Li-Ion Battery

XT 3A HB

Thank you for purchasing this Triton tool. This manual contains information necessary for safe and effective operation of this product.

This product has unique features and, even if you are familiar with similar products, it is necessary to read this manual carefully to ensure you

fully understand the instructions. Ensure all users of the tool read and fully understand this manual.

Description of Symbols

Wear hearing protection

Wear eye protection

Wear breathing protection

Wear head protection

Caution!

DO NOT incinerate batteries!

Read instruction manual

Li-ion battery cells are recyclable and should not be
disposed of with household waste. Please recycle where
facilities exist. Check with your local authority or retailer

Li-ion

for recycling advice

Technical Abbreviations Key

V Volts

~ Alternating current

A Ampere

n0 No load speed

Hz Hertz

W, kW Watt, kilowatt

/min or min

-1

(revolutions or reciprocation) per minute

Specification

Voltage: 18V

Capacity: 3.0Ah

Dimensions (LxWxH): 120 x 80 x 80mm

Weight: 0.6kg

As part of our ongoing product development, specifications of Triton
products may alter without notice.

tritontools.com

18V 3.0Ah Li-Ion Battery

XT 3A HB

Battery Safety

WARNING: Li-Ion batteries, if incorrectly used, stored or charged are a fire, burn and

explosion hazard.

• Keep the battery out of reach of children

• Only charge Li-Ion batteries using the charger provided or designed specifically for
your product

• Only use Li-Ion batteries provided with a product or specifically designed to be
compatible

• Allow batteries to cool for 15 minutes after charging or heavy use. Failure to follow
these instructions may cause overheating or fire

• When not in use batteries should be stored at room temperature (approximately
20˚C/68°F)

• Ensure that battery contacts cannot accidentally short in storage. Keep batteries
clean; foreign objects or dirt may cause a short. Keep away from other metal objects,
for example paperclips, coins, keys, nails and screws

• Under abusive conditions, liquid may be ejected from the battery. This liquid may
cause skin irritation or burns. Avoid contact. If contact accidentally occurs, flush with
water. If liquid contacts eyes, seek medical help

• DO NOT open, disassemble, crush, heat above 60°C or incinerate. Do not dispose
of in fire or similar

Warranty

Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure and
for compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.

This product is covered by a 36 month warranty.

This warranty will not apply:

(i) where this product has been subjected to misuse, abuse, accident or want of care;

(ii) where this product has been used for a purpose for which it was not designed or
is not suited;

(iii) where the service of this product has been undertaken by a non-authorised person
or company or if non-approved parts have been used;

(iv) where this product has been used for industrial purposes.

Should service become necessary during the warranty period, the purchaser should
contact an Authorised Service Centre or White International. In order to obtain
warranty service, the purchaser must present the store receipt showing the name of
the retailer and the date of purchase.

Instructions

Please note the following:

• The battery is supplied in a low charge condition. Charge before use

• Only charge this battery with the charger provided with your power tool

• Refer to the main manual provided with your charger or power tool for charging
instructions

• Remove the battery as soon as possible from the charger when fully charged

Disposal

Always adhere to national regulations when disposing of batteries that are no longer
functional.

• Discharge batteries before disposal

• DO NOT dispose of batteries with household waste

• DO NOT dispose of by incineration, which may release toxic materials or gases plus
a risk of explosion

• Contact your local waste disposal authority for information on the correct way to
dispose of batteries

The period of the warranty begins from the original date of purchase, notwithstanding
any subsequent repair or parts replacement.

Purchaser shall be responsible for all transport charges to and from the Authorised
Service Centre.

Damage in transit is not covered by this warranty. The purchaser should remove from
the product any liquids (if applicable) before sending the tool for service or repair. The
tool should be packed securely to prevent damage.

Warranty Exclusions

Wear parts or service related parts required when performing normal and regular
maintenance of this product are not covered by warranty unless it is found to be
defective by an Authorised Service Centre. These include, but are not limited to: Blades

Distributed in Australia by White International.

PO Box 304 Milperra LPO, NSW Australia, 2214

Ph:1800 251 338

The White International Policy is one of continuous improvement and the company
reserves the right to alter designs, colours and specifications without notice.

Guarantee

To register your guarantee visit our web site at
www.tritontools.com* and enter your details.
Your details will be included on our mailing list (unless indicated
otherwise) for information on future releases. Details provided will not
be made available to any third party.

Purchase Record

Date of Purchase: ___ / ___ / ____

Model: XT3AHB

Serial Number:

Retain your receipt as proof of purchase a

tritontools.com

(located on tool housing)

Triton Precision Power Tools guarantees to the purchaser of this product that if

any part proves to be defective due to faulty materials or workmanship within 3

YEARS from the date of original purchase,

Triton will repair, or at its discretion replace, the faulty part free of charge.

This guarantee does not apply to commercial use nor does it extend to normal

wear and tear or damage as a result of accident, abuse or misuse.

* Register online within 3 0 days.

Terms & conditions apply.

This does not af fect your statutory rights oves to be defecti
