Tripp Lite
1111 West 35th Street
Chicago, IL 60609 USA
Telephone: +(773) 869 1234
E-mail: saleshelp@tripplite.com

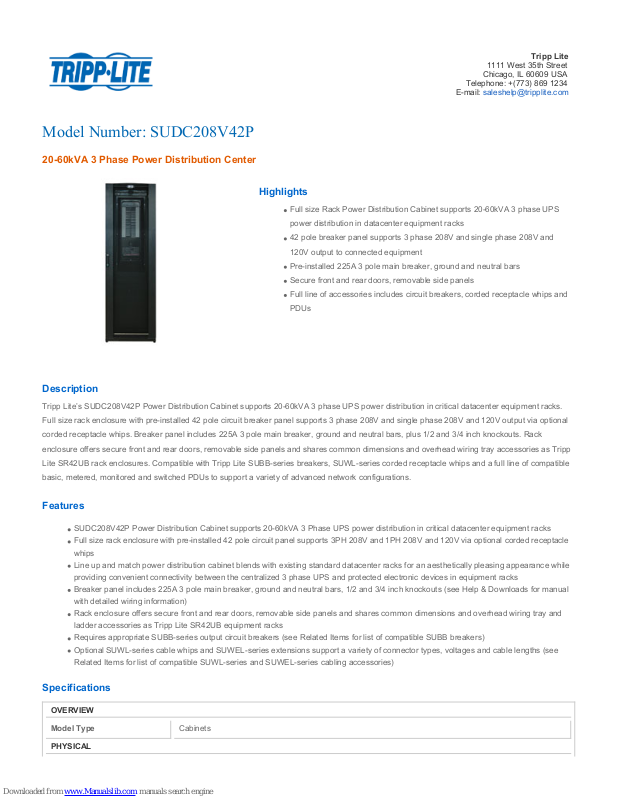

Model Number: SUDC208V42P
20-60kVA 3 Phase Power Distribution Center
Highlights
Full size Rack Power Distribution Cabinet supports 20-60kVA 3 phase UPS
power distribution in datacenter equipment racks
42 pole breaker panel supports 3 phase 208V and single phase 208V and
120V output to connected equipment
Pre-installed 225A 3 pole main breaker, ground and neutral bars
Secure front and rear doors, removable side panels
Full line of accessories includes circuit breakers, corded receptacle whips and
PDUs
Description
Tripp Lite’s SUDC208V42P Power Distribution Cabinet supports 20-60kVA 3 phase UPS power distribution in critical datacenter equipment racks.
Full size rack enclosure with pre-installed 42 pole circuit breaker panel supports 3 phase 208V and single phase 208V and 120V output via optional
corded receptacle whips. Breaker panel includes 225A 3 pole main breaker, ground and neutral bars, plus 1/2 and 3/4 inch knockouts. Rack
enclosure offers secure front and rear doors, removable side panels and shares common dimensions and overhead wiring tray accessories as Tripp
Lite SR42UB rack enclosures. Compatible with Tripp Lite SUBB-series breakers, SUWL-series corded receptacle whips and a full line of compatible
basic, metered, monitored and switched PDUs to support a variety of advanced network configurations.
Features
SUDC208V42P Power Distribution Cabinet supports 20-60kVA 3 Phase UPS power distribution in critical datacenter equipment racks
Full size rack enclosure with pre-installed 42 pole circuit panel supports 3PH 208V and 1PH 208V and 120V via optional corded receptacle
whips
Line up and match power distribution cabinet blends with existing standard datacenter racks for an aesthetically pleasing appearance while
providing convenient connectivity between the centralized 3 phase UPS and protected electronic devices in equipment racks
Breaker panel includes 225A 3 pole main breaker, ground and neutral bars, 1/2 and 3/4 inch knockouts (see Help & Downloads for manual
with detailed wiring information)
Rack enclosure offers secure front and rear doors, removable side panels and shares common dimensions and overhead wiring tray and
ladder accessories as Tripp Lite SR42UB equipment racks
Requires appropriate SUBB-series output circuit breakers (see Related Items for list of compatible SUBB breakers)
Optional SUWL-series cable whips and SUWEL-series extensions support a variety of connector types, voltages and cable lengths (see
Related Items for list of compatible SUWL-series and SUWEL-series cabling accessories)
Specifications
OVERVIEW
Model Type Cabinets
PHYSICAL
Shipping Dimensions
(HWD/in)
84.5 x 27.75 x 47
Shipping Dimensions
(HWD/cm)
214 x 70.5 x 119
Shipping weight (lbs) 344
Shipping weight (kg) 156.2
Unit Dimensions (in.) EXTERNAL DIMENSIONS: 78.5 x 23.63 x 43 (HWD)
Unit Dimensions (cm) EXTERNAL DIMENSIONS: 199 x 60 x 109 (HWD)
WARRANTY
Product Warranty Period
(Worldwide)
1-year limited warranty
Related Items
Optional Products
Related Model Description Qty.
SUBB120 120V 20A Single Phase Circuit Breaker for Rack Distribution Cabinet Applications 1
SUBB130 120V 30A Single Phase Circuit Breaker for Rack Distribution Cabinet Applications 1
SUBB230 Single Phase 208V 30A Circuit Breaker for Rack Distribution Cabinet Applications 1
SUBB320 Three Phase 208V 20A Circuit Breaker for Rack Distribution Cabinet Applications 1
SUBB330 3 Phase 208V 30A Circuit Breaker for Rack Distribution Cabinet Applications 1
SUBB360 3 Phase 208V 60A Circuit Breaker for Rack Distribution Cabinet Applications 1
SUWEL520C-20 120V Single Phase Whip Extension cable in 20 ft. length with L5-20R output and L5-20P
input
1
SUWEL520C-3 120V Single Phase Whip Extension cable in 3 ft. length with L5-20R output and L5-20P
input
1
SUWEL630C-20 208/240V Single Phase Whip Extension cable in 20 ft. length with L6-30R output and
L6-30P input
1
SUWEL630C-3 208/240V Single Phase Whip Extension cable in 3 ft. length with L6-30R output and
L6-30P input
1
SUWL520C-10 120V Single Phase Whip in 10 ft. length with L5-20R output for Breakered 3 Phase
Distribution Cabinet Applications
1
SUWL520C-15 120V Single Phase Whip in 15 ft. length with L5-20R output for Breakered 3 Phase
Distribution Cabinet Applications
1
SUWL520C-20 120V Single Phase Whip in 20 ft. length with L5-20R output for Breakered 3 Phase
Distribution Cabinet Applications
1
SUWL520C-25 120V Single Phase Whip in 25 ft. length with L5-20R output for Breakered 3 Phase
Distribution Cabinet Applications
1
SUWL520C-30 120V Single Phase Whip in 30 ft. length with L5-20R output for Breakered 3 Phase
Distribution Cabinet Applications
1
SUWL520C-35 120V Single Phase Whip in 35 ft. length with L5-20R output for Breakered 3 Phase
Distribution Cabinet Applications
1
SUWL520C-40 120V Single Phase Whip in 40 ft. length with L5-20R output for Breakered 3 Phase
Distribution Cabinet Applications
1
SUWL520C-5 120V Single Phase Whip in 5 ft. length with L5-20R output for Breakered 3 Phase
Distribution Cabinet Applications
1
