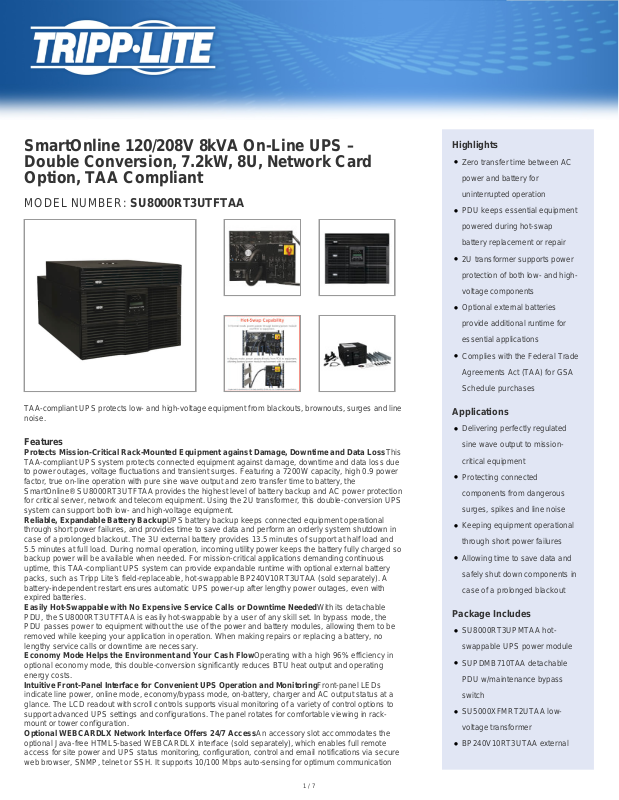

SmartOnline 120/208V 8kVA On-Line UPS –
Double Conversion, 7.2kW, 8U, Network Card
Option, TAA Compliant
MODEL NUMBER: SU8000RT3UTFTAA
Highlights
●
Zero transfer time between AC
power and battery for
uninterrupted operation
●
PDU keeps essential equipment
powered during hot-swap
battery replacement or repair
●
2U transformer supports power
protection of both low- and highvoltage components
●
Optional external batteries
provide additional runtime for
essential applications
●
Complies with the Federal Trade
Agreements Act (TAA) for GSA
Schedule purchases
TAA-compliant UPS protects low- and high-voltage equipment from blackouts, brownouts, surges and line
noise.
Features
Protects Mission-Critical Rack-Mounted Equipment against Damage, Downtime and Data LossThis
TAA-compliant UPS system protects connected equipment against damage, downtime and data loss due
to power outages, voltage fluctuations and transient surges. Featuring a 7200W capacity, high 0.9 power
factor, true on-line operation with pure sine wave output and zero transfer time to battery, the
SmartOnline® SU8000RT3UTFTAA provides the highest level of battery backup and AC power protection
for critical server, network and telecom equipment. Using the 2U transformer, this double-conversion UPS
system can support both low- and high-voltage equipment.
Reliable, Expandable Battery BackupUPS battery backup keeps connected equipment operational
through short power failures, and provides time to save data and perform an orderly system shutdown in
case of a prolonged blackout. The 3U external battery provides 13.5 minutes of support at half load and
5.5 minutes at full load. During normal operation, incoming utility power keeps the battery fully charged so
backup power will be available when needed. For mission-critical applications demanding continuous
uptime, this TAA-compliant UPS system can provide expandable runtime with optional external battery
packs, such as Tripp Lite’s field-replaceable, hot-swappable BP240V10RT3UTAA (sold separately). A
battery-independent restart ensures automatic UPS power-up after lengthy power outages, even with
expired batteries.
Easily Hot-Swappable with No Expensive Service Calls or Downtime NeededWith its detachable
PDU, the SU8000RT3UTFTAA is easily hot-swappable by a user of any skill set. In bypass mode, the
PDU passes power to equipment without the use of the power and battery modules, allowing them to be
removed while keeping your application in operation. When making repairs or replacing a battery, no
lengthy service calls or downtime are necessary.
Economy Mode Helps the Environment and Your Cash FlowOperating with a high 96% efficiency in
optional economy mode, this double-conversion significantly reduces BTU heat output and operating
energy costs.
Intuitive Front-Panel Interface for Convenient UPS Operation and MonitoringFront-panel LEDs
indicate line power, online mode, economy/bypass mode, on-battery, charger and AC output status at a
glance. The LCD readout with scroll controls supports visual monitoring of a variety of control options to
support advanced UPS settings and configurations. The panel rotates for comfortable viewing in rackmount or tower configuration.
Optional WEBCARDLX Network Interface Offers 24/7 AccessAn accessory slot accommodates the
optional Java-free HTML5-based WEBCARDLX interface (sold separately), which enables full remote
access for site power and UPS status monitoring, configuration, control and email notifications via secure
web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication
Applications
●
Delivering perfectly regulated
sine wave output to missioncritical equipment
●
Protecting connected
components from dangerous
surges, spikes and line noise
●
Keeping equipment operational
through short power failures
●
Allowing time to save data and
safely shut down components in
case of a prolonged blackout
Package Includes
●
SU8000RT3UPMTAA hotswappable UPS power module
●
SUPDMB710TAA detachable
PDU w/maintenance bypass
switch
●
SU5000XFMRT2UTAA lowvoltage transformer
●
BP240V10RT3UTAA external
1 / 7
with an Ethernet network. Automated alerts help prevent accidental overloads, power loss and downtime.
Advanced Communications PortsUSB and DB9 ports (cables are included) enable data-saving
unattended shutdown of connected systems when used with Tripp Lite’s free downloadable PowerAlert®
software. Capabilities include detailed monitoring of load levels, self-test data and utility power conditions.
Versatile Installation OptionsHardware is included for mounting the 8kVA UPS system in 8U of space in
an EIA-standard 19-inch 4-post rack. Use three optional 2POSTRMKITHD kits (sold separately) for 2-post
rack mounting or the included 2-9USTAND for mounting in an upright tower position.
TAA-Compliant UPS for GSA Schedule PurchasesThe SU8000RT3UTFTAA is compliant with the
Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
2-Year Warranty, $250K Ultimate Lifetime Insurance and Environmentally Responsible DesignThe
SU8000RT3UTFTAA comes with a 2-year warranty and $250,000 of Ultimate Lifetime Insurance for any
connected components damaged by a power surge (U.S., Canada and Puerto Rico only). It’s
manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to
environmental responsibility.
Specifications
OVERVIEW
UPC Code 037332236258
UPS Type On-Line
INPUT
Rated input current (Maximum Load) 44.2A (208V)
battery pack
●
USB cable
●
DB9 cable
●
EPO cable
●
Rack-mounting hardware
●
2-9USTAND tower stand kit
●
Owner’s manual
Nominal Input Voltage(s) Supported 208V AC
UPS Input Connection Type Hardwire
UPS Input Connection Description 3 wire single phase input (L1, L2, G)
Recommended Electrical Service 50A
Input Phase Single-Phase
OUTPUT
Output Volt Amp Capacity (VA) 8000
Output kVA Capacity (kVA) 8
Output Watt Capacity (Watts) 7200
Output kW Capacity (kW) 7.2
Output Capacity Details Supports up to 105% load continuously in double conversion mode, 106 to 125% for 1 minute, 126% to 150% for 30
Power Factor 0.9
Crest Factor 3:1
Nominal Voltage Details 7200 watts total output supported; 5000 watts maximum 120V output; Add 1 additional SU5000XFMR2UTAA
seconds; Loads over 150% trigger immediate bypass mode operation to support loads directly from mains power;
Double conversion mode is automatically restored as load levels are reduced to 95% or less
transformer for full load 120V operation; Voltage selection via front panel LCD interface; This configuration requires
the Power Module be set to 208V output voltage; Included step-down transformer supports 120V output
Frequency Compatibility 60 Hz
Frequency Compatibility Details Output frequency regulation +/- 0.05Hz (free running)
2 / 7
Output Voltage Regulation (Line
Mode)
+/- 2%
Output Voltage Regulation
(Economy Line Mode)
Output Voltage Regulation (Battery
Mode)
+/- 10%
+/- 2%
Output Circuit Breakers 20A double-pole (x2) protects 2 L6-20R outlets each, 30A double-pole (x2) protects 1 L6-30R outlets each, 20A
single-pole (x4) protect 3 5-15/20R outlets each
Output AC Waveform (AC Mode) Pure Sine wave
Output AC Waveform (Battery
Mode)
Nominal Output Voltage(s)
Supported
Pure Sine wave
120V; 208V
Output Receptacles (12) 5-15/20R; (4) L6-20R; (2) L6-30R
Individually Controllable Load Banks No
BATTERY
Full Load Runtime (min.) 5.5 min. (7200w)
Half Load Runtime (min.) 13.5 min. (3600w)
Expandable Battery Runtime Supports extended runtime with optional external battery packs
External Battery Pack Compatibility <a class="productLink" href="// external-240v-3u-rack-tower-battery-pack-enclosure-dc-
cabling-select-ups-taa~BP240V10RT3UTAA">BP240V10RT3UTAA</a> ; <a class="productLink"
href="// External-240V-Tower-Battery-Pack-for-use-with-Select-Tripp-Lite-UPS-Systems-
BP240V787C-1PH~BP240V787C-1PH">BP240V787C-1PH</a>
DC System Voltage (VDC) 240
Battery Recharge Rate (Included
Batteries)
Less than 6 hours from 10% to 90% (typical, full load discharge)
Battery Replacement Description Hot-swappable, user replaceable external battery packs
Expandable Runtime Yes
VOLTAGE REGULATION
Voltage Regulation Description 2% output voltage regulation in standard online, double-conversion mode
Overvoltage Correction Corrects overvoltages up to 300V
Undervoltage Correction Corrects undervoltages as low as 100V
USER INTERFACE, ALERTS & CONTROLS
Front Panel LCD Display Selectable LCD display with scroll and selection buttons enables UPS control and detailed monitoring options;
LED/LCD panel rotates for viewing in rack/tower formats; LCD Display supports ENGLISH, FRENCH, GERMAN,
ITALIAN, SPANISH and PORTUGUESE (see manual)
Switches 2 Switches control off/on power status and alarm-cancel/self-test operation; 2 additional switches support set and
execute scrolling LCD functions; bundled PDU includes bypass switch to enable hot-swap UPS power module
replacement
Alarm Cancel Operation Alarm cancel switch
Audible Alarm Unique audible alarms for all major UPS, environmental and power conditions (see manual)
3 / 7
LED Indicators 6 LEDs indicate line power, online mode, economy/bypass mode, on-battery, charger and AC output status; LCD
screen offers additional information and control options
SURGE / NOISE SUPPRESSION
UPS AC Suppression Joule Rating 2565
UPS AC Suppression Response
Time
Instantaneous
EMI / RFI AC Noise Suppression Yes
ISOLATION
Output Isolation Transformer 120V output is isolation transformer protected
PHYSICAL
Cooling Method Fan
Included Battery Pack Dimensions
(hwd / in.)
5.25 x 17.5 x 25
Included Battery Pack Weight (kg) 72.12
Included Battery Pack Weight (lbs.) 159
Included Mounting Accessory
Description
Installation Form Factors Supported
with Included Accessories
Installation Form Factors Supported
with Optional Accessories
3 sets of adjustable 4 post rack rails included; 2-9USTAND tower kit included
4 post 19 inch rackmount
2 post rackmount ( <a class="productLink" href="// 2-Post-Rack-Mount-Installation-Kit-3U-
Larger-UPS-Transformer-Battery-Pack-Components~2POSTRMKITHD">2POSTRMKITHD</a> )
Maximum Device Depth (cm) 83.82
Maximum Device Depth (in.) 33
Maximum Device Depth (mm) 838
Minimum Required Rack Depth (cm) 96.52
Minimum Required Rack Depth
(inches)
38
Optional Mounting Accessory Notes 3 sets of <a class="productLink" href="// 2-Post-Rack-Mount-Installation-Kit-3U-Larger-
UPS-Transformer-Battery-Pack-Components~2POSTRMKITHD">2POSTRMKITHD</a> required for 2 post
rackmount installation of separate power module, battery pack and transformer
Primary Form Factor Rackmount
Primary UPS Depth (mm) 656
Primary UPS Height (mm) 131
Primary UPS Width (mm) 445
Rack Height 8U
Shipping Dimensions (hwd / cm) 80.01 x 66.04 x 104.14
Shipping Dimensions (hwd / in.) 31.50 x 26.00 x 41.00
Shipping Weight (kg) 182.42
4 / 7
Shipping Weight (lbs.) 402.16
Stepdown Transformer Depth (mm) 528
Stepdown Transformer Dimensions
(hwd / cm)
Stepdown Transformer Dimensions
(hwd / in.)
8.89 x 44.45 x 52.83
3.5 x 17.5 x 20.8
Stepdown Transformer Height (mm) 89
Stepdown Transformer Weight (kg) 25.85
Stepdown Transformer Weight (lbs.) 57
Stepdown Transformer Width (mm) 445
Unit Dimension Details Includes 3U UPS/power module, 3U battery pack, 2U SU5000XFMR2UTAA step down transformer plus
SUPDMB710TAA PDU with bypass; MAXIMUM DEVICE DEPTH specification refers to the whole UPS installed
depth with bypass PDU installed
UPS Housing Material Steel
UPS Power Module Dimensions
(hwd, cm)
UPS Power Module Dimensions
(hwd, in.)
13.06 x 44.45 x 65.58
5.14 x 17.5 x 25.82
UPS Power Module Weight (kg) 19.50
UPS Power Module Weight (lbs.) 43
ENVIRONMENTAL
Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity 0 to 95%, non-condensing
AC Mode BTU / Hr. (Full Load) 2732
AC Economy Mode BTU / Hr. (Full
Load)
1024
Battery Mode BTU / Hr. (Full Load) 2432
AC Mode Efficiency Rating (100%
Load)
AC Economy Mode Efficiency Rating
(100% Load)
91%
96%
Operating Elevation (ft.) 0 to 10,000 ft.
Audible Noise 60 dBA at front side 1 meter
Operating Elevation (m) 0-3000 m
COMMUNICATIONS
5 / 7
Network Management Cards <a class="productLink" href="// SNMP-Web-Management-Accessory-Card-SmartPro-
SmartOnline-UPS-Systems~SNMPWEBCARD">SNMPWEBCARD</a> ; <a class="productLink"
href="// Web-Management-Accessory-Card-SmartPro-SmartOnline-UPS-
Systems~TLNETCARD">TLNETCARD</a> ; <a class="productLink" href="// Web-
Management-Accessory-Card~WEBCARDLX">WEBCARDLX</a> ; <a class="productLink"
href="// MODBUS-Management-Accessory-Card-UPS-Remote-Monitoring-
Control~MODBUSCARD">MODBUSCARD</a> ; <a class="productLink"
href="// Programmable-Relay-I-O-Card~RELAYIOCARD">RELAYIOCARD</a>
Network Monitoring Port Description Additional contact closure support with optional RELAYIOCARD and RELAYIOMINI interface cards. RELAYIOMINI
PowerAlert Software For local monitoring via the UPS’s built-in communication ports , download PowerAlert Local software at
Communications Cable USB, DB9 serial and EPO cables included
WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
Communications Interface DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB (HID enabled)
LINE / BATTERY TRANSFER
Transfer Time No transfer time (0 ms.) in online, double-conversion mode
Transfer Time (Economy Mode) 8 ms. typical power failure response in optional economy mode
Low Voltage Transfer to Battery
Power (Setpoint)
High Voltage Transfer to Battery
Power (Setpoint)
SPECIAL FEATURES
Cold Start (Startup in Battery Mode
During a Power Failure)
Economy Mode Operation Optional economy mode enables high-efficiency bypass operation with a maximum output voltage variation of +/-
installation requires removal of panel containing USB ports
http:// poweralert
100V
300V
Cold-start operation supported
10%. Double conversion mode is automatically restored as mains voltage varies beyond +/-10% with less than 1
millisecond transfer time between modes.
High Availability UPS Features Automatic inverter bypass; Hot swappable UPS power module; Hot swappable batteries; Manual bypass switch;
Green Energy-Saving Features High efficiency economy mode operation; Schedulable daily hours of economy mode operation
STANDARDS & COMPLIANCE
UPS Certifications Meets FCC Part 15 Category A (EMI); TAA Compliant; Tested to CSA (Canada); Tested to NOM (Mexico); Tested to
Certification Details IEC 61000-4-5 1995 B Surge Immunity
WARRANTY
Product Warranty Period
(Worldwide)
Connected Equipment Insurance
(U.S., Canada & Puerto Rico)
Auto Probe Monitoring (requires WEBCARDLX); Zero transfer time; On-Line/Double-Conversion
UL1778 (USA)
2-year limited warranty
$250,000 <a class="insuranceLink" href="// support/insurance-policy">Ultimate Lifetime
Insurance</a>
© 2020 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
6 / 7
https:// products/product-certification-agencies
7 / 7
Loading...
