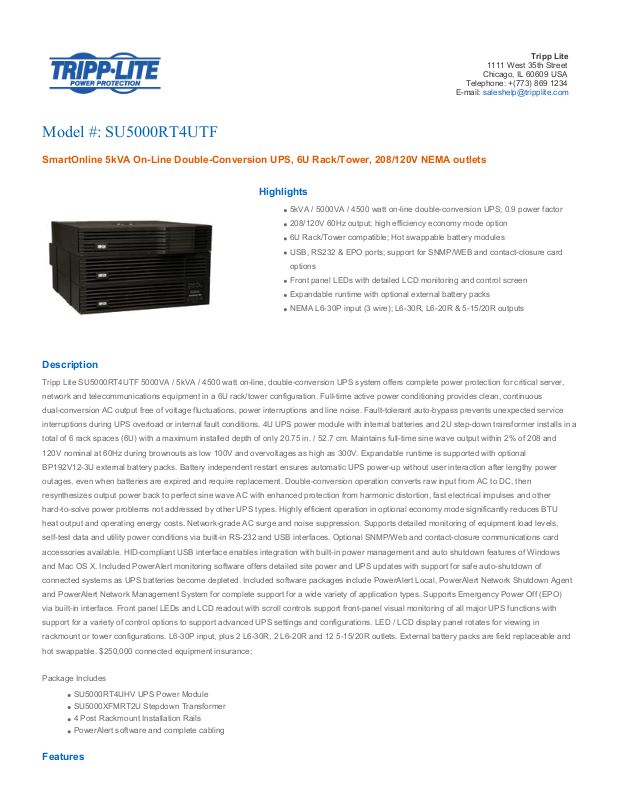

Tripp Lite SU5000RT4UTF User Manual

Tripp Lite

1111 West 35th Street

Chicago, IL 60609 USA

Telephone: +[phone]

E-mail: [e-mail]

Model #: SU5000RT4UTF

SmartOnline 5kVA On-Line Double-Conversion UPS, 6U Rack/Tower, 208/120V NEMA outlets

Highlights

5kVA / 5000VA / 4500 watt on-line double-conversion UPS; 0.9 power factor

208/120V 60Hz output; high efficiency economy mode option

6U Rack/Tower compatible; Hot swappable battery modules

USB, RS232 & EPO ports; support for SNMP/WEB and contact-closure card

options

Front panel LEDs with detailed LCD monitoring and control screen

Expandable runtime with optional external battery packs

NEMA L6-30P input (3 wire); L6-30R, L6-20R & 5-15/20R outputs

Description

Tripp Lite SU5000RT4UTF 5000VA / 5kVA / 4500 watt on-line, double-conversion UPS system offers complete power protection for critical server,

network and telecommunications equipment in a 6U rack/tower configuration. Full-time active power conditioning provides clean, continuous

dual-conversion AC output free of voltage fluctuations, power interruptions and line noise. Fault-tolerant auto-bypass prevents unexpected service

interruptions during UPS overload or internal fault conditions. 4U UPS power module with internal batteries and 2U step-down transformer installs in a

total of 6 rack spaces (6U) with a maximum installed depth of only 20.75 in. / 52.7 cm. Maintains full-time sine wave output within 2% of 208 and

120V nominal at 60Hz during brownouts as low 100V and overvoltages as high as 300V. Expandable runtime is supported with optional

BP192V12-3U external battery packs. Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power

outages, even when batteries are expired and require replacement. Double-conversion operation converts raw input from AC to DC, then

resynthesizes output power back to perfect sine wave AC with enhanced protection from harmonic distortion, fast electrical impulses and other

hard-to-solve power problems not addressed by other UPS types. Highly efficient operation in optional economy mode significantly reduces BTU

heat output and operating energy costs. Network-grade AC surge and noise suppression. Supports detailed monitoring of equipment load levels,

self-test data and utility power conditions via built-in RS-232 and USB interfaces. Optional SNMP/Web and contact-closure communications card

accessories available. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows

and Mac OS X. Included PowerAlert monitoring software offers detailed site power and UPS updates with support for safe auto-shutdown of

connected systems as UPS batteries become depleted. Included software packages include PowerAlert Local, PowerAlert Network Shutdown Agent

and PowerAlert Network Management System for complete support for a wide variety of application types. Supports Emergency Power Off (EPO)

via built-in interface. Front panel LEDs and LCD readout with scroll controls support front-panel visual monitoring of all major UPS functions with

support for a variety of control options to support advanced UPS settings and configurations. LED / LCD display panel rotates for viewing in

rackmount or tower configurations. L6-30P input, plus 2 L6-30R, 2 L6-20R and 12 5-15/20R outlets. External battery packs are field replaceable and

hot swappable. $250,000 connected equipment insurance;

Package Includes

SU5000RT4UHV UPS Power Module
SU5000XFMRT2U Stepdown Transformer
4 Post Rackmount Installation Rails
PowerAlert software and complete cabling

Features

Tripp Lite SU5000RT4UTF 5000VA / 5kVA / 4500 watt on-line, double-conversion UPS system in a 6U rack/tower configuration (4U UPS
power module with internal batteries + 2U step-down transformer)
Full-time active power conditioning maintains clean, continuous dual-conversion AC output free of voltage fluctuations, power interruptions
and line noise
Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
L6-30P input plug, plus 2 L6-30R, 2 L6-20R and 12 5-15/20R outlets
Included rail kits support rackmount installation of both included modules in 4 post racks
Optional 2POSTRMKITHD supports installation in 2 post 19 inch racks (2 required for SU5000RT4UTF)
Optional 2-9USTAND supports upright tower placement (1 required for SU5000RT4UTF)
Maximum installed rack depth of only 20.75 in. / 52.7 cm
Maintains full-time sine wave output within 2% of 208V & 120V at 60Hz nominal in double conversion mode
Corrects brownouts to 156V at full load (100V at 50% load or less)
Corrects overvoltages to 290V at full load (300V at 90% load or less)
Double-conversion operation offers full-time AC to DC, then DC to AC conversion to maintain perfectly regulated sine wave AC output with
enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS
types
High efficiency ECONOMY MODE operation significantly reduces BTU heat output and operating energy costs
Network-grade AC surge and noise suppression
Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via built-in RS-232, USB and optional
SNMP card slot interfaces
UPS card slot supports one card-based network interface option (part # SNMPWEBCARD) or dry-contact monitoring accessory (part #
RELAYIOCARD)
Optional SNMPWEBCARD offers communications and control via secure remote web and network interfaces
Optional RELAYIOCARD supports six configurable hard contact closure outputs for custom event notification
Optional RELAYIOMINI interface module offers three configurable hard contact closure outputs for custom event notification (requires
removal of USB interface module)
HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
Includes Free PowerAlert monitoring software packages; PowerAlert LOCAL for desktops and small business networks, PowerAlert NSA
(Network Shutdown Agent) for larger networks and PowerAlert NMS (Network Management System) for monitoring up to 250
SNMP-enabled UPS, PDU and other networking devices
Front panel LEDs and LCD readout with scroll controls support front-panel visual monitoring of all major UPS functions with support for a
variety of control options to support advanced UPS settings and configurations
LED/LCD display panel rotates for viewing in rackmount or tower configurations
Supports Emergency Power Off (EPO) via built-in interface
Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries
are expired and require replacement
External battery packs are field replaceable and hot swappable
Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
$250,000 connected equipment insurance;

Specifications

OUTPUT

Output Volt Amp
Capacity (VA)

5000

Output kVA capacity
(kVA)

5.0

Output Watt Capacity
(watts)

4500

Output kW capacity 4.5

Output power factor 0.9

Crest Factor 3:1

Nominal Output
Voltage(s) Supported

120V; 208V

Frequency
compatibility

60 Hz

Frequency
compatibility details

Output frequency regulation +/- 0.05Hz (free running)

Output voltage
regulation (line mode)

+/- 2%

Output voltage
regulation (Economy
line mode)

+/- 10%

Output voltage
regulation (Battery
mode)

+/- 2%

Built-in UPS output
receptacles

12 5-15/20R outlet(s); 2 L6-20R outlet(s); 2 L6-30R outlet(s)

Output circuit breaker High voltage 20A breaker protects L6-20R outlets, L6-30R outlets are unbreakered; Low voltage 20A breakers

protect 3 5-15/20R outlets each

Output AC waveform
(AC mode)

Pure sine wave

Output AC waveform
(battery mode)

Pure Sine wave

INPUT

Rated input current (at
maximum load)

24A (208V)

Nominal Input
Voltage(s) Supported

208V AC

UPS input connection
type

L6-30P

UPS Input cord length
(ft.)

10

UPS Input cord length
(m)

3

Recommended
Electrical Service

30A

BATTERY

Full load runtime
(minutes)

3.5 minutes (4500w)

Half load runtime
(minutes)

11 minutes (2250w)

Expandable battery
runtime

Supports extended runtime with optional external battery packs

External battery pack
compatibility

BP192V12-3U

DC system voltage
(VDC)

192

Battery recharge rate
(included batteries)

6 hours (from 10% to 90%)
