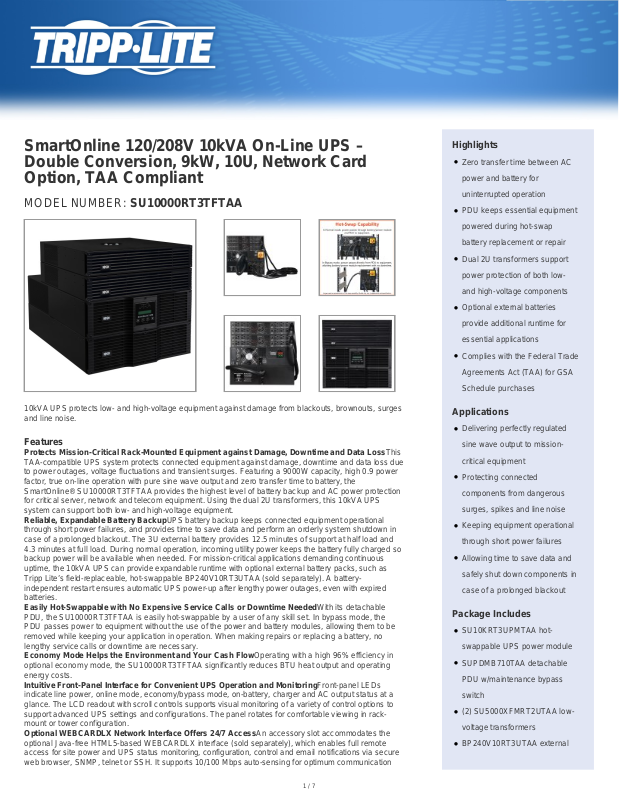

Tripp-Lite SU10000RT3TFTAA Data Sheet

SmartOnline 120/208V 10kVA On-Line UPS –
Double Conversion, 9kW, 10U, Network Card
Option, TAA Compliant

MODEL NUMBER: SU10000RT3TFTAA

Highlights

●

Zero transfer time between AC
power and battery for
uninterrupted operation

●

PDU keeps essential equipment
powered during hot-swap
battery replacement or repair

●

Dual 2U transformers support
power protection of both low­and high-voltage components

●

Optional external batteries
provide additional runtime for
essential applications

●

Complies with the Federal Trade
Agreements Act (TAA) for GSA
Schedule purchases

10kVA UPS protects low- and high-voltage equipment against damage from blackouts, brownouts, surges
and line noise.

Features

Protects Mission-Critical Rack-Mounted Equipment against Damage, Downtime and Data LossThis

TAA-compatible UPS system protects connected equipment against damage, downtime and data loss due
to power outages, voltage fluctuations and transient surges. Featuring a 9000W capacity, high 0.9 power
factor, true on-line operation with pure sine wave output and zero transfer time to battery, the
SmartOnline® SU10000RT3TFTAA provides the highest level of battery backup and AC power protection
for critical server, network and telecom equipment. Using the dual 2U transformers, this 10kVA UPS
system can support both low- and high-voltage equipment.
Reliable, Expandable Battery BackupUPS battery backup keeps connected equipment operational
through short power failures, and provides time to save data and perform an orderly system shutdown in
case of a prolonged blackout. The 3U external battery provides 12.5 minutes of support at half load and

4.3 minutes at full load. During normal operation, incoming utility power keeps the battery fully charged so
backup power will be available when needed. For mission-critical applications demanding continuous
uptime, the 10kVA UPS can provide expandable runtime with optional external battery packs, such as
Tripp Lite’s field-replaceable, hot-swappable BP240V10RT3UTAA (sold separately). A battery­independent restart ensures automatic UPS power-up after lengthy power outages, even with expired
batteries.
Easily Hot-Swappable with No Expensive Service Calls or Downtime NeededWith its detachable
PDU, the SU10000RT3TFTAA is easily hot-swappable by a user of any skill set. In bypass mode, the
PDU passes power to equipment without the use of the power and battery modules, allowing them to be
removed while keeping your application in operation. When making repairs or replacing a battery, no
lengthy service calls or downtime are necessary.
Economy Mode Helps the Environment and Your Cash FlowOperating with a high 96% efficiency in
optional economy mode, the SU10000RT3TFTAA significantly reduces BTU heat output and operating
energy costs.
Intuitive Front-Panel Interface for Convenient UPS Operation and MonitoringFront-panel LEDs
indicate line power, online mode, economy/bypass mode, on-battery, charger and AC output status at a
glance. The LCD readout with scroll controls supports visual monitoring of a variety of control options to
support advanced UPS settings and configurations. The panel rotates for comfortable viewing in rack­mount or tower configuration.
Optional WEBCARDLX Network Interface Offers 24/7 AccessAn accessory slot accommodates the
optional Java-free HTML5-based WEBCARDLX interface (sold separately), which enables full remote
access for site power and UPS status monitoring, configuration, control and email notifications via secure
web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication

Applications

●

Delivering perfectly regulated
sine wave output to mission­critical equipment

●

Protecting connected
components from dangerous
surges, spikes and line noise

●

Keeping equipment operational
through short power failures

●

Allowing time to save data and
safely shut down components in
case of a prolonged blackout

Package Includes

●

SU10KRT3UPMTAA hot­swappable UPS power module

●

SUPDMB710TAA detachable
PDU w/maintenance bypass
switch

●

(2) SU5000XFMRT2UTAA low­voltage transformers

●

BP240V10RT3UTAA external

1 / 7

with an Ethernet network. Automated alerts help prevent accidental overloads, power loss and downtime.
Advanced Communications PortsUSB and DB9 ports (cables are included) enable data-saving
unattended shutdown of connected systems when used with Tripp Lite’s free downloadable PowerAlert®
software. Capabilities include detailed monitoring of load levels, self-test data and utility power conditions.
Versatile Installation OptionsHardware is included for mounting the 10kVA UPS system in 10U of space
in an EIA-standard 19-inch 4-post rack. Use the optional 2POSTRMKITHD (sold separately) for 2-post
rack mounting or the included 2-9USTAND for mounting in an upright tower position.
TAA-Compliant UPS for GSA Schedule PurchasesThe SU10000RT3TFTAA is compliant with the
Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
2-Year Warranty, $250K Ultimate Lifetime Insurance and Environmentally Responsible DesignThe
SU10000RT3TFTAA comes with a 2-year warranty and $250,000 of Ultimate Lifetime Insurance for any
connected components damaged by a power surge (U.S., Canada and Puerto Rico only). It’s
manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to
environmental responsibility.

Specifications

OVERVIEW

UPC Code 037332236203
UPS Type On-Line

INPUT

Rated input current (Maximum Load) 54A (208V)

battery pack

●

USB cable

●

DB9 cable

●

EPO cable

●

Rack-mounting hardware

●

2-9USTAND tower stand kit

●

Owner’s manual

Nominal Input Voltage(s) Supported 208V AC
UPS Input Connection Type Hardwire
UPS Input Connection Description 3 wire single phase input (L1, L2, G)
Recommended Electrical Service 60A
Input Phase Single-Phase

OUTPUT

Output Volt Amp Capacity (VA) 10000
Output kVA Capacity (kVA) 10
Output Watt Capacity (Watts) 9000
Output kW Capacity (kW) 9
Output Capacity Details Supports up to 105% load continuously in double conversion mode, 106 to 125% for 1 minute, 126% to 150% for 30

Power Factor 0.9
Crest Factor 3:1
Nominal Voltage Details Voltage selection via front panel LCD interface; This configuration requires the Power Module be set to 208V output

Frequency Compatibility 60 Hz

seconds; Loads over 150% trigger immediate bypass mode operation to support loads directly from mains power;
Double conversion mode is automatically restored as load levels are reduced to 95% or less

voltage; Included step-down transformers support 120V output

Frequency Compatibility Details Output frequency regulation +/- 0.05Hz (free running)

2 / 7

Output Voltage Regulation (Line
Mode)

+/- 2%

Output Voltage Regulation
(Economy Line Mode)

Output Voltage Regulation (Battery
Mode)

+/- 10%

+/- 2%

Output Circuit Breakers 20A double-pole (x2) protects 2 L6-20R outlets each, 30A double-pole (x2) protects 1 L6-30R outlets each, 20A

single-pole (x8) protect 3 5-15/20R outlets each
Output AC Waveform (AC Mode) Pure Sine wave
Output AC Waveform (Battery

Mode)
Nominal Output Voltage(s)

Supported

Pure Sine wave

120V; 208V

Output Receptacles (24) 5-15/20R; (4) L6-20R; (2) L6-30R
Individually Controllable Load Banks No

BATTERY

Full Load Runtime (min.) 4.3 min. (9000w)
Half Load Runtime (min.) 12.5 min. (4500w)
Expandable Battery Runtime Supports extended runtime with optional external battery packs
External Battery Pack Compatibility  <a class="productLink" href="// external-240v-3u-rack-tower-battery-pack-enclosure-dc-

cabling-select-ups-taa~BP240V10RT3UTAA">BP240V10RT3UTAA</a> ;  <a class="productLink"

href="// External-240V-Tower-Battery-Pack-for-use-with-Select-Tripp-Lite-UPS-

Systems~BP240V787C-1PH">BP240V787C-1PH</a>
DC System Voltage (VDC) 240
Battery Recharge Rate (Included

Batteries)

Less than 6 hours from 10% to 90% (typical, full load discharge)

Battery Replacement Description Hot-swappable, user replaceable external battery packs
Expandable Runtime Yes

VOLTAGE REGULATION

Voltage Regulation Description 2% output voltage regulation in standard online, double-conversion mode
Overvoltage Correction Corrects overvoltages up to 300V
Undervoltage Correction Corrects undervoltages as low as 100V

USER INTERFACE, ALERTS & CONTROLS

Front Panel LCD Display Selectable LCD display with scroll and selection buttons enables UPS control and detailed monitoring options;

LED/LCD panel rotates for viewing in rack/tower formats; LCD Display supports ENGLISH, FRENCH, GERMAN,

ITALIAN, SPANISH and PORTUGUESE (see manual)
Switches 2 Switches control off/on power status and alarm-cancel/self-test operation; 2 additional switches support set and

execute scrolling LCD functions; bundled PDU includes bypass switch to enable hot-swap UPS power module

replacement
Alarm Cancel Operation Alarm cancel switch
Audible Alarm Unique audible alarms for all major UPS, environmental and power conditions (see manual)

3 / 7
