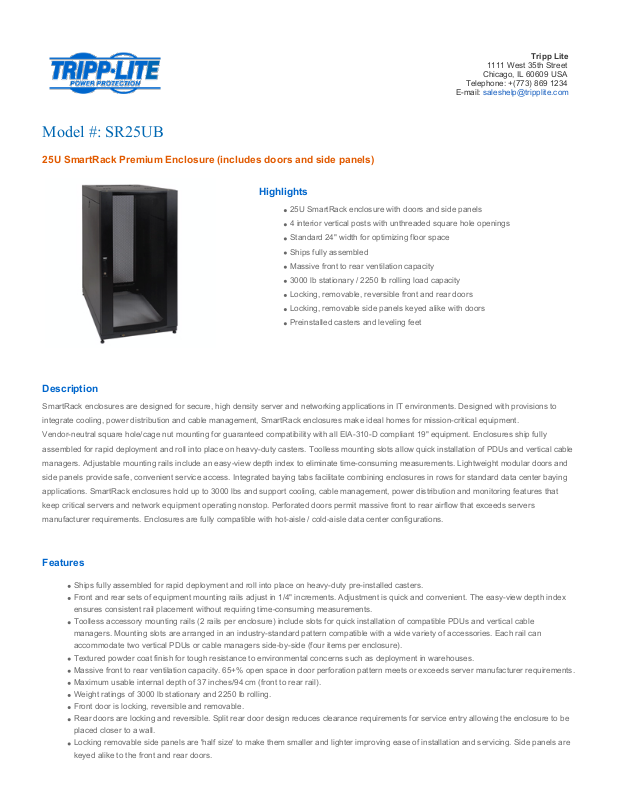

Tripp Lite SR25UB User Manual

Tripp Lite

1111 West 35th Street

Chicago, IL 60609 USA

Telephone: +[phone]

E-mail: [e-mail]

Model #: SR25UB

25U SmartRack Premium Enclosure (includes doors and side panels)

Highlights

25U SmartRack enclosure with doors and side panels

4 interior vertical posts with unthreaded square hole openings

Standard 24" width for optimizing floor space

Ships fully assembled

Massive front to rear ventilation capacity

3000 lb stationary / 2250 lb rolling load capacity

Locking, removable, reversible front and rear doors

Locking, removable side panels keyed alike with doors

Preinstalled casters and leveling feet

Description

SmartRack enclosures are designed for secure, high density server and networking applications in IT environments. Designed with provisions to

integrate cooling, power distribution and cable management, SmartRack enclosures make ideal homes for mission-critical equipment.

Vendor-neutral square hole/cage nut mounting for guaranteed compatibility with all EIA-310-D compliant 19" equipment. Enclosures ship fully

assembled for rapid deployment and roll into place on heavy-duty casters. Toolless mounting slots allow quick installation of PDUs and vertical cable

managers. Adjustable mounting rails include an easy-view depth index to eliminate time-consuming measurements. Lightweight modular doors and

side panels provide safe, convenient service access. Integrated baying tabs facilitate combining enclosures in rows for standard data center baying

applications. SmartRack enclosures hold up to 3000 lbs and support cooling, cable management, power distribution and monitoring features that

keep critical servers and network equipment operating nonstop. Perforated doors permit massive front to rear airflow that exceeds servers

manufacturer requirements. Enclosures are fully compatible with hot-aisle / cold-aisle data center configurations.

Features

Ships fully assembled for rapid deployment and roll into place on heavy-duty pre-installed casters.

Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index

ensures consistent rail placement without requiring time-consuming measurements.

Toolless accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable

managers. Mounting slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can

accommodate two vertical PDUs or cable managers side-by-side (four items per enclosure).

Textured powder coat finish for tough resistance to environmental concerns such as deployment in warehouses.

Massive front to rear ventilation capacity. 65+% open space in door perforation pattern meets or exceeds server manufacturer requirements.

Maximum usable internal depth of 37 inches/94 cm (front to rear rail).

Weight ratings of 3000 lb stationary and 2250 lb rolling.

Front door is locking, reversible and removable.

Rear doors are locking and reversible. Split rear door design reduces clearance requirements for service entry allowing the enclosure to be

placed closer to a wall.

Locking removable side panels are 'half size' to make them smaller and lighter improving ease of installation and servicing. Side panels are

keyed alike to the front and rear doors.

Built in baying tabs allow enclosures to be combined securely in rows. Center-to-center width can be set at 600mm or 24" to match standard

data center floor tiles.

Casters are pre-installed and support a rolling load capacity of 2250 lbs, allowing the enclosures to be pre-configured and rolled to the final

installation location. Casters are removable.

Leveling feet extend to allow enclosure to be positioned on uneven floors. Levelers are removable.

Compact shorter design for when a full height enclosure is not needed.

Convenient grounding system. All components are grounded to the enclosure frame which includes multiple connections for facility ground.

Front and rear doors include quick-release ground wires.

Open bottom for cable access.

Top panel has generous cable access holes. Panel can be removed toollessly in seconds without having to disconnect cables first.

Included stabilizing brackets are used for shipment and can be reattached at the bottom of the enclosure frame on the inside or outside of

the rack.

Compatibility with airflow optimization accessories as well as cable management accessories.

Five year repair or replacement warranty.

Specifications

PHYSICAL

Shipping weight (lbs) 218

Shipping weight (kg) 99.1

Shipping Dimensions
(HWD/in)

55 x 27.75 x 47

Shipping Dimensions
(HWD/cm)

139.7 x 70.5 x 119.4

Unit Dimensions (cm) EXTERNAL DIMENSIONS: 124.5 x 60 x 109.2 (H x W x D)

Unit Dimensions (in) EXTERNAL DIMENSIONS: 49 x 23.63 x 43 (H x W x D
