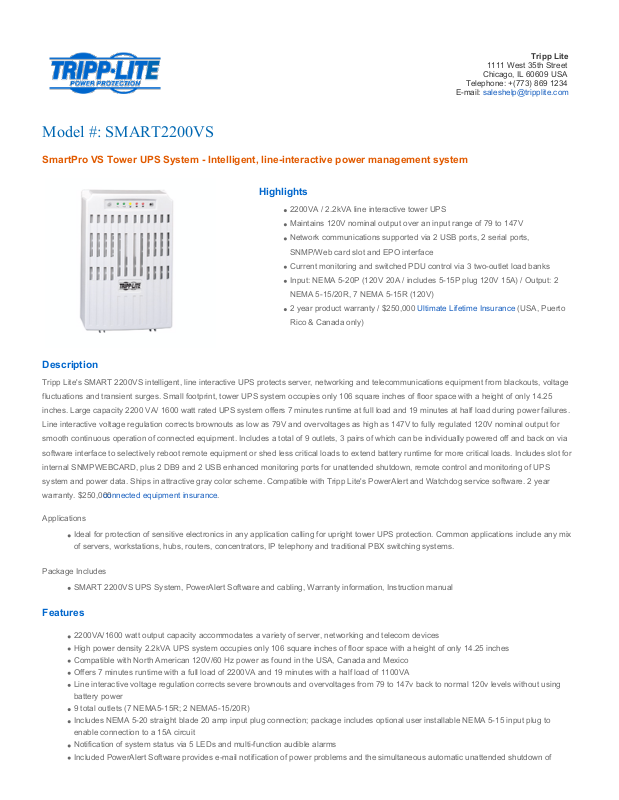

Model #: SMART2200VS

SmartPro VS Tower UPS System - Intelligent, line-interactive power management system

Highlights

2200VA / 2.2kVA line interactive tower UPS

Maintains 120V nominal output over an input range of 79 to 147V

Network communications supported via 2 USB ports, 2 serial ports,

SNMP/Web card slot and EPO interface

Current monitoring and switched PDU control via 3 two-outlet load banks

Input: NEMA 5-20P (120V 20A / includes 5-15P plug 120V 15A) / Output: 2

NEMA 5-15/20R, 7 NEMA 5-15R (120V)

2 year product warranty / $250,000 Ultimate Lifetime Insurance (USA, Puerto

Rico & Canada only)

Description

Tripp Lite's SMART 2200VS intelligent, line interactive UPS protects server, networking and telecommunications equipment from blackouts, voltage

fluctuations and transient surges. Small footprint, tower UPS system occupies only 106 square inches of floor space with a height of only 14.25

inches. Large capacity 2200 VA/ 1600 watt rated UPS system offers 7 minutes runtime at full load and 19 minutes at half load during power failures.

Line interactive voltage regulation corrects brownouts as low as 79V and overvoltages as high as 147V to fully regulated 120V nominal output for

smooth continuous operation of connected equipment. Includes a total of 9 outlets, 3 pairs of which can be individually powered off and back on via

software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical loads. Includes slot for

internal SNMPWEBCARD, plus 2 DB9 and 2 USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS

system and power data. Ships in attractive gray color scheme. Compatible with Tripp Lite's PowerAlert and Watchdog service software. 2 year

warranty. $250,000 connected equipment insurance.

Applications

Ideal for protection of sensitive electronics in any application calling for upright tower UPS protection. Common applications include any mix
of servers, workstations, hubs, routers, concentrators, IP telephony and traditional PBX switching systems.

Package Includes

SMART 2200VS UPS System, PowerAlert Software and cabling, Warranty information, Instruction manual

Features

2200VA/1600 watt output capacity accommodates a variety of server, networking and telecom devices
High power density 2.2kVA UPS system occupies only 106 square inches of floor space with a height of only 14.25 inches
Compatible with North American 120V/60 Hz power as found in the USA, Canada and Mexico
Offers 7 minutes runtime with a full load of 2200VA and 19 minutes with a half load of 1100VA
Line interactive voltage regulation corrects severe brownouts and overvoltages from 79 to 147v back to normal 120v levels without using
battery power
9 total outlets (7 NEMA5-15R; 2 NEMA5-15/20R)
Includes NEMA 5-20 straight blade 20 amp input plug connection; package includes optional user installable NEMA 5-15 input plug to
enable connection to a 15A circuit
Notification of system status via 5 LEDs and multi-function audible alarms
Included PowerAlert Software provides e-mail notification of power problems and the simultaneous automatic unattended shutdown of

multiple servers
4 built-in communications ports (2-DB9, 2-USB) for remote monitoring and unattended shutdown
Slot for SNMP/web card (part#: SNMPWEBCARD) and environmental sensor (part#: ENVIROSENSE) for remote communications in large
IP environments
Supports Tripp Lite's WatchDog software application to restore unresponsive programs by automatically restarting them and rebooting
completely locked computers by automatically switching UPS power off and back on again
Communication ports support on battery, low battery, power restored, AC line voltage, DC battery voltage, load percentage, battery charge
current, battery capacity, internal UPS temperature and line frequency status messaging. Interface supports timed inverter shutoff after
unattended shutdown, activate self-test and 10 second reboot of connected equipment
3 pairs of customized load management receptacles can be individually powered off and back on again via software interface to reboot
remote equipment or shed less critical loads to extend battery runtime for the most critical equipment
Built-in Emergency Power Off (EPO) interface supports emergency shutoff in large facilities
Hot-swappable/user replaceable batteries allow on-site battery replacement through the front panel without powering off connected
equipment or removing the UPS from the rack
UPS battery set ships fully assembled and ready for use, no time consuming, connection of individual internal batteries by user is necessary
UL (USA), cUL (Canada), NOM (Mexico), Class A (Emissions)
$250,000 Ultimate Lifetime Insurance. No warranty cards required for coverage!
2 year manufacturers product warranty

Specifications

SYSTEM OVERVIEW

Voltage compatibility 120V AC

Frequency
compatibility

60 Hz

OUTPUT

Output VA 2200

Output watts 1600

Output nominal
voltage

120V AC

Output voltage
regulation

LINE MODE: Sine wave line voltage 120V (-18% / +8%), BATTERY MODE: PWM sine wave output 115V +/-5%

Output frequency
regulation

LINE MODE: Passes line frequency of 60Hz +/-10% BATTERY MODE: Inverter output regulated to 60Hz +/-0.5Hz

Outlet quantity / type 7 NEMA 5-15R and 2 NEMA 5-15/20R

Customized load
management
receptacles

3 individually controllable outlet pairs support automated load shedding and remote reboot on demand of locked network
devices. Configurable via PowerAlert software to automatically switch off optional loads, like monitors, to increase
available runtime for servers and other critical devices.

Overload protection 20A input breaker

INPUT

Maximum input
amps

16A / 1600 watts

Input connection
type

NEMA 5-20P

Input cord length 8 ft., 12 gauge

Recommended
Electrical Service

20A 120V

BATTERY

Full load runtime 7 minutes (2200VA)

Half load runtime 19 minutes (1100VA)

DC system voltage 48V DC

Typical battery
lifespan

3 - 6 years, depending on usage
