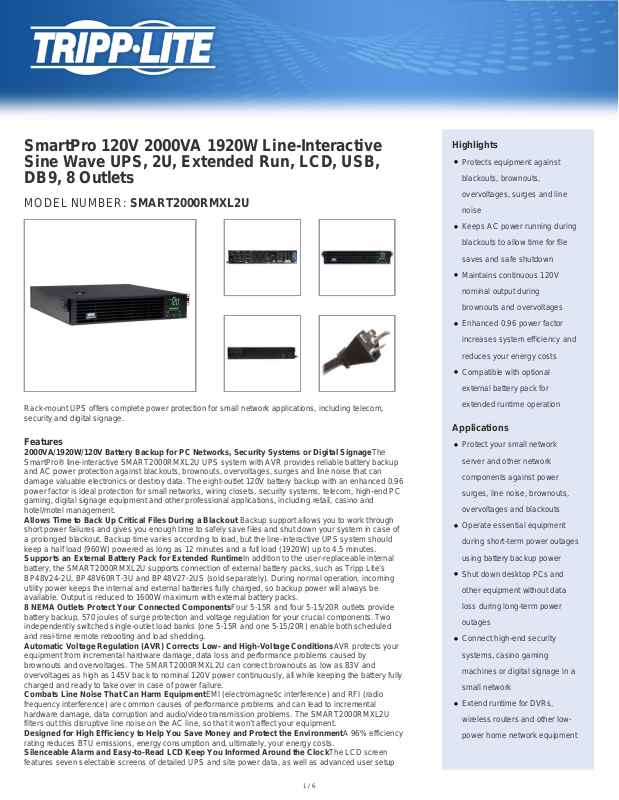

Tripp-Lite SMART2000RMXL2U Data Sheet

SmartPro 120V 2000VA 1920W Line-Interactive
Sine Wave UPS, 2U, Extended Run, LCD, USB,
DB9, 8 Outlets

MODEL NUMBER: SMART2000RMXL2U

Rack-mount UPS offers complete power protection for small network applications, including telecom,
security and digital signage.

Features

2000VA/1920W/120V Battery Backup for PC Networks, Security Systems or Digital SignageThe

SmartPro® line-interactive SMART2000RMXL2U UPS system with AVR provides reliable battery backup
and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can
damage valuable electronics or destroy data. The eight-outlet 120V battery backup with an enhanced 0.96
power factor is ideal protection for small networks, wiring closets, security systems, telecom, high-end PC
gaming, digital signage equipment and other professional applications, including retail, casino and
hotel/motel management.
Allows Time to Back Up Critical Files During a Blackout Backup support allows you to work through
short power failures and gives you enough time to safely save files and shut down your system in case of
a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should
keep a half load (960W) powered as long as 12 minutes and a full load (1920W) up to 4.5 minutes.
Supports an External Battery Pack for Extended RuntimeIn addition to the user-replaceable internal
battery, the SMART2000RMXL2U supports connection of external battery packs, such as Tripp Lite’s
BP48V24-2U, BP48V60RT-3U and BP48V27-2US (sold separately). During normal operation, incoming
utility power keeps the internal and external batteries fully charged, so backup power will always be
available. Output is reduced to 1600W maximum with external battery packs.
8 NEMA Outlets Protect Your Connected ComponentsFour 5-15R and four 5-15/20R outlets provide
battery backup, 570 joules of surge protection and voltage regulation for your crucial components. Two
independently switched single-outlet load banks (one 5-15R and one 5-15/20R) enable both scheduled
and real-time remote rebooting and load shedding.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage ConditionsAVR protects your
equipment from incremental hardware damage, data loss and performance problems caused by
brownouts and overvoltages. The SMART2000RMXL2U can correct brownouts as low as 83V and
overvoltages as high as 145V back to nominal 120V power continuously, all while keeping the battery fully
charged and ready to take over in case of power failure.
Combats Line Noise That Can Harm EquipmentEMI (electromagnetic interference) and RFI (radio
frequency interference) are common causes of performance problems and can lead to incremental
hardware damage, data corruption and audio/video transmission problems. The SMART2000RMXL2U
filters out this disruptive line noise on the AC line, so that it won’t affect your equipment.
Designed for High Efficiency to Help You Save Money and Protect the EnvironmentA 96% efficiency
rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.
Silenceable Alarm and Easy-to-Read LCD Keep You Informed Around the ClockThe LCD screen
features seven selectable screens of detailed UPS and site power data, as well as advanced user setup

Highlights

●

Protects equipment against
blackouts, brownouts,
overvoltages, surges and line
noise

●

Keeps AC power running during
blackouts to allow time for file
saves and safe shutdown

●

Maintains continuous 120V
nominal output during
brownouts and overvoltages

●

Enhanced 0.96 power factor
increases system efficiency and
reduces your energy costs

●

Compatible with optional
external battery pack for
extended runtime operation

Applications

●

Protect your small network
server and other network
components against power
surges, line noise, brownouts,
overvoltages and blackouts

●

Operate essential equipment
during short-term power outages
using battery backup power

●

Shut down desktop PCs and
other equipment without data
loss during long-term power
outages

●

Connect high-end security
systems, casino gaming
machines or digital signage in a
small network

●

Extend runtime for DVRs,
wireless routers and other low­power home network equipment

1 / 6

and operating preferences. It rotates for comfortable viewing in both rack and tower configurations. The
audible alarm sounds for power failure, low battery and overloads. You may silence it using the built-in
switch or disable it.
Optional WEBCARDLX Network Interface Offers 24/7 AccessAn accessory slot accommodates the
optional Java-free HTML5-based WEBCARDLX interface (sold separately), which enables full remote
access for site power and UPS status monitoring, configuration, control and email notifications via secure
web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication
with an Ethernet network. Automated alerts help prevent accidental overloads, power loss and downtime.
Advanced Communications Ports Allow for Automatic Saves and ShutdownsRS-232 and HID­compliant USB ports connect to a computer running Tripp Lite’s free downloadable PowerAlert® software
to enable safe unattended file saves and system shutdown in case of a prolonged power failure. Cables
are included.
Versatile Installation OptionsHardware is included for mounting the Tripp Lite SmartPro UPS system in
2U of space in an EIA-standard 19-inch 4-post rack. Using optional mounting accessories (sold
separately), you can adapt the SMART2000RMXL2U for 2-post, front-rail, 4-post short-depth, tower or
wall mounting. The 10-foot power cord with NEMA 5-20P plug connects to any compatible AC outlet.

Specifications

OVERVIEW

UPC Code 037332248152
UPS Type Line-Interactive

INPUT

Package Includes

●

SMART2000RMXL2U 120V
2000VA 1920W Line-Interactive
UPS with 8 Outlets

●

USB cable

●

DB9 cable

●

EPO cable

●

Rack-mounting hardware

●

Owner’s manual

Rated input current (Maximum Load) 16.0A
Nominal Input Voltage(s) Supported 120V AC
UPS Input Connection Type 5-20P
UPS Input Cord Length (ft.) 10
UPS Input Cord Length (m) 3.1
Recommended Electrical Service 20A 120V
Input Phase Single-Phase

OUTPUT

Output Volt Amp Capacity (VA) 2000
Output kVA Capacity (kVA) 2.0
Output Watt Capacity (Watts) 1920
Output kW Capacity (kW) 1.92
Output Capacity Details Output is reduced to 1600 watts maximum when used with external battery packs
Power Factor 0.96
Nominal Voltage Details 120v nominal output in battery mode
Frequency Compatibility 60 Hz
Output Voltage Regulation (Line

Mode)

-14%, +6%

2 / 6

Output Voltage Regulation (Battery
Mode)

+/- 5%

Load Management Receptacles Two switched single outlet load banks (1 5-15/20R & 1 5-15R)
Output AC Waveform (AC Mode) Pure Sine wave
Output AC Waveform (Battery

Mode)
Nominal Output Voltage(s)

Supported

Pure Sine wave

110V; 115V; 120V

Output Receptacles (4) 5-15R; (4) 5-15/20R
Individually Controllable Load Banks Yes

BATTERY

Full Load Runtime (min.) 4.5 min. (1920w)
Half Load Runtime (min.) 12 min. (960w)
Expandable Battery Runtime Extended runtime supported via optional external battery packs
External Battery Pack Compatibility  <a class="productLink" href="// External-48V-2U-Rack-Tower-Battery-Pack-Enclosure-DC-

Cabling-select-UPS-Systems~BP48V24-2U">BP48V24-2U</a>  (limit 1);  <a class="productLink"
href="// External-48V-3U-Rack-Tower-Battery-Pack-Enclosure-DC-Cabling-select-UPS­Systems~BP48V60RT-3U">BP48V60RT-3U</a>  (multi-pack compatible);  <a class="productLink"
href="// External-48V-2U-Rack-Tower-Battery-Pack-for-UPS-Systems~BP48V27-2US">BP48V27-

2US</a>  (multi-pack compatible)
Expandable Runtime Description Maximum output capacity is 1600 watts when used with external battery packs
DC System Voltage (VDC) 48
Battery Recharge Rate (Included

Batteries)
Internal UPS Replacement Battery

Cartridge

Less than 4.5 hours from 10% to 90% (typical, full load discharge)

 <a class="productLink" href="// 2U-UPS-Replacement-48VDC-Battery-Cartridge-1-set-4-

select-Tripp-Lite-SmartPro-UPS~RBC94-2U">RBC94-2U</a>
Battery Access Front panel battery access door
Battery Replacement Description Hot-swappable, user replaceable batteries
Expandable Runtime Yes

VOLTAGE REGULATION

Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145
Overvoltage Correction Voltage reduction of 12% applies when input is between 127 and 145
Undervoltage Correction Voltage boost of 12% applies when input voltage is between 96 and 108
Severe Undervoltage Correction Voltage boost of 24% applies when input voltage is between 83 and 95

USER INTERFACE, ALERTS & CONTROLS

Front Panel LCD Display Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data,

plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for

detailed LCD configuration and monitoring options)
Switches 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions

3 / 6

Alarm Cancel Operation Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option

available
Audible Alarm Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown

conditions

SURGE / NOISE SUPPRESSION

UPS AC Suppression Joule Rating 570
UPS AC Suppression Response

Time

Instantaneous

EMI / RFI AC Noise Suppression Yes

PHYSICAL

Cooling Method Fan
Included Mounting Accessory

Description
Installation Form Factors Supported

with Included Accessories
Installation Form Factors Supported

with Optional Accessories

Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to

914mm)

4 post 19 inch rackmount

2 post rackmount ( <a class="productLink" href="// 2-Post-Rack-Mount-Wall-Mount-Adapter-

Kit-select-Rack-Mount-UPS-Systems~2POSTRMKITWM">2POSTRMKITWM</a> ); 2-4 post front rail

rackmount ( <a class="productLink" href="// Heavy-Duty-2-post-Front-Mounting-Ear-

Kit~UPSHDEARKIT">UPSHDEARKIT</a> ); 4 post rackmount short-depth ( <a class="productLink"

href="// 4-Post-1U-Universal-Adjustable-Rack-Mount-Shelf-Kit-for-Wall-Mount-

Racks~4POSTRAILKITWM">4POSTRAILKITWM</a> ); Tower ( <a class="productLink"

href="// 2U-9U-Tower-Stand-Kit-select-Rack-Mount-UPS-Systems~2-9USTAND">2-

9USTAND</a> ); Wallmount ( <a class="productLink" href="// 2-Post-Rack-Mount-

Wall-Mount-Adapter-Kit-select-Rack-Mount-UPS-Systems~2POSTRMKITWM">2POSTRMKITWM</a> )
Minimum Required Rack Depth with

External Battery Pack (cm)
Minimum Required Rack Depth with

External Battery Pack (in.)
Minimum Required Rack Depth

without External Battery Pack (cm)
Minimum Required Rack Depth

without External Battery Pack (in.)

67

26.5

62

24.5

Optional Mounting Accessory Notes Optional  <a class="productLink" href="// 2U-9U-Tower-Stand-Kit-select-Rack-Mount-UPS-

Systems~2-9USTAND">2-9USTAND</a>  enables upright tower UPS placement;  <a

class="productLink" href="// 2-Post-Rack-Mount-Wall-Mount-Adapter-Kit-select-Rack-Mount-UPS-

Systems~2POSTRMKITWM">2POSTRMKITWM</a>  enables wall-mount and 2-post rackmount installation;

 <a class="productLink" href="// 4-Post-1U-Universal-Adjustable-Rack-Mount-Shelf-Kit-for-

Wall-Mount-Racks~4POSTRAILKITWM">4POSTRAILKITWM</a>  enables installation in 4-post short-depth

racks from 14.5 to 23.5 inches (368 to 597mm);  <a class="productLink" href="// Heavy-

Duty-2-post-Front-Mounting-Ear-Kit~UPSHDEARKIT">UPSHDEARKIT</a>  enables installation in 2 or 4-post

racks using front vertical rails only, without rear support
Primary Form Factor Rackmount
Primary UPS Depth (mm) 490
Primary UPS Height (mm) 88
Primary UPS Width (mm) 440
Rack Height 2U
Shipping Dimensions (hwd / in.) 8.50 x 24.30 x 21.60
Shipping Weight (kg) 35.47

4 / 6

UPS Housing Material Steel
UPS Power Module Dimensions

(hwd, in.)

3.46 x 17.32 x 19.29

UPS Power Module Weight (kg) 26.13
UPS Power Module Weight (lbs.) 57.6

ENVIRONMENTAL

Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity 0 to 95%, non-condensing
AC Mode BTU / Hr. (Full Load) 306
Battery Mode BTU / Hr. (Full Load) 1157
AC Mode Efficiency Rating (100%

Load)

96%

Audible Noise 45 dBA maximum, front side 1m

COMMUNICATIONS

Network Management Cards  <a class="productLink" href="// SNMP-Web-Management-Accessory-Card-SmartPro-

SmartOnline-UPS-Systems~SNMPWEBCARD">SNMPWEBCARD</a> ;  <a class="productLink"

href="// Web-Management-Accessory-Card-SmartPro-SmartOnline-UPS-

Systems~TLNETCARD">TLNETCARD</a> ;  <a class="productLink" href="// Web-

Management-Accessory-Card~WEBCARDLX">WEBCARDLX</a>
Network Monitoring Port Description Supports detailed monitoring of UPS and site power conditions
PowerAlert Software For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at

http:// poweralert
Communications Cable USB and DB9 cabling included
WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
Network UPS Tools Compatibility NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at

http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
Communications Interface DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB (HID enabled)

LINE / BATTERY TRANSFER

Transfer Time 5 milliseconds (line to battery mode); 1 millisecond (battery to line mode)
Low Voltage Transfer to Battery

Power (Setpoint)
High Voltage Transfer to Battery

Power (Setpoint)

83

145

SPECIAL FEATURES

Grounding Lug Back panel grounding lug
Cold Start (Startup in Battery Mode

During a Power Failure)

Cold-start operation supported

High Availability UPS Features Hot swappable batteries; Auto Probe Monitoring and Reboot (requires WEBCARDLX)

5 / 6

Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS; Individually controllable load banks

STANDARDS & COMPLIANCE

UPS Certifications Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); Tested to CSA (Canada);

WARRANTY

Product Warranty Period
(Worldwide)

Connected Equipment Insurance
(U.S., Canada & Puerto Rico)

Tested to NOM (Mexico); Tested to UL1778 (USA)

2-year warranty, 3 year with registration. Note: <a class="insuranceLink"

href="// support/product-warranty-registration">Registration is required</a> for 3-year

warranty.

$250,000 <a class="insuranceLink" href="// support/insurance-policy">Ultimate Lifetime

Insurance</a>

© 2020 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https:// products/product-certification-agencies

6 / 6
