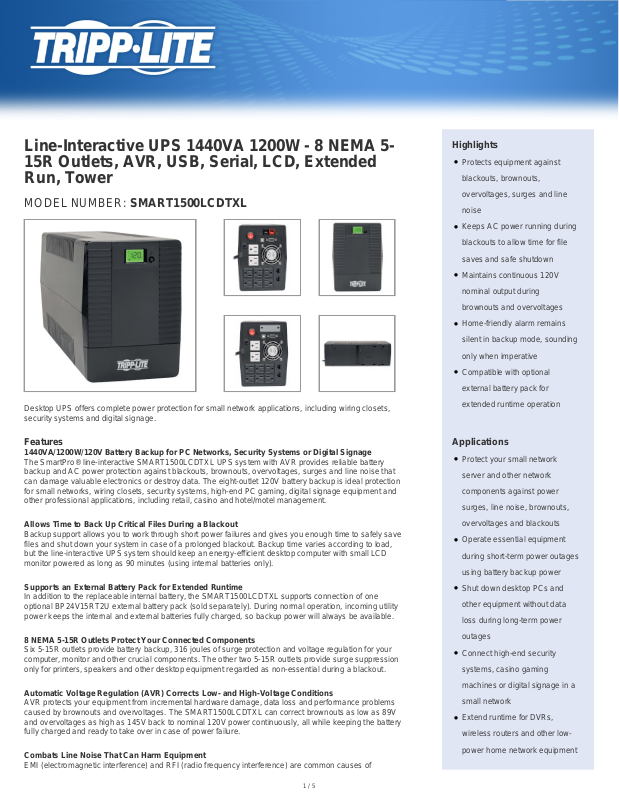

Tripp-Lite SMART1500LCDTXL Data Sheet

Line-Interactive UPS 1440VA 1200W - 8 NEMA 5­15R Outlets, AVR, USB, Serial, LCD, Extended
Run, Tower

MODEL NUMBER: SMART1500LCDTXL

Desktop UPS offers complete power protection for small network applications, including wiring closets,
security systems and digital signage.

Highlights

●

Protects equipment against
blackouts, brownouts,
overvoltages, surges and line
noise

●

Keeps AC power running during
blackouts to allow time for file
saves and safe shutdown

●

Maintains continuous 120V
nominal output during
brownouts and overvoltages

●

Home-friendly alarm remains
silent in backup mode, sounding
only when imperative

●

Compatible with optional
external battery pack for
extended runtime operation

Features

1440VA/1200W/120V Battery Backup for PC Networks, Security Systems or Digital Signage

The SmartPro® line-interactive SMART1500LCDTXL UPS system with AVR provides reliable battery
backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that
can damage valuable electronics or destroy data. The eight-outlet 120V battery backup is ideal protection
for small networks, wiring closets, security systems, high-end PC gaming, digital signage equipment and
other professional applications, including retail, casino and hotel/motel management.

Allows Time to Back Up Critical Files During a Blackout

Backup support allows you to work through short power failures and gives you enough time to safely save
files and shut down your system in case of a prolonged blackout. Backup time varies according to load,
but the line-interactive UPS system should keep an energy-efficient desktop computer with small LCD
monitor powered as long as 90 minutes (using internal batteries only).

Supports an External Battery Pack for Extended Runtime

In addition to the replaceable internal battery, the SMART1500LCDTXL supports connection of one
optional BP24V15RT2U external battery pack (sold separately). During normal operation, incoming utility
power keeps the internal and external batteries fully charged, so backup power will always be available.

8 NEMA 5-15R Outlets Protect Your Connected Components

Six 5-15R outlets provide battery backup, 316 joules of surge protection and voltage regulation for your
computer, monitor and other crucial components. The other two 5-15R outlets provide surge suppression
only for printers, speakers and other desktop equipment regarded as non-essential during a blackout.

Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions

AVR protects your equipment from incremental hardware damage, data loss and performance problems
caused by brownouts and overvoltages. The SMART1500LCDTXL can correct brownouts as low as 89V
and overvoltages as high as 145V back to nominal 120V power continuously, all while keeping the battery
fully charged and ready to take over in case of power failure.

Combats Line Noise That Can Harm Equipment

EMI (electromagnetic interference) and RFI (radio frequency interference) are common causes of

Applications

●

Protect your small network
server and other network
components against power
surges, line noise, brownouts,
overvoltages and blackouts

●

Operate essential equipment
during short-term power outages
using battery backup power

●

Shut down desktop PCs and
other equipment without data
loss during long-term power
outages

●

Connect high-end security
systems, casino gaming
machines or digital signage in a
small network

●

Extend runtime for DVRs,
wireless routers and other low­power home network equipment

1 / 5

performance problems and can lead to incremental hardware damage, data corruption and audio/video
transmission problems. The SMART1500LCDTXL filters out this disruptive line noise on the AC line, so
that it won’t affect your equipment.

Designed for High Efficiency to Help You Save Money and Protect the Environment

A >95% efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.

Home-Friendly Silent Alarm and LCD Touchscreen Keep You Informed 24/7

The UPS remains silent in both line and battery backup modes. The alarm sounds only to report low
battery, battery replace, overload and fault condition. The LCD touchscreen offers five screens of UPS
and site power information when the UPS is operating in either on-line or battery power mode. It displays
vital voltage, load and battery data, as well as critical fault status.

Advanced Communications Ports Allow for Automatic Saves and Shutdowns

RS-232 and HID-compliant USB ports connect to a computer running Tripp Lite’s free downloadable
PowerAlert® software to enable safe unattended file saves and system shutdown in case of a prolonged
power failure. Cables are included.

Compact Housing Compatible with Easy Desktop Installation

The space-saving ABS tower fits on a desktop, shelf or any other flat surface convenient to your
workstation or home theater. The five-foot power cord with NEMA 5-15P plug connects to any compatible
AC outlet. A built-in fan regulates the internal temperature to help prevent overheating.

Specifications

OVERVIEW

Package Includes

●

SMART1500LCDTXL 1440VA
1200W 120V Line-Interactive
UPS with 8 Outlets

●

USB cable

●

DB9 cable

●

Owner’s manual

UPC Code 037332221582
UPS Type Line-Interactive

INPUT

Rated input current (Maximum Load) 12A
Nominal Input Voltage(s) Supported 120V AC
UPS Input Connection Type 5-15P
Input Circuit Breakers 15A
UPS Input Cord Length (ft.) 5
UPS Input Cord Length (m) 1.5
Recommended Electrical Service 15A 120V
Input Phase Single-Phase

OUTPUT

Output Volt Amp Capacity (VA) 1440
Output kVA Capacity (kVA) 1.44
Output Watt Capacity (Watts) 1200
Output kW Capacity (kW) 1.2
Nominal Voltage Details 120v nominal output in battery mode
