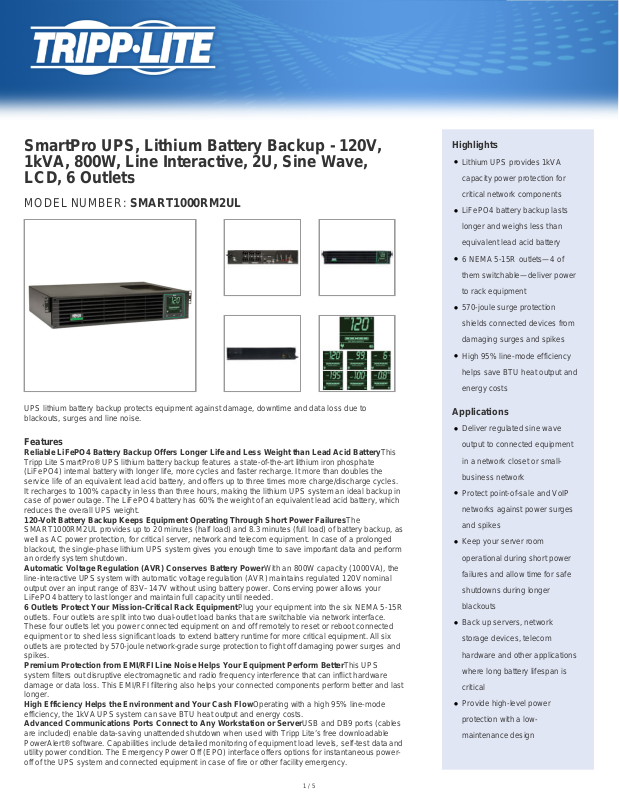

Tripp-Lite SMART1000RM2UL Data Sheet

SmartPro UPS, Lithium Battery Backup - 120V,
1kVA, 800W, Line Interactive, 2U, Sine Wave,
LCD, 6 Outlets

MODEL NUMBER: SMART1000RM2UL

Highlights

●

Lithium UPS provides 1kVA
capacity power protection for
critical network components

●

LiFePO4 battery backup lasts
longer and weighs less than
equivalent lead acid battery

●

6 NEMA 5-15R outlets—4 of
them switchable—deliver power
to rack equipment

●

570-joule surge protection
shields connected devices from
damaging surges and spikes

●

High 95% line-mode efficiency
helps save BTU heat output and
energy costs

UPS lithium battery backup protects equipment against damage, downtime and data loss due to
blackouts, surges and line noise.

Features

Reliable LiFePO4 Battery Backup Offers Longer Life and Less Weight than Lead Acid BatteryThis

Tripp Lite SmartPro® UPS lithium battery backup features a state-of-the-art lithium iron phosphate
(LiFePO4) internal battery with longer life, more cycles and faster recharge. It more than doubles the
service life of an equivalent lead acid battery, and offers up to three times more charge/discharge cycles.
It recharges to 100% capacity in less than three hours, making the lithium UPS system an ideal backup in
case of power outage. The LiFePO4 battery has 60% the weight of an equivalent lead acid battery, which
reduces the overall UPS weight.
120-Volt Battery Backup Keeps Equipment Operating Through Short Power FailuresThe
SMART1000RM2UL provides up to 20 minutes (half load) and 8.3 minutes (full load) of battery backup, as
well as AC power protection, for critical server, network and telecom equipment. In case of a prolonged
blackout, the single-phase lithium UPS system gives you enough time to save important data and perform
an orderly system shutdown.
Automatic Voltage Regulation (AVR) Conserves Battery PowerWith an 800W capacity (1000VA), the
line-interactive UPS system with automatic voltage regulation (AVR) maintains regulated 120V nominal
output over an input range of 83V–147V without using battery power. Conserving power allows your
LiFePO4 battery to last longer and maintain full capacity until needed.
6 Outlets Protect Your Mission-Critical Rack EquipmentPlug your equipment into the six NEMA 5-15R
outlets. Four outlets are split into two dual-outlet load banks that are switchable via network interface.
These four outlets let you power connected equipment on and off remotely to reset or reboot connected
equipment or to shed less significant loads to extend battery runtime for more critical equipment. All six
outlets are protected by 570-joule network-grade surge protection to fight off damaging power surges and
spikes.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform BetterThis UPS
system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware
damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last
longer.
High Efficiency Helps the Environment and Your Cash FlowOperating with a high 95% line-mode
efficiency, the 1kVA UPS system can save BTU heat output and energy costs.
Advanced Communications Ports Connect to Any Workstation or ServerUSB and DB9 ports (cables
are included) enable data-saving unattended shutdown when used with Tripp Lite’s free downloadable
PowerAlert® software. Capabilities include detailed monitoring of equipment load levels, self-test data and
utility power condition. The Emergency Power Off (EPO) interface offers options for instantaneous power­off of the UPS system and connected equipment in case of fire or other facility emergency.

Applications

●

Deliver regulated sine wave
output to connected equipment
in a network closet or small­business network

●

Protect point-of-sale and VoIP
networks against power surges
and spikes

●

Keep your server room
operational during short power
failures and allow time for safe
shutdowns during longer
blackouts

●

Back up servers, network
storage devices, telecom
hardware and other applications
where long battery lifespan is
critical

●

Provide high-level power
protection with a low­maintenance design

1 / 5

Optional Network Management Cards Allow Detailed Monitoring of ConditionsThe
SMART1000RM2UL is compatible with Tripp Lite network management cards, such as WEBCARDLX, for
detailed monitoring of UPS and site power conditions.
Multi-Function LCD and Audible Alarms Keep You InformedThe front-panel LCD information and
configuration screen displays detailed UPS and site power status and operating data, as well as input and
output voltage, operating mode, alarm function and additional options. An alarm sounds to warn you of
power failure, low battery, overload, UPS fault and remote shutdown conditions. The LCD screen rotates
for easy viewing in rack-mount or tower configuration.
Versatile Installation OptionsHardware is included for mounting the Tripp Lite SmartPro UPS system in
2U of space in an EIA-standard 19-inch 4-post rack. Use the 2POSTRMKITWM (sold separately) for 2­post rack mounting or wall mounting or the UPSHDEARKIT (sold separately) for 2-post front-mount
installation. Use the 2-9USTAND (sold separately) for mounting in an upright tower position. A 10-foot
power cord with NEMA 5-15P plug connects the SMART1000RM2UL to a compatible AC power source.

Specifications

OVERVIEW

UPC Code 037332213099
UPS Type Line-Interactive

INPUT

Rated input current (Maximum Load) 9.2A (120V)

Package Includes

●

SMART1000RM2UL SmartPro
UPS, Lithium Battery Backup

●

USB cable

●

DB9 cable

●

EPO cable

●

Rack-mounting hardware

●

Owner’s manual

Nominal Input Voltage(s) Supported 120V AC
UPS Input Connection Type 5-15P
UPS Input Cord Length (ft.) 10
UPS Input Cord Length (m) 3.1
Recommended Electrical Service 15A 120V
Input Phase Single-Phase

OUTPUT

Output Volt Amp Capacity (VA) 1000
Output kVA Capacity (kVA) 1.0
Output Watt Capacity (Watts) 800
Power Factor 0.8
Nominal Voltage Details 120v nominal output in battery mode
Frequency Compatibility 60 Hz
Output Voltage Regulation (Battery

Mode)
Load Management Receptacles Two switchable two-outlet load banks
Output AC Waveform (AC Mode) Pure Sine wave

+/- 5%

Output AC Waveform (Battery
Mode)

Pure Sine wave

2 / 5

Nominal Output Voltage(s)
Supported

110V; 115V; 120V

Output Receptacles (6) 5-15R
Individually Controllable Load Banks Yes

BATTERY

Full Load Runtime (min.) 8.3 min. (800w)
Half Load Runtime (min.) 20 min. (400w)
DC System Voltage (VDC) 24
Battery Recharge Rate (Included

Batteries)

2.7 hours from 10% to 90% (typical)

Expandable Runtime No

VOLTAGE REGULATION

Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147
Overvoltage Correction Input voltages between 127 and 147 are reduced by 12%
Undervoltage Correction Input voltages between 83 and 107 are boosted by 12%

USER INTERFACE, ALERTS & CONTROLS

Front Panel LCD Display Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data,

plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for

detailed LCD configuration and monitoring options)
Switches 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions
Alarm Cancel Operation Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option

available
Audible Alarm Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown

conditions

SURGE / NOISE SUPPRESSION

UPS AC Suppression Joule Rating 570
UPS AC Suppression Response

Time

Instantaneous

EMI / RFI AC Noise Suppression Yes

PHYSICAL

Cooling Method Fan
Included Mounting Accessory

Description
Installation Form Factors Supported

with Included Accessories

Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to

914mm)

4 post 19 inch rackmount

3 / 5

Installation Form Factors Supported
with Optional Accessories

2 post rackmount ( <a class="productLink" href="// 2-Post-Rack-Mount-Wall-Mount-Adapter-

Kit-select-Rack-Mount-UPS-Systems~2POSTRMKITWM">2POSTRMKITWM</a> ); 2-4 post front rail

rackmount ( <a class="productLink" href="// Heavy-Duty-2-post-Front-Mounting-Ear-

Kit~UPSHDEARKIT">UPSHDEARKIT</a> ); 4 post rackmount short-depth ( <a class="productLink"

href="// 4-Post-1U-Universal-Adjustable-Rack-Mount-Shelf-Kit-for-Wall-Mount-

Racks~4POSTRAILKITWM">4POSTRAILKITWM</a> ); Tower ( <a class="productLink"

href="// 2U-9U-Tower-Stand-Kit-select-Rack-Mount-UPS-Systems~2-9USTAND">2-

9USTAND</a> ); Wallmount ( <a class="productLink" href="// 2-Post-Rack-Mount-

Wall-Mount-Adapter-Kit-select-Rack-Mount-UPS-Systems~2POSTRMKITWM">2POSTRMKITWM</a> )
Minimum Required Rack Depth (cm) 39.37
Minimum Required Rack Depth

(inches)

15.5

Optional Mounting Accessory Notes Optional  <a class="productLink" href="// 2U-9U-Tower-Stand-Kit-select-Rack-Mount-UPS-

Systems~2-9USTAND">2-9USTAND</a>  enables upright tower UPS placement;  <a

class="productLink" href="// 2-Post-Rack-Mount-Wall-Mount-Adapter-Kit-select-Rack-Mount-UPS-

Systems~2POSTRMKITWM">2POSTRMKITWM</a>  enables wall-mount and 2-post rackmount installation;

 <a class="productLink" href="// 4-Post-1U-Universal-Adjustable-Rack-Mount-Shelf-Kit-for-

Wall-Mount-Racks~4POSTRAILKITWM">4POSTRAILKITWM</a>  enables installation in 4-post short-depth

racks from 14.5 to 23.5 inches (368 to 597mm);  <a class="productLink" href="// Heavy-

Duty-2-post-Front-Mounting-Ear-Kit~UPSHDEARKIT">UPSHDEARKIT</a>  enables installation in 2 or 4-post

racks using front vertical rails only, without rear support
Primary Form Factor Rackmount
Primary UPS Depth (mm) 318
Primary UPS Height (mm) 89
Primary UPS Width (mm) 441
Rack Height 2U
Shipping Dimensions (hwd / in.) 8.70 x 18.50 x 23.30
Shipping Weight (kg) 17.92
UPS Housing Material Steel
UPS Power Module Dimensions

(hwd, in.)

3.5 x 17.35 x 12.5

UPS Power Module Weight (kg) 7.39
UPS Power Module Weight (lbs.) 16.3

ENVIRONMENTAL

Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity Up to 95%, non-condensing
AC Mode BTU / Hr. (Full Load) 141
AC Mode Efficiency Rating (100%

Load)

95%

Audible Noise 45.5 dBA maximum, front side 1m

COMMUNICATIONS

4 / 5

Network Management Cards  <a class="productLink" href="// SNMP-Web-Management-Accessory-Card-SmartPro-

Network Monitoring Port Description Supports detailed monitoring of UPS and site power conditions
Communications Cable USB, DB9 and EPO cabling included
WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications

SmartOnline-UPS-Systems~SNMPWEBCARD">SNMPWEBCARD</a> ;  <a class="productLink"

href="// Web-Management-Accessory-Card-SmartPro-SmartOnline-UPS-

Systems~TLNETCARD">TLNETCARD</a> ;  <a class="productLink" href="// Web-

Management-Accessory-Card~WEBCARDLX">WEBCARDLX</a> ;  <a class="productLink"

href="// Programmable-Relay-I-O-Card~RELAYIOCARD">RELAYIOCARD</a>

Network UPS Tools Compatibility NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at

Communications Interface DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB (HID enabled)

LINE / BATTERY TRANSFER

Transfer Time 4 milliseconds (AC to battery mode), 2 milliseconds (Battery to AC mode)
Low Voltage Transfer to Battery

Power (Setpoint)
High Voltage Transfer to Battery

Power (Setpoint)

SPECIAL FEATURES

Grounding Lug Back panel grounding lug
Cold Start (Startup in Battery Mode

During a Power Failure)
High Availability UPS Features Auto Probe Monitoring and Reboot (requires WEBCARDLX)
Green Energy-Saving Features Individually controllable load banks

STANDARDS & COMPLIANCE

UPS Certifications Meets FCC Part 15 Category B (EMI); ROHS (Restriction of Hazardous Substances); Tested to CSA (Canada);

http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite

83

147

Cold-start operation supported

Tested to NOM (Mexico); Tested to UL1778 (USA)
Certification Details UL 1778: 2014 R8.15 (5TH EDITION); CAN/CSA-C22.2 No. 107.3-14

WARRANTY

Product Warranty Period
(Worldwide)

Connected Equipment Insurance
(U.S., Canada & Puerto Rico)

5-year limited warranty

$250,000 <a class="insuranceLink" href="// support/insurance-policy">Ultimate Lifetime

Insurance</a>
