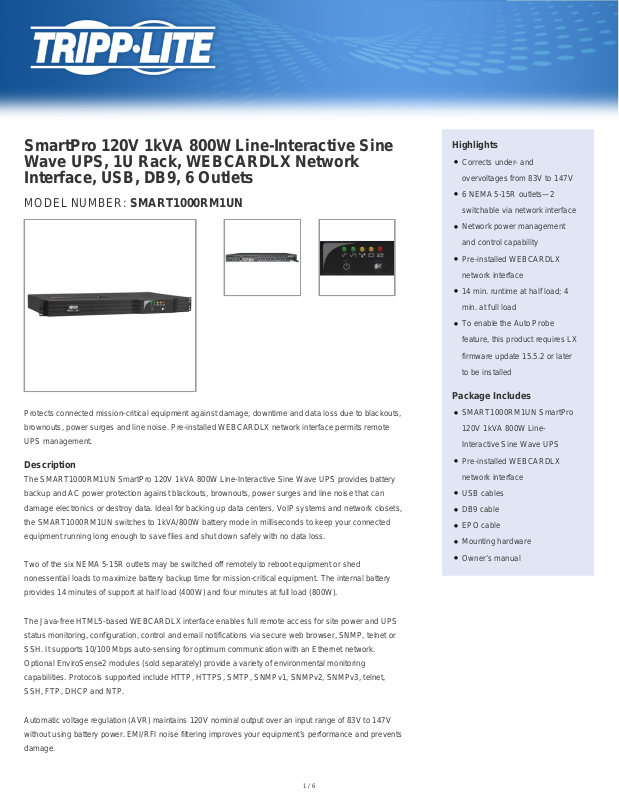

Tripp-Lite SMART1000RM1UN Data Sheet

SmartPro 120V 1kVA 800W Line-Interactive Sine Wave UPS, 1U Rack, WEBCARDLX Network Interface, USB, DB9, 6 Outlets
MODEL NUMBER: SMART1000RM1UN
Protects connected mission-critical equipment against damage, downtime and data loss due to blackouts, brownouts, power surges and line noise. Pre-installed WEBCARDLX network interface permits remote UPS management.
Description
Two of the six NEMA 5-15R outlets may be switched off remotely to reboot equipment or shed nonessential loads to maximize battery backup time for mission-critical equipment. The internal battery provides 14 minutes of support at half load (400W) and four minutes at full load (800W).
Highlights
Corrects under- and overvoltages from 83V to 147V
6 NEMA 5-15R outlets—2 switchable via network interface
Network power management and control capability
Pre-installed WEBCARDLX network interface
14 min. runtime at half load; 4 min. at full load
To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
Package Includes
SMART1000RM1UN SmartPro 120V 1kVA 800W Line­Interactive Sine Wave UPS
Pre-installed WEBCARDLX network interface
USB cables
DB9 cable
EPO cable
Mounting hardware
Owner’s manual
The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
Automatic voltage regulation (AVR) maintains 120V nominal output over an input range of 83V to 147V without using battery power. EMI/RFI noise filtering improves your equipment’s performance and prevents damage.
1 / 6
Features
Protects Mission-Critical Rack-Mounted Equipment
Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware
Audible alarm signals loss of utility power, overload and low battery
6 NEMA 5-15R outlets
10 ft. power cord with 120V NEMA 5-15P input
450-joule surge suppression rating
Reliable Battery Backup
Supports half load up to 14 min. and full load up to 4 min.
Internal batteries designed for hot-swap field replacement
Pre-Installed WEBCARDLX Network Interface
Allows full remote access for power monitoring, configuration, control and email notifications via secure web browser, SNMP, Telnet, SSH, and CLI.
Optional E2 sensors (sold separately) enable site monitoring of temperature, humidity and contact­closure status
Reduce Service Calls with Auto Probe Autonomous Device Management
Auto Probe feature (Firmware 15.5.2 and greater) of the LX Platform Interface checks the connectivity status of any networked device and automatically takes one or more user-configured actions if the device fails to respond; actions include outlet reboot, set SNMP traps, SNMP OID sets, and even script execution when used in conjunction with the Tripp Lite PowerAlert Network Shutdown Agent (PANSA)
Switchable Outlets
2 load banks, each with one outlet controllable remotely to reboot equipment or shed nonessential loads
Automatic Voltage Regulation (AVR)
Maintains 120V nominal output over input range of 83V–147V without using battery power
EMI/RFI Line Noise Filtering
Removes electromagnetic and radio frequency interference that can disrupt or damage equipment’s performance
LED Indicators
Front-panel LEDs signal power, voltage correction, load level and battery charge state
Communications Ports
USB and DB9 ports enable data-saving unattended shutdown when used with Tripp Lite’s PowerAlert software (available via free download at poweralert)
EPO port supports emergency shutdown in large facilities
Versatile Installation Options
2 / 6
Hardware included for mounting in 1U of EIA-standard 19 in. 2- or 4-post rack
Optional 4POSTRAILKIT1U accessory available for extra support in 4-post installations
Specifications
OVERVIEW
UPC Code 037332190741 UPS Type Line-Interactive
INPUT
Rated input current (Maximum Load) 9.2A Nominal Input Voltage(s) Supported 120V AC UPS Input Connection Type 5-15P Input Circuit Breakers 15A Recommended Electrical Service 15A 120V Input Phase Single-Phase Input Cord Length (ft.) 10 Input Cord Length (m) 3.05
OUTPUT
Output Volt Amp Capacity (VA) 1000 Output kVA Capacity (kVA) 1 Output Watt Capacity (Watts) 800 Power Factor 0.8 Nominal Voltage Details 120v nominal output in battery mode Frequency Compatibility 60 Hz Output Voltage Regulation (Line
Mode) Output Voltage Regulation (Battery
Mode) Load Management Receptacles Two switchable single-outlet 5-15R load banks Output AC Waveform (AC Mode) Sine wave Output AC Waveform (Battery
Mode) Nominal Output Voltage(s)
Supported
-21%, +8%
+/- 5%
Pure Sine wave
110V; 115V; 120V
Output Receptacles (6) 5-15R Individually Controllable Load Banks Yes
3 / 6
BATTERY
Full Load Runtime (min.) 4 min. (800w) Half Load Runtime (min.) 14 min. (400w) DC System Voltage (VDC) 24 Battery Recharge Rate (Included
Batteries) Internal UPS Replacement Battery
Cartridge
Less than 4 hours from 10% to 90% (typical, full load discharge)
 <a class="productLink" href="// 1U-UPS-Replacement-Battery-Cartridge-select-Tripp-Lite-
SmartPro-UPS~RBC69-1U">RBC69-1U</a>  Battery Access Front panel battery access door Battery Replacement Description Hot-swappable, user replaceable batteries Expandable Runtime No
VOLTAGE REGULATION
Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147 Overvoltage Correction Input voltages between 128 and 147 are reduced by 12% Undervoltage Correction Input voltages between 83 and 107 are boosted by 14%
USER INTERFACE, ALERTS & CONTROLS
Switches 2 Switches control off/on power status and alarm-cancel/self-test operation. LX Platform Interface: Recessed reset
switch for interface reboot and factory reset Alarm Cancel Operation Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-
battery status Audible Alarm Audible alarm indicates power-failure, overload and low-battery conditions LED Indicators 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status. Network
Link/Activity (Green): Flashes for network activity. Network Speed (Yellow): 10 Mbps (Flashing), 100 Mbps (On
steady). LX Platform Interface Status: Normal Operation (Solid Green); Software Update (Alternating Green/Orange
~1/sec); Factory Reset (Alternating Green/Orange ~2/sec).
SURGE / NOISE SUPPRESSION
UPS AC Suppression Joule Rating 450 EMI / RFI AC Noise Suppression Yes AC Suppression Response Time Instantaneous
PHYSICAL
Cooling Method Fan Included Mounting Accessory
Description Installation Form Factors Supported
with Included Accessories Installation Form Factors Supported
with Optional Accessories
Included mounting brackets provide front-rail installation in 2 or 4 post racks; For additional stability in 4 post racks,
consider optional 4 post mounting accessories 4POSTRAILKIT1U & 4POSTRAILKITWM
2 post 19 inch rackmount; 2 post front mount; 4 post 19 inch rackmount; Tower
4 post rackmount full-depth ( <a class="productLink" href="// 4-Post-1U-Universal-
Adjustable-Rack-Mount-Shelf-Kit~4POSTRAILKIT1U">4POSTRAILKIT1U</a> ); 4 post rackmount short-
depth ( <a class="productLink" href="// 4-Post-1U-Universal-Adjustable-Rack-Mount-Shelf-
Kit-for-Wall-Mount-Racks~4POSTRAILKITWM">4POSTRAILKITWM</a> )
4 / 6
Minimum Required Rack Depth (cm) 50.16 Minimum Required Rack Depth
(inches)
19.75
Optional Mounting Accessory Notes Optional  <a class="productLink" href="// 4-Post-1U-Universal-Adjustable-Rack-Mount-Shelf-
Kit-for-Wall-Mount-Racks~4POSTRAILKITWM">4POSTRAILKITWM</a>  enables installation in 4-port short-
depth racks from 14.5 to 23.5 inches (368 to 597mm); Optional  <a class="productLink"
href="// 4-Post-1U-Universal-Adjustable-Rack-Mount-Shelf-
Kit~4POSTRAILKIT1U">4POSTRAILKIT1U</a>  enables installation in 4-post full-depth racks from 20.5 to 36
inches (521 to 914mm) Primary Form Factor Rackmount Primary UPS Depth (mm) 425 Primary UPS Height (mm) 44 Primary UPS Width (mm) 445 Rack Height 1U Shipping Dimensions (hwd / cm) 13.46 x 54.10 x 58.17 Shipping Dimensions (hwd / in.) 5.30 x 21.30 x 22.90 Shipping Weight (kg) 15.88 Shipping Weight (lbs.) 35.00 UPS Housing Material Steel UPS Power Module Dimensions
(hwd, cm) UPS Power Module Dimensions
(hwd, in.)
4.44 x 44.45 x 42.54
1.75 x 17.5 x 16.75
UPS Power Module Weight (kg) 14.51 UPS Power Module Weight (lbs.) 32
ENVIRONMENTAL
Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius Relative Humidity 0 to 95%, non-condensing AC Mode BTU / Hr. (Full Load) 39 Battery Mode BTU / Hr. (Full Load) 816 AC Mode Efficiency Rating (100%
Load)
99%
Audible Noise 45 dBA maximum, front side 1m
COMMUNICATIONS
Network Monitoring Port Description Includes pre-installed WEBCARDLX Network Management Card PowerAlert Software For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at
http:// poweralert Communications Cable Micro-USB, USB and DB9 cabling included
5 / 6
WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications EPO Port RJ11 interface jack with 4-meter cable included. Supports normally open and normally closed EPO systems SNMP Compatibility SNMP V1, V2c, V3 Communications Interface DB9 Serial; EPO (emergency power off); Pre-installed network card; Slot for SNMP/Web interface; USB
LINE / BATTERY TRANSFER
Transfer Time 5 milliseconds AC to DC; 1 millisecond DC to AC Low Voltage Transfer to Battery
Power (Setpoint) High Voltage Transfer to Battery
Power (Setpoint)
SPECIAL FEATURES
Grounding Lug Back panel grounding lug Cold Start (Startup in Battery Mode
During a Power Failure) High Availability UPS Features Hot swappable batteries; Auto Probe Monitoring and Reboot (included) Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS; Individually controllable load banks
STANDARDS & COMPLIANCE
UPS Certifications Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
WARRANTY
Product Warranty Period (Worldwide)
Connected Equipment Insurance (U.S., Canada & Puerto Rico)
83
147
Cold-start operation supported
2-year warranty, 3 year with registration. Note: <a class="insuranceLink"
href="// support/product-warranty-registration">Registration is required</a> for 3-year
warranty.
$250,000 <a class="insuranceLink" href="// support/insurance-policy">Ultimate Lifetime
Insurance</a>
