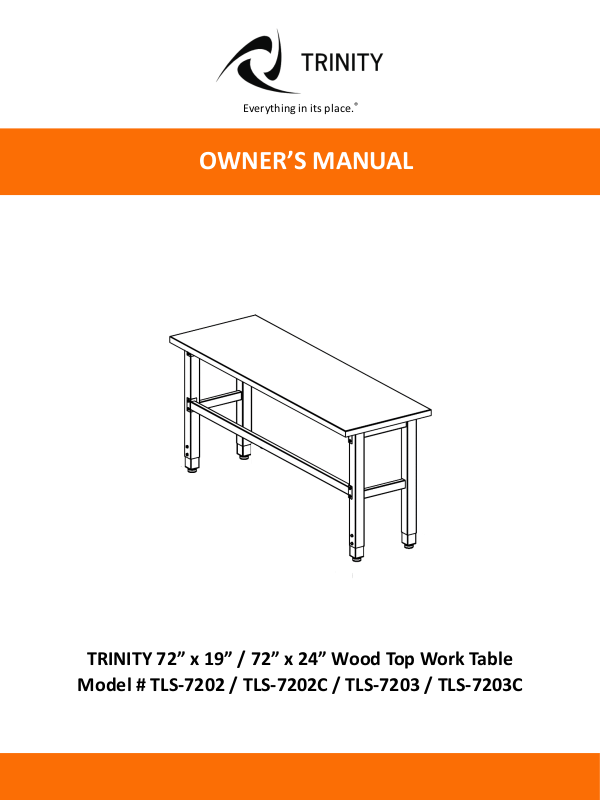

Trinity TLS-7202C, TLS-7202, TLS-7203, TLS-7203C User Manual
OWNER’S MANUAL
TRINITY 72” x 19” / 72” x 24” Wood Top Work Table
Model # TLS-7202 / TLS-7202C / TLS-7203 / TLS-7203C
Everything in its place.
®
Your TRINITY 72” Wood Top Work Table should include the following parts. Please inspect box contents to
ensure you have received all components.
If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer
Service: 800.985.5506 or customerservice@trinityii.com. Parts can also be requested online at our customer
center at www.trinityii.com.
For assembly you will also need a screwdriver. A drill with 13mm bit and Phillips bit is recommended.
PARTS LIST
WOOD TOP (1)
TLS-7202: 72”x19”
TLS-7203: 72”x24”
A
TOP CROSS BEAM (2)
B
BOTTOM CROSS BEAM (1)
C
LARGE
BOLT (12)
(13mm Hex Head)
D
SMALL
SCREW (20)
(Phillips Head)
E
I
(D) RIGHT SIDE FRAME (1)
(E) LEFT SIDE FRAME (1)
Feet Levelers are pre-installed
J
K
LOCKING
CASTER (2)
F
NON-LOCKING
CASTER (2)
G
SMALL
WASHER (20)
WRENCH (1)
LARGE
WASHER (12)
L
(TLS-7202C and TLS-2703C only)
© 2017 TRINITY - 800.985.5506
1
H
ASSEMBLY INSTRUCTIONS
Find the WOOD TOP (A) box inside the package and place it tape-side up
on a flat smooth surface on the ground. Make sure there is enough space
to open and unfold the box.
Open the WOOD TOP (A) box carefully keeping the WOOD TOP (A) laying
face down inside. Unfold the box to use as a work surface.
Place both TOP CROSS BEAMS (B) on WOOD TOP (A). Make sure holes on
the “L” brackets at the end of the beams are on the outside.
STEP 1
B (2)
G
B
E
F
B
D
G
G
F
F
G
F
G
F
G
F
G
F
G
A
A (1)
Only hand tighten LARGE BOLTS (F). Do
not fully tighten with WRENCH (J) until
after WOOD TOP (A) is fully secured after
Step 4.
© 2017 TRINITY - 800.985.5506
2
F
Take RIGHT (D) and LEFT (E) SIDE FRAMES and orient parts as shown.
For proper installation, please make sure that the holes for the CROSS BEAMS
(B+C) in the RIGHT (D) and LEFT (E) SIDE FRAMES are on the inside.
STEP 2
F (8) G (8)D+E (2)
Hand tighten (2) LARGE BOLTS (F) through (2) LARGE WASHERS (G) and TOP CROSS BEAM (B) onto
RIGHT SIDE FRAME (D). Hand tighten (2) more LARGE BOLTS (F) through (2) more LARGE WASHERS (G)
and TOP CROSS BEAM (B) onto LEFT SIDE FRAME (E).
Repeat these steps to attach the other TOP CROSS BEAM (B) to the other side of SIDE FRAMES (D+E).
C
G
F
G
F
G
F
G
F
ASSEMBLY INSTRUCTIONS
Take BOTTOM CROSS BEAM (C) and align it to SIDE FRAMES (D+E). Hand
tighten LARGE BOLTS (F) through LARGE WASHERS (G) and BOTTOM CROSS
BEAM (C) onto SIDE FRAMES (D+E).
STEP 3
F (4) G (4)
C (1)
© 2017 TRINITY - 800.985.5506
3
Only hand tighten LARGE BOLTS (F). Do
not fully tighten with WRENCH (J) until
after WOOD TOP (A) is fully secured in
Step 4.
Line the frame up with the insert nuts found on the underside of the
WOOD TOP (A).
Insert (20) SMALL SCREWS (H) and SMALL WASHERS (I) and partially
tighten by hand to secure the frame to the WOOD TOP (A).
Once all (20) SMALL SCREWS (H) have been inserted, fully tighten all
SCREWS (H).
STEP 4
H (20) I (20)
I
H
B
A
