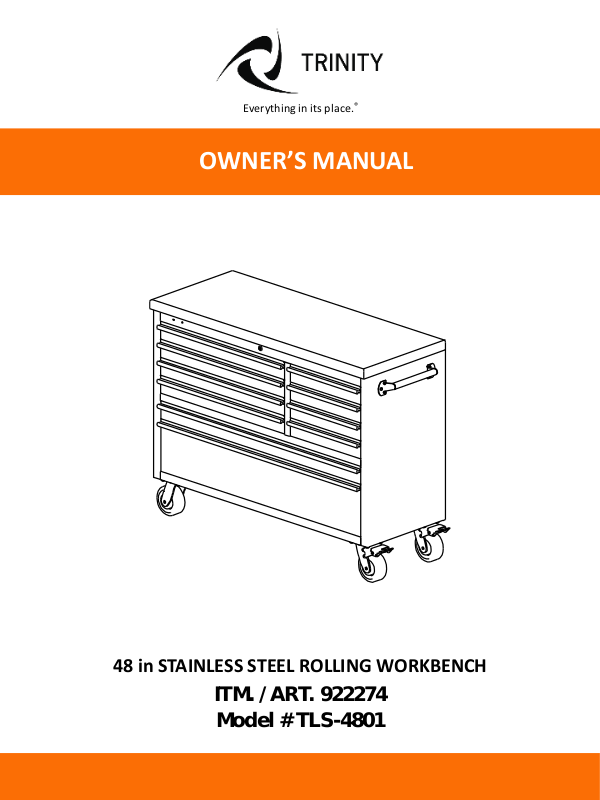

OWNER’S MANUAL
48 in STAINLESS STEEL ROLLING WORKBENCH
ITM. / ART. 922274
Model # TLS-4801
Everything in its place.
®
Your TRINITY 48 in Stainless Steel Workbenchshould include the following parts. Please inspect
box contents to ensure you have received all components.
If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY
Customer Service: 800.985.5506 or customerservice@trinityii.com. Parts can also be requested online at
www.trinityii.com (Help & More, Contact Us).
You will need 10mm wrench (for handles) and 14mm wrench (for casters) for assembly (not included).

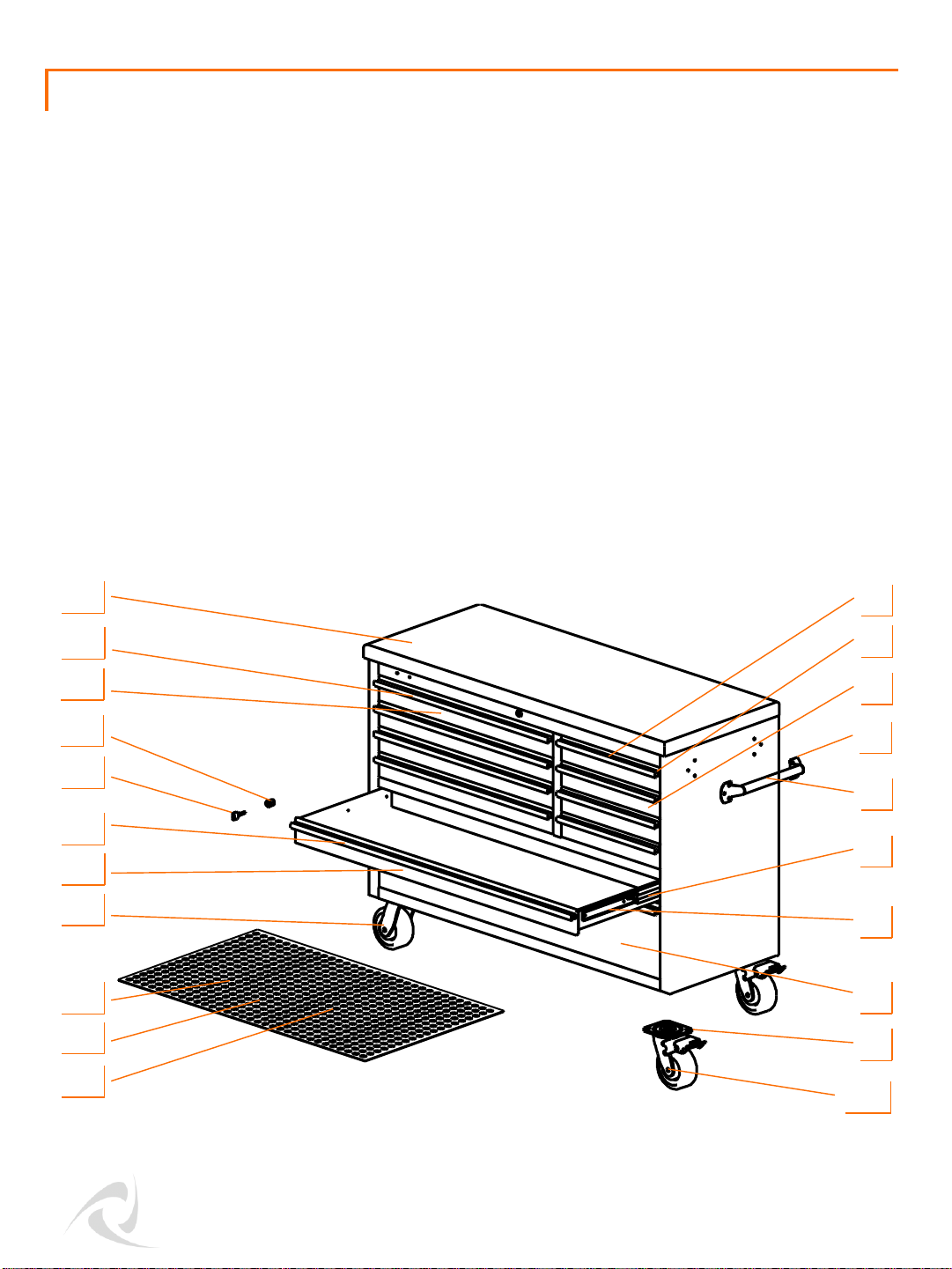

PARTS LIST
A
SIDE HANDLE (2)
B C
CASTER BOLT (16)
M10
D
LINER (10)
E
G
H
HANDLE BOLT (12)
M6
LOCKING
CASTER (2)
F
NON-LOCKING
CASTER (2)
KEY (2)
© 2016 TRINITY - 800.985.5506
1
WORKBENCH (1)
Parts box and keys are located in the
BOTTOM drawer
ASSEMBLY INSTRUCTIONS
Position SIDE HANDLE (B) over pre-installed nuts
on the side of WORKBENCH (A). Insert HANDLE
BOLTS (C) through holes on SIDE HANDLE (B).
Use a 10mm wrench to tighten HANDLE BOLTS
(C) to WORKBENCH (A).
Repeat these instructions to install the other SIDE
HANDLE (B).
© 2016 TRINITY - 800.985.5506
2
STEP 1
STEP 2
10mm
D (2) E (2)
F (16)
A (1) B (2)
C (12)
Carefully lay WORKBENCH (A) on its backside.
Position LOCKING CASTERS (D) on the same side of the
WORKBENCH (A) and align holes to pre-installed nuts
on the underside of WORKBENCH (A). Use a 14mm
socket wrench to tighten CASTER BOLT (F) to
WORKBENCH (A).
Repeat above step to install the NON-LOCKING
CASTERS (E) on the rear side of the WORKBENCH (A).
Notes:
* For ease of use, place LOCKING CASTERS (D) on the
side you will regularly push or pull.
** If you plan to push the Workbench against a wall,
place LOCKING CASTERS (D) on the front long side for
ease of access.
14mm
ASSEMBLY INSTRUCTIONS

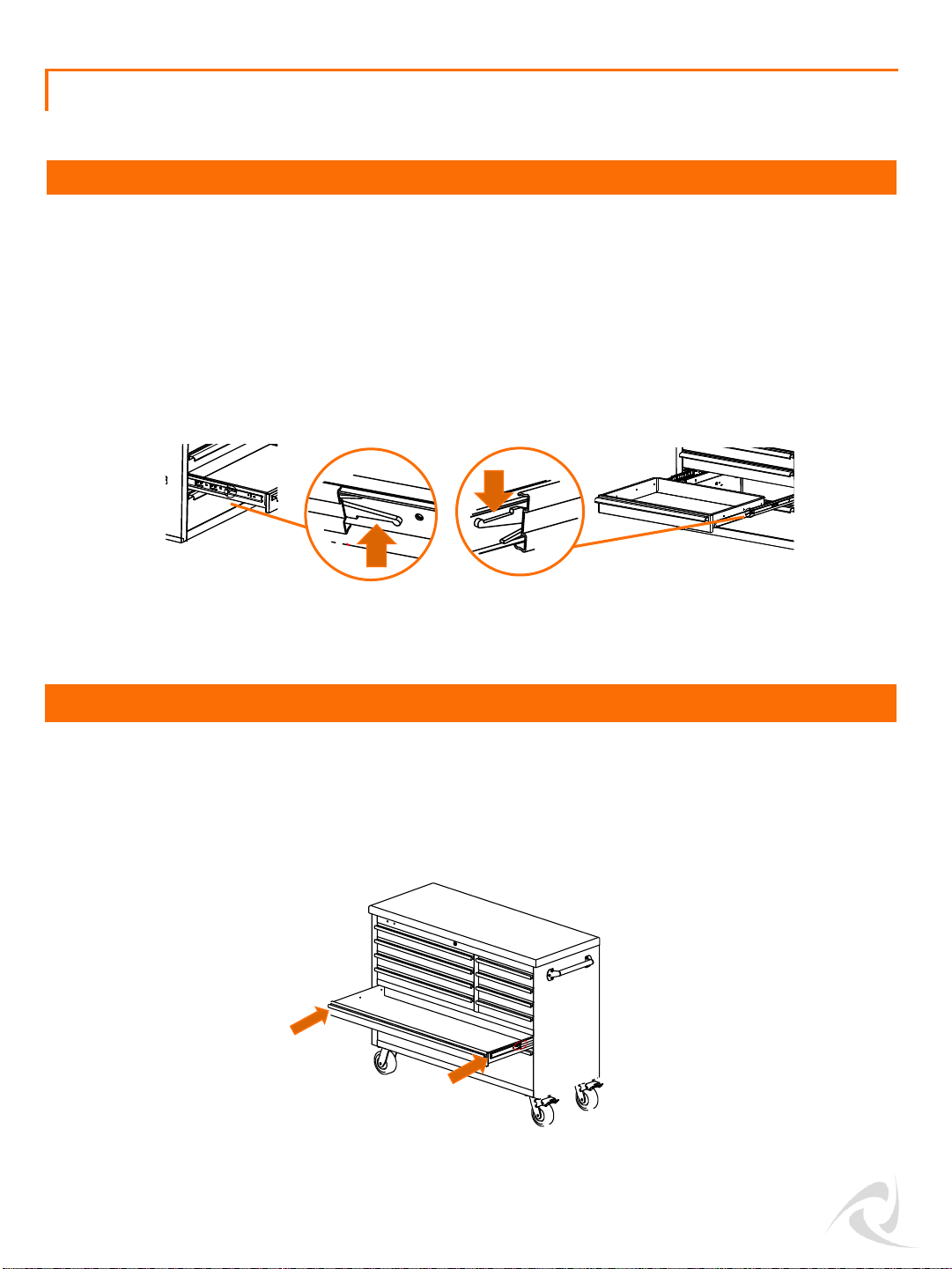

Place the LINERS (G) inside each drawer.
© 2016 TRINITY - 800.985.5506
3
STEP 3
G (10)
