OWNER’S MANUAL
TRINITY BASICS STAINLESS STEEL UTILITY SINK W/ FAUCET
Model # THA-0307
Your TRINITY Basics Stainless Steel Utility Sink w/Faucet should include the following parts. Please
inspect box contents to ensure you have received all components.
If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY
Customer Service: 800.985.5506 or customerservice@trinityii.com. Parts can also be requested online at
www.trinityii.com (Help & More, Contact Us).
A Phillips head screwdriver is required, and a pipe wrench is recommended.
SINK (1)
A
LEG (4)
W/ FEET LEVELER
B
C
HEX KEY (1)
FAUCET ASSEMBLY (1)
W/ HOSES
DRAIN ASSEMBLY (1)
F
HEX SCREW (8) + (2) extra
(8) are pre-installed on sink,
(2) extras are packed in the hardware bag
G
E
H
I
BRACKET (1)
MOUNTING SCREW (2) ANCHOR (2)
© 2018 TRINITY - 800.985.5506
1

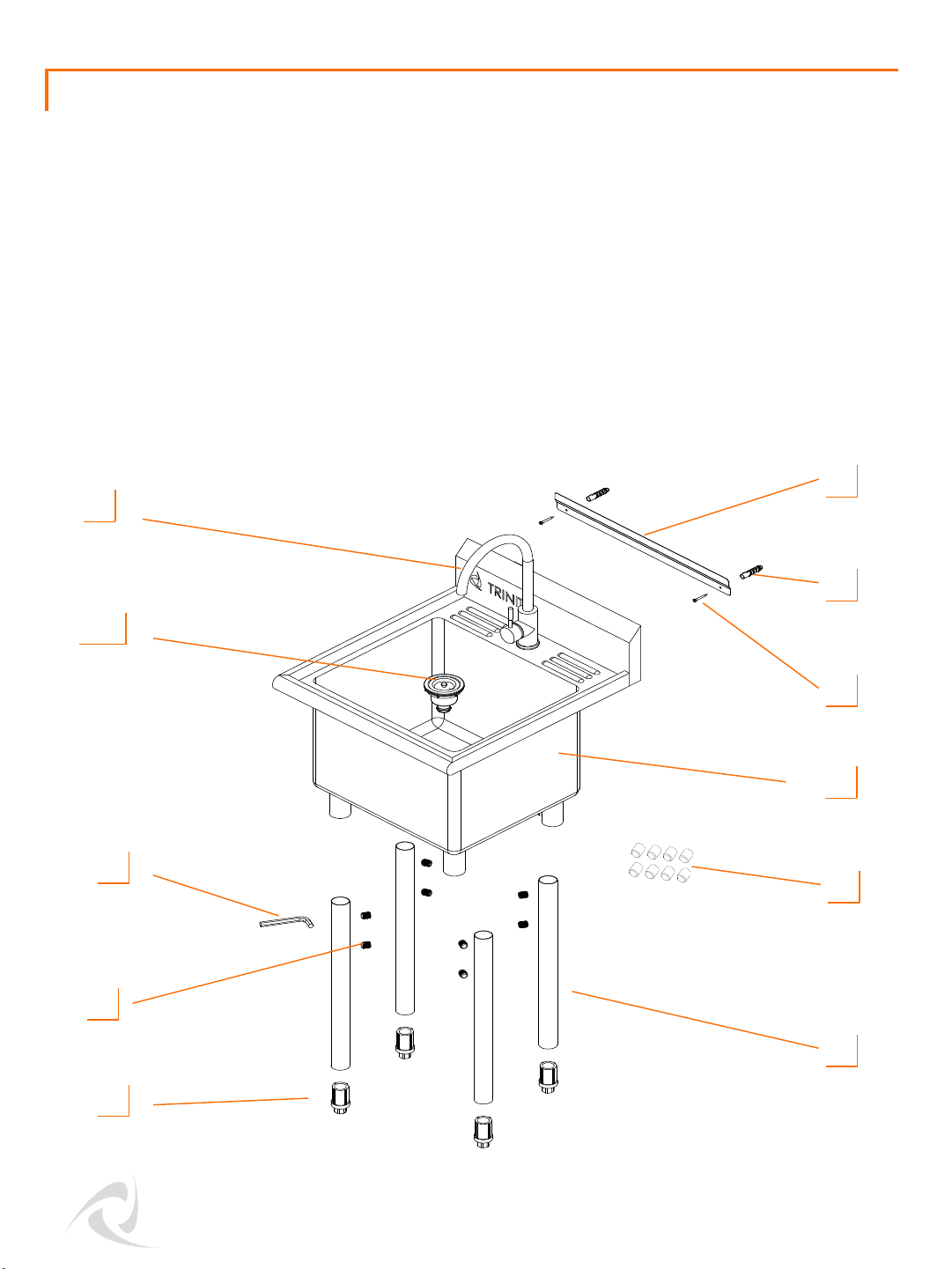

PARTS LIST
D
SCREW CAP (8)
J
ASSEMBLY INSTRUCTIONS
Carefully turn sink right-side up, standing it
upright.
Unscrew large 3-3/8” Nut from bottom of
DRAIN ASSEMBLY (D). Insert Drain through
opening at bottom of SINK (A) from inside.
From under SINK (A), first slide Rubber
Washer on, then Paper Gasket, then screw
large 3-3/8” Nut back on tightly. If necessary
use a pipe wrench to tighten.
Lay SINK (A) upside-down. Unscrew HEX
SCREWS (E) that are pre-installed on Leg
Collars on bottom of SINK (A) until LEGS (B)
can be fully inserted.
Insert LEGS (B) into Leg Collars. Tighten both
HEX SCREWS (E) on each Leg Collar with HEX
KEY (G). Place a SCREW CAP (F) over each
HEX SCREW (E).
STEP 1
STEP 2
E (8)
G (1)
B (4)
B
A
A (1)
D
E
G
D (1)
Leg Collar
© 2018 TRINITY - 800.985.5506
2
Drain Assembly (D)
F (8)
F
E
Inside
the sink
Under
the sink
Drain
Rubber
Washer
Paper
Gasket
3-3/8”
Nut
