Trinity THA-0303 Owner's Manual
OWNER’S MANUAL
TRINITY STAINLESS STEEL UTILITY SINK W/ FAUCET
Model # THA-0303
Your TRINITY Stainless Steel Utility Sink w/Faucet should include the following parts. Please inspect box
contents to ensure you have received all components.
If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY
Customer Service: 800.985.5506 or customerservice@trinityii.com. Parts can also be requested online at
www.trinityii.com (Help & More, Contact Us).
A Phillips head screwdriver is required, and a pipe wrench is recommended.

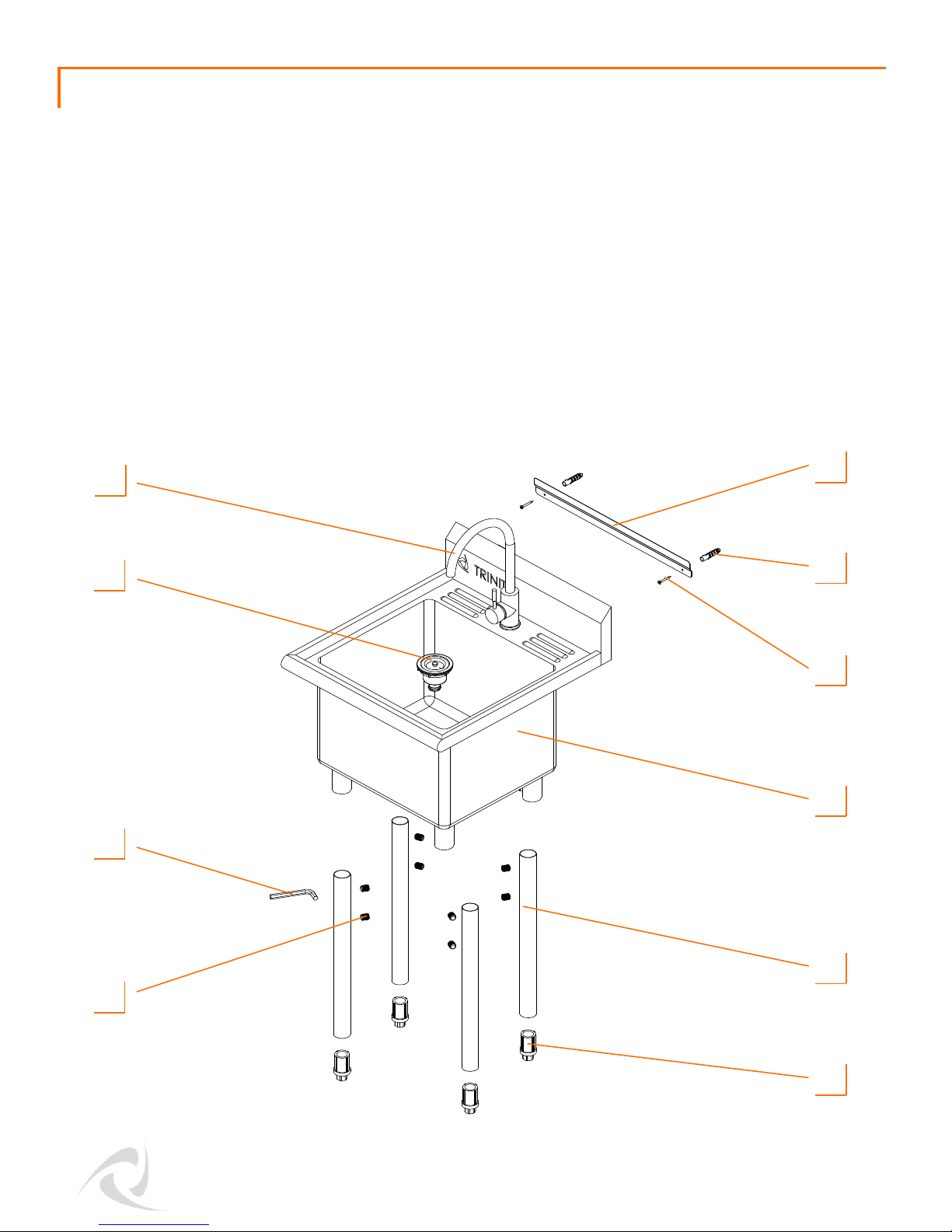

PARTS LIST
SINK (1)
A
LEG (4)
W/ FEET LEVELER
B C
HEX KEY (1)
D
FAUCET ASSEMBLY (1)
W/ HOSES
DRAIN ASSEMBLY (1)
F
HEX SCREW (8) + (2) extra
(8) are pre-installed on sink,
(2) extras are packed in the hardware bag
G
E
H
I
BRACKET (1) MOUNTING SCREW (2) ANCHOR (2)
© 2018 TRINITY - 800.985.5506
1
ASSEMBLY INSTRUCTIONS
Carefully turn the sink right-side up, standing
on the legs.
Unscrew the large 3-3/8” Nut from bottom
of DRAIN ASSEMBLY (D). Insert Drain
through White Gasket and the opening at
the bottom of SINK (A) from the inside.
From under SINK (A) first slide the Black
Gasket then tightly screw the large 3-3/8”
Nut back on. If necessary use a pipe wrench
to tighten.
Lay SINK (A) upside-down. Unscrew HEX
SCREWS (E) that are pre-installed on the Leg
Collars at the bottom of SINK (A) until LEGS
(B) can be fully inserted.
Insert LEGS (B) into the Leg Collars. Tighten
both HEX SCREWS (E) on each Leg Collar with
HEX KEY (F).
STEP 1
STEP 2
E (8) F (1)
B (4)
B
A
A (1)
D
E
F
D (1)
Inside
the sink
Under
the sink
Drain
White
Gasket
Black
Gasket
3-3/8” Nut
Leg Collar
© 2018 TRINITY - 800.985.5506
2
Drain Assembly (D)
