OWNER’S MANUAL
TRINITY ECOSTORAGE™ 6-TIER NSF 48” x 18” x 72”
WIRE SHELVING RACK w/WHEELS – CHROME
Model # TBFC-0907
Everything in its place.
®
© 2016 TRINITY - 800.985.5506
Your TRINITY EcoStorage™ 6-Tier NSF Wire Shelving Rack w/Wheels should include the
following parts. Please inspect box contents to ensure you have received all components.
If you are missing any parts, need assistance with assembly or have questions, please contact
TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com. Parts can also be
requested online at www.trinityii.com (Help & More, Contact Us).
You will need no additional tools for assembly.

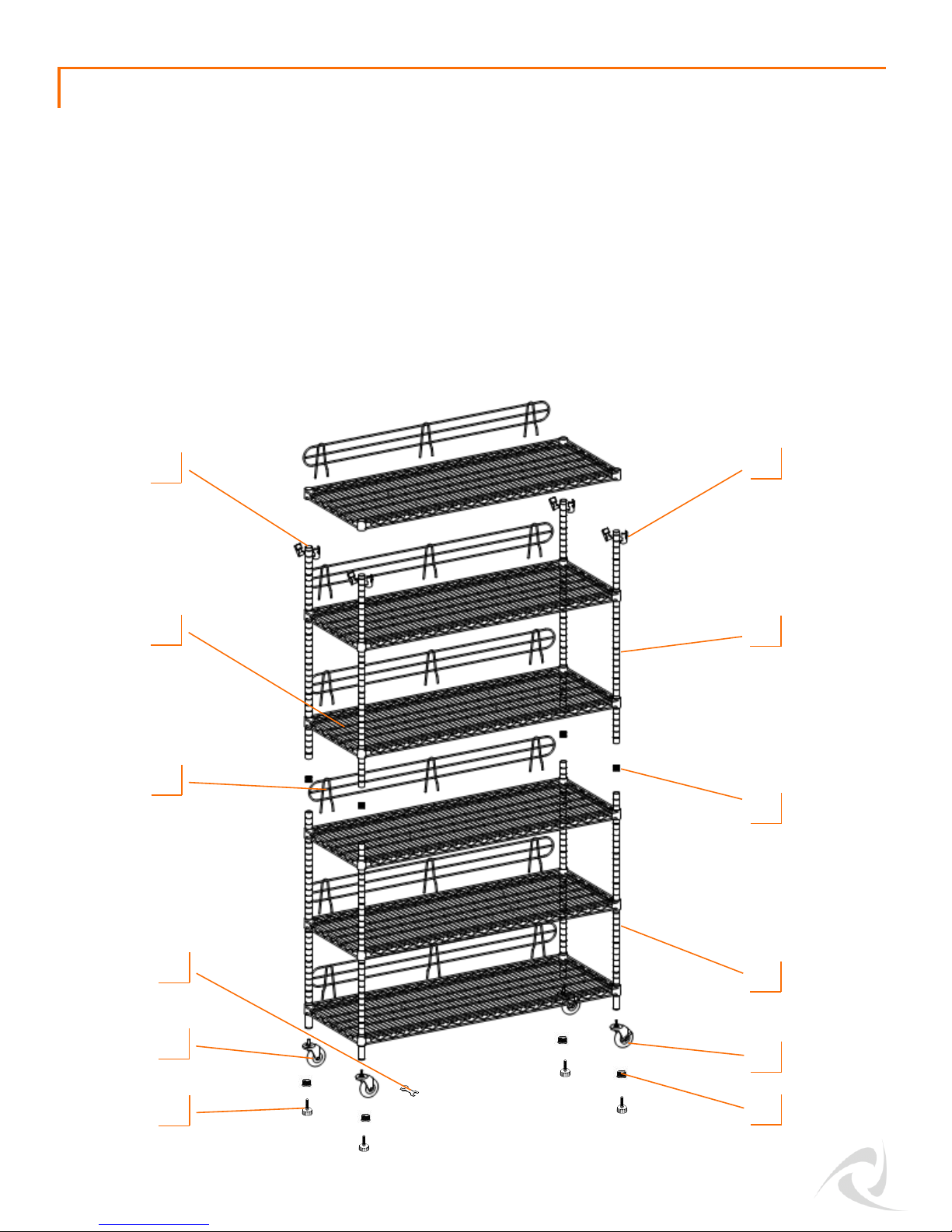

PARTS LIST
SHELF (6)
CASTER (w/wrench)
(2 locking, 2 non-locking)
For mobile option
SLIP SLEEVE (48)
FEET LEVELER (4)
For stationary option
Please inspect box contents to ensure you have received all components.
Note: The black circular plastic tops in between the Shelves are used only for packaging
purposes. They are NOT NEEDED. Please discard.
CAUTION: Failure to follow these guidelines may result in property damage or personal injury.
Each Shelf holds up to 800 lb with equal weight distribution on Feet Levelers (without Casters).
Each Shelf holds up to 100 lb with equal weight distribution on locked Casters.
BACKSTAND (6)
THREADED INSERT (4)
Used if making (2) 3-Tier Racks
END CAP (4)
Used if making (2) 3-Tier Racks
TOP POLE (4)
End Cap (4) and
Pole Connector (4)
are pre-installed
BOTTOM POLE (4)
Threaded Insert (4)
is pre-installed
1
A
B
C
D
E
F
G H
I
A (4)
© 2016 TRINITY - 800.985.5506
ASSEMBLY INSTRUCTIONS
2
STEP 2: SLIP SLEEVES
Screw each FEET LEVELER (G) into the
bottom of each BOTTOM POLE (A). Turn
clockwise to screw in place.
STEP 1: Mobile Option
Screw each CASTER (F) into the bottom of
each BOTTOM POLE (A). Turn clockwise to
screw in place. Make sure the Locking Casters
are on the same side.
Use the provided caster wrench to tighten
completely. Failure to do as instructed
could result in the caster stem breaking.
For easiest assembly, do not attach the TOP (B) and
BOTTOM (A) POLES until instructed. Once
connected, these will be the posts for the Rack.
Note that each POLE (A+B) has slight horizontal line
indentations at 1” intervals. Each SLIP SLEEVE (D)
has raised horizontal lines inside designed to lock
them in place on the POLE (A+B).
On the BOTTOM POLE (A), place 1 pair of SLIP
SLEEVES (D) at the desired level. Please make
sure the arrow faces up and that the word “TOP” is
right side up. Do this for each BOTTOM POLE (A)
and make sure that the heights are identical for
BOTTOM POLE (A).
Slide the pair of SLIP SLEEVES (D) until you hear a
click to confirm the pair is locked onto the BOTTOM
POLE (A). DO NOT place more than one pair on
each POLE (A) at a time.
STEP 1: Stationary Option
A (4) D (8)
F (4) G (4)
* For safety and stability, the lowest SHELF (C) should be lower than the 3rdnotch from the bottom.
** Note: There will be a very small gap in-between the SLIP SLEEVES (D)—this is normal.
© 2016 TRINITY - 800.985.5506
ASSEMBLY INSTRUCTIONS
3
STEP 3: INSTALLING BOTTOM SHELF
Place SHELF (C) on its side and slide the (4) BOTTOM
POLES (A) through the holes in the SHELF (C). Make
sure that the SHELF (C) corner cylinders are positioned
over the SLIP SLEEVES (D).
Stand the unit upright.
*Note: The level side of the SHELF (C) is the TOP side
(the TRINITY logo on the corner cylinders should be rightside up.)
**Use a rubber mallet, if needed, to secure the SHELF (C).
***For convenience, place BOTTOM POLES (A) with
Locking Casters on the long side of the shelf if the rack will
be pushed against a wall OR if the rack is frequently rolled
around like a cart place BOTTOM POLES (A) with Locking
Casters on the side being pushed or pulled.
C (1)
STEP 4: INSTALLING SHELVES
On POLE (A), place 1 pair of SLIP SLEEVES (E) at the
desired distance between SHELVES (C). Please make
sure the arrow faces up and that the word “TOP” is right
side up. Do this for each POLE (A), and make sure that
the heights are identical for each POLE (A).
Lower SHELF (C) over the BOTTOM POLES (A) so that
the corner cylinders of the SHELF (C) are positioned
over the SLIP SLEEVES (D).
Repeat Step 4 to install other SHELVES (C) as desired.
**Use a rubber mallet, if needed, to secure the
SHELVES (C).
D (8) C (1)
