Trifecte TRIRS3175F1, TRIRS5175F1 User Manual

READ AND SAVE THESE INSTRUCTION MANUAL

CONTENTS

TECHNICAL CHARACTERISTICS---------------------------------1

MAIN PARTS NAME--------------------------------------------------2

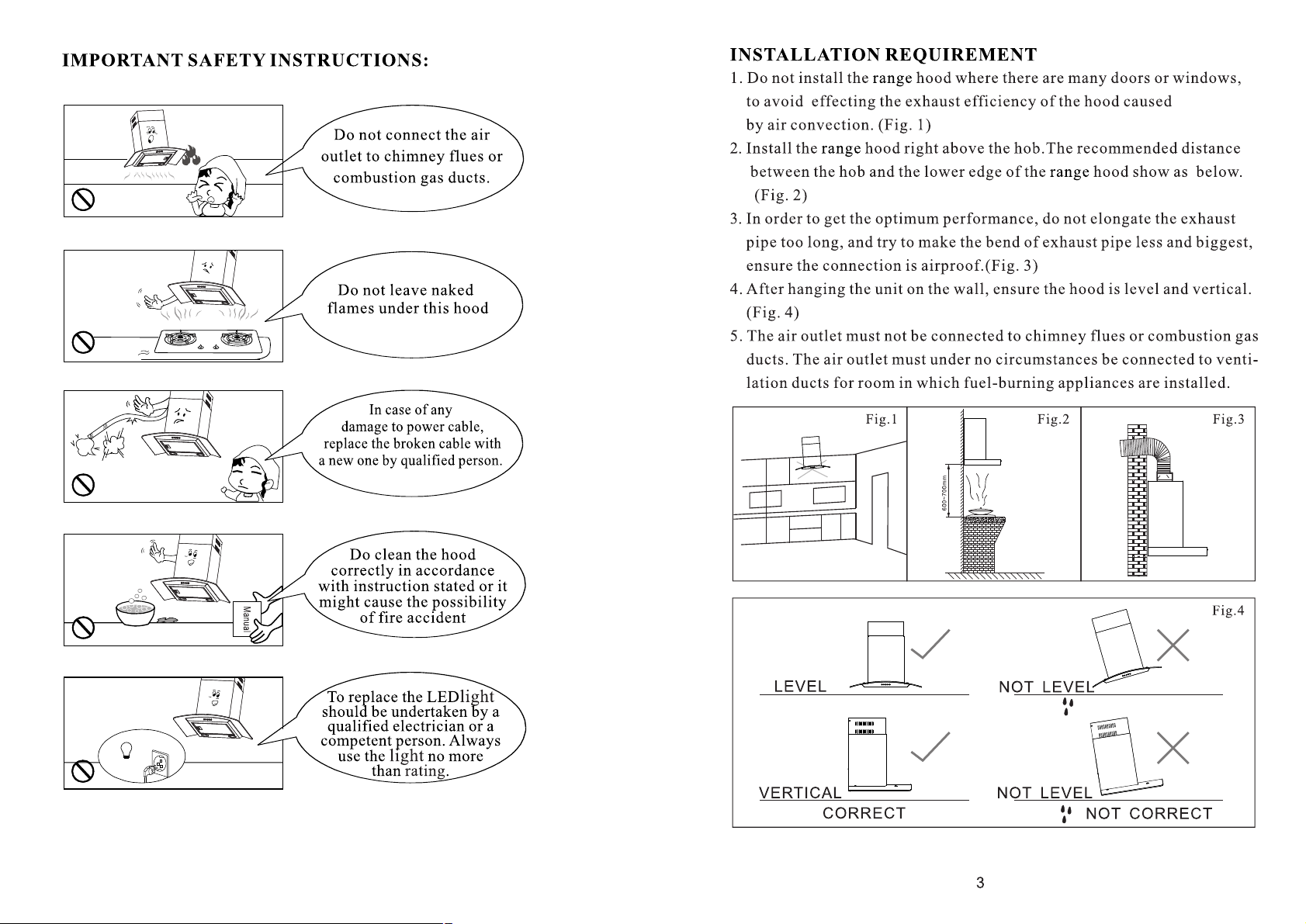

INSTALLATION REQUIREMENT-----------------------------------3

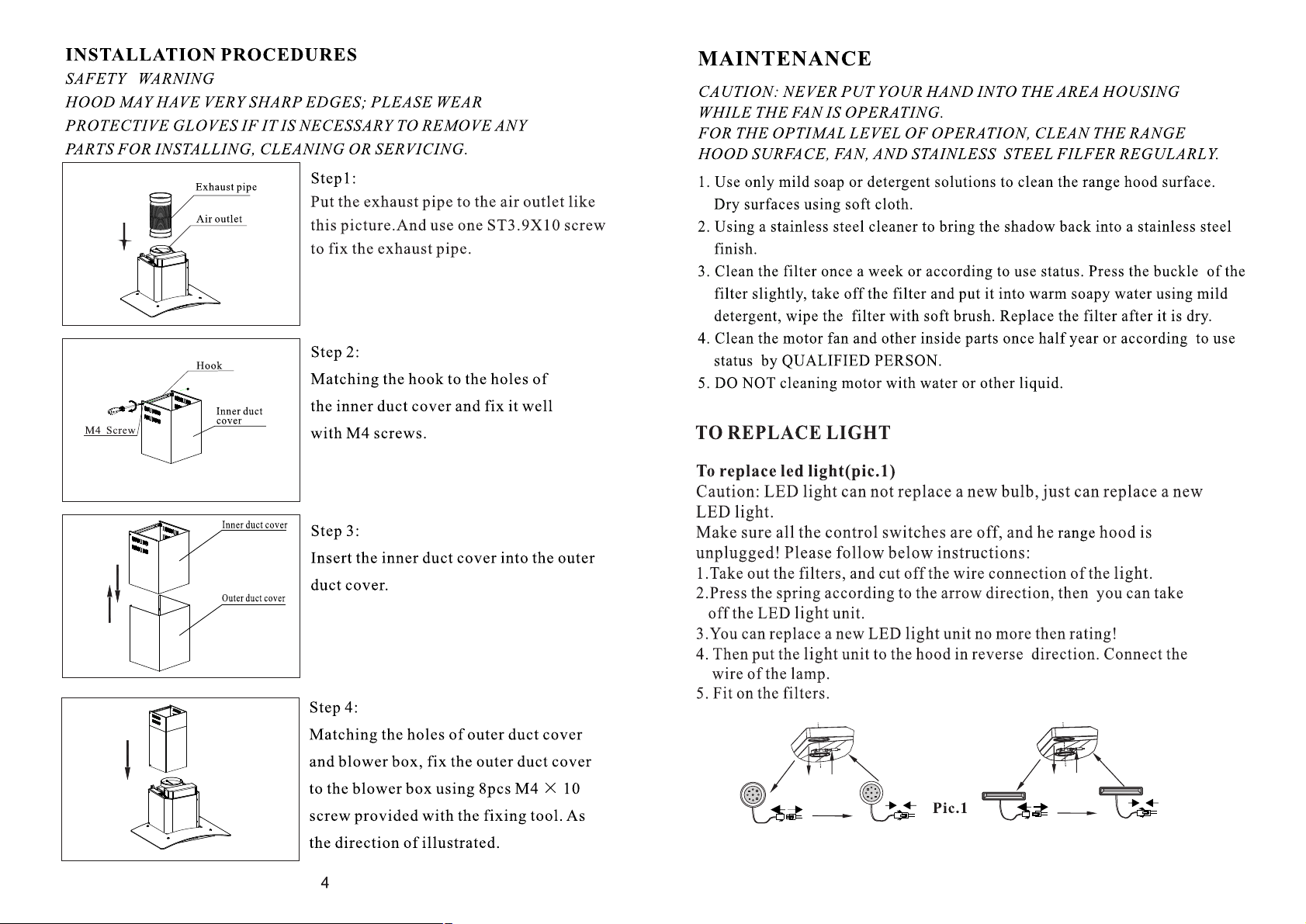

INSTALLATION PROCEDURES--------------------------------- 4-5

OPERATION INSTRUCTION--------------------------------------5-8

INSTALLATION-------------------------------------------------------8

MAINTENANCE-------------------------------------------------------9

TO REPLACE THE LED LIGHT--------------------------------------9

IMPORTANT SAFETY INSTRUCTIONS----------------------10-11

TROUBLE SHOOTINGS--------------------------------------------12

Please note that this product is marked with symbol:
According to Waste of Electrical Electron Equipment
(WEEE) directive, WEEE should be separately collected
and treated. If at any time in future you need to dispose of
this product, please do NOT dispose of this product with
household waste. Please send this product to WEEE
collecting points where available.

TROUBLE SHOTTINGS

CAUTION: Disconnect the power supply before servicing.

STATUS

The power
supply is
damaged

CAUSE & METHOD OF REPAIRING

If the power supply is damaged, please call
the technician to repair.

Screwdriver

TOOL

Dear consumer,
Thanks for your purchase of our range hood and we hope we can fully
satisfy all of your needs. Please read the entire instructions carefully
before proceeding to obtain the best results of operation the range hood.

The motor
does not run

The unit
body shake

Big noise

Suction not
so powerful

A). The fan was blocked, check the fan make
sure it is in the correct place.
B). The motor was blocked, check the motor
and make sure it’s in the correct place.
C). The motor was broken, replace a new one.
D). The switch was broken, replace a new one.
E). The capacitor was broken, replace a new one.

A). The installation is not firm enough.
Check it and make sure the hood is firm enough.
B). The fan is broken, so it’s no balance.
Replace a new one.
C). The installation of the blower is not correct.
Check it and install it correctly.
D). The motor does not firm enough.
Check it and install it firmly enough.

A). The blower is no in balance. Adjust the fan fix
screws to balance or replace a new one.
B). Some other things drop to the blower.
Check and clean it.

A). The distance from the range hood to the gas
cooker is too big, make sure the distance is
about 600-700mm.
B). There are many windows or doors in the
kitchen, the air convection is too big. Close
some doors or windows to make the air
convection smaller.
C). There is some other pour wind to the
exhaust pipe. Make the exhaust pipe’s exit
to downwards.
D). The run rate of motor decrease obviously.
Replace a new motor or capacitor.
Because of the range hood is set upon one
board on the back of the range hood for
covering the hollow of the window.

Screwdriver

Screwdriver

Screwdriver

Screwdriver

TECHNICAL CHARACTERISTICS

Model No.: TRI-RS3175E1 TRI-RS-5175E1

TRI-RS3175F1 TRI-RS-5175F1

Total power: 204W

Motor power: 200W

Led Light: 2x2W

Voltage: 120V
Frequency: 60Hz
Filter: Aluminum filter
Steel Baffle filter

Control: Touch Control

Led light
does not work

Replace a new LED light assembly.

10

Screwdriver
