Page 1
Page 2
READ AND SAVE THESE INSTRUCTION MANUAL
CONTENTS
TECHNICAL CHARACTERISTICS---------------------------------1
MAIN PARTS NAME--------------------------------------------------2

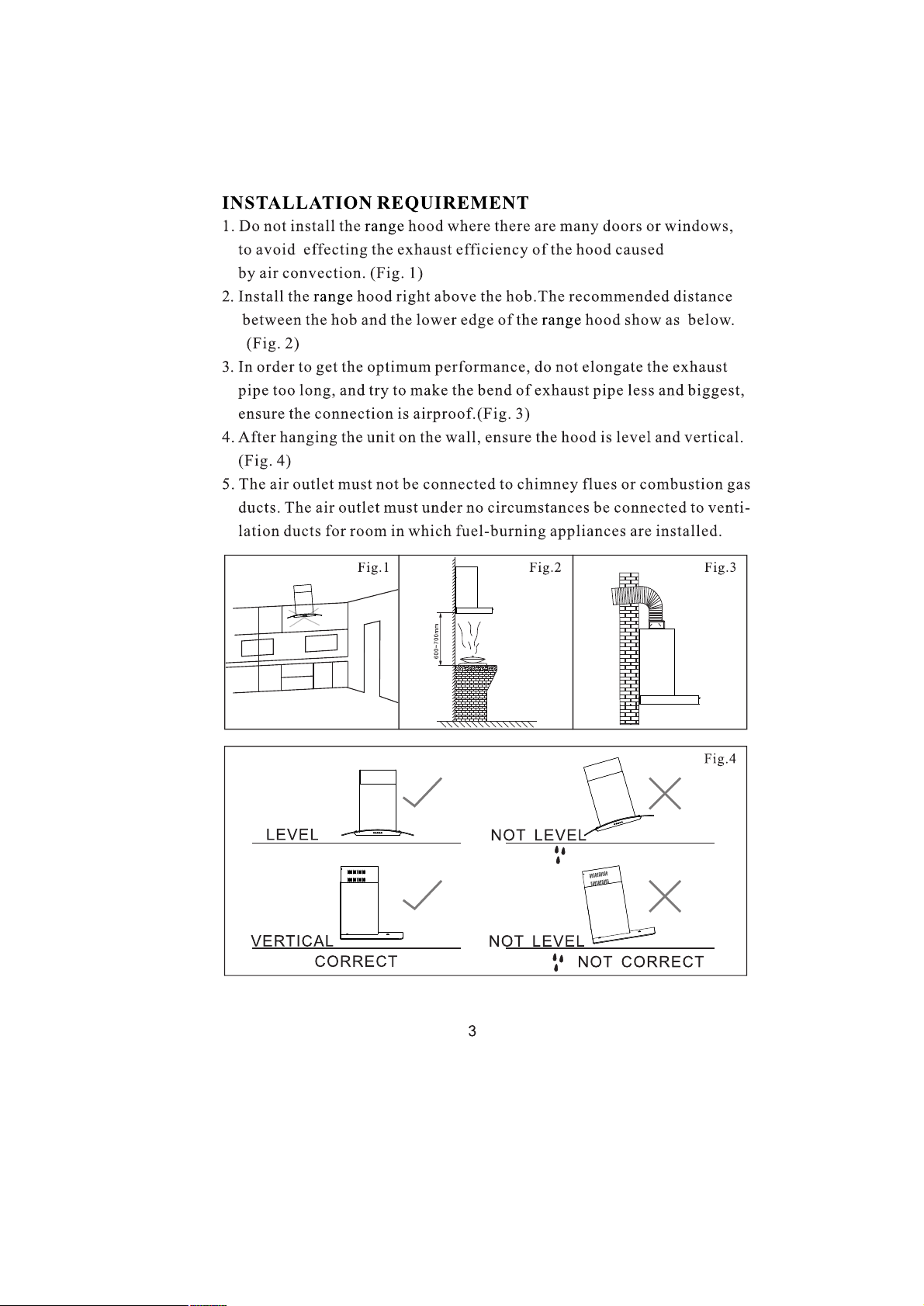

INSTALLATION REQUIREMENT-----------------------------------3

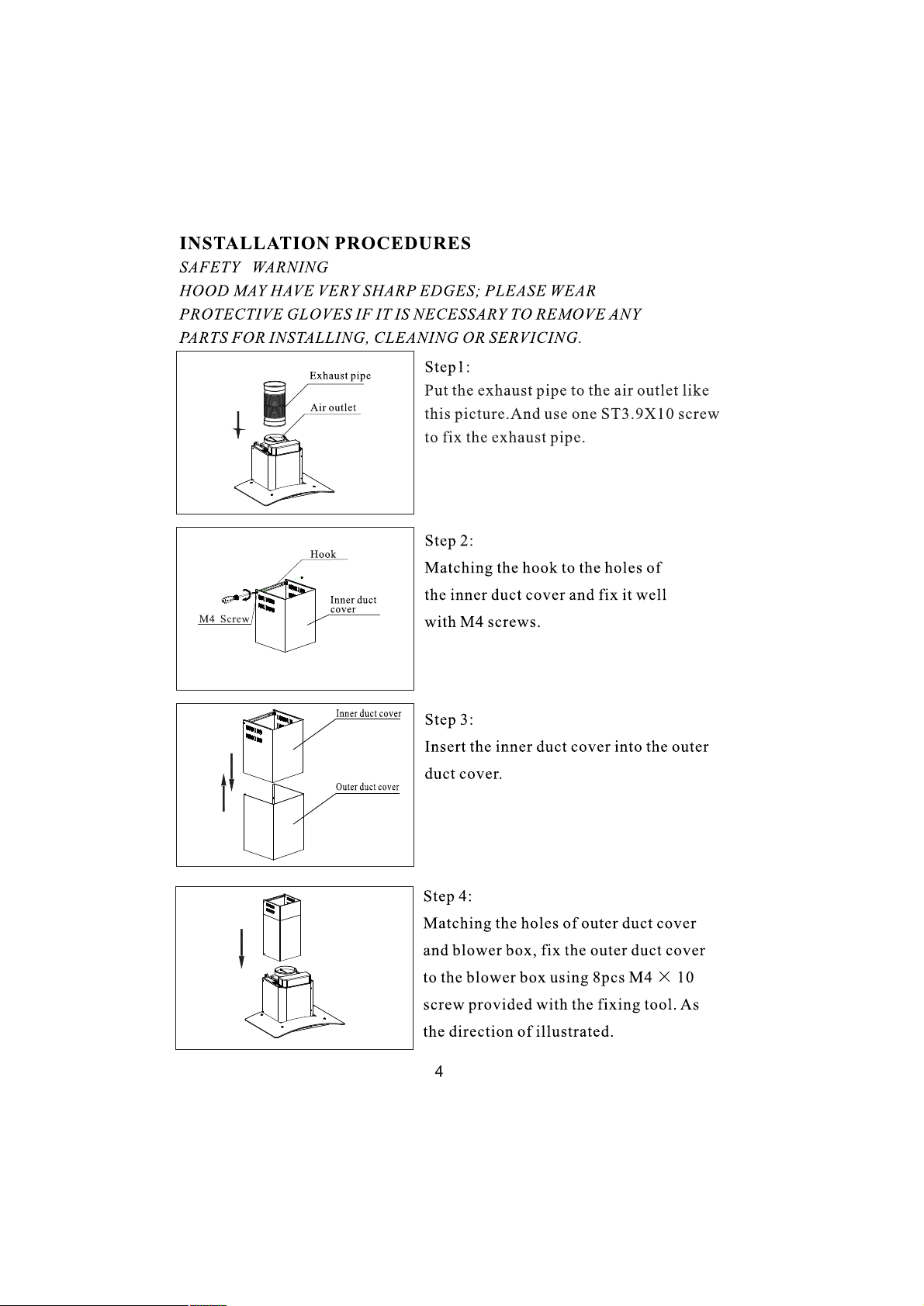

INSTALLATION PROCEDURES--------------------------------- 4-5
OPERATION INSTRUCTION--------------------------------------5-8
INSTALLATION-------------------------------------------------------8

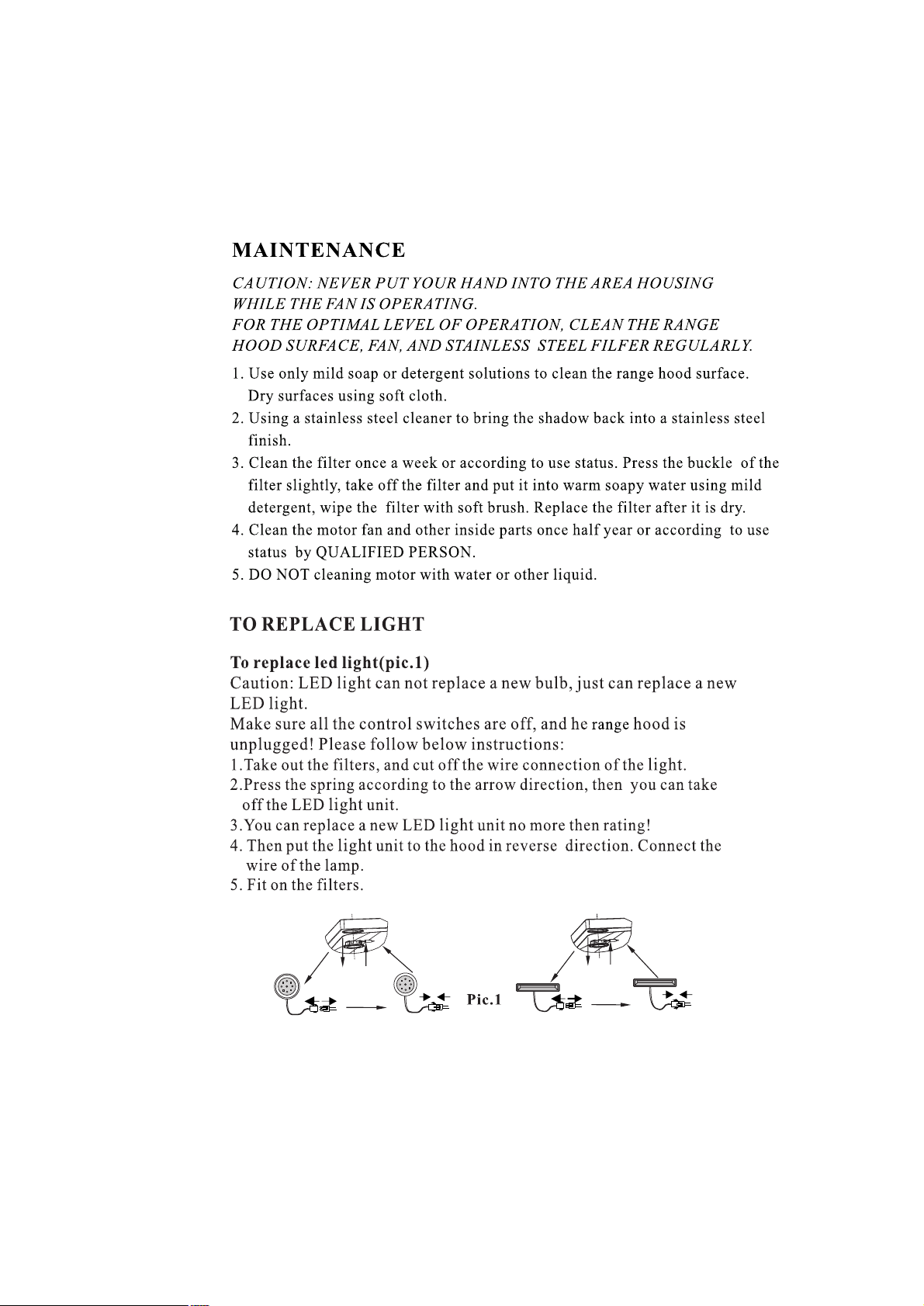

MAINTENANCE-------------------------------------------------------9
TO REPLACE THE LED LIGHT--------------------------------------9

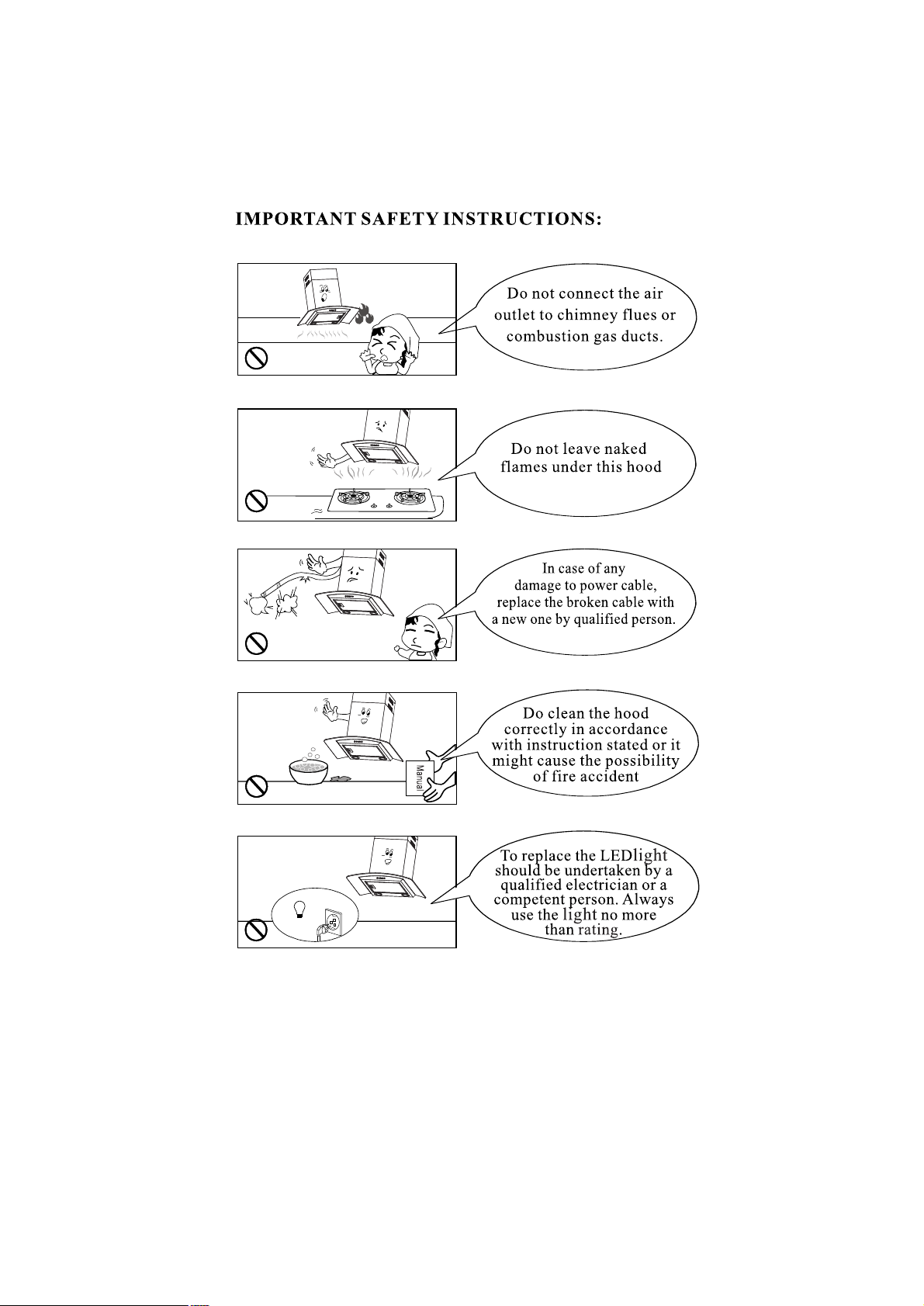

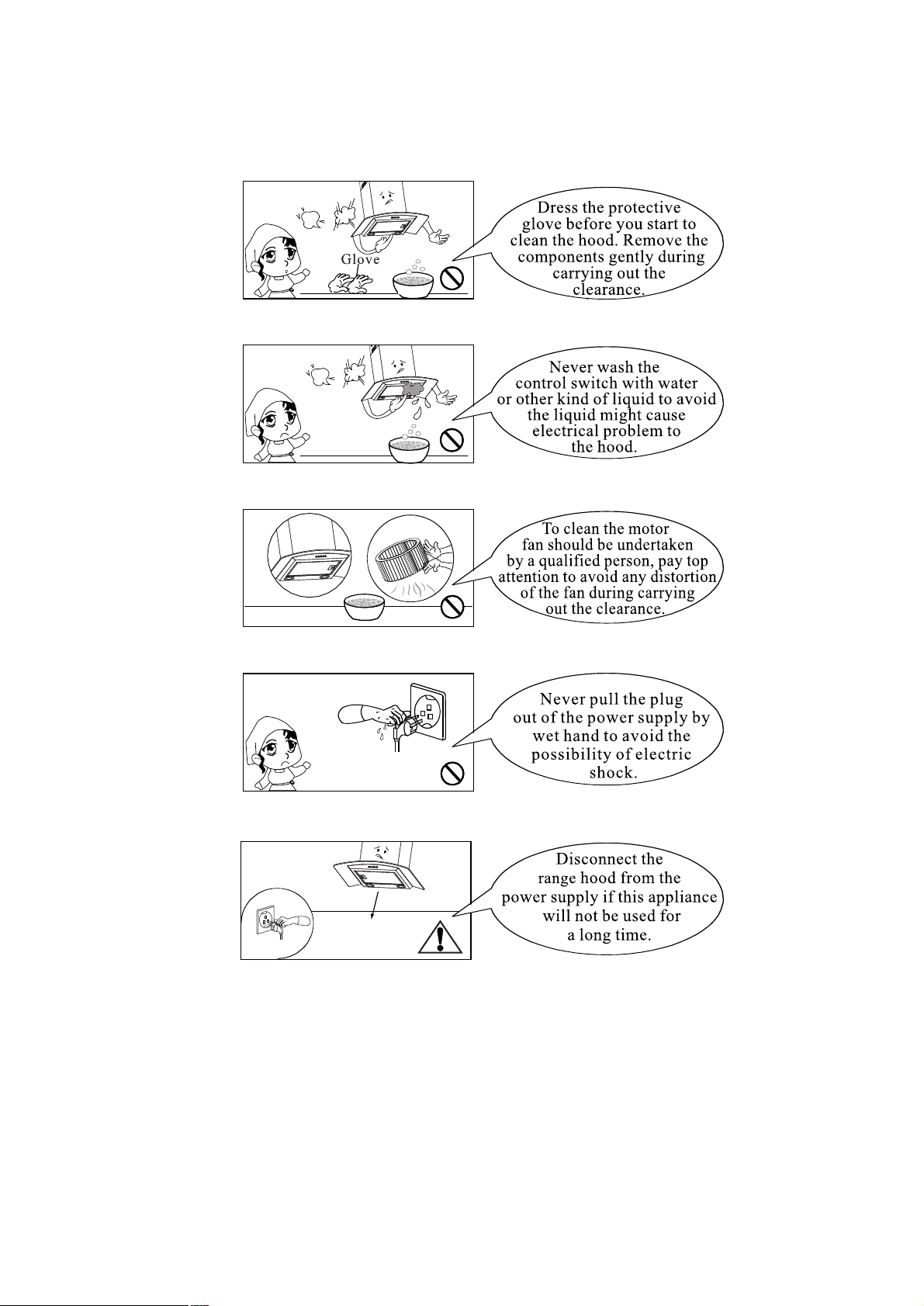

IMPORTANT SAFETY INSTRUCTIONS----------------------10-11
TROUBLE SHOOTINGS--------------------------------------------12
Please note that this product is marked with symbol:
According to Waste of Electrical Electron Equipment
(WEEE) directive, WEEE should be separately collected
and treated. If at any time in future you need to dispose of
this product, please do NOT dispose of this product with
household waste. Please send this product to WEEE
collecting points where available.
Page 3
Dear consumer,
Thanks for your purchase of our range hood and we hope we can fully
satisfy all of your needs. Please read the entire instructions carefully
before proceeding to obtain the best results of operation the range hood.
TECHNICAL CHARACTERISTICS
Model No.: TRI-3175E1/TRI-RS-5175E1
Total power: 204W
Motor power: 200W
Led Light: 2x2W
Voltage: 120V
Frequency: 60Hz
Filter: Aluminum filter
Control: Touch Control
Page 4
MAIN PARTS NAME
Hook
Inner duct cover
Outer duct cover
Exhaust pipe
Blower box
Filter
TRI-RS-3175E1
Hook
Inner duct cover
Outer duct cover
Exhaust pipe
Air outlet
Blower box
Glass
Filter
TRI-RS-5175E1
Page 5
Page 6
Page 7
Expanding Tube
5x50
Metal Screw
Hook
367
Expanding Tube
5x50
Metal Screw
Expanding Tube
5x50
Wood Screw

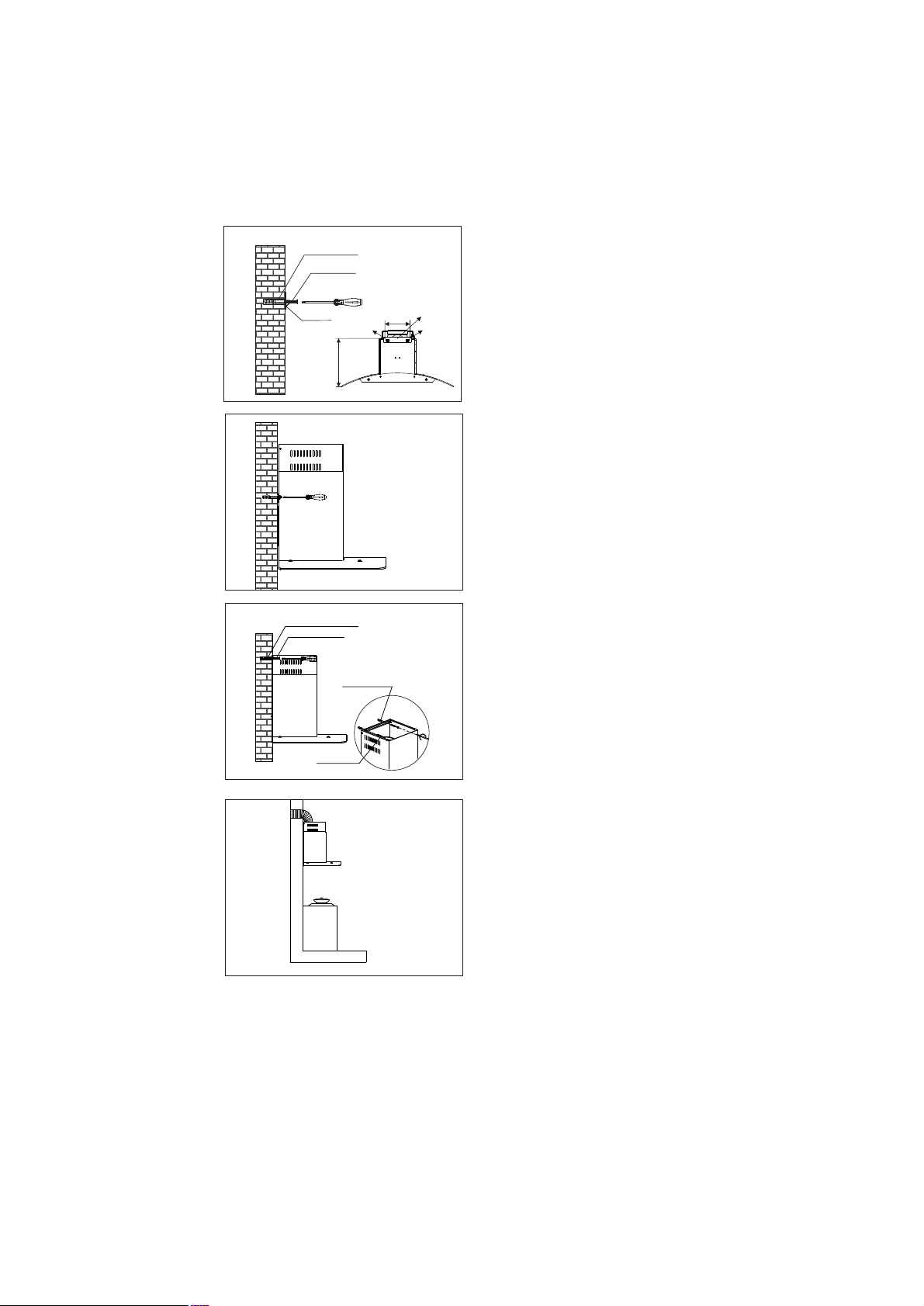

Step5:
A ccording to the size of hook key holes.
Drill 3 holes in level in the wall with
10mm in diameter and 75~85mm in depth.
C
200
B
A
Press the 3 expanding tube provided into
the holes. Fix the hook using the 5x50
metal screw provided.
Then insert three M5X50 screws to A and B
And C holes to fix the hook on the wall steadily.
Step 6:
Hang the entire hood onto the hook,
ensure the hood is level and vertical.
Step 7:
1. Draw the inner duct cover up to the
suitable height, mark on the wall two
keyhole of the outer duct cover bracket
with pen .
2. Put down the inner duct cover gently,
drill the keyholes in 75-85 mm depth on
the horizontal level using 10mm drill.
3. Press the expanding tube provided into
the holes.
4. Matching the inner duct cover with the
holes, tighten the inner duct cover with
two 5x50 metal screw provided.
Step 8:
Extend the air outlet of the exhaust pipe
out-of-door. Try to make the bend of the
exhaust pipe is no more than 120°.
5
Page 8

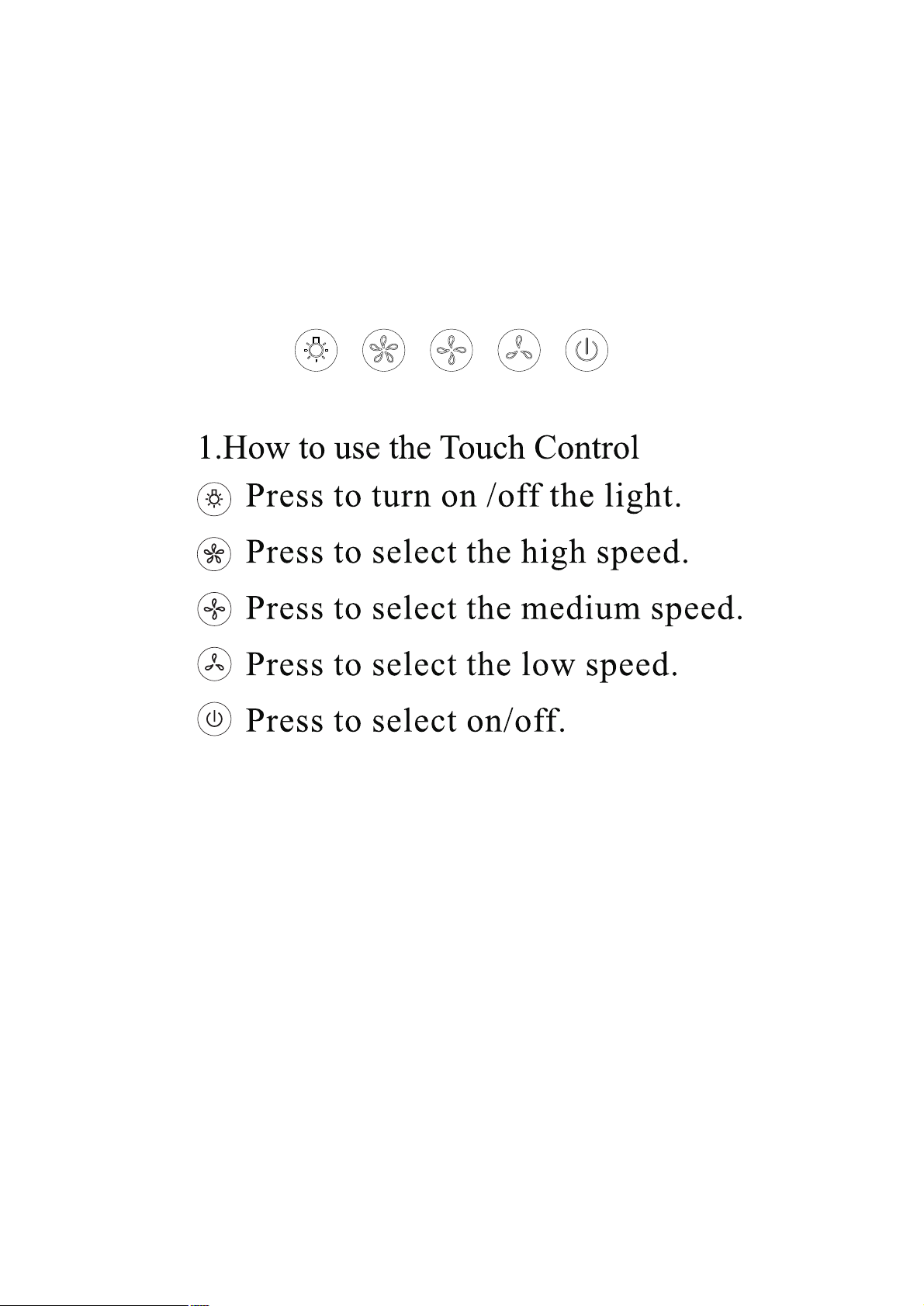

OPERATING INSTRUCTION
6
Page 9
7
Page 10
8
Page 11
9
Page 12
TROUBLE SHOTTINGS
CAUTION: Disconnect the power supply before servicing.
STATUS
The power
supply is
damaged
The motor
does not run
The unit
body shake
Big noise
Suction not
so powerful
CAUSE & METHOD OF REPAIRING
If the power supply is damaged, please call
the technician to repair.
A). The fan was blocked, check the fan make
sure it is in the correct place.
B). The motor was blocked, check the motor
and make sure it’s in the correct place.
C). The motor was broken, replace a new one.
D). The switch was broken, replace a new one.
E). The capacitor was broken, replace a new one.
A). The installation is not firm enough.
Check it and make sure the hood is firm enough.
B). The fan is broken, so it’s no balance.
Replace a new one.
C). The installation of the blower is not correct.
Check it and install it correctly.
D). The motor does not firm enough.
Check it and install it firmly enough.
A). The blower is no in balance. Adjust the fan fix
screws to balance or replace a new one.
B). Some other things drop to the blower.
Check and clean it.
A). The distance from the range hood to the gas
cooker is too big, make sure the distance is
about 600-700mm.
B). There are many windows or doors in the
kitchen, the air convection is too big. Close
some doors or windows to make the air
convection smaller.
C). There is some other pour wind to the
exhaust pipe. Make the exhaust pipe’s exit
to downwards.
D). The run rate of motor decrease obviously.
Replace a new motor or capacitor.
Because of the range hood is set upon one
board on the back of the range hood for
covering the hollow of the window.
TOOL
Screwdriver
Screwdriver
Screwdriver
Screwdriver
Screwdriver
Led light
does not work
Replace a new LED light assembly.
10
Screwdriver
