PRODUCT INFORMATION
7-outlet AV Advanced PowerStrip+
Multi-Sensor
TS1810
For technical support
go to www.tricklestar.com
or call 1-888-700-1098
REV 6– 4Oct2017188LV-US-7XXXA-MA4BM
Quick Start Guide &
Instruction Manual

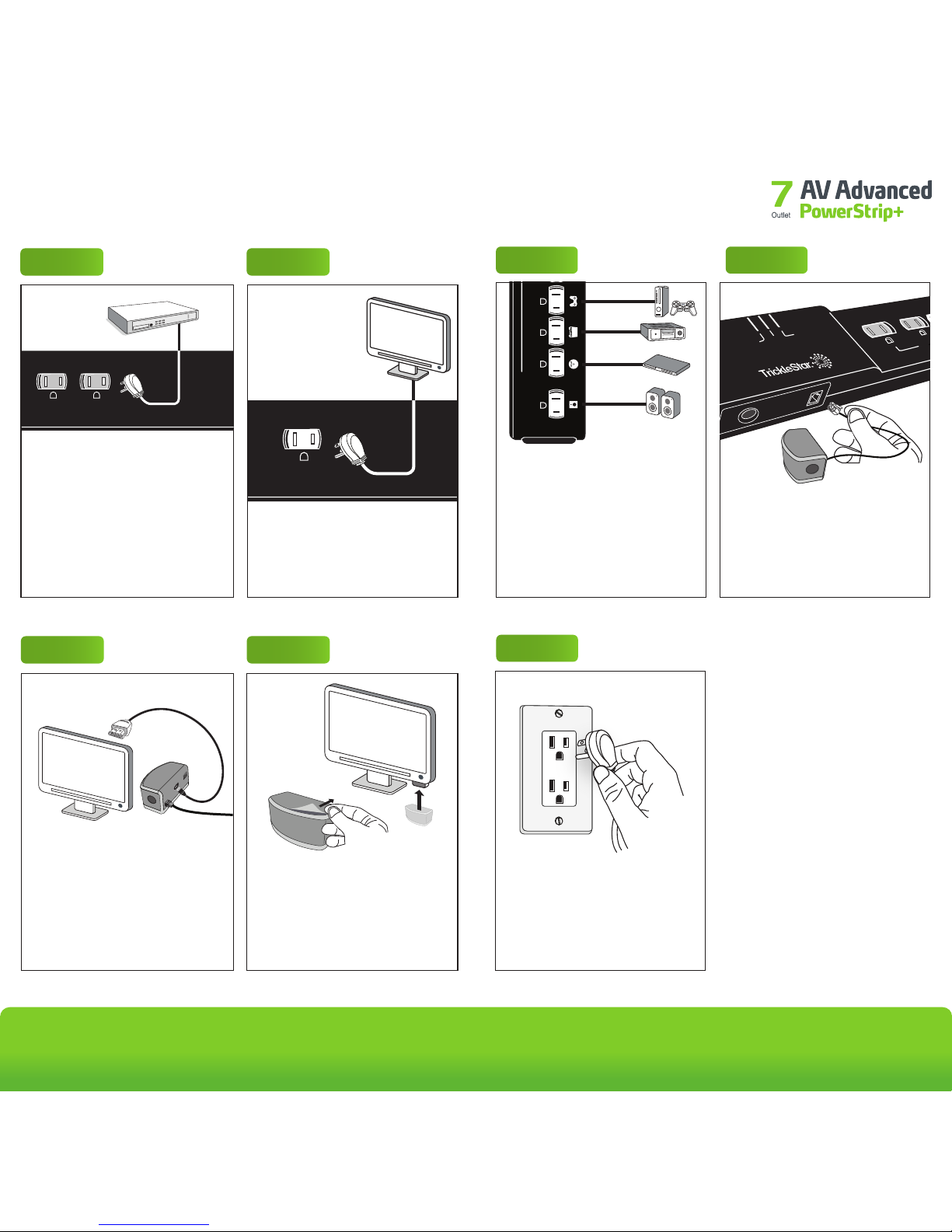

Installation Diagram
www.tricklestar.com
AV Advanced Powerstrip+
TAV-LINK
-
*
Game consoles without hard disk drives (HDD) should be plugged into a
switched outlet. CEC compatible game consoles with hard disk drives
can be plugged into an always-on outlet and controlled via TAV-Link.
*
IR REMOTE
CONTROL
MOTION
IR & MOTION
MULTI-SENSOR
(for CEC function)
To configure the countdown timer, press and hold
the button for 10 seconds until the red LED
illuminates. Then press:
• Once for 30 minutes (IR + motion sensing)
• Twice for 60 minutes (IR + motion sensing)
• Three times for 120 minutes (IR + motion
sensing)
• Four times for 60 minutes (IR sensing only)
• Five times for 120 minutes (IR sensing only)
LED will flash once for 30 minutes, twice for 60
minutes (default setting), three times for 120
minutes, four times for 60 minutes (IR sensing only)
and five times for 120 minutes (IR sensing only).
Programming the
Countdown Timer
www.tricklestar.com
AV Advanced Powerstrip+
4
5
6
7
8
9
1
2
3
IR & Motion Multi-Sensor
The multi-sensor is connected to the powerstrip via the RJ11 port marked
“sensor.” Mount the multi-sensor on the underside of the TV near the IR
receiver on the TV (typically located next to the TV's power on/off button).
The multi-sensor must be located within line of sight of where you
normally use your remote controls.
Power Connection
The Product must only be plugged into a grounded receptacle for surge
protection to operate correctly. All connected devices should be plugged
directly into the Product. Use of an extension cord, adaptor or other
powerstrip in conjunction with the Product will void all warranties.
Sensor/RJ11 Port
Plug the IR & motion multi-sensor into this port.
There will be a soft audible ‘click’ when the connector is inserted correctly.
Surge LED
When illuminated, it indicates that the surge protection is functioning
normally. If this LED illuminates red or extinguishes at any time, the
Product was sacrificed to protect your devices and must be replaced.
Ground LED
When illuminated, it indicates that the Product is correctly grounded.
If not illuminated, there is a grounding problem and you must contact an
electrician to properly ground the socket. Surge protection will not work
with an improperly grounded outlet.
Switched LED
When illuminated, it indicates that the switched outlets are receiving power.
Resettable Circuit Breaker
All outlets on the Product are protected. If the surge, ground, and
switched LEDs are not illuminated and/or connected devices are not
receiving power, press the circuit breaker to activate power.
Always-on Outlets
Equipment that requires continuous power should be plugged into the
always-on outlets.
< tv > Outlet
The outlet marked < tv > is the control outlet and includes true RMS
power measurement.
IMPORTANT: THE TV MUST BE PLUGGED INTO THIS OUTLET
Switched Outlets
If there is no IR or motion detected, these outlets will switch off.
TAV-Link Cable (optional, not supplied)
If there is no IR or motion detected, TAV-Link will send high-level CEC
commands to certain HDMI connected devices, allowing them to safely
store their data and settings prior to powering down
11
10
4 5
6
7
9
8
1
2
3
10
11
Product Overview
