TRICITY BENDIX SiE530BK User Manual
OPERATING AND INSTALLATION INSTRUCTIONS
MODEL NO.
SIE 530
35
TECHNICAL DETAILS
MODEL NO. SIE 530
Voltage: 230/240 Volts AC 50Hz
Wattage: 10.5/11.4kW
Height: 900mm
Width: 600mm
Depth: 598mm
This appliance complies with: European Council Directive 73/23/EEC.
EMC Directive 89/336/EEC.
CE Marking Directive 93/68/EEC.
2
CONTENTS
Technical Details .................................................................................. 2
Contents
Preface
Safety
Introduction ...................................................................................... 8
..........................................................................................
............................................................................................
.............................................................................................
Before Installation ........................................................................... 6
During Operation ........................................................................... 6
After Use ................................................................................... 7
General .................................................................................... 7
Rating Plate
Installation .................................................................................. 8
General Notes on Using Your Cooker ........................................................ 9
About Condensation and Steam ............................................................. 9
The Cooling Fan for the Controls ............................................................ 9
Control Panel Indicator Neons ............................................................... 9
Cookware .................................................................................. 9
Grill and Oven Furniture .................................................................... 10
................................................................................
3
5
6
8
Getting to Know your Cooker
The Control Panel ......................................................................... 11
The Timer ................................................................................. 12
The Ceramic Hob
Recommended Saucepans ................................................................. 14
Hints and Tips ............................................................................. 14
Hot Hob Indicator .......................................................................... 15
Deep Fat Frying ........................................................................... 15
Preserving ................................................................................. 15
The Grill
The Top Oven
........................................................................................
Uses of the Dual Grill ...................................................................... 16
Selecting the Grill .......................................................................... 16
Things to Note ............................................................................. 16
The Grill Pan and Handle ................................................................... 16
Hints and Tips ............................................................................. 17
Grilling Chart .............................................................................. 17
Uses of the Top Oven ...................................................................... 18
Selecting the Top Oven .................................................................... 18
Things to Note ............................................................................. 18
To Fit the Top Oven Shelf .................................................................. 18
Hints and Tips ............................................................................. 19
...............................................................................
...................................................................................
...................................................................
11
14
16
18
The Main Fan Oven
Uses of the Fan Oven ...................................................................... 20
Selecting the Fan Oven .................................................................... 20
Things to Note ............................................................................. 20
To Fit the Main Oven Shelves .............................................................. 20
Hints and Tips ............................................................................. 21
Oven Cooking Chart
Roasting Chart .................................................................................. 23
..............................................................................
.............................................................................
20
22
3
CONTENTS
Defrosting
Care and Cleaning
Something Not Working? ....................................................................... 29
Service and Spare Parts
Customer Service Centres
Guarantee Conditions ........................................................................... 33
.......................................................................................
Uses of Defrost Feature ................................................................... 24
Selecting Defrost ......................................................................... 24
Things to Note ............................................................................ 24
Hints and Tips ............................................................................ 24
...............................................................................
Cleaning Materials ........................................................................ 25
Cleaning the Brass Plated Handles ......................................................... 25
Cleaning the Ceramic Hob ................................................................. 25
Hints and Tips ............................................................................ 26
Cleaning the Outside of the Cooker ........................................................ 26
Cleaning the Grill Deflector, Meat Tin, Grill Pan, Grill Pan Grid and Oven Shelves ............ 26
Cleaning Inside the Oven and Grill Compartments .......................................... 26
Care of Stayclean Surfaces ................................................................ 27
Hints and Tips ............................................................................ 27
Cleaning between the Outer and Inner Door Glass .......................................... 27
Replacing the Oven Light Bulb ............................................................. 28
.........................................................................
.......................................................................
24
25
30
31
4
PREFACE
Dear Customer,
Thank you for buying a Tricity Bendix cooker. With our 80 years experience in
developing and manufacturing the very best in U.K. cookers, you can be
assured that you have purchased a hard working, reliable, quality product.
Tricity Bendix cookers comply with British Standard safety and performance
requirements. They have been approved by BEAB (British Electrotechnical
Approvals Board) and are covered by a 12 month parts and labour guarantee.
To get the best from your new Tricity Bendix cooker, we ask that you PLEASE
READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be
made to cooking times and temperatures which may differ from your previous
cooker.
It is most important that this instruction book is retained with the cooker for
future reference. Should the cooker be sold, or if you move house and leave
the cooker, always ensure that the book remains with the cooker. This will
enable the new owner to be acquainted with the functioning of the cooker and
the relevant warnings.
Please read the whole instruction book before attempting to use the cooker
ensuring you follow the recommendations given.
5
SAFETY
THESE WARNINGS ARE PROVIDED IN
THE INTERESTS OF YOUR SAFETY.
ENSURE THAT YOU UNDERSTAND
THEM ALL BEFORE INSTALLING OR
USING THE COOKER.
PLEASE
READ
CAREFULLY
BEFORE INSTALLATION
This cooker is heavy and care must
be taken when moving it.
Ensure that all packaging, both
inside and outside the cooker has
been removed before the appliance
is used.
Do not try to move the cooker by
pulling the door handles.
The electrical installation work must be
undertaken by a qualified electrician /
competent person.
It is dangerous to alter or modify
the specifications of the cooker in
any way.
DURING OPERATION
Do not use this cooker if it is in
contact with water. Never operate it
with wet hands.
This cooker is designed to be
operated by adults. Young children
must not be allowed to tamper with
the cooker or play with the controls.
Accessible parts especially around
the grill area may become hot when
the cooker is in use. Children should
be kept away until it has cooled.
Take great care when heating fats
and oils as they will ignite if they
become too hot.
This cooker has been designed for
cooking edible foodstuffs only, and
must not be used for any other
purposes.
Never place plastic or any other
material which may melt in the oven
or on the hob.
Ensure cooking utensils are large
enough to contain foods to prevent
spillages and boil overs.
Do not use the cooker if the ceramic
glass is damaged. If a fault or crack
becomes visible during cooking,
disconnect the cooker immediately
from the electricity supply and
contact the Customer Service
Centre.
Do not place silver foil or plastic
containers on ceramic glass.
After installation, please dispose of
the packaging with due regard to
safety and the environment.
The handles of saucepans which are
smaller than the heated area on the
hob will become hot. Ensure your
hand is protected before handling the
pan.
Take care to follow the recommendations
given for tending the food when grilling.
6
Ensure that you support the grill pan
when it is in the withdrawn or partially
withdrawn position.
Ensure that all vents are left
unobstructed to ensure ventilation of
the oven.
Ensure that the anti-tilt shelves are
put in place correctly. Refer to
instructions on pages 18 and 20.
Never line any part of the cooker
with aluminium foil.
Always stand back from the cooker
when opening the oven door to allow
any build up of steam or heat to
release.
Do not place sealed cans or
aerosols inside the oven. They may
explode if they are heated.
Do not leave the hotplates switched
ON for long periods when not
covered by a saucepan. The controls
may overheat.
GENERAL
Under no circumstances should
repairs be carried out by
inexperienced persons as this may
cause injury or serious malfunction.
This cooker should be serviced by
an authorised Service Engineer and
only genuine approved spare parts
should be used.
Do not stand on the cooker or on
the open oven door.
Do not hang towels, dishcloths or
clothes from the cooker or its handle.
They are a safety hazard.
Always allow the cooling fan to cool
the cooker down before switching off
at the wall prior to carrying out any
cleaning or maintenance work.
Only clean this cooker in accordance
with the instructions given in this
book. Extreme care must be taken
when using a ceramic hob scraper.
AFTER USE
Ensure that all control knobs are in
the OFF position when not in use.
For hygiene and safety reasons this
cooker should be kept clean at all
times. A build-up of fats or other
foodstuffs could result in a fire,
especially in the grill pan.
Do not leave utensils containing
foodstuffs, e.g. fat or oil in or on the
cooker in case it is inadvertently
switched ON.
Cookers and hobs become very hot,
and retain their heat for a long period
of time after use. Children should be
kept well away from the cooker until
it has cooled.
Your safety is of paramount importance.
Therefore, if you are unsure about any of the
meanings of these WARNINGS contact the:
Consumer Care Department
Telephone (01635) 525542
7
INTRODUCTION
WARNING: THIS COOKER MUST BE EARTHED
RATING PLATE
Record the model, product and serial numbers on the
back cover from the rating plate. This is situated on
the lower front frame of the cooker and can be seen
upon opening the fan oven door.
The cable should be routed away from potentially hot
areas marked by X in the diagram below.
The cooker must be protected by a suitably rated
fuse or circuit breaker. The rating of the cooker is
given on the rating plate.
INSTALLATION
If your cooker has been damaged in transit, contact
your supplier immediately. DO NOT attempt to install
it.
Your cooker left the factory fully packaged to protect
it from damage. If it is delivered without packaging
and damage has occurred the manufacturer cannot
accept responsibility. Contact your supplier for
advice.
Once the packaging has been removed the cooker
should only be moved by hand. DO NOT use a sack
barrow or any other aid to lift the cooker as damage
may occur.
Connection to the electricity supply must be carried
out by a qualified electrician/competent person.
REAR VIEW
To move the cooker, open the fan oven door, and lift
the cooker by holding inside the top of the
compartment.
This is a type Y cooker which means it is
free-standing and can be fitted with cabinets on one
or both sides. It may also be fitted in a corner setting.
Ensure that the cooker is standing level.
Side walls which are above hob level should be
protected by heat resistant non-combustible material
and MUST NOT be nearer than 40mm to the hob
side.
The electrical connection should be made using a
double pole isolating switch (cooker socket) with at
least 3mm contact separation. The cable must have
conductors of sufficiently high cross-sectional area to
prevent overheating and deterioration.
The recommended cross-section area is six square
millimetres (6.00mm²).
8
A nominal air gap of 2mm all around the cooker is
required to enable the cooker to be moved into
position.
A spacer has been incorporated into the back of the
appliance to ensure an air gap of 10mm is
maintained at hotplate level. Tiles or other forms of
deep wall covering should not obscure this gap.
Note: Vapours from the oven vents may in time
cause discoloration of wallcoverings behind the
cooker. For ease of cleaning it may be preferable to
tile behind the cooker.
Overhanging surfaces or a cooker hood should be a
minimum of 685mm above the hob.
THE COOLING FAN FOR THE CONTROLS
The cooling fan operates immediately when the grill
or top oven is switched on. It may run on after the
controls are switched off until the appliance has
cooled. If an automatic programme has been set the
cooling fan does not switch on until the cooktime
begins.
Note: The action of the cooling fan will depend on
how long the top oven or grill have been used and at
what temperature. It may not run on where the grill or
top oven has been used for a short time or at low
temperatures. Do not switch the cooker off at its
power point until the cooling fan has cooled the
cooker down.
CONTROL PANEL INDICATOR NEONS
It is important to ensure that the cooker is level after
installation. Levelling feet are fitted to the front of the
cooker to accommodate uneven floors.
GENERAL NOTES ON USING YOUR
COOKER
We suggest that you run the oven elements for 10 15 minutes at 220°C to burn off any residue from
their surfaces.
The procedure should be repeated with the grill for
approximately 5 - 10 minutes.
During this period an odour may be emitted, it is
therefore advisable to open a window for ventilation.
ABOUT CONDENSATION AND STEAM
When food is heated it produces steam similar to a
boiling kettle. The ovens are vented to allow some of
this steam to escape. However, always stand back
from the cooker when opening the oven door to allow
any build up of steam or heat to release.
If the steam comes into contact with a cool surface
on the outside of the cooker, e.g. a trim, it will
condense and produce water droplets. This is quite
normal and is not caused by a fault on the appliance.
These lights indicate whether the ovens are switched
on.
The neons also indicate when the set temperature
has been reached. They will cycle on and off during
use to show that the temperature is being
maintained.
If the neons do not operate as the instructions
indicate the controls have been incorrectly set.
Return all controls to zero and re-set following the
instructions for the required setting.
When the oven has been set for automatic cooking
the neon will remain unlit until the cooktime begins.
COOKWARE
Baking trays, oven dishes etc., should not be placed
directly against the grid covering the fan at the back
of the oven.
Do not use baking trays larger than 30cm x 35cm
(12" x 14") as they will restrict the circulation of heat
and may affect performance.
To prevent discoloration, regularly wipe away
condensation and also soilage from surfaces
including the vent at the rear of the hob. See note at
the top of this page.
For your safety wallcoverings at the rear of the
cooker should be securely fixed to the wall.
9
GRILL AND OVEN FURNITURE
The following items of grill and oven furniture have
been supplied with the cooker.
1 grill pan
1 grill pan handle
1 grill pan grid
1 grill deflector
1 meat tin
1 trivet
1 cranked shelf
for grilling and top
oven cooking only
2 straight shelves
for main oven cooking
The grill deflector sits above the grill element and
prevents fat splashing onto the grill roof. The
deflector may be easily removed for cleaning.
Scuffing of the Stayclean main oven lining by the
oven furniture pack may occur during transit. These
marks will disappear after the oven elements have
been burnt off for the first time.
10

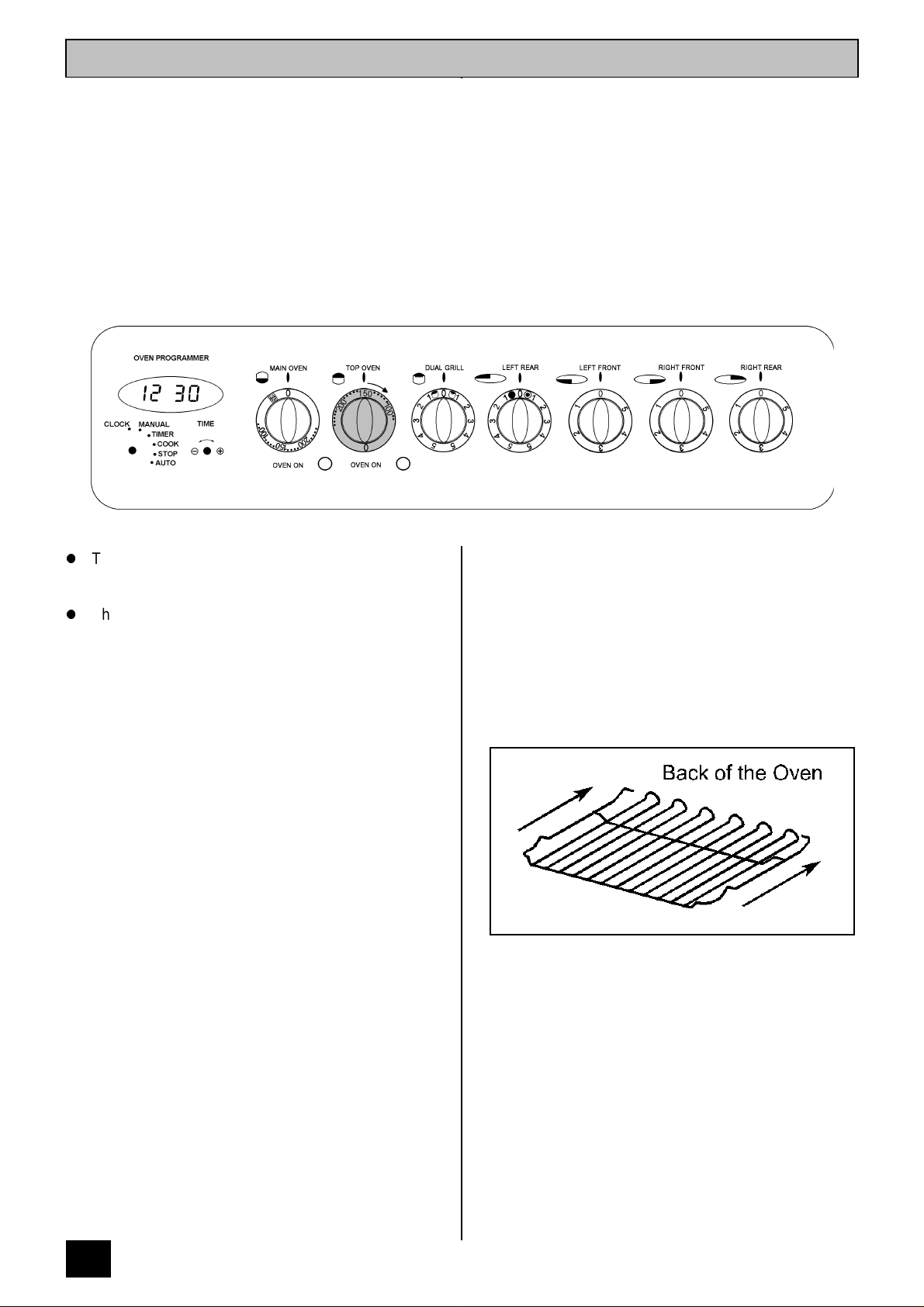

GETTING TO KNOW YOUR COOKER
THE CONTROL PANEL - SIE530
A B D F
C E
FEATURES
A - Timer
B - Main Oven Temperature Control
C - Main Oven Indicator Neon
D - Top Oven Temperature Control
E - Top Oven Indicator Neon
F - Dual Grill Control
G - Hotplate Controls
G
11
THE TIMER
Please note that this is a 24 hour clock, for example
2.00 pm is shown as 1400.
In the following pages we explain how to set the
controls. Read through them a few times until you
are familiar with the procedure. We have supplied a
plastic card as a quick reference when setting the
timer.
If the oven is switched off on the wall, or there is
a loss of power, the clock will stop and you will not
be able to use the main oven. When you first switch
the electricity supply on, the timer display will flash.

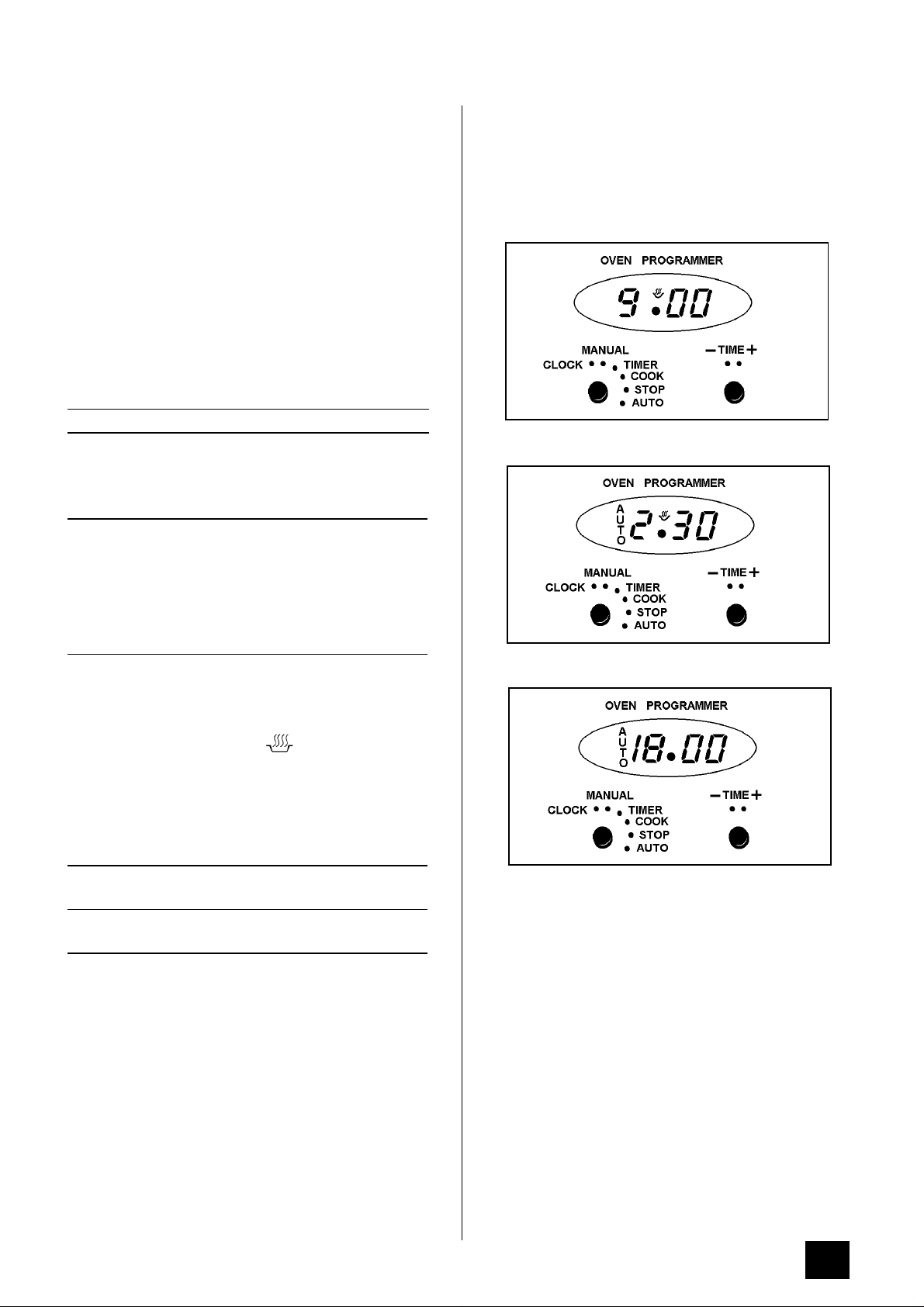

TO SET THE TIME OF DAY
Turn the selector knob to 'manual' then turn to 'clock'.
Set the correct time by turning and holding the
setting knob clockwise. Adjust the time by turning the
setting knob in either direction.
Turn the selector knob back to 'manual'.
THINGS TO NOTE:
TO CHANGE THE AUDIBLE SIGNAL
Cookpot symbol
Selector Setting knob
Bell symbol
When the setting knob is turned anti-clockwise, a
choice of three audible signals are available. To
select the choice of signal required, rotate knob
anti-clockwise and release. Repeat procedure to
choose desired signal.
TO USE THE MINUTE MINDER
Turn the selector knob to 'timer'. Turn the setting
knob clockwise until the display shows the time you
want. The bell symbol ( ) will be showing and this
will stay lit up during the time. Our diagram shows
the timer set to 5 minutes.
If you change your mind and want to cancel the time
you have set, simply turn the setting knob
anticlockwise. Then turn the selector to 'manual'.
When you are using the minute minder you can
make the clock show the time of day by turning the
selector knob to 'manual'. The bell symbol will stay
on to remind you that the minute minder is set. At the
end of the timed period an alarm will sound and the
bell symbol will go out.
Switch off the alarm by turning the selector knob
to 'clock'. Then turn to 'manual' and the time of day
will show in the display.
Note:
You can use the minute minder when an automatic
sequence has been set, as long as you remember
the following point.
1 Turn the selector knob to 'Auto' as soon as you
have entered the timed period into the display.
12
Loading...
