tricity bendix SIE252W, SIE252B User Manual
OPERATING AND INSTALLATION INSTRUCTIONS
MODEL NO.
SIE252
27
TECHNICAL DETAILS
MODEL NO. SIE252
Voltage: 230/240 Volts AC 50Hz
Wattage: 7.9/8.6 kW
Height: 900mm
Width: 500mm
Depth: 600mm
This appliance complies with: European Council Directive 73/23/EEC.
EMC Directive 89/336/EEC.
CE Marking Directive 93/68/EEC.
2
CONTENTS
Technical Details
Contents
Preface
Safety
Introduction ...................................................................................... 8
Getting to Know Your Cooker
The Sealed Hotplates ............................................................................ 11
.........................................................................................
...........................................................................................
.............................................................................................
Before Installation ........................................................................... 6
During Operation ........................................................................... 6
After Use ................................................................................... 7
General .................................................................................... 7
Rating Plate
Installation .................................................................................. 8
General Notes on Using Your Cooker ........................................................ 9
About Condensation and Steam ............................................................. 9
Grill and Oven Furniture ..................................................................... 9

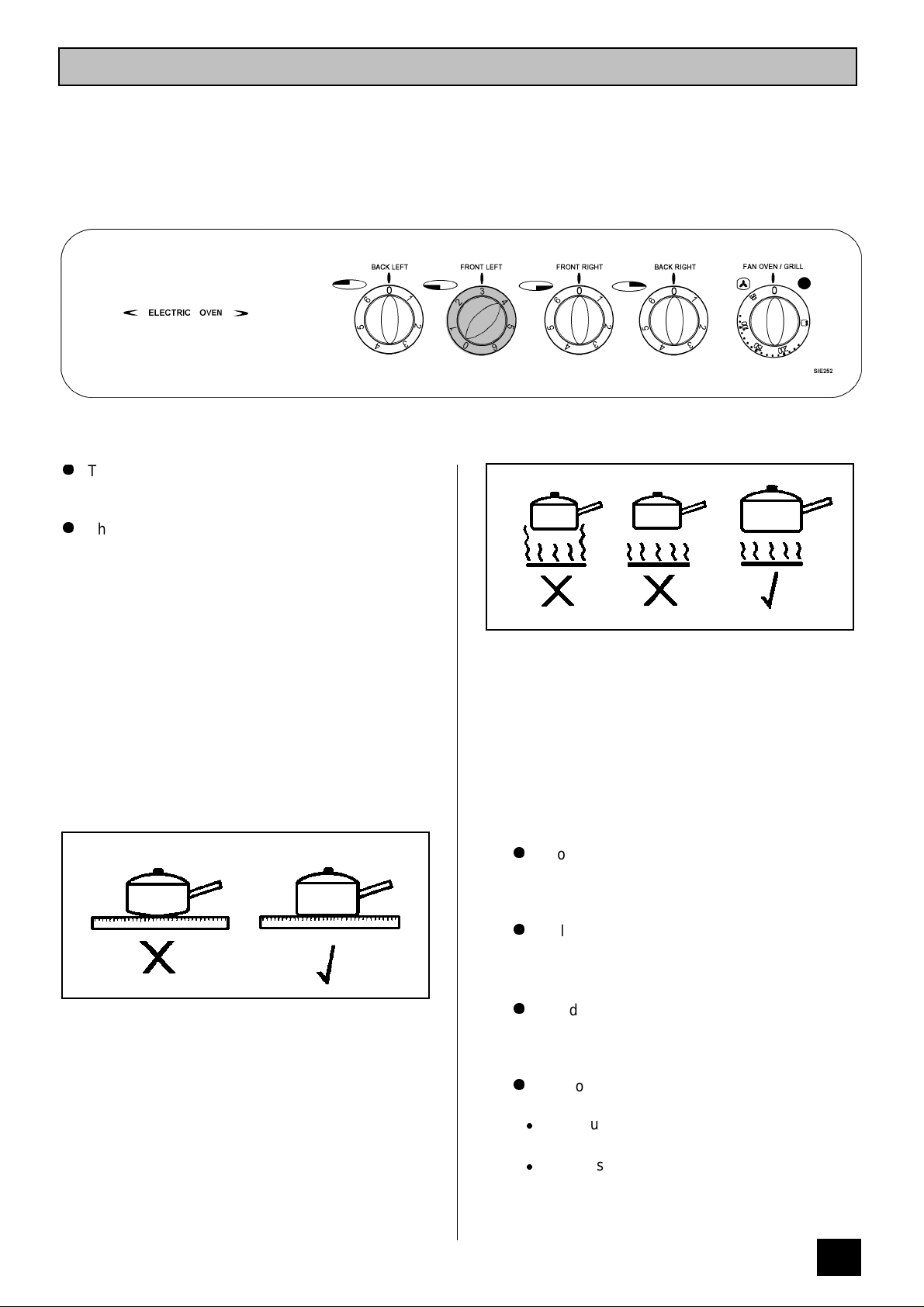

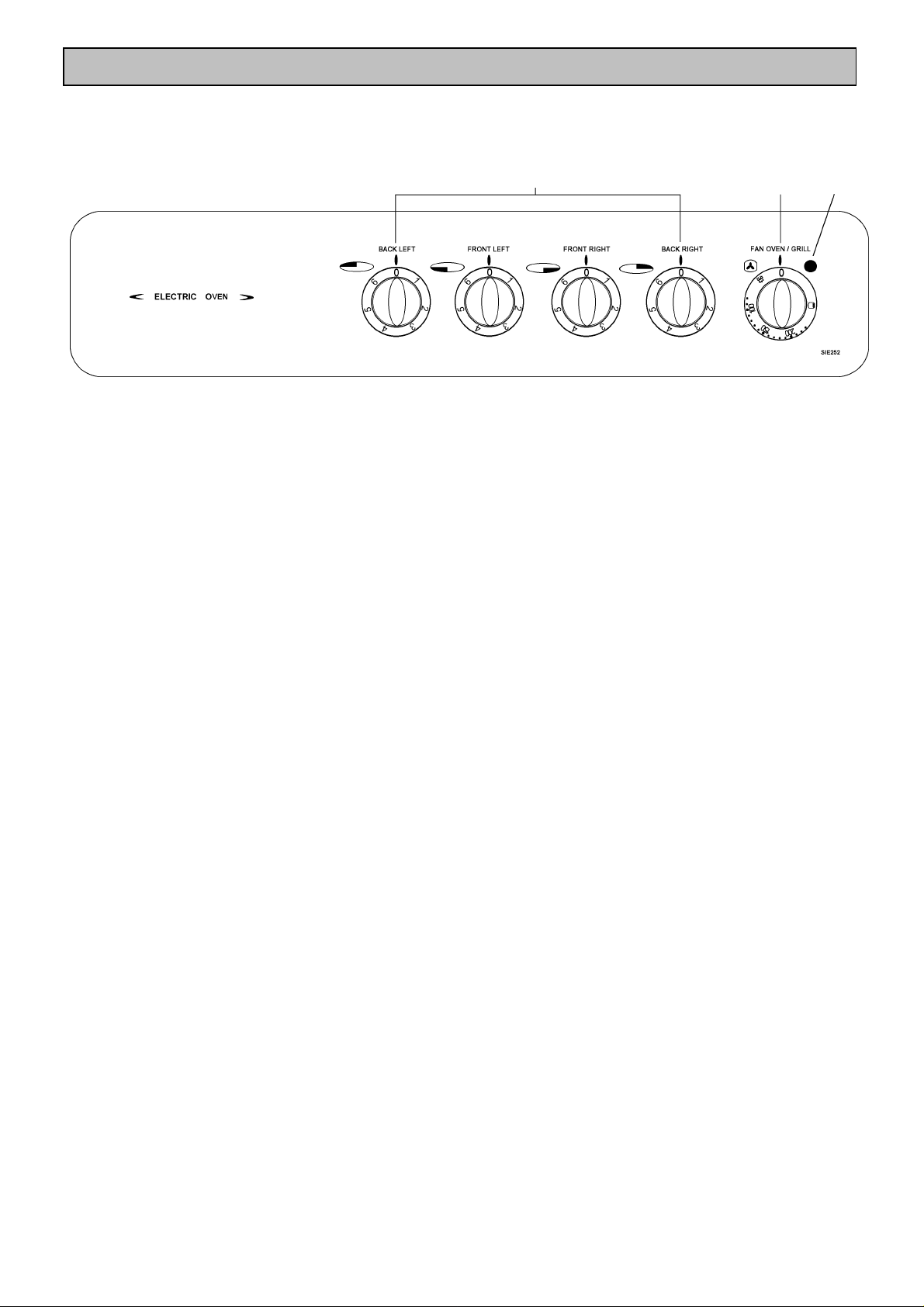

The Control Panel ......................................................................... 10
Recommended Saucepans ................................................................. 11
Hints and Tips ............................................................................. 11
Deep Fat Frying
Preserving ................................................................................. 12
.................................................................................
................................................................................
...................................................................
...........................................................................
10
12
2
3
5
6
8
The Grill
The Fan Oven
Oven Cooking Chart ............................................................................. 17
Roasting Chart .................................................................................. 18
Defrost Feature .................................................................................. 19
.........................................................................................
Selecting the Grill .......................................................................... 13
Things to Note ............................................................................. 13

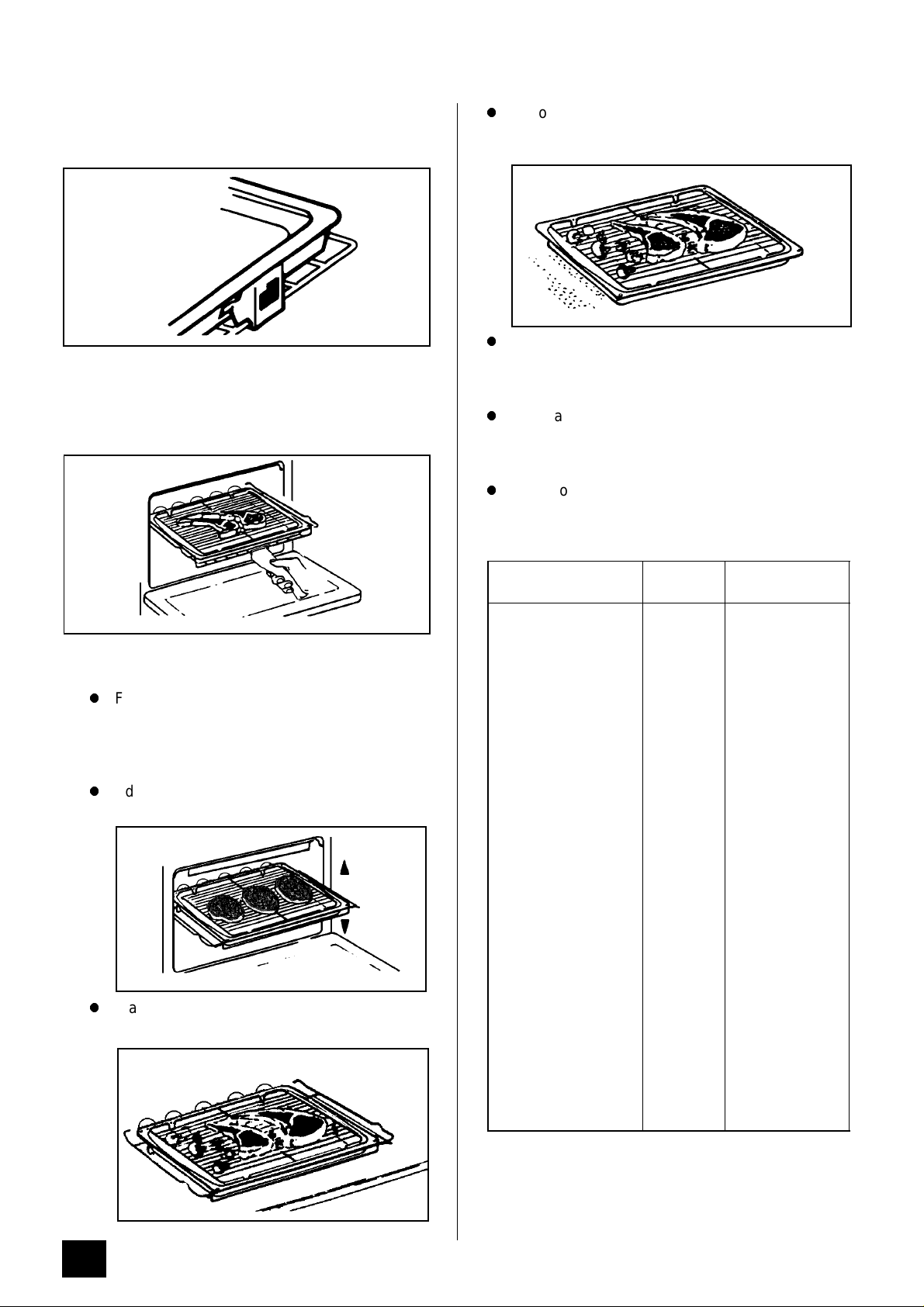

The Grill Pan and Handle ................................................................... 13
Hints and Tips ............................................................................. 14
Grilling Chart .............................................................................. 14
...................................................................................
Uses of the Fan Oven ...................................................................... 15
Selecting the Fan Oven .................................................................... 15
Things to Note ............................................................................. 15

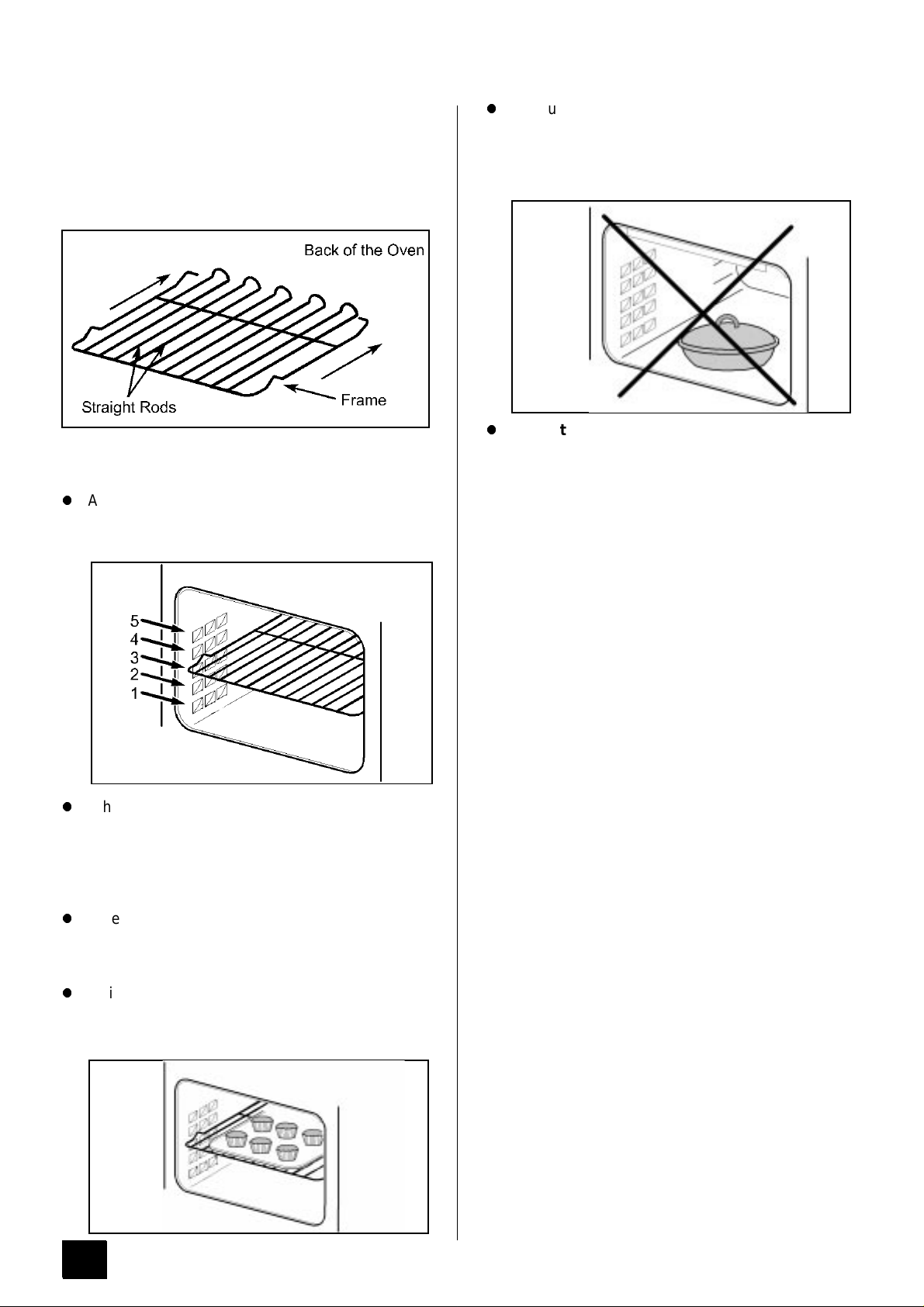

To Fit the Oven Shelves ................................................................... 16
Hints and Tips ............................................................................. 16
Uses of Defrost Feature .................................................................... 19
Selecting Defrost .......................................................................... 19
Things to Note ............................................................................. 19
Hints and Tips ............................................................................. 19
13
15
3
CONTENTS
Care and Cleaning
Cleaning Materials ......................................................................... 20
Cleaning the Sealed Hotplates and Hotplate Trims .......................................... 20
Things To Note ............................................................................ 20
Cleaning the Outside of the Cooker ......................................................... 20
Cleaning the Grill Pan, Grill Pan Grid and Oven Shelves ..................................... 21
Cleaning Inside the Oven .................................................................. 21
Care of Stayclean Surface ................................................................. 21
Hints and Tips ............................................................................. 21

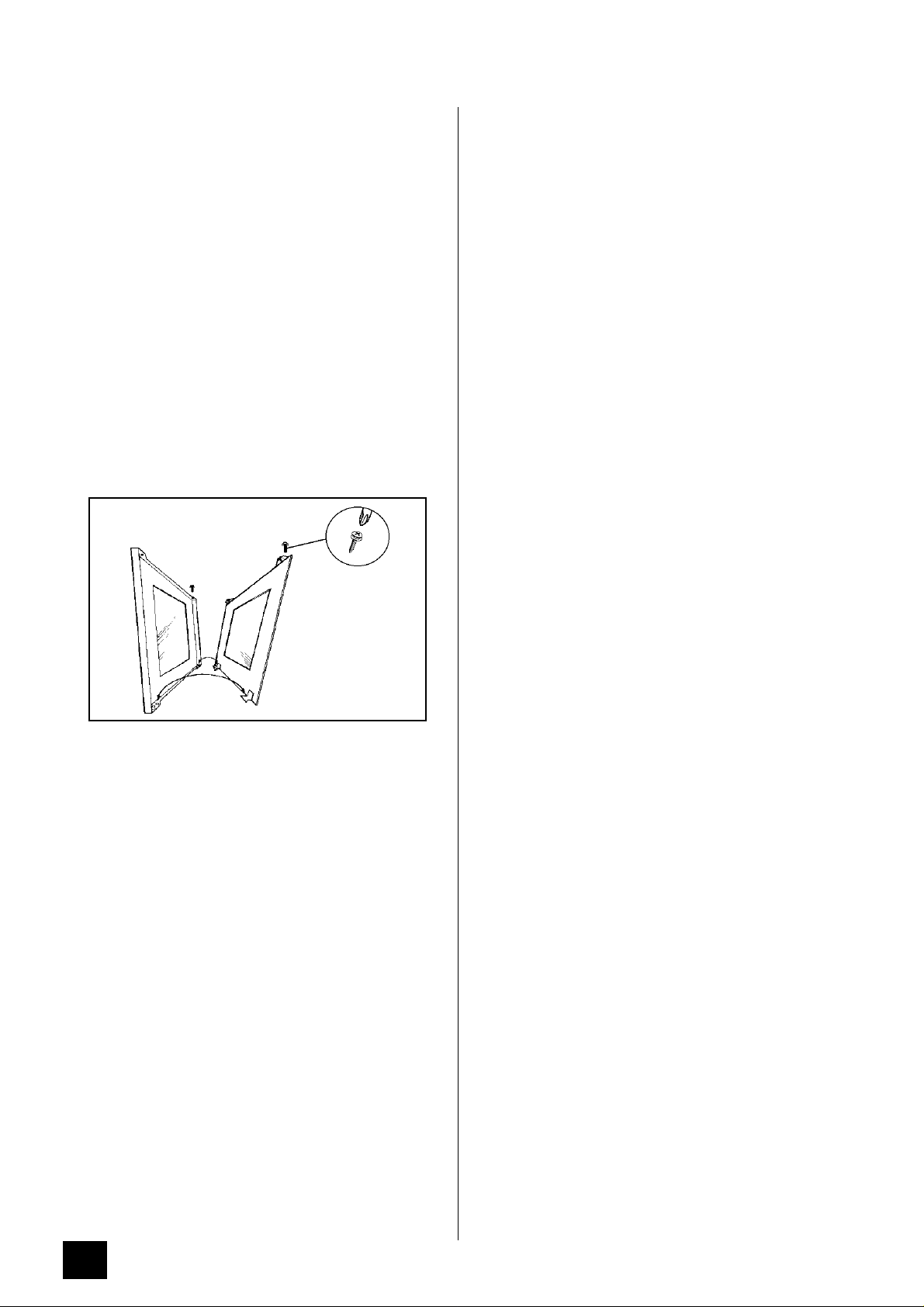

Cleaning between the Outer and Inner Door Glass .......................................... 22
Something not Working? ........................................................................ 23
Service and Spare Parts

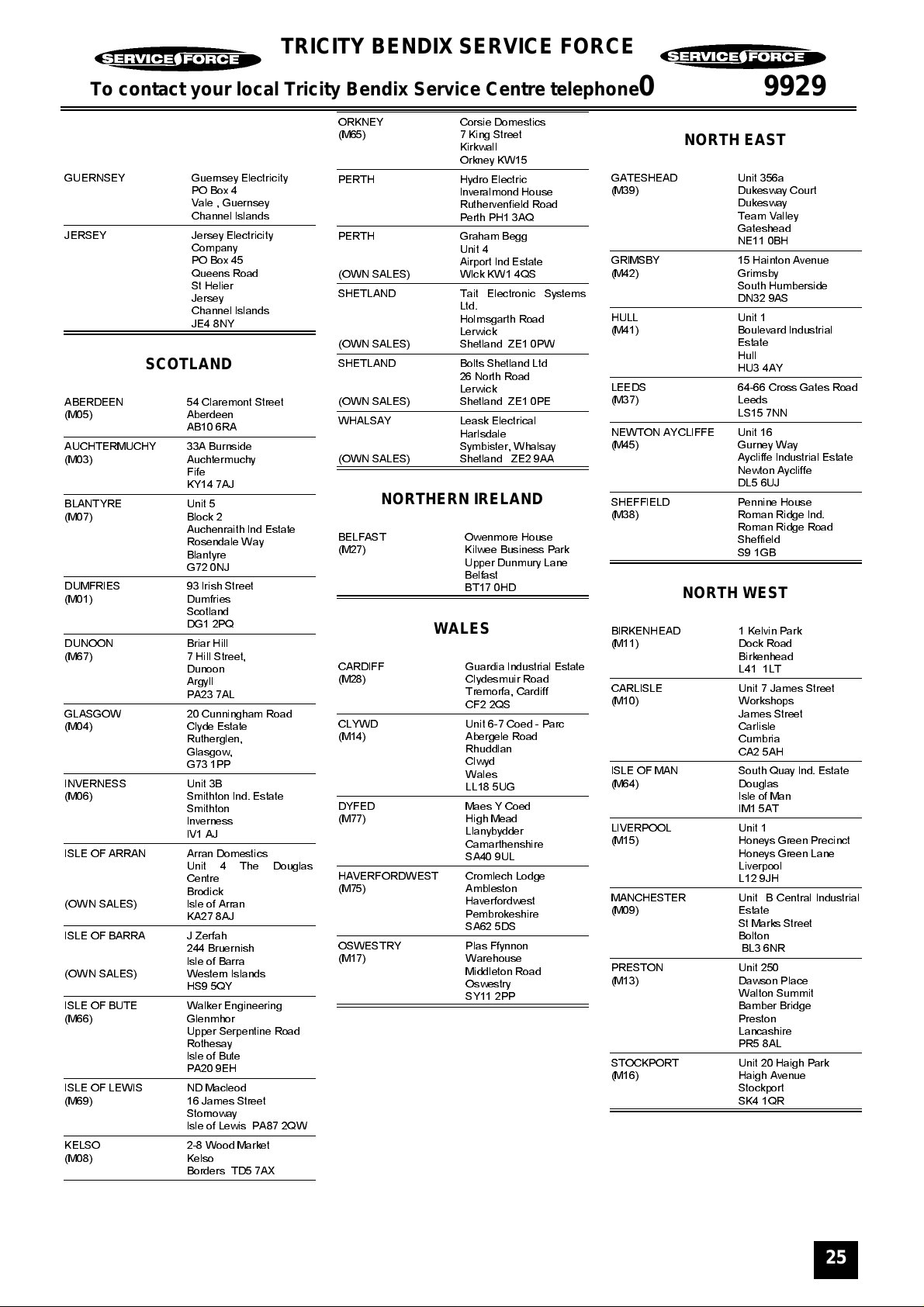

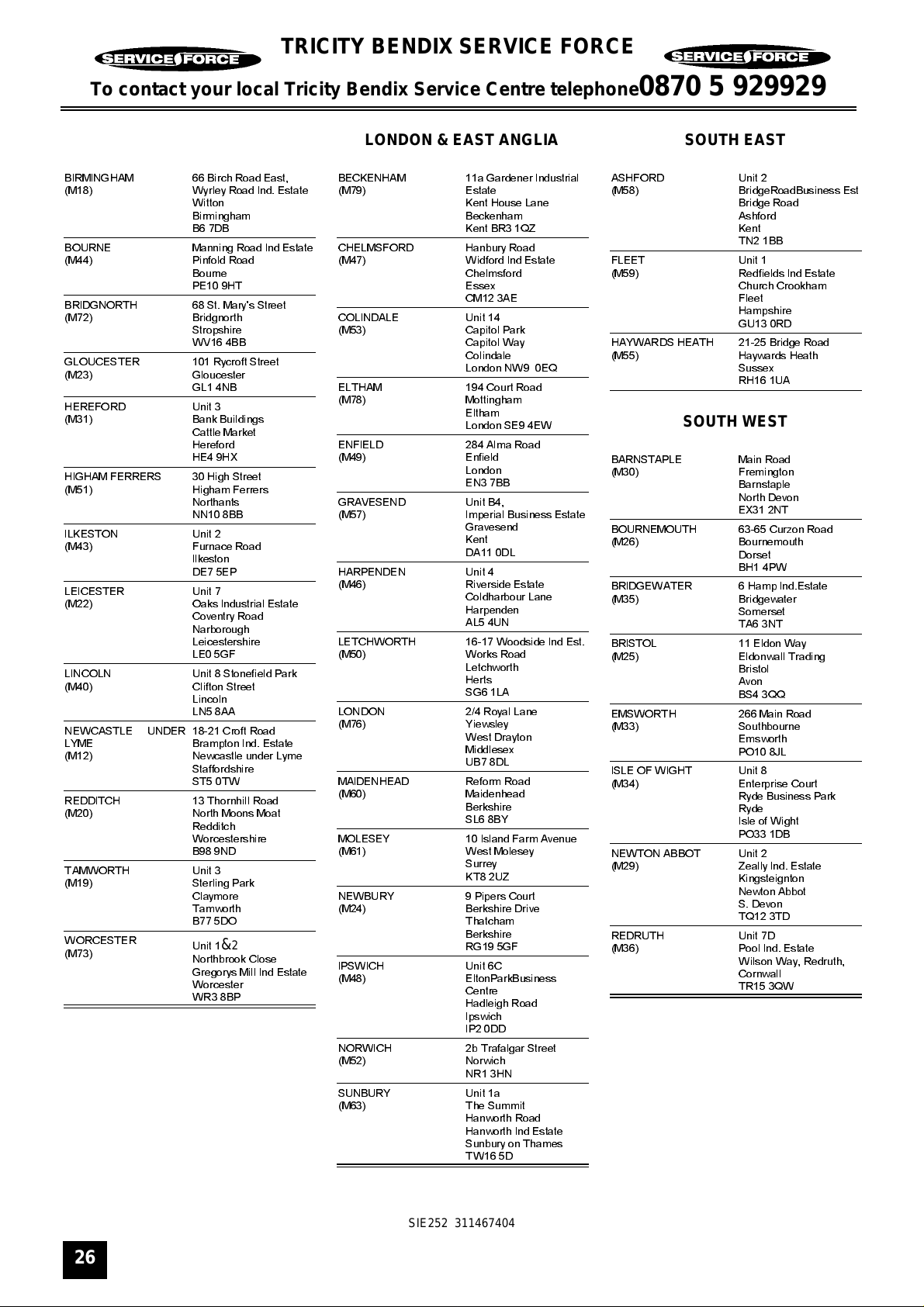

Customer Service Centres ....................................................................... 25
Guarantee Conditions
...............................................................................
.........................................................................
...........................................................................
20
24
27
4
PREFACE
Dear Customer,
Thank you for buying a Tricity Bendix cooker. With our 80 years experience in
developing and manufacturing the very best in U.K. cookers, you can be
assured that you have purchased a hard working, reliable, quality product.
Tricity Bendix cookers comply with British Standard safety and performance
requirements. They have been approved by BEAB (British Electrotechnical
Approvals Board) and are covered by a 12 month parts and labour guarantee.
To get the best from your new Tricity Bendix cooker, we ask that you PLEASE
READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be
made to cooking times and temperatures which may differ from your previous
cooker.
It is most important that this instruction book is retained with the appliance for
future reference. Should the appliance be sold, or if you move house and
leave the appliance, always ensure that the book remains with the appliance.
This will enable the new owner to be acquainted with the functioning of the
appliance and the relevant warnings.
Please read the whole instruction book before attempting to use the appliance
ensuring you follow the recommendations given.
5
SAFETY
THESE WARNINGS ARE PROVIDED IN
THE INTERESTS OF YOUR SAFETY.
ENSURE THAT YOU UNDERSTAND
THEM ALL BEFORE INSTALLING OR
USING THE COOKER.
PLEASE
READ
CAREFULLY
BEFORE INSTALLATION
This appliance is heavy and care
must be taken when moving it.
Ensure that all packaging, both
inside and outside the appliance, has
been removed before the appliance
is used.
If the cooker is to be placed on a
base, measures must be taken to
prevent the cooker slipping from the
base.
Do not try to move the appliance by
pulling the door handle.
DURING OPERATION
Do not use this appliance if it is in
contact with water. Never operate it
with wet hands.
This appliance is designed to be
operated by adults. Young children
must not be allowed to tamper with
the product or play with the controls.
Do not allow children to sit or climb
onto the drop down oven door.
During use the cooker becomes Hot.
Care should be taken to avoid
touching heating elements inside the
oven.
Accessible parts especially around
the grill area may become hot when
the appliance is in use. Children
should be kept away until it has
cooled.
Take great care when heating fats
and oils as they will ignite if they
become too hot.
This product has been designed for
cooking edible foodstuffs only, and
must not be used for any other
purposes.
Never place plastic or any other
material which may melt in the oven
or on the hob.
The electrical installation work must
be undertaken by a qualified
electrician/competent person.
It is dangerous to alter or modify
the specifications of the product in
any way.
After installation, please dispose of
the packaging with due regard to
safety and the environment.
Ensure cooking utensils are large
enough to contain foods to prevent
spillages and boil overs.
The handles of saucepans which are
smaller than the heated area on the
hob will become hot. Ensure your
hand is protected before handling the
pan.
Take care to follow the
recommendations given for tending
the food when grilling.
6
Do not leave the handle in position
when grilling as it will become hot.
Ensure that all vents are left
unobstructed to ensure ventilation of
the oven cavity.
Ensure that the anti-tilt shelves are
put in place correctly. Refer to
instructions on page 16.
Never line any part of the cooker
with aluminium foil. Do not allow
heatproof cooking material, e.g.
roasting bags to come into contact
with oven elements.
Always stand back from the cooker
when opening the oven door to allow
any build up of steam or heat to
release.
Stand clear when opening the drop
down oven door. Do not allow it to
fall open - support it using the door
handle until it is fully open.
Do not place sealed cans or
aerosols inside the oven. They may
explode if they are heated.
Cookers and hobs become very hot,
and retain their heat for a long period
of time after use. Children should
be kept well away from the appliance
until it has cooled.
GENERAL
Under no circumstances should
repairs be carried out by
inexperienced persons as this may
cause injury or serious malfunction.
This product should be serviced by
an authorised Service Engineer and
only genuine approved spare parts
should be used. Details of servicing
and repair arrangements are given on
page 24 of this book.
Do not stand on the cooker or on
the open oven door.
Do not hang towels, dishcloths or
clothes from the appliance or its
handle. They are a safety hazard.
Only clean this cooker in accordance
with the instructions given in this
book.
AFTER USE
Ensure that all control knobs are in
the OFF position when not in use.
For hygiene and safety reasons this
cooker should be kept clean at all
times. A build-up of fats or other
foodstuffs could result in a fire,
especially in the grill pan.
Do not leave utensils containing
foodstuffs, e.g. fat or oil in or on the
appliance in case it is inadvertently
switched ON.
Your safety is of paramount importance.
Therefore, if you are unsure about any of the
meanings of these WARNINGS contact the:
Customer Care Department
Telephone 0870 5 950950
7
INTRODUCTION
WARNING: THIS APPLIANCE MUST BE EARTHED
RATING PLATE
Record the model, product and serial numbers on the
back cover of this instruction book, from the rating
plate. This is situated on the base of the appliance
on the front right hand side.
The appliance must be protected by a suitably rated
fuse or circuit breaker. The rating of the appliance is
given on the rating plate.
Do not remove the rating plate from the cooker
as this may invalidate the guarantee.
INSTALLATION
If your cooker has been damaged in transit, contact
your supplier immediately. DO NOT attempt to install
it.
The cable should be routed away from potentially hot
areas marked by X in the diagram below.
To move the cooker, open the oven door and lift the
cooker by holding inside the top of the compartment.
Your cooker left the factory fully packaged to protect
it from damage. If it is delivered without packaging
and damage has occurred, the manufacturer cannot
accept responsibility. Contact your supplier for
advice.
Once the packaging has been removed the cooker
should only be moved by hand. DO NOT use a sack
barrow or any other aid to lift the cooker as damage
may occur.
Connection to the electricity supply must be carried
out by a qualified electrician/competent person.
The electrical connection should be made using a
double pole isolating switch (cooker socket) with at
least 3mm contact separation. The cable must have
conductors of sufficiently high cross-sectional area to
prevent overheating and deterioration.
Six square millimetres (6.00mm²) is the recommended
cross-section area.
This is a type X appliance which means it is
free-standing and can be fitted with cabinets on one
or both sides. It may also be fitted in a corner setting.
Side walls which are above hob level should be
protected by heat resistant non-combustible material
and MUST NOT be nearer than 40mm to the hob
side.
A nominal air gap of 2mm at either side of the cooker
is required to enable the cooker to be moved into
position. It is recommended that proprietary trims are
fitted to protect the worktops of either side of the
appliance. These are available from most DIY stores.
Two spacers have been incorporated into the back of
the appliance to ensure an air gap of 10mm is
maintained at hotplate level. Tiles or other forms of
deep wall covering should not obscure this gap.
8
Overhanging surfaces or a cooker hood should be a
(
)
minimum of 685mm above the hob.
It is important to ensure that the appliance is level
after installation. Levelling feet are fitted to the front
of the appliance to accommodate uneven floors.
FITTING THE STABILITY BRACKET
It is recommended that a stability bracket supplied
with the appliance be fitted during installation.
The instructions are as follows.
1. Place the appliance in its intended position and
level appliance.
2. Mark off 280mm from the left hand side at the
base of the appliance as shown in dimension 'A',
Fig 1. This is the centre line of the fixing bracket.
3. Draw a line across the front edge of the feet (see
Fig 1) and remove appliance from its position.
Mark off dimension 'B' (see Fig 1) back from this
line on the centre line of the bracket to locate the
front edge of the lower bracket. Fix lower bracket
(with two fixing holes) to the floor then measure
the height from floor level to engagement edge on
back of appliance, dimension 'C' of Fig. 2.
4. Assemble upper bracket to lower bracket so that
underside of bracket is dimension 'C' +3mm
above floor level. (see Fig. 2).
Reposition appliance and check that top bracket
engages into appliance back, as shown in Fig. 2.
During this period an odour may be emitted, it is
therefore advisable to open a window for ventilation.
GENERAL NOTES ON USING YOUR
COOKER
We suggest that you run the oven elements for 10 15 minutes at 220°C to burn off any residue from
their surfaces.
The procedure should be repeated with the grill for
approximately 5 - 10 minutes.
During this period an odour may be emitted, it is
therefore advisable to open a window for ventilation.
ABOUT CONDENSATION AND STEAM
When food is heated it produces steam similar to a
boiling kettle. The ovens are vented to allow some of
this steam to escape between the wall and the rear
of the appliance. However, always stand back from
the appliance when opening the oven door to allow
any build up of steam or heat to release.
If the steam comes into contact with a cool surface
on the outside of the appliance, e.g. a trim, it will
condense and produce water droplets. This is quite
normal and is not caused by a fault on the appliance.
To prevent discolouration, regularly wipe away
condensation and also soilage from surfaces.
For your safety, wall coverings at the rear of the
appliance should be securely fixed to the wall.

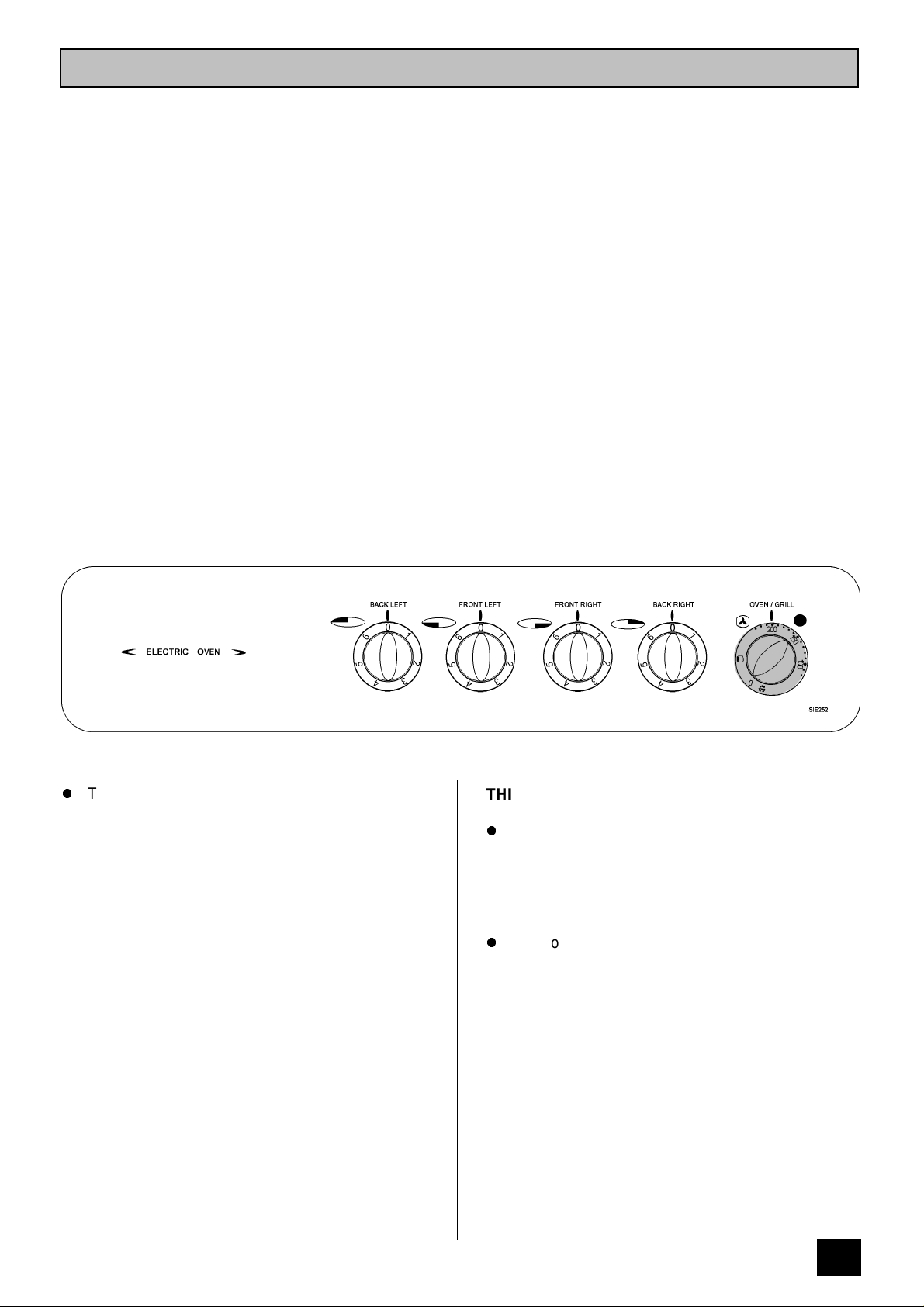

OVEN / GRILL INDICATOR NEON
This light indicates whether the oven or the grill are
switched on. The neon also indicates when the set
temperature is being maintained. The neon will turn
on and off during cooking. In the case of the oven the
neon indicates when the correct temperature has
been reached.

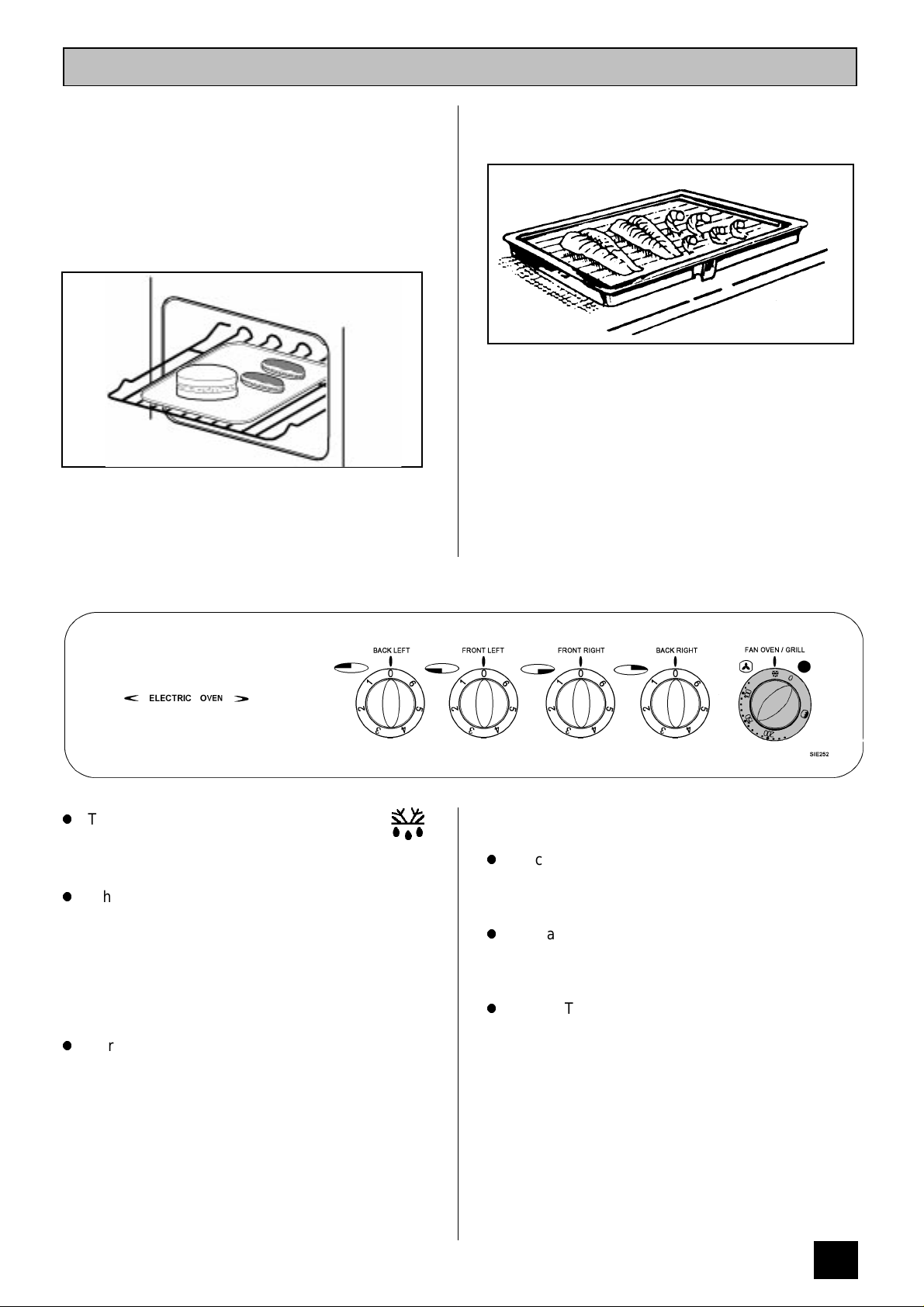

GRILL AND OVEN FURNITURE
The following items of oven furniture have been
supplied with the cooker:
1 grill pan
1 grill pan handle
B
m
m
5
1
4
(C)
1 grill pan grid
(A)
280mm
Fig.1
Fig.2
2 straight shelves
for oven/grill cooking
9
Loading...
