Dishwasher
DH 088
INSTRUCTION BOOK
0 10/02
2
Safety instructions 3
Description of the appliance 4
The control panel 4
Prior to using for the first time 5
Setting the water softener 5
Filling with salt 5
Rinse aid 6
In daily use 6

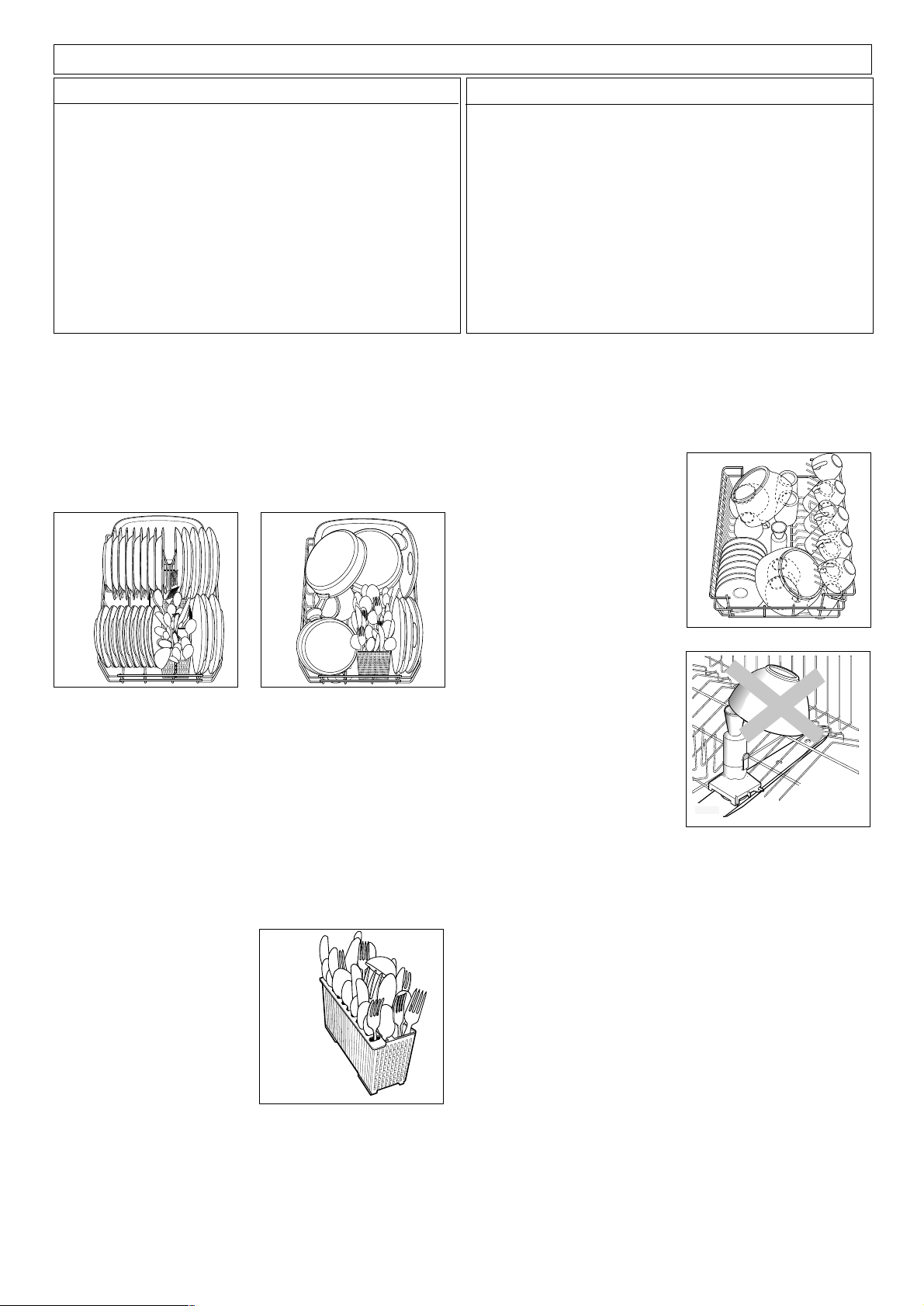

Loading cutlery and dishes 6
The lower basket 7
The cutlery basket 7
The upper basket 7
Adjusting the height of the upper basket 8
Use of detergent 8
Washing programmes 10
Starting a washing programme 11
Maintenance and cleaning 12
Cleaning the filters 12
Prolonged periods of non-operation 12
Frost precautions 12
Moving the machine 12
Something not working 13
Service and Spare Parts 14
Customer Care Department 14
Guarantee Conditions 15
Installation instructions 16
Fitting under a counter 16
Levelling 16
Water supply connections 16
Water outlet hose connection 17
Electrical connection 17
Hints for test centres 18
Contents
Dimensions Width 45 cm
Height with worktop 85 cm
Height without worktop 82 cm
Max depth 60 cm
Max depth with open door 115.9 cm
Electrical connection: Information on the electrical connection is given on the rating plate on the
Voltage inner edge of the dishwasher’s door on the right.
Overall power
Fuse
Water supply pressure Minimum 50 kPa (0.5 bar)
Maximum 800 kPa (8 bar)
Capacity 8 place settings
Technical specifications
This appliance complies with the following E.E.C. Directives:
- 73/23 or 19.2.73 (Low Voltage Directive) and subsequent modifications;
- 89/336 or 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.
3
It is most important that this instruction book should be
retained with the appliance for future reference. Should
the appliance be sold or transferred to another owner, or
should you move house and leave the appliance, always
ensure that the book is left with the appliance in order that
the new owner can get to know the functioning of the
appliance and the relevant safety information.
This information has been provided in the interest of your
safety. You MUST read it carefully before installing or
using the appliance.
Installation
● Check your dishwasher for any transport damage. Never
connect a damaged machine. If your dishwasher is
damaged, you should contact your supplier.
● For safety reasons it is dangerous to alter the specifications
or attempt to modify this product in any way.
● Any electrical and plumbing work required to install this
appliance should be carried out by a qualified and
competent person.
● Care must be taken to ensure that the appliance does not
stand on the electrical supply cable.
● The sides of the dishwasher must never be drilled to
prevent damage to hydraulic components.
Child safety
● This appliance is designed to be operated by adults.
● Children should not be allowed to tamper with the controls
or play with the product.
● Packaging parts may be dangerous for children, who could
even be suffocated! You should therefore keep all
packaging well away from children.
● The water in your dishwasher is not for drinking. Detergent
residues may still be present in your machine. Keep
children well away from your dishwasher when the door is
open.
● Keep all detergents in a safe place out of children's reach.
Your dishwasher in day-to-day use
● Items that are contaminated by petrol, paint, steel or iron
debris, corrosive, acidic or alkaline chemicals must not be
washed in this dishwasher.
● Under no circumstances should you open the door whilst
the appliance is in operation, especially during the washing
phase, hot water may escape. However, if the door is
opened, a safety device ensures that the machine stops.
● Only use products (detergent, salt and rinse aid) specifically
designed for use in dishwashers.
● Long bladed knives stored in an upright position are a
potential hazard.
● Long and/or sharp items of cutlery such as carving knives
must be positioned horizontally in the upper basket.
● When finishing loading or unloading close the door, as an
open door can be a hazard.
● Do not sit or stand on the open door.
● Isolate the appliance from the power supply and turn off the
water supply after use.
● This product should be serviced by an authorised service
engineer, and only genuine spare parts should be used.
● Under no circumstances should you attempt to repair the
machine yourself. Repairs carried out by inexperienced
persons may cause injury or serious malfunctioning.
Contact your local Service Force Centre. Always insist on
genuine spare parts.
Disposal
Dispose of the dishwasher packaging material correctly.
All packaging materials can be recycled.
Plastic parts are marked with standard international
abbreviations:
>PE< for polyethylene, e.g. sheet wrapping material.
>PS< for polystyrene, e.g. padding material (always CFC-
free).
>POM< for polyoxymethylene, e.g. plastic clips.
Cardboard packaging is manufactured from recycled paper
and should be deposited in the waste paper collection for
recycling.
As and when you cease to use your dishwasher and withdraw
it from service, your should render it unserviceable before
having it disposed of.
Warning! Children at play could lock themselves in your
dishwasher or otherwise endanger their lives. Therefore cut off
the power supply cable and make the door closing device
unusable to prevent children from being trapped inside.
For the disposing of the appliance please take it to a recycling
centre or to your dealer who will, for a small contribution to the
costs, dispose it for you.
Economical and
ecological dishwashing
● Ensure that the water softener is correctly adjusted.
● Do not pre-wash under running water.
● Select the wash programme to suit the nature and degree of
the soiling on the dishes.
● Do not use more detergent, special salt and rinse aid than is
recommended in these operating instructions and by the
manufacturer of the respective product.
Safety instructions
The control panel
4
1. Water hardness adjustment
2. Levelling spacers
3. Upper basket stop
4. Large filter
5. Salt container
6. Rinse aid dispenser
7. Detergent dispenser
8. Control panel
9. Central filter
10. Lower spray arm
11. Upper spray arm
12. Upper basket
13. Worktop
Description of the appliance
1. "MAINS ON" indicator light
2. "MAINS ON" push button
3. Programme guide
4. Door handle
5. Programme marker
6. Programme selector dial
7. Programme sequence indicator
As the programme progresses, the programme selector
dial turns, to show the phase in the wash programme the
appliance has reached.
Prewash / Rinse and Hold
Main wash
Cold rinse
Hot rinse
Drying
13
1
2
3
4
5
6
7
12
11
10
9
IN60
8
5
Before using your dishwasher for the first time:
1. Ensure that the electrical and water connections comply
with the installation instructions
2. Remove all packaging from inside the appliance
3. Set the water softener
4. Pour 1 litre of water inside the salt container and then fill
with salt
5. Fill the rinse aid dispenser
Setting the water softener
The dishwasher is equipped with a water softener designed to
remove minerals and salts from the water supply, which would
have a detrimental or adverse effect on the operation of the
appliance.
The higher the content of these salts, the harder your water is.
Water hardness is measured in equivalent scales, Clarke
degrees, French degrees and PPM (parts per Million).
The softener should be adjusted according to the hardness of
the water in your area. Your local Water Authority can advise
you on the hardness of the water in your area.
The dishwasher is factory set at level 2. If this level is not
suitable for your area the softener should be adjusted.
To adjust the water softener
Level 1
If your water is level 1 it is already soft and therefore there is
no need to use salt.
Levels 3 and 5
(water softener adjustment)
If your water is level 3 or 5,
proceed as follows:
- slide out the lower basket
and unscrew the cap of the
salt container;
- turn the two-position
selector anticlockwise from
position - to position + with
the aid of a blunt knife or
screwdriver.
Levels 4 and 5
(adjustment on the machine)
If your water is level 4 or 5,
open the door and drill the
membrane (A) on the upper
left-hand corner of the
machine.
With a water hardness of
level 5 both adjustments
must be made.
Filling with salt
Special salt can be added in one of two ways:
● If you are using dishwasher detergent that already contains
salt, the detergent including the salt is placed in the
detergent compartment.
- In this case the water softener must be set to level 1 to
ensure that the special salt is taken from the detergent
container only.
● If you are using dishwasher detergent and salt separately,
the special salt is to be put into the salt container.
- In this case the water softener must manually be set
between 2 and 5 (depending on the water hardness in
your area) to ensure that the special salt is taken from
the detergent container only.
Only use salt specifically designed for use in
dishwashers.
All other types of salt not specifically designed for use in
a dishwasher, especially table salt, will damage the water
softener.
Only fill with salt just before starting one of the washing
programmes (not the Rinse and Hold programme).
This will prevent any grains of salt or salty water, which
may have been spilt, remaining on the bottom of the
machine for any period of time, which may cause
corrosion.
To fill:
1. Open the door, remove the lower basket and unscrew the
cap of the salt container by turning it anticlockwise.
2. Pour 1 litre of water inside the container (this is necessary
only before filling with salt for the first time).
3. Using the funnel provided,
pour in the salt until the
container is full.
4. Replace the cap making
sure that there is no trace
of salt on the screw thread
or on the gasket.
5. Screw on the cap tightly
turning it clockwise until it
stops with a click.
The salt container will require topping up periodically.
The salt cap has a refill indicator window in the centre.
A green float is clearly
visible when there is salt
inside the container and
almost disappears when the
salt has finished reminding
you to add salt.
Do not worry if water over
flows from the unit when
filling with salt, this is quite
normal.
Prior to using for the first time
PPM
(parts per
million)
French
degrees
(°TH)
Clarke
degrees
0 - 10
11 - 27
28 - 35
36 - 49
50 - 63
0 - 14
15 - 39
40 - 50
51 - 70
71 - 90
0 - 140
141 - 399
400 - 500
501 - 700
701 - 900
-
-
+
-
+
1
2
3
4
5
No
Yes
Yes
Yes
Yes
No
No
No
Yes
Yes
Water hardness
Water
softener
adjustment
Use of
salt
Adjustment
on the
machine
Level
AA01
A
SR02
SR11
SALE
SALT
SALZ
SEL
AA04
● Check if it’s necessary to refill with special salt or rinse aid
● Load cutlery and dishes into the dishwasher.
● Fill with dishwasher detergent .
● Select a wash programme suitable for the cutlery and
dishes.
● Start the wash programme.
Loading cutlery and dishes
Sponges, household cloths and any object that can
absorb water may not be washed in the dishwasher.
● Before loading the dishes, you should:
- Remove large left-overs.
- Soften remnants of burnt food in pans
● When loading the dishes and cutlery, please note:
- Dishes and cutlery must not impede the rotation of the
spray arms .
- Load hollow items such as cups, glasses, pans, etc. with
the opening downwards so that water cannot collect in the
container or a deep base.
- Dishes and items of cutlery must not lie inside one
another, or cover each other.
- To avoid damage to glasses, they must not touch.
- Lay small objects in the cutlery basket.
In daily use
6
Rinse aid
Rinse aid is automatically added during the last rinse, ensuring
thorough rinsing, and spot and streak free drying. The
dispenser, which is positioned inside the door, holds about 110
ml of rinse aid, which is sufficient for 16 - 40 dishwashing
programmes, depending upon the dosage setting.
Rinse aid can be added in one of two ways:
● If you are using dishwasher detergent that already contains
rinse aid, the detergent including the rinse aid is placed in
the detergent compartment.
- In this case the rinse aid compartment must be empty.
If in the rinse aid dispenser there is still rinse aid you
must wait until it has finished before using detergent that
contains rinse aid.
● If you are using dishwasher detergent and rinse aid
separately, the rinse aid is to be put into the rinse aid
dispenser.
- In this case the rinse aid dosage must be set in position
from 1 to 6 (see "Adjusting the dose").
Filling with rinse aid
1. Open the container by turning the lid (A) anticlockwise.
2. Add the rinse aid until the container is completely full. The
indicator (B) will be completely dark.
3. Top up the rinse aid when the indicator (B) becomes clear.
Ensure that the lid is closed after every refill.
Clean up any rinse aid spilt during filling with an absorbent
cloth to avoid excess foaming during the next wash.
Use only branded rinse aid for dishwashers. Never fill the rinse
aid dispenser with any other substances (e.g. dishwasher
cleaning agent, liquid detergent). This would damage the
appliance.
Adjusting the dose
According to the finish and drying results obtained, adjust the
dose of rinse aid by means of the 6 position selector (C)
(position 1 minimum dosage, position 6 maximum dosage).
Increase the dose if there are drops of water or lime spots on
the dishes after washing.
Reduce it if there are sticky whitish streaks on the dishes.
BR02
BR01
BR03
7
Open the door and slide out the baskets to load the dishes.
The lower basket
The lower basket is designed to take saucepans, lids, plates,
salad bowls, cutlery etc.
Serving dishes and large lids should be arranged around the
edge of the basket, ensuring that the upper spray arm can turn
freely.
The cutlery basket
Long bladed knives stored in an upright position are a
potential hazard.
Long and/or sharp items of cutlery such as carving knives
must be positioned horizontally in the upper basket.
Take care when loading or unloading sharp items such as
knives.
Cutlery should be placed in the removable cutlery basket with
the handles facing downwards. If the handles protrude from
the bottom of the basket, obstructing the lower spray arm, load
the cutlery with the handles facing upwards.
Mix spoons with other cutlery
to prevent them from sticking
together.
Arrange spoons, dessert
spoons, knives and other
small items of cutlery in the
rack on the side of the
cutlery basket.
The upper basket
The upper basket is designed for plates (dessert plates,
saucers, dinner plates of up to 24 cm in diameter), salad
bowls, cups and glasses.
Arrange items on and underneath the cup rack so that water
can reach all surfaces.
Glasses with long stems can
be placed upside down in the
cup rack.
Light items (plastic bowls
etc.) must be loaded in the
upper basket and arranged
so they do not move.
When loading the upper
basket, ensure that you do
not cover the water inlet
funnel in the middle of the
upper basket.
Before closing the door, ensure that the spray arms can
rotate freely.
For washing in the dishwasher the following cutlery/dishes
are of limited suitability:
- Only wash stoneware in the dishwasher if it is specifically
marked as being dishwasher-safe by the manufacturer.
- Glazed patterns may fade if machine washed frequently
- Silver and aluminium parts have a tendency to discolour
during washing. Left-overs, e.g. egg white, egg yolk and
mustard often cause discolouring and staining on silver.
Therefore always clean left-overs from silver immediately, if
it is not to be washed straight after use.
- Some types of glass can become dull after a large number
of washes
are not suitable:
- Cutlery with wooden, horn, china or
mother-of-pearl handles
- Plastic items that are not heat resistant
- Older cutlery with glued parts that is not
temperature resistant
- Bonded cutlery items or dishes
- Pewter or copper items
- Lead crystal glass
- Steel items subject to rusting
- Wooden platters
- Items made from synthetic fibres
UI57
UI12
US56
US16
US16
UI08
8

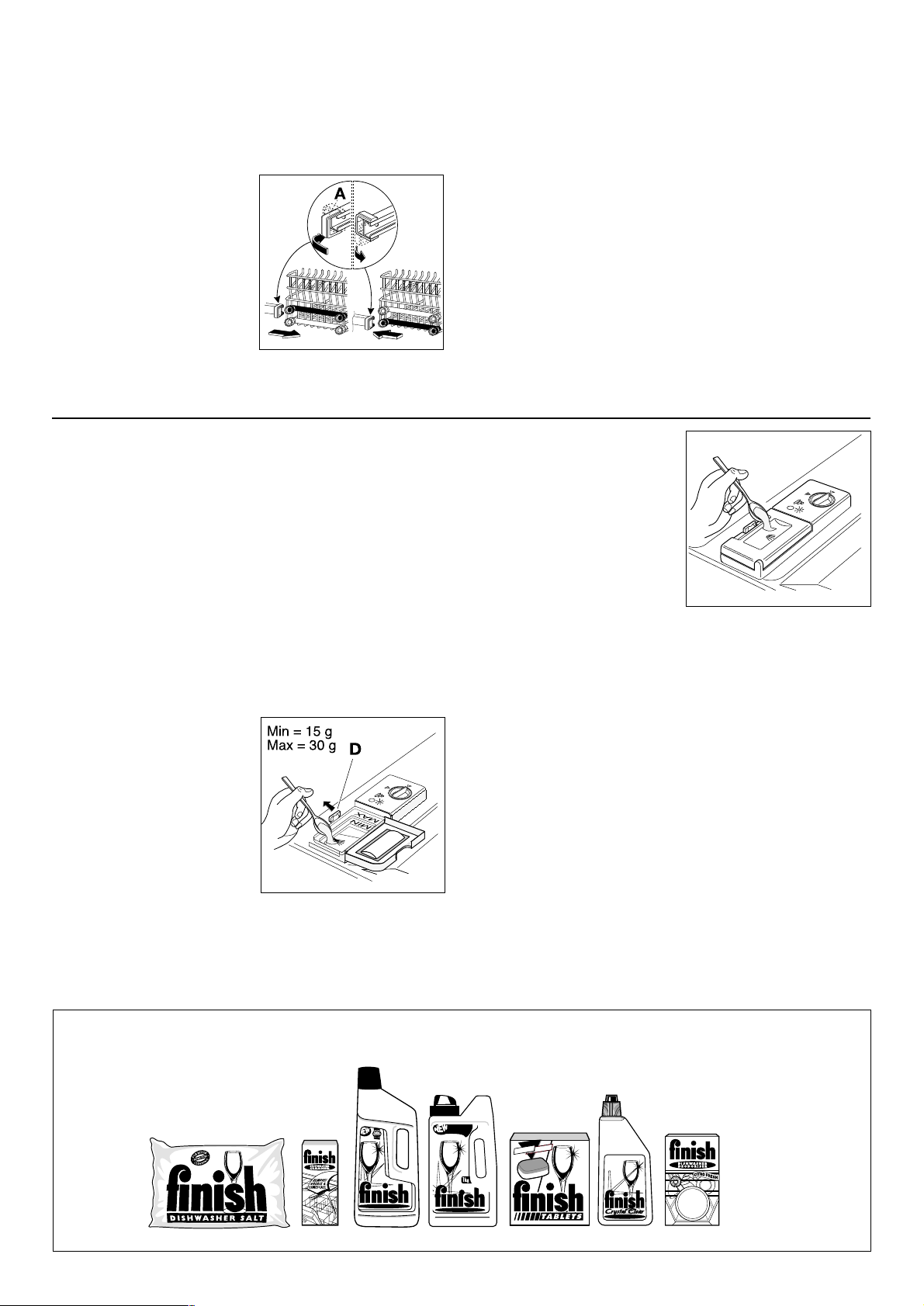

Adjusting the height of the upper basket
If washing very large plates (over 27 cm and up to 31 cm in
diameter) you can load them in the lower basket after moving
the upper basket to the higher position.
To move to the higher position proceed as
follows:
1. Move the front runner
stops (A) of the upper
basket outwards and
slide the basket out.
2. Refit the basket in the
higher position and
replace the stops (A) in
their original position.
After loading your machine always close the door, as an
open door can be a hazard.
Use of detergent
Only use detergents specifically designed for use in
dishwashers.
Using no more then the correct amount of detergent
contributes to reducing pollution.
Fill with detergent
Prior to the start of a wash programme. The detergent is
released during the washing phase.
Please observe the manufacturer’s dosing and storage
recommendations as stated on the detergent packaging.
1. Open the dispenser lid by pulling the catch (D).
The lid springs open.
2. Fill the detergent
dispenser with detergent.
The marking indicates
the dosing levels:
MIN = approximately
15 g of detergent
MAX = approximately
30 g of detergent
3. Close the lid and press
until it locks in place.
For all programmes with
prewash, an additional
detergent dose (5 g) must be
placed over the lid of the
dispenser.
This detergent will take effect
during the prewash phase
We recommend the use of Finish detergents which are
available in the following options:
Finish Double Action Tablets. Each tablet has the exact
amount of detergent required, simply place in the dispenser.
Finish Powder recommended for every day use.
Finish Liquid Gel ideal for every day use. As the gel is extra
gentle it is recommended for fine bone china.
RILLIANT
LIQUID GEL
POWDER
EASY
POURING
PACK
RC01
DE17
DE02
For best results we recommend the use of Finish detergents, rinse aid and salt.
EW
N
N
IO
T
E
C
L
A
B
U
O
DE15
D
CONCENTRATED DISHWASHER DETERGENT
FOR A
BRILLIANT
SHINE
RINSE
9
Use of "3 in 1" combi detergent tablets
General advice
These products are tablets with combined detergent/rinse-aid
and salt functions.
1. Before using these products you should first check that the
water hardness in your supply is compatible with the use of
these products as per the detergent manufacturers (on the
product packaging).
2. These products should be strictly used according to the
detergent manufacturers instructions.
Do not place the tablets in the tub or in the cutlery
basket as this will result in poorer wash results. The
tablets should be placed in the detergent dispenser.
3. If you encounter problems when using 3 in 1 products for
the first time then please contact the detergent
manufacturers care line (the telephone number is given on
the product packaging).
Special advice
When using combination products, select the lowest possible
setting for water hardness.
For more information please refer to the instruction manual.
If you decide to turn back to the use of the standard detergent
system we advise that you:
● Refill both the salt container and rinse aid dispenser.
● Switch the water hardness setting to the highest possible
position and run a normal washing programme without a
load.
● Readjust the water hardness setting again according to the
hardness of the water in your area.
Concentrated detergent
Based on their chemical composition, dishwasher detergents
can be split into two basic types:
- conventional, alkaline detergents with caustic components.
- low alkaline concentrated detergents with natural enzymes.
The use of 50°C washing programmes in conjunction with
concentrated detergents reduces pollution and is good for your
dishes; these wash programmes are specially matched to the
dirt-dissolving properties of the enzymes in the concentrated
detergent. For this reason 50°C wash programmes in which
concentrated detergents are used can achieve the same
results that can otherwise only be achieved using 65°C
programmes.
Detergent tablets
Detergent tablets of different brands dissolve at different
speeds. For this reason some detergent tablets cannot
develop their full cleaning power during short programmes.
Therefore please use normal programmes with prewash when
using detergent tablets.
10
Washing programmes
Programme Degree of soil
and
type of load
Any.
Partial load (to be
completed later in
the day)
Heavy soil.
Crockery, cutlery,
pots and pans
Light soil.
Crockery,cutlery and
party cutlery
Normal soil.
Crockery and cutlery
Starting position
of the programme
selector
Cycle
description
(3) Consumption values
Cold prewash
Main wash up to 65°C
1 cold rinse
1 hot rinse
Drying
Main wash up to 65°C
1 cold rinse
1 hot rinse
1 cold rinse (to avoid
food scraps from
sticking together)
Main wash up to 65°C
1 cold rinse
1 hot rinse
Drying
(1) Testing programme for EN 50242 (see "Hints for Test Centres).
(2) This is a special programme for quick washing a full load of lightly soiled dishes, glasses and crockery /except pots) so that
you may re-use them promptly.
(3) The consumption values are intended as a guide and depends on the pressure and the temperature of the water and also by
the variations of the power supply.
1
2
3
4
RINSE AND
HOLD
NORMAL WASH
65°
(2)
ECO WASH 65°
(1)
POWER WASH
65°
Programme duration
(in minutes)
Energy
consumption
(in kWh)
Water
consumption
(in litres)
83 - 93 1,8 20
71 - 81
1,1
17
37 - 47
0,8
16
10
0,1
11
11
1. Check that the baskets have been
loaded correctly and that the spray
arms can rotate freely
2. Turn on the water tap
3. Close the dishwasher door
4. Setting and starting the programme
Turn the programme selector dial clockwise until the
number of the programme you wish to select (see
"Washing programmes" chart) corresponds with the
programme marker on the control panel.
Press the "MAINS ON" push button, the "MAINS ON"
indicator light will come on and the programme will start.
5. Interrupting a washing programme
Interrupt a washing programme in progress ONLY if
it’s absolutely necessary
To interrupt a washing programme
Attention! Hot steam may escape when the door is
opened. There is risk of scalding. Open the door
carefully.
● Open the dishwasher door; the programme will stop.
Close the door; the programme will start from the
point in which it was interrupted.
● pressing the MAINS ON push button (in this case the
MAINS ON indicator light turns off). Press the MAINS
ON push button again; the programme will start from
the point in which it was interrupted.
6. End of the washing programme
The dishwasher will automatically stop.
Switch off the dishwasher by pressing the MAINS ON
push button, the MAINS ON indicator light turns off.
Hot steam may escape from the appliance when opening
the door immediately after the end of the programme,
therefore, open the door carefully.
Unloading the dishwasher
Hot dishes are sensitive to knocks. The dishes should
therefore be allowed to cool down before removing from
the appliance.
Leave the dishes in the dishwasher for approx. 15
minutes, with the door ajar, after the end of programme
so that they dry better and will be cooler.
Empty the lower basket first and then the upper one; this
will avoid water dripping from the upper basket onto the
dishes in the lower one.
When the washing programme has finished, it is
recommended that the dishwasher is unplugged and the
water tap turned off.
Starting a washing programme
12
Clean the external surfaces of the machine and control panel
with a damp soft cloth. If necessary use only neutral
detergents. Never use abrasive products, scouring pads or
solvent (acetone, trichloroethylene etc....).
Ensure that the seals around the door, the detergent and rinse
aid dispensers are cleaned regularly with a damp cloth.
We recommend the use of Finish Dishwasher Cleaner every
3 months or run a 65°C wash programme without dishes using
detergent.
Regular use of Finish Dishwasher Cleaner cleans
inaccessible parts, eliminates unpleasant food odours and
helps prevent the build-up of limescale.
Cleaning the central filters
(After each wash)
Inspect the central filters (B) and (C) and remove any scraps of
food with a brush, under running water.
Filters (B) and (C) are both removed by lifting up the outer one
(B) (pulling the central funnel upwards); the smaller filter (C)
can be removed by pressing the two tongues (D).
Once cleaned, refit the filters by pressing them down until they
click into place.
Cleaning the large filter
(Every week)
Clean the large filter (A) on both sides under running water,
using a brush.
To take it out, remove the spray arm by pressing the two
tongues (E), turn the ring (F) anticlockwise and then slide the
whole part out.
Refit the filter following the
above instructions in reverse
order.
The dishwasher must not be used without filters.
Incorrect repositioning and fitting of the filters will
produce poor washing results.
Cleaning the filters is vital to ensure correct operation of
the machine.
To ensure a correct working of the dishwasher, NEVER try
to remove the upper spray arm.
If residues of soil have clogged the holes in the upper spray
arm, remove them with a toothpick.
Prolonged periods of non-operation
If you are not using the machine for any period of time you are
advised to:
1. Unplug the appliance and then turn off the water.
2. Fill the rinse aid dispenser.
3. Leave the door ajar to prevent the formation of any
unpleasant smells.
4. Leave the inside of the machine clean.
Frost precautions
Avoid placing the machine in a location where the temperature
is below 0°C. If this is unavoidable, empty the machine, close
the appliance door, disconnect the water inlet pipe and empty
it.
Moving the machine
If you have to move the machine (moving house etc....):
1. Unplug it.
2. Turn the water tap off.
3. Remove the water inlet and discharge hoses.
4. Pull the machine out together with the hoses.
Avoid over tilting the machine during transportation.
Maintenance and cleaning
D
C
B
MA02
MA08
E
A
F
MA03
13
Something not working
Certain problems are due to the lack of simple maintenance or oversights, which can be solved with the help of the instructions
given here, without calling out an engineer.
The dishwasher will not start or stops during operation, or all push buttons are inoperative except for the MAINS ON push button.
Press the MAINS ON push button to switch the dishwasher off and carry out the following suggested corrective actions.
Once the checks have been carried out, press the MAINS ON push button, the programme will continue from the point at which it
was interrupted. If the problem reappears contact the Service Force Centre.
The machine does not fill with
water.
The dishwasher will not drain.
Malfunction Possible cause Solutions
The water tap is blocked or furred with
limescale.
The water tap is turned off.
The filter (where present) in the threaded hose
fitting at the water inlet valve is blocked.
The water inlet hose has not been correctly laid
or it is bent or squashed.
Clean the water tap.
Turn the water tap on.
Clean the filter in the threaded hose
fitting.
Check the water inlet hose connection.
The siphon is blocked. Clean out the siphon.
The water drain hose has not been correctly laid
or it is bent or squashed.
Check the water drain hose connection.
The programme does not start
There is a whistling noise during
washing
The dishwasher door has not been properly
closed.
The main plug is not plugged in.
The fuse has blown in the household fuse box.
Close the door.
Insert the mains plug.
Replace the fuse.
Use a different brand of detergent.The whistling is not a cause for concern.
The wash results are not satisfactory
The dishes are not clean
● The wrong washing programme has been selected.
● The dishes were arranged in such a way as to stop water reaching all parts of the surface. The baskets must not be overloaded.
● The spray arms do not rotate freely due to wrong arrangement of the load.
● The filters in the base of the washing compartment are dirty or incorrectly positioned.
● Too little or no detergent has been used.
● Where there are limescales deposits on the dishes; the salt container is empty or the wrong level of the water softener has been
selected.
● The drain hose connection is not correct.
● The salt container cap is not properly closed.
The dishes are wet and dull
● Rinse aid was not used.
● The rinse aid dispenser is empty.
There are streaks, milky spots or a bluish coating on glasses and dishes
● Decrease rinse aid dosing.
Water drops have dried onto glasses and dishes
● Increase rinse aid dosing.
● The detergent may be the cause. Contact the detergent manufacturer’s consumer care line.
Service and Spare Parts
In the event of your appliance requiring service, or if you wish
to purchase spare parts please contact your local Service
Force Centre by telephoning:
08705 929 929
Your telephone call will be automatically routed to the Service
Force centre covering your post code area.
For the address of your local Service Force Centre and further
information about Service Force, please visit the website at
www
.serviceforce.co.uk
Before calling out an engineer, please ensure you read the
details under the heading Something not working.
When you contact the Service Force Centre you will need to
give the following details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of the fault
4. The model and serial number (found on the rating plate)
5. The purchase date
Please note that a valid purchase receipt or guarantee
documentation is required for in-guarantee service calls.
Customer Care
Department
For general enquiries concerning your Tricity Bendix appliance
or for further information on Tricity Bendix products please
contact our Customer Care Department by letter or telephone
at the address below.
Customer Care Department
Tricity Bendix
55-77 High Street
Slough
Berkshire
SL1 1DZ
Tel: 08705 950950 (
*
)
*
calls to this number may be recorded for training purposes
14
If after all these checks, the problem persists, contact your
local Service Force Centre, quoting the model (Mod.), product
number (PNC) and serial number (S.N.).
This information can be found on the rating plate located on
the right hand side of the dishwasher door (see picture).
So that you always have these numbers at hand, we
recommend you to make a note of them here:
Mod. : . . . . . . . . . . . . . . . . . .
PNC : . . . . . . . . . . . . . . . . . .
S.N. :. . . . . . . . . . . . . . . . . . .
RA08
15
Standard guarantee conditions
We, Tricity Bendix, undertake that if within 12 months of the
date of purchase this Tricity Bendix appliance or any part
thereof is proved to be defective by reason only of faulty
workmanship or materials, we will, at our option repair or
replace the same FREE OF CHARGE for labour, materials or
carriage on condition that:
● The appliance has been correctly installed and used only on
the electricity supply stated on the rating plate.
● The appliance has been used for normal domestic purposes
only, and in accordance with the manufacturer’s instructions.
● The appliance has not been serviced, maintained repaired,
taken apart or tampered with by any person not authorised
by us.
● All service work under this guarantee must be undertaken by
a Tricity Bendix Service Force Centre.
● Any appliance or defective part replaced shall become the
Company’s property.
● This guarantee is in addition to your statutory and other legal
rights.
Home visits are made between 8.30am and 5.30pm Monday
to Friday. Visits may be available outside these hours in which
case a premium will be charged.
Exclusions
This guarantee does not cover:
● Damage or calls resulting from transportation, improper use
or neglect, the replacement of any light bulbs or removable
parts of glass or plastic.
● Costs incurred for calls to put right an appliance which is
improperly installed or calls to appliances outside the United
Kingdom.
● Appliances found to be in use within a commercial
environment, plus those which are subject to rental
agreements.
● Products of Tricity Bendix manufacture which are not
marketed by Tricity Bendix.
European Guarantee
If you should move to another country within Europe then your
guarantee moves with you to your new home subject to the
following qualifications:
● The guarantee starts from the date you first purchased your
product.
● The guarantee is for the same period and to the same extent
for labour and parts as exists in the new country of use for
this brand or range of products.
● This guarantee relates to you and cannot be transferred to
another user.
● Your new home is within the European Community (EC) or
European free Trade Area.
● The product is installed and used in accordance with our
instructions and is only used domestically, i.e. a normal
household.
● The product is installed taking into account regulations in
your new country.
Before you move please contact your nearest Customer Care
centre, listed below, to give them details of your new home.
They will then ensure that the local service Organisation is
aware of your move and able to look after you and your
appliances.
France Senlis +33 (0) 3 44 62 20 13
Sweden Stockholm +46 (0) 20 78 77 50
Germany Nurnberg +49 (0) 800 234 7378
UK Slough +44 (0)1753 219898
Italy Pordenone +39 (0) 800 117511
Ireland Dublin +353 (0) 14090753
Guarantee Conditions
16
Installation instructions
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
Any plumbing work required to install this appliance
should be carried out by a qualified plumber or competent
person.
Remove all packaging before positioning the machine.
If possible, position the machine next to a water tap and a
drain.

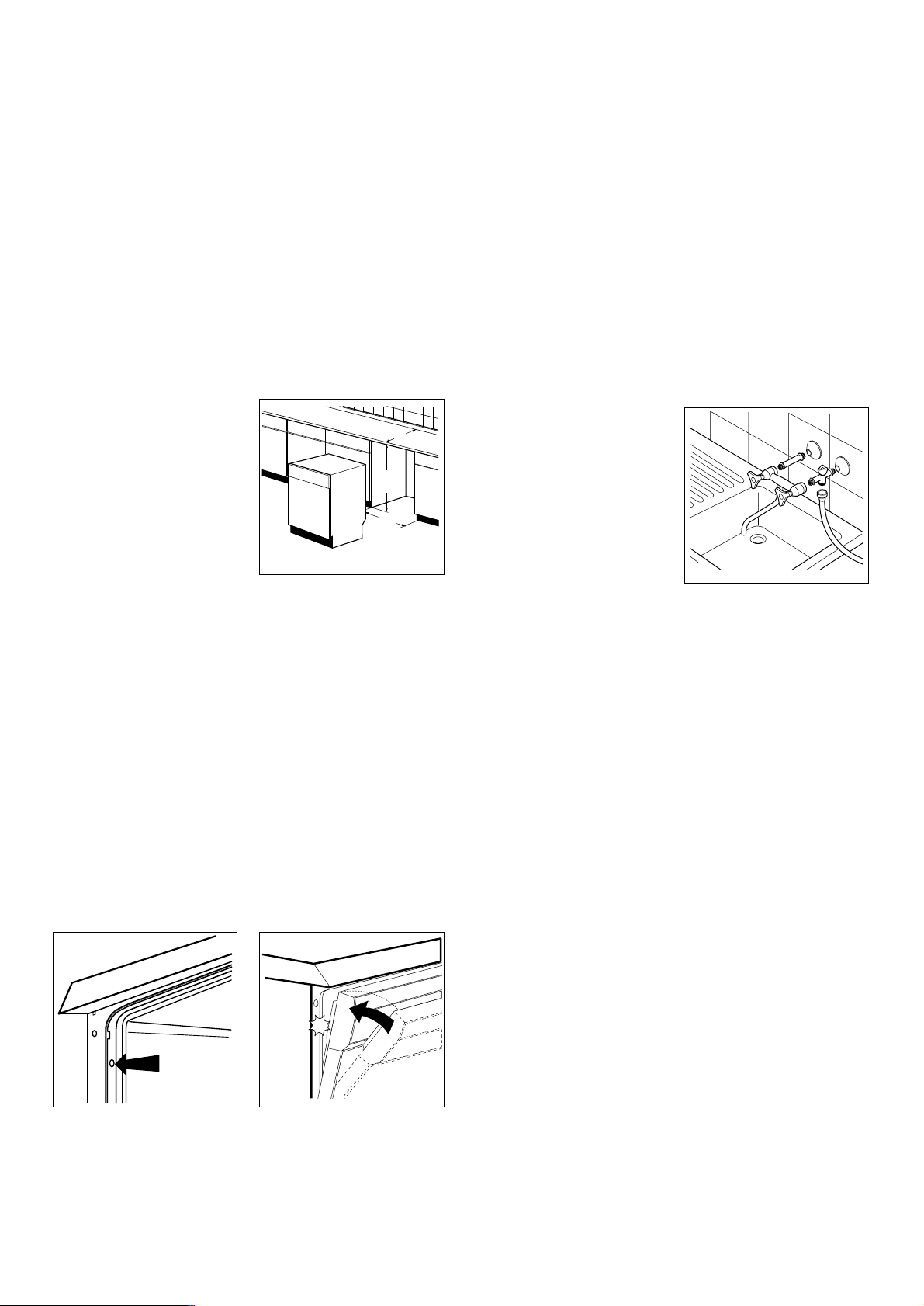

Fitting under a counter
(kitchen worktop or sink)
By removing the machine’s worktop, you can install it under a
close fitting sink unit or a pre-existing top, providing the
dimensions of the recess correspond to those shown in the
picture.
Proceed as follows:
- Remove the machine’s worktop by unscrewing the two front
retaining screws, pull from the front and slide out the rear
slots, lifting the worktop.
Insert the machine after adjusting height and levelling with the
adjustable feet. When inserting the machine, ensure that the
water inlet and drain hoses are not kinked or squashed.
Levelling
Good levelling is essential for correct closure and sealing of
the door.
When the appliance is correctly levelled, the door will not catch
on the levelling spacers on either side of the cabinet.
If the door does not close correctly, loosen or tighten the
adjustable feet until the machine is perfectly level.
Water supply connections
This dishwasher must be plumbed into a cold water supply.
The water pressure must be within the limits given in the
technical specifications.
Your local Water Authority will advise you on the average
mains pressure in your area.
The dishwasher features fill and drain hoses which can be
turned either to the left or the right to suit the installation.
The locknut must be correctly fitted to avoid water leaks.
Do not use, for the connection, old hoses which have
been used in another appliance.
Avoid bends or kinks in the hose which could prevent or slow
down the water supply.
If the machine is connected to new pipes or pipes which have
not been used for a long time, you should run the water for a
few minutes before connecting the inlet hose. This will prevent
deposits of sand or rust clogging the inlet hose filter.
570-600
820
450
IN04
CA17
IN06
IN07
17

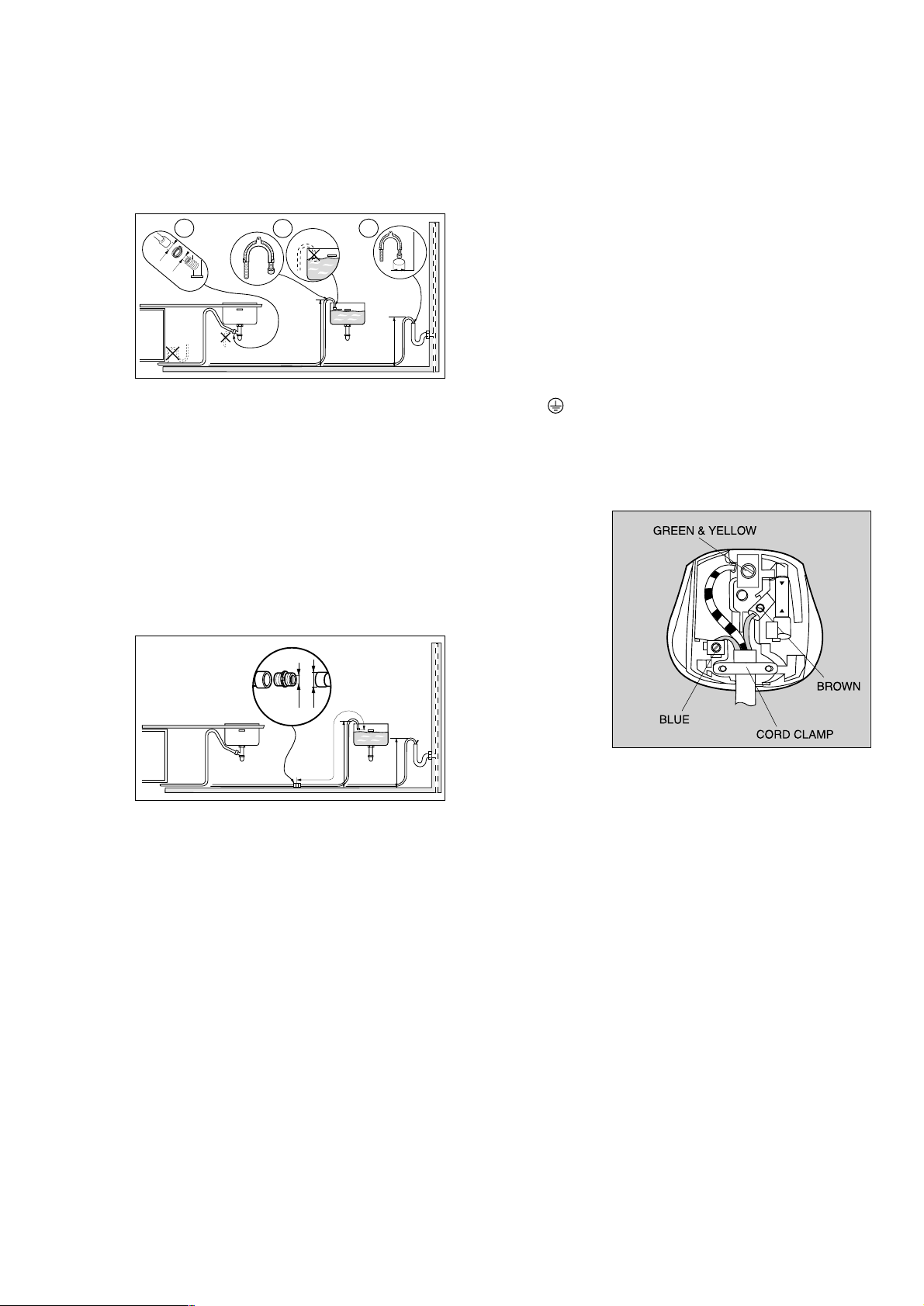

Water outlet hose connection
The end of the drain hose can be connected in the following
ways:
1. To the sink outlet spigot, securing it if necessary with a clip.
2. Hooked over the edge of the sink using the special curved
plastic guide provided.
3. To a stand pipe provided with vent-hole, minimum internal
diameter 4 cm.
The waste connection must be at a height of between 30 cm
(minimum) and 100 cm (maximum) from the bottom of the
dishwasher.
The drain hose can face either to the right or left of the
dishwasher
Ensure the hose is not bent or squashed as this could prevent
or slow down the discharge of water.
The sink plug must not be in place when the machine is
draining as this could cause the water to siphon back into the
machine.
If you use a drain hose extension it must be no longer than 2
metres and its internal diameter must be no smaller than the
diameter of the hose provided.
Likewise the internal diameter of the couplings used for
connections to the waste outlet must be no smaller than the
diameter of the hose provided.
Electrical connection
This appliance must be earthed.
The manufacturer declines any responsibility should this
safety measure not be observed.
If the plug that is fitted to your appliance is not suitable for the
socket, it must be cut off and the appropriate plug fitted.
Important
The wires on the mains lead are coloured in accordance with
the following code:
Green and Yellow - Earth
Blue - Neutral
Brown - Live
If you fit your own plug, the colours of the wires in the mains
lead of your appliance may not correspond with the markings
identifying the terminals in your plug.
Proceed as follows:
1. Connect the Green and Yellow (earth) wire to the terminal
in the plug which is marked with the letter "E" or the earth
symbol or coloured green and yellow.
2. Connect the Blue (neutral) wire to the terminal in the plug
which is marked with the letter "N" or coloured black.
3. Connect the Brown (live) wire to the terminal in the plug
which is marked with the letter "L" or coloured red.
The plug moulded onto the lead incorporates a 13amp BSI362
fuse. Only ASTAor BSI fuses should be used.
The plug must not be used if the fuse cover/carrier is lost. The
cover/carrier is indicated by the coloured insert at the base of
the plug.
A replacement cover/carrier must be obtained from your local
Service Force Centre.
To isolate the dishwasher from mains, remove the mains plug.
Important!
The plug must still be accessible after the appliance has
been installed.
In case that the electrical cable has to be replaced, please
contact your local Service Force Centre.
2
21
Ø
8
1
Ø
CS09
max 100 cm
31
min 4 cm
min 30 cm
max 100 cm
E
13A
N
L
Ø 18
Ø 21
+ 2 m max
CS10
max 100 cm
min 30 cm
max 100 cm
CE04
18
Testing in accordance with EN 60704 must be carried out with appliance fully loaded and using the test programme (see "Washing
programmes" chart).
Test in accordance with EN 50242 must be carried out when the salt dispenser and rinse aid container have been filled with salt and
rinse aid respectively and using the test programme (see "Washing programmes" chart).

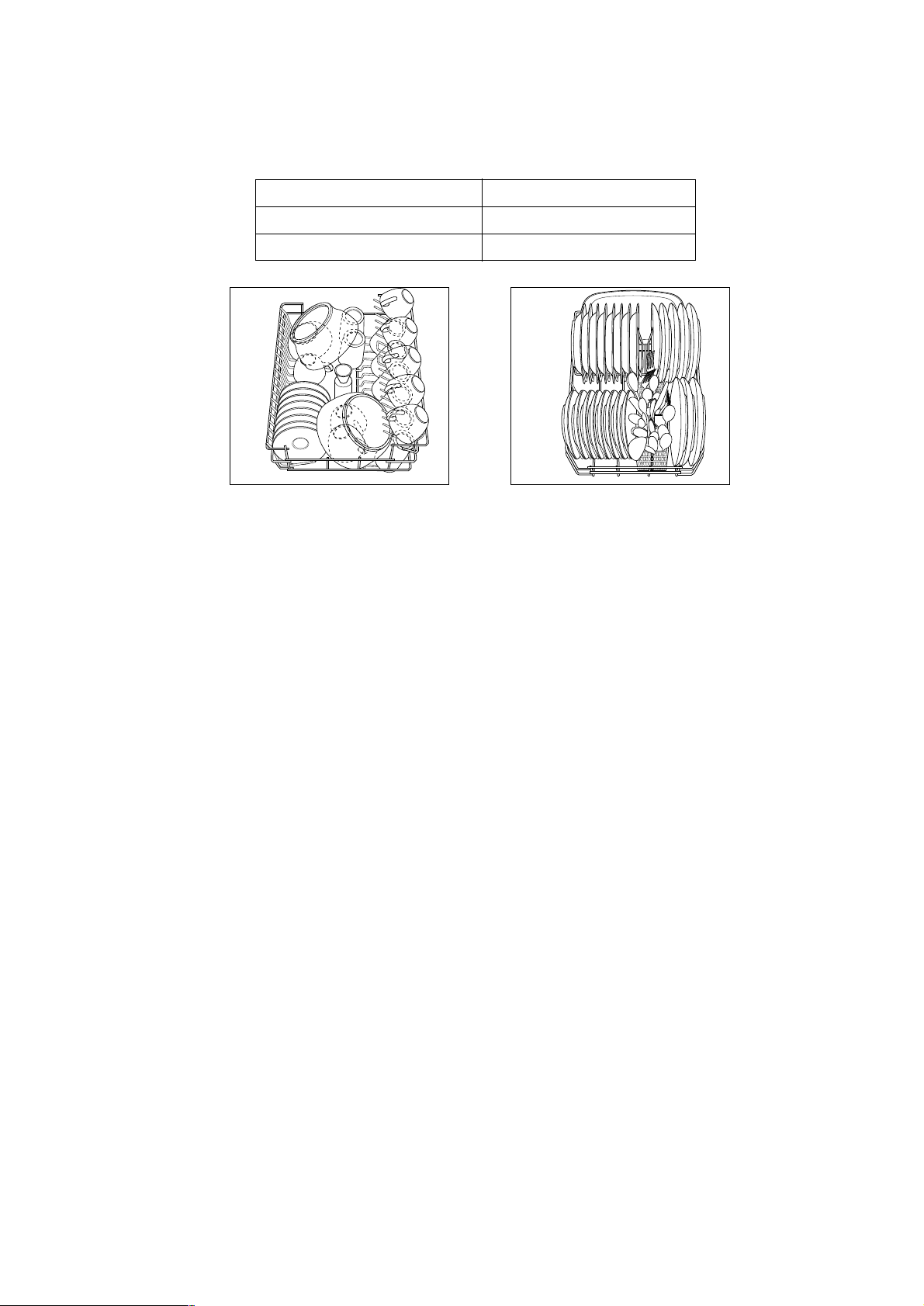

Hints for test centres
Load: 8 standard place settings
Rinse aid setting: 4 (Type III)
Detergent dosage : 5 g + 25 g (Type B)
Arrangement lower basket
Arrangement upper basket
US21
UI57
Tricity Bendix, 55-77 High Street, Slough, Berkshire, SL1 1DZ
Customer care telephone number...
08705 950 950
From the Electrolux Group. The world’s No.1 choice.
The Electrolux Group is the world’s largest producer of powered appliances for kitchen,
cleaning and outdoor use. More than 55 million Electrolux Group products (such as
refrigerators, cookers, vacuum cleaners, chain saws and lawn mowers) are sold each year
to a value of approx. 14 billion USD in more than 150 countries around the world.
© Electrolux plc 2002
152972 22/0
UK
Subject to change without notice
Loading...
