INSTRUCTION BOOK

Dishwasher

DH 086

Contents

For the user

Important safety information	3
Description of the appliance	4
The control panel	4
Before use	5
Setting the water softener	5

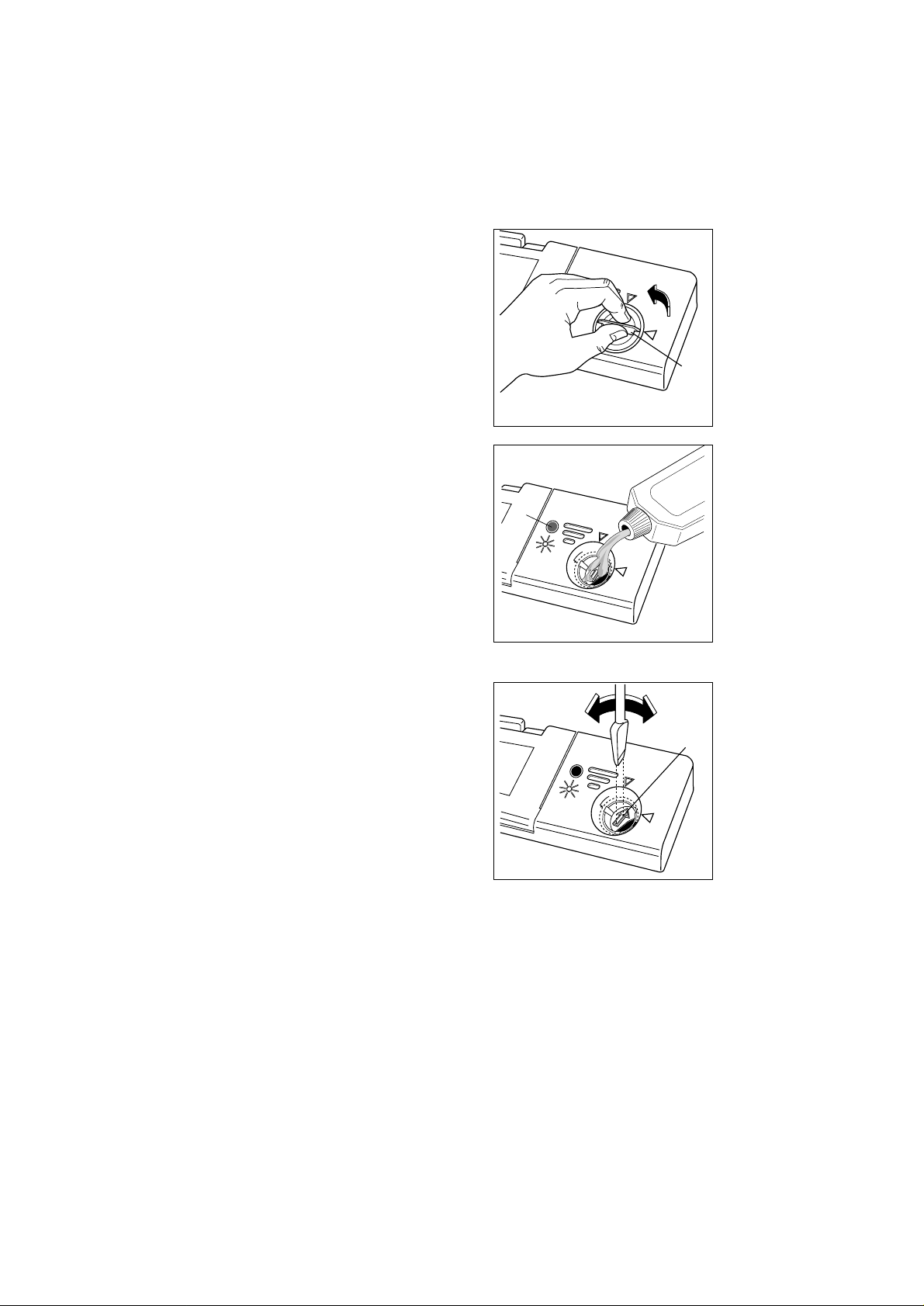

Rinse aid	7
Using your appliance	8

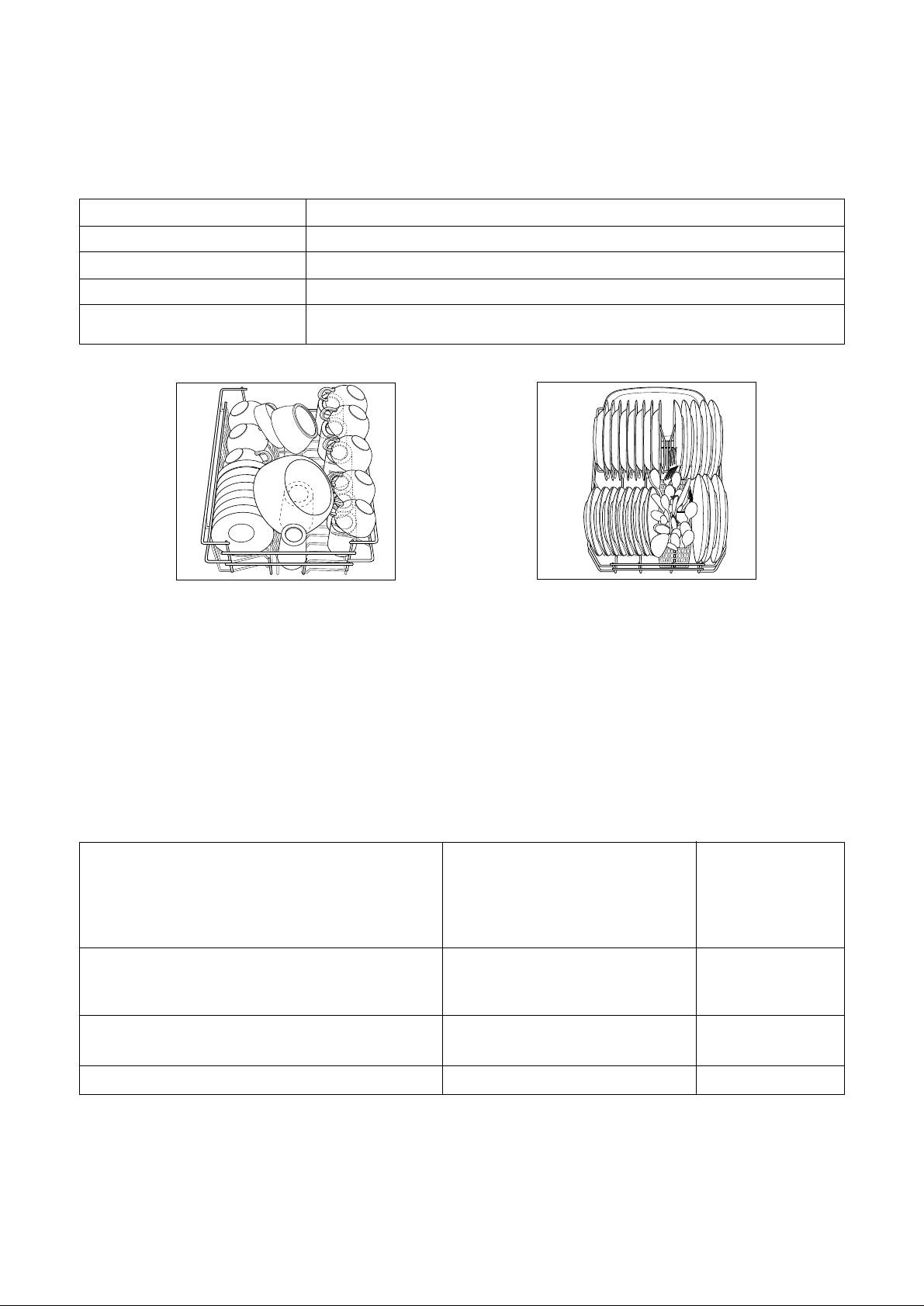

Loading your appliance	8
Adjusting the height of the upper basket	9
Use of detergent	10
Hints and tips	11
Washing programmes	12
Operating sequence	13
Maintenance and cleaning	14
Internal cleaning	14
Cleaning the filters	14
External cleaning	14
Prolonged periods of non-operation	14
Frost precautions	14
Moving the machine	14
Something not working	15
Hints for test centres	16
Technical specifications	16

For the installer

Installation instructions	17
Water supply connections	17

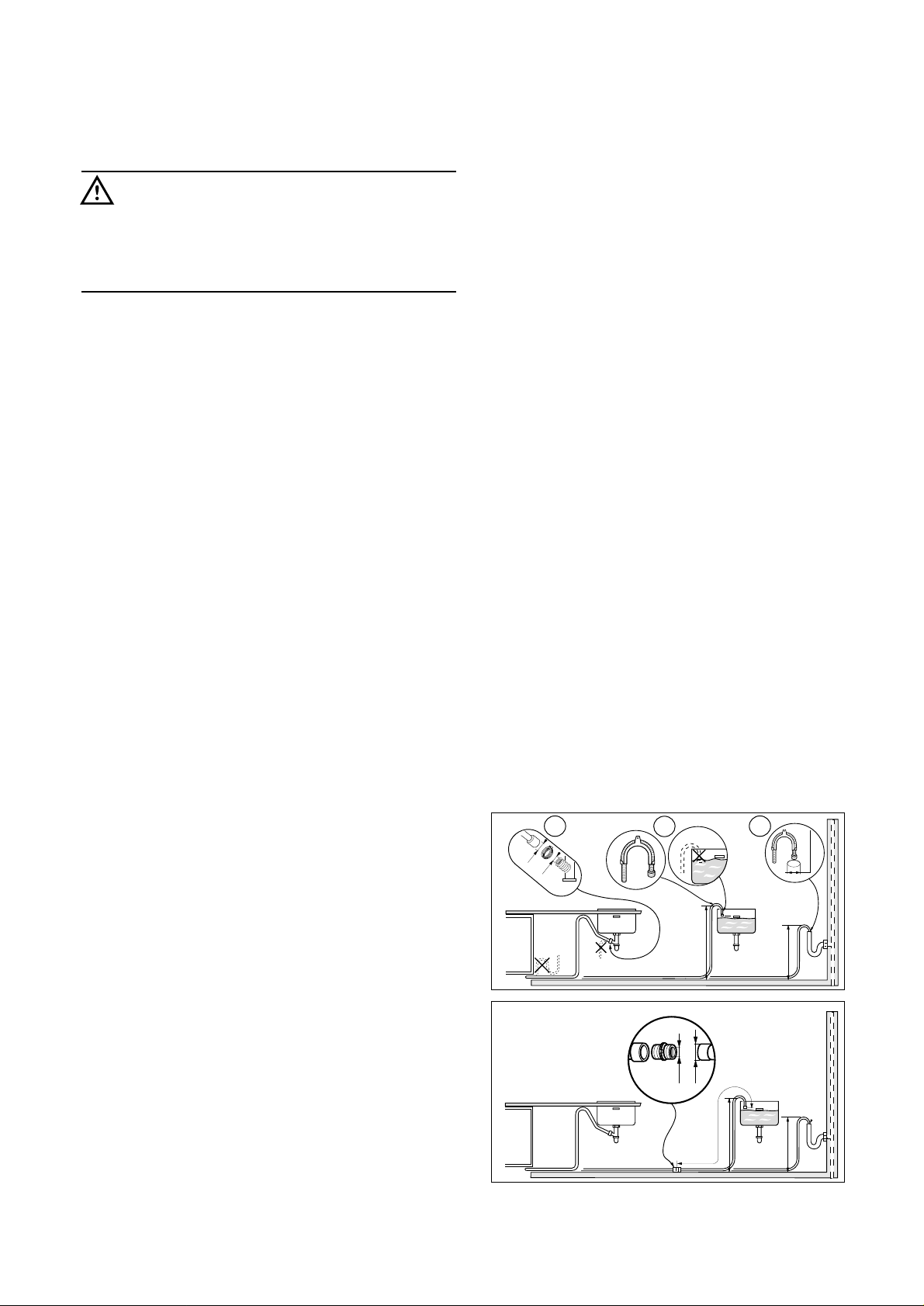

Water outlet hose connection	17
Electrical connection	18
Adjusting the worktop	19
Fitting under a counter	19
Levelling	19

Guide to use the instruction book

The following symbols will be found in the text to guide you throughout the instructions:

Safety instructions

1. 2. 3.

Step by step

Hints and tips

Environmental information

2

Important safety information

It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant safety information.

This information has been provided in the interest of your safety. You MUST read it carefully before installing or using the appliance.

Installation

●This appliance is heavy. Care should be taken when moving it.

●It is dangerous to alter the specifications or attempt to modify this product in any way.

●Care must be taken to ensure that the appliance does not stand on the electrical supply cable.

●Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

●Any plumbing work required to install this appliance should be carried out by a qualified plumber or competent person.

Child Safety

●This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the product.

●Keep all packaging well away from children.

●Keep all detergents in a safe place out of children's reach.

●Care should be taken when cleaning the bottom door seal and hinge area as any exposed metal edges may cut if care is not taken.

●This product should be serviced by an authorised Service engineer, and only genuine spare parts should be used.

●Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre. Always insist on genuine spare parts.

Conservation

In the interest of the environment:

● Materials marked with the symbol

are recyclable.

●Check with your local Council or Environmental

Health Office to see if there are facilities in your area for re-cycling this appliance.

●When the appliance is to be scrapped, cut off the power supply cable and make the door closing device unusable to prevent young children from being trapped inside.

●Help to keep your country tidy - use authorised disposal sites for your old appliance.

During Use

●Items that are contaminated by petrol, paint, steel or iron debris, corrosive, acidic or alkaline chemicals must not be washed in this dishwasher.

●Under no circumstances should you open the door whilst the appliance is in operation. Always turn off the appliance before opening the door.

●Only use detergent specifically designed for use in dishwashers.

●Long bladed knives stored in an upright position are a potential hazard.

●Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.

●When finishing loading or unloading close the door, as an open door can be a hazard.

●Do not sit or stand on the open door.

●Isolate the appliance from the power supply and turn off the water supply after use.

3

Description of the appliance

1.Water hardness adjustment

2.Upper basket stop

3.Salt container

4.Detergent dispenser

5.Rinse aid dispenser

6.Control panel

7.Filters

8.Lower spray arm

9.Upper spray arm

10.Upper basket

11.Levelling spacers

12. Worktop

The control panel

1.On/Off push button

2.Mains on indicator light

3.Programme guide

4.Door handle

5.Programme marker

6.Programme selector dial

12

1	11
	10
2
	9
	8
3	7

4

5

6

IN139

7. Wash programme phase indicator

As the programme progresses, the programme selector dial turns, to show the phase in the wash programme the appliance has reached.

Prewash / Rinse and Hold

Wash

Cold rinse

Hot rinse

Drying

4

Before use

Before using your dishwasher for the first time:

1.Ensure that the electrical and water connections comply with the installation instructions.

2.Remove all packaging from inside the appliance.

3.Set the water softener.

4.Pour 1 litre of water inside the salt container and then fill with salt.

5.Fill the rinse aid dispenser.

Setting the water softener

The dishwasher is equipped with a water softener designed to remove minerals and salts from the water supply, which would have a detrimental or adverse effect on the operation of the appliance.

The higher the content of these salts, the harder your water is.

Water hardness is measured in equivalent scales, Clarke, French degrees and PPM (parts per Million).

The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

The dishwasher is factory set at level 2.

If this level is not suitable for your area the softener should be adjusted.

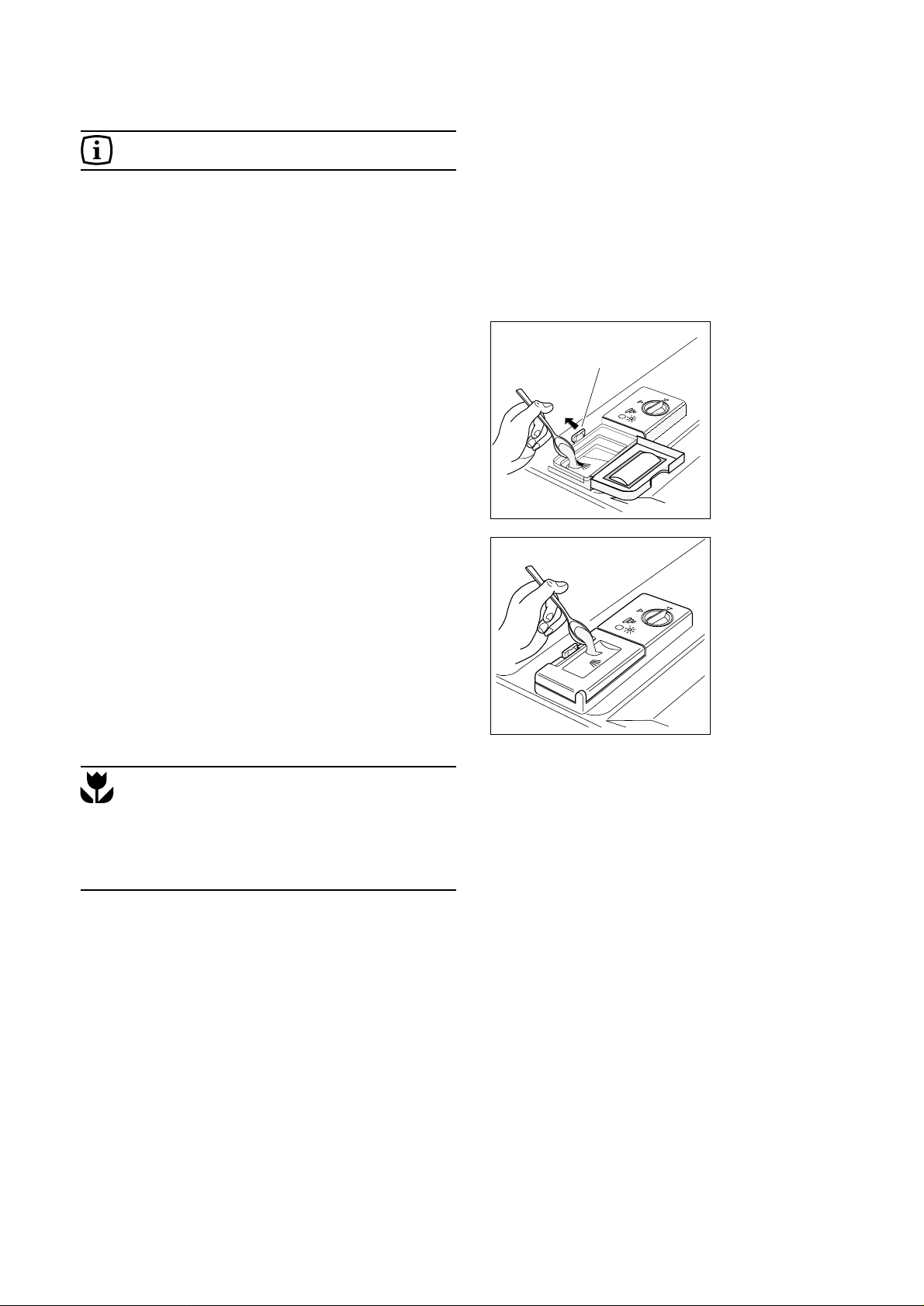

To adjust the water softener

Level 1

If your water is "level 1" it is already soft and therefore there is no need to use salt.

Levels 3 and 5

(water softener adjustment)

If your water is level 3 or 5, proceed as follows:

-slide out the lower basket and unscrew the cap of the salt container;

-turn the two-position selector anticlockwise from

position	-to position	+ with the aid of a blunt knife or
screwdriver.
Levels 4 and 5		(adjustment on the machine)

If your water is level 4 or 5, open the door and drill membrane (A) on the upper left-hand corner of the machine.

With a water hardness of level 5 both adjustments must be made.

Water hardness
Clarke	French			PPM				Use	Water	Adjustment
degrees	degrees			(Parts per			Leve
								of	softener	on the
	(°TH)			Million)			l
								salt	adjustment	machine
0 - 10	0	-	14	0 - 140			1	NO	NO	NO
11 - 27	15	-	39	141	- 390		2	YES	NO	NO
28 - 35	40	-	50	400	- 500		3	YES	YES	NO
36 - 49	51	-	70	501	- 700		4	YES	NO	YES
50 - 63	71	-	90	701	- 900		5	YES	YES	YES

AA01

A

AA04

5

Filling with salt

Only use salt specifically designed for use in dishwashers.

All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener.

Only fill with salt just before starting one of the complete washing programmes (not the

Rinse and Hold programme). This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

To fill:

1.To fill with salt, unscrew the cap of the salt container.

2. Pour 1 litre of water inside the container

(this is necessary only before filling with salt for the first time).

3.Using the funnel provided, pour in the salt until the container is full.

Do not worry if water over flows from the unit when filling with salt, this is quite normal.

4.Replace the cap making sure that there is no trace of salt on the screw thread or on the gasket.

5.Screw on the cap tightly.

The salt container will require topping up periodically.

The salt cap has a refill indicator window in the centre.

A green float is clearly visible when there is salt inside the container, and almost disappears when the salt has finished

reminding you to add salt.

SALET

SAL

SALZ

SEL

SR06

SR11

6
