900 mm Built In Oven
OPERATING AND INSTALLATION INSTRUCTIONS
MODEL NO.
DORSET/ DEVON
TECHNICAL DETAILS
MODEL NO. ATB 4411/4421 DORSET
ATB 4511/4521 DEVON
Voltage: 230/240 Volts AC 50Hz
Wattage: 5.0/5.4kW
Height: 885mm
Width: 595mm
Depth: 545mm
(excluding handles and knobs)
Weight: 53kg
These appliances comply with: European Council Directive 73/23/EEC.
EMC Directive 89/336/EEC.
CE Marking Directive 93/68/EEC.
2
CONTENTS
Please follow these instructions step by step to install and operate your oven safely and easily.
Technical Details
Contents
Preface ................................................................................. 5
Safety
Installation Instructions ................................................................8
Getting Things Ready
Making the Electrical Connections
...............................................................................
...................................................................................
Before Installation ................................................................. 6
During Operation .................................................................6
After Use ......................................................................... 7
General .......................................................................... 7
Things You Need to Know
Warnings ......................................................................... 8
Things to Note ....................................................................8
Choice of Electrical Connection
Preparing Cabinet for Fitting Oven .................................................9
Recommended Cabinet Dimensions ..............................................10
How to Finish Unpacking .........................................................11
Tools Required ..................................................................11
Preparing Cable
To Remove Cover of Mains Terminal .............................................11
Connecting to the Mains Terminal ................................................12
Connecting to a Hob or Cooker Point .............................................12
Checking Electrical Connections ..................................................12
.......................................................................
.........................................................
..................................................................
....................................................
....................................................
.................................................................
11
11
2
3
6
8
8
8
Fitting Into The Cabinet
Introduction
Getting to Know Your Oven ......................................................14
Rating Plate .....................................................................15
General Notes on Using The Ovens ..............................................15
When First Switching On .........................................................15
About Condensation and Steam ..................................................15
Cookware .......................................................................15
The Cooling Fan for the Controls .................................................15
Control Panel Indicator Neons ....................................................15
Grill and Oven Furniture ..........................................................16
The Electronic Minute Minder (Dorset only) ...........................................17
The Electronic Timer (Devon only) ....................................................19
The Grill
Uses of the Dual Grill ............................................................ 23
Selecting the Dual Grill ...........................................................23
Things to Note ...................................................................23
The Grill Pan and Handle .........................................................23
Hints and Tips ...................................................................24
Grilling Chart .................................................................... 25
...........................................................................
...............................................................................
...............................................................
13
14
23
3
CONTENTS
The Second Oven
Uses of the Second Oven ........................................................26
Selecting the Second Oven .......................................................26
Things to Note ...................................................................26
To Fit the Top Oven Shelf ........................................................26
Hints and Tips ...................................................................26
The Main Fan Oven ....................................................................28
Uses of the Fan Oven ............................................................28
Selecting the Fan Oven ..........................................................28
Things to Note ...................................................................28
To Fit the Main Oven Shelves ....................................................28
Hints and Tips ...................................................................29
Roasting Chart
Oven Cooking Chart ...................................................................30
Defrosting .............................................................................31
Uses of Defrost Feature ..........................................................31
Selecting Defrost ................................................................31
Things to Note ...................................................................31
Hints and Tips ...................................................................31
Helpful Hints when Buying and Preparing Food ......................................32
.....................................................................
........................................................................
26
29
Care and Cleaning .....................................................................33
Cleaning Materials ...............................................................33
Cleaning the Outside of the Cooker ...............................................33
Cleaning Inside the Ovens .......................................................33
Cleaning the Grill Deflector, Grill Pan, Grill Pan Grid and Oven Shelves ............33
Cleaning Between the Outer and Inner Door Glass ...............................33
Care of Stayclean Surfaces (Devon only) .........................................34
Hints and Tips ...................................................................34
Replacing the Oven Light Bulb ....................................................35
Something Not Working? .............................................................36
Service and Spare Parts
Customer Service Centres
Guarantee Conditions
.................................................................
...............................................................
.............................................................
37
38
42
4
PREFACE
Dear Customer,
Thank you for buying a Tricity Bendix cooker. With our 80 years experience in
developing and manufacturing the very best in U.K. cookers, you can be
assured that you have purchased a hard working, reliable, quality cooker.
Tricity Bendix cookers comply with British Standard safety and performance
requirements. They have been approved by BEAB (British Electrotechnical
Approvals Board) and are covered by a 12 month parts and labour guarantee.
To get the best from your new Tricity Bendix cooker, we ask that you PLEASE
READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be
made to cooking times and temperatures which may differ from your previous
cooker.
It is most important that this instruction book is retained with the cooker for
future reference. Should the cooker be sold, or transferred to another owner,
or should you move house and leave the cooker, always ensure that the book
remains with the cooker so that the new owner can be acquainted with the
functioning of the cooker and the relevant warnings.
Please read the whole instruction book before attempting to use the cooker
ensuring you follow the recommendations given.
5
SAFETY
THESE WARNINGS ARE PROVIDED IN
THE INTERESTS OF YOUR SAFETY.
ENSURE THAT YOU UNDERSTAND
THEM ALL BEFORE INSTALLING OR
USING THE COOKER.
PLEASE
READ
CAREFULLY
BEFORE INSTALLATION
This cooker is heavy and care must
be taken when moving it.
Ensure that all packaging, both
inside and outside the cooker has
been removed before the cooker is
used.
This cooker is designed to be
operated by adults. Young children
must not be allowed to tamper with
the cooker or play with the controls.
Accessible parts, especially around
the grill area, may become hot when
the cooker is in use. Children should
be kept away until it has cooled.
Take great care when heating fats
and oils as they will ignite if they
become too hot.
This cooker has been designed for
cooking edible foodstuffs only, and
must not be used for any other
purposes.
Never place plastic or any other
material which may melt in the oven.
Do not try to move the cooker by
pulling the door handles. Refer to
installation instructions.
The cooker must be installed according
to the instructions supplied. Any electrical
installation work must be undertaken by
a qualified electrician/competent person.
It is dangerous to alter or modify
the specifications of the cooker in
any way.
After installation, please dispose of
the packaging with due regard to
safety and the environment.
DURING OPERATION
Do not use this cooker if it is in
contact with water and never operate
it with wet hands.
Ensure cooking utensils are large
enough to contain foods to prevent
spillages and boil overs.
Take care to follow the recommendations
given for tending the food when grilling.
Use the handle provided in the
recommended way.
Do not leave the handle in position,
when grilling, as it will become hot.
Always use oven gloves to remove
and replace food in the oven.
Similarly always use oven gloves to
remove and replace the grill pan
handle, when grilling.
Recommendations given on page 23.
Ensure that you support the grill pan
when it is in the withdrawn or partially
withdrawn position.
6
AFTER USE
Ensure that all vents are left
unobstructed to ensure ventilation of
the oven.
You must ensure that the grill control
is in the 'OFF' position when the
timer control has been set for
automatic cooking. (Devon only).
Ensure that the anti-tilt shelves are
put in place correctly. Refer to
instructions on pages 26 and 28.
Never line any part of the cooker
with aluminium foil. Do not allow
heatproof cooking material, e.g.
roasting bags, to come into contact
with oven elements.
Always stand back from the cooker
when opening the oven door to allow
any build up of steam or heat to
release.
Stand clear when opening the drop
down oven door. Do not allow it to
fall open - support it using the door
handle, until it is fully open.
Do not place sealed cans or
aerosols inside the oven. They may
explode if they are heated.
Cookers and hobs become very hot,
and retain their heat for a long period
of time after use. Children should be
kept well away from the cooker until
it has cooled.
GENERAL
Under no circumstances should
repairs be carried out by inexperienced
persons as this may cause injury or
serious malfunction. This cooker should
be serviced by an authorised Service
Engineer and only genuine approved
spare parts should be used. Details of
servicing and repair arrangements are
supplied on page 37 of this book.
Do not stand on the cooker or on
the open oven door.
Do not hang towels, dishcloths or
clothes from the cooker or its handle.
They are a safety hazard.
Always allow the cooling fan to cool
the cooker down before switching off
at the wall prior to carrying out any
cleaning or maintenance work.
Only clean this cooker in accordance
with the instructions given in this
book.
Ensure that all control knobs are in
the OFF position when not in use.
For hygiene and safety reasons this
cooker should be kept clean at all
times. A build-up of fats or other
foodstuffs could result in a fire,
especially in the grill pan.
Do not leave utensils containing
foodstuffs, e.g. fat or oil in or on the
cooker in case it is inadvertently
switched ON.
Your safety is of paramount importance.
Therefore, if you are unsure about any of
the meanings of these WARNINGS
contact the:
Consumer Care Department
Telephone: (01582) 585858
7
INSTALLATION INSTRUCTIONS
THINGS YOU NEED TO KNOW
WARNINGS:
l
This cooker must be installed by a qualified
electrician/competent person. Safety may be
impaired if installation is not carried out in
accordance with these instructions.
l
This cooker must be earthed.
l
Do not remove the screws from the earth tab
extending from the oven mains terminal block
(Fig. 6).
l
Before connecting the cooker make sure that the
voltage of your electricity supply is the same as
that indicated on the rating plate. The rating plate
can be seen by opening the oven door and
looking below the oven door seal.
l
Do not alter the electrical circuitry of this cooker.
THINGS TO NOTE
l
This cooker is designed to be fitted in cabinets of
the recommended dimensions as shown (Fig. 2).
l
If your cabinet interior dimension is between
565-570mm the oven may still be fitted. However
a minor modification to the cabinet will be
required.
l
The dimensions given provide adequate air
circulation around the unit within the cabinet,
ensuring compliance with BS EN60-335.
l
Enquiries regarding the installation of the cooker
point, if required, should be made to your
Regional Electricity Company to ensure
compliance with their regulations.
GETTING THINGS READY
CHOICE OF ELECTRICAL CONNECTION
l
There are three possible ways to connect your
cooker. In each case the cooker should be
operated using at least 6mm² twin core and earth
PVC insulated multicore cable. Please choose
from the most appropriate after reading the
different methods:-
a) By connecting the cooker to a cooker point
(having a double pole isolating switch with at
least 3mm contact separation in all poles and
neutral) and protected with a fuse or miniature
circuit breaker at your mains fuse box.
Subject to Regional Electricity Companies
regulations if you wish to connect the oven
and hob to the power supply you may use
one of the following two methods:-
b) By connecting the cooker together with a hob
directly to a cooker point(s). Having a double
pole isolating switch with at least 3mm contact
separation in all poles and neutral.
c) If you wish to connect an oven and a hob to a
cooker point you can by connecting the oven and
hob separately to the cooker point. Oven and hob
units should be separately connected to a control
panel. See Fig. 1.
l
The cooker socket switch should be outside the
cabinet but within 2m of the cooker to make it
accessible to switch off the cooker in case of an
emergency.
l
To protect the hands, wear gloves when lifting
the oven into its housing.
NOTE: HOUSE CIRCUIT
Earth leakage and continuity tests must be carried
out before the cooker is connected to the mains
supply and re-checked after fitting.
8
Fig. 1
NOTE: It is good practice to:
l
Fit an Earth Leakage Circuit Breaker to your
house wiring.
l
Wire your appliance to the latest IEE regulations.
PREPARING CABINET FOR FITTING OF OVEN
l
Make sure the cabinet is the correct size for the
appliance to be fitted (Ref. Fig. 2).
l
If the size is between 565-570mm, then the
cabinet should be modified so that at the screw
fixing points the recommended dimension of at
least 560-565mm is maintained. The modification
should ideally be localised to ensure that after
screw fitment the oven is securely fixed into
position.
l
The cabinet must be stable and level by firmly
securing it to the wall or floor. If necessary,
make arrangements to ensure the shelf upon
which the oven will rest is level.
9
RECOMMENDED CABINET DIMENSIONS (IN MILLIMETRES)
6
0
0
m
i
n
5
6
0
m
i
n
5
7
0
m
5
5
8
8
7
2
a
x
n
i
m
0
5
5
d
e
d
n
e
m
m
o
c
e
R
0
0
0
2
5
Cross section
through
cabinet
showing oven
9
7
8
5
8
8
-
5
4
6
7
8
8
positioned
5
Fig. 2 Built In Installation
10
540
5
HOW TO FINISH UNPACKING
l
Place packed cooker next to the cabinet in which
it will be installed.
l
Remove the cooker packing except for bottom
tray which should be left in position until the
cooker is ready to be fitted into its cabinet.
l
Carefully score down from each end of the cable
sheathing along the length of the bare earth wire
(if a cut was made along the length of the live or
neutral wires, it might cut into their sheathing) to
the cuts already made.
l
Carefully prise open the sheathing at each end of
the cable to expose the encased wiring.
l
Ensure the owner is given these operating
instructions.
TOOLS REQUIRED
The following tools will be needed and it helps to
assemble them before starting to install your oven:
A terminal screwdriver (3mm wide blade)
A pozidrive screwdriver
Pliers
Wirestrippers
Knife
Sidecutters
Adhesive Tape
Tape Measure
TO REMOVE COVER OF MAINS TERMINAL
From the rear of the cooker, remove mains input
terminal cover to gain access to terminal block.
l
First remove retaining screw with pozidrive
screwdriver. See Fig. 3.
Fig.3
MAKE THE ELECTRICAL CONNECTIONS
Important: Switch off at mains, miniature
circuit breaker and, if appropriate, remove
fuse before commencing any electrical work.
PREPARING CABLE
We recommend you use a new length of cable to
ensure your safety.
l
Ensure you have the correct length of cable
appropriate to the wiring method you are using.
When fitting new cable allow sufficient cable for
removal of the unit at a later date, should it be
necessary.
l
Score, but do not cut through, around the
sheathing with a knife 100mm (4in) from each
end of the cable and break through to the
encased wires by bending the cable backwards
and forwards to fatigue the sheathing.
l
Prise cover loose using screwdriver in position
(1) then lever off with screwdriver in position (2)
at either side. See Fig. 4.
Fig.4
11
l
Lift cover and remove screw from cable clamp.
See Fig. 5.
Cable
Clamping
Block
Fig.5
CONNECTING TO MAINS TERMINAL
l
Clamp the mains cable securely ensuring 5mm of
the outer insulation is inside the terminal block
and that the wires are not taught but not so slack
as to cause any fouling. See Fig. 6.
l
Place fuse/miniature circuit breaker in circuit and
switch on at mains.
CONNECTING TO A HOB OR COOKER POINT
WARNING: THIS COOKER MUST BE EARTHED.
l
Either follow in general terms the instructions for
connecting to the terminal block or refer to the
hob suppliers installation instructions.
Feed the cable through the cabinet and
arrange to route the cable away from the
cooker which may become hot.
Warning: This cooker must be earthed.
l
Make connection as shown in Fig. 6 by
proceeding as follows:-
Fig.6
l
Preform wires to the appropriate shape to suit
fitting into the mains terminal block.
l
Strip inner insulation on wires using wirestrippers.
l
Twist the bared wires using pliers.
l
Cut bared wires 10mm away from the end of the
inner insulation. Where uninsulated Earth wires
are used ensure they are suitably sheathed to
leave 10mm bare wire to fit into the terminal.
CHECKING ELECTRICAL CONNECTIONS
l
Correct electrical connection can be confirmed
when switching on the appliance as the electronic
timer will be flashing.
NOTE: HOUSE CIRCUIT
Earth leakage and continuity tests must be carried
out before the cooker is connected to the mains
supply and re-checked after fitting.
l
Clamp bare wires into the relevant terminal and
check they are held by tugging each one in turn.
12
FITTING INTO THE CABINET
IMPORTANT: Ensure that the oven is switched
off at the wall before any further work is carried
out.
l
Using a tape measure establish the internal width
of the cabinet. Refer to page 8 if greater than
565mm.
l
Position the cooker in front of the cabinet. See
Fig. 7.
l
Take out all oven furniture before installation to
reduce the weight you need to lift. The oven door
should be taped up to keep it closed whilst lifting.
l
To place the cooker into the cabinetry follow the
procedure below:
l
N.B. Two people will be required to carry out the
lifting procedure.
a) Each person should squat either side of the
cooker.
b) Tilt the cooker so that your hands can support
the underside of the cooker.
c) Keeping your back straight, raise the appliance to
the cabinet by straightening at the knees.
d) Rest the rear underside of the cooker on the
cabinet floor while your hands support the front.
e) The cooker can be pushed fully into the cabinet.
Take care to avoid fouling the mains lead.
Fig.7
Mains
Cable
Pack Base
f) Ensure the cooker is central in the cabinet and
level.
g) When the cooker is fully housed screw the
stability screws, (supplied with the cooker) into
the side of the cabinet taking care not to distort
the side trims (See Fig. 8). It is advisable to turn
each screw alternately to avoid damaging the
trims.
h) Switch on the cooker then refer to the operating
instructions in the following pages.
Fixing points
for
stability screws
Fig.8
13
INTRODUCTION
WARNING: THIS COOKER MUST BE EARTHED
GETTING TO KNOW YOUR OVEN (DORSET).
A - Electronic Minute Minder E - Second Oven Temperature Control
B - Main Oven Indicator Neon F - Dual Grill Indicator Neon
C - Main Oven Temperature Control G - Dual Grill Control
D - Second Oven Indicator Neon
GETTING TO KNOW YOUR OVEN (DEVON).
A - Electronic Timer E - Second Oven Temperature Control
B - Main Oven Indicator Neon F - Dual Grill Indicator Neon
C - Main Oven Temperature Control G - Dual Grill Control
D - Second Oven Indicator Neon
14
RATING PLATE
COOKWARE
Record the model and serial numbers of your cooker
on the back cover of this instruction book. These
numbers can be found on the lower front frame of the
cooker upon opening the oven door.
The cooker must be protected by a suitably rated
fuse or circuit breaker. The rating of the cooker is
given on the rating plate.
GENERAL NOTES ON USING THE
OVENS
We suggest that you run all the elements for a short
period to burn off any residue from their surfaces.
During this period an unpleasant odour may be
emitted, it is therefore advisable to open a window
for ventilation.
WHEN FIRST SWITCHING ON
( Dorset only )
When first switched on, the timer will make an
audible sound. To stop the sound press both timer
buttons together.
This must be done whenever the cooker has been
switched off at the wall or when there has been a
power failure. See page 17 for further information
about setting the time of day and use of the minute
minder.
( Devon only )
The timer must be set for manual cooking before the
oven will operate. See page 19 for details on how to
set the timer.
Baking trays, oven dishes etc., should not be placed
directly against the grid covering the fan at the back
of the oven.
Do not use baking trays larger than 30cm x 35cm
(12" x 14") as they will restrict the circulation of heat
and may affect performance.
THE COOLING FAN FOR THE
CONTROLS
The cooling fan comes on immediately when the grill
is switched on and after a short time when the ovens
are in use. It may run on after the controls are
switched off until the cooker has cooled. During the
initial period the cooling fan may cycle ON and OFF,
this is quite normal.
Do not switch off the cooker at its power point before
the cooling fan has cooled the appliance down.
CONTROL PANEL INDICATOR NEONS
These lights indicate whether the ovens or grill are
switched ON. In the case of the oven, the neon also
indicates when the set temperature has been
reached.
If the neons do not operate as the instructions
indicate the controls have been incorrectly set.
Return all controls to zero and reset following the
instructions for the required setting.
(Devon only)
When the oven is set for automatic cooking the neon
remains unlit during OFF periods.
ABOUT CONDENSATION AND STEAM
When food is heated it produces steam similar to a
boiling kettle. The ovens are vented to allow some of
this steam to escape. However, always stand back
from the cooker when opening the oven door to allow
any build up of steam or heat to release.
If the steam comes into contact with a cool surface
on the outside of the cooker, e.g. a trim, it will
condense and produce water droplets. This is quite
normal and is not caused by a fault on the cooker.
To prevent discolouration, regularly wipe away
condensation and also soilage from surfaces.
15
GRILL AND OVEN FURNITURE

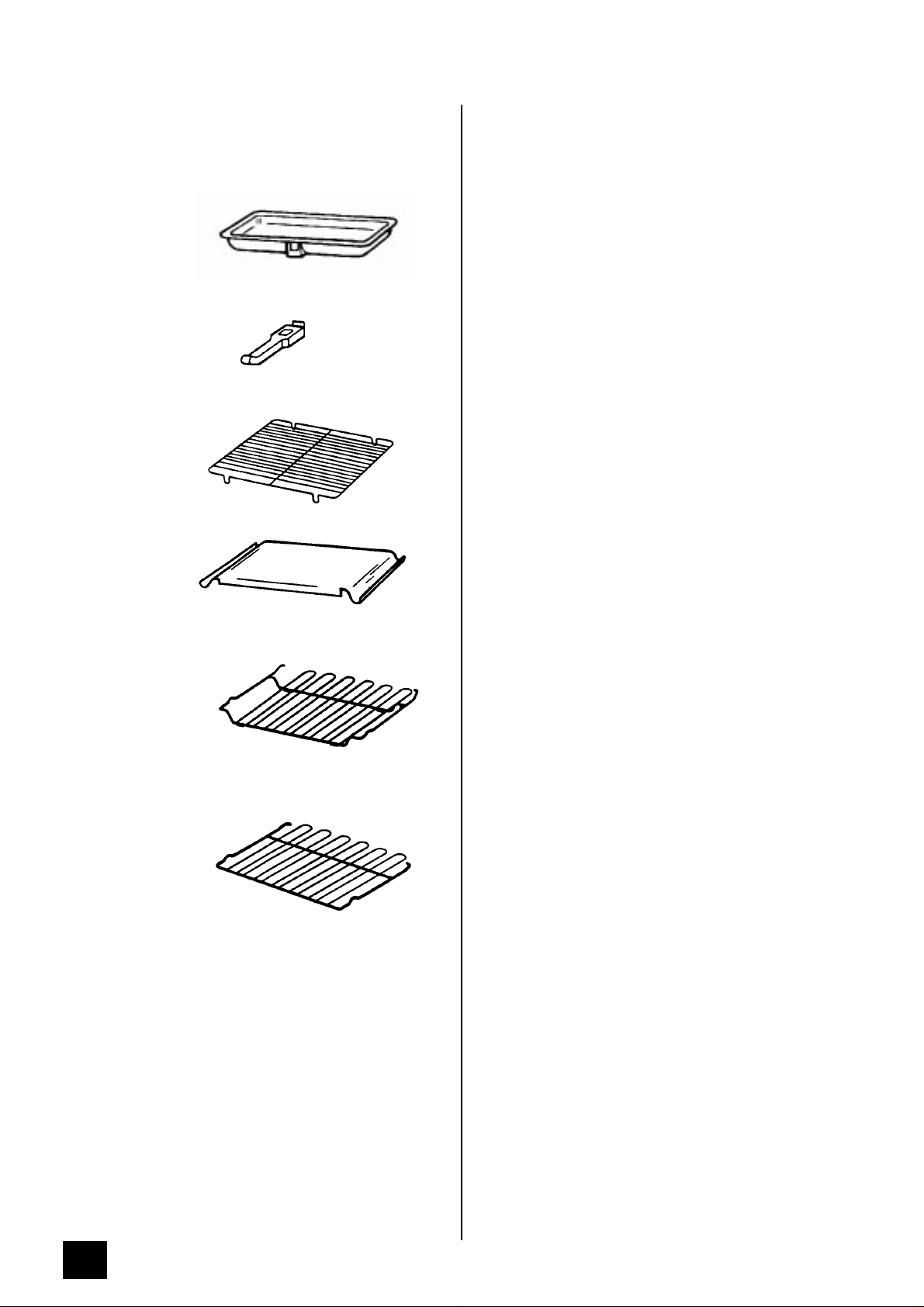

The following items of grill and oven furniture have
been supplied with the cooker.
1 grill pan/meat tin
1 grill pan handle
1 grill pan grid
1 grill deflector
1 cranked shelf
(for grilling
and second
oven cooking only)
2 straight shelves
(for main oven
cooking)
( Devon only )
Scuffing of the Stayclean oven lining by the oven
furniture pack may occur during transit.
These marks will disappear after the oven elements
have been burnt off for the first time.
16
THE ELECTRONIC MINUTE MINDER (DORSET ONLY )
1 = (-) DECREASE CONTROL & MINUTE
MINDER SETTING BUTTON
2 = (+) INCREASE CONTROL
( ) COOKING SYMBOL
( ) PUSH BOTH CLOCK SETTING
CONTROL
( ) MINUTE MINDER SYMBOL
The electronic minute minder can also indicate the
time of day.

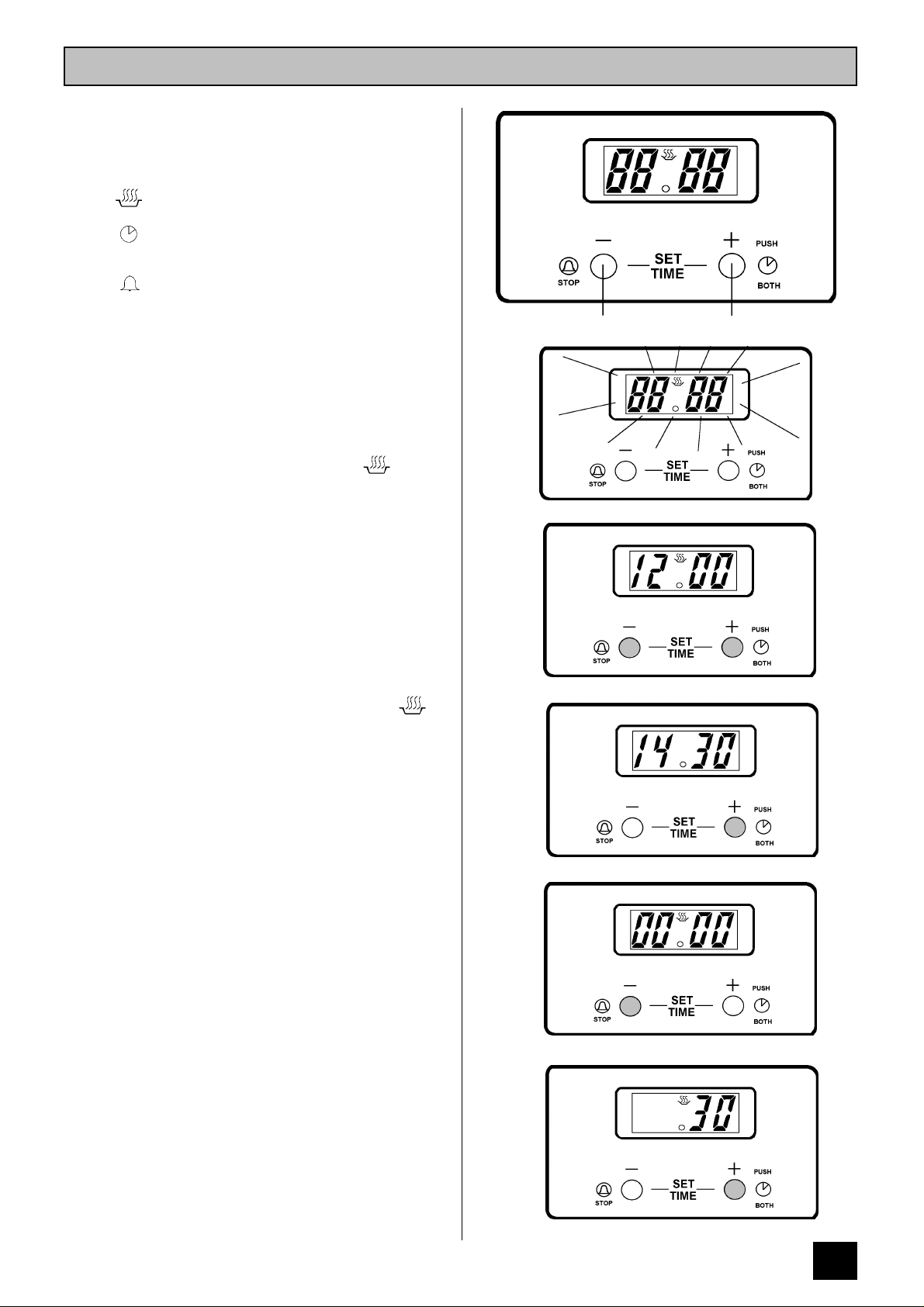

1. TO SET THE TIME OF DAY
When the electricity supply is first switched ON,
the display will flash both 88.88 and ( ). See
Fig. 1.
Press buttons (1) and (2) together. The display
will read 12:00. See Fig. 2.
Within five seconds press and hold either button
(1) to decrease or button (2) to increase the time
until the correct time of day on the 24 hour clock
is reached, e.g.14:30. The cooking symbol ( )
will go out. See Fig. 3.
21

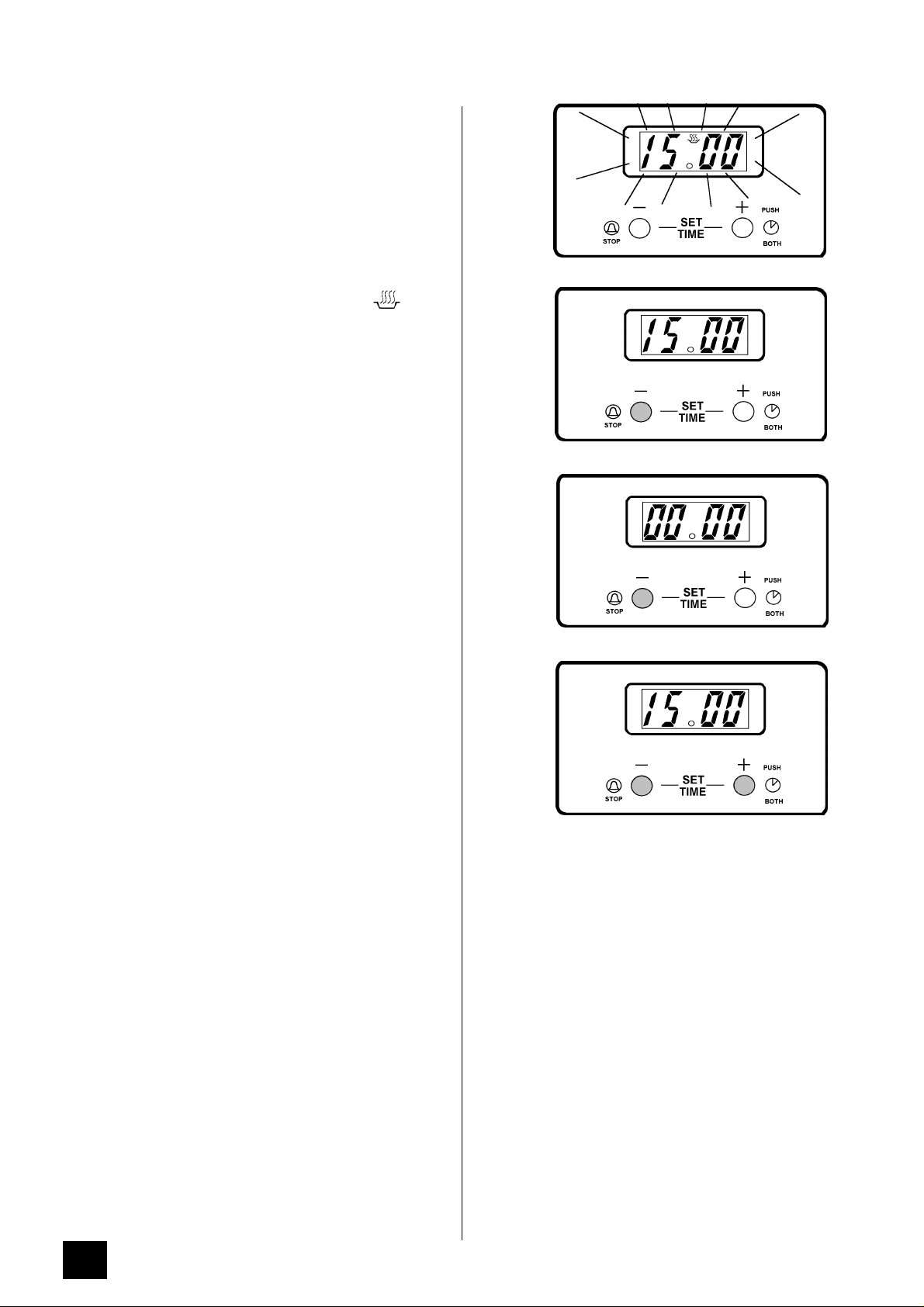

Fig. 1
Fig. 2
Fig. 3
Note: The increase and decrease control
buttons operate slowly at first, and then more
rapidly. They should be pressed separately.
2. THE MINUTE MINDER
The minute minder can be used to time a set
cooking period.
The minute minder gives an audible reminder at
the end of any period of cooking up to 23 hours
and 59 minutes.
To set press button (1) and the display will read
00:00, see Fig. 4.
Release button (1) and press and hold button (2).
The display will count up in one minute intervals
until the interval to be timed is reached e.g. 30
minutes, see Fig. 5. If necessary press and hold
button (1) to achieve the correct time interval.
Fig. 4
Fig. 5
17
The minute minder will begin to count down once
set. At the end of the timed period, an audible
signal will sound for up to 30 seconds. The
display will flash showing the time of day. See
Fig. 6.
To stop the sound and flashing press button (1).
The display will stop flashing and show the time
of day, e.g. 15:00. The cooking symbol ( ) will
go out, see Fig. 7.
When cooking is complete remove food and turn
OFF correct oven temperature control.
3. TO CANCEL THE MINUTE MINDER
Fig. 6
Fig. 7
Press and hold button (1) and the display will
count down in one minute intervals to 00:00. See
Fig. 8. Release button (1).
To reset the time of day, press buttons (1) and
(2) together. See Fig. 9.
4. THINGS TO NOTE
1. If at first you do not set the time of day
correctly, reset the clock by pressing and
holding button (1). The display will count back
to 00:00. Release the button. After a few
seconds the display will reset to show 12.00.
To reset the time of day follow the procedure
laid down in point 1 on page 17.
Fig. 8
Fig. 9
18
THE ELECTRONIC TIMER (DEVON ONLY )
KEY
A AUTO DISPLAY
B MINUTE MINDER BUTTON
C COOKING HOURS BUTTON
D STOP TIME BUTTON
E COOKING SYMBOL
F MANUAL SELECTOR BUTTON
G DECREASE CONTROL
H INCREASE CONTROL
NOTE:
STEP 1 BELOW MUST BE
FOLLOWED BEFORE THE
OVEN WILL OPERATE

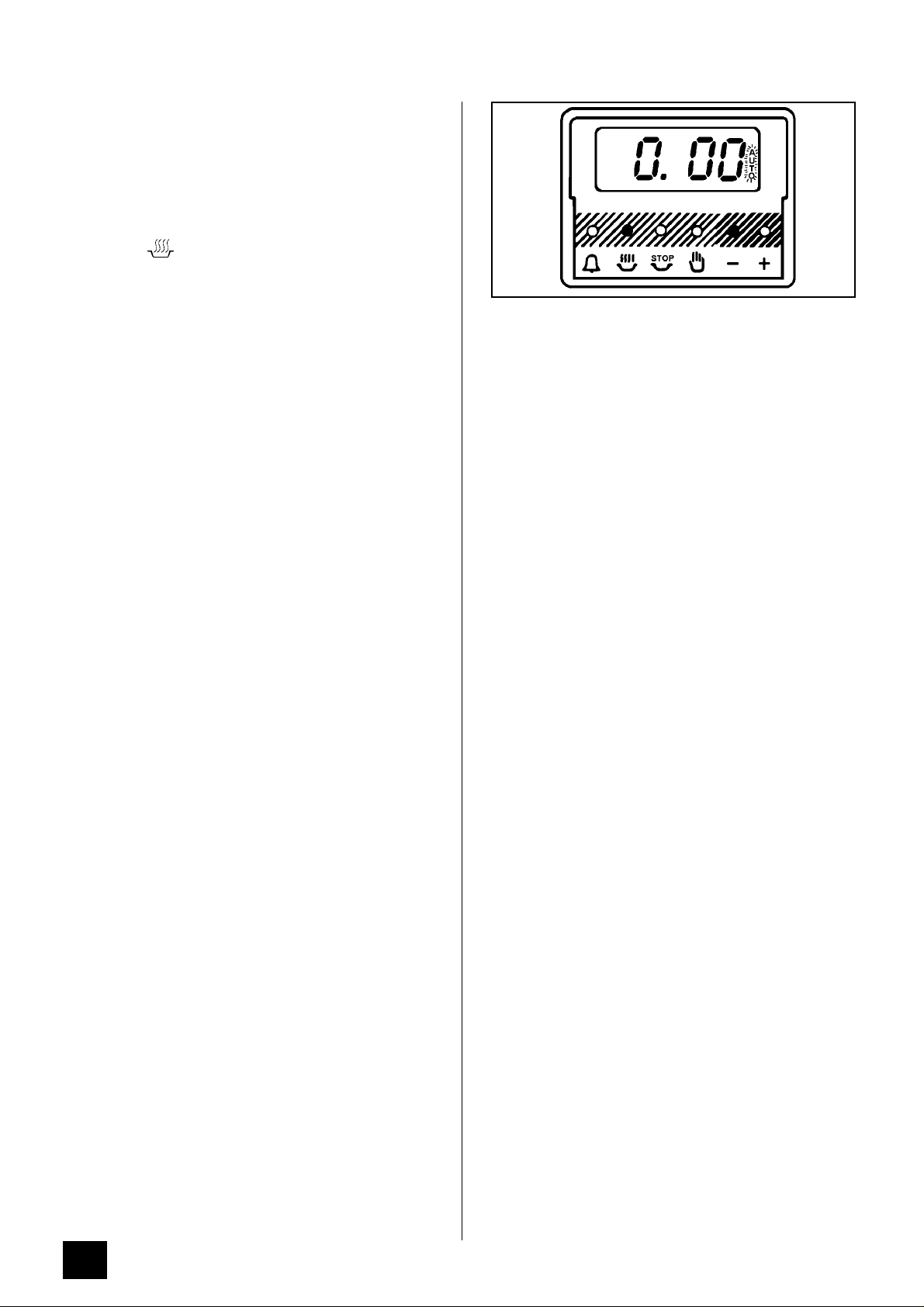

1. SET THE TIME OF DAY
When the electricity supply is first switched ON,
the display will flash both 0.00 and AUTO. See
Fig. 1.
MANUALLY.
Fig. 1
Press the two buttons marked ( ) and ( )
press the increase control button (+) and, if
necessary, the decrease control button (
the correct time on the 24 hour clock is reached,
e.g. 10.00am as Fig. 2.
Note: The increase and decrease control
buttons operate slowly at first, and then more
rapidly. They should be pressed separately.
The AUTO symbol will go out when the correct
time of day is set. See Fig. 2.
2. THE MINUTE MINDER
The minute minder gives an audible reminder at
the end of any period of cooking up to 23 hrs 59
mins. It is not part of the automatic control.

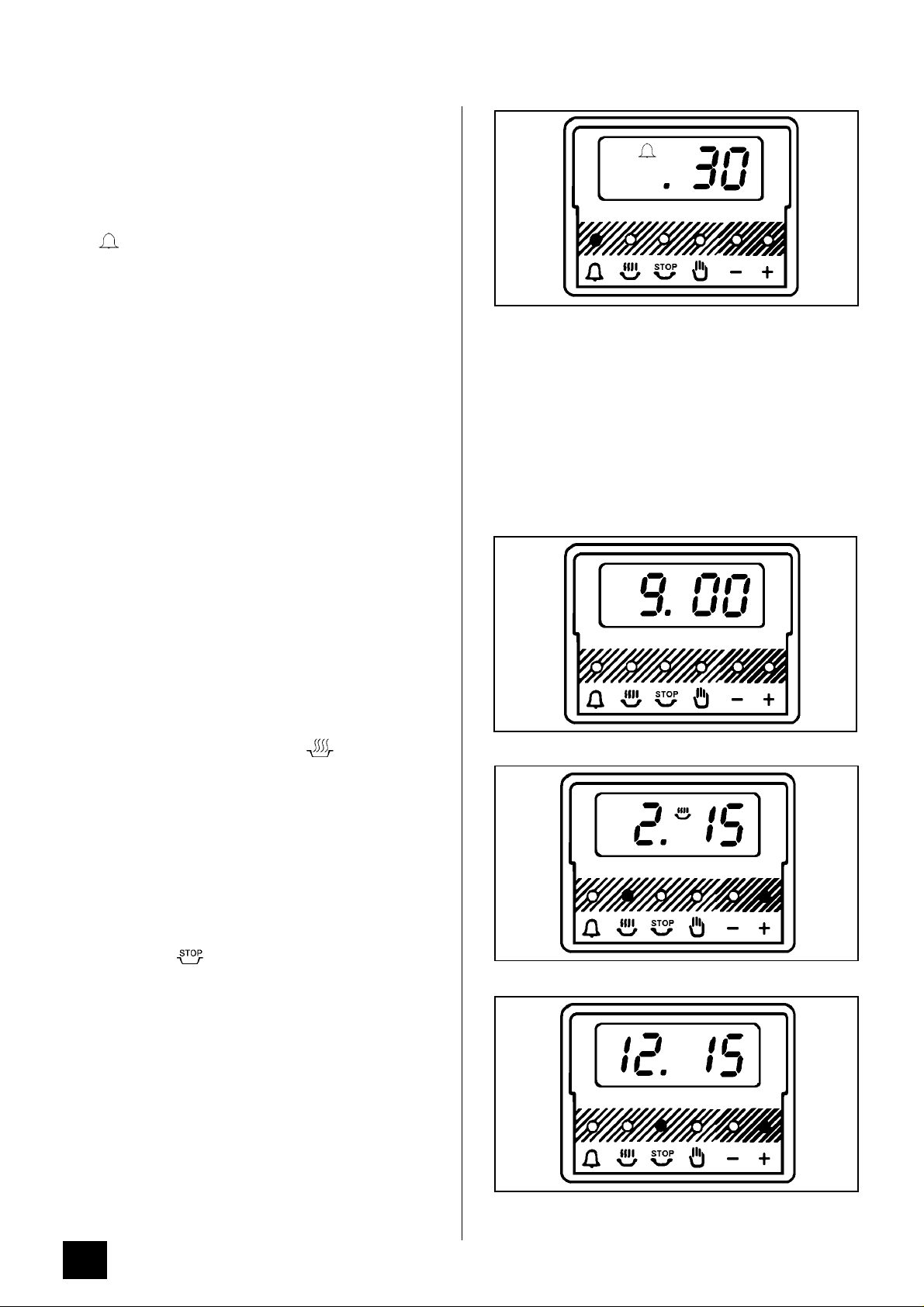

To set, press the minute minder button ( ) and
the digital display will read 0.00 and the bell
symbol will glow, as Fig. 3.
- ) until
Fig. 2
Fig. 3
Press the increase control (+) until the display
indicates the interval to be timed, e.g. 1hr 45
mins as Fig. 4.
NOTE: This must be completed within 4
seconds of first pressing the minute minder
button.
Fig. 4
19
Release the minute minder button and the
display will return to the time of day after 5
seconds.
During the operation of the minute minder the
remaining time period can be shown in the
display by pressing the minute minder button
( ). See Fig. 5.
The minute minder will sound intermittently, for
up to 2 minutes and the bell symbol will flash at
the end of the timed period. The sound can be
stopped by pressing any of the 4 left hand side
buttons.
3. HOW TO SET THE OVEN TIMER
CONTROL
When using the timer control for the very first
time, it is advisable to let it operate while you are
at home. The displays can be checked to show
that it is operating correctly and you will then feel
confident to leave a meal to cook automatically
in the future.
A) TO SET THE TIMER TO SWITCH ON AND
OFF AUTOMATICALLY
Fig. 5
Fig. 6

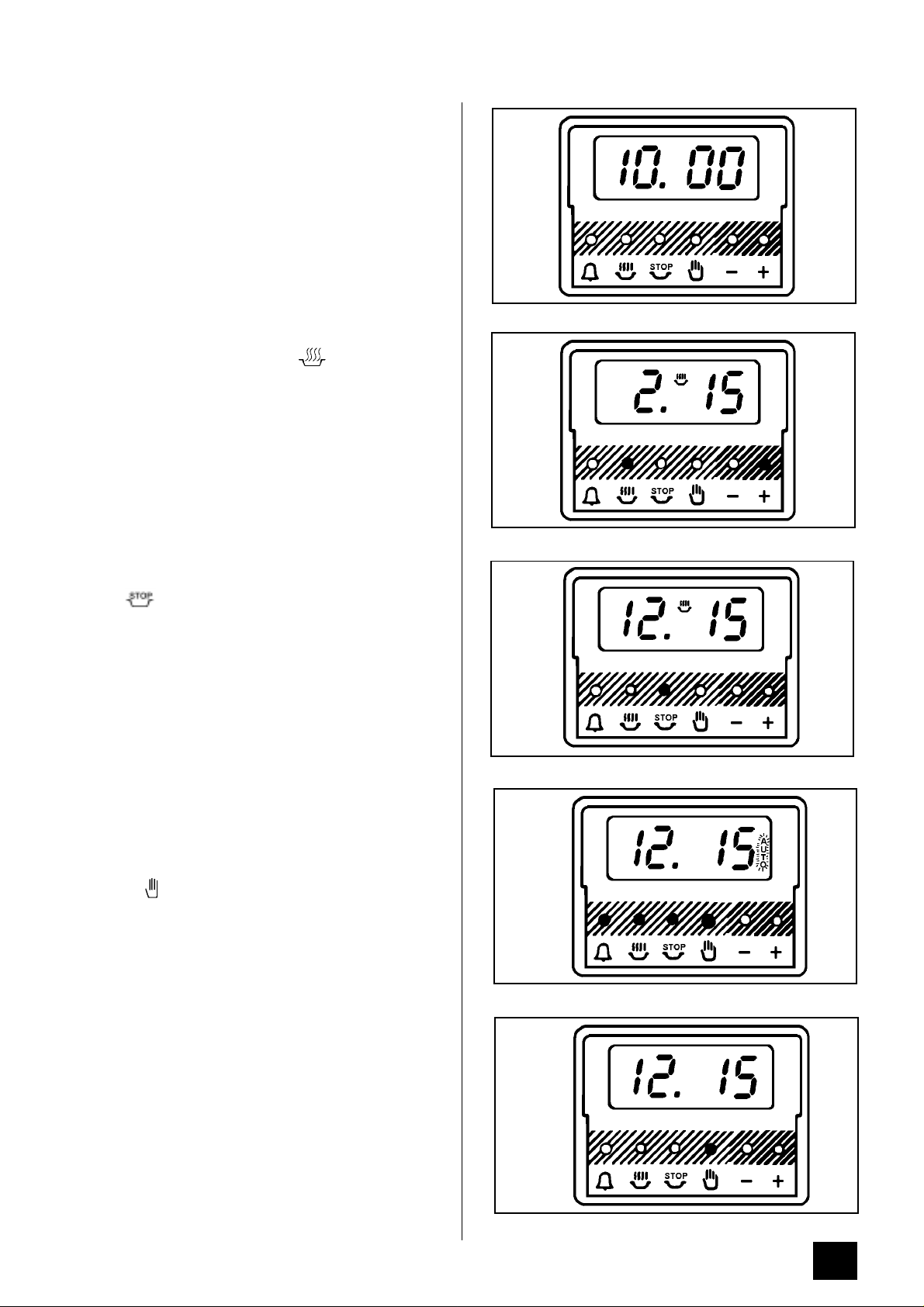

i) Ensure the electricity supply is switched ON
and that the correct time of day is displayed,
e.g. 9 a.m. as Fig. 6.
ii) Place food in oven.
iii) To set the length of Cooking Time, press the
cooking hours button ( ), press the
increase control ( + ) until the cooking time is
displayed, e.g. 2 hrs 15 mins. Fig 7.
iv) Release the buttons. The AUTO display and
cooking symbols will glow.
Remember, this must be completed within 4
seconds of first pressing the cooking hours
button.
v) Set the STOP time. Press the stop time
button ( ), press the increase control ( + )
until the required stop time is displayed, e.g.
12.15p.m. Fig. 8.
vi) Release the buttons. The cooking symbol
will go out and the time of day will be
displayed after 5 seconds.
Fig. 7
Fig. 8
A
U
T
O
A
U
T
O
vii) Set the oven control to the required
temperature. The oven indicator neon should
be OFF and the AUTO display will glow.
20
Note: When the automatic timed period
starts, the oven neon will cycle ON and
OFF during cooking.
TO SET THE TIMER TO SWITCH OFF ONLY
B)
i) Ensure the electricity supply is switched ON
and that the correct time of day is displayed,
e.g. 10.00am. Fig. 9.
ii) Place food in oven.
Fig. 9
iii) To set the Length of Cooking Time press the
cooking hours button ( ) press the
increase control ( + ) until the cooking time is
displayed, e.g. 2 hrs 15 mins. Fig. 10.
iv) Release the buttons. The AUTO display will
glow and the time of day will be displayed
after 5 seconds.
v) Set the oven temperature. The oven indicator
neon should come on.
vi) To check the stop time during the cooking
period, simply press the stop time button
(------) and the stop time will be displayed.
Fig. 11.
4. RETURNING THE COOKER TO
MANUAL OR TO CANCEL AN
AUTOMATIC PROGRAMME.
At the end of a timed cooking period, the AUTO
light will flash and a bleeper will sound for up to 2
mins. This can be stopped by pressing any of the
4 left hand side buttons. Fig. 12.
Turn the oven temperature control to the OFF
position. The AUTO display will continue to flash.
Fig. 10
Fig. 11
Fig. 12
A
U
T
O
A
U
T
O
Press ( ) button. The AUTO display will go out.
Fig. 13.
Turn the oven control ON to check that the oven
operates manually. The oven indicator neon will
glow.
Turn the oven control OFF. No indicator neons
should be illuminated.
Fig. 13
21
5. THINGS TO NOTE
* The time of day cannot be altered whilst the
AUTO symbol is lit.
* A programme may be cancelled by returning the
cooking hours to zero. Press the cooking hours
button ( ) depress ( - ) button until 0.00 is
displayed. Fig. 14.
* Release all buttons. The AUTO display will now
flash and acts as a reminder to reset the
appliance to manual.
6. AUTOMATIC COOKING
It is advisable to leave food in the oven for as
short a time as possible before automatic
cooking.
When cooking is complete do not leave food to
stand in the oven, but remove and cool it quickly
if the food is not to be consumed immediately.
Fig. 14
Always ensure food in the oven is covered if its
not possible to remove food immediately after
cooking.
22
THE GRILL
USES OF THE DUAL GRILL
CAUTION - ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE. CHILDREN SHOULD
BE KEPT AWAY.
The grill is a dual circuit grill which means that the whole area of the grill can be used or, for economy purposes the
centre section only can be used when cooking smaller quantities of food.
SELECTING THE DUAL GRILL (DORSET/ DEVON).
l
Turn the grill control clockwise for full grill or
anticlockwise for the centre section only.
l
Ensure the second oven control is in the OFF
position 'O'.
THINGS TO NOTE
THE GRILL DOOR MUST BE LEFT OPEN
DURING GRILLING
1. The cooling fan for the controls will operate in
conjunction with the grill.
2. The grill indicator neon will illuminate.
3. The outer grill element may appear to glow
slightly brighter than the inner element. This is
quite normal.
4. The dual grill operates independently of the oven.
THE GRILL PAN AND HANDLE
Ensure your hand is protected when removing
the grill pan handle as the grill element can
become very hot.
ALWAYS REMOVE THE GRILL PAN HANDLE
DURING GRILLING

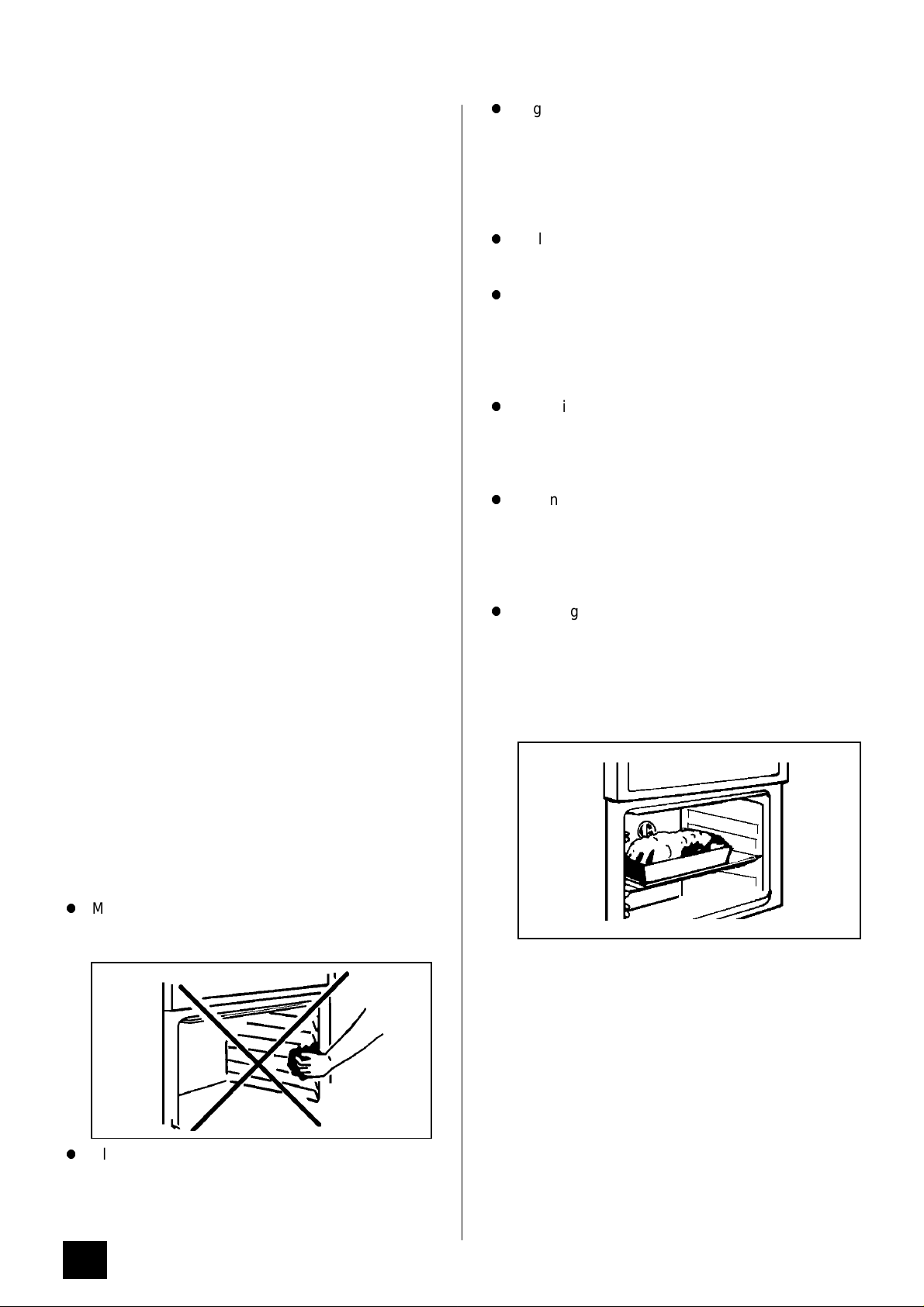

To correctly locate the grill pan on the shelf, ensure
that the cut-out on the underside of the handle
bracket locates over the front bar of the shelf.
The grill pan is supplied with a removable handle.
To insert the handle, press the button on the handle
with the thumb and pivot the handle slightly upwards
inserting the lip into the widest part of the bracket.
Move the handle towards the left, lower into position
and release the button.
Ensure the handle is positively located.
When removing the handle press the button on the
handle with the thumb and pivot the handle slightly
upwards and towards the right to remove from the
bracket.
To check the progress of the food being grilled, the
grill pan should be withdrawn on the shelf to attend to
food during cooking.
23
HINTS AND TIPS
l
Most foods should be placed on the grid in the
grill pan to allow maximum circulation of air to lift
the food out of the fats and juices. Food such as
fish, liver and kidneys may be placed directly on
the grill pan base if preferred.
l
Accompaniments such as tomatoes and
mushrooms may be placed underneath the grid
when grilling meats.
l
When toasting bread, we suggest that the top
runner position is used with the grid in its 'high'
position.
l
Preheat the grill on a full setting for a few
minutes before sealing steaks or toasting. Adjust
the heat setting and the shelf as necessary
during cooking.
l
Adjust the grid and grill pan runner position to
allow for different thicknesses of food. Position
the food close to the element for faster cooking
and further away for more gentle cooking.
l
Food should be thoroughly dried before grilling to
minimise splashing. Brush lean meats and fish
lightly with a little oil or melted butter to keep
them moist during cooking.
l
The food should be turned over during cooking
as required.
24
GRILLING CHART
FOOD SHELF GRILL TIME
Toast
2crk.
(mins in total)
4-6
Bacon Rashers
Beefburgers
Chicken Joints
Chops - Lamb
Pork
Fish - Whole
Trout/Mackerel
Fillets - Plaice/Cod
Kebabs
Kidneys - Lamb/Pig
Sausages
Steaks - Rare
Medium
Well Done
Toasted Sandwiches
2crk.
2crk.
2crk.
2crk.
2crk.
2crk.
2crk.
2crk.
2crk.
2crk.
2crk.
2crk.
2crk.
2crk.
10
10-15
30-40
15-20
20-30
15-25
15
20-30
8-12
20-30
6-12
12-16
14-20
3-4
crk. = Cranked Shelf
Shelf positions are counted from the bottom of the
oven upwards.
The times quoted above are given as a guide and
should be adjusted to suit personal taste.
The cranked shelf should be used for grilling and top
oven cooking only.
25
THE SECOND OVEN
USES OF THE SECOND OVEN
The second oven is the smaller of the two ovens. It is
heated by elements in the top and bottom of the
oven. It is designed for cooking smaller quantities of
food. It gives especially good results if used to cook
fruit cakes, sweet and savoury flans or quiche.
The second oven is also ideal for use as a warming
compartment to warm dishes and keep food hot.
Use a temperature setting of 80° - 100°C on the
second oven temperature control.
SELECTING THE SECOND OVEN (DORSET/ DEVON).
l
Ensure the grill control is in the off, 'O' position.
l
Turn the second oven temperature control to the
required setting.
THINGS TO NOTE
1. The second oven indicator neon will glow until
the oven has reached the desired temperature
and then go out. It will cycle ON and OFF
periodically during cooking showing that the
temperature is being maintained.
2. The cooling fan for the controls will operate, after
a period of time.
3. Dishes, tins or trays should not be placed directly
on the oven floor as it becomes very hot and
damage will occur.
TO FIT THE TOP OVEN SHELF
The cranked shelf should be fitted with the straight
rods uppermost on the frame and the forms towards
the back of the oven. If not fitted correctly the anti-tilt
and safety stop mechanism will be affected.
HINTS AND TIPS
l
All cooking should be carried out on shelf
positions one and two using a cranked shelf.
When more space is required, for example when
roasting or casseroling, a straight shelf from the
main oven may be placed on the second oven
base.
26
l
There should always be at least 2.5cm (1")
between the top of the food and the element.
This gives best cooking results and allows room
for rise in yeast mixtures, Yorkshire puddings etc.
When cooking cakes, pastry, scones, bread etc.,
place the tins or baking trays centrally below the
element.
l
Ensure that food is placed centrally on the shelf
and there is sufficient room around the baking
tray/dish to allow for maximum circulation.
l
Because of the smaller cooking space, lower
temperatures and shorter cooking times are
sometimes required. Be guided by the
recommendations on page 30.
l
For economy leave the door open for the
shortest possible time, particularly when placing
food into a pre-heated oven.
l
Stand dishes on suitably sized baking trays to
prevent spillage onto the oven base and to help
reduce cleaning.
l
The use of excessively high temperatures can
cause uneven browning. It may be necessary to
reduce temperatures slightly. Refer to the
recommendations given in the oven cooking
chart, see page 30.
l
The material and finish of the baking tray and
dishes will affect the degree of base browning
of the food. Enamelware, dark, heavy or nonstick utensils increase base browning. Shiny
aluminium or polished steel trays reflect the heat
away and give less base browning.
l
DO NOT use the grill pan as a baking tray as this
will increase base browning of the food.
27
THE MAIN FAN OVEN
USES OF THE FAN OVEN
PREHEATING
The fan oven quickly reaches its temperature, so it is not usually necessary to preheat the oven. Without
preheating however, you may find you need to add an extra 5-10 minutes on the recommended cooking times. For
recipes needing high temperatures, e.g. bread, pastries, scones, soufflés, etc., best results are achieved if the oven
is preheated first.
COOKING TEMPERATURES
Fan oven cooking generally requires lower temperatures than conventional cooking. Follow the temperatures
recommended in the chart on page 30. As a guide reduce temperatures by about 20°C-25°C for your own recipes.
BATCH BAKING
The fan oven cooks evenly on all shelf levels, especially useful when batch baking.
SELECTING THE FAN OVEN (DORSET/ DEVON).
l
Turn the main oven temperature control to the
required setting.
THINGS TO NOTE
1) The main oven indicator neon will glow until the
oven has reached the desired temperature and
then go out. It will cycle ON and Off periodically
during cooking showing that the temperature is
being maintained.
2) The oven fan will operate continually during
cooking.
TO FIT THE MAIN OVEN SHELVES
The shelves should be fitted with the straight rods
uppermost on the frame and the forms towards the
back of the oven. If not fitted correctly the anti-tilt and
safety stop mechanism will be affected. Only use
straight shelves in the main oven.
3) The cooling fan for the controls operates after a
period of time.
4) The internal oven light will come on.
28
HINTS AND TIPS
l
Arrange the shelves in the required positions
before switching the oven ON. Shelves are
numbered from the bottom upwards.
l
When cooking more than one dish in the fan
oven, place dishes centrally on different shelves
rather than cluster several dishes on one shelf,
this will allow the heat to circulate freely for the
best cooking results.
l
When batch baking one type of food, e.g. Victoria
sandwich cakes, those of similar size will be
cooked in the same time.
l
Do not use the cranked shelf from the grill in the
main oven.
ROASTING CHART
INTERNAL TEMPERATURES Rare : 50-60°C; Medium : 60-70°C; Well :70-80°C
MEAT SECOND/FAN
OVEN
Beef 160-180°C 20-35 min per ½kg/1lb
Beef,
boned
Mutton
and Lamb
Pork
and Veal
Ham 160-180°C 30-40 min per ½kg/1lb
Chicken 160-180°C 15-20 min per ½kg/1lb
Turkey
and Goose
Duck 160-180°C 25-35 min per ½kg/1lb
Pheasant 160-180°C 35-40 min per ½kg/1lb
Rabbit 160-180°C 20 min per ½kg/1lb
Potatoes
with meat
Potatoes
without
meat
160-180°C 20-35 min per ½kg/1lb
160-180°C 25-35 min per ½kg/1lb
160-180°C 30-40 min per ½kg/1lb
160-180°C 15-20 min per ½kg/1lb
160-180°C according to size
180-190°C according to size
COOKING TIME
and 20-35 min over
and 25-35 min over
and 25-35 min over
and 30-40 min over
and 30-40 min over
and 20 min over
up to 3½kg/7lb then 10
min per ½kg/1lb
and 25-30 min over
and 35-40 min over
and 20 min over
l
It is recommended that when baking larger
quantities, the shelf positions should be evenly
spaced to suit the load being cooked. A slight
increase in cooking time may be necessary.
l
DO NOT place baking trays directly on the oven
floor as it interferes with the oven air circulation
and can lead to base burning; use the lower shelf
position. However, non critical dishes may be
placed on the oven base when more space is
required.
The roasting temperatures and times given in the
chart should be adequate for most joints, but slight
adjustments may be required to allow for personal
requirements and the shape and texture of the meat.
However, lower temperatures and longer cooking
times are recommended for less tender cuts or larger
joints.
Wrap joints in foil if preferred, for extra browning
uncover for the last 30-60 min cooking time.
29
OVEN COOKING CHART
The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the
temperatures by 10°C to suit individual preferences and requirements.
FOOD SHELF
Biscuits
Bread
Bread rolls/buns
Cakes: Small & Queen
Sponges
Victoria Sandwich
Madeira
Rich Fruit
Christmas
Gingerbread
Meringues
Flapjack
Shortbread
Casseroles: Beef/lamb
Chicken
Convenience Foods
Fish
Fish Pie (Potato Topped)
Fruit Pies, Crumbles
Milk Puddings
Pasta, Lasagne etc.
Pastry: Choux
Eclairs,Profiteroles
Flaky/Puff Pies
Shortcrust Mince Pies
Meat Pies
Quiche,Tarts,Flans
Patés and Terrines
Roasting Meat, Poultry
Scones
Shepherd's Pie
Soufflés
Vegetables:
Roast Potatoes
Stuffed Marrow
Yorkshire Puddings:Large
Baked Jacket Potatoes
Stuffed Tomatoes
Individual
FAN OVEN TOP OVEN
POSITION
Shelf
positions
are not
critical
but ensure
that oven
shelves are
evenly
spaced
when more
than one is
used
COOKING
TEMP °C
180-190
200-220
200-220
160-170
160-170
160-170
140-150
130-140
130-140
140-150
80-100
170-180
130-140
140-160
180-190
Follow manufacturer's instructions
170-190
190-200
190-200
130-140
190-200
190-200
170-180
210-220
190-200
190-210
180-210
150-160
160-180
210-220
190-200
170-180
180-190
180-190
180-190
180-190
210-220
200-210
SHELF
POSITION
1 crk.
1 crk.*
1 crk.
1 crk.
1 crk.
1 crk.
1 crk.
1 crk.
1 crk.
1 crk.
1 crk.
1 crk.
1 crk.
1 crk.*
1 crk.*
1 crk.
1 crk.*
1 crk.
1 crk.
1 crk.
1 crk.
1 crk.
1 crk.*
1 crk.
1 crk.*
1 crk.
1 crk.
1 crk.*
1 crk.
1 crk.*
1 crk.
1 crk.
1 crk.
1 crk.
1 crk.
1 crk.
1 crk.
COOKING
TEMP °C
170-190
200-220
200-220
180-190
160-170
160-170
140-150
130-140
130-140
140-150
90-100
170-180
140-150
140-160
180-190
170-190
190-200
190-200
140-150
170-180
180-190
170-180
210-220
190-200
190-210
180-200
150-160
160-180
220-230
190-200
170-180
180-190
180-190
180-190
180-190
200-210
200-210
APPROX
COOK TIME (m)
10 - 20
25 - 30
15 - 20
18 - 25
18 -20
18 -25
1¼ - 1½h
2¼ - 2½h
3 - 4½h
depends on size
1¼ - 1½h
2½ - 3h
25 - 30
45 - 65
2½ - 3h
1¼ - 1½h
20 -30
20 - 25
40 - 50
1½ - 2h
40 - 45
30 - 35
20 - 30
25 - 40
15 - 20
25 - 35
25 -45
1-1½h
see roasting
30 - 40
20 - 30
1-1½h
1-1½h
30 - 35
15 - 20
25 - 40
15 - 25
chart
8 - 10
crk. = cranked shelf
* or on a straight shelf on the oven base.
Note : Shelf positions are counted from the bottom of the oven
Do not use the cranked shelf from the grill in the main oven.
30
DEFROSTING
USES OF DEFROST FEATURE
This main oven function defrosts most foods faster
than more conventional methods. It is particularly
suitable for delicate frozen foods which are to be
served cold, e.g. cream filled gateaux, cakes covered
with icings or frostings, cheesecakes, biscuits,
scones, etc.
It is preferable to thaw fish, meat and poultry slowly
in the fridge. However, this process can be
accelerated by using the defrost function.
SELECTING DEFROST (DORSET/ DEVON).
Small or thin fish fillets, frozen peeled prawns, cubed
or minced meat, liver, thin chops, steaks etc., can be
thawed in 1 - 2 hours.
A 1kg/2¼lb oven ready chicken will be thawed in
approximately 5 hours. Remove the giblets as soon
as possible during the thawing process.
Joints of meat up to 2kg/4½lb in weight can be
thawed using the defrost function.
ALL JOINTS OF MEAT AND POULTRY MUST BE
THAWED THOROUGHLY BEFORE COOKING.
ALWAYS COOK THOROUGHLY IMMEDIATELY
AFTER THAWING.
l
Turn the main oven temperature control to the
defrost setting ( ).
l
This function DOES NOT require a temperature
setting on the oven temperature control.
THINGS TO NOTE
1. Care must always be taken when handling foods
in the home. Always follow the basic rules of food
hygiene to prevent bacterial growth and cross
contamination when defrosting, preparing,
cooking, cooling and freezing foods.
2. The oven fan and internal oven light will come
on.
3. The cooling fan does not operate.
HINTS AND TIPS
l
Place the frozen food in a single layer where
possible and turn it over half way through the
defrosting process.
l
The actual speed of defrosting is influenced by
room temperature. On warm days defrosting will
be faster than on cooler days.
l
DO NOT leave food at room temperature once it
is defrosted. Cook raw food immediately or store
cooked food in the fridge.
31
HELPFUL HINTS WHEN BUYING AND PREPARING FOOD
Care must be taken when handling foods in the
home. Always follow the basic rules of food hygiene
to prevent bacterial and microbial growth and cross
contamination when preparing, reheating, cooking,
cooling, defrosting and freezing foods:-
1. Always ensure food you purchase is of good
quality and in prime condition. Shop at a reliable
source and buy the 'freshest' looking package avoid shop-worn labels or produce covered in
dust.
2. Avoid buying chilled or frozen products if you
cannot store them straight away. The use of an
insulated container when shopping is advisable.
3. Buy and consume foods prior to the 'Sell by' or
'Best Before' date.
4. When you arrive home, place perishable foods in
the refrigerator or freezer immediately. Ensure
they are well covered to prevent them drying out
and to prevent any possible cross contamination
with bacteria from raw to cooked foods.
5. Follow the cooking instructions on packets of
prepacked and cook chill foods, but be prepared
to adjust cooking time and temperatures to suit
your particular oven. For example, the fan oven
generally requires 20-25°C lower temperature
than conventional ovens.
10. Cook meat thoroughly - use a meat thermometer
if preferred, which penetrates the joint to check
that the centre temperature has reached the
required temperature (see table below).
MEAT TEMPERATURES
Beef Rare - 60°C
Medium -70°C
Well Done - 80°C
Pork Well Done - 80°C
Lamb Medium - 70°C
Well Done - 80°C
11. If not eaten straightaway after cooking, food
should be cooled as quickly as possible (within
one hour) and then refrigerated or frozen as
required. (Do not put hot food into a Refrigerator
or Freezer).
12. In the kitchen keep work tops, chopping boards
and utensils clean with hot soapy water between
preparation stages. Ideally, keep one chopping
board for raw meat and another for other foods.
Keep your dish cloths and tea towels clean.
6. Always ensure that ready prepared meals and
cook chill foods are thoroughly re-heated until
they are piping hot throughout.
7. It is preferable to defrost frozen foods slowly in
the refrigerator. Alternatively, a microwave
cooker or the Defrost function on your oven may
be used.
8. Always cook defrosted foods immediately after
thawing. Thawed food should never be refrozen.
9. Joints of meat and poultry should be thoroughly
defrosted before cooking.
32

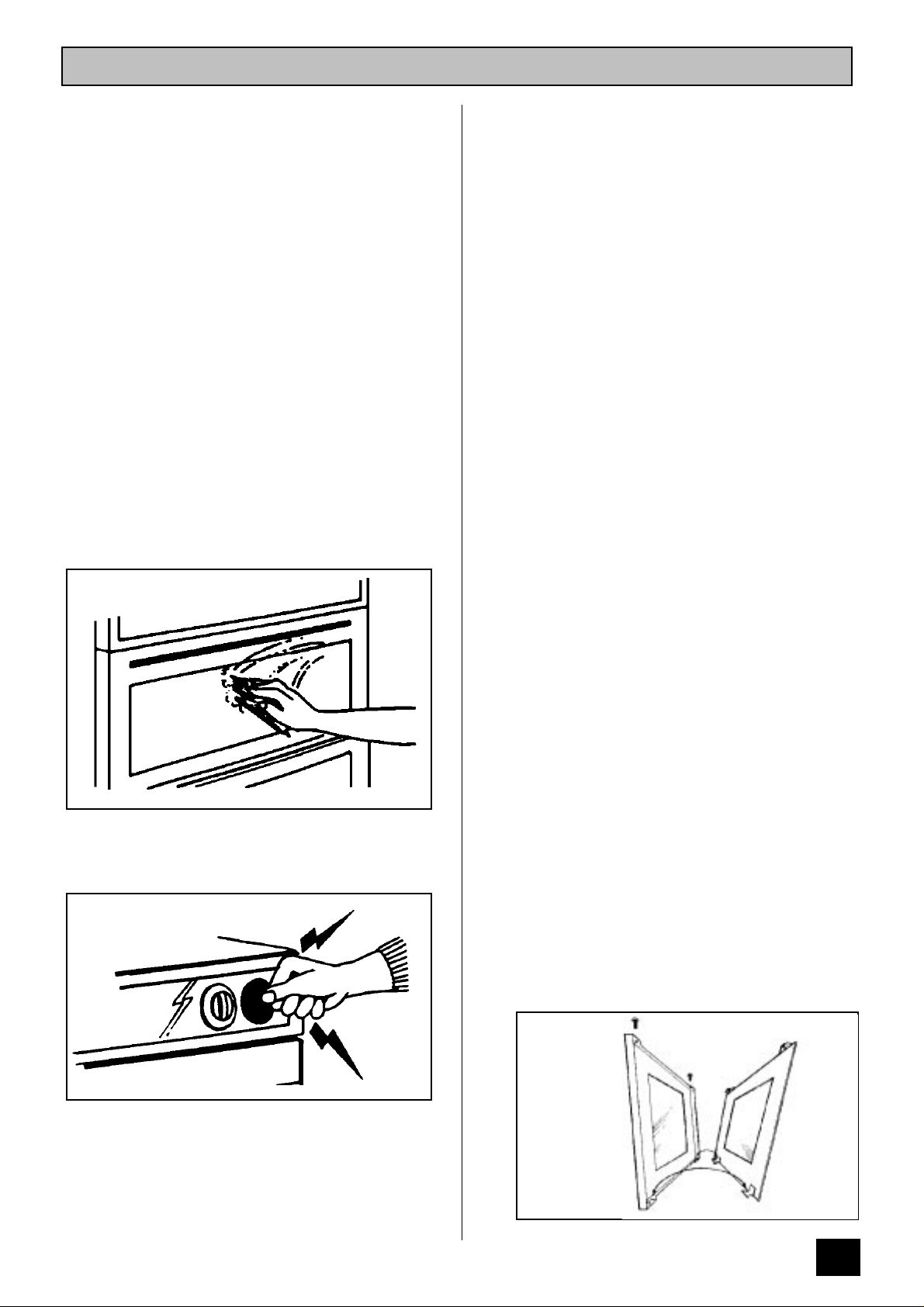

CARE AND CLEANING
BEFORE CLEANING ALWAYS ALLOW
THE COOLING FAN TO COOL THE
COOKER DOWN BEFORE SWITCHING
OFF AT THE ELECTRICITY SUPPLY
CLEANING MATERIALS
Before using any cleaning materials on your cooker,
check that they are suitable and that their use is
recommended by the manufacturer.
Cleaners that contain bleach should NOT be used as
they may dull the surface finishes. Harsh abrasives
should also be avoided.
CLEANING THE OUTSIDE OF
THE COOKER
DO NOT use abrasive cleaning materials or scourers
on the outside of the cooker, as some of the finishes
are painted and damage may occur. Regularly wipe
over the control panel, oven doors and cooker sides
using a soft cloth and liquid detergent.
Aerosol cleaners must not be used on Stayclean
surfaces and must not come into contact with
elements or the door seal as this may cause
damage.
The vitreous enamel oven base (Devon) and the
oven interior (Dorset only) can be cleaned using
normal oven cleaners or aerosol oven cleaners with
care. Ensure that the manufacturers instructions are
followed and that all parts are well rinsed afterwards.
CLEANING THE GRILL DEFLECTOR,
GRILL PAN, GRILL PAN GRID AND OVEN
SHELVES
All parts, except the grill pan handle can be washed
in the dishwasher. Alternatively, soak them in hot
soapy water if they are heavily soiled. They will then
clean more easily.
The grill pan/meat tin and grill deflector may be
cleaned using a soap impregnated steel wool pad.
The grill pan grid and oven shelves should be
cleaned using hot soapy water. Soaking first in soapy
water will make cleaning easier.
DO NOT ATTEMPT TO REMOVE ANY OF THE
CONTROL KNOBS FROM THE PANEL AS THIS
MAY CAUSE DAMAGE AND IS A SAFETY
HAZARD.
CLEANING BETWEEN THE OUTER AND
INNER DOOR GLASS
The outer door glass is removable for cleaning.
TO REMOVE THE OUTER GLASS
1. Open the oven door slightly to gain access to the
two cross head screws on the top of the oven
door.
2. Loosen the two screws using a pozidrive
screwdriver.
3. Hold the door glass securely with one hand,
before removing the screws completely with the
other hand.
4. Using both hands, gently tilt the top of the door
glass towards you. Lift slightly to disengage the
locators from the two bottom brackets. As you do
this the door will close.
CLEANING INSIDE THE OVENS
The Stayclean surface inside the ovens should not
be cleaned manually. (Devon only). See page 34
"Care of Stayclean Surfaces".
33
5. Clean the outer and inner glass using hot soapy
water or Flash Cream cleaner. DO NOT try to
clean the aluminium foil which is inside the door.
The foil is there to help keep the door cool, if it is
damaged it will not work. Ensure that all parts are
well rinsed and thoroughly dry before attempting
to replace the outer door glass.
TO REPLACE THE OUTER GLASS
1. Holding the oven glass with both hands, gently
place the locators into the holes of the brackets
at the bottom of the oven door.
2. Push the top of the oven glass towards the oven
door ensuring the screw location holes line up.
3. Hold the glass in place at the top of the door. Still
holding the glass, carefully open the door and
insert the cross head screw into the location
holes. Give the screws one turn to ensure the
glass is secure.
4. Tighten the screws positively with the pozidrive
screwdriver before closing the oven door.
DO NOT attempt to use the oven without the
glass being in place.
CARE OF STAYCLEAN SURFACES
(DEVON ONLY)
Stayclean surfaces destroy splashes of food and fats
when the oven temperature is raised to around
220°C.
l
A good time to allow the oven to run on is after
the weekly roast. After removing the roast, turn
the oven up to 220°C and allow to run for an hour
or so. It is important not to allow a build-up of
soilage as this can prevent the Stayclean from
working.
l
Follow the recommendations below to keep oven
soilage to a minimum.
l
Cook at the recommended temperatures. Higher
temperatures during roasting will increase
soilage. Try cooking at lower temperatures for an
increased length of time, you will save energy
and often the joint is more tender.
l
Use minimal, if any, extra oil or fat when roasting
meat; potatoes only require brushing with fat
before cooking. Extra fat in the oven during
roasting will increase splashing and soilage.
l
It is not necessary to add water to the meat tin
when roasting. The water and the fat juices from
the joint create excessive splattering during
cooking even at normal temperatures as well as
causing condensation.
l
Covering joints during cooking will also prevent
splashing onto the interior surfaces; removing the
covering for the last 20-30 minutes will allow
extra browning, if required. Some large joints and
turkeys especially benefit by this method of
cooking, allowing the joint to cook through before
the outside is overbrowned.
It is a good idea to run the oven for an hour or two
per week to ensure continued good performance
from the Stayclean finish.
HINTS AND TIPS
l
Manual cleaning of Stayclean is not
recommended. Damage will occur if oven sprays
or abrasives of any kind are used.
l
Slight discolouration and polishing of the
Stayclean surface may occur in time. This does
not affect the Stayclean properties in any way.
34
REPLACING THE OVEN LIGHT BULB
The type of bulb required is a 300C 25 watt small
Edison Screw. Part number 572 491 5431-00/1.
(Available through Tricity Bendix service centres).
CAUTION: DISCONNECT THE COOKER FROM
THE ELECTRICITY SUPPLY BEFORE REPLACING
THE BULB.
Open door and remove the shelves to enable easy
access to the oven light assembly. Insert a flat blade
screwdriver between the oven side and the glass
which covers the bulb.
Support the glass with your hand and prise out
sufficiently to release the glass cover. Unscrew the
bulb in an anti-clockwise direction until it is possible
to remove the bulb with ease.
Fit the new bulb by turning in a clockwise direction
until it is secure. Ensuring the indent to the flange is
pointing to the rear of the oven, replace the glass by
pushing it firmly into the hole to cover the bulb
assembly.
Replace the shelves. Restore the electricity supply
and adjust the time of day and clock, as necessary.
35
SOMETHING NOT WORKING?
We strongly recommend that you carry out the
following checks on your cooker before calling a
Service Engineer. It may be that the problem is a
simple one which you can solve yourself without the
expense of a service call.
If our Service Engineer finds that the problem is
listed below you will be charged for the call whether
or not the cooker is under guarantee.
The grill, oven and timer do not work.
* Check that the cooker has been wired in and
is switched on at the wall.
* Check that the main cooker fuse is working.
If you have checked the above:
* Switch OFF cooker at the wall and allow the
appliance to cool for a couple of hours.
Switch ON again. The cooker should now be
working normally.
The grill works but the main oven does not:
* Check that the grill control is in the OFF
position.
The oven temperature is too high or low.
* Check that the recommended temperatures
are being used (see page 30). Be prepared
to adjust up or down by 10°C to achieve the
results you want.
* Care should be taken if using an oven
thermometer to check oven temperatures as
they may be inaccurate.
The following factors should be considered.
* Ensure you purchase an accurate good
quality instrument.
* Ovens will cycle about a set temperature and
will not be constant.
If the oven is not cooking evenly.
* Check that the cooker is correctly installed
and that it is level.
* Check that the recommended temperatures
and shelf positions are being used.
The oven light fails to illuminate.
* Switch OFF at the wall to allow the oven to
cool. Check that the oven is now working
normally.
The second oven and grill work but the main
oven does not.
* Switch OFF at the wall to allow the oven to
cool. Check that the oven is now working
normally.
The clock and minute minder do not work.
* Check that the operating instructions for the
timer are being closely followed.
The grill does not work or cuts out after being
used for a long period of time.
* Leave the oven to cool for a couple of hours.
Check that the grill is now operating normally.
Ensure that the door is left open during
grilling.
* Refer to page 35 ' Replacing the Oven Light
Bulb.'
The oven fan is noisy.
* Check that the oven is level.
* Check that bakeware and shelves are not
vibrating in contact with the back panel in the
oven.
* If the cooling fan fails the grill will not work.
Contact the Customer Service Centre.
36
SERVICE AND SPARE PARTS
HELP US TO HELP YOU
Please determine your type of enquiry before writing or telephoning.
SERVICE
It is a recommendation by the manufacturer that annual servicing of the product is done by the manufacturers
approved service organisation.
In the event of your appliance requiring service Tricity Bendix Limited have an arrangement with Electrolux Group
Service.
Before calling out an Engineer, please ensure that you have read the details under the heading 'Something Not
Working?' and have the model number and purchase date to hand. The model and serial numbers, which should
be quoted in any communication can be found on the rating plate on the lower front frame of the cooker upon
opening the oven door. It is advisable to make a note on the back cover of this book for easy reference. The
telephone number and address for service is detailed on the list headed 'Customer Service Centres'.
PLEASE NOTE that all enquiries concerning service should be addressed to your local Customer Service Centre.
CONSUMER CARE DEPARTMENT
FOR GENERAL ENQUIRIES concerning your Tricity Bendix cooker or further information on Cooking, Cooling or
Washing products, you are invited to contact our Consumer Care Department by letter or telephone as follows:
Consumer Care Department
Tricity Bendix Limited
99 Oakley Road
Luton
Bedfordshire LU4 9QQ
Tel: (01582) 585858
37
CUSTOMER SERVICE CENTRES
The Regional Electricity Companies are responsible for the servicing of cookers sold by their own outlets. The
telephone numbers can be found in the telephone directory.
Service for cookers bought from other outlets can be obtained by calling the nearest Customer Service Centre on
the numbers given below. The areas are defined by Postcode for easy reference.
CENTRE POSTAL DISTRICTS
ABERDEEN AB 01224-696569
ARGYLL PA 24-61 01369-703161
BARNSTAPLE
BORDERS TD 01573-224411
BRISTOL BA BS TA SP 0117-9211876
CANVEY
CARDIFF CF NP1-4, 6, 9-44,SA1-18
CUMBRIA CA
DUMFRIES &
GALLOWAY
DUNDEE Parkinson Cowan Gas Only 01382-642828 Electrolux After Sales Service
DUNDEE DD1-14
EX18-23
E EC EN N NW W WC
AL CB HA HP LU MK SG
UB WD
CM CO IG RM SS
IP NR PE14-19,30-38
SA21-32
DG1-14 01387-265166
PH8-18
, 31-39
SERVICE
APPOINTMENTS
01271-328826
0181-443-3464
0181-965-9699
0181-965-9699
01268-694144
01603-667017
01222-460131
01228-594747
01250-876285
ADDRESS
Electrolux After Sales Service
Northeast Appliance Service
8 Cornhill Arcade
Cornhill Drive
Aberdeen AB2 5UT
Electrolux After Sales Service
T.D.C. Refrigeration
Briar Hill
7 Hill Street
Dunoon
Argyll PA23 7AL
Electrolux After Sales Service
McBain Refrigeration
Unit 4 Upcott Avenue
Pottington Industrial Estate
Barnstaple
N.Devon EX31 1HN
Electrolux After Sales Service
James Stewart & Son
2-8 Wood Market
Kelso
Borders TD5 7AX
Electrolux After Sales Service
Unit BE46
PO Box 372
Bristol
BS99 1UD
Electrolux After Sales Service
2-4 Sandhurst
Kings Road
Canvey Island SS8 0QY
Electrolux After Sales Service
Guardian Industrial Estate
Clydesmuir Road
Tremorfa
Cardiff CF2 2QS
Electrolux After Sales Service
E.T.B. Services
Carlisle Enterprise Centre
James Street
Carlisle CA2 5AP
Electrolux After Sales Service
Allan Crossan (Service)
93 Irish Street
Dumfries
Scotland
Tayside Refrigeration
3-7 Blackness Street
Dundee DD1 5LR
Electrolux After Sales Service
1 Brogan Domestics
41 Leslie Street
Blairgowrie
Perthshire PH10 6AT
38
Electrolux After Sales Service
GLASGOW
GUERNSEY All Codes 01481-46931
HAVERFORDWEST
HEREFORD
HULL
INVERNESS
INVERNESS PH30-41 IV40-51 01855-821315 Electrolux After Sales Service
ISLE OF WIGHT PO30-41 01983-872552
ISLE OF ARRAN KA27 01770-302909
ISLE OF MAN IM 01624-663455
ISLE OF MULL PA62-75 01688-302262
JERSEY ALL CODES 01534-505050
LAMPETER
EH FK G KA KY1-16 ML
PA1-23, PH1-7
SA33-39
SA41-44
SA61-73
HR1-9
LD1-8
SY7 ,18
NP5
NP7-8
YO4
YO11-18
YO25
HU1-19
DN14
IV1-28, 30-36, 52-56,
PH19-26, 42-44
KW1-14
SA19,20
SA40
SA45-48
SY23-25
0141-647-4381
01437-710914
01432-340334
01482-585678
01463-792952
01570-423020
20 Cunningham Road
Clyde Estate
Rutherglen
Glasgow G73 1PP
Guernsey Electricity
PO Box 4
Vale Guernsey
Channel Islands
Electrolux After Sales Service
C Butherway
1 Church Road. Roch
Haverfordwest
Dyfed
Wales SA62 6AG
Electrolux After Sales Service
Domestic Repair Centre
Unit 3 Bank Buildings
Cattle Market
Hereford HR4 9HX
Electrolux After Sales Service
John Sizer
Unit 1 Boulevard Unit
Factory Estate
Hull HU3 4AY
Electrolux After Sales Service
Highland Appliances
Unit 3B3 Smithton Industrial Est
Smithton
Inverness
George Ross Electrical
Forrestry Workshop
Inchree
Onich
Inverness-shire PH33 6SE
Electrolux After Sales Service
Wyatts Electrical Service
4 Forelands Road
Bembridge
Isle of Wight PO35 5XW
Electrolux After Sales Service
Arran Domestics
Unit 4 The Douglas Centre
Brodick
Isle of Arran KA27 8AJ
Electrolux After Sales Service
Manx Electricity
Service Workshop
North Quay
Douglas
Isle of Man
Electrolux After Sales Service
B Hogg
Braeside
Raeric Road
Tobermory
Isle of Mull PA75 6PU
Jersey Electricity Company
PO Box 45 Queens Road
St Helier
Jersey,
Channel Islands JE4 8NY
Electrolux After Sales Service
Lampeter Domestic Appl. Services
Unit 16 Lampeter Ind. Est.
Lampeter SA48 7DY
39
Electrolux After Sales Service
LANCASTER LA1-23 01772-316175
LEEDS
LINCOLN
LIVERPOOL FY PR L WN CH CW WA
MANCHESTER BB BL OL M SK
NEWTON ABBOTT
NORTH WALES LL 01745-591616
NORTHERN
NORTHERN IRELAND
EAST
NORTHERN IRELAND
WEST
NUNEATON
ORKNEY KW15-17 01856-875457 Electrolux After Sales Service
REDDITCH TBA TBA Electrolux After Sales Service
BD DN1-7, 10-12, HD HG HX
LS S WF YO1-3, 5-8 DE
NG1-22 & 25
DN21 sub codes 1 2 & 5 only,
LN1, 2 , 4,5,6
LN3 sub codes 4 & 5 only
LN8-10
NG 23,24 31-34 PE1-13, 20-25
(Not WA 14/15)
WA14 & 15 only
EX1-17
TQ
PL1-9, 16, 19-21
DL TS DH YO21, 22
DH NE SR
BT1-30, 36-57, 63-67 01232-746591
BT31-35, 60-62, 68-82, 92-94 01861-510400
B DY ST TF
WR WS WV
GL NN OX SN
CV LE
0113-2608511
01522-514603
0151-2541724 Electrolux After Sales Service
0161-4777758 Electrolux After Sales Service
01626-65909
01325-301400
0191-493-2025
0121-358-7076
0121-358-5051
01993-704411
01203-350420
NL Services
Unit 333 Ranglet Road
Walton Summit
Bamber Bridge
Preston, Lancashire
PR5 8AR
Electrolux After Sales Service
64-66 Cross Gates Road
Leeds LS15 7NN
Electrolux After Sales Service
Brian Hudson
Unit 8 Stonefield Park
Clifton Street
Lincoln LN5 8AA
Unit 1 Honeys Green Precinct
Honeys Green Lane
West Derby
Liverpool L12 9JH
Unit 30 Oakhill Trading Estate
Devonshire Road
Worsley
Manchester M28 3PT
Electrolux After Sales Service
South West Domestic Service
Unit 2 Zealley Industrial Est
Kingsteignton
Newton Abbott
South Devon TQ12 3SJ
Electrolux After Sales Service
GMS (Cymru)
Unit 2 Coed- Parc
Abergele Road
Rhuddlan
Clwyd, Wales LL18 5UG
Electrolux After Sales Service
PO Box 40
Preston Road
Aycliffe Industrial Estate
Newton Aycliffe, Co Durham
DL5 6XA
Electrolux After Sales Service
Unit C3
Edenderry Industrial Estate
326 Crumlin Road
Belfast BT14 7EE
Electrolux After Sales Service
G & O (Armagh) Service
Owenmore House
Kilwee Business Park
Upper Dunmurray Lane
Belfast BT17 0HD
Electrolux After Sales Service
Unit 23-24 Alliance Business Pk
Townsend Drive
Nuneaton
Warwickshire CV11 6RX
Refrigeration Sales and Services
Hatson Ind. Estate
Kirkwall
Orkney
Heming Road
Washford
Redditch
Worcestershire B98 ODH
4040
Electrolux After Sales Service
REDRUTH TR1-20, 26, 27
ROTHSAY PA20 01700-504777 Electrolux After Sales Service
SHETLAND Own Sales 01595-692225 Electrolux After Sales Service
SHETLAND Own Sales
SHETLAND ZE2 01806-566546 Electrolux After Sales Service
SHREWSBURY
SOUTH COAST BN16-18. GU27-35
SOUTH HUMBERSIDE
TONBRIDGE
PL10-15, 17, 18, 22-35
SY1-6
SY8-17
SY19-22
PO1-22. BH DT SO
TR21-25
DN 8, 9, DN15-20
DN21 sub codes 3,4 only
DN31-40
LN (3 sub code 6 only), 7
LN11-13
SL GU1-26. RG
CT DA ME TN
BN1-15, 20-27, RH
TW BR CR SE SW SM KT
01209-314407
01595
-692855
01743-450279
01705-667411
01705-667411
0117-9211876
01472-267978
01252-24505
01732-357722
01273-694341
0181-658-9069
Cornwall Domestic Service
Unit 7D Pool Industrial Estate
Wilson Way
Redruth
Cornwall TR15 3QW
D McGlashan Walker
Walker Engineering
Glenmhor
Upper Serpentine
Rothesay PA20
Tait Electronic Systems Ltd.
Holmsgarth Road
Lerwick
Shetland ZE1 OPW
Electrolux After Sales Service
Bolts Shetland Ltd.
26 North Road
Lerwick
Shetland ZE1 OPE
Leask Electrical
Harsdale
Symbister
Shetland ZE2 9AA
Electrolux After Sales Service
BLI Service
6 Harlescott Barn
Harlescott Lane
Shrewsbury
SY1 3SY
Electrolux After Sales Service
Limberline Road
Hilsea
Portsmouth
Hampshire PO3 5JJ
Electrolux After Sales Service
John Robinson (Electrical)
Unit 74 New Enterprise Centre
King Edward Street
Great Grimsby DN31 3JP
Electrolux After Sales Service
Unit 30
Deacon Trading Estate
Morley Road
Tonbridge
Kent TN9 1RA
41
GUARANTEE CONDITIONS
We, Tricity Bendix, undertake that if
within 12 months of the date of the
purchase this Tricity Bendix appliance or
any part thereof is proved to be defective
by reason only of faulty workmanship or
materials, we will, at our option repair or
replace the same FREE OF ANY CHARGE
for labour, materials or carriage on
condition that:
l
The appliance has been correctly
installed and used only on the electricity
supply stated on the rating plate.
l
The appliance has been used for
normal domestic purposes only and in
accordance with the manufacturers
operating and maintenance instructions.
l
The appliance has not been serviced,
maintained, repaired, taken apart or
tampered with by any person not
authorised by us. Any servicing or
repairs carried out by any unapproved
third party will invalidate the approvals
status of this product.
l
All service work under this guarantee
must be undertaken by a Tricity Bendix
service representative or authorised
agent.
l
Any appliance or defective part replaced
shall become the Company's property.
EXCLUSIONS
This guarantee does not cover:
l
Damage or calls resulting from
transportation, improper use or neglect,
the replacement of any light bulbs or
removable parts of glass or plastic.
l
Cost incurred for calls to put right an
appliance which is improperly installed or
calls to appliances outside the United
Kingdom.
l
Appliances found to be in use within a
commercial environment, plus those
which are subject to rental agreements.
l
Products of Tricity Bendix manufacture
which are not marketed by Tricity
Bendix.
l
EEC Countries. The standard guarantee
is applicable but subject to the owners
responsibility and cost to ensure the
appliance meets the standards set by
the Country of which the product is
taken. Electrolux Aftersales Service in
the Country concerned, with whom
Tricity Bendix have an arrangement, will
be pleased to advise further.
42
l
This guarantee is in addition to your
statutory and other legal rights.
ATB (4411/4421) (4511/4521)-311265006
RATING PLATE REFERENCE
MAKE AND MODEL NO. SERIAL NO. DATE OF PURCHASE
IMPORTANT NOTICE
In line with our continuing policy of research and development, we reserve the right to alter models and
specifications without prior notice.
This handbook is accurate at the date of printing, but will be superseded and should be disregarded if
specifications or appearance are changed.
Better Products. Better Value.
TRICITY BENDIX,99 OAKLEY ROAD, LUTON, BEDFORDSHIRE, LU4 9QQ
A Division of Emaco Limited Registered in England No. 176547 Registered Office. 101 Oakley Road, Luton LU4 9RJ.
MODEL NO.
ATB 4411/4421
ATB 4511/4521
4
. .
PART NO.
311265006
Loading...
