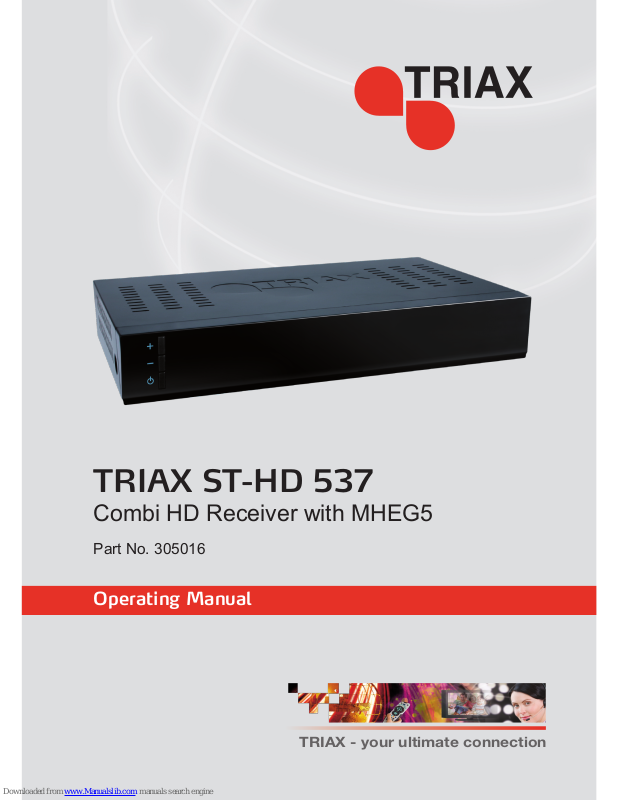

TRIAX ST-HD 537

Combi HD Receiver with MHEG5

Part No. 305016

Operating Manual

TRIAX - your ultimate connection

• The illustrations and the OSD in this operation manual are for explanation and guidance purposes only.

• The examples used throughout this manual are based on the ST-HD 537 model.

Dear Triax customer

Thank you for purchasing the TRIAX ST-HD 537 (Combi HD Receiver with MHEG5). To ensure safety and many years of trouble-free operation, please read the Important Safety

Precautions carefully before using this product.

Menu operation 17

What is the MAIN MENU? 17

Basic adjustment 18 AV Settings 18 Audio Description 19 Languages 20 Parental Control 21 Recording 22 General 23 Manually Tuning Channels 24 Digital Text 25

Appendix 26 Troubleshooting 26 Speciﬁcations 27 PIN CODE Reminder 29 Trademarks 30 End of life disposal 31

Terms of Guarantee 32

Declaration of Conformity 33

Notes 34

Introduction 3

Important safety precautions 3 Remote control unit 4 Receiver (front view) 5 Receiver (rear view) 5 Supplied accessories 6

Preparation 7 Inserting the batteries 7 Using the remote control unit 7

Quick guide 8 Initial installation overview 8 Before turning on the power 9 Initial auto installation 9

Watching TV 10 Daily operation 10 Channel List 11 The Guide Window 12 Recording a Programme 13 The Library Window 15

Operating Manual

Contents

Introduction

Important Safety Precautions

• Cleaning - Unplug the AC power adapter from the AC outlet before cleaning the product.

Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners.

• Use a soft damp cloth to gently wipe the product when it is dirty. To protect the product,

do not use a chemical cloth to clean it. Chemicals may cause damage or cracks in the casing of the product.

• Water and moisture - Do not expose the unit to wet or damp conditions.

• Do not place vases or any other water-ﬁlled containers on this product.

The water may spill onto the product causing ﬁre or electric shock.

• Ventilation - The vents and other openings in the casing are designed for ventilation.

Do not cover or block these vents and openings since insufﬁcient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s instructions are followed.

• Heat sources - Keep the product away from heat sources such as direct sunlight, radiators, heaters,

stoves and other heat-generating products (including ampliﬁers).

• To prevent ﬁre, never place any type of candle or naked ﬂames on the top or near the product.

• The product uses power even in Standby. Unplug the product from the AC outlet when you are not

using it.

• Servicing - Do not attempt to service the product yourself. Removing covers can expose you to

electric shock and other dangerous conditions. Maintenance should be performed by a suitably qualiﬁed person.

1 LIBRARY

Opens the library screen where your recordings are stored

2 MUTE

Volume on/off

3 NUMBER PAD

Select the channel number directly by entering its number. Set the page in digital text mode

4 REC

Use to record a programme and schedule recordings

5 PLAYBACK CONTROLS

Play, Pause, Stop, Fast Forward, Rewind, Jump Forward / Back

6 NAVIGATION  (Cursor)

Move up/down/left/right in menus and on screen displays (Page 11)

Conﬁrm selection in menu/on-screen display

7 VOL+/-

Increase/decrease the volume (Page 10)

8 BACK

Return to the previous “MENU” screen

9 TEXT

Display Digital Text (Page 25)

10 AD

Switch Audio Description on/off (Page 19)

11 A/V

Switch to the A/V input (Page 10)

12 SUBT

Switch subtitles on/off (Page 20)

13 HDMI

Select HDMI resolution 576p, 720p, 1080i and 1080p (Page 18)

14  (Standby/On)

Switch between standby and on (Page 10)

15 LAST

Toggles between the current channel and the previous channel (Page 10)

16 GUIDE

Display the Electronic Programme Guide (Page 12)

17 PROG +/-

Select the channel (Up/Down) Move one page at a time when in menu screens

18 MENU

“MENU” screen on/off (Page 17)

19 INFO

Displays programme information (Page 10)

20 EXIT

Closes the “MENU” screen

21 COLOUR BUTTONS

For interactive use and navigating menus

22 AUDIO

Select the desired audio language (Page 10)

23 WIDE

Adjust the aspect ratio (page 18)

Introduction

Remote Control Unit

SUBT

HDMI

A/V

AUDIO

WIDE

BACK

TEXT

INFO

EXIT

REC

MUTE

LIBRARY

LAST

GUIDE

VOL

PROG

Introduction

Receiver (Front View)

Receiver (Rear View)

9 LNB Loopthrough 10 Toshlink SPDIF Optical Output 11 HDMI™ Output 12 ETHERNET port - for future services 13 USB: SW Upgrade and Record Function 14 DC Power Socket 15 Power Switch

1 TV (SCART) 2 VCR (SCART) 3 Audio L 4 Audio R 5 Digital SPDIF Coaxial 6 DVB-T Antenna In 7 DVB-T Loopthrough 8 DVB-S2 LNB In

CHANNEL UP CHANNEL DOWN STANDBY BUTTON

Introduction

Supplied Accessories

Remote Control Unit (x1)

• Triax ST-HD 537 Combi Operating Manual

• “AAA” size zinc-carbon battery (x2) - Page 7

Page 4

Power Adaptor (x1)

AAA Batteries (x2)

Page 9

Page 7

HDMI Cable (x1)

Page 9

RF Cable (x1)

Page 9

SUBT

HDMI

A/V

AUDIO

WIDE

BACK

TEXT

INFO

EXIT

REC

MUTE

LIBRARY

LAST

GUIDE

VOL

PROG

+-+

Preparation

Inserting the batteries

Using the remote control unit

Before using the Receiver for the ﬁrst time, insert the two supplied “AAA” size zinc-carbon batteries. When the batteries run out and the remote control unit fails to operate, replace the batteries with new “AAA” size batteries.

1 Open the battery cover. 2 Insert the two supplied “AAA” size zinc-carbon batteries.

• Place batteries with their terminals corresponding to the

(+) and (-) indications in the battery compartment.

3 Close the battery cover.

CAUTION

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

• Do not mix batteries of different types. Different types of batteries have different characteristics.

• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause

chemical leakage in old batteries.

• Remove batteries as soon as they have worn out. Chemicals that leak from batteries can cause skin irritation.

If you ﬁnd any chemical leakage, wipe thoroughly with a cloth.

• If you will not be using the remote control unit for an extended period of time, remove the batteries from it.

• When replacing the batteries, use zinc-carbon batteries instead of alkaline ones.

Note on disposing batteries:

The batteries provided contain no harmful materials such as cadmium, lead or mercury. Regulations concerning used batteries stipulate that batteries may no longer be thrown out with the household rubbish Deposit any used batteries free of charge into the designated collection containers set up at your local recycling centre.

Use the remote control unit by pointing it towards the front of the Receiver. Objects between the remote control unit and sensor may prevent proper operation.

• Do not expose the remote control unit to shock. In addition, do not expose the remote control unit to liquids

and do not place in an area with high humidity.

• Do not place the remote control unit under direct sunlight. The heat may cause deformation of the unit.

• The remote control unit may not work properly if the remote control sensor of the Receiver is under direct

sunlight or strong lighting. In such cases, change the angle of the lighting or the Receiver, or operate the remote control unit closer to the remote control sensor.

Cautions regarding the remote control unit

USB

SPDIF

HDMI

2-CHAUDIOOUT

Quick Guide

Initial installation overview

Preparation

1 2 3

Watch TV

Run the

Initial Settings

1 Connect the antenna cable to the RF IN terminal and Satellite cable to LNB in (Page 9)

1 Turn on the standy button on the Receiver (Page 10)

1 Congratulations! You can now watch TV

2 If neccessary, adjust the antenna to obtain maximum signal reception

2 Run the ﬁrst time installation (Page 9)

Ensure the antenna and

/or satellite is connected

Press OK to continue

Start Searching Channels

2 Connect the Receiver to your TV using the supplied HDMI cable (Page 9)

3 Connect the power adapter to the Receiver and switch socket on. (Page 9)

Follow the steps below one by one when using the Receiver for the ﬁrst time

You will receive a message

when installation is complete.

OPTICAL HDMI

RF in LNB in

RF out LNB out

Please connect aerial and /or satellite dish

Then press to scan for services

First Tim e I nst all

Quick Guide

Before turning on the power

Initial auto installation

When the Receiver is powered on for the ﬁrst time, the First Time Installation screen appears. Follow the on-screen instructions to search for all available channels.

1 Ensure the antenna cables are connected before switching on.

2 Switch on the power socket. 3 Press on the Receiver or Remote Control.

• The First Time Installation screen is displayed.

4 Press OK to start the channel search.

• The Receiver will search for, sort and store all receivable channels.

NOTE

• The First Time Installation process will be

aborted if the Receiver is left unattended for more than 30 minutes before searching for channels.

• After the First Time Installation has been

completed, the default PIN is automatically set to ‘0000’. To change the PIN setting, refer to Page 21.

1 Connect the antenna (Coaxial Plug), 75ohm coaxial cable, (CAI Benchmarked cable such as Triax TX100) 2 Connect the satellite dish (F-Type Plug), 75ohm coaxial cable, (CAI Benchmarked cable such as Triax TX100) 3 Connect the HDMI cable 4 Connect the power adaptor and switch on at the socket

Please connect aerial and /or satellite dish

Then press to scan for services

First T ime Inst all

Watching TV

Daily operation

Standby mode

Switching On / Off

Adjusting the Volume

Changing Channels

Switching Between Channels

Programme Information

Selecting a Video Output Source

Selecting an Audio Language

• SelectStandbymode

If the receiver is switched on, you can switch it to standby by pressing on the remote control unit or the front of the receiver

• SwitchingonfromStandby

From standby, press on the remote control unit or front of the receiver.

Press the VOL+ button to increase the volume and the VOL- button to decrease the volume.

• We advise setting the volume to full on the receiver

and then use the TV remote for adjusting the volume as normal

Switch between the current channel and the previous channel by pressing LAST. Each press of the LAST button will toggle between the current channel and the previous channel

Once the receiver is connected to your TV using either a HDMI cable or SCART cable, you can select the appropriate output source by pressing A/V on the remote control unit.

Some programmes are broadcast with multiple audio channels. Press AUDIO to display the audio menu.

NOTE

• If you are not going to use this Receiver for long

periods of time, be sure to remove the power adapter from the supply.

• A small amount of electrical power is still

consumed when the Receiver is in standby mode.

1 Press the INFO button once to display current time, channel information, programme name and start/ﬁnish times of selected programmes.

2 Press the INFO button again to display additional information about the current programme.

1 Press / to select the desired channel. 2 Press OK to conﬁrm the audio channel.

With number padWith PROG +/-

MUTE

LIBRARY

REC LAST

PROG

Key desired channel number (refer to channel list)

Settings

AV Settings

Language s

Parental Contr ol

Recordin g

General

SelectOKExit Menu

EXIT

Subtitle Language

Audio Language

Audio Description Language

English

Channel List

All Cha nnels

Lock Add Fa v DeleteExit

EXIT

Watch

104 Channel 4

105 Five

106 BBC THREE

107 BBC FOUR

108 BBC HD

110 BBC ALBA

113 ITV2

114 ITV2+1

103 ITV1 London

102 BBC 2 England

101 BBC 1 London

Guide

GUIDE

Show Favs

Watching TV

Channel list

Basic Operation

Useful Functions

• Display/ClosetheChannelList

• NavigatingtheChannelList

NOTE

• If parental controls are enabled (Page 21) the parental

settings PIN must be entered before a channel can be locked / unlocked.

• To unlock a channel, select the channel using the /

buttons and press the RED coloured button.

NOTE

• To view a channel once it’s been deleted, you

will need to perform a First Time Installation (Page 24)

Press on the remote control while watching

TV to access Channel List Menu or

1 Press MENU 2 Press  to select the channel option from the list. 3 Press OK

The channel list allows you to hide, and delete channels, setup a favourites channel list, setup a manual recording and view the list of free to air channels that you have added.

 Select a channel.

Press / to highlight a channel. Press OK to watch the channel.

 Lock a channel.

You can lock a channel to prevent children

viewing scenes of an adult nature.

1 Press / to select the channel you want to lock.

2 Press the coloured button. A padlock icon will appear next to the channel name.

 Set a channel as a favourite.

You can set a channel as a favourite for

quick access. All favourite channels will be displayed in the favourites list.

1 Press / to select the channel you want to add to the favourites list.

2 Press the coloured button.

• The Favourites List will be shown listing all

favourite channels and the channel you have just added.

3 Press  to return to the channel list.

 Deleting a channel.

1 Press / to select the channel you

want to delete. 2 Press the coloured button.

• The delete channel screen willl be displayed.

You can choose to delete the channel or cancel.

 Viewing the favourites list.

1 From the main channel list, Press  to view the Favourites List.

• While viewing the favourites list, you can

select and watch channels in the same way as the channel list.

2 Press  to return to the channel list. 3 To exit the Channel List, Press OK or Exit.

 View the EPG.

1 To view the EPG (Page 12) press the

button on the remote control unit.

GUIDE

1 2 43 5 6

The Guide Window

AD)))

SPLIT

SUB

TXT

This programme has audio description

This programme is broadcast with Dolby Digital

This programme is broadcast with Dolby Digital Plus

This programme contains guidance information

This programme is broadcast in high deﬁnition

This programme is scheduled to be recorded

This programme has been set a reminder

This is a split event programme (in 2 parts)

This programme has subtitles

This programme has digital text available

Navigation

You can open the guide window by pressing the button on the remote control. The guide shows you programmes and channels available. Note: Terrestrial channels have an 8 day EPG and Satellite channels have a now/next EPG.

Use the  and  buttons to select different channels. Use and To select programme. You can use the PROG+ and PROG- buttons to move one page at a time.

Move backwards 2 hours. Move forwards 2 hours. Move backwards 24 hours. Move forwards 24 hours.

When you have chosen your programme, press

the button to watch it or set a reminder.

GUIDE

EPG

Programme Guide

8:00pm - 9:00pm The Restaurant

Raymond Blanc adds to the pressure - he tells the couples to start a takeaway service so they can reach

ering their restaurant food to go.

AD)))

SUB

101 BBC One

102 BBC Two

103 ITV1 Anglia S

104 Channel 4

106 BBC Three

107 BBC Four

108 BBC HD

110 BBC ALBA

8:00pm 8:30pm 9:00pm

Fri 1 May

Big Cat Live Silent Wit

Heroes

Inside Out

The Restaurant

Super Nanny

Dog Borstal

Greatest Cit

Britain From Above

An Lá Eorpa

Soillse

Silent W

The Family

Hoodies Can

Wilderness

Who Do Yo

News

Coronation

Freaky Eat

World New

M.I Hi

Dé tha Dol

The Bill: Hide and Seek

Ray Mears Goes Walkabout

Record

REC

Library

LIBRARY

-2 Hrs +2 Hrs -24 Hrs +24 HrsReminder

Exit

EXIT

Watching TV

Recording a Programme*

This function is very useful if you are watching a programme and are interrupted.

You can rewind a programme you are watching at any time by pressing the button.

To pause live TV, press the button on the remote control.

The time counter will start and shows the amount of time the programme has been paused.

To continue watching TV, press the or button again and the programme will begin from where you left off.

You can fast forward, and fast rewind using the and buttons. The speed and direction are shown on the screen. To change the speed press the and buttons again.

To go back to live TV, press the button.

Select a programme you want to record and then

press the button to set the recording. When a recording has been set the record icon is

shown before the programme name.

Pausing Live TV

Series Link

Setting a Recording

2 Mins

6 Mins

REC

A series link will record all programmes in a series.

For example, if you set it to record a programme and series link was set, then each new episode in the current series will be recorded automatically.

To set a series link, choose the programme to be recorded in the Guide window and press the record button.

You will be asked whether you want to record an entire series or just the current programme.

Press to select the required option.

Programmes to be recorded are added to a Scheduled Recordings folder.

NOTE

• Not all programmes are part of a series.

If a series has already started, you can only record the remaining episodes in the series.

• Series link can also be activated in the

scheduled recordings window

NOTE

• You can record a terrestrial programme

while watching a satellite programme and vice versa.

• You can set the recording by pressing

REC while watching a programme or by highlighting a programme in the EPG and pressing REC

* In order to use these features an external

USB memory device must be connected.

Watching TV

Recording a Programme

You can use the reminder function to let you know when a programme is going to start.

Press Guide button to access the guide window and use the navigation pad to select a programme.

Press the button to set the reminder.

When the reminder has been set a clock icon is shown before the programme name.

Setting a Reminder

To View Scheduled Recordings

Select Menu and choose Scheduled

Recordings

While in the Scheduled Recordings window:

To delete a scheduled recording, highlight the programme to be deleted and press the button

To series link a scheduled recording, highlight the desired programme and press the button

To remove a series link from a scheduled recording, highlight the programme and press

the button

NOTE

• Tocancelaprogrammereminder,highlightthe

programme where the reminder has been set and press the OK button. The clock will disappear and the reminder will be cancelled.

Recording Clashes

NOTE

• The list of options available to you on the

recording clash warning screen will depend on the programmes being recorded.

You can record a satellite programme while watching a terrestrial programme or vice versa

You will be able to cancel recordings, stop recordings or even scedule the recording for a different time if the programme is being broadcast again at a later date or time.

Use the and buttons to select an option.

Press the button to conﬁrm

Recordings Library

08/10/2010 BBC HD 8:00pm - 9:00pm Heroes Series 3

70% Remaining

One of us, One of them (Part 3 of 25) Drama series in which people all over the world deal with their newly discovered superpowers. Hiro and Ando track Daphne to Germany while tracy Strauss searches for answers about Niki. [DRAMA]

AD)))

SUB

Protect Schedule Preview Delete Exit

EXIT

Select

Guide

GUIDE

Top Gear

Heroes

Strictly Come Dancing

I’m a Celebrity Get Me Out of Here

Spooks

In the Night Garden

BBC2

BBC HD

ITV1

BBC 1

BBC HD

05/10

08/10

01/11

16/11

17/11

21/11

Stop

Viewed

Playing

Recorded

Recording

Scheduled

SSR

AD)))

SPLIT

SUB

TXT

The Library Window

This is a split event programme (in 2 parts)

This programme has subtitles

This programme has digital text available

This recording is protected and will not be deleted

This recording is part of a series

Stops a recording or a preview

This will protect or unprotect a recording

This will preview a recorded programme

This will delete recorded and scheduled programmes

This programme has audio description

This programme is broadcast with Dolby Digital

This programme is broadcast with Dolby Digital Plus

This programme contains guidance information

This programme is broadcast in high deﬁnition

This programme is scheduled to be recorded

This programme has been set a reminder

You can open the library window by pressing the LIBRARY button on the remote control. This shows all of your recorded programmes.

Use the  and  buttons to select each programme. You can use the PROG+ and PROG- buttons to move one page at a time.

Navigation

The Library Window

Watching a Recording

Preview a Recording

Protecting a Recording

Programmes that have ﬁnished recording are marked as ‘Recorded’.

1. Use the and buttons to select a

programme you want to watch.

2. Press the button to start playback.

You can preview a recorded programme in the preview window in the recordings library.

The status will show as ‘Playing’.

You can protect a recording from being accidentally deleted by protecting it.

1. Use the and buttons to select a

recording you want to protect.

2. Press the button to protect.

To unprotect a recording, highlight the protected

recording using the / buttons and press

the button.

NOTE

• You can start to watch back a programme

that is recording and don’t have to wait for it to ﬁnish.

NOTE

• To delete a protected recording, you must

unprotect it ﬁrst.

NOTE

• Your recording will not be overwritten or

deleted when protected. (Unless you format the hard disk drive)

Unprotecting a Recording

Setting s

AV Settings

Languag es

Parenta l Co ntrol

Recordi ng

General

SelectOKExit Menu

EXIT

HDMI Output

HDMI Audio

Screen Size

Menu Transparency Settings

Channel Change Timeout

Audio Description Volume

Audio Delay Settings

Stereo

Setting s

AV Settings

Languag es

Parenta l Co ntrol

Recordi ng

General

SelectOKExit Menu

EXIT

HDMI Output

HDMI Audio

Screen Size

Menu Transparency Settings

Channel Change Timeout

Audio Description Volume

Audio Delay Settings

Stereo

Main Me nu

Program me G uide

Channel s

Library

Schedul ed R ecord ings

SelectOKExit Menu

EXIT

Menu Operation

What is the Main Menu?

• YouneedtocalluptheOn Screen Display (OSD) to perform settings for the Receiver. The OSD for the settings is called “MAIN MENU”

• The“MAINMENU”enablesvarioussettingsandadjustments.

Basic Operation

About the Guide Display

Display the

MAIN MENU screen

Exit the

MAIN MENU screen

Selecting a menu

or sub menu

Press MENU and the

“MAIN MENU” screen appears

Press EXIT to exit the MAIN MENU

at any time. If you have not pressed

OK before exiting, the desired

setting will not be changed.

Press / to select one of the main menu options. Press OK to display the option. Press / to select one of the sub menus. Press  to display the sub menu options. Press  to adjust the desired setting and then press OK. Press

BACK to return the previous menu.

Selecting a sub-menu in the MAIN MENU

Selecting and adjusting options

The guide display at the bottom of the MAIN MENU screen shows operation with the OSD

• The guide display is an operational guide for the

remote control unit. The bar will change in accordance with each sub-menu and menu setting.

Item

View the EPG (Pg 12).

View the Channel List (Pg 11).

Opens the Library screen where recordings are stored (Pg 15).

Shows list of future programmes to be recorded (Pg 14).

Adjust various settings for the Receiver (Pg 18).

View system and software information for the Receiver.

Programme Guide

Channels

Library

Scheduled Recordings

Settings

Information

EXIT

Adjusts the audio output type when the Receiver is connected to surround system using a HDMI cable. This allows you to enjoy realistic live sound.

NOTE

• Only select Dolby Digital if you have a compatible

surround sound system. If you choose this setting with a non-compatible sound system the audio will not be heard.

• Not all channels are broadcast with Dolby Digital

sound.

Adjusts the video signal type when the Receiver is connected to your TV using a SCART cable.

NOTE

• If your TV is not compatible with RGB signals,

select the composite video output.

Basic Adjustment

AV Settings

HDMI Video

HDMI Audio

Adjusts the video resolution when the receiver is connected to your TV using a HDMI cable. This

allows you to watch High Deﬁnition (HD) TV.

NOTE

• Consult the documentation supplied with your TV

to select the correct TV resolution.

• If your TV is not HD Ready but has a HDMI socket,

select the 576p video resolution.

Adjusts the screen size (aspect ratio) between 16:9 widescreen and various 4:3 picture sizes.

NOTE

• If you have connected the Receiver to a widescreen

TV, you should select the 16:9 widescreen setting.

• The wide mode feature lets you adjust the screen

size using the WIDE button on the remote control unit. Press WIDE to cycle through the available screen sizes while watching TV on a 4:3 screen.

• If you have selected 16:9 widescreen in the AV

settings menu, the wide mode will have no effect.

• Not all programmes are broadcast in widescreen

format which may result in a black border around the programme. This setting can be useful to remove or minimise the border.

Item

576p Sets the video resolution to 576p

720p Sets the video resolution to 720p

1080i Sets the video resolution to 1080i

1080p Sets the video resolution to 1080p

Item

RGB This selects an RGB video signal type.

The video signal will be split into separate red, green and blue signals to provide the best picture quality.

Composite This selects a composite video signal

(default) when RGB is not available.

16:9 Widescreen Displays a 16:9 widescreen

picture. This ensures the best aspect ratio for widescreen TV’s

4:3 Widescreen In this mode, the picture is

(16:9) stretched towards each side

of the screen. This displays a picture similar to 16:9 widescreen on 4:3 TV’s

4:3 Centre Displays a 4:3 picture in the

Cut Out centre of the screen. With

some programmes, bars may appear on the left and right hand side of the screen.

4:3 Letterbox Displays a 16:9 picture in the

(16:9) centre of the screen. With

some programmes, bars may appear on the top and bottom of the screen.

Screen Size

Item

Stereo The Receiver will output Stereo

sound when connected to a standard surround sound system using the HDMI cable.

Dolby Digital The Receiver will output Dolby Digital surround sound when connected to a compatible surround sound system using the HDMI cable.

SCART Output

Settings

AV Settings

Language s

Parental Contr ol

Recordin g

General

SelectOKExit Menu

EXIT

HDMI Output

HDMI Audio

Screen Size

Menu Transparency Settings

Channel Change Timeout

Audio Description Volume

Audio Delay Settings

Stereo

Basic Adjustment

AV Settings Audio Description

Menu Transparency

Channel Change Timeout

This function allows you to adjust the transparency of the OSD’s. The default setting is off

NOTE

• The menu transparency settings will not affect the

main menu.

This function allows you to adjust the length of time the information screen is displayed if no other buttons are pressed.

Options are: 3, 5, 7 + 10 Seconds

Item

Off The picture will not be visible behind the OSD

25% The picture is partially visible behind the OSD

50% The picture is mostly visible behind the OSD

75% The picture is clearly visible behind the OSD

Some programmes are broadcast with audio descriptions (AD) which provides a voice-over describing visual information such as scenery, body language and facial expressions. Press AD on the remote control unit to toggle audio description on or off.

NOTE

• If audio description is available for a programme,

the AD symbol will be displayed in the information screen (Page 10) and the EPG (Page 12)

Adjusts the volume of the audio description when available.

Synchronises the audio and video outputs when the Receiver is connected to a Dolby Digital Surround Sound System using the SPDIF (digital audio output) connection.

Audio Description Volume

Audio Delay Settings

1 Go to Main Menu, Settings, AV Setting,

Audio Delay Settings.

2 Press to select.

3 Press / to increase or decrease the

audio delay time.

4 Press EXIT to complete the setting.

1 Go to Main Menu, Settings, AV Setting,

Audio Description Volume. 2 Change the volume.

3 Press to conﬁrm.

DigitalAudioDelay 60 ms

Basic Adjustment

Languages

Subtitle Language

This function allows you to set the default subtitle language to English, Welsh, Gaelic or Irish.

NOTE

• Some subtitle languages are available with

enhanced subtitles. These provide additional information about the programme for the hard of hearing.

• Subject to information being broadcast.

Switching on Subtitles

Selecting Audio Languages

1 Press on the remote control unit to

toggle subtitles on or off.

NOTE

• Not all programmes are broadcast with subtitles.

If subtitles are available for a programme, the SUBT symbol will be displayed in the information screen (Page 10) and the EPG (Page 12).

• If subtitles are available they will be displayed

at the bottom of the screen in the default subtitle language.

This function allows you to set the default audio language to English, Welsh, Gaelic or Irish.

This function allows you to set the default audio description (AD) to English, Welsh, Gaelic or Irish.

NOTE

• Not all programmes are broadcast with alternative

audio languages. If the selected audio language is not broadcast, English will be used.

NOTE

• Not all programmes are broadcast with alternative

audio description languages. If the selected audio language is not broadcast, English will be used.

1 Press on the remote control unit

to toggle switch between the available audio languages.

Audio Language

Audio Description Language

SUBT

AUDIO

Settings

AV Settings

Language s

Parental Contr ol

Recordin g

General

SelectOKExit Menu

EXIT

Subtitle Language

Audio Language

Audio Description Language

English

Basic Adjustment

Parental control

This function allows you to change the PIN

NOTE

• As a precautionary measure, make a note of

your PIN on the back of this operational manual (see page 29). Keep it in a safe place where children cannot reach.

1 Enter the default (0000) or current four digit

PIN using the 0-9 numeric buttons.

2 Enter the new four digit PIN using the 0-9

numeric buttons.

3 Conﬁrm the new four digit PIN using the

0-9 numeric buttons.

Change PIN

This function allows you to prevent a ﬁrst time installation being performed without ﬁrst entering the parental settings PIN.

Item

Enabled This will allow a ﬁrst time installation to

be performed without entering the parental settings PIN.

Disabled This will prevent a ﬁrst time installation to be performed unless the parental settings PIN is entered.

Allow First Time Installation

Changing the Parental Settings PIN

NOTE

• If you have changed the default PIN, this must

be entered before the parental control settings can be adjusted.

The Parental Control feature allows you to prevent accidental changes being made to the Receiver. In addition channels can be locked to prevent children viewing scenes of an adult nature.

The default personal identiﬁcation number (PIN) must be entered before the parental control settings can be adjusted.

Parental Settings PIN

1 Enter the default four digit PIN (0000) using

the numeric buttons.

This setting chooses if you want to enter a PIN before watching a recording that has guidance information. The default setting is Yes.

Guidance PIN for Recordings

This setting chooses if you want to allow access to the parental menu without entering a PIN.

The default setting is that you must enter a PIN.

Allow Parental Changes

This setting chooses if you want to allow the hard disk drive to be formatted. Please note, this will delete all recordings stored in your library. A warning message will appear asking if you want to continue. NB. This will also delete any protected recordings.

Allow USB Storage Device Format

0000

Settings

AV Settings

Language s

Parental Contr ol

Recordin g

General

SelectOKExit Menu

EXIT

SelectOKExit Menu

EXIT

Parental Setti ngs PI N

This menu is PIN protected

Please enter your pin to view and change settings

0000

Settings

AV Settings

Language s

Parental Contr ol

Recordin g

General

SelectOKExit Menu

EXIT

SelectOKExit Menu

EXIT

0000

----

Basic Adjustment

Recording

This setting chooses the default recording mode. You can set the HD Digital TV Recorder to always record in high deﬁnition or standard deﬁnition.

NOTE

• You can only record in high deﬁnition when the

programme is being broadcast in high deﬁnition.

This changes the amount of time added before a recording starts.

This changes the amount of time added at the end of a recording.

This sets the amount of time used for the background recording of live TV. The options are 60 minutes or 120 minutes.

This sets the default skip forwards time.

This sets the default skip backwards time.

NOTE

• You can use the skip forwards and backwards

function when watching a recording by pressing the >| or |< buttons.

This setting chooses if you want to enter a PIN before watching a recording that has guidance information. The default setting is On.

This sets how you want remaining space to be shown in the menus. You can choose from the percentage of space, hours of standard deﬁnition or hours of high deﬁnition available.

This will reformat your hard disk drive.

NOTE

• This will permanently delete all of your recorded

programmes, even if they are protected.

• You can set a PIN number to prevent accidental

reformatting of your hard disk drive.

Default Recording Mode

Add to Start of Recording

Add to End of Recording

Live Pause Length

Skip Forwards Time

Skip Backwards Time

Auto Disk Management

Show Available Space As

Format USB Storage Device

Settings

AV Settings

Language s

Parental Contr ol

Recordin g

General

SelectOKExit Menu

EXIT

Default Recording Mode

Add to Start of Recording

Add to End of Recording

Live Pause Length

Skip Forwards Time

Skip Backwards Time

Auto Disk Management

Show Available Space As

Format USB Connected Drive

Basic Adjustment

General

Auto Standby

Power Save in Standby Mode

This function allows you to automatically switch the Receiver into standby mode when there is no user activity for 3 hours.

This function allows you to control the power saving features of your Receiver.

Item

Enabled The Receiver will automatically switch (default) into standby mode when there is no user

activity for 3 hours.

Automatic The receiver will automatically install software upgrades when available

Manual The receiver will display a message allowing you to conﬁrm or cancel the software upgrade

Enabled The Receiver uses a very low amount of (default) power when in standby.

Disabled The Receiver will remain on constantly

unless switched into standby mode by the user.

Disabled Power saving features are disabled.

This function allows you to control when software upgrades are installed.

Upgrade Software

Settings

AV Settings

Language s

Parental Contr ol

Recordin g

General

SelectOKExit Menu

EXIT

Enabled

Basic Adjustment

Manually tuning channels

Manual Terrestrial Tune

You can manually tune for new Terrestrial and Satellite channels after the ﬁrst time installation

has been completed.

Item

UHF Channel Select channel 21-68

Frequency The frequency of the service

(channel) you are manually tuning.

Bandwidth The bandwidth of the service (channel) you are manually tuning.

System The type of tuning system. DVB-T = SD (Default)

1 Select Manual Terrestrial Tune.

2 Press / to select the desired UHF

channel.

3 Press  to select ‘Frequency’ (kHz).

4 Press / to adjust the frequency.

5 Press  to select ‘Bandwidth’.

6 Press / to adjust the bandwidth.

7 Press  to select ‘System’.

8 Press / to select a system.

9 Press the button to start scanning for

the speciﬁed channel. If the channel is found it will be stored in the Receiver and will be available in the channel list and EPG.

1 Select Manual Satellite Tune

2 Press  to select ‘Frequency’ (kHz).

3 Press / to adjust the frequency or type

required frequency using the keypad.

4 Press  to select ‘Symbol Rate’.

5 Press / to adjust the Symbol Rate, or

required symbol using the keypad.

6 Press  to select ‘LNB Polarisation’.

7 Press / to adjust the LNB Polarisation.

8 Press the button to start the scanning

process.

NOTE

• You can enter the UHF channel and frequency

using the 0-9 numeric buttons.

This function allows you to perform a ﬁrst time installation.

1 Press Menu on your remote control

2 From the Menu options on screen, select Settings

3 Then select General

4 Use the navigation buttons to highlight First Time Installation

5 Press OK to select.

6 A warning banner will be shown. Press OK to proceed or exit to cancel.

7 Press OK to scan for new services.

You may have to wait a several minutes for the scan to complete.

8 You will receive a message to conﬁrm when installation is complete.

9 Press OK to start watching TV

Manual Satellite Tune

First Time Installation

Manual T une

Select

Start ScanExit Menu

EXIT

Frequency (MHz)

Symbol Rate

LNB Polarisation

Signal Strength

Signal Quality

04796

26006

Horizontal

FEC

Network ID

Services Found

5/4

Transport ID

Services Added

7FE

Guidance is a parental lock which gives you control against the types of programmes that can be watched and played back on your Receiver.

Programmes that contain guidance information are marked with a G.

Guidance labels let you know when a programme may include content that is unsuitable for young audiences (e.g violence, sex, drug use, or strong language) or when it may be harmful to view (e.g. contains ﬂashing images).

Guidance is usually used for television programmes broadcast after 9pm.

You can choose whether to PIN protect your programmes and recordings in the Parental settings menu.

Digital Text

Guidance?

Accessing digital text

1 Select a channel which broadcasts digital text.

2 Press or the button.

• Not all channels broadcast digital text.

• You may not be able to receive digital text if you

have a poor quality signal.

Buttons for digital text operation

Buttons Description

Some channels are broadcast with digital text which contains pages of information and entertainment. News, weather, sports information, stock exchange prices and programme previews are among the many services.

Navigate the digital text index page and menu system

Coloured

Buttons

Numeric

Buttons 0-9

EXIT / TEXT

Access digital text shortcuts. These are often displayed on the bottom of the page

Directly select a page

Exit digital text

///

TEXT

Appendix

Troubleshooting

The following conditions in the table below do not always indicate a problem. Please perform the checks described below before calling for service. If the problem cannot be corrected by the use of this manual, remove the mains plug from the power socket and contact the Helpline on 00 44 1443 778910 to obtain service or advice (Normal operator charges apply).

Alternatively you can email us at: stbsupport@triax.co.uk.

In the unlikely event of this equipment requiring repair during the guarantee period, you will need to provide proof of purchase to your point of sale. Please keep your purchase invoice or receipt in a safe place.

WARNING

Under no circumstances should you try and repair this product yourself. This will invalidate the guarantee. Do not open the unit as there is risk of electric shock.

No power

The receiver cannot be operated

Remote control unit does not operate

Picture format incorrect

Power is suddenly turned off

No picture

No sound

Freezing / Blocking

• Checkifyoupressedontheremotecontrolunit

• IstheACpoweradapterdisconnected?

• Checkifyoupressedonthereceiver

• TurnoffreceiveratACadaptor,leavefortwominutesandswitchbackon

• Arebatteriesinsertedwithpolarity(+,-)aligned?

• Arebatterieswornout?(Replacewithnewbatteries.)

• Areyouusingitunderstrongoruorescentlighting?

• Isauorescentlightilluminatingtheremotecontrolsensor?

• Refertopage18.

• Isautostandbyactivated?(Page23)

• Areconnectionstoexternalequipmentcorrect?(Page8)

• Istheinputsignaltypeselectedcorrectlyafterconnection?(Page18)

• Isthecorrectoutputsourceselected?(Page18)

• Istheantennaconnectedproperly?(Page9)

• Isthevolumetoolow?

• Checkifyoupressedmuteontheremotecontrolunit.

• CheckSCARTleadisinsertedcorrectlyifused.

• Checkreceptioninformationasshownonthecoverofthismanual.

• Refertopage24toperformtheFirstTimeInstallation.

Problem Possible Solution

Appendix

Speciﬁcations

Appendix

Speciﬁcations

PIN CODE Reminder

NOTE

You need to insert the PIN code here and refer it to the pages in the manual where this is covered.

IMPORTANT

Removal of a lost PIN code could be subject to a service charge.

Appendix

Trademarks

This product is capable of receiving and decoding Dolby Digital Plus. Manufactured under licence from Dolby Laboratories. Dolby and the double D symbol are trademarks of Dolby Laboratories.

This product has a HDMI connector so that you can watch high deﬁnition TV with a HDMI lead when connected to a HD Ready TV. HDMI, the HDMI logo and High-Deﬁnition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Information on the software license for this product

Software composition

The software included in this product is comprised of various software components whose individual copyrights are held by TRIAX UK Ltd or by third parties.

Software developed by TRIAX and open source software

The copyrights for the software components and various relevant documents included with this product that were developed or written by TRIAX are owned by TRIAX UK LTD and are protected by the Copyright Act, international treaties, and other relevant laws. This product also makes use of freely distributed software and software components whose copyrights are held by third parties. These include software components covered by a GNU General Public License (hereafter GPL), a GNU Lesser General Public License (hereafter LGPL) or other license agreement.

Obtaining source code

We are unable to answer any questions about the source code for the open source software. The source code for the software components whose copyrights are held by TRIAX are not distributed.

Appendix

End of life disposal

A. Information on Disposal for Users (private households)

1. In the European Union

Attention: If you want to dispose of this equipment, please recycle.

Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by member states, private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries your local retailer may also take back your old product free of charge if you purchase a similar new one.

* Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.

By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

The battery supplied with this product contains traces of Lead.

For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation. Please contact your local authority for details on the collection and recycling schemes.

Attention:

Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

Terms of Guarantee

This product is supplied with a 12 month manufacturers guarantee from date of original purchase.

In the unlikely event of an issue occurring within this period, please contact your point of sale. Proof of purchase will need to be supplied.

1 This guarantee only applies to defects due to faulty workmanship or materials. It does not cover faults or damage caused by (but not limited to) accident, misuse, fair wear and tear, signal related issues, neglect, tampering with the product or repair other than by a facility appointed by Triax UK Ltd.

2 This product is intended for private domestic use only. The guarantee will not apply if the product is used in the course of a business, trade or profession.

3 The product must be correctly installed and operated in accordance with the instructions contained in this operating manual.

4 Triax UK Ltd disclaims any liability for incidental or consequential damages.

5 This guarantee is in addition to, and does not diminish your statutory or legal rights.

Declaration of Conformity

Company Name: Triax UK Ltd

Company Address: Abergorki Industrial Estate,

Treorchy, Rhondda-Cynon-Taff CF42 6DL, UK

Object of the Declaration: Triax ST-HD 537, Part Number 305016.

The object of the declaration described above is in conformity with the requirements of the following documents:

Low voltage directive 2006/95/EC EMC Directive 2004/108/EC WEEE Directive 2002/96/EC Batteries and Accumulators Directive 2006/66/EC RoHS Directive 2002/95/EC REACH Regulation 1907/2006/EC CE Marking Directive 93/68/EEC Packaging Directive 94/62/EC

The product identiﬁed above complies with the relevant EC Directives by meeting the following standards:

BS EN55013:2001+A1:2003+A2:2006 Test Limits for STB Receivers Disturbance Characteristics BS EN55020:2007 Test Limits for STB Receivers Immunity Characteristics BS EN60065:2002:A1:2006+A11:2008 Audio and Video Equipment Safety Requirements BS EN 61000-3-2:2006 Test Limits for EMC Harmonic Currents BS EN61000-3-3:2008 Test Limits for EMC Voltage Changes and ﬂuctuations

The Declaration of Conformity is made in relation to the associated tests carried out and veriﬁed by our suppliers and their authorised test facilities.

Signed for and on behalf of:

TRIAX UK LTD

KEVIN EDWARDS…………………………………………………………………QUALITY MANAGER. 30th November 2010

Notes

Issue 1

Triax ST-HD 537 Operating Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
