Triax SR-26 User Manual
SR-26 User Guide
SR-26
ANALOG SATELLIT RECEIVER
• 450 Pre-programmed channels (ASTRA, EUTELSAT/HOT BIRD, and other)
• 2 SCART connectors (TV and VCR/DECODER)
• OSD On-Screen-Display (English and German)
• Parental lock and favourites list
• Frequency range 920 – 2150 MHz
• LNB control via 14/18 volt, 22 kHz and DiSEqC 1.0
• Stereo audio output via RCA/phono
• Stereo/Mono
• Infrared Remote control
• UHF modulator, channel 30-39
• Last channel function / channel memory
• Volume level control for each program channel.
• Mute function
• Support for Ku and C band
• LNB power off in standby
• Sleep timer
• Dynamic noise reduction for better sound
• LNB line short circuit and overload protection
CONTENTS
GENERAL PROPERTIES ........................................................................................... 2
SAFETY PRECAUTIONS ............................................................................................ 3
Power Source: ................................................................................................... 3
Power Cord: ...................................................................................................... 3
Choice Of Location: .......................................................................................... 3
SATELLITE ANTENNA ............................................................................................... 4
PUTTING ON THE BATTERIES OF THE
REMOTE CONTROL ........................................................................................... 4
CONNECTION OF YOUR TV WITH THE SATELLITE RECEVIER ................................ 4
Connection to the TV: ........................................................................................ 4
Putting into operation: ....................................................................................... 4
Tuning your TV to the Sat-receiver: ................................................................... 5
Scart socket: ...................................................................................................... 5
Audio Output socket: ......................................................................................... 5
FUNCTIONS ON THE FRONT PANEL OF THE RECEIVER .......................................... 6
1. STANDBY :............................................................................................ 6
2. BUTTONS : ................................................................................ 6
3. CHANNEL DISPLAY : ........................................................................... 6
CONNECTIONS AND SERVICE ELEMENTS AT THE BACK SIDE OF THE SET .......... 7
REMOTE CONTROL FUNCTIONS .............................................................................. 8
MENU INTERFACE ..................................................................................................... 9
Menu System: ................................................................................................... 9
Customizing: ..................................................................................................... 9

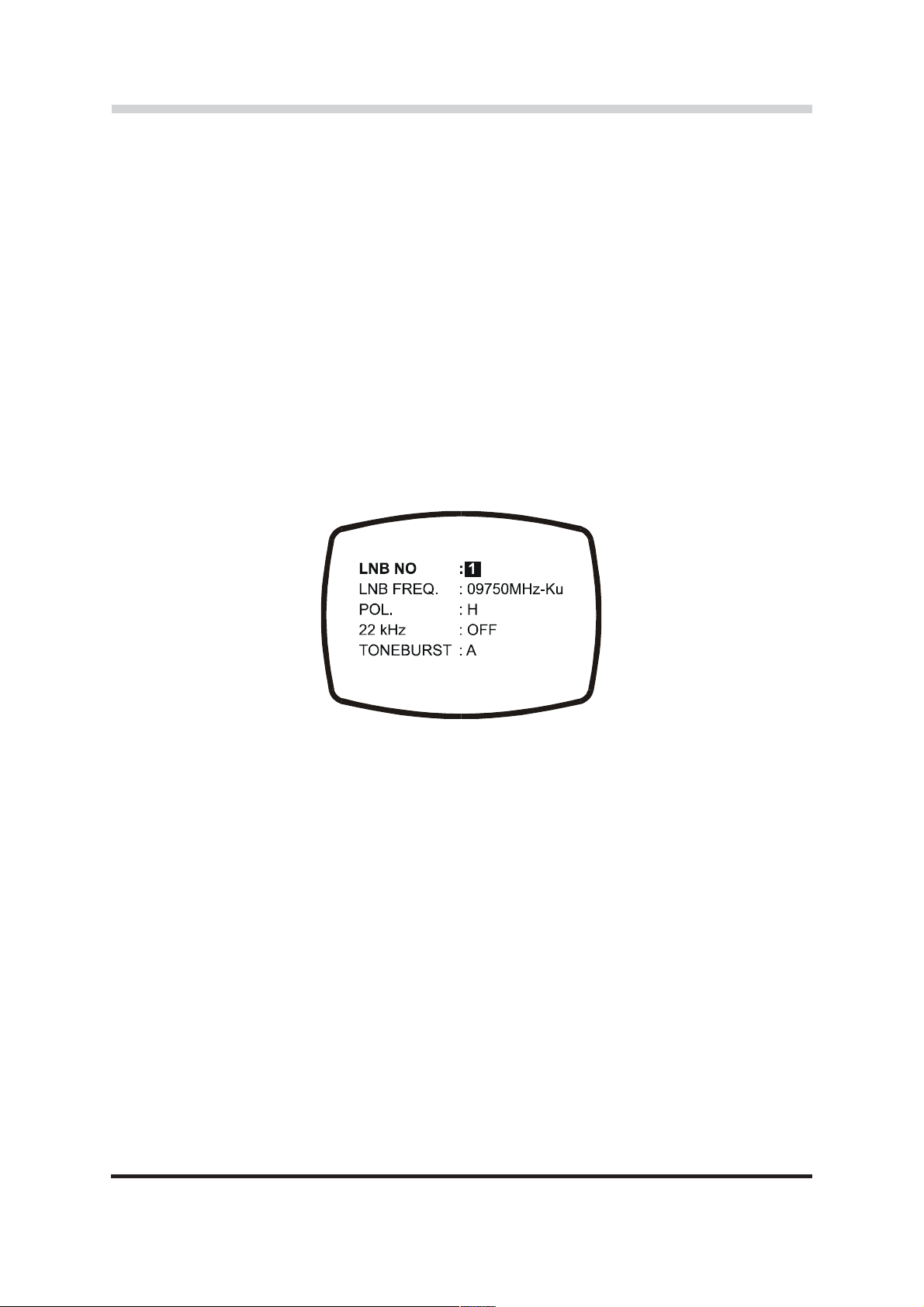

Installation: ...................................................................................................... 11
Language: ....................................................................................................... 12
Setup Menu: .................................................................................................... 12

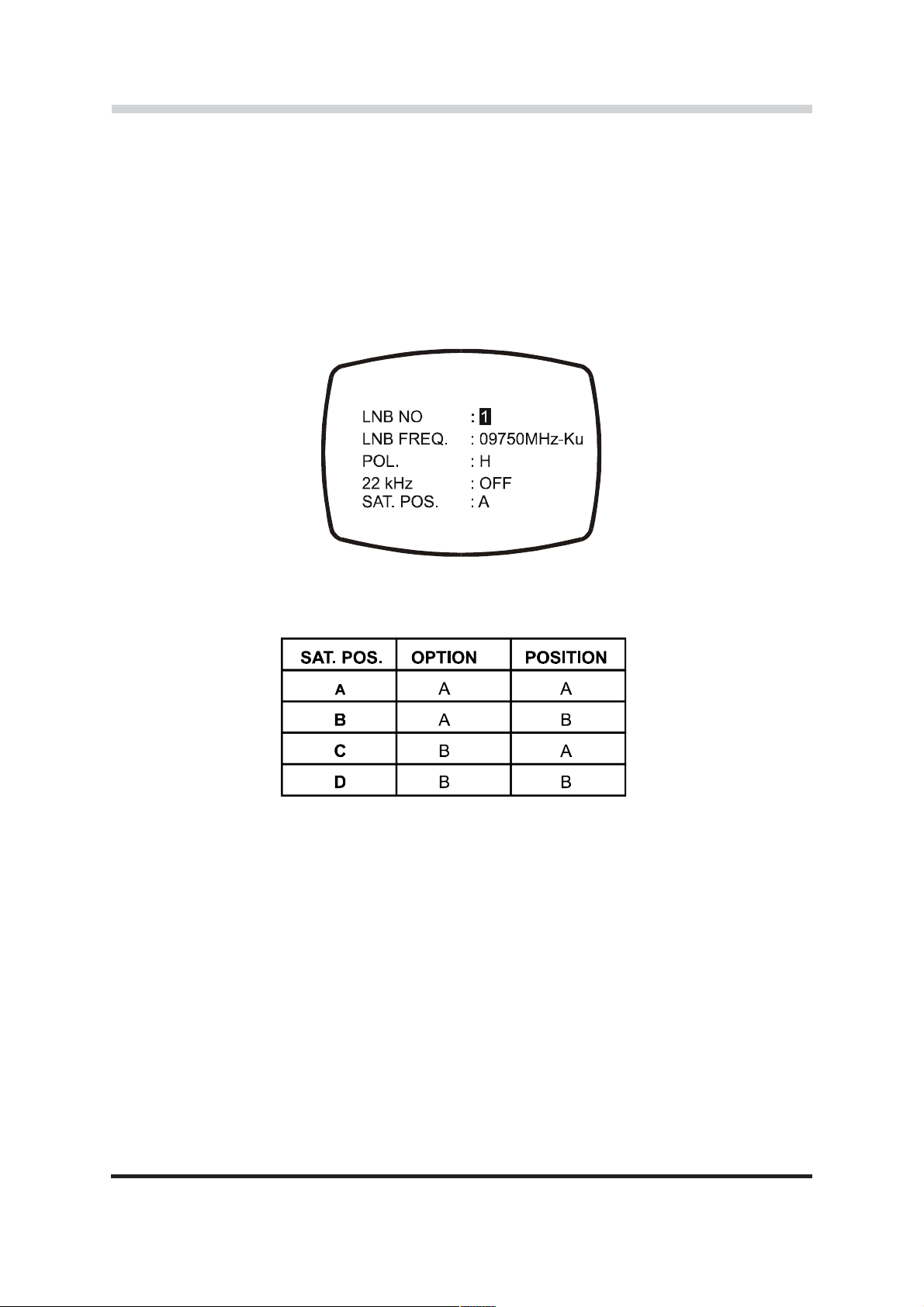

Notes to the system installer: ......................................................................... 12
Sleep Timer: .................................................................................................... 14
AV Mode: .......................................................................................................... 14
LNB Line Short Circuit Protection: .................................................................. 14
CONNECTION OF THE SAT-RECEIVER
WITH A SCART CABLE .................................................................................... 15
CONNECTION OF THE SAT-RECEIVER
WITH RF ANTENNA CABLE ............................................................................. 16
TROUBLE SHOOTING ............................................................................................. 17
TECHNICAL SPECIFICATIONS ................................................................................ 18
GENERAL ....................................................................................................... 18
VIDEO .............................................................................................................. 18
AUDIO ............................................................................................................. 18
RF .................................................................................................................... 18
RF MODULATOR ............................................................................................. 19
SR REMOTE CONTROL ................................................................................. 19
LNB POWER SUPPLY .................................................................................... 19
- 1 -
GENERAL PROPERTIES
1) User-friendly OSD menu control (2 languages)
2) DiSEqC 1.0
3) 2 Scarts (TV, VCR/Decoder)
4) Keypad control
5) Multi-functional remote control
6) Horizontal/vertical polarity switching(18/13V)
7) 0-22 kHz switching
8) Toneburst A/B switching for dish selection
9) C/Ku Band Switching
10) Video Search
11) Stereo sound
12) Volume level control for each program channels
13) Audio Mute
14) 15 pre-set plus 1 user adjustable audio modes
1
15) 50µs,75µs, FLAT audio de-emphasis
16) 7 Audio Bandwidths (80/110/130/180/230/380/500kHz)
17) Dynamic noise reduction for better sound
18) System switching (TV/RADIO/DECODER)
19) PAL/MAC/DEEMPHASIZED Video Selection for Decoder
20) 920-2150 MHz video frequency band, 5.00-9.00 MHz audio frequency band
21) Video contrast switching (50 steps) per channel
22) AV mode
23) VCR play in standby mode
24) Video Mute selection for dish installation
25) Sleep Timer
26) Program Copy
27) Program lock
28) Program skip
29) Selectable LNB Local Oscillator frequency (8 presets)
30) Last function / channel memory
31) LNB power off in standby mode
32) LNB line short circuit and overload protection by software
33) Wide range SMPS.
1 DiSEqC is a Trademark of Eutelsat
- 2 -
SAFETY PRECAUTIONS
Power Source:
The receiver should be operated only from an 85-265 V AC, 50 Hz outlet. Please do
not open the cover by yourself. There is high voltage in the set, which will danger your
life. Please ask closest service for help.
Power Cord:
The power supply cord should be placed so that they are not likely to be walked on
or pinched by items placed upon them or against them. Pay particular attention to cord
where they enter the plug, power outlet, and the point where they exit from the receiver.
Choice Of Location:
Please do not place the set under direct sun light.
The set should be placed on a solid and safe base.
The location should not be selected as a room with high humidity, as the conden-
sation, arising in the kitchen for example, may cause malfunction or damage the
set.
Heating or other thermal radiations under the set also may cause malfunction or
damage the set.
The hot air, which arises during the operation should be ventilated with sufficient
air circulation. Please do not put the set into closed areas and do not cover it.
Please avoid the contact of the set with water or humidity. Do not put into opera-
tion near bath, swimming pools.
Take care for a good air circulation. Do not place the set on beds, sofas, carpets
or similar surface otherwise the air supply of the set though the ventilation-slot
will be interrupted.
Connect the power supply of the sat- receiver only after the installation is ready.
The parabolic antenna has to be grounded correctly. For this you have to follow
the appropriate VDE regulations.
CAUTION
RISK OF ELECTRIC SHOCK
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within
the product's enclosure that may be of sufficient magnitude to constitute a risk
of electric shock of persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing) instructions
in the literature accompanying the appliance.
- 3 -
SATELLITE ANTENNA
To have an excellent function of the sat-receiver, it is necessary to install the antenna
correctly. Please avoid under all conditions to have a short circuit at the antenna cable
conductor (LNB receiver). The sat-receiver is equipped with a LNB short-circuit protection.
PUTTING ON THE BATTERIES OF THE
REMOTE CONTROL
First open the battery cover on the underside of the remote control. Put on both batteries 1.5Volt (R03/AAA) referring to the imprinted symbols (+/-) in the battery case and
put on the battery cover again.
While using the remote control, direct it towards the front side of the receiver. If the
remote control do not work or the chosen function could not be made, the batteries
are most probably exhausted and they should be replaced as soon as possible.
Please use only the leak proof batteries. It is the best to take out the batteries from
remote unit in case you wouldnt use the remote control unit for long time.

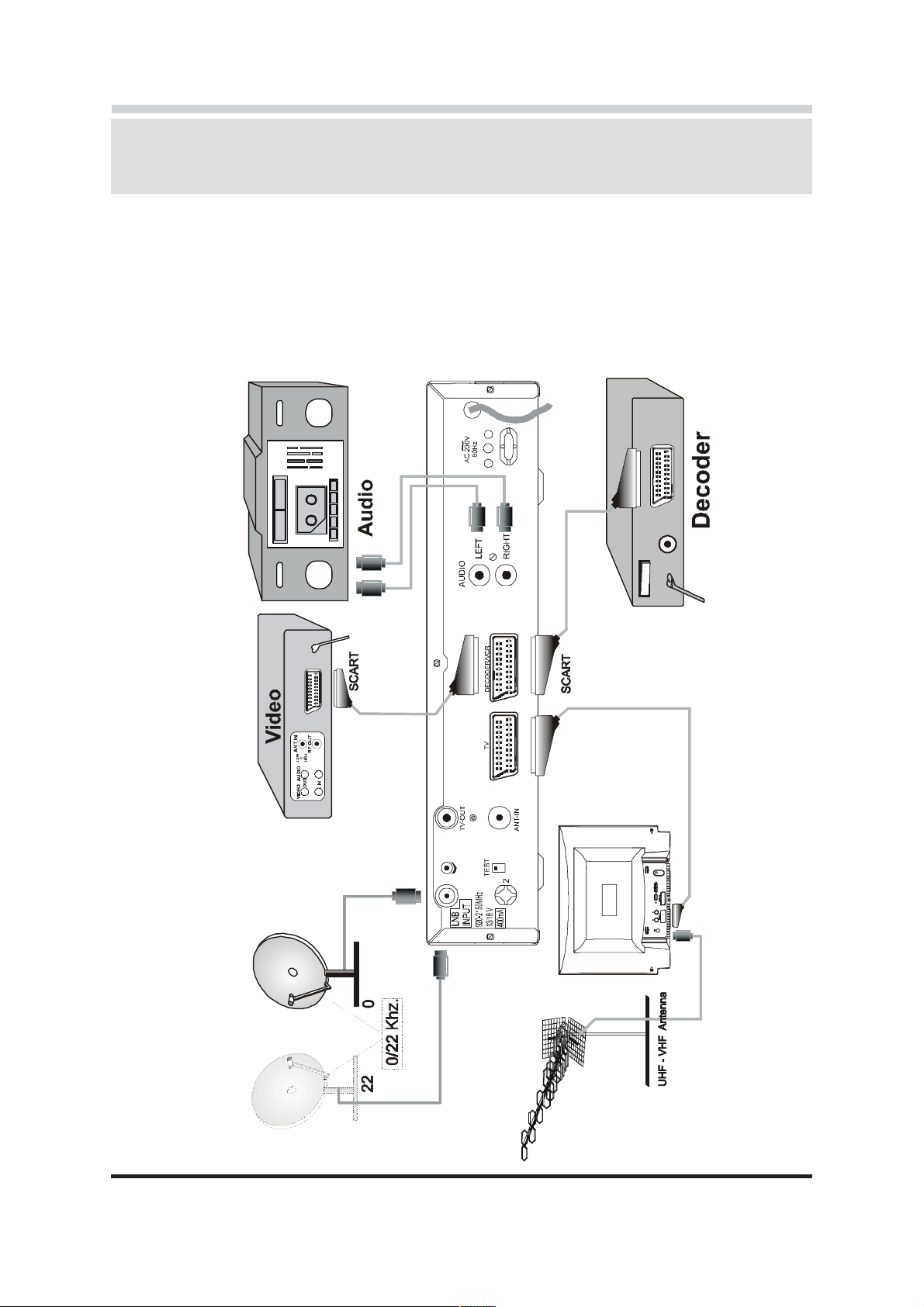

CONNECTION OF YOUR TV WITH THE SATELLITE
RECEVIER
Connection to the TV:
1. Connect your terrestrial antenna to the ANT IN signed socket of the satellite re-
ceiver.
2. Connect an antenna cable between the TV OUT signed socket of the satellite
receiver and the antenna socket of the TV, as it is used for video recorders.
3. Carefully plug in the connector of the satellite antenna cable to the LNB INPUT
(920-2150MHz) signed socket of the satellite receiver.
Putting into operation:
Be sure that you put through all the cable connection. After plugging in the mains
supply of the set to the mains supply, a red light will be seen on the front panel. Then,
user can turn on the receiver by pressing standby button on remote control or keypad.
The red light in front panel will disappear.
- 4 -
Tuning your TV to the Sat-receiver:
Put the switch Test/TV on the backside of the set to position TEST. The signal of the
sat-receiver is tuned for channel 38(UHF) ex factory. Turn on your TV and tune it with
the channel search (UHF area) to the test signal. The test signal exists of two vertical
white stripes on black background. Memorize this tuning on an unused program on
your TV. You can later receive the satellite on this program.
If needed, please use the operation manual of your color TV.
Remark: If your channel 38 is used by a program, which you receive via an antenna
or another connected set, for example a video recorder, you can tune on the output of
the receiver between 30-39 UHF.
Turn with a small screwdriver carefully the signed output on the back of the set. With
this process you can change the channel of the starting signal of the sat receiver. In
this way you can tune channels 30-39. Tune again your TV for the RF signal and
memorize this adjustment.
Scart socket:
When you additionally connect your set with a scart cable, the satellite programs will
be directly fed in the TV, respectively the video receiver, as far as you have chosen the
AV channel of these sets. The picture and sound quality will be improved better. During
the operation over the scart cable there is no special adjustment needed.
Audio Output socket:
The audio sockets are used to connect the sat-receiver to a hi-fi set. So you can listen to the TV sound or one of the numerous radio stations via your set or respectively
record on a cassette recorder.
- 5 -
FUNCTIONS ON THE FRONT PANEL OF THE
RECEIVER
1. STANDBY :
If the receiver is in the standby position, you can turn on or off with this button. (last
tuned program will be shown).
2.
Modification on selected pages aremade by these buttons. These buttons can also
be used to exit standby.
3. LED DISPLAY :
The 4 digit LED display is for displaying the program numbers.
BUTTONS :
- 6 -
