Smart Impact Monitor (SIM)

User Manual

SIM-G for Teams & Organizations

www.triaxtec.com

2 3

Table of Contents

Disclaimers, precautionary information and warning • • • • • • •4

Triax Technologies SIM™ Overview • • • • • • • • • • • • • • • • • • • • • • • • • • • •6

Getting Started • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •8

Unpacking • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •8

Linking a SIM™ • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •10

Assigning a SIM™ to an athlete • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •11

Turning on your SIM™ • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •12

Activating your SIM™ • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •14

Wearing your SIM™ • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •16

Turning o your SIM™ • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 18

Availabile accessories & spares • • • • • • • • • • • • • • • • • • • • • • • • • • • •19

Charging your SIM™ • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •20

General troubleshooting • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 22

Product Warranty • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •24

Product Returns & Customer Service • • • • • • • • • • • • • • • • • • • • • • • •24

Safety Information • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •25

Product Speciﬁcations • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •26

4 5

The SIM-G Monitor is not a medical device. It is an impact monitor only. It is designed to measure and report the magnitude of acceleration resulting from impacts to the human head, expressed in units of G-Force or g’s (the acceleration of gravity at the earth’s surface). Severe head impacts can cause serious physical injury or concussion, but the data reported by the SIM-G cannot by itself diagnose. SIM-G impact data cannot substitute for medical advice, or for the timely examination of a qualiﬁed doctor, healthcare professional or athletic trainer.

Contact sports expose athletes to serious personal injuries including brain damage, paralysis or death.

The human tolerance for sudden intense acceleration to the head and body varies according to many factors. Whether an athlete will sustain a concussion or other

head injury from any given impact can depend upon the precise location of the contact, the angle of the blow, the instantaneous posture of the body at the moment of impact, the athlete’s physical condition, and even the athlete’s injury history. The SIM-G cannot evaluate all of these factors. In the event that you feel at all abnormal / impaired following a head impact, the most prudent practice would be to immediately remove yourself from activity and seek qualiﬁed medical attention, regardless of the reading on your SIM-G monitor.

Symptoms of concu ssion may appear even though a measured impact falls below the SIM-programmed threshold levels. *Remember, regardless of whether the SIM-G reports a head impact, an athlete can recei ve a concussion or other head injury at any time during sports-related physical contact.

Symptoms of concussion or other head injury include headache, nausea, dizziness, unstable vision, disorientation, confusion, or simply an individual’s sense that he / she “does not feel right” or that something is physically wrong. If you should experience any of these symptoms after suering a head impact, do not return to play until after you have received consent from a trained medical professional. It is important to remember that

sudden contact to the head in any sport may produce a concussion / head injury which no helmet system can currently prevent and no impact sensing device can currently predict or diagnose.

For more information, visit our website at

www.triaxtec.com.

WARNING: READ YOUR MANUAL! It is

critical to follow these instructions regarding the use and maintenance of the device. You are responsible for ensuring that the SIM-G device is functioning properly before and during use. Failure to follow the User Manual instructions may cause the device to fail to perform as designed, which could result in failure to alert you of a signiﬁcant hit or cumulative impacts.

* The SIM-G device uses a g-force measurement to gauge severity of impact. Our recommended threshold levels have been derived from peer-to-peer approved research reports. For more information on the research studies that SIM-G references, please contact info@triaxtec.com.

Disclaimers, precautionary information and warnings

6 7

Thank you for purchasing the Triax Technologies Smart Impact Monitor, or SIM™.

While the long-term eects of head impacts are still being studied, it may be critically important to measure, record and report these events as they happen, and store results for later analysis.

SIM™ Overview

The Triax Technologies SIM™ iis a lightweight, highly-sensitive impact-sensing and reporting device, intended for use during sports and related activities.

The SIM™ module may be comfortably worn using either a headband or skullcap style holder. It will record all impacts and accelerations greater than 16 Gs (our preprogrammed set point). All measurements

are transmitted in real time to a nearby base monitoring unit using a low-power wireless link.

More information on this software can be obtained from the www.triaxtec.com website.

8 9

Carefully unpack your SIM™, headband/skullcap, and charging dock.

The SIM™ is an environmentally sealed device that is completely waterproof. There is a single LED status indicator (capable of red/green/amber indications) and a single pushbutton. The ﬂexible tail contains the wireless antenna.

Note: The ﬂexible t ail is quite rugged, bu t it should not be considered a “handle”. The SI M™

module should be held by the main body whenever possible.

Getting started...

Status LED LightAntenna

Push Power Button

Charging Contacts

Charging Dock

Note: Connecting the Smart Impact Monitoring system diers depending on whether

you are using a SKYi, SK Yi2 or Access Point. Please refer to the speciﬁc, step -by- step instructions included in your deployment kit. These instructions can also be found on our website (triaxtec.com) or via tutorials o n our YouTube channel.

Once your base monitoring unit is connected to the Internet, you must 1) Create an organization

2) Add an athlete to your organization 3) Link a SIM and 4) Assign a SIM to an athlete.

10 11

1. Open your Field Unit Dashboard, then choose Team

2. Open SIM Control Center, and click “START LINKING SIMS”

3. Press and hold the power button on the SIM until it ﬂashes orange, then release the button.

4. If successful, you should see the SIM Number appear on the list of Linked SIMs.

5. When you are done, click “STOP LINKING SIMS”.

Linking a SIM

™

Assigning a SIM™ to an athlete

1. From the SIM Control Center, click “ASSI GN TO ATHLETES”.

2. Enter the athlete’s name and selec t the correct proﬁle f rom the d rop down menu

3. When you are done, click “ STOP ASSIGNING ”.

12 13

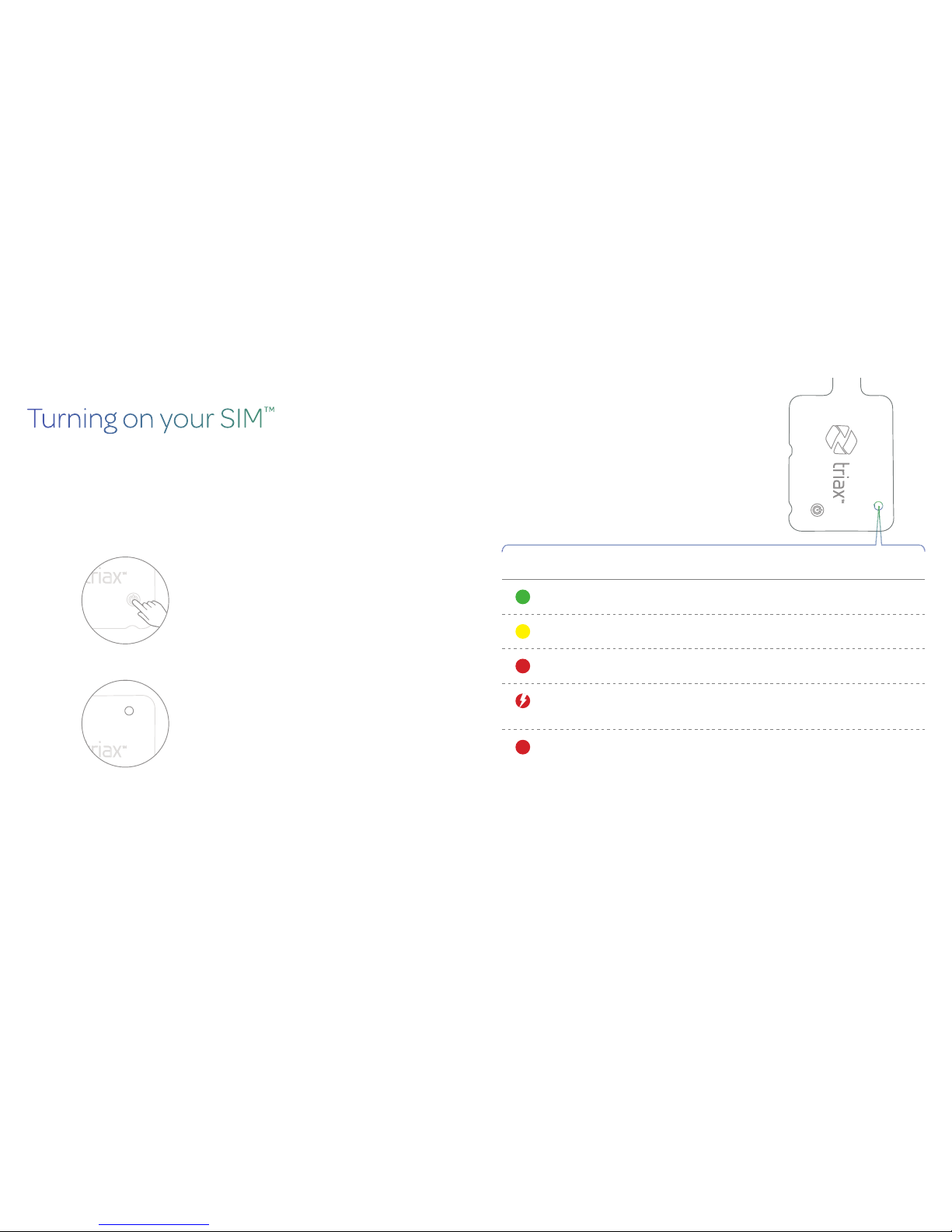

Prior to its ﬁrst use, the SIM™ should be charged for a minimum of 1 hours using only the Triax-supplied charging dock.

Press the power button and hold it down until the LED indicator illuminates.

The LED indicator will show the current battery status. Release the button as soon as the LED indicator illuminates.

Turning on your SIM

™

LED indication

Solid Green

Solid Yellow/Amber

Solid Red

3 Red ﬂashes

Solid Red (2 seconds)

Status

Battery charge is OK, ready to use.

Battery charge is low, charge soon.

Battery charge is very low, charge now.

Battery is extremely low. SIM has entered battery protection mode. Charge immediately.

The initial self-test detected an internal fault condition, but normal operation is possible. The fault condition will be reported to the SIM™ base station unit the next time the SIM™ links to it.

Note: Once the SIM™ is turned on, it will automatically

attempt to communicate with the Triax base station unit. The LED will periodically ﬂash (color as noted below) indicating wireless communications activity. If the button is pressed during normal operation, it will rapidly ﬂash yellow/amber to indicate a button-press.

x 3

sec.

14 15

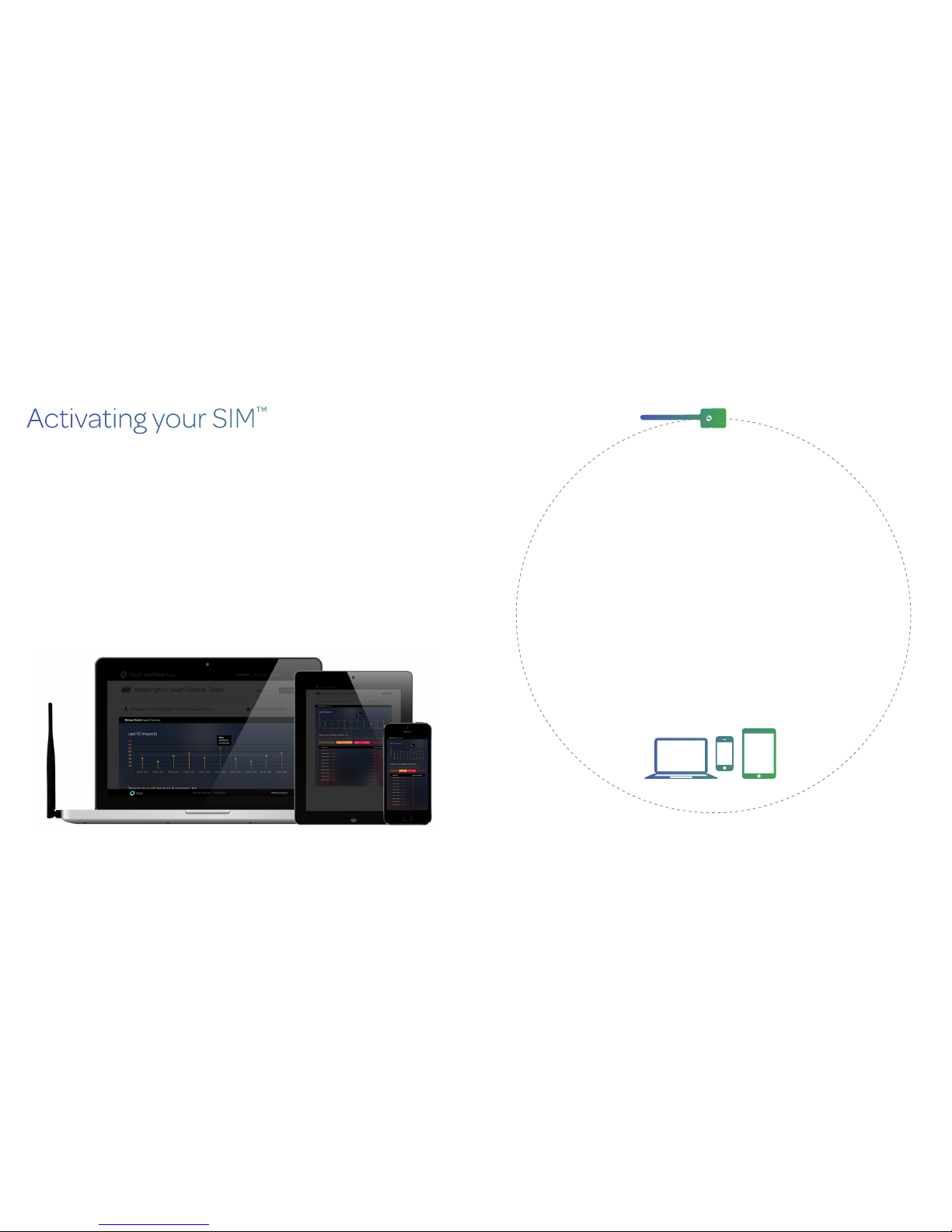

Once the SIM™ is powered on, it will automatically attempt to establish a link with its access point or SKYi. You can expect a maximum operating range of 150 yards (137 meters). The LED status indicator will periodically ﬂash to indicate wireless communications activity.

Activating your SIM

™

Maximum Operating Range:

150 yards (137 meters)

Base Monitoring Station

SIM-G™

Please refer to the SKYi / Access Point operating instructions included in your Triax deployment kit for further assistance. This information can also be found on the Support section of the Triax website.

Please note: The SIM will not register or

relay any impact information if it has not been properly linked and recognized by your access point.

16 17

After you have turned on your SIM™, carefully insert it into the pocket built into the headband / skullcap.

The headband (or skullcap) must be worn correctly to ensure accurate and consistent impact measurements. First, insert the SIM-G into your headband/skullcap antenna-ﬁrst so that the serial number is facing towards you (i.e. you should be able to see the white sticker). This is so that when the device is being worn on your head, the power button will not accidentally be pushed and turned o during play. It should be worn so that the enclosed SIM™ sensor module is positioned at the back of the head and at the base of the skull, so that green is to the grass, blue is to the sky, as shown below:

Important handling notes:

Use care in handling the ﬂex-tail (antenna). It is rugged, but should not be considered a “handle”.

For proper operation and maximum wireless range, the antenna must always be extended – never folded or bent.

The SIM™ is sealed against moisture and perspiration that would occur during typical use. It is NOT designed to withst and a trip through a washing-machine or clothesdryer cycle, and these act ivities will invalidate the warranty.

Wearing your SIM

™

18 19

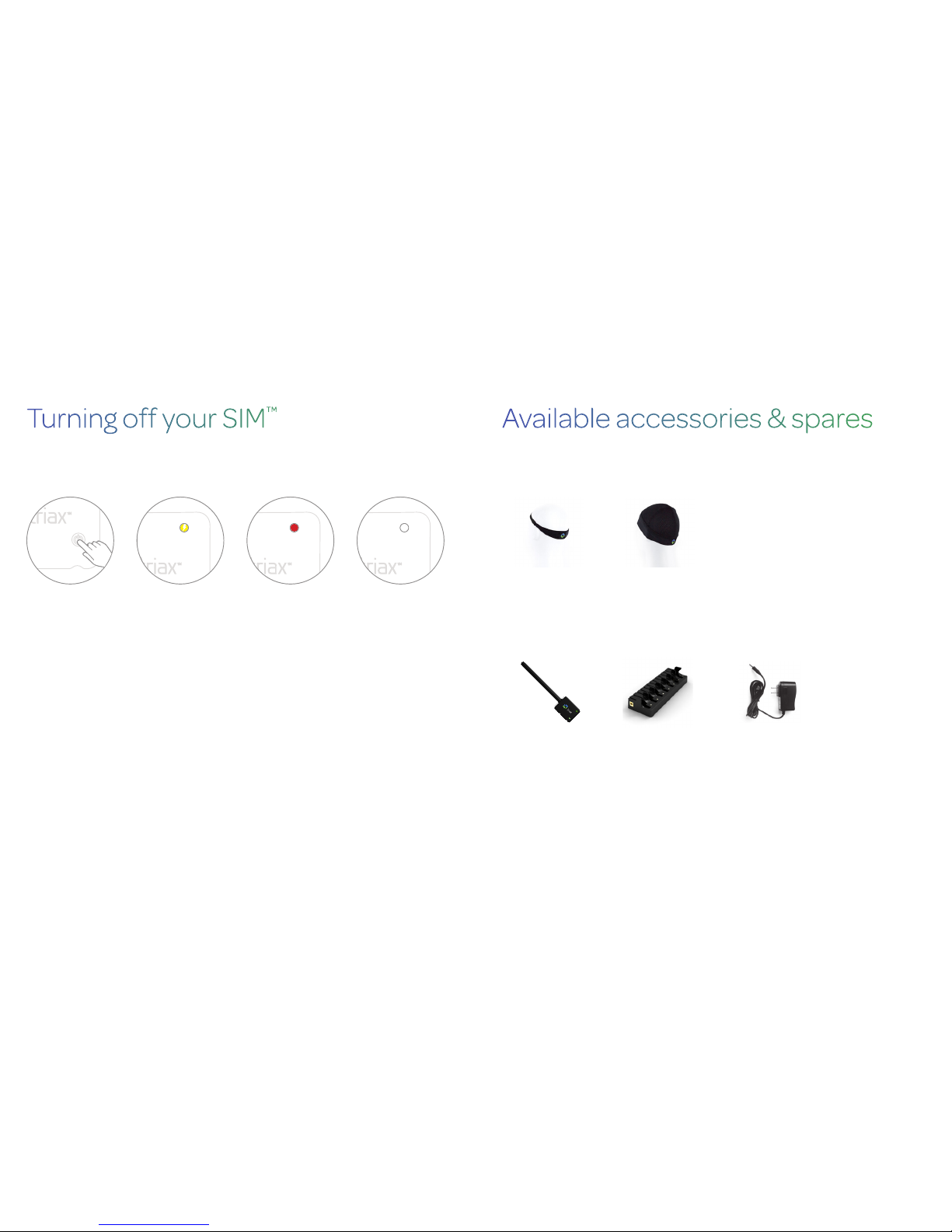

Press and hold the button.

The LED indicator will rapidly ﬂash yellow/amber.

Continue to hold the button until the LED indicator turns red.

Release the button and the SIM will then turn o.

Note: The SIM™ will automatically turn o after

30 minutes of continuous ON time without an impact being recorded to conserve battery power in the event you forget to turn o the device. This does not apply if the SIM device is whthin range of the base monitoring unit.

Note: The SIM™ can be turned o remotely

by a command issued at the base monitoring station. Please remember to turn o your SI Ms when you are do ne recording impact data.

Turning off your SIM

™

Available accessories & spares

1010

SIM™ (single unit, no

accessories)

1030

SIM™ 7-up charging

dock (kit)

1031

SIM™ 7-up charging

dock AC adapter only.

100-240VAC, 50/60Hz

input, 5VDC@4A output

0001

SIM-P headband

0011

SIM-P skullcap, black

Note: For up-to-date colors and sizes,

visit www.TriaxTec.com.

20 21

To charge your SIM™, ﬁrst connect the charging dock to its AC/DC adapter. Then, carefully insert the SIM™ into the charging dock port. Note that the SIM™ will only ﬁt with the charging contacts facing downward into the charging dock:

Charging your SIM

™

The SIM™ must be charged using only Triax-supplied charging docks.

Note: Once the SIM™ is fully charged (LED

= ﬂashing green), simply remove it from the charging dock. It will automatically enter the OFF state.

Note: The SIM™ does not need to be turned

o ﬁrst before charging. The SIM™ will not transmit to the base monitoring station while charging.

Note: It is safe to leave the SIM™ in its

charging dock indeﬁnitely. This will not overcharge or harm the internal battery.

It is safe to leave the charging dock connected to its power-source (AC/DC adapter or USB port).

LED indication

Flashing Green

Flashing Yellow/Amber

Flashing Red

Status

Battery is charged 100%. SIM™ is ready to use.

Battery is charging normally.

Battery is not charging due to an internal fault. Contact your Triax dealer for additional assistance.

22 23

General troubleshooting

SIM™ does not power on.

Symptoms Possible Cause Possible Resolution Symptoms Possible Cause Possible Resolution

SIM™ does not communicate with base monitoring station.

Battery may be completely dead, or possibly damaged.

Battery may need charging.

Push-button may be damaged internally or moisture may have entered the SIM™.

SIM™ may not be properly registered with the base monitoring station.

Flexible antenna may have been damaged by rough handling.

Charge the SIM™ in the supplied charging dock for at least 1 hour. If the SIM™ does not power-on, contact your Triax dealer for help.

Charge the SIM™ in the supplied charging dock for at least 1 hour. If the SIM™ does not then power-on, contact your Triax dealer for help.

Contact your Triax dealer for help.

Ask your system administrator, atheletic trainer or coach to conﬁrm your SIM™ has been properly registered with the base monitoring station software.

Note: The SIM™ is a sealed device with no user-

serviceable parts inside.

SIM™ does not seem to charge completely, or at all.

Improper insertion of the SIM™ into the charging dock.

Charging dock is not powered.

SIM™ Charging contacts are dirty.

Charging dock contacts are dirty.

Remove the SIM™ and ensure you have it oriented correctly. The charging contacts must face downwards into the dock.

Visually inspect the SIM™’s charging contact. If necessary, gently clean with a cotton-swab. If there is visible corrosion, contact your Triax dealer for help.

Visually inspect the charging dock’s contact. If necessary, gently clean with a cotton-swab or gently remove any foreign objects. If there is visible corrosion, contact your Triax dealer for help.

Conﬁrm the AC/DC adapter power cable is ﬁrmly connected to the dock and that it is plugged into a working AC outlet.

24 25

The Triax SIM™, Multi-SIM™ charging dock (7-up), and related power-adapters are warranted against defects in quality or workmanship for a period of 1 year from the date of purchase.

Servicing: Unless otherwise stated in this manual, there are no user-serviceable parts inside the SIM itself. Refer all servicing to Triax service technicians.

Adapters: Use of chargers and power-adapters other than those provided by Triax Technologies, Inc., may result in ﬁre, electric shock, or personal injury.

Disposal: Dispose of your SIM™ according to local regulations for products containing Lithium Polymer batteries.

Product warranty

Safety Information

Triax has a 30 day satisfaction-guaranteed return policy. If you are dissatisﬁed with your purchase for any reason, you may receive a full refund within 30 days of the date of purchase.

To return your purchase, please include a copy of your receipt along with your order number. Please ensure that all parts of the product are included in the original packaging and that the device is in good physical condition. We will not accept returns on products that have been mishandled or damaged.

Product Returns & Customer Service

FCC ID: 2AGHISIMG

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interferences, and (2) this device must accept any interference received, including interference that may cause undesired operation.

IC: 21358-SIMG

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :

(1) l’appareil nedoit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

FCC / IC Compliance Information

26 27

Product specications

Smart Impact Monitor (SIM™)

Wireless operating range

Size

Weight

Enclosure Material

Battery

Charging Voltage

Run-time

Typically up to 150 yards (137m), depending on environmental factors.

Body:

1.04”(26.4mm)W x 1.33”(33.78mm)L x 0.285”(7.24mm)Thk

Flex-tail:

0.285”(7.24mm)W x 0.129”(3.28mm)T x 3.3”(84mm) Long

0.34 oz (9.6 grams)

Black polyamide thermoplastic

Internal Lithium Polymer cell. (Not user serviceable)

5VDC @ 100mA maximum. Use approved chargers only. Charge time 1.5 hours max., auto-shuto.

Approximately 1 week between charges, assuming typical usage. Auto shut-o after 30 minutes idle time (i.e. out of range, without recording impacts).

Multi-SIM™ charging dock (7-up)

Headband (all colors)

Skullcap (all colors)

Input Voltage

Style

Size

Power source

Material

Care Instructions

USB-1.1, 2.0, 3.0 compliant, 5VDC @ 500mA maximum

Thin Mid-width

One size ﬁts most

Use Triax-supplied AC/DC adapter only (100-240VAC, 50/60Hz, output rated at 5V@4A)

30% cotton, 70% Lycra

Machine wash (cold water preferred to retain elastic qualities).

Hang to dry. Do not machine-dry. You MUST remove the SIM from the headband (or skullcap) before washing, or it may damage the SIM and void the warranty.

Machine wash cold water preferred to retain elastic qualities. Hang to dry. Do not machine-dry.

Triax Technologies Inc.

66 Fort Point Street

Norwalk, CT 06855 US
