TRENDnet User’s Guide TPL-421E/TPL-421E2K

Table of Contents ...................................................................................... 2

Product Overview .................................................................................... 4

Features ........................................................................................................................... 4

Device Label ................................................................................................................... 6

Product Outlook ........................................................................................................... 6

Ground Wire .................................................................................................................. 7

Push Buttons .................................................................................................................. 7

Diagnostic LEDs ............................................................................................................ 8

Application Diagram ............................................................................... 9

Diagram Explanation: ................................................................................................ 9

Installing Your Powerline Adapter ................................................. 10

Powerline Security .................................................................................................... 10

Scramble your Network Name Away from the Factory Default ............. 10

Scramble with the Sync button ....................................................................... 10

Before Physical Installation ................................................................................... 11

Connecting the Powerline Adapters .................................................................. 11

The Powerline Utility ........................................................................... 15

Powerline Utility System Requirements ..........................................................15

Software Installation ................................................................................................15

Using the Utility ..........................................................................................................19

Before using the utility, please do the following: ....................................19

Powerline Utility – Map View ............................................................ 20

Auto Scan ..................................................................................................................20

Remote Devices .....................................................................................................20

Local Device ............................................................................................................20

Manage your device .............................................................................................20

Rename .....................................................................................................................20

Enter Password .....................................................................................................20

Add Device ...............................................................................................................20

Scan .............................................................................................................................20

Network Type .........................................................................................................20

Rename remote device .......................................................................................21

Enter Password .....................................................................................................21

Add Device ...............................................................................................................21

Scan .............................................................................................................................21

Start connecting .................................................................................................... 11

Connecting Additional Powerline Adapters ................................................... 11

Physical Installation ................................................................................................. 12

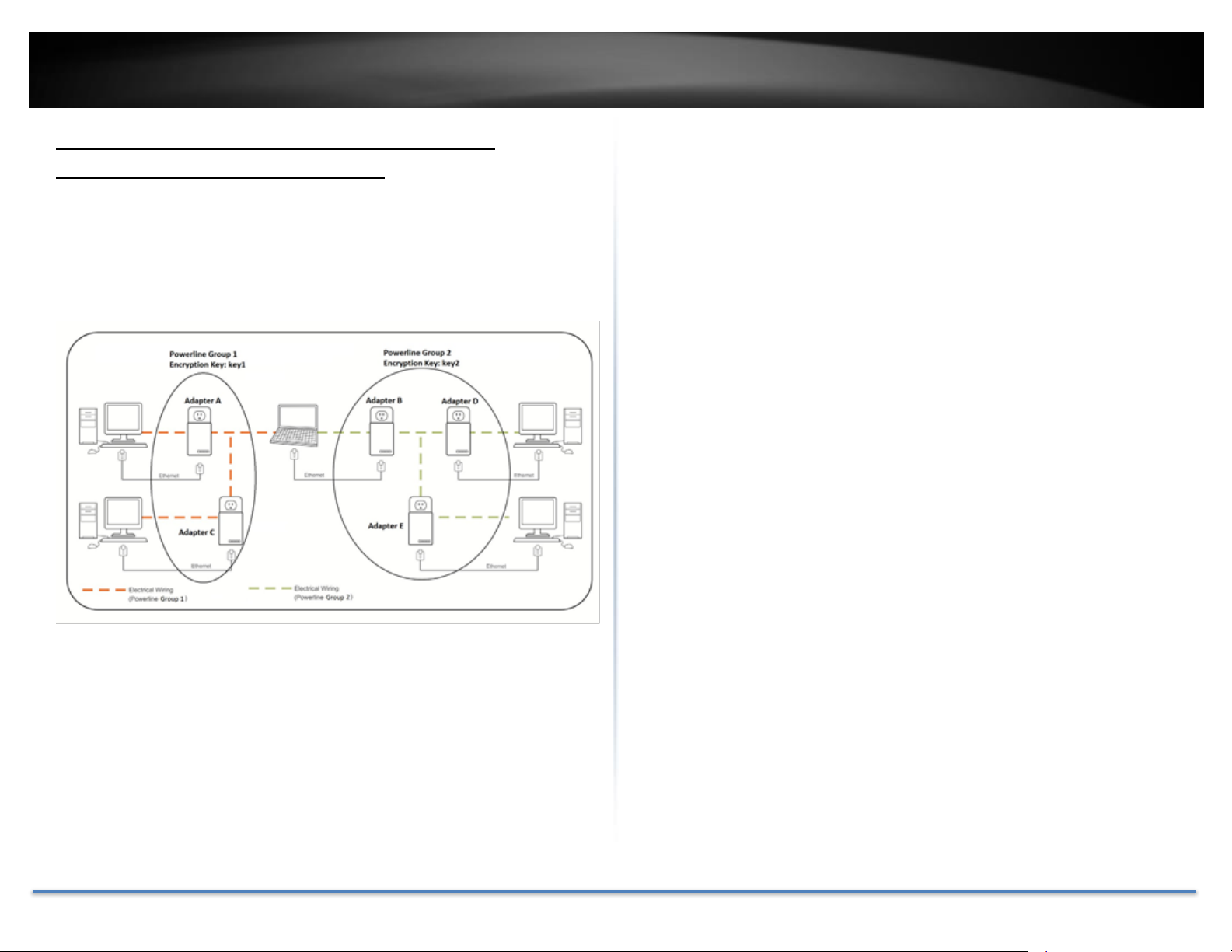

Create Multiple Powerline Networks ................................................................ 13

Move Powerline adapters between different overlapping powerline

networks ....................................................................................................................... 14

Powerline Utility – Detailed View .................................................... 22

Show Active Device(s) Only ..............................................................................22

Delete .........................................................................................................................22

Add Device ...............................................................................................................22

Save Report .............................................................................................................22

Remote Devices .....................................................................................................22

TRENDnet User’s Guide TPL-421E/TPL-421E2K

System Information ............................................................................................. 22

Manage your report ............................................................................................. 22

Powerline Utility – Device Setup ...................................................... 23

Use Default .............................................................................................................. 23

Private Network Name ....................................................................................... 23

Multicast Address ................................................................................................. 23

Set Remote Devices .............................................................................................. 23

Set Local Device ..................................................................................................... 23

Select Local Device ............................................................................................... 24

Powerline Utility – Advanced ............................................................ 24

Factory Defaults .................................................................................................... 24

Reset Device ............................................................................................................ 24

Upgrade Firmware ............................................................................................... 24

Powerline Utility – Options ................................................................ 25

Scan Options ........................................................................................................... 25

Energy Efficiency ..................................................................................................28

Directives .................................................................................................................28

ErP Statement ..............................................................................................................29

Limited Warranty .................................................................................. 32

Powerline Utility – About ................................................................... 26

About Powerline Utility ..................................................................................... 26

Regulations .............................................................................................. 27

Federal Communication Commission Interference Statement ................... 27

RoHS ................................................................................................................................ 27

Industry Canada ......................................................................................................... 28

Europe – EU Declaration of Conformity ........................................................... 28

Safety ......................................................................................................................... 28

EMC............................................................................................................................. 28

TRENDnet User’s Guide TPL-421E/TPL-421E2K

Product Overview

TPL-421E

Package Contents  TPL-421E Powerline 1200 AV2 Adapter

with Built-in Outlet

 Multi-Language Quick Installation Guide  CD-ROM (Utility & User’s Guide)  Network cable (1.5 m / 5 ft.)

TPL-421E2K

Package Contents  2 x TPL-421E Powerline 1200 AV2

Adapter with Built-in Outlet

 Multi-Language Quick Installation

Guide

 CD-ROM (Utility & User’s Guide)  2 x Network cable (1.5 m / 5 ft.)

If any package content is missing or damaged, please contact the retail store, online retailer, or reseller/distributor from which the product was purchased.

Features

TRENDnet’s Powerline 1200 AV2 Adapter with Built-in Outlet, model TPL-421E, creates an extreme performance Powerline 1200 network using an existing electrical system. Two adapters are needed to start a network. No CD installation required—encrypted TRENDnet adapters auto-connect out of the box. Plug in the first adapter and network it to your existing router. Plug in other adapters on the same electrical system and they auto-connect to the first adapter for immediate internet access. Never lose an electrical outlet with the built-in socket.

Powerline 1200

Extreme 1.2 Gbps Powerline networking over existing electrical lines use all three electrical wires: the live, neutral, and ground wires to achieve ground breaking networking throughput speeds**

Whole Home Coverage

Connects over electrical lines for homes up to 465 sq. m (5,000 sq. ft.) or over an electrical power line for a linear distance of 300 m (980 ft.)

Built-In Outlet

Never lose an electrical outlet with the built-in socket—Plug the adapter into an outlet, then plug a power strip into the TPL-421E to power other devices

MIMO Powerline Technology

Enhanced performance and range with Multiple Input Multiple Output (MIMO) Powerline technology

Gigabit Port

Gigabit port extends high performance wired connections

TRENDnet User’s Guide TPL-421E/TPL-421E2K

Network Stability

Ultra-stable Powerline networking is preferred by internet service providers

Multiple Adapters

Two adapters are needs to start a network—use up to 8 adapters to network an entire home

No CD Installation

Simply plug in the adapters—TRENDnet adapters auto-connect out of the box

Cross Compatible

Backward compatible with HomePlug AV compliant Powerline 600, 500, and 200 adapters

Pre-Encrypted

For your convenience the adapter arrives pre-encrypted

Sync Button

Press the Sync button to change existing encryption keys

*** Powerline communication works on a single electrical system. (Usually controlled by a single distribution panel). Power strip, GFCI outlets, and AFCI circuit breakers may degrade Powerline network signals.

Energy Savings

Power Save mode reduces electrical consumption by up to 80%

* Maximum of 8 adapters (nodes) recommended for streaming video across your network.

** 1.2 Gbps is the maximum theoretical Powerline data rate when connected to another Powerline 1200 device. Data throughput may vary by circuit wire conditions. If an electrical system does not have a grounded connection, the theoretical networking speed is reduced to 600 Mbps.

TRENDnet User’s Guide TPL-421E/TPL-421E2K

Model Number

Serial Number

Network MAC Address

Device Password (DPW)

Hardware & firmware

version

Power LED Ethernet LED Powerline LED

Sync button Synchronize with other Powerline Adapters.

Gigabit Network Port

Connect network cables from Powerline Adapter to your computer, game console, network TV, and other network devices.

Reset button

Reset the unit to factory default settings.

Power plug

Device Label

Product Outlook

TRENDnet User’s Guide TPL-421E/TPL-421E2K

Button

Action

Function

Reset

Push for 1 second

Reset device settings to factory defaults (All LEDs will turn off and turn back on). It will reset to the factory default private network name “HomePlug AV”.

Sync

Push for 15 seconds until all LEDs goes off

Generate a new random network name and encryption key (All LEDs will turn off and turn back on).

Sync

Push for 2 seconds

Start a synchronization session. The POWER LED will start blink for 2 minutes. Start the synchronization session on another power adapter within the time to synchronize the network name and exchange the encryption keys.

Power plug (US)

Plug directly into an available power outlet. Not on a power strip.

Power plug (EU) with grounding wire

Power plug (UK)

Important !!

Ground Wire

TPL-421E using all 3 power wires to boost up the Powerline communication speed to gigabit. Please use 3 wire sockets and make sure your electric system installed with all load, natural and ground 3 wires.

Push Buttons

Power Save Mode: The Powerline adapter will automatically going into standby mode to reduce power usage when there is no network traffic for more than 10~20 minutes. All LEDs are going off.

It can be wake up automatically when the network traffic is coming again. It takes a couple seconds to wake up and resume back to full speed of service.

TRENDnet User’s Guide TPL-421E/TPL-421E2K

LED

Color

Seque

nce

Definition

POWER

Green

Solid

Device is powered on

Green

Blinking

Powerline synchronization in progress

N/A

Off

Device is powered off or in sleep

POWERLINE

Green

Solid

Powerline connected (Best)

Blinking

Data transmission over Powerline (Best)

Amber

Solid

Powerline connected (Better)

Amber

Blinking

Data transmission over Powerline (Better)

Red

Solid

Powerline connected (Good)

Red

Blinking

Data transmission over Powerline (Good)

N/A

Off

Powerline is not connected or synchronized. Or, the Powerline adapter is in sleep mode.

ETHERNET

Green

Solid

Network connection established

Green

Blinking

Data transmission through network port.

N/A

Off

Network standby or no network connection.

Diagnostic LEDs

Powerline Connections: Powerline LED color indicates the strength and quality of the Powerline connection through the electrical system. The following factors may affect the Powerline network’s connection quality:

• Ground Wire – TPL-421E using all 3 wires for data transmission in accurate

wiring may still supply power to your apparatus and TPL-421E, but will down grade the performance.

• Noise – Generated by appliances which use your electrical system (e.g.

Microwaves, ovens, hair dryer, irons, dishwashers, etc.). The quality of your household electrical wiring may also cause additional noise on your electrical system.

• Distance – Long lengths of electrical wiring through your electrical system

between connected Powerline adapters.

TRENDnet User’s Guide TPL-421E/TPL-421E2K

Diagram Explanation:

The first Powerline unit is networked to a router which is in turn connected to a router (typically supplied by your Internet Service Provider (ISP)) that provides Internet connectivity. A second Powerline Adapter is plugged into a wall power outlet near a media center and is providing Internet connectivity to a game a game console and a Blu-ray player / media player via Ethernet.

Application Diagram

TRENDnet User’s Guide TPL-421E/TPL-421E2K

Installing Your Powerline Adapter

Powerline Security

All out-of-the-box TRENDnet HomePlugAV Powerline adapters can be connected to each other without further configuration. To add additional network security to your network, you can change your Powerline network name away from the factory default. With a customized private network name, no one can connect to your Powerline network with an out-of-the-box HomePlugAV adapter.

TRENDnet HomePlugAV certified Powerline adapters have the same

default network name “HomePlugAV”. TRENDnet recommends that you

change the Powerline network name away from the factory default to increase network security. Once configured, the Powerline network name will be saved on device. You can freely unplug the adapter and moved to the other location within its operating range. If a mistake is made in the settings, the adapter can be reset to the factory default settings by pressing the Reset button for 1 second.

If you want to use the default network name for easy connection, skip the synchronization steps and go directly to Physical Installation on page

12.

Scramble your Network Name Away from the Factory Default

There are two ways to change the default network name:

1. (Recommended) Use the physical Sync button on your Powerline

adapter to generate a random private network name. See Connecting the Powerline Adapters in following section.

2. Create a customized private network name for your Powerline

network by using the included Powerline Utility. See The Powerline Utility on page 15.

* If the Powerline adapter settings have been changed, the adapter must be reset to the factory default settings to be recognized by Powerline Utility.

Scramble with the Sync button

1. Make sure your TPL-421E is powered on and not in sleep mode.

2. The physical Sync button on the Powerline adapter provides an easy

way to change the network name. Push and hold the Sync button for 15 seconds. All LEDs will turned off and then turned on again. This will generate a new random network name for your Powerline adapter.

TRENDnet User’s Guide TPL-421E/TPL-421E2K

Before Physical Installation

It is recommended that you create the Powerline data connection next to each other before physically install the Powerline adapter to the outlet you want. With this practice, you can have ample time to do the synchronization with the side by side Powerline adapter instead of running around to different rooms. And, you can make sure your Powerline adapters are properly setup and working good in your electric network.

Note: If you don’t want to change the use the default network name for easy connection, skip the following steps and go directly to Physical Installation on page 12

Connecting the Powerline Adapters

1. Make sure your Powerline adapter is powered on and not in sleep

mode. The Power LED should be on.

2. Scramble the first Powerline adapter by pushing Sync button for 15

seconds. All LEDs will turned off and then turned on again. This will generate a new random network name for your Powerline adapter.

3. Make sure the second Powerline adapter is powered on and plug in

the same electric network. No power strip, power break, or any kind of power switch in between.

5. Push and hold the Sync button on the second Powerline adapter for

2 seconds and release it. The Power LED will start blinking. The adapter will request for synchronizing. All LEDs will turn off and turn back on in the end of the session. The Powerline LED will turn on when the adapters are connected successfully.

Connecting Additional Powerline Adapters

Follow up the same steps described in the last section. You can choose any one of the Powerline adapter already connected as the first adapter. Start the synchronization session on that Powerline adapter first. And then start the synchronization session on the additional Powerline adapter.

Start connecting

4. Push and hold the Sync button on the first (the one with scrambled

network name) Powerline adapter for 2 seconds and then release it. The Powerline adapter is starting a 2 minutes synchronization session. It will accept the other synchronization request on the same electric network. The Power LED will start blinking showing it is in synchronizing.

TRENDnet User’s Guide TPL-421E/TPL-421E2K

Physical Installation

With the synchronized Powerline adapters or the out-of-box adapters, now you can set up your Powerline adapters to the location you want your network extends to.

There are several location choosing considerations of where you will install your Powerline adapters.

• Avoid plugging the adapters into power strips, extension cords,

or surge protectors as this may prevent the adapter from functioning correctly or degrade performance.

• Avoid plugging the adapters into wall power outlets that are

controlled by a light switch to prevent the Powerline Adapter from being turned off accidentally.

• Avoid plugging the adapters into wall power outlets that are

located near appliances that consume a lot of power (e.g. refrigerators, washers, dryers) as this may degrade performance.

• Make sure there is an available wall power outlet in the room

where the router is installed and also near the router.

• Make sure there is an available wall power outlet in the room

where you want to extend network connectivity.

• For AV2 1200 Powerline adapters, make sure your electric

network has 3 wires properly installed.

1. Plug the Powerline adapter into an available wall power outlet near

your router.

2. Connect the included network cable from the Ethernet port of your

Powerline adapter to an available Ethernet port on your network router.

3. Once the Powerline adapter is installed and connected to your

router, verify that the Power LED is on or blinking and the Ethernet LED is on or blinking.

4. Plug in the second Powerline adapter to an available wall power

outlet in another room near a computer or network device (e.g. game consoles, network-enabled TVs, network attached storage, network media server/players, etc.) you want to connect to your network.

TRENDnet User’s Guide TPL-421E/TPL-421E2K

5. Connect one end of the included Ethernet cable to the Ethernet port

on your Powerline adapter and then connect the other end to the Ethernet port on your computers or another network enabled device.

6. After the additional Powerline adapter is connected and installed to

your computer or network device, wait for the Power LED to turn on. After the Power LED turns on, verify that the Powerline LED is on or blinking, and the Ethernet LED is on or blinking.

Create Multiple Powerline Networks

It is possible to create multiple Powerline networks on the same electric system separated and grouped by different network names. The Powerline networks will work and communicate independently of each other which can provide security between different groups of Powerline adapters. For example, if you have five Powerline adapters (adapter A through E), you can group adapters A, B, and C together on one Powerline network and group adapters D and E on a different Powerline network. Each group will use a different network name.

Scramble the Powerline network name by pressing Sync button for 15 seconds and then add more Powerline adapter in the same group with steps described above.

Note: It is recommended that only a maximum of up to 4 Powerline networks can be created per electrical system. Any additional Powerline networks above the recommended may result in significant degradation in Powerline performance.

TRENDnet User’s Guide TPL-421E/TPL-421E2K

Move Powerline adapters between different overlapping powerline networks

Note: Assuming all Powerline adapters are TRENDnet Powerline adapters and for reference in the diagram and this procedure, the adapters will be labeled Adapter A, B, C, D, and E. Adapters A, B, and C are currently connect together to form one Powerline network and adapters D and E form another Powerline network. Adapter B will be disconnected from adapters A and C and connected to adapters D and E.

network name of adapter D and adapter E. All LEDs will turn off and turn back on and the Powerline LED will turn on the when adapters are connected.

1. Push and hold the Reset button on adapter B for 1 second and

release it. All LEDs will turn off and turn back on. This will make adapter B settings to factory default.

2. Push and hold the Sync button on adapter D for 2 seconds and

release it. The Power LED will start blinking.

3. Within 2 minutes, push and hold the Sync button on adapter B for 2

seconds and release it. The Power LED will start blinking. This will establish connectivity between adapter B, adapter D, and adapter E by reconfiguring the network name of adapter B to match the

TRENDnet User’s Guide TPL-421E/TPL-421E2K

The Powerline Utility

The Powerline Utility allows you doing following jobs:

1. Create a customized network name for your powerline network and

apply it to multiple Powerline adapters at the same time.

2. View Powerline adapters connected to your network (using the MAC

address) and the approximate connection quality and speed of each Powerline adapter.

3. View and upgrade Powerline adapter firmware.

Note: Link speed displayed in the utility of your Powerline adapters to another through your electrical system is estimated. Actual link speed may vary.

Powerline Utility System Requirements

• Windows® 8, Windows® 7, Windows® Vista, or Windows® XP

• Microsoft® .NET Framework 3.5 installed

Software Installation

1. Insert the included CD-ROM into your computer’s CD-ROM drive.

2. At the CD Autorun Prompt window, click Run Autorun.exe

Note: If the Autorun prompt does not appear automatically, open the CD contents and double-click Autorun.exe.

3. At the CD-ROM main menu, click Install Utility.

The installer will check if you have a previous WinPcap utility.

4. Click OK.

Note: The Powerline Utility requires WinPcap as a base application. If this prompt does not appear, you may already have the WinPcap application installed. Windows 8 require WinPcap 4.1.3. Windows 7 and older will work with previous versions of

TRENDnet User’s Guide TPL-421E/TPL-421E2K

WinPcap. If you have installed a previous version of WinPcap, please uninstall it manually. And then, start the installation from the beginning.

5. At the WinPcap installer window, click Next.

7. Review the license agreement and click I Agree.

8. In the Installation Options window, leave the Automatically start the

WinPcap driver at boot time checked and click Install.

6. Click Yes to allow installation.

TRENDnet User’s Guide TPL-421E/TPL-421E2K

9. Wait for the WinPcap installation to complete.

10. After the process has been completed, click Finish.

11. At the TRENDnet Powerline Utility Setup Wizard, click Next.

12. In the License Agreement window, click I Agree, and then click Next.

TRENDnet User’s Guide TPL-421E/TPL-421E2K

13. In the Select Installation Folder window, click Next.

14. In the Confirm Installation window, click Next.

15. Wait for the Powerline Utility installation to complete. At the

Installation Complete window, click Close.

TRENDnet User’s Guide TPL-421E/TPL-421E2K

Using the Utility

Before using the utility, please do the following:

1. Write down the Device Password (DPW) (16-digit characters A-

Z only) and MAC Address (12-digit characters a-f, A-F, 0-9) of each Powerline adapter as this will be required to change the network name for multiple Powerline adapters. See Device Label on page 6.

2. Make sure the computer in which you are installing the utility is

connected to your network and your Powerline adapters are also connected to your network.

3. If you have changed your network name using the Sync button and

you are creating a customized network name, it is required to reset all powerline devices to defaults using the physical Reset button on your Powerline adapter first before using the utility. See Product Outlook on page 6.

4. Please ensure that your Powerline adapters are already installed

and connected and the Ethernet port on each adapter is connected to a device powered on.

Upon completing the software installation, a desktop shortcut is automatically created. Double-click the icon to start the utility or open the utility if it is already running. Closing the utility will exit the application.

You can also launch the utility from Start Menu. Start >

Programs (or All Programs) > TRENDnet > TRENDnet Powerline Utility.

TRENDnet User’s Guide TPL-421E/TPL-421E2K

Local Device

All Powerline adapters connected to the same network as your computer will be listed here.

The default device name is main chip number, followed by the MAC address and firmware version number. You can mouse over the header and adjust column width by clicking and dragging this cursor .

Remote Devices

These are Powerline adapters in remote locations connected to a selected local Powerline adapter on the electrical system.

You can mouse over the header and adjust the column width by clicking and dragging this cursor to see more information.

Auto Scan

Auto Scan is selected by default. The utility will scan for remote devices in specific intervals (default: 2 sec, you can change it from 2 to 60 secs). Auto scan can be disabled by deselecting it. Remote adapters can be scanned manually by clicking the Scan button below.

Network Type

The default network type is public. When the network name is customized and changed, it becomes private.

Scan

Manually scan remote Powerline devices which has same network name

Add Device

Add remote Powerline adapter

Enter Password

Enter device DPW here. You can manage the remote adapter if only you enter the DPW.

Rename

Change device name to meaningful names such as “living room”

Manage your device

Highlight a device by clicking the row and click buttons below

* DPW (Device Password) is shown on device label ** TPL-421E has a Power Save Mod. The device setting can only be changed when the device is active. To keep remote Powerline adapter in an active state, you can power cycle the device or connect it to a network device, such as a router or a computer.

Powerline Utility – Map View

TRENDnet User’s Guide TPL-421E/TPL-421E2K

Rename remote device

(Click and select a remote device and then click Rename button in Map View)

Enter Password

(Click and select a remote device and then click Enter Password button in Map View)

Add Device

(Click Add Device button in Map View)

Enter device name and DPW to add an adapter manually

Scan

Click Scan button in Map View to scan other Powerline adapters manually.

The device password (DPW) can be found on device label. You have to enter DPW in order to manage Powerline adapter remotely.

TRENDnet User’s Guide TPL-421E/TPL-421E2K

System Information

System Information section shows this utility version, your computer information, network adapters installed on your computer.

Remote Devices

Powerline adapters in remote locations connect to your network shows here.

Show Active Device(s) Only

Un-check this check box, you can include all device information on network, even it is not in active state.

Add Device

Print Report Click this button sending above information to

Save Report

Click this button to save above information for later use.

Delete

Delete the device from status report (Un-select auto scan in About section to prevent the deleted

Manage your report

Highlight the device by clicking the row and click buttons below

* DPW (Device Password) is shown on device label

Powerline Utility – Detailed View

TRENDnet User’s Guide TPL-421E/TPL-421E2K

Private Network Name

This is the network name of your powerline network.

Default is “HomePlugAV”. When

network name set to “HomePlugAV”, it considered a public network because very out of box Powerline adapter can join this network. Powerline adapters connect to each other only when network name is the same. Change network name and make your network private is recommended to increase your privacy.

You have to remember your network name (Private Network Name). It will be encrypted and save to device. Even Powerline Utility cannot read it in plain text again. When you visit this Private Settings again and the Private Network Name show UnknownNetworkName, it means the network name is private.

Use Default

If you don’t remember what

network name you set previously, you can set the network public. Then set it back to private later.

Set Local Device

Change network name on device selected above.

Set Remote Devices

All devices currently connected locally to your computer or connected remotely through powerline network will set to the new network name.

Multicast Address

Click this button to synchronize multicast address on all adapters on same powerline network.

Powerline Utility – Device Setup

TRENDnet User’s Guide TPL-421E/TPL-421E2K

Select Local Device

This advanced feature supports local devices only. Choose one of your local device and proceed the advance setting.

Upgrade Firmware

Click this button to upgrade device firmware.

Reset Device

Cleanup device active jobs and start fresh again.

Factory Defaults

Clean up all your settings on adapter. Always click this button after you upgrade firmware.

Powerline Utility – Advanced

TRENDnet User’s Guide TPL-421E/TPL-421E2K

Scan Options

By default, the Powerline Utility scans adapters attached to the network every 2 seconds. You can change the scanning frequency from 2 seconds up to 60 seconds or stop auto scan. You can then scan devices manually by clicking Scan button in Map View.

Powerline Utility – Options

TRENDnet User’s Guide TPL-421E/TPL-421E2K

About Powerline Utility

This Powerline Utility manages TPL-421E and most legacy HomePlug certified Powerline adapters.

For more information, please visit our website www.trendnet.com

Powerline Utility – About

TRENDnet User’s Guide TPL-421E/TPL-421E2K

Regulations

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for

help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user.

RoHS

This product is RoHS compliant.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

TRENDnet User’s Guide TPL-421E/TPL-421E2K

Česky [Czech]

TRENDnet tímto prohlašuje, že tento TPL-421E je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 2004/108/ES, 2006/95/ES a 2009/125/ES.

Dansk [Danish]

Undertegnede TRENDnet erklærer herved, at følgende udstyr TPL-421E overholder de væsentlige krav og øvrige relevante krav i direktiv 2004/108/EF, 2006/95/EF og 2009/125/EF.

Deutsch [German]

Hiermit erklärt TRENDnet, dass sich das Gerät TPL-421E in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 2004/108/EG, 2006/95/EG und 2009/125/EG befindet.

Eesti [Estonian]

Käesolevaga kinnitab TRENDnet seadme TPL-421E vastavust direktiivi 2004/108/ EÜ, 2006/95/ EÜ ja 2009/125/ EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.

English

Hereby, TRENDnet, declares that this TPL-421E is in compliance with the essential requirements and other relevant provisions of Directive 2004/108/CE, 2006/95/CE and 2009/125/CE.

Español [Spanish]

Por medio de la presente TRENDnet declara que el TPL-421E cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 2004/108/CE, 2006/95/CE y 2009/125/CE.

Ελληνική

[Greek]

ΜΕ ΤΗΝ ΠΑΡΟΥΣΑTRENDnet ΔΗΛΩΝΕΙ ΟΤΙ TPL-421E ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 2004/108/EK,

2006/95/EK, 2009/125/ΕΚ και.

Français [French]

Par la présente TRENDnet déclare que l'appareil TPL-421E est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 2004/108/CE, 2006/95/CE et 2009/125/CE.

Italiano[Italian]

Con la presente TRENDnet dichiara che questo TPL-421E è conforme ai requisiti essenziali ed alle altre disposizioni

Industry Canada

CAN ICES-3 (B)/NMB-3(B) IC: ICES/NMB – 006 complies with IC: ICES - 006; en conformité avec IC: NMB – 006

Europe – EU Declaration of Conformity

TRENDnet hereby declare that the product is in compliance with the essential requirements and other relevant provisions under our sole responsibility.

Safety

EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 IEC 60950-1:2005 (2nd Edition) Am 1:2009 + Am2: 2013

EMC

EN 55022: 2010 + AC: 2011 Class B EN 61000-3-2: 2006 + A2: 2009 EN 61000-3-3: 2008 EN 55024: 2010 EN 50412-2-1: 2005

Energy Efficiency

Regulation (EC) No. 1275/2008, No. 801/2013

This product is herewith confirmed to comply with the Directives.

Directives

Low Voltage Directive 2006/95/EC EMC Directive 2004/108/EC Ecodesign Directive 2009/125/EC RoHS Directive 2011/65/EU REACH Regulation (EC) No. 1907/2006

TRENDnet User’s Guide TPL-421E/TPL-421E2K

pertinenti stabilite dalla direttiva 2004/108/CE, 2006/95/CE e 2009/125/CE.

Latviski [Latvian]

AršoTRENDnetdeklarē, ka TPL-421E atbilstDirektīvas 2004/108/EK, 2006/95/EK un 2009/125/EK

būtiskajāmprasībām un citiemar to saistītajiemnoteikumiem.

Lietuvių

[Lithuanian]

Šiuo TRENDnet deklaruoja, kad šis TPL-421E atitinka esminius reikalavimus ir kitas 2004/108/EB, 2006/95/EB ir 2009/125/EB Direktyvos nuostatas.

Nederlands [Dutch]

Hierbij verklaart TRENDnet dat het toestel TPL-421E in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 2004/108/EG, 2006/95/EG en 2009/125/EG.

Malti [Maltese]

Hawnhekk, TRENDnet, jiddikjara li dan TPL-421E jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 2004/108/KE, 2006/95/KE u 2009/125/KE.

Magyar [Hungarian]

Alulírott, TRENDnet nyilatkozom, hogy a TPL-421E megfelel a vonatkozó alapvetõ követelményeknek és az 2004/108/EK, 2006/95/EK és a 2009/125/EK irányelv egyéb elõírásainak.

Polski [Polish]

Niniejszym TRENDnet oświadcza, że TPL-421E jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi

postanowieniami Dyrektywy 2004/108/WE, 2006/95/WE i 2009/125/WE.

Português [Portuguese]

TRENDnet declara que este TPL-421E está conforme com os requisitos essenciais e outras disposições da Directiva2004/108/CE, 2006/95/CE e 2009/125/CE.

Slovensko [Slovenian]

TRENDnet izjavlja, da je ta TPL-421E v skladu z bistvenimi

zahtevami in ostalimi relevantnimi določili

direktive2004/108/ES, 2006/95/ES in 2009/125/ES.

Slovensky [Slovak]

TRENDnettýmtovyhlasuje, že TPL-421E spĺňazákladnépožiadavky a všetkypríslušnéustanovenia

Smernice 2004/108/ES, 2006/95/ES a 2009/125/ES.

Suomi [Finnish]

TRENDnet vakuuttaa täten että TPL-421E tyyppinen laite on direktiivin2004/108/EY, 2006/95/EY ja 2009/125/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.

Svenska [Swedish]

Härmed intygar TRENDnet att denna TPL-421E står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 2004/108/EG, 2006/95/EG och 2009/125/EG.

Česky [Czech]

Toto síťové zařízení je rok Energy Související produkt (ErP ou dopisem), automaticky přepne do úsporného pohotovostního módu do 10 minut bez datového přenosu síly. Když přístroj nepoužíváte, lze jej ict vypnut pomocí tlačítka napájení, nebo jednoduše odpojte napájecí adaptér pro další úspory energie. Síťové standby: 2, 76 W Pohotovostní režim: 0, 37 W

Dansk [Danish]

Denne netværksenhed er år Energy Related Produkt (ErP ou ved brev) skifter automatisk til en strømbesparende standby mode Inden for 10 minutter uden datatransmission. Når apparatet ikke er i brug kan det være ict drevet ned ved hjælp afbryderknappen, eller blot afbryde strømforsyningen til yderligere energibesparelser. Networked standby: 2.76 watt Standby: 0.37 watt

Deutsch [German]

Dieses Netzwerkgerät ist ein Energy Related Product (ErP), das innerhalb von 10 Minuten ohne Datenübertragung automatisch in einen Stromsparmodus umschaltet. Wenn das Gerät nicht verwendet wird, kann es über die Ein-/Austaste heruntergefahren werden, oder ziehen Sie für zusätzliche Stromersparnis das Netzgerät aus der Steckdose. Vernetzt und in Bereitschaft: 2.76 Watt Standby-Modus: 0.37 Watt

Eesti [Estonian]

See võrguseade on aasta Energy Related Toode (ERP ou kirjas)

Automaatselt lülitub energiasäästurežiimi ooterežiimis mood

10 minuti jooksul ei andmeedastust. Kui seade ei ole kasutuses võib see olla IKT väljalülitamisel kasutades toitenuppu või lihtsalt ühendage toiteadapter täiendava energiasäästu.

Võrku ooterežiimis: 2.76 W Ooterežiim: 0.37 W

English

This network device is an Energy Related Product (ErP) that automatically switches to a power saving standby mode within 10 minutes of no data transmission. When the device is not in use it can be powered down using its power button, or simply disconnect the power adapter for additional energy savings. Networked standby mode: 2.76 watts Standby mode: 0.37 watts

Español [Spanish]

Este dispositivo de red es un producto relacionado con la energía (ErP) que pasa automáticamente a un modo en espera, de ahorro de energía, tras 10 minutos de ausencia de transmisión de datos. Cuando el dispositivo no está en uso, se

ErP Statement

TRENDnet User’s Guide TPL-421E/TPL-421E2K

puede apagar utilizando el botón de alimentación, o simplemente desconectar el adaptador de corriente para optimizar el ahorro de energía. Modo de espera en red: 2.76 W Modo de espera: 0.37 W

Ελληνική

[Greek]

Αυτή η συσκευή δικτύου είναι η χρονιά Ενέργειας Σχετικά Προϊόν (ERP ou με επιστολή) μεταβαίνει αυτόματα σε κατάσταση εξοικονόμησης μόδας Μέσα σε 10 λεπτά χωρίς μετάδοση δεδομένων εξουσία. Όταν η συσκευή δεν είναι σε χρήση μπορεί να ΤΠΕ κινούνται προς τα κάτω χρησιμοποιώντας το κουμπί τροφοδοσίας, ή απλά αποσυνδέστε το τροφοδοτικό για πρόσθετη εξοικονόμηση ενέργειας. Δικτυωμένη αναμονής: 2.76 watts κατάσταση αναμονής: 0.37 watts

Français [French]

Ce périphérique réseau est un Energy Related Product (ErP) qui passe automatiquement en mode veille, économisant l’énergie, après 10 minutes sans transfert de données. Lorsque le périphérique n’est pas utilisé, il peut être éteint en utilisant

le bouton d’alimentation, ou simplement déconnecté en débranchant l’adaptateur secteur pour obtenir davantage d’économies d’énergie.

Mode veille en réseau : 2.76 Watt Mode veille : 0.76 Watt

Italiano[Italian]

Questo apparato di rete è un Energy Related Product (ErP) il quale commuta automaticamente in una modalità standby entro 10 minuti dall’interruzione della trasmissione di dati.

Quando l’apparato non viene utilizzato, può essere spento

tramite il tasto di accensione, o si può scollegare l’alimentatore, per ottenere un maggior risparmio di energia. Modalità standby in rete: 2.76 watt Modalità standby: 0.37 watt

Latviski [Latvian]

Šis tīkls ierīce ir gads enerģiju saistītiem ražojumiem (ERP ou ar vēstuli) Automātiski pārslēdzas uz enerģijas taupīšanas gaidstāves modi laikā 10 minūšu laikā bez datu pārraides. Ja ierīce nav izmantota to var IKT powered leju, izmantojot barošanas pogu, vai vienkārši atvienojiet strāvas adapteris papildu enerģijas ietaupījumu. Networked gaidīšanas: 2.76 vati Gaidīšanas režīmā: 0.37 vati

Lietuvių

[Lithuanian]

Šis tinklas įrenginys metus Energijos susiję produktai (ERP ou laišku) Automatiškai persijungia į energijos taupymo budėjimo mados Per 10 minučių be duomenų perdavimo. Kai prietaisas nenaudojamas, jis gali būti ict išjungtas naudojant maitinimo

mygtuką, arba tiesiog atjunkite maitinimo adapterį sutaupyti

dar daugiau energijos. Tinklo Budėjimo režimas: 2.76 W Laukimo režimas: 0.37 W

Nederlands [Dutch]

Dit netwerkapparaat is jaar-energie gerelateerde product (ErP ou per brief) schakelt automatisch naar een energiebesparende stand-by mode Binnen 10 minuten geen gegevensoverdracht. Wanneer het apparaat niet in gebruik kan worden ict uitgeschakeld met behulp van uit-knop, of koppelt gewoon een oplader voor een extra energiebesparing. netwerk stand-bymodus: 2.76 watt standby-modus: 0.37 watt

Malti [Maltese]

Dan il-mezz netwerk huwa sena Enerġija Prodott Related (ERP

ou b'ittra) Awtomatikament swiċċijiet għal iffrankar ta 'enerġija moda standby Fi żmien 10 minuta ta' l-ebda trażmissjoni tad-data. Meta l-mezz ma jkunx qed jintuża jista 'jiġi ICT powered isfel bl-użu buttuna l-enerġija, jew sempliċiment skonnettja l-adapter enerġija għal iffrankar

addizzjonali tal-enerġija. Standby f'netwerk: 2.76 watts modalità standby: 0.37 watts

Magyar [Hungarian]

Ez a hálózat a készülék éves energiával kapcsolatos termék (ErP ou levélben), automatikusan átvált egy energiatakarékos készenléti mód 10 percen belül nincs adatátvitel. Ha a készülék nincs használatban, akkor lehet, IKT áramtalanítani a

bekapcsoló gombot, vagy egyszerűen húzza ki a hálózati

adaptert a további energia-megtakarítás. Hálózatba készenlét: 2.76 watt készenléti üzemmódban: 0.37 watt

Polski [Polish]

To urządzenie sieciowe jest rok energetyczna produktu związanego (ErP ou listownie) automatycznie przełącza się na energooszczędny gotowości modę W ciągu 10 minut bez transmisji danych. Kiedy urządzenie nie jest używane, można go ICT wyłączony za pomocą przycisku zasilania, lub po prostu odłączyć zasilacz na dodatkowe oszczędności energii.

Tryb sieci czuwania: 2.76 watów Tryb wyłączenia: 0.37 watów

Português [Portuguese]

Este dispositivo de rede é um Produto de Consumo de Energia (ErP) que alterna automaticamente para modo de espera com economia de energia após 10 minutos sem transmissão de dados. Quando o dispositivo não está sendo usado pode ser desligado no botão de energia, ou simplesmente desligando o adaptador de corrente para economia de energia adicional. Modo de espera em rede: 2.76 watts

TRENDnet User’s Guide TPL-421E/TPL-421E2K

Modo de espera: 0.37 watts

Slovensko [Slovenian]

Ta mreža naprava je leto Energy Podobni izdelek (ErP ou z dopisom), samodejno preklopi na varčevanje z energijo v

stanju pripravljenosti moda roku 10 minut brez prenosa podatkov. Ko je naprava ni v uporabi, je lahko ict napaja navzdol z gumbom za vklop, ali pa preprosto odklopite napajalnik za dodatne prihranke energije. Networked pripravljenosti: 2.76 W Pripravljenost: 0.37 W

Slovensky [Slovak]

Toto sieťové zariadenie je rok Energy Súvisiaci produkt (ErP

ou listom), automaticky prepne do úsporného pohotovostného

módu do 10 minút bez dátového prenosu sily. Keď prístroj nepoužívate, možno ho ict vypnutý pomocou tlačidla

napájania, alebo jednoducho odpojte napájací adaptér pre

ďalšie úspory energie. Sieťové standby: 2, 76 W pohotovostný režim: 0, 37 W

Suomi [Finnish]

Tämä verkkolaite on vuosi Energy Related Product (ErP ou kirjeitse) Automaattinen vaihto virransäästö valmiustilassa muoti 10 minuutin kuluessa tiedon siirto. Kun laite ei ole käytössä se voidaan ICT sammutettu käyttämällä virtakytkintä, tai yksinkertaisesti irrota virtalähde ylimääräisiä energiasäästöjä. Verkottunut valmiustilassa: 2.76 wattia Valmiustila:0.37 wattia

Svenska [Swedish]

Denna nätverksenhet är år Energy relaterad produkt (ErP ou per brev) Växlar automatiskt till ett energisparande vänteläge mode Inom 10 minuter utan dataöverföring. När enheten inte används kan det vara ict avstängd med hjälp av strömbrytaren, eller helt enkelt koppla loss nätadaptern för ytterligare energibesparingar. Networked standby: 2.76 watt vänteläge: 0.37 watt

TRENDnet User’s Guide TPL-421E/TPL-421E2K

Limited Warranty

TRENDnet warrants its products against defects in material and workmanship, under normal use and service, for the following lengths of time from the date of purchase.

• TPL-421E – 3 Years Warranty If a product does not operate as warranted during the applicable warranty period,

TRENDnet shall reserve the right, at its expense, to repair or replace the defective product or part and deliver an equivalent product or part to the customer. The repair/replacement unit’s warranty continues from the original date of purchase. All products that are replaced become the property of TRENDnet. Replacement products may be new or reconditioned. TRENDnet does not issue refunds or credit. Please contact the point-of purchase for their return policies.

TRENDnet shall not be responsible for any software, firmware, information, or memory data of customer contained in, stored on, or integrated with any products returned to TRENDnet pursuant to any warranty.

There are no user serviceable parts inside the product. Do not remove or attempt to service the product by any unauthorized service center. This warranty is voided if (i) the product has been modified or repaired by any unauthorized service center, (ii) the product was subject to accident, abuse, or improper use (iii) the product was subject to conditions more severe than those specified in the manual.

Warranty service may be obtained by contacting TRENDnet within the applicable warranty period and providing a copy of the dated proof of the purchase. Upon proper submission of required documentation a Return Material Authorization (RMA) number will be issued. An RMA number is required in order to initiate warranty service support for all TRENDnet products. Products that are sent to TRENDnet for RMA service must have the RMA number marked on the outside of return packages and sent to TRENDnet prepaid, insured and packaged appropriately for safe shipment. Customers shipping from outside of the USA and Canada are responsible for return shipping fees. Customers shipping from outside of the USA are responsible for custom charges, including but not limited to, duty, tax, and other fees.

WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE

AS WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY SHALL BE, AT TRENDNET’S OPTION, REPAIR OR REPLACE. THE FOREGOING WARRANTIES

AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES,

EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

TRENDNET NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE OR USE OF TRENDNET’S PRODUCTS.

TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT

DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S

MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.

LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND

OF THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION. THIS DISCLAIMER OF

LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.

Governing Law: This Limited Warranty shall be governed by the laws of the state of California.

Some TRENDnet products include software code written by third party developers. These codes are subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”).

Go to http://www.trendnet.com/gpl or http://www.trendnet.com Download section and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of the developers. TRENDnet does not provide technical support for these codes. Please go to http://www.gnu.org/licenses/gpl.txt or http://www.gnu.org/licenses/lgpl.txt for specific terms of each license.

December 5, 2014 TPL-421E/TPL-421E2K User’s Guide V1.0

Trendnet TPE-421E2K, TPE-421E User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Product Overview

Features

Device Label

Product Outlook

Ground Wire

Push Buttons

Diagnostic LEDs

Diagram Explanation:

Application Diagram

Installing Your Powerline Adapter

Powerline Security

Scramble your Network Name Away from the Factory Default

Scramble with the Sync button

Before Physical Installation

Connecting the Powerline Adapters

Connecting Additional Powerline Adapters

Start connecting

Physical Installation

Create Multiple Powerline Networks

Move Powerline adapters between different overlapping powerline networks

The Powerline Utility

Powerline Utility System Requirements

Software Installation

Using the Utility

Before using the utility, please do the following:

Local Device

Remote Devices

Auto Scan

Network Type

Scan

Add Device

Enter Password

Rename

Manage your device

Powerline Utility – Map View

Rename remote device

Enter Password

Add Device

Scan

System Information

Remote Devices

Show Active Device(s) Only

Add Device

Save Report

Delete

Manage your report

Powerline Utility – Detailed View

Private Network Name

Use Default

Set Local Device

Set Remote Devices

Multicast Address

Powerline Utility – Device Setup

Select Local Device

Upgrade Firmware

Reset Device

Factory Defaults

Powerline Utility – Advanced

Scan Options

Powerline Utility – Options

About Powerline Utility

Powerline Utility – About

Regulations

Federal Communication Commission Interference Statement

RoHS

Industry Canada

Europe – EU Declaration of Conformity

Safety

Energy Efficiency

Directives

ErP Statement

Limited Warranty
