TRENDnet TI-G62 User Manual

Quick Installation Guide

TI-G62

1. Before You Start

Package Contents

ŸTI-G62
ŸQuick Installation Guide
ŸRemovable terminal block
ŸDIN-rail mount
ŸWall mount plates

Minimum Requirements

ŸExisting network
ŸPower Supply (TI-M6024)

2. Quick Reference

TV-IP322WI

TI-F11SFP

1

3. Hardware Installation

ŸThe TI-G62 can be placed on a desktop, wall, or mounted to a DIN-rail.

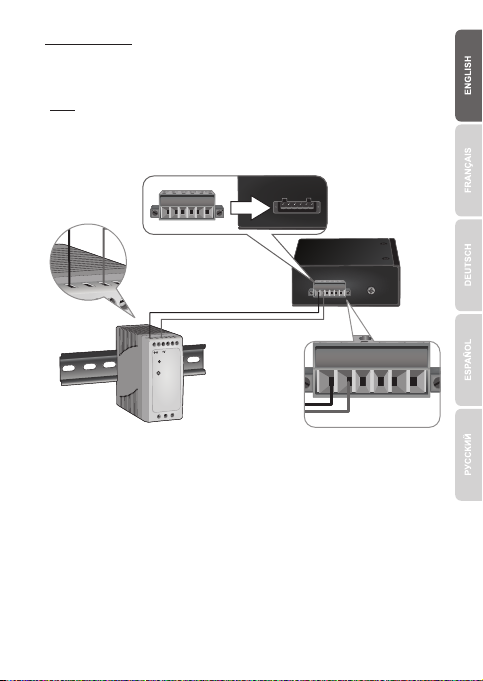

DIN-rail Mounting Instructions

1. Attach the DIN-rail mount bracket to the switch.

2. Position the switch in front of the DIN-rail and hook the mount bracket over

the top of the rail.

3. Rotate the switch downward towards the rail to lock it into place. You will
know it is secure when you hear the click.

Mounting the switch Releasing the switch

4. To remove the switch, pull down to clear the bottom of the DIN-rail and

rotate away from the rail.
