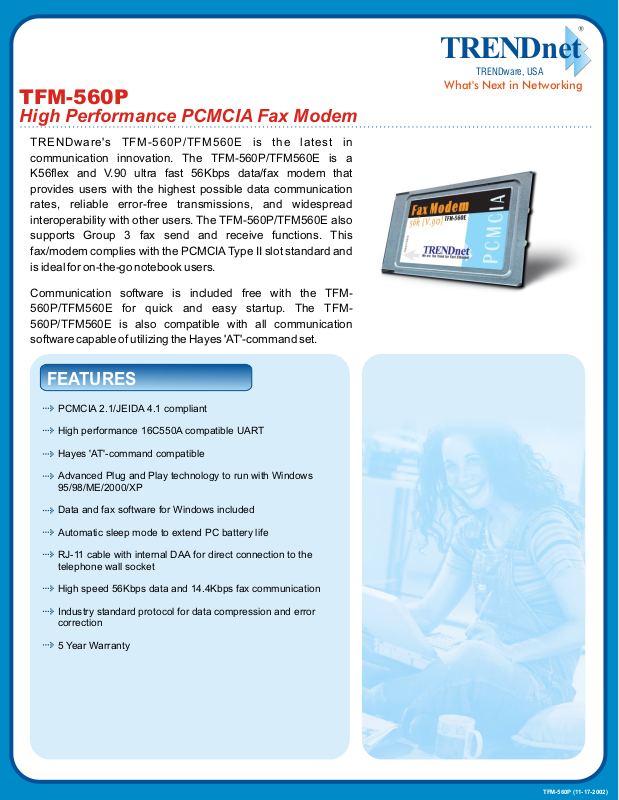

Trendnet TFM-560P DATA SHEET

TFM-560P

High Performance PCMCIA Fax Modem

TRENDware's TFM-560P/TFM560E is the latest in communication innovation. The TFM-560P/TFM560E is a K56flex and V.90 ultra fast 56Kbps data/fax modem that provides users with the highest possible data communication rates, reliable error-free transmissions, and widespread interoperability with other users. The TFM-560P/TFM560E also supports Group 3 fax send and receive functions. This fax/modem complies with the PCMCIA Type II slot standard and is ideal for on-the-go notebook users.

Communication software is included free with the TFM560P/TFM560E for quick and easy startup. The TFM560P/TFM560E is also compatible with all communication software capable of utilizing the Hayes 'AT'-command set.

TRENDnet

TRENDware, USA

What's Next in Networking

FEATURES

PCMCIA 2.1/JEIDA 4.1 compliant

High performance 16C550A compatible UART

Hayes 'AT'-command compatible

Advanced Plug and Play technology to run with Windows 95/98/ME/2000/XP

Data and fax software for Windows included

Automatic sleep mode to extend PC battery life

RJ-11 cable with internal DAA for direct connection to the telephone wall socket

High speed 56Kbps data and 14.4Kbps fax communication

Industry standard protocol for data compression and error correction

5 Year Warranty

TFM-560P (11-17-2002)

TFM-560P

High Performance PCMCIA Fax Modem

SPECIFICATIONS

Operating Protocol:

• K56flex (56,000 bps)

• V.34bis (33,600 bps)

• V.34 (28,800 to 2,400 bps)

• V32bis (14,400/12,000/9,600/

7,200 bps);

• V.32 (9,600/4,800 bps)

• V.22bis (2,400 bps)

• V.23 (1,200 TX/75 RX bps)

• V.22/Bell 212A (1,200 bps)

• V.21/Bell 103 (300bps)

Error Correction Protocol:

• V.42 and MNP Class 2 to 4

Data Compression Protocol:

• V.42bis and MNP Class 5

Fax Compatibility:

• EIA Class 1 fax commands

• Group 3 send and receive

• ITU-T V.17 up to 14,400 bps

• ITU-T V.29 up to 9,600 bps

• ITU-T V.27ter up to 4,800 bps

• ITU-T V.21 Channel 2

up to 300 bps

Dialing Capability:

• DTMF tone; Rotary pulse

Operating Modes:

• Asynchronous full duplex

• Manual/automatic answer

Flow Control:

• Hardware CTS/RTS

• Software XON/XOFF

Receive Sensitivity:

• -40 dBn

Transmit Level:

• Permissive -10 (±) 1 dBm

Line Interface:

• RJ-11, 2-wire dial-up

Typical Power Consumption:

• Operation: 640mW;

• Sleep mode: 80mW

Diagnostic:

• Power-up self-test; Local analog loopback test; Local analog loopback with self-test; Local digital loopback test; Remote digital loopback test; Remote digital loopback with self-test

Software Control Interface:

• Hayes compatible AT command set

Call Progress Monitoring:

• Dial tone; Busy tone

• Ringback detection

Dimension:

• Comply with PCMCIA Type II;

3.37" x 2.128" x 0.197" (85.6mm x 54mm x 5mm)

Weight:

• 35g

PRODUCT INFORMATION

TEM-560T: PCMCIA Ethernet (TP) +

ORDERING INFORMATIONORDERING INFORMATION

56Kbps Fax Modem

TRENDnet

TFM-560P: PCMCIA 56K (V.90) High Speed Fax Modem (Lucent Chipset)

TRENDware International, Inc.

TFM-560E: PCMCIA 56K (V.90) High

Speed Fax Modem (Lucent Chipset)

TEM100-56: PCMCIA 10/100Mbps Fast Ethernet + 56Kbps Fax Modem Card

3135 Kashiwa Street Torrance, CA. 90505. USA Tel: 310-891-1100 Fax: 310-891-1111 Web: Email: sales@trendware.com

To Order Please Call:

1-888-326-6061

TRENDnet is a registered treademark of TRENDware International, Inc. Other Brands and product names are trademarks of their respective holders. Information provided in this

document pertain to TRENDware products and is subject to change at any time, without notice. For the most recent product information please visit
