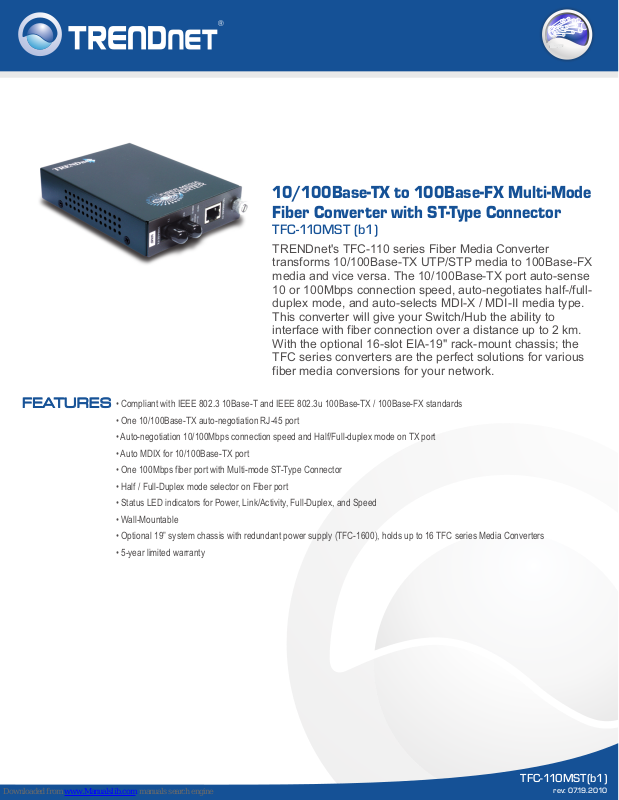

TRENDnet TFC-110MST - DATA SHEETS, TFC-110MST b1 Datasheet
fiber
10/100Base-TX to 100Base-FX Multi-Mode
Fiber Converter with ST-Type Connector
TFC-110MST (b1)
TRENDnet's TFC-110 series Fiber Media Converter
transforms 10/100Base-TX UTP/STP media to 100Base-FX
media and vice versa. The 10/100Base-TX port auto-sense
10 or 100Mbps connection speed, auto-negotiates half-/fullduplex mode, and auto-selects MDI-X / MDI-II media type.
This converter will give your Switch/Hub the ability to
interface with fiber connection over a distance up to 2 km.
With the optional 16-slot EIA-19" rack-mount chassis; the
TFC series converters are the perfect solutions for various
fiber media conversions for your network.
FEATURES
• Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
• One 10/100Base-TX auto-negotiation RJ-45 port
• Auto-negotiation 10/100Mbps connection speed and Half/Full-duplex mode on TX port
• Auto MDIX for 10/100Base-TX port
• One 100Mbps fiber port with Multi-mode ST-Type Connector
• Half / Full-Duplex mode selector on Fiber port
• Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
• Wall-Mountable
• Optional 19” system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
• 5-year limited warranty
TFC-110MST(b1)
rev: 07.19.2010
10/100Base-TX to 100Base-FX Multi-Mode
Fiber Converter with ST-Type Connector
TFC-110MST (b1)
SPECIFICATIONS
Hardware
Standards
Supported Frame Size
Network Media
Wavelength
Protocol
Ports
Data Transfer Rate
Diagnostic LEDs
Power Adapter
Temperature
Humidity
• IEEE802.3 10Base-T, IEEE 802.3u 100Base-TX and 100Base-FX
• Standard Ethernet up to 1522-Byte
• 100Base-TX: Cat. 5, EIA/TIA-568 100-ohm UTP/STP, up to 100 meters
• 100Base-FX: Multi-Mode fiber optic cable 50/125 or 62.5/125 µm, up to 2 Km
• 1300nm
• CSMA/CD
• 1 x 10/100Base-TX
• 1 x 100Base-FX
• 100Mbps (Half-Duplex), 200Mbps (Full-Duplex)
• Power, Link/Activity, Full-Duplex, and Speed
• 7.5VDC, 1.5A (7.2 watts max.)
• Operating: 0°~ 40°C (32°~ 104°F)
• Storage: -25°~ 70°C (-13°~ 158°F)
• Operating: 10% ~ 90%
• Storage: 5% ~ 90% (non-condensing)
RELATED PRODUCTS
TFC-1600
TFC-110MSC
TFC-110MM
TFC-110MST
TFC-110S15
TFC-110S30
TFC-110S60
TFC-110S100
16-Slot Chassis System for TFC series Fiber Converter
10/100Base-TX to 100Base-FX Multi-Mode Fiber
Converter with SC-Type Connector
10/100Base-TX to 100Base-FX Multi-Mode Fiber
Converter with MT-RJ Connector
10/100Base-TX to 100Base-FX Multi-Mode Fiber
Converter with ST-Type Connector
10/100Base-TX to 100Base-FX Single-Mode Fiber
Converter (15Km) with SC-Type Connector
10/100Base-TX to 100Base-FX Single-Mode Fiber
Converter (30Km) with SC-Type Connector
10/100Base-TX to 100Base-FX Single-Mode Fiber
Converter (60Km) with SC-Type Connector
10/100Base-TX to 100Base-FX Single-Mode Fiber
Converter (100Km) with SC-Type Connector
