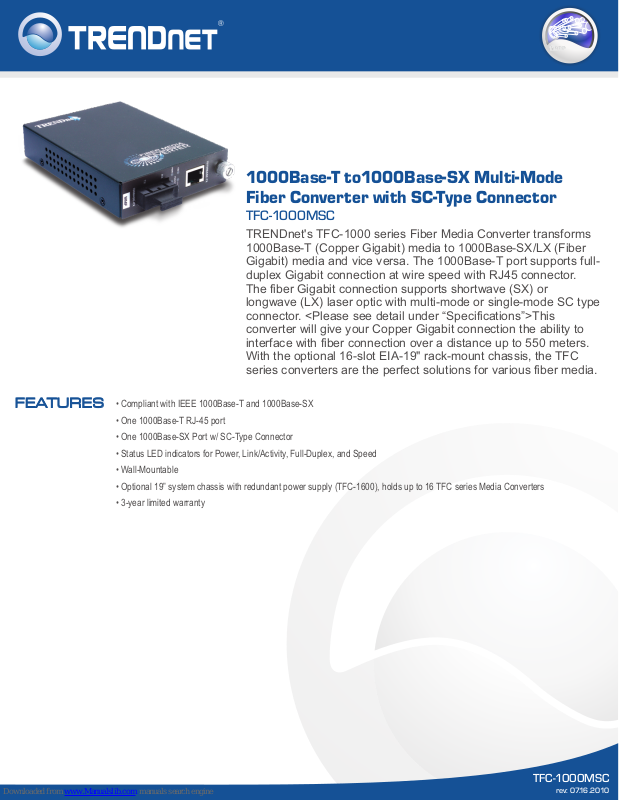

TRENDnet TFC-1000MSC - DATA SHEETS Datasheet

fiber

1000Base-T to1000Base-SX Multi-Mode
Fiber Converter with SC-Type Connector

TFC-1000MSC

TRENDnet's TFC-1000 series Fiber Media Converter transforms
1000Base-T (Copper Gigabit) media to 1000Base-SX/LX (Fiber
Gigabit) media and vice versa. The 1000Base-T port supports full­duplex Gigabit connection at wire speed with RJ45 connector.
The fiber Gigabit connection supports shortwave (SX) or
longwave (LX) laser optic with multi-mode or single-mode SC type
connector. <Please see detail under “Specifications”>This
converter will give your Copper Gigabit connection the ability to
interface with fiber connection over a distance up to 550 meters.
With the optional 16-slot EIA-19" rack-mount chassis, the TFC
series converters are the perfect solutions for various fiber media.

FEATURES

• Compliant with IEEE 1000Base-T and 1000Base-SX

• One 1000Base-T RJ-45 port

• One 1000Base-SX Port w/ SC-Type Connector

• Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed

• Wall-Mountable

• Optional 19” system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters

3

-year limited warranty

•

TFC-1000MSC

rev: 07.16.2010

1000Base-T to1000Base-SX Multi-Mode Fiber Converter
with SC-Type Connector

TFC-1000MSC

SPECIFICATIONS

Hardware

Standards

Supported Frame Size

Network Media

Wavelength

Protocol

Ports

Data Transfer Rate

Diagnostic LEDs

Power Adapter

Temperature

Humidity

• IEEE 1000Base-TX and 1000Base-SX

• No limitation (Standard Ethernet and Jumbo Frame)

• 1000Base-TX: Cat. 5, EIA/TIA-568 100-ohm UTP/STP, up to 100 meters.

• 1000Base-SX: Multi-Mode fiber optic cable 50/125 µm up to 550 meters. 62.5/125 µm up to 220 meters

• 850nm

• CSMA/CD

• 1 x 1000Base-T

• 1 x 1000Base-SX

• 1000Mbps

• Power, Link/Activity, Full-Duplex, and Speed

• 7.5VDC, 1.5A (7.2 watts max.)

• Operating: 0° ~ 40° C (32° ~ 104° F)

• Storage: -25° ~ 70° C (-13° ~ 158° F)

• Operating: 10% ~ 90%

• Storage: 5% ~ 90% (non-condensing)

RELATED PRODUCTS

TFC-1600

TFC-1000MSC

TFC-1000S20

TFC-1000S50

TFC-1000S70

16-Slot Chassis System for TFC series Fiber Converter

1000Base-T to1000Base-SX Multi-Mode Fiber
Converter with SC-Type Connector

1000Base-T to1000Base-LX Single-Mode Fiber
Converter (20Km) with SC-Type Connector

1000Base-T to1000Base-LX Single-Mode Fiber
Converter (50Km) with SC-Type Connector

1000Base-T to1000Base-LX Single-Mode Fiber
Converter (70Km) with SC-Type Connector
