Trendnet TFC-100 DATA SHEET

TRENDnet

What's Next in Networking

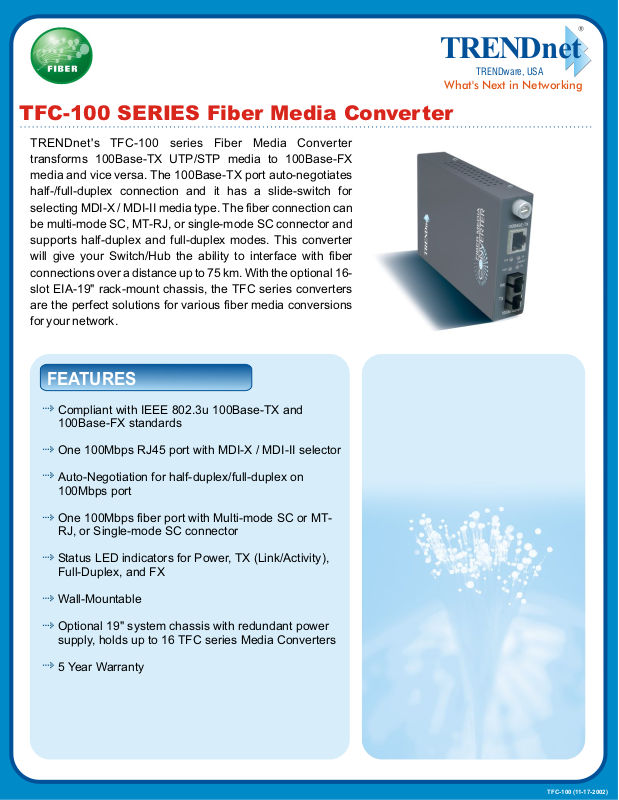

TFC-100 SERIES Fiber Media Converter

TRENDnet's TFC-100 series Fiber Media Converter
transforms 100Base-TX UTP/STP media to 100Base-FX
media and vice versa. The 100Base-TX port auto-negotiates
half-/full-duplex connection and it has a slide-switch for
selecting MDI-X / MDI-II media type. The fiber connection can
be multi-mode SC, MT-RJ, or single-mode SC connector and
supports half-duplex and full-duplex modes. This converter
will give your Switch/Hub the ability to interface with fiber
connections over a distance up to 75 km. With the optional 16­slot EIA-19" rack-mount chassis, the TFC series converters
are the perfect solutions for various fiber media conversions
for your network.

TRENDware, USA

FEATURES

Compliant with IEEE 802.3u 100Base-TX and
100Base-FX standards

One 100Mbps RJ45 port with MDI-X / MDI-II selector

Auto-Negotiation for half-duplex/full-duplex on
100Mbps port

One 100Mbps fiber port with Multi-mode SC or MT­RJ, or Single-mode SC connector

Status LED indicators for Power, TX (Link/Activity),
Full-Duplex, and FX

Wall-Mountable

Optional 19" system chassis with redundant power
supply, holds up to 16 TFC series Media Converters

5 Year Warranty

TFC-100 (11-17-2002)

TFC-100 SERIES Fiber Media Converter

TFC-100 SERIES Fiber Media Converter

SPECIFICATIONS

Standards:

• IEEE 802.3u 100Base-TX, IEEE 802.3u 100Base-FX

Ports:

• 1 x 100Base-TX and 1 x 100Base-FX

FX port Media Types:

• Multi-mode SC or MT-RJ; Single-mode SC

Network Media:

• 100Base-TX: CAT 5, EIA/TIA-568 100-ohm UTP/STP, up to

100 meters.

• 100Base-FX: 50/125µm or 62.5/125µm multi-mode fiber

optic cable, up to 2 km. 9/125µm or 10/125µm single-mode

fiber optic cable, up to 75 km.

Protocol:

• CSMA/CD

Data Transfer Rate:

• 100Mbps (Half-Duplex)

• 200Mbps (Full-Duplex)

Diagnostic LEDs:

• Power, Link/Activity, and Full-Duplex

Power Adapter:

• 7.5VDC, 1.5A (7.2 watts max.)

Dimensions:

• 120 x 88 x 25 mm (W x D x H)

Weight:

• Appro. 305 g. (10.8 Oz.)

Temperature:

• Operating: 0° ~ 40° C (32° ~ 104° F),

• Storage: -25° ~ 70° C (-13° ~ 158° F)

Humidity:

• Operating: 10% ~ 90%,

• Storage: 5% ~ 90% (non-condensing)

Certifications:

• FCC, CE, VCCI

PRODUCT INFORMATION

TFC-100MSC: 100Base-TX to 100Base-FX Multi-mode
Fiber with SC Connector

TFC-100MM: 100Base-TX to 100Base-FX Multi-mode
Fiber with MT-RJ Connector

TFC-100S15: 100Base-TX to 100Base-FX Single­mode 15 km Fiber with SC Connector

TFC-100S40: 100Base-TX to 100Base-FX Single­mode 40 km Fiber with SC Connector

TFC-100S75: 100Base-TX to 100Base-FX Single­mode 75 km Fiber with SC Connector

TFC-1600: 16-slot EIA-19" (2 Unit-Height) Chassis for
TFC series Media Converters

ORDERING INFORMATIONORDERING INFORMATION
