TRENDNET TEW722BRM User Manual

TRENDnet User’s Guide

Cover Page

TRENDnet User’s Guide

Table of Contents

Contents

Product Overview ........................................................................... 1

Package Contents .......................................................................................................... 1

Features ......................................................................................................................... 1

Product Hardware Features........................................................................................... 2

Application Diagram ...................................................................................................... 4

Basic Router Setup .......................................................................... 5

Creating a Home Network ............................................................................................. 5

Router Installation ......................................................................................................... 6

Connect additional wired devices to your network ..................................................... 10

Wireless Networking and Security ................................................. 10

How to choose the type of security for your wireless network .................................. 10

Secure your wireless network ..................................................................................... 11

Connect wireless devices to your router ..................................................................... 13

Connect wireless devices using WPS ........................................................................... 13

Basic wireless settings ................................................................................................. 14

Guest Network ............................................................................................................. 15

Steps to improve wireless connectivity ....................................................................... 16

Advanced wireless settings .......................................................................................... 17

Multiple SSID ........................................................................................................... 17

Additional Wireless Settings ................................................................................... 17

Access Control Filters .................................................................... 18

Access control basics ................................................................................................... 18

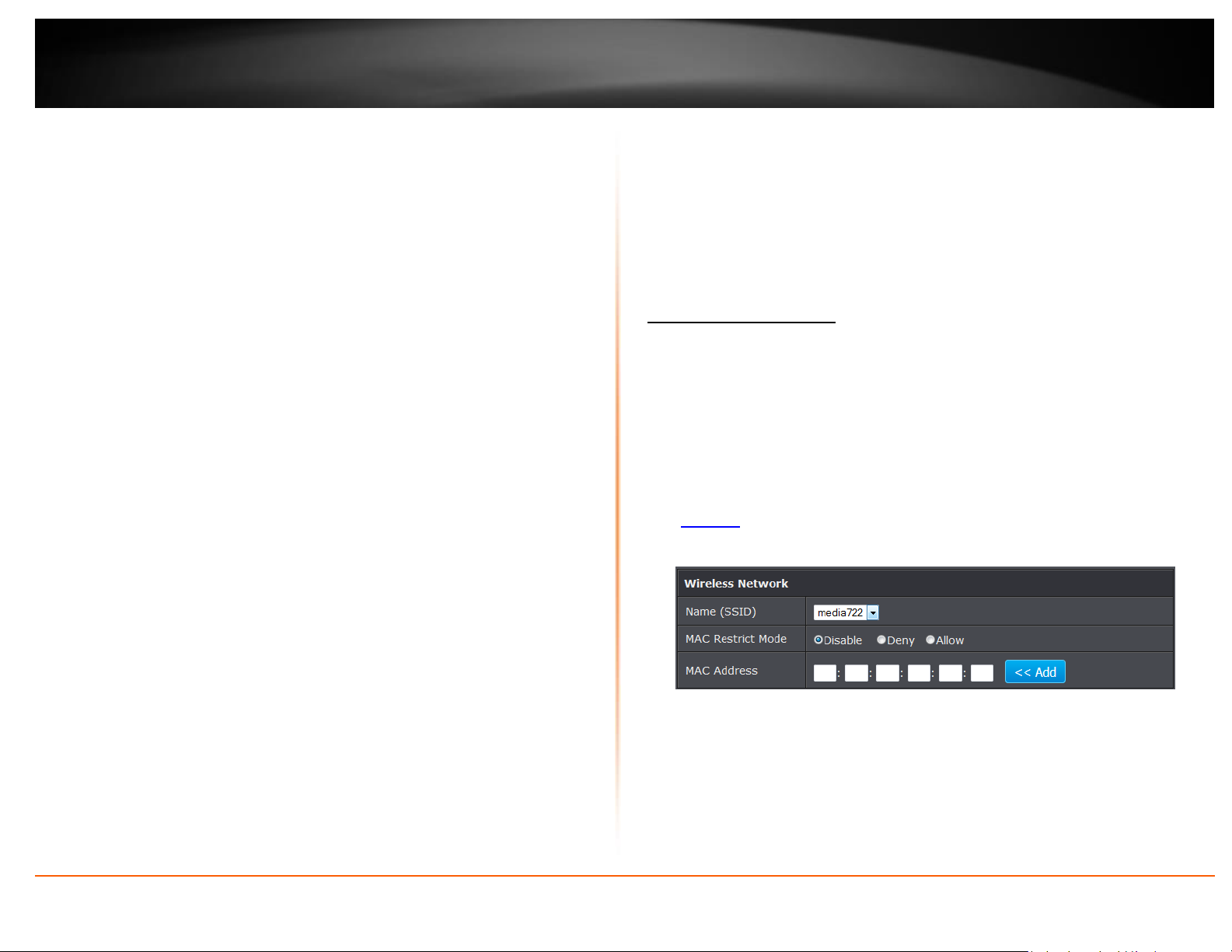

Wireless MAC address filters .................................................................................. 18

MAC address filters ................................................................................................. 19

URL/Keyword Blocking ............................................................................................ 19

Domain Filters ......................................................................................................... 19

IP Filtering ............................................................................................................... 20

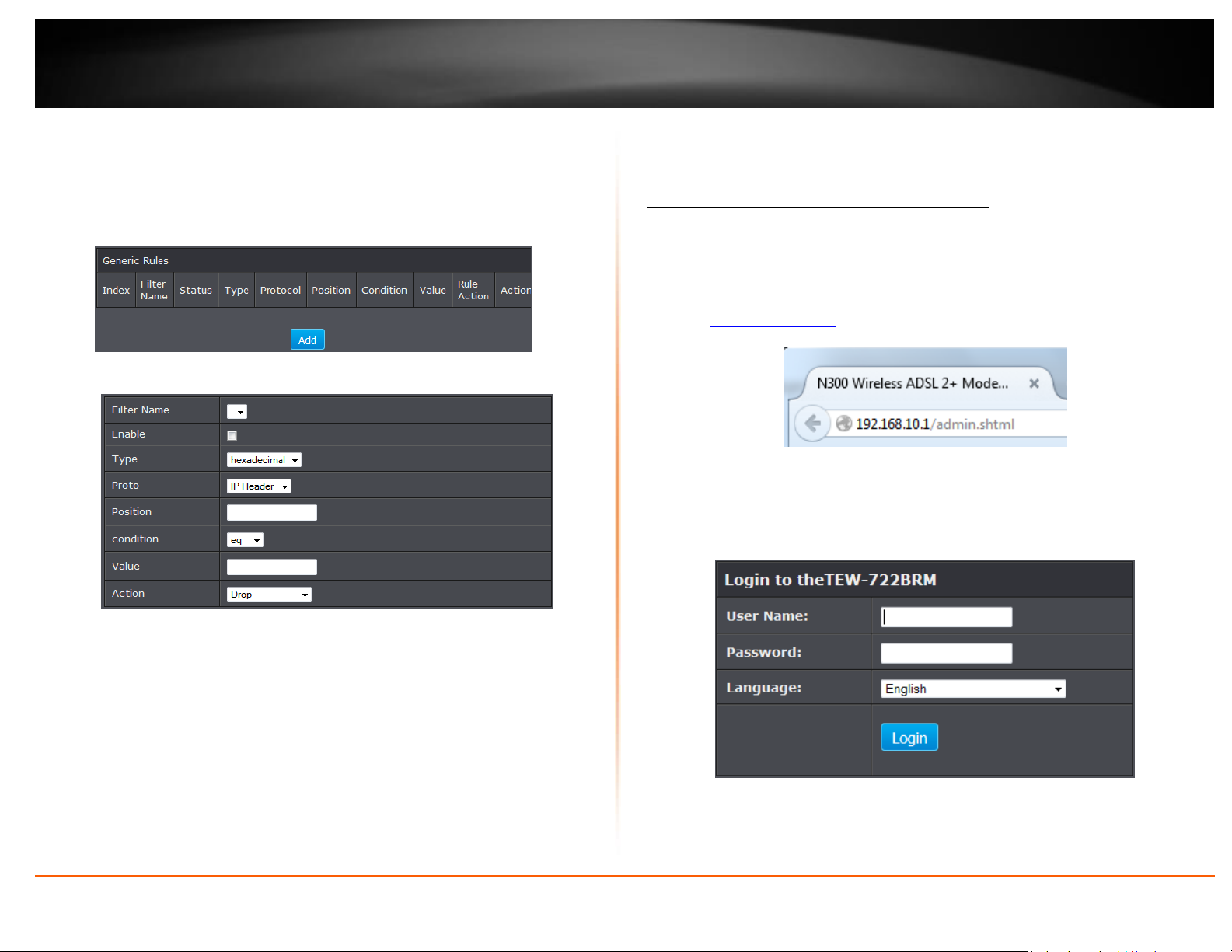

Packet Filters ............................................................................................................... 20

Advanced Router Setup ................................................................ 22

Access your router management page ........................................................................ 22

Change your router login password ............................................................................ 23

Set your router date and time ..................................................................................... 23

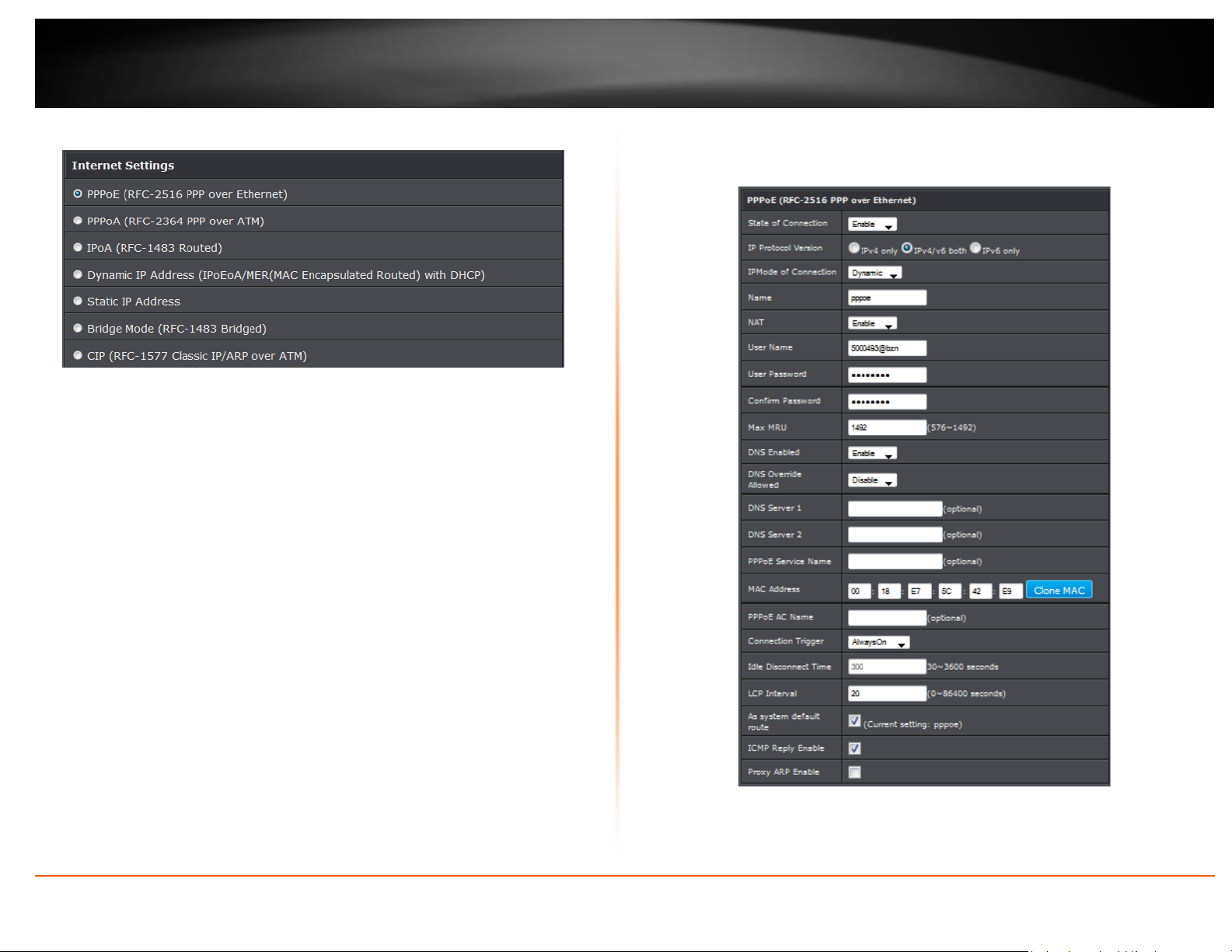

Manually configure your Internet connection ............................................................ 24

Change your router IP address .................................................................................... 28

Set up the DHCP server on your router ....................................................................... 29

Enable/disable UPnP on your router ........................................................................... 30

Allow/deny VPN connections through your router ..................................................... 30

Configure ALG settings ................................................................................................ 31

Additional Security Settings ......................................................................................... 31

Allow/deny multicast streaming.................................................................................. 32

Identify your network on the Internet ........................................................................ 33

Allow remote access to your router management page ............................................. 34

Configure remote access rules .................................................................................... 34

Configure the router’s Ethernet port settings ............................................................. 35

Open a device on your network to the Internet .......................................................... 35

DMZ ......................................................................................................................... 35

Virtual Server .......................................................................................................... 36

Port Trigger ............................................................................................................. 37

Prioritize traffic using QoS (Quality of Service) ........................................................... 38

Create schedules ......................................................................................................... 39

Add static routes to your router .................................................................................. 39

Enable dynamic routing on your router ...................................................................... 40

TRENDnet User’s Guide

Table of Contents

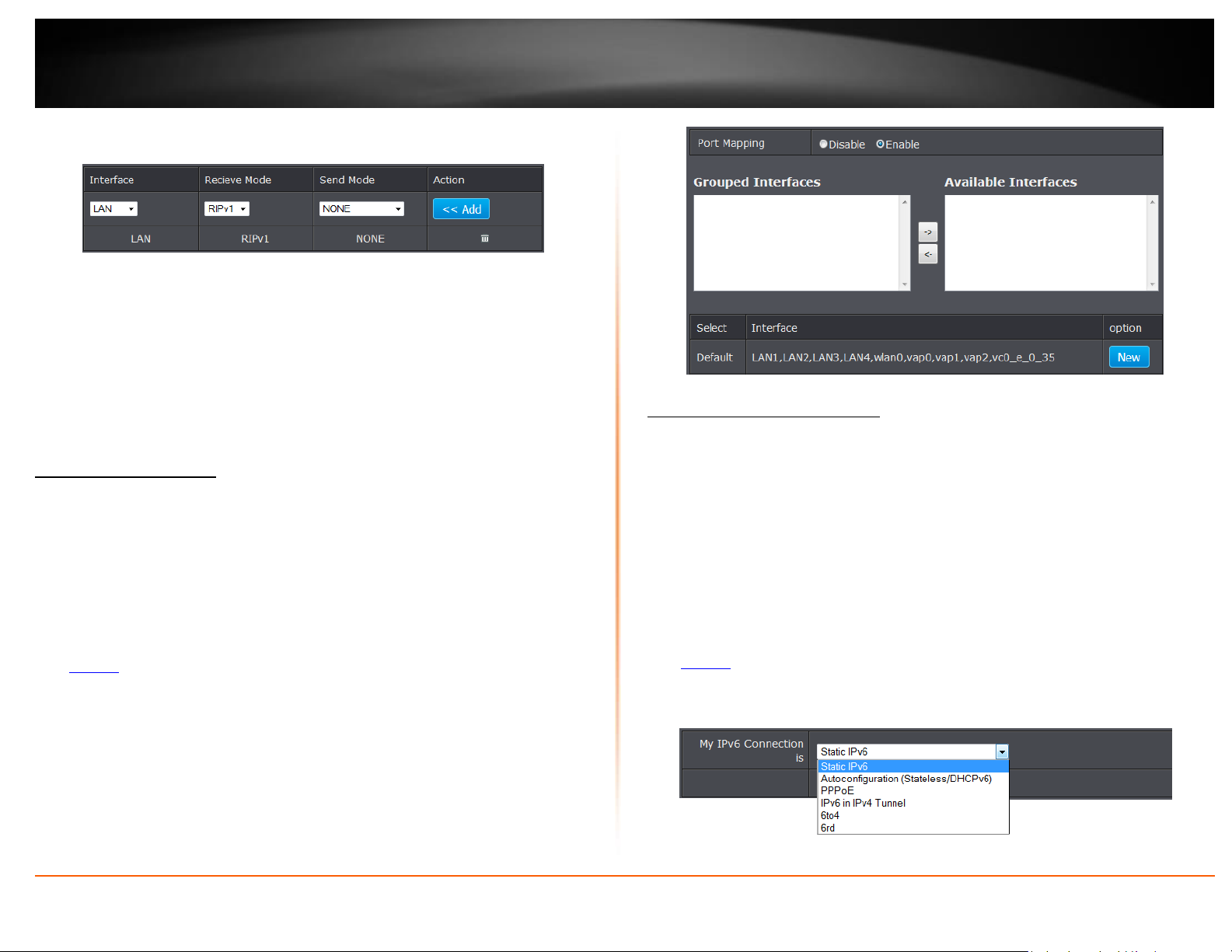

Setup Port Mapping ..................................................................................................... 41

Check the router DSL Statistics .................................................................................... 50

Setup IPv6 on your router ........................................................................................... 41

Configure ADSL settings ............................................................................................... 42

Router Maintenance & Monitoring ................................................ 42

Reset your router to factory defaults .......................................................................... 42

Router Default Settings ............................................................................................... 43

Backup and restore your router configuration settings .............................................. 44

Restart your router ...................................................................................................... 46

Check connectivity using the router management page ............................................. 46

Manage Initialization Scripts ....................................................................................... 46

Check Internet connectivity using the router management page ............................... 47

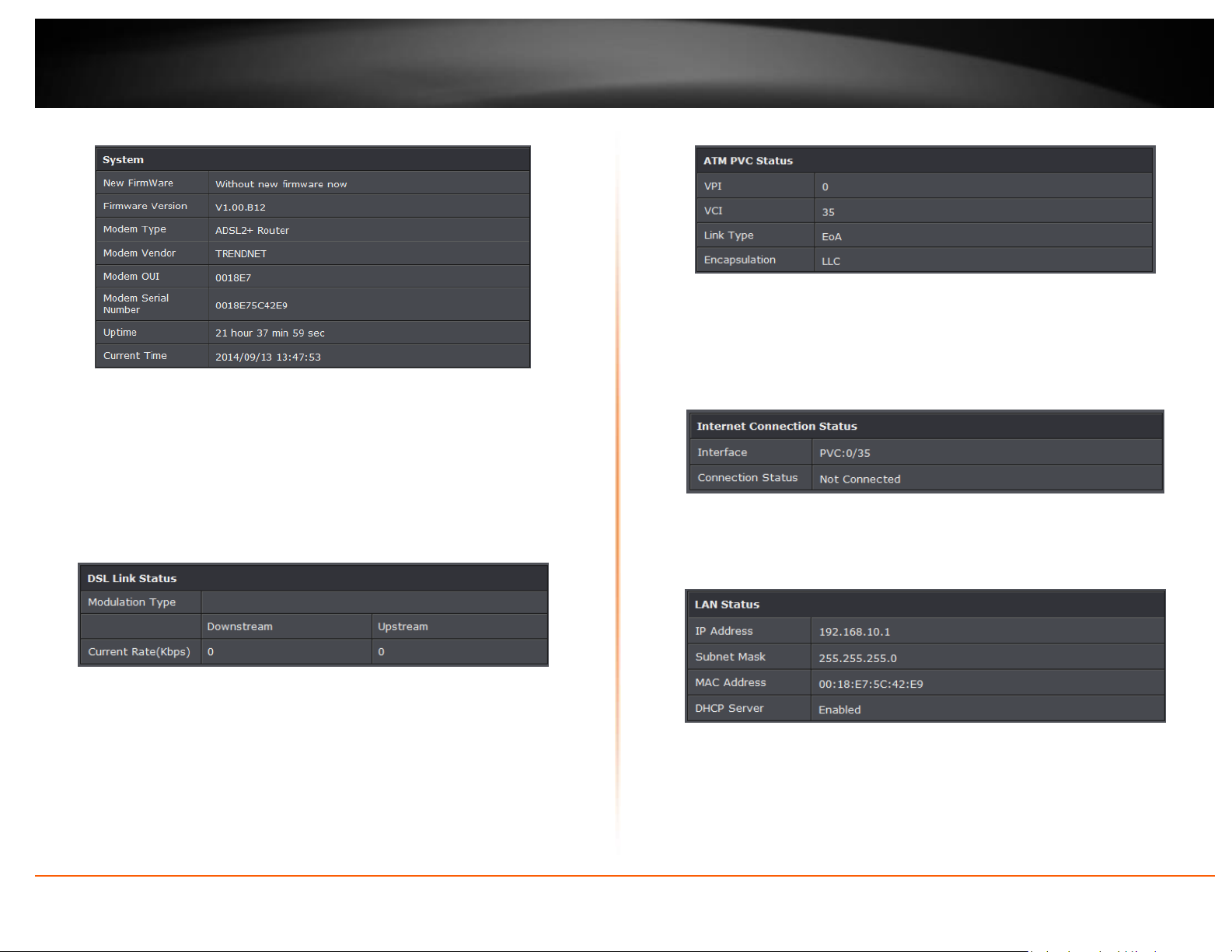

Check the router system information .......................................................................... 47

Check the router IPv6 status........................................................................................ 49

Check the router Wireless clients ................................................................................ 49

Check the router LAN clients ....................................................................................... 50

Check the router Routing Table ................................................................................... 50

Check the router Basic Statistics .................................................................................. 50

View your router log .................................................................................................... 51

View your router traffic ............................................................................................... 51

Configure your router log ............................................................................................ 52

Enable SNMP on your router ....................................................................................... 53

Enable TR-069 on your router ..................................................................................... 54

Troubleshooting ........................................................................... 55

Appendix ...................................................................................... 56

TRENDnet User’s Guide

TEW-722BRM

Product Overview

Features

TEW-722BRM

Package Contents

In addition to your router, the package includes:

 Multi-Language Quick Installation Guide  CD-ROM (User’s Guide)  Network cable (1.5m / 5ft.)  RJ-11 telephone cable (1.8m / 5ft.)  Power adapter (12V DC, 0.5A)

If any package contents are missing or damaged, please contact the retail store, online retailer, or reseller/distributor from which the product was purchased.

TRENDnet’s N300 Wireless ADSL 2+ Modem Router, model TEW-722BRM, is a combination high performance modem for Internet access and powerful wireless N300 router—well suited for medium to large size homes. The modem is compatible with most ADSL Internet service provider networks and it comes with an intuitive guided setup wizard. For your convenience the wireless network is setup and pre-encrypted out of the box.

Features

Easy Setup

Get up and running in minutes with the intuitive guided setup

Internet Service

Compatible with most ADSL 2/2+ internet service provider networks

N300 Wireless

Powerful 300 Mbps Wireless N

Wireless Coverage

Whole home wireless coverage with MIMO antenna technology for medium to large size homes

Pre-Encrypted Wireless

For your convenience the wireless network arrives pre-encrypted with its own unique password

Guest Network

Create an isolated network for guest internet access only

Wireless On/Off Button

Enable or disable the wireless network with the convenient on/off wireless button

One Touch Connection

Connect to the router at the touch of the Wi-Fi Protected Setup (WPS) button Parental Controls Control access to specific websites and manage which devices can access the router

TRENDnet User’s Guide

TEW-722BRM

ADSL

Power

Port

LAN

Ports

Reset

Button

Advanced QoS

Classify and prioritize different types of data such as video and audio transmissions

Energy Savings

Embedded GREENnet technology reduces power consumption by up to 50%

Ethernet Ports Four Ethernet ports to hardwire devices

IPv6

IPv6 network support

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

Product Hardware Features

Rear View

 On/Off Power Button: Push to power on or off router.  Power Port: Connect the included power adapter from your modem router power

port and to an available power outlet. Note: Use only the adapter that came with your router.

 LAN Ports: Connect Network cables (also called network cables) from your modem

router LAN ports to your wired network devices.

 ADSL WAN Port (RJ-11 telephone port): Connect an RJ-11 telephone cable from

your modem router ADSL WAN port to your telephone jack/DSL line.

 Reset Button: Push and hold this button for 10 seconds and release to reset your

router to its factory defaults.

TRENDnet User’s Guide

TEW-722BRM

WLAN On/Off

Button

WPS

Butto

Diagnostic LEDs

Front View

 WLAN On/Off: Press button to turn off or on wireless network.  WPS Button: Push button to activate WPS (WiFi Protected Setup) push and hold

this button for 3 seconds and release to activate WPS. Within 2 minutes, push and hold the WPS button on your wireless client device. WLAN LED indicator will blink rapidly to indicate that WPS has been activated.

 Diagnostic LEDs:

o Power LED: This LED indicator is blinks green when properly connected to a

power supply. When the device is malfunctioned LED indicator will be red.

o LAN 1-4 (Link/Activity) LEDs – These LED indicators are solid green when the LAN

ports are successfully connected to your wired network devices (which are turned on). These LED indicators will blink green while data is transmitted or received through your modem router’s LAN ports.

o Wireless WLAN (Link/Activity) LED: This LED indicator is solid green when the

wireless is “On” and functioning properly on your modem router. This LED indicator will be blinking while data is transmitted or received by your wireless clients or wireless network devices connected to your modem router. This LED indicator will be off when the wireless functionality of your modem router is disabled.

o ADSL WAN (Link/Activity) LED: This LED indicator is blinking green when the

ADSL status of the modem router is ready to establish connection to your ISP. The LED indicator will turn solid green when the modem router has been properly configured with the settings provided by your ISP and successful ADSL connection has been made to your ISP. This LED indicator will be blink while data is transmitted or received through the ADSL port of your modem router.

o Internet: This LED Indicator is solid green with valid internet connection. The LD

indicator blinks green during data transmission. If the indicator is red, this indicates invalid internet connection.

o WPS LED: This LED indicator blinks green when WPS is activated. The LED will

stop blinking and remain solid when WPS is completed. When the indicator blinks red it indicates there was no WPS device connected.

TRENDnet User’s Guide

TEW-722BRM

Application Diagram

The router is installed near the wall telephone jack/DSL line (DSL service supplied by your ISP “Internet Service Provider”) which connects to the Internet. Wireless signals from the router are broadcasted to wireless clients such as laptops (with wireless capability) thereby providing Internet access.

TRENDnet User’s Guide

TEW-722BRM

Basic Router Setup

Creating a Home Network

What is a network?

A network is a group of computers or devices that can communicate with each other. A home network of more than one computer or device also typically includes Internet access, which requires a router.

A typical home network may include multiple computers, a media player/server, a printer, a modem, and a router. A large home network may also have a switch, additional routers, access points, and many Internet-capable media devices such as TVs, game consoles, and Internet cameras.

 Modem: Connects a computer or router to the Internet or ISP (Internet Service

Provider).

Note: The TEW-722BRM is a combination DSL modem and router, therefore, you do not require a separate DSL modem from your ISP when setting up this product.

 Router: Connects multiple devices to the Internet.  Switch: Connect several wired network devices to your home network. Your router

has a built-in network switch (the LAN port 1-4). If you have more wired network devices than available Network ports on your router, you will need an additional switch to add more wired connections.

How to set up a home network

1. For a network that includes Internet access, you’ll need:

 Computers/devices with a Network port or wireless networking capabilities.  A modem and Internet service to your home, provided by your ISP (modem typically

supplied by your ISP).

 A router to connect multiple devices to the Internet.

2. Set up your router. See “How to setup your router” below.

3. To connect additional wired computers or wired network devices to your network, see “Connect additional wired devices to your network” on page 11.

4. To set up wireless networking on your router, see “Wireless Networking and Security” on page 11.

How to setup your router

Refer to the Quick Installation Guide or continue to the next section “Router Installation” on page 6 for more detailed installation instructions.

Where to find more help

In addition to this User’s Guide, you can find help below:

 http://www.trendnet.com/support

(documents, downloads, and FAQs are available from this Web page))

TRENDnet User’s Guide

TEW-722BRM

Router Installation

Before you Install

Many Internet Service Providers (ISPs) allow your router to connect to the Internet without verifying the information fields listed below. Skip this section for now and if your router cannot connect to the Internet using the standard installation process, come back to this page and contact your ISP to verify required ISP specification fields listed below.

General ADSL Parameters VCI: ____ VPI: ____ MTU: ________ Data Encapsulation (LLC/VCMux) : _________ Schedule Type (UBR/CBR/VBR/GFR): _______ VLAN Tag (If required by your ISP): _________

ADSL Connection Types:

1. Ethernet over ATM (RFC 1483 Bridged) with NAT

 1a. Obtain IP Address Automatically (Dynamic IP Address)

Host Name (Optional) ______________________ ISP registered Mac Address or Clone MAC address (Optional)___:___:___:___:___:___

 1b. Fixed IP address (Static IP Address)

WAN IP Address: _____. _____._____._____ (e.g. 215.24.24.129) WAN Subnet Mask: _____. _____._____._____ WAN Gateway IP Address: _____. _____._____._____ Primary DNS Server Address: _____. _____._____._____ Secondary DNS Server Address: _____. _____._____._____

2. IP over ATM (RFC 1483 Routed)

 2a. Obtain IP Address Automatically (Dynamic IP Address)

Host Name (Optional) ______________________ ISP registered Mac Address or Clone MAC address (Optional)___:___:___:___:___:___

 2b . Fixed IP address (Static IP Address)

3. PPP over ATM (PPPoE)

 3a. PPPoE to obtain IP automatically

Account/User Name: _________ Password: ________________

 3b. PPPoE with a fixed IP address

User Name: _________ Password: ________________ Verify Password: ________________ IP Address: ____. _____._____._____ (e.g. 215.24.24.129) Primary DNS Server Address: _____. _____._____._____ Secondary DNS Server Address: _____. _____._____._____

4. PPP over Ethernet (PPPoA)

 4a. PPPoA to obtain IP automatically

Account/User Name: _________ Password: ________________

 4b. PPPoA with a fixed IP address

TRENDnet User’s Guide

TEW-722BRM

Hardware Installation

1. Connect the detachable antenna to your modem router.

2. Connect one end of the RJ-11 telephone cable to the modem router ADSL port. Connect the other end of the RJ-11 telephone cable to the telephone jack/DSL line.

3. Using the Network cable, connect your computer to one of the four LAN ports on the modem router.

4. Connect the power adapter to the modem router and then to a power outlet.

5. Verify that the status LED indicators on the front of the modem to confirm the device is fully functional: Status (Green), ADSL (Green), WLAN (Green) and the LAN port (1,2,3,4) (Green) your computer is connected.

Setup Wizard

1. Open your web browser (e.g. Internet Explorer, Firefox, Safari, Chrome, or Opera) and go to http://192.168.10.1. Your router will prompt you for a user name and password.

2. Your router will prompt you for a user name and password. For added security, the router is preconfigured with a unique password. You can find the Password on a sticker on the side of the router and on the label on the bottom of the router.

3. Enter your Username and Password, select your preferred language, and then click Login.

TRENDnet User’s Guide

TEW-722BRM

3. The Setup Wizard will automatically appear. This section determines what method the router will use to interface with your ISP service. Select the ADSL Internet connection type provided by your ISP and click Next.

Note: If the Setup Wizard does not automatically appear, click Setup Wizard (the top button on the left tab).

Note: It is strongly recommended to contact your ISP to verify all required settings for one of the options listed on page 6. The options listed on page 6 match the settings options available to choose from

4. The Setup Wizard can automatically detect your VPI/VCI and Data Encapsulation settings of your ADSL connection. Select Auto-detect and click Next.

Note: If you encounter any issues with the Auto-Detect feature on the wizard, you

can click “Skip Scan”, and configure your ADSL connection settings manually.

5. Once the wizard detects your VPI/VCI settings you can verify if the values are correct and click Next to continue.

6. The following screen will appear next, depending the ADSL connection type you selected, you may need to enter additional information such as your PPPoE/PPPoA user name and password information provided by your ISP static IP. Enter any additional information required by your ISP for your ADSL connection and click Next.

TRENDnet User’s Guide

TEW-722BRM

7. The Summary page will allow you to quickly review the settings you applied in the Setup Wizard. Click Save to apply settings.

10. For added security, the router is pre-encrypted with its own unique wireless network security key. You can find the unique network security key and pre-assigned network name (SSID) on a sticker on the front of the router and on a label on the bottom of the router. If you would like to change the wireless settings, continue to the next page to launch the wireless setup wizard.

8. Wait for your modem router to apply the settings.

9. Click Finish to return to the router management page.

Note: If you cannot access the Internet, please verify your hardware connections and LED status and re-run the Setup Wizard to verify you have applied the correct settings.

TRENDnet User’s Guide

TEW-722BRM

Connect additional wired devices to your network

You can connect additional computers or other network enabled devices to your network by using Network cables. Connect them to one of the available LAN ports labeled 1,2,3,4 on your modem router. Check the status of the LED indicators (1, 2, 3, or

4) on the front panel of your router to ensure the physical cable connection from your computer or device.

Note: If you encounter issues connecting to your network, there may be a problem with your computer or device network settings. Please ensure that your computer or device network settings (also called TCP/IP settings) are configured to obtain IP address settings automatically (also called dynamic IP address or DHCP) and to Obtain DNS Server address settings automatically.

Wireless Networking and Security

How to choose the type of security for your wireless network

Setting up wireless security is very important. Leaving your wireless network open and unsecure could expose your entire network and personal files to outsiders. TRENDnet recommends reading through this entire section and setting up wireless security on your new router.

There are a few different wireless security types supported in wireless networking each having its own characteristics which may be more suitable for your wireless network taking into consideration compatibility, performance, as well as the security strength along with using older wireless networking hardware (also called legacy hardware).

It is strongly recommended to enable wireless security to prevent unwanted users from accessing your network and network resources (personal documents, media, etc.).

In general, it is recommended that you choose the security type with the highest strength and performance supported by the wireless computers and devices in your network. Please review the security types to determine which one you should use for your network.

Wireless Encryption Types

 WEP: Legacy encryption method supported by older 802.11b/g hardware. This is

the oldest and least secure type of wireless encryption. It is generally not recommended to use this encryption standard, however if you have old 802.11 b or

802.11g wireless adapters or computers with old embedded wireless cards(wireless clients), you may have to set your router to WEP to allow the old adapters to connect to the router. Note: This encryption standard will limit connection speeds

to 54Mbps.

 WPA: This encryption is significantly more robust than the WEP technology. Much

of the older 802.11g hardware was been upgraded (with firmware/driver upgrades) to support this encryption standard. Total wireless speeds under this encryption type however are limited to 54Mbps.

 WPA / WPA2: This setting provides the router with the ability to detect wireless

devices using either WPA or WPA2 encryption. Your wireless network will automatically change the encryption setting based on the first wireless device connected. For example, if the first wireless client that connects to your wireless

TRENDnet User’s Guide

TEW-722BRM

Security Standard

WEP

WPA

WPA2

Compatible Wireless Standards

IEEE 802.11a/b/g/n (802.11n devices will operate at

802.11g speeds)

IEEE 802.11a/b/g/n (802.11n devices will operate at

802.11g speeds)

IEEE 802.11a/b/g/n

Highest Performance Under This Setting

Up to 54Mbps

Up to 450Mbps*

Encryption Strength

Low

Medium

High

Additional Options

Open System or Shared Key, HEX or ASCII, Different key sizes

TKIP or AES, Preshared Key or RADIUS

Recommended Configuration

Open System ASCII 13 characters

TKIP Preshared Key 8-63 characters

AES Preshared Key 8-63 characters

*Dependent on the maximum 802.11n data rate supported by the device (150Mbps, 300Mbps, or 450Mbps)

network uses WPA encryption your wireless network will use WPA encryption. Only when all wireless clients disconnect to the network and a wireless client with WPA2 encryption connects your wireless network will then change to WPA2 encryption. NOTE: WPA2 encryption supports 802.11n speeds and WPA encryption will limit your connection speeds to 54Mbps

 WPA2: This is the most secure wireless encryption available today, similar to WPA

encryption but more robust. This encryption standard also supports the highest connection speeds. TRENDnet recommends setting your router to this encryption standard. If you find that one of your wireless network devices does not support WPA2 encryption, then set your router to either WPA or WPA-Auto encryption.

Note: Check the specifications of your wireless network adapters and wireless appliances to verify the highest level of encryption supported.Below is brief

comparison chart of the wireless security types and the recommended configuration depending on which type you choose for your wireless network.

Secure your wireless network

Setup > Wireless Settings

After you have determined which security type to use for your wireless network (see “How to choose the security type for your wireless network” on page 12), you can set up wireless security.

1. Log into your router management page (see “Access your router management page” on page 22).

2. Click on Setup, and click on Wireless Settings.

3. Click on the Security Mode drop-down list to select your wireless security type.

Selecting WEP:

If selecting WEP (Wired Equivalent Privacy), please review the WEP settings to configure and click Apply to save the changes.

 Authentication Type: Choose Open, Shared, or Auto.

TRENDnet User’s Guide

TEW-722BRM

WEP Key Format

HEX

ASCII

Character set

0-9 & A-F, a-f only

Alphanumeric (a,b,C,?,*, /,1,2, etc.)

64-bit key length

10 characters

5 characters

128-bit key length

26 characters

13 characters

Note: It is recommended to use Open System because it is known to be more secure than Shared Key.

 WEP Key 1-4

o Choose HEX or ASCII.

Note: It is recommended to use ASCII because of the much larger character set that can be used to create the key.

o This is where you enter the password or key needed for a computer to connect

to the router wirelessly

o You can define up to 4 passwords or 4 keys. Only one key can be active at a given

time. Most users simply define one key.

o Choose a key index 1, 2, 3, or 4 and enter the key. o When connecting to the router, the client must match both the password and

the Key number. (e.g. if you have activated Key 2 with a password of 12345, then the client must select: Key 2 (entering Key 1, 3, or 4 will block the ability to connect) and enter password 12345)

Selecting WPA-PSK, WPA-PSK / WPA2-PSK, or WPA2-PSK (WPA2-PSK recommended): If selecting WPA-PSK, WPA-PSK / WPA2-PSK, or WPA2-PSK, (Wi-Fi Protected Access Preshared Key) please review the settings to configure and click Apply to save the

changes.

First, from the Security Mode drop-down list, select WPA-PSK, WPA-PSK / WPA2-PSK, or WPA2-PSK.

o Select the Encryption type. When selecting WPA-PSK security, it is recommended

to use TKIP.

o When selecting WPA-PSK / WPA2-PSK security, it is recommended to use AES. o When selecting WPA2-PSK security, it is recommended to use AES.

Create your Wireless security preshared key (password or key):  Preshare Key: Enter the preshared key.

o This is the password or key that is used to connect your computer to this router

wirelessly

Note: 8-63 alphanumeric characters (a,b,C,?,*, /,1,2, etc.)

Then from the PSK/EAP row, select either PSK or EAP

 PSK stands for Preshared Key  EAP stands for Extensive Authentication Protocol, also called Remote Authentication

Dial-In User Service or RADIUS).

Note: EAP requires an external RADIUS server, PSK only requires you to create a passphrase.

Selecting WPA, WPA / WPA2, or WPA2: If selecting WPA, WPA / WPA2, or WPA2 (Wi-Fi Protected Access Extensible Authentication Protocol) please review the settings to configure and click Apply to save

the changes.

EAP (Extensible Authentication Protocol) is also called Remote Authentication Dial-In User Service or RADIUS. Select the Encryption Type

o When selecting WPA security, it is recommended to use TKIP. o When selecting WPA / WPA2 security, it is recommended to use AES. o When selecting WPA2 security, it is recommended to use AES.

TRENDnet User’s Guide

TEW-722BRM

Connect wireless devices using WPS

Setup > Wireless Settings > WPS Setup

WPS (Wi-Fi Protected Setup) is a feature that makes it easy to connect devices to your wireless network. If your wireless devices support WPS, you can use this feature to easily add wireless devices to your network.

Note: You will not be able to use WPS if you set the SSID Broadcast setting to Disabled.

There are two methods the WPS feature can easily connect your wireless devices to your network.

o RADIUS Server IP: Enter the IP address of the RADIUS server. (e.g. 192.168.10.250) o RADIUS Port: Enter the port your RADIUS server is configured to use for RADIUS

authentication.

Note: It is recommended to use port 1812.

o RADIUS Shared Key: Enter the shared key (or shared secret) used to authorize your

router with your RADIUS server.

Connect wireless devices to your router

A variety of wireless network devices can connect to your wireless network such as:

 Gaming Consoles  Internet enabled TVs  Network media players  Smart Phones  Wireless Laptop computers  Wireless IP cameras

Each device may have its own software utility for searching and connecting to available wireless networks, therefore, you must refer to the User’s Manual/Guide of your wireless client device to determine how to search and connect to this router’s wireless network.

See the “Appendix” on page 59 for general information on connecting to a wireless

network.

 Push Button Configuration (PBC) method

o RECOMMENDED Hardware Push Button method–with an external button located

physically on your router and on your client device

o WPS Software/Virtual Push Button - located in router management page

 PIN (Personal Identification Number) Method - located in router management page

Note: Refer to your wireless device documentation for details on the operation of WPS.

Recommended Hardware Push Button (PBC) Method

Note: it is recommended that a wireless key (passphrase or password) is created before connecting clients using the PBC method. If no wireless key is defined when connecting via PBC, the router will automatically create an encryption key that is 64 characters long. This 64 character key will then have to be used if one has to connect computers to the router using the traditional connection method.

To add a wireless device to your network, simply push the WPS button on the wireless device you are connecting(consult client device User’s Guide for length of time), then push and hold the WPS button located on your router for 3 seconds and release it. The WLAN LED on your modem router will flash rapidly indicating that the WPS setup process has been activated. (See “Product Hardware Features” on page 2) For connecting additional WPS supported devices, repeat this process for each additional device.

PBC (Software/Virtual Push Button)

Setup > Wireless Settings > WPS Setup

TRENDnet User’s Guide

TEW-722BRM

In addition to the hardware push button located physically on your router, the router management page also has push button which is a software or virtual push button you can click to activate WPS on your router.

1. Log into your router management page (see “Access your router management page” on page 22).

2. Click on Setup and click Wireless Settings, then click on the WPS Setup button at the bottom of the page.

3. To add a wireless device to your network, simply the push the WPS button on the wireless device (consult wireless device’s User’s Guide for length of time), you are connecting, then in your router management page, make sure the Config Method is set to Push Button (default setting) and click on the Trigger button at the bottom of the page.

4. Click the Config Method drop-down list and select PIN Code. Click Apply.

5. In the empty field, enter the 8-digit WPS PIN of the wireless client device you are connecting and click Trigger.

4. The WPS Status area will display status messages about the WPS process.

5. The WPS Status area will display “Configured” message to indicate that the wireless client device successfully connected using WPS.

PIN (Personal Identification Number)

Setup > Wireless Settings > WPS Setup

If your wireless device has WPS PIN (typically an 8-digit code printed on the wireless device product label or located in the wireless device wireless software utility), you can use this method.

1. Log into your router management page (see “Access your router management page” on page 22).

2. Click on Setup and click Wireless Settings, then click on the WPS Setup button at the bottom of the page.

3. Next to Config Status, click Release. The status will change to Unconfigured.

Note: You may need to initiate the WPS PIN on your wireless device first when using this method. Refer to your wireless device documentation for details on the operation of WPS.

6. The WPS Status area will display “Configured” message to indicate that the wireless client device successfully connected using WPS.

Basic wireless settings

Setup > Wireless Settings

This section outlines available management options under the Wireless Settings tab.

1. Log into your router management page (see “Access your router management page” on page 22).

2. Click on Setup, and click on Wireless Settings.

3. To save changes to this section, click Apply when finished.

TRENDnet User’s Guide

TEW-722BRM

o B only: This mode only allows devices to connect to the router using older and slow

802.11b technology (typically not recommended).

Note: Please check the specifications on your wireless devices for the highest wireless capability supported first before applying these settings. If you are unsure, it is recommended that you keep the default setting (B/G/N mixed) for the best compatibility.

 Device

o Enable turns on the wireless networking on your router (by default it is enabled). o Disable turns off wireless networking on your router.

Note: It is recommended to leave the wireless setting to Enable unless you do not plan on connecting any wireless computers or devices to your network.

 SSID: This acronym stands for Service Set Identifier and is the name of your wireless

network. It differentiates your wireless network from others around you. By default, the router broadcast TRENDnet722as the wireless network name. If you choose to change the SSID, change it to a name that you can easily remember.

 Wireless Channel: In North America, this router can broadcast on 1 of 11 Channels

(13 in Europe and other countries). Selecting the Auto option enables the router to automatically select the best Channel for wireless communication. To manually set the channel on which the router will broadcast, click the drop-down list and select the desired Channel for wireless communication. The goal is to select the Channel that is least used by neighboring wireless networks.

 Wireless Mode: Select the appropriate mode for your network.

o B/G/N mixed: Select this mode for the best compatibility. This mode allows older

802.11b and 802.11g wireless devices to connect to the router in addition to newer

802.11n devices.

o B/G mixed: This mode only allows devices to connect to the router using older and

slow 802.11b or 802.11g technology and it thereby reduces the router’s maximum speed to 54Mbps (typically not recommended).

o N only: This mode only allows newer 802.11n devices to connect to your router.

This mode does ensure the highest speed and security for your network, however if you have older 802.11g wireless clients, they will no longer be able to connect to this router.

o G only: This mode only allows devices to connect to the router using older and

slow 802.11g technology (typically not recommended).

When applying the 802.11 mode setting, please keep in mind the following:  Wireless devices that support 802.11n are backwards compatible and can connect

wirelessly at 802.11g or 802.11b.

 Connecting at 802.11b or 802.11g will limit the capability of your 802.11n supported

wireless devices from obtaining higher performance and data rates.

 Allowing 802.11b or 802.11g devices to connect to an 802.11n capable wireless

network may degrade the wireless network performance below the higher performance and data rates of 802.11n.

 Wireless devices that only support 802.11b or 802.11g will not be able to connect to

a wireless network that is set to 802.11n only mode.

 Wireless devices that only support 802.11b will not be able to connect to a wireless

network that is set to 802.11g only mode.

Guest Network

Setup > Wireless Settings

This section outlines available management options under the Wireless Settings tab.

1. Log into your router management page (see “Access your router management page” on page 22).

2. Click on Setup, and click on Guest Network.

3. To save changes to this section, click Apply when finished.

TRENDnet User’s Guide

TEW-722BRM

 Radio On/Off: Select to enable wireless guest network.  Name (SSID): Enter the wireless name or SSID of your guest network.  Security Mode: Select the wireless security or encryption of your guest network.

Steps to improve wireless connectivity

There are a number of factors that can impact the range of wireless devices. Follow these tips to help improve your wireless connectivity:

1. Keep the number of obstructions to a minimum. Each obstruction can reduce the

range of a wireless device. Position the wireless devices in a manner that will minimize the amount of obstructions between them.

a. For the widest coverage area, install your router near the center of your home,

and near the ceiling, if possible.

b. Avoid placing the router on or near metal objects (such as file cabinets and metal

furniture), reflective surfaces (such as glass or mirrors), and masonry walls.

c. Any obstruction can weaken the wireless signal (even non-metallic objects), so

the fewer obstructions between the router and the wireless device, the better.

d. Place the router in a location away from other electronics, motors, and

fluorescent lighting.

e. Many environmental variables can affect the router’s performance, so if your

wireless signal is weak, place the router in several locations and test the signal strength to determine the ideal position.

2. Building materials can have a large impact on your wireless signal. In an indoor

environment, try to position the wireless devices so that the signal passes through less dense material such as dry wall. Dense materials like metal, solid wood, glass or even furniture may block or degrade the signal.

3. Antenna orientation can also have a large impact on your wireless signal. Use the

wireless adapter’s site survey tool to determine the best antenna orientation for your wireless devices.

4. Interference from devices that produce RF (radio frequency) noise can also impact

your signal. Position your wireless devices away from anything that generates RF noise, such as microwaves, radios and baby monitors.

If possible, upgrade wireless network interfaces (such as wireless cards in computers) from older wireless standards to 802.11n. If a wirelessly networked device uses an older standard, the performance of the entire wireless network may be slower. If you are still experiencing low or no signal consider repositioning the wireless devices or installing additional access points.

TRENDnet User’s Guide

TEW-722BRM

Advanced wireless settings

Setup > Wireless Settings

The advanced wireless features can provide you with additional options for setting up your wireless network such as multiple SSID, activate/deactivate wireless according to schedule, and operation modes such as WDS (Wireless Distribution System) bridging or wireless bridging.

Multiple SSID

Setup > Wireless Settings

The multiple SSID feature allows you to broadcast up to two additional SSIDs (or wireless network names). To wireless devices searching for available wireless networks to connect to, the SSIDs (or wireless network names) will appear as separate and different wireless networks. Since they appear as separate wireless networks, they are also referred to as virtual APs (Access Points). Each virtual AP can be configured each with a different SSID (or wireless network name), security type and additional settings for wireless devices to connect. You can use the multiple SSID feature to setup guest wireless accounts with a different security type to keep your primary wireless network security information private. In addition, the SSIDs can be mapped to a specified VLAN ID. See the VLAN section for instructions on assigning VLAN IDs to the SSIDs.

1. Log into your router management page (see “Access your router management page” on page 22).

2. Click on Advanced, and click on MBSSID.

3. Review the settings and click Apply to save settings.

 BSSID: MAC address of the SSID  SSID Advertise: Select to broadcast SSID.

4. See section Secure your wireless network to configure wireless security settings.

Additional Wireless Settings

Advanced > Advanced Wireless

These settings are advanced options that can be configured to change advanced wireless broadcast specifications. It is recommended that these settings remain set to their default values unless you are knowledgeable about the effects of changing these values. Changing these settings incorrectly can degrade performance.

1. Log into your router management page (see “Access your router management page” on page 22).

2. Click on Advanced, and click on Advanced Wireless. Click Apply to save settings.

 Enable: Check box to enable SSID  SSID (VAP): Enter the SSID you would like to apply.

 SSID Advertise: Select enable to broadcast the SSID or wireless network name.

+ 44 hidden pages
