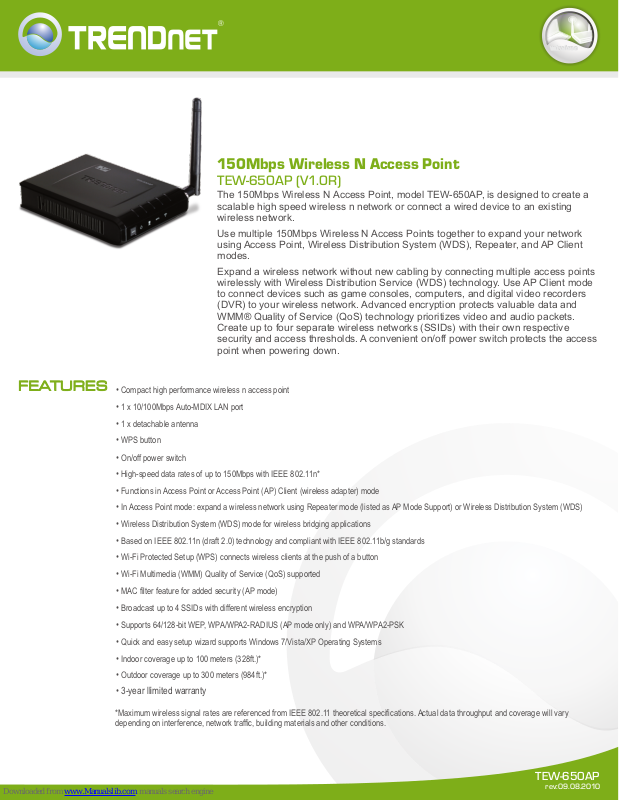

TRENDnet TEW-650AP - DATA SHEETS Datasheet
wireless
150Mbps Wireless N Access Point
TEW-650AP (V1.0R)
The 150Mbps Wireless N Access Point, model TEW-650AP, is designed to create a
scalable high speed wireless n network or connect a wired device to an existing
wireless network.
Use multiple 150Mbps Wireless N Access Points together to expand your network
using Access Point, Wireless Distribution System (WDS), Repeater, and AP Client
modes.
Expand a wireless network without new cabling by connecting multiple access points
wirelessly with Wireless Distribution Service (WDS) technology. Use AP Client mode
to connect devices such as game consoles, computers, and digital video recorders
(DVR) to your wireless network. Advanced encryption protects valuable data and
WMM® Quality of Service (QoS) technology prioritizes video and audio packets.
Create up to four separate wireless networks (SSIDs) with their own respective
security and access thresholds. A convenient on/off power switch protects the access
point when powering down.
FEATURES
• Compact high performance wireless n access point
• 1 x 10/100Mbps Auto-MDIX LAN port
• 1 x detachable antenna
• WPS button
• On/off power switch
• High-speed data rates of up to 150Mbps with IEEE 802.11n*
• Functions in Access Point or Access Point (AP) Client (wireless adapter) mode
• In Access Point mode: expand a wireless network using Repeater mode (listed as AP Mode Support) or Wireless Distribution System (WDS)
• Wireless Distribution System (WDS) mode for wireless bridging applications
• Based on IEEE 802.11n (draft 2.0) technology and compliant with IEEE 802.11b/g standards
• Wi-Fi Protected Setup (WPS) connects wireless clients at the push of a button
• Wi-Fi Multimedia (WMM) Quality of Service (QoS) supported
• MAC filter feature for added security (AP mode)
• Broadcast up to 4 SSIDs with different wireless encryption
• Supports 64/128-bit WEP, WPA/WPA2-RADIUS (AP mode only) and WPA/WPA2-PSK
• Quick and easy setup wizard supports Windows 7/Vista/XP Operating Systems
• Indoor coverage up to 100 meters (328ft.)*
• Outdoor coverage up to 300 meters (984ft.)*
• 3-year llimited warranty
*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary
depending on interference, network traffic, building materials and other conditions.
TEW-650AP
rev:09.08.2010
150Mbps Wireless N Access Point
TEW-650AP (V1.0R)
SPECIFICATIONS
Hardware
Standards
Interface
LED Indicator
Buttons
Power Supply
Dimensions (LxWxH)
Weight
Temperature
Humidity
Wireless
Modulation
• IEEE 802.11n draft 2.0, IEEE 802.11b, IEEE 802.11g, and 802.11e
• 1 x 10/100Mbps Auto-MDIX LAN port
• Power, LAN, WPS, and Wireless
• Reset button – restores factory default settings
• 12 V DC 0.5A external power adapter
• 119 x 25 x 85 mm (4.6 x 1.0 x 3.3 in.)
• 113.4 g (4 oz)
• Operating: 0° ~ 40° C (32° ~ 104° F); Storage: -20° ~ 60° C (-4° ~ 140° F)
• Max. 90% non-condensing
• 802.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM
• 802.11g: OFDM with BPSK, QPSK and 16/64-QAM sub-Carrier
• 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps) modulations
• WPS button- enables WPS function
WDS
Repeater Mode
Antenna
Frequency
Media Access Protocol
Data Rate (auto fallback)
Output Power
Receiving Sensitivity
Encryption
Channels
• Enable/disable Wireless Distribution System support
• Enable/disable Repeater Mode Support
• 1 x 2dBi detachable antenna
• 2.412 - 2.462 GHz (North America)
• IEEE 802.11
• 802.11n: up to 150Mbps
• 802.11g: up to 54Mbps
• 802.11b: up to 11Mbps
• 802.11n: 11dBm (typical) @ 150Mbps
• 802.11g: 15dBm (typical) @ 54Mbps
• 802.11b: 18dBm (typical) @ 11Mbps
• 802.11a: -70dBm (typical)
• 802.11b: -87dBm (typical)
• 802.11g: -70dBm (typical)
• 802.11n: -64dBm (typical)
• 64/128-bit WEP (HEX & ASCII), WPA/WPA2 RADIUS (AP mode only), WPA/WPA2-PSK
• 1~ 11 (FCC), 1~13 (ETSI)
• Enable/disable AP Mode Support
• 2.412 - 2.472 GHz (Europe)
*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on
interference, network traffic, building materials and other conditions.
TEW-650AP
rev:09.08.2010
