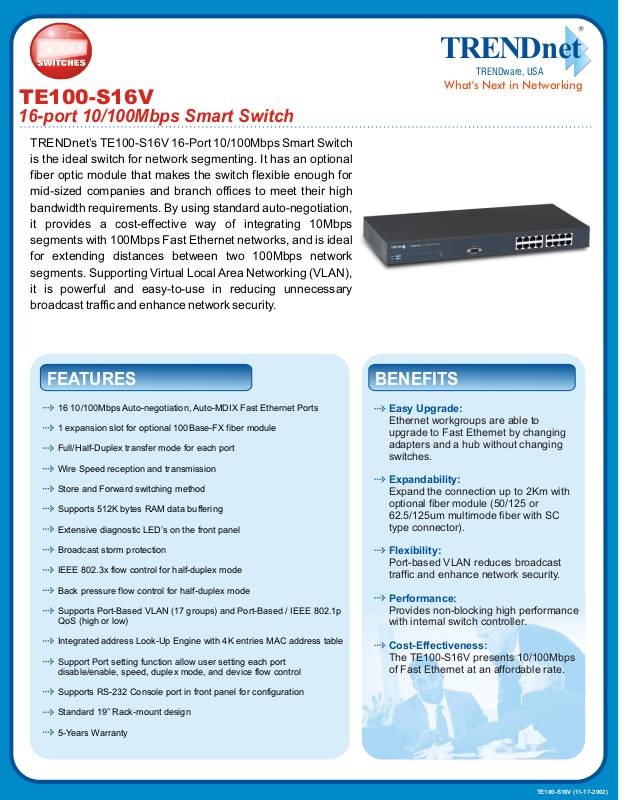

Trendnet TE100-S16V Datasheet
TRENDnet
TRENDware, USA
What's Next in Networking
TE100-S16V
16-port 10/100Mbps Smart Switch
TRENDnet’s TE100-S16V 16-Port 10/100Mbps Smart Switch is the ideal switch for network segmenting. It has an optional fiber optic module that makes the switch flexible enough for mid-sized companies and branch offices to meet their high bandwidth requirements. By using standard auto-negotiation, it provides a cost-effective way of integrating 10Mbps segments with 100Mbps Fast Ethernet networks, and is ideal for extending distances between two 100Mbps network segments. Supporting Virtual Local Area Networking (VLAN), it is powerful and easy-to-use in reducing unnecessary broadcast traffic and enhance network security.
FEATURES
16 10/100Mbps Auto-negotiation, Auto-MDIX Fast Ethernet Ports
1 expansion slot for optional 100Base-FX fiber module
Full/Half-Duplex transfer mode for each port
Wire Speed reception and transmission
Store and Forward switching method
Supports 512K bytes RAM data buffering
Extensive diagnostic LED’s on the front panel
Broadcast storm protection
IEEE 802.3x flow control for half-duplex mode
Back pressure flow control for half-duplex mode
Supports Port-Based VLAN (17 groups) and Port-Based / IEEE 802.1p QoS (high or low)
Integrated address Look-Up Engine with 4K entries MAC address table
Support Port setting function allow user setting each port disable/enable, speed, duplex mode, and device flow control
Supports RS-232 Console port in front panel for configuration
Standard 19” Rack-mount design
5-Years Warranty
BENEFITS
Easy Upgrade:
Ethernet workgroups are able to upgrade to Fast Ethernet by changing adapters and a hub without changing switches.
Expandability:
Expand the connection up to 2Km with optional fiber module (50/125 or 62.5/125um multimode fiber with SC type connector).
Flexibility:
Port-based VLAN reduces broadcast traffic and enhance network security.
Performance:
Provides non-blocking high performance with internal switch controller.
Cost-Effectiveness:
The TE100-S16V presents 10/100Mbps of Fast Ethernet at an affordable rate.
TE100-S16V (11-17-2002)
TE100-S16V
16-port 10//100Mbps Smart Swiitch
SPECIFICATIONS
LAN Standards: |
Data Transfer Rate: |
Humidity: |
• IEEE 802.3 10Base-T, IEEE 802.3u |
• Ethernet: 10/20Mbps – Half/Full-Duplex |
• 10% ~ 90% (no-condensing) |
100Base-TX, 100Base-FX |
• Fast Ethernet: 100/200Mbps – |
Emission: |
Network Media: |
Half/Full Duplex |
|
Diagnostic LEDs: |
• FCC Class A, CE Mark A, VCCI-A |
|
• Ethernet: UTP/STP Cat. 3, 4, 5Fast |
|
|
• Ethernet: UTP/STP Cat. 5Fiber |
• Per Unit: Power, System, |
|
• Module: 50/125 or 62.5/125um |
• Per Port: |
|
multimode fiber |
TX: Link/Activity, Speed, |
|
Protocol: |
FX: Link/Activity. FDX |
|
Power Consumption: |
|
|
• CSMA/CD |
|
|
Topology: |
• 12 Watts. Max |
|
Dimensions: |
|
|
• Star |
|
|
|
• 440 x 200 x 44 mm |
|
LAN Port: |
• (17.32 x 7.87 x 1.73 inches) |
|
• 16 x 10/100Mbps Auto-MDIX ports, |
• (W x H x D) |
|
• 1 expansion slot for 100Base-FX |
Temperature: |
|
fiber module |
|
|
|
• Operating: 0° ~ 40°C (32° ~ 104°F) |
|
Address Table: |
• Storage: -10° ~ 70°C (14° ~ 158°F) |
|
• 4K entries per device |
|
|
NETWORKING SOLUTIONS PRODUCT INFORMATION
TE100-S16V
16-Port 10/100Mbps Smart Switch
TE100-S24V
24-Port 10/100Mbps Smart Switch
|
ORDERING INFORMATION |
||
|
TRENDware International, Inc. |
||
|
3135 Kashiwa Street |
|
|
|
Torrance, CA. 90505. USA |
|
|
To Order Please Call: |
Tel: 310-891-1100 |
R |
|
TRENDnet |
|||
Fax: 310-891-1111 |
|||
1-888-326-6061 |
Web: www.TRENDNET.com |
TRENDware, USA |
|
Email: sales@trendware.com |
|||
|
|||
TRENDnet is a registered treademark of TRENDware International, Inc. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDware products and is subject to change at any time, without notice. For the most recent product information please visit http://www.TRENDNET.com.
Copyright © TRENDware International, Inc. 2004. All Rights Reserved.
