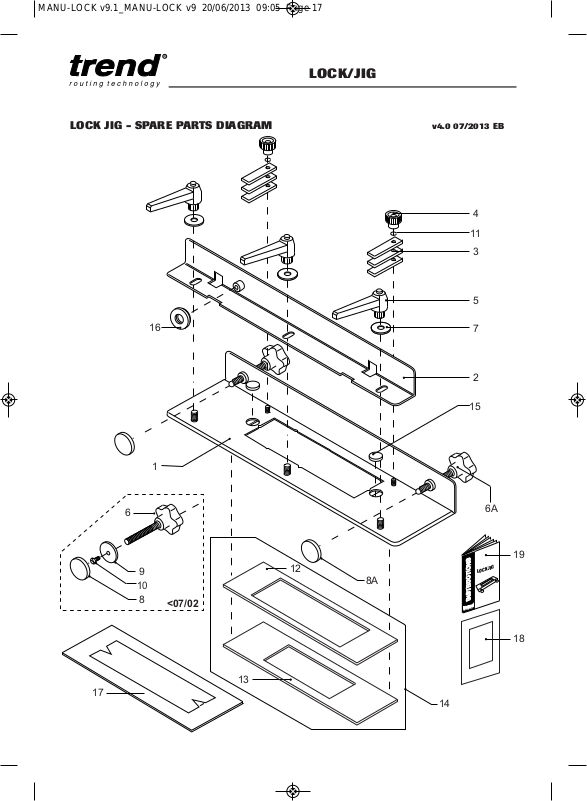

LOCK JIG - SPARE PARTS DIAGRAM v4.0 07/2013 EB

LOCK/JIG

LOCK JIG - SPARE PARTS LIST v4.0 07/2013 EB

No. Qty. Desc. Ref.

11Lock Jig Body WP-LOCK/01
21Clamp Bar WP-LOCK/02
36Spacer Finger WP-LOCK/03
42Mini Knob 15mm Female M5 x 15mm WP-LOCK/04
53Adjustable Lever Female M8 WP-LOCK/05
62Lobe Knob Male M10 x 40mm Tapped <07/02 WP-LOCK/06

6A 2 Lobe Knob Male M10 x 40mm Ball End >07/02 WP-LOCK/06A

73Washer 8.5mm x 25mm x 1.5mm <07/02 WP-WASH/17
82Plastic Cap 35mm Dia Black <07/02 WP-LOCK/08

8A 2 Plastic Cap Ball End >07/02 WP-LOCK/08A

92Lobe Knob Foot <07/02 WP-LOCK/09

10 2 Machine Screw Csk M4 x 10mm Pozi <07/02 WP-SCW/69

11 2 Spring Washer M5 WP-WASH/29

12 1 Mortise Template A (34 x 97mm) WP-LOCK/T/A

1 Mortise Template B (34 x 132mm) WP-LOCK/T/B
1 Mortise Template C (37 x 104mm) WP-LOCK/T/C
1 Mortise Template D (37 x 134mm) WP-LOCK/T/D

13 1 Face Plate Template 1 (40.4 x 174mm) WP-LOCK/T/1

1 Face Plate Template 2 (40.7 x 170.5mm) WP-LOCK/T/2
1 Face Plate Template 3 (43.6 x 139mm) WP-LOCK/T/3
1 Face Plate Template 4 (43.6 x 145mm) WP-LOCK/T/4
1 Face Plate Template 5 (43.6 x 151.5mm) WP-LOCK/T/5
1 Face Plate Template 6 (43.6 x 163mm) WP-LOCK/T/6
1 Face Plate Template 7 (43.6 x 171mm) WP-LOCK/T/7
1 Face Plate Template 8 (43.6 x 174mm) WP-LOCK/T/8
1 Face Plate Template 9 (43.6 x 183.5mm) WP-LOCK/T/9
1 Face Plate Template 10 (43.6 x 195mm) WP-LOCK/T/10
1 Face Plate Template 11 Latch WP-LOCK/T/11

1 Face Plate Template 12 (44.2 x 180mm) WP-LOCK/T/12
14 1 Template Set (16pcs) WP-LOCK/T/SET
15 1 Magnet 15mm x 3mm (4 Pack) MAG/PACK/1
16 1 Guide Bush Collar 16mm to 30mm GB/COLL/1630
17 1 Line up Template WP-LOCK/T/LUP
18 1 Look-up Chart LEAF/LC/LOCK
19 1 Manual MANU/LOCK
