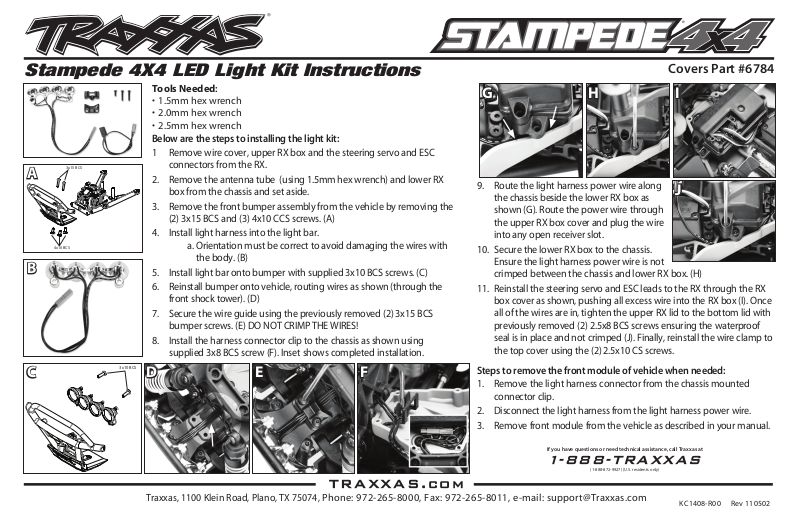

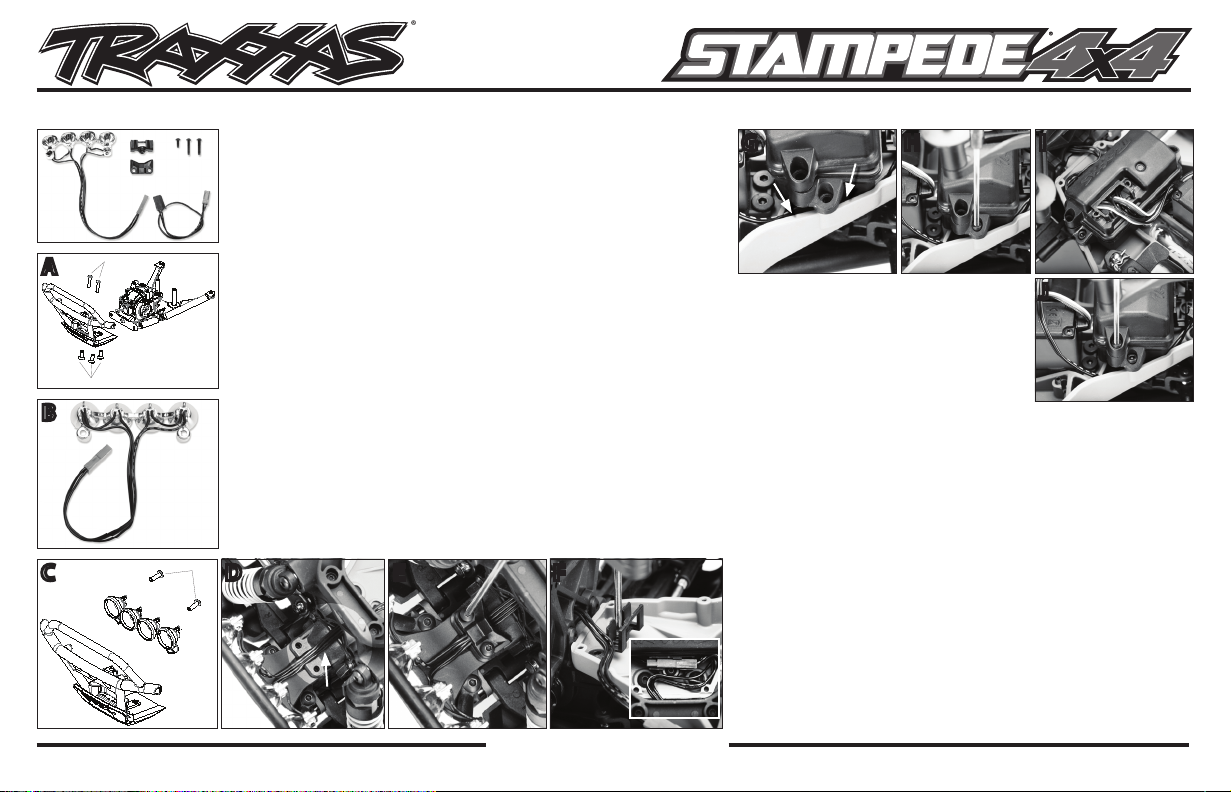

Stampede 4X4 LED Light Kit Instructions
Tools Needed:
• 1.5mm hex wrench
• 2.0mm hex wrench
• 2.5mm hex wrench
Below are the steps to installing the light kit:
1 Remove wire cover, upper RX box and the steering servo and ESC
A
3x15 BCS
4x10 BCS
B
C
3x10 BCS
connectors from the RX.
2. Remove the antenna tube (using 1.5mm hex wrench) and lower RX
box from the chassis and set aside.
3. Remove the front bumper assembly from the vehicle by removing the
(2) 3x15 BCS and (3) 4x10 CCS screws. (A)
4. Install light harness into the light bar.
a. Orientation must be correct to avoid damaging the wires with
the body. (B)
5. Install light bar onto bumper with supplied 3x10 BCS screws. (C)
6. Reinstall bumper onto vehicle, routing wires as shown (through the
front shock tower). (D)
7. Secure the wire guide using the previously removed (2) 3x15 BCS
bumper screws. (E) DO NOT CRIMP THE WIRES!
8. Install the harness connector clip to the chassis as shown using
supplied 3x8 BCS screw (F). Inset shows completed installation.
D
Traxxas, 1100 Klein Road, Plano, TX 75074,
E
G
9. Route the light harness power wire along
the chassis beside the lower RX box as
shown (G). Route the power wire through
the upper RX box cover and plug the wire
into any open receiver slot.
10. Secure the lower RX box to the chassis.
Ensure the light harness power wire is not
crimped between the chassis and lower RX box. (H)
11. Reinstall the steering servo and ESC leads to the RX through the RX
box cover as shown, pushing all excess wire into the RX box (I). Once
all of the wires are in, tighten the upper RX lid to the bottom lid with
previously removed (2) 2.5x8 BCS screws ensuring the waterproof
seal is in place and not crimped (J). Finally, reinstall the wire clamp to
the top cover using the (2) 2.5x10 CS screws.
F
Steps to remove the front module of vehicle when needed:
1. Remove the light harness connector from the chassis mounted
connector clip.
2. Disconnect the light harness from the light harness power wire.
3. Remove front module from the vehicle as described in your manual.
If you have questions or need technical assistance, call Traxxas at
1-888-TRAXXAS
H
(1-888-872-9927) (U.S. residents only)
TRAXXAS.com
Phone: 972-265-8000, Fax: 972-265-8011, e-mail: [email protected]
Covers Part #6784
I
J
KC1408-R00 Rev 110502
