Traveler DC-8600 User Guide

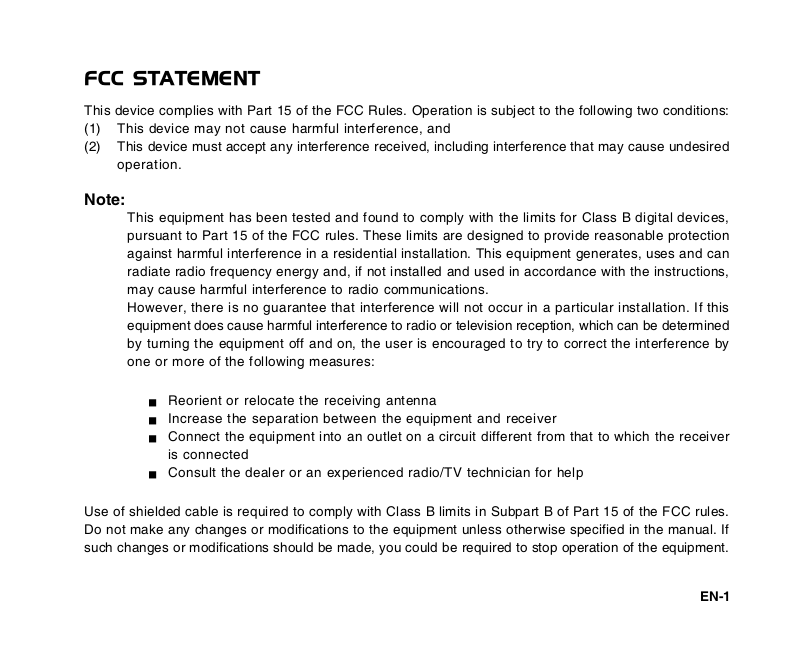

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired

operation.

Note:

This equipment has been tested and found to comply with the limits for Class B digital devices,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:

J Reorient or relocate the receiving antenna
J Increase the separation between the equipment and receiver
J Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected

J Consult the dealer or an experienced radio/TV technician for help

Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If
such changes or modifications should be made, you could be required to stop operation of the equipment.

EN-1

TRADEMARK INFORMATION

J Microsoft
J Pentium
J Macintosh is a trademark of Apple Computer, Inc.
J SD
J Other names and products may be trademarks or registered trademarks of their respective owners.

READ THIS FIRST

Notice:

1. Product design and specifications are subject to change without notice. This includes primary
product specifications, software, software drivers, and user’s manual. This User Manual is a
general reference guide for the product.

2. The product and accessories that come with your camera may be different from those described in
this manual. This is due to the fact that different retailers often specify slightly different product
inclusions and accessories to suit their market requirements, customer demographics, and geographical
preferences. Products very often vary between retailers especially with accessories such as batteries,
chargers, AC adapters, memory cards, cables, pouches, and language support. Occasionally a
retailer will specify a unique product color, appearance, and internal memory capacity. Contact your
dealer for precise product definition and included accessories.

3. The illustrations in this manual are for the purpose of explanation and may differ from the actual
design of your camera.

4. The manufacturer assumes no liability for any errors or discrepancies in this user manual.

EN-2

®

and Windows® are U.S. registered trademarks of Microsoft Corporation.

®

is a registered trademark of Intel Corporation.

TM

is a trademark.

Safety Instructions

Read and understand all Warnings and Cautions before using this product.

WARNING

During the course of a thunderstorm, please do not operate the camera or use its AC­Adaptor.
If foreign objects or water have entered the camera, turn the power OFF and remove the
battery and the AC power adapter

Continued use in this state might cause fire or electric shock. Consult the store of purchase.

If the camera has fallen or its case has been damaged, turn the power OFF and remove
the battery and the AC power adapter.

Continued use in this state might cause fire or electric shock. Consult the store of purchase.

Do not disassemble, change or repair the camera.

This might cause fire or electric shock. For repair or internal inspection, ask the store of
purchase.
Use the specified AC power adapter only with the indicated power supply voltage.
Use with any other power supply voltage might cause fire or electric shock.

Do not use the camera in areas near water.

This might cause fire or electric shock. Take special care during rain, snow, on the beach, or
near the shore.

Do not place the camera on inclined or unstable surfaces.

This might cause the camera to fall or tilt over, causing injury.

Keep the battery out of the reach of children.

Swallowing battery might cause poisoning. If the battery is accidentally swallowed, immediately
consult a physician.

Do not use the camera while you are walking, driving or riding a vehicle.

This might cause you to fall over or result in traffic accident.

EN-3

CAUTION

Insert the battery paying careful attention to the polarity (+ or –) of the terminals.

Inserting the battery with its polarities inverted might cause fire and injury, or damage to the
surrounding areas due to the battery rupturing or leaking.

Do not fire the flash close to anyone’s eyes.

This might cause damage to the person’s eyesight.

Do not subject the LCD monitor to impact.

This might damage the glass on the screen or cause the internal fluid to leak. If the internal fluid
enters your eyes or comes into contact with your body or clothes, rinse with fresh water. If the
internal fluid has entered your eyes, consult a physician to receive treatment.

A camera is a precision instrument. Do not drop it, strike it or use excessive force when
handling the camera.

This might cause damage to the camera.

Do not use the camera in humid, steamy, smoky, or dusty places.

This might cause fire or electric shock.

Do not remove the battery immediately after long period of continuous use.

The battery becomes hot during use. Touching a hot battery might cause burns.

Do not wrap the camera or place it in cloth or blankets.

This might cause heat to build up and deform the case, resulting in fire. Use the camera in a well­ventilated place.

Do not leave the camera in places where the temperature may rise significantly, such as
inside a car.

This might adversely affect the case or the parts inside, resulting in fire.

Before you move the camera, disconnect cords and cables.

Failure to do this might damage cords and cables, resulting in fire and electric shock.

EN-4

Notes on Battery Usage

When you use the battery, carefully read and strictly observe the Safety Instructions and the notes
described below:

J Use only the specified battery (1050mAh, 3.7V).
J Avoid using the battery in extremely cold environments as low temperatures can shorten the battery

life and reduce camera performance.

J When you are using the new rechargeable battery or rechargeable battery that has not been used

for an extended period of time (the battery that passed the expiry date is an exception) might affect
the number of images that can be captured. Therefore, to maximize its performance and lifetime, we
recommend that you fully charge the battery and discharge it for at least one complete cycle before
use.

J The battery may feel warm after long period of continuous use of the camera or the flash. This is

normal and not a malfunction.

J The camera may feel warm after long period of continuous use. This is normal and not a malfunction.
J If the battery is not to be used for a long period of time, remove it from the camera to prevent leakage

or corrosion.

J If the battery is not to be used for a long period of time, store it after no battery power left. If the

battery is stored for a long time in a fully charged state, its performance may be impaired.

J Always keep the battery terminals clean.
J Risk of explosion if battery is replaced by an incorrect type.
J Dispose of used batteries according to the instructions.
J We recommend the battery should be charged for 8 hours at its first use.

EN-5

CONTENT

8 INTRODUCTION

8 Overview

10 Package Contents

11 GETTING TO KNOW THE CAMERA

11 Front View

12 Rear View

15 Status LED Indicator

16 LCD Monitor Icons

20 GETTING STARTED

20 Attaching the Camera Strap

20 Inserting and Removing the Battery

21 Using the Docking Station

23 Using the Car Adapter

24 Charging the Battery

25 Using an AC Power Adapter

25 Inserting and Removing an SD Memory Card

26 Turning the Power On/Off

27 Setting the Date and Time

28 Choosing the Display Language

29 Formatting an SD Memory Card or Internal Memory

30 Setting Image Resolution and Quality

33 PHOTOGRAPHY MODE

33 [ ] Auto Mode

34 Recording Voice Memos

EN-6

35 Using the Optical Zoom

36 Using the Digital Zoom

37 Setting the Flash

40 Setting the Focus

41 Setting the Self-timer

42 Exposure Compensation/Backlight Correction

43 [SCN] Scene Mode

45 [P] Program (Automatic Exposure) Photography

Mode

46 [Tv] Shutter Speed Priority Photography Mode

47 [Av] Aperture Priority Mode

48 [M] Manual Mode

49 [

] User Setting Mode

49 [

] Video Mode

] Panorama Mode

50 [

] Anti-Shake Mode

50 [

51 Recording a Subject onto an Existing

Background Image (Pre-Shot)

53 Combining Shots of Two People into a Single

Image (Coupling Shot)

54 [ ] PLAYBACK MODE

54 Playing Back Still Images

55 Playing Back Video Clips

56 Playing Back Still Images/Video Clips on a TV

57 Attaching Voice Memos

58 Thumbnail Display

59 Zoom Playback

60 Slideshow Display

61 Protecting Images

63 DPOF Settings

65 Copying Files from Internal Memory to a Memory

Card

66 Changing Start Up Screen

] Deleting Images

68 [

71 MENU OPTIONS

71 Photography Menu (Capture tab)

74 Photography Menu (Function tab)

76 Photography Menu (AE/AWB tab)

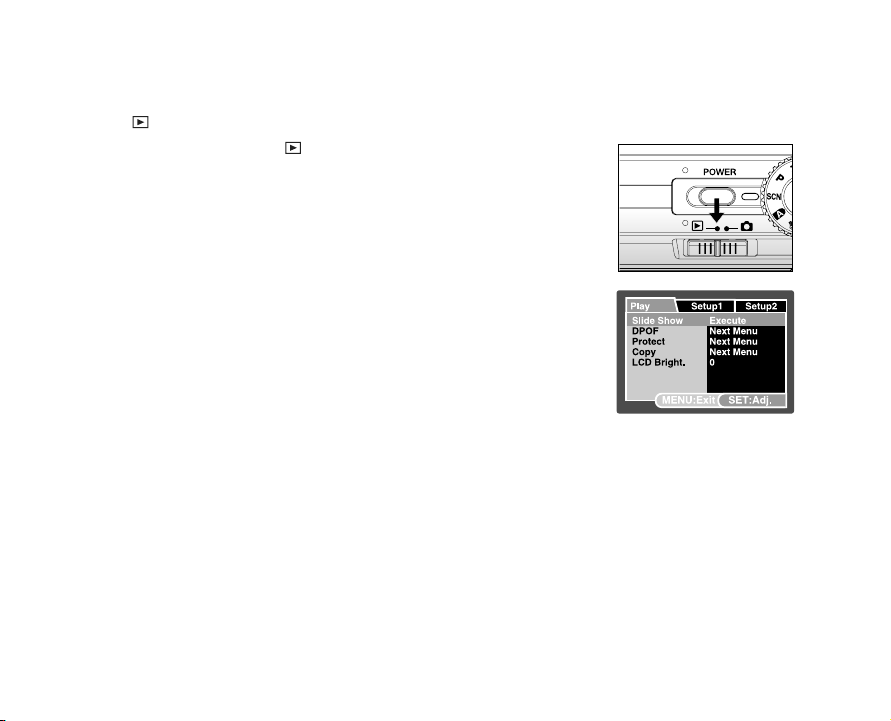

78 Playback Menu

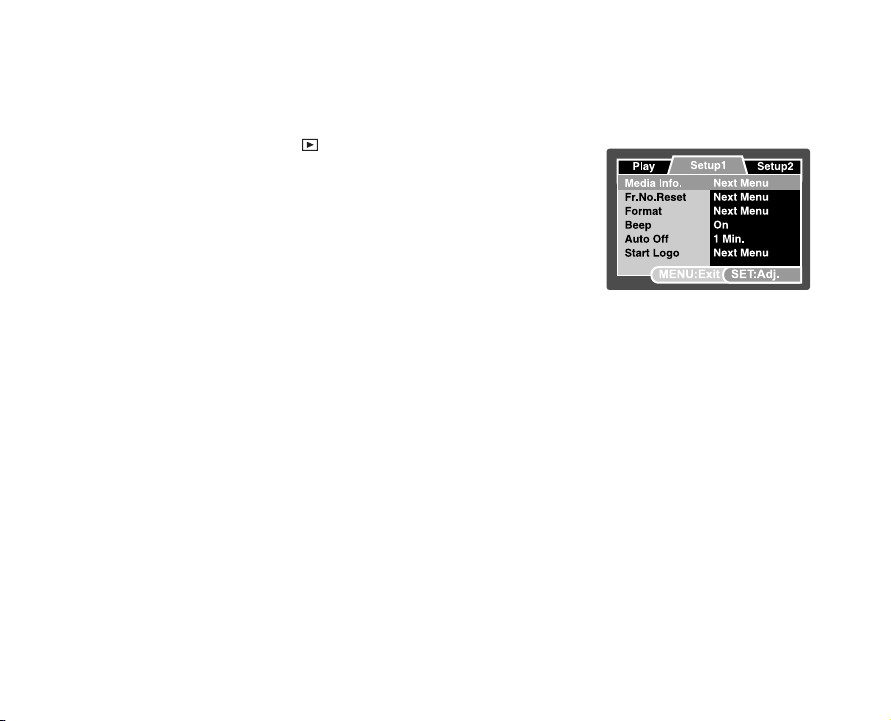

79 Setup1 Menu

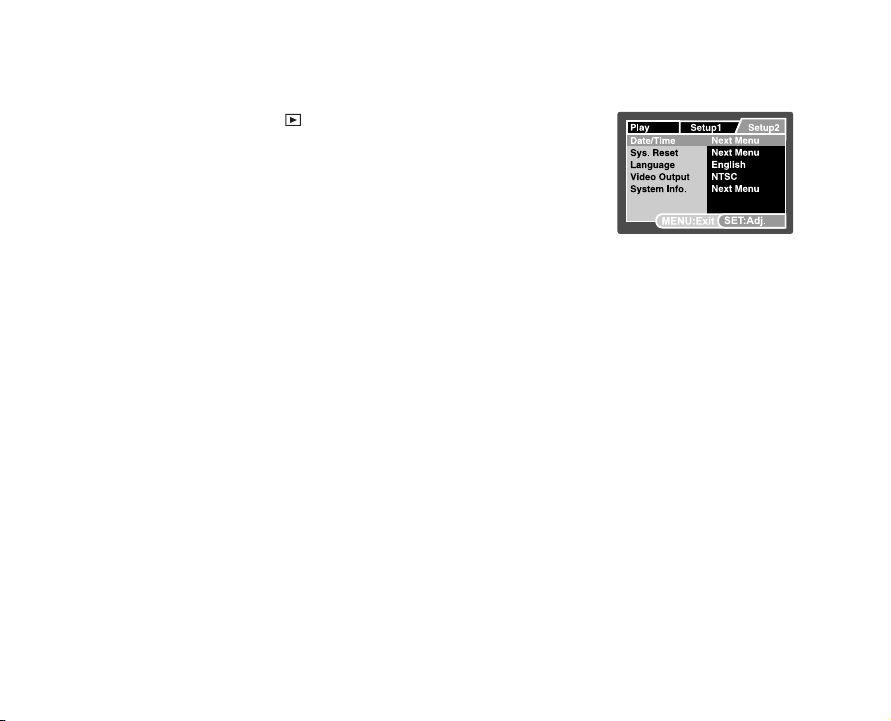

80 Setup2 Menu

81 TRANSFERRING RECORDED IMAGES AND

VIDEOS TO YOUR COMPUTER

82 Step 1: Installing the USB Driver

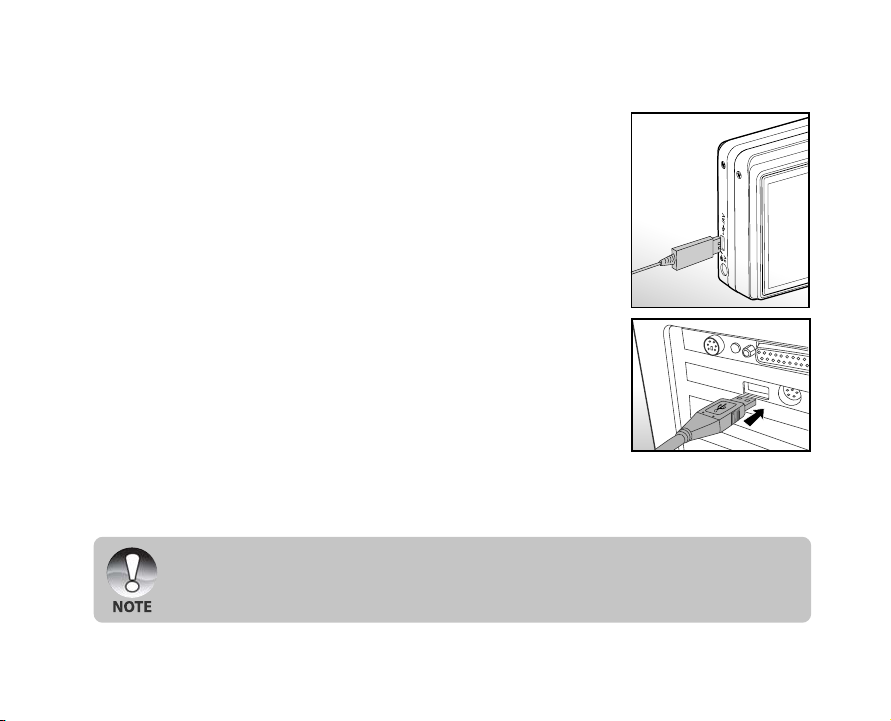

83 Step 2: Connecting the Camera to Your Computer

84 Step 3: Downloading Images and Video Files

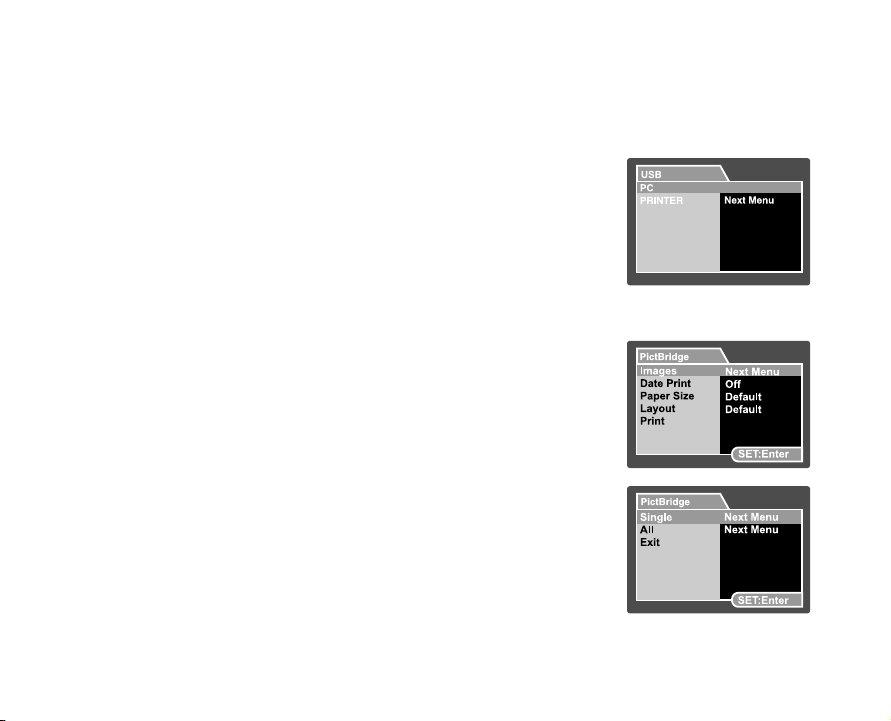

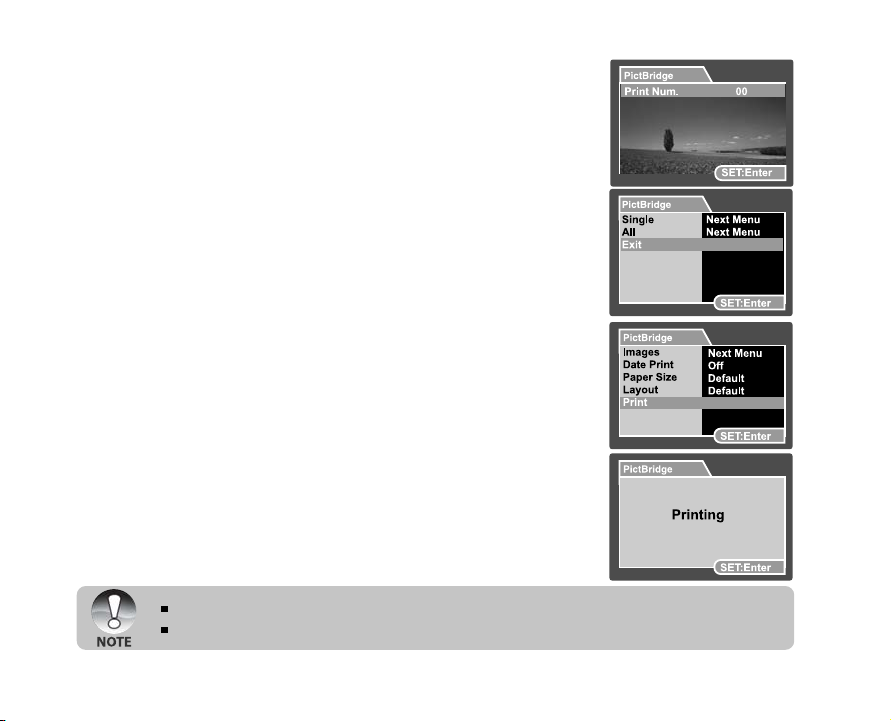

85 CONNECTING TO A PICTBRIDGE COMPLIANT

PRINTER

87 EDITING SOFTWARE INSTALLATION

87 Installing Photo Explorer

88 Installing Photo Express

89 Installing Cool 360

90 CAMERA SPECIFICATIONS

91 TROUBLESHOOTING

EN-7

INTRODUCTION

Overview

Congratulations on your purchase of the new digital camera.
Capturing high-quality digital images is fast and easy with this state-of-the-art smart camera. Equipped
with an 8.1 Mega pixel CCD, this camera is capable of capturing images with a resolution of up to 3264
x 2448 pixels.

Other cool features provided by the camera include the following:
LCD monitor - 2.8" full color TFT LCD monitor (230K pixels) makes it easy to frame your

subject when capturing images. It also displays the images you have

Recording media - 32 MB internal memory (26 MB available for image storage).

Optical zoom - The 6x optical lens allows you to capture telephoto and wide-angle images.
Digital zoom - 8.5x digital zoom in conjunction with the 6x optical zoom permit zoom

Flexible flash settings - You may adjust the flash setting according to your lighting environment.
Focus mode - Images can be captured with the distance to the subject set by normal auto

Self-timer mode - The self-timer may set to 10 seconds, 2 seconds or 10+2 seconds.
Still image capture mode - You may capture different images including single, a series of 3 images

EN-8

captured.

External memory supports SD memory cards up to 1 GB.

photography of up to 51x.
Captured images may be reviewed and a selected portion of an image may
be enlarged up to 8x.

focus, macro auto focus, super macro auto focus, infinity, 3m or manual
focus.

using auto-exposure bracketing, 3 images continuously, burst, 3 images
with flash, pre-shot, and coupling shot.

Video mode - In addition to still-images, you may capture video clips with audio (voice).
Voice memo - You may annotate your images with a 30 second voice memo. Images may

be voice-annotated at the time of capture, or during playback.

Thumbnail display - Display your images in sets of nine on the LCD monitor for quick selection of

an particular image.

TV and PC connection - You may view your images on a television monitor or a computer using the

USB or A/V cables.

DPOF support - You may print your images on a DPOF compatible printer by simply inserting

the memory card with embedded printing information.

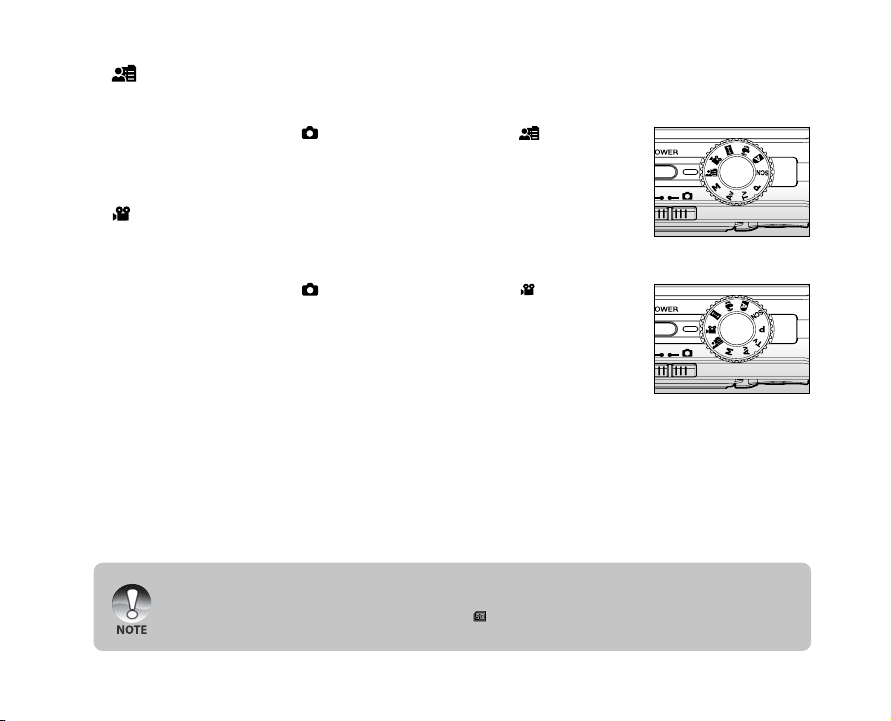

Photography mode - The camera has 10 different photography modes such as Auto, Scene,

Program, Shutter Speed Priority, Aperture Priority, Manual, User Setting,
Video, Panorama and Anti-Shake. By setting the mode dial, the camera
controls the exposure focus and white balance depending on the
selected mode.

Scene mode - You may select a previously set scene mode for the following situations:

Sport, Portrait, Night Portrait, Night, Candlelight, Fireworks, Landscape,
Natural Green, Sunrise, Sunset, Text, Black & White, Sepia, Splash Water,
Flowing Water and Pets.

EN-9

Package Contents

Carefully unpack your kit box and ensure that you have the following items:

J 1 x Traveler DC-8600 Digital Still Camera
J 1 x Software CD-ROM
J 1 x Traveler 256 MB SD Memory Card
J 2 x Traveler Rechargeable Batteries
J 1 x Traveler AC Power Adapter
J 1 x Traveler Docking Station
J 1 x Car Adapter For Charger
J 1 x Traveler Battery Charger
J 1 x Traveler Camera Pouch
J 1 x Camera Strap
J 1 x USB Cable
J 1 x A/V Cable
J 1 x User’s Manual

EN-10

GETTING TO KNOW THE CAMERA

Front View

# Name Description

1. Mode dial Sets the camera mode.

2. Shutter button Focuses and locks both focus & exposure when pressed halfway down.

3. Power indicator Lights on when the camera power is turned on.

4. POWER (Power) button Turns the camera power on and off.
Mode switch Sets the camera mode.

Photography mode Selects this when capturing still images or recording video clips.

5.

Playback mode Performs image playback and deletion.

6. Flash Provides flash illumination.

7. Microphone For recording audio with video clips and voice annotation.
Self-timer LED Blinks during Self-timer mode until the image is captured.

8.
(AF auxiliary LED) Lights for auto focusing when capturing in a dark place.

9. USB or A/V OUT terminal Allows you to connect a USB cable or an A/V cable to the camera.

10. DC IN 5V terminal

11. Lens 6x optical zoom lens allows you to capture telephoto and wide-angle images.

Captures the image when pressed all the way down.

Allows you to connect an AC power adapter to operate the camera
without battery, or to charge rechargeable lithium-ion battery.

EN-11

Rear View

# Name Description

1. LCD monitor

2. Status LED Displays the camera current state.
Zoom in button Zooms the lens to telephoto position.

3.

Zoom out button Zooms the lens to wide-angle position.

4. MENU (Menu) button Toggles On-Screen Display (OSD) menu on and off.

5. Focus button Allows you to choose the appropriate focus setting.

6. Speaker For playback or recorded audio.

7. Self-timer button Allows you to toggle the self-timer on and off, selects the desired self-timer mode.

8. Strap holder Camera strap attachment.

9. SET / Direction button Allows you to scroll through menus and images, and then select your choices.

10. (Delete) button Allows you to delete an image.

11. (Display) button Turns the LCD monitor display and live view on and off.

Battery / SD memory

12.

card cover

13. Tripod socket For tripod mounting.

EN-12

Provides menu information to operate the camera, previews the image
before capturing it and review it afterwards.

Access to the battery and memory card.

SET /Direction button

# Name Description

S button Scrolls upwards.

1.

X button Scrolls right.

2.
Flash button Allows you to choose the appropriate flash setting.

T button Scrolls downwards.

3.

W button Scrolls left.

Exposure Allows you to toggle the exposure compensation / backlight correction on

4.

5. SET button Enters the menu page and confirms the chosen setting.

compensation and off.
/ Backlight
correction button

Changes value of shutter speed, aperture, exposure compensation and
manual focus.

Changes value of shutter speed, aperture, exposure compensation and
manual focus.

EN-13

Mode dial

# Name Description

1. Auto The camera automatically sets for exposure, etc.

2. SCN Scene Mode Point-and-shoot simplicity when capturing images under 16 special

3. P Program In program mode the shutter speed and aperture will be set automatically,

4. Tv Shutter Speed You may specify the shutter speed while the camera sets the corresponding

5. Av Aperture Priority

6. M Manual For full manual control over exposure, aperture and other settings.

7.

8. Video For recording video clips.

9. Panorama Allows you to capture panorama (stitch-assist) shots.

10.

EN-14

(auto exposure) but other parameters may be set manually.

Priority aperture value.

User Setting

Anti-Shake

conditions.

You may specify the aperture value while the camera sets the corresponding
shutter speed.

This mode allows you manually set the setting parameters and all these
settings will be memorized.

This mode helps you to steady the image prevented from hand shaking
during capture.

Status LED Indicator

The status LED indicates the current operational status of the camera. The meaning of the LED changes
depending upon what the camera is doing.

Color

Green

Red

Orange

State

On

Flashing

On

Flashing

On

Flashing

During power off

The completion of
battery charge.

The battery is charging.
An AC power adapter is
connected, but a battery
is not in a camera.
Battery charging error.

-

-

-

During

photography

AE or AF is locked with
the shutter button held
halfway.

-

Accessing files in

progress.

When the image is not
in focus.
Flash charging in
progress.

Hardware malfunction.

During connection to a

PC

-

-

In communication to PC.

(SD memory card is inserted.)

-

-

SD memory card is not
inserted.

EN-15

00053

10S

20:5001/06/2006

LCD Monitor Icons

For Photography modes: [ ], [ SCN ]

1. Mode icon

2. Storage media
] Internal memory (no card)

[
[

] SD memory card

3. Zoom status

4. Voice memo

5. Battery condition

] Full battery power

[

] Medium battery power

[
[

] Low battery power
] Virtually no battery power

[

6. Flash mode

[Blank] Automatic

] Red-eye Reduction

[

] Pre-Flash

[
[

] Flash Off

] Forced Flash

[

7. Main focus area

8. Capture mode icon

[Blank] Single

] Continuous

[

[ AEB] Auto Exposure Bracketing

[

] Burst

[

] Burst + flash

J Pressing the button changes the LCD display in the sequence of: display with icons, helpline,

display without icons.

J To prevent a blur image we recommend that you use a tripod for capturing images when slow shutter

warning icon appears.

EN-16

] Pre-Shot

[

] Coupling Shot

[

9. Image size resolution
[ ] 3264 x 2448

] 2560 x 1920

[
[

] 1600 x 1200
] 640 x 480

[

10. Available number of shots

11. Image quality

] Fine

[

] Standard

[
[

] Economy

[TIFF] TIFF

12. Self-timer icon
[

10s] 10 sec.

[

2s ] 2 sec.
10+2s ] 10+2 sec.

[

13. Date and time

14. Slow shutter warning
* Poor lighting conditions.
Images will be vulnerable to

vibration.

15. Backlight correction

2

1

16

15

14

16. Focus setting
[Blank] Normal Auto Focus

] Macro Auto Focus

[

s

] Super Macro Auto

[

] Infinity

[
[ 3M ]3m
[MF] Manual Focus
* Adjust focus distance with
the S / T buttons.

3

13

Focus

12 11

5

4

6

7

8

9

10

For Photography modes: [P], [Tv], [Av], [M], [ ], [ ]

00053

10S

0.0

F

2.81 / 125

Tv

2

1. Mode icon

2. Storage media

3. Zoom status

4. Voice memo

5. Battery condition

6. Flash mode

7. Histogram

8. Main focus area

9. Capture mode icon

10. Image resolution

11. Available number of shots

12. Image quality

13. Self-timer icon

14. Shutter speed / Aperture
* In [P] , [

Aperture icon appears at half shutter (S1)
condition.

Slow shutter warning

15.

16. [ ] Exposure compensation
[

] Backlight correction

17. Metering

] Multi

[

] Spot

[

J Pressing the button changes the LCD display in the sequence of: display with icons, display with

J Histogram is not activated in [Pre-Shot] and [Coupling Shot] modes.

] and [ ] modes, Shutterspeed /

icons and histogram, helpline, display without icons.

1

19

18

17

16

15

[ ] Average

18. White balance
[Blank] Auto

] Incandescent

[

] Fluorescent 1

[

1

] Fluorescent 2

[

2

] Day Light

[

] Cloudy

[

] Manual

[

19. Focus setting

2

3

14

5

4

6

7

8
9

10
11

13

12

EN-17

For Photography mode: [ ]

00053

1

0.0

2

1. Mode icon

2. Storage media

3. Zoom status

4. Battery condition

5. Flash mode

6. White balance

7. Metering

8. Main focus area
] Exposure compensation

9. [
] Backlight correction

[

10. Image resolution

11. Available number of shots

12. Image quality

13. Image to be captured indicator

14. Focus setting

15. Slow shutter warning

J Pressing the button changes the LCD display in the sequence of: display with icons, display

without icons.

2

3

1

14

15

13

4

5

6

7
8
9

10
11

12

EN-18

For Video mode [ ]

6

6

7

979-0008

1

10:1313:0901/06/2006

10S

2

980-0011

Tot al

Pl ay

0: 10 00::00 66

1. Mode icon

2. Storage media

3. Zoom status

4. Battery condition

5. Video resolution

6. Available recording time/Elapsed time

7. Video quality

8. Self-timer icon

9. Date and time

10.White balance icon

11.Focus setting

Playback mode [ ] -Still image playback

1. Mode icon

2. File number

3. Folder number

4. Protect icon

5. Voice memo

6. DPOF icon

7. Storage media

Playback mode [ ]-Video playback

1. Video status bar

2. Elapsed time

3. File number

4. Folder number

5. Protect icon

6. Mode icon

7. Play mode

8. Sound off icon (When the S button is pressed

during video playback.)

9. Image quality

10.Image resolution

11.Frame rate

12.Storage media

13.Total recorded time

2

1

3

11
10

9

13

12

30

11

FPS

10

9

78

4

5

6

7

8

1

2

35 46

EN-19

GETTING STARTED

Attaching the Camera Strap

Attach the camera strap as shown in the illustration.

Inserting and Removing the Battery

We highly recommend using specified rechargeable lithium-ion battery (1050mAh, 3.7V) to realize the
full capability of your camera. Charge the battery fully before using the camera. Make sure that the power
of the camera is off before inserting or removing the battery.

Inserting the Battery

1. Open the battery / SD memory card cover in the direction of the

[OPEN] arrow.

2. Insert the battery in the correct orientation shown.

Tilt the battery lock lever, and then insert the battery in the
direction of the arrow.

3. Close the battery / SD memory card cover.

Removing the Battery

Open the battery / SD memory card cover and then release the battery lock lever. When the battery has
come out a little, slowly pull it out the rest of the way.

EN-20

Using the Docking Station

With the docking station, you can position your camera and play back your images and video clips on
your desktop. You may also use the docking station or connect to other media devices to play back
(output to a TV monitor, for example). Inconjunction with an AC power adapter the docking station will
facilitate the charging of the camera battery.

1. Align the camera with the docking station.

2. Slide the camera fully into the docking station as shown
illustration.

3. Carefully insert the camera and match the connector until it fits
in place.

EN-21

4. Connect the end of the respective cable
directly to the respective docking station
terminal.

J For charging the battery, connect

one end of the AC power adapter
directly to the DC IN 5V terminal of
the docking station.

J For USB connection or playing

back images/video clips on the TV,
connect one end of the AC power
adapter directly to the USB (A/VOUT)
terminal of the docking station.

Removing the camera from the docking station:

Push the camera carefully from the connector, and
then remove the camera from the docking station.

J Be sure to align the camera and docking station carefully before inserting/removing

the camera into/from the docking station.

EN-22

Using the Car Adapter

With the car adapter, this will facilitate the charging of the camera battery.

1. Remove your car’s cigarette lighter from its outlet.

2. Insert one end of the car adapter into the DC IN 5V terminal of
the battery charger.

3. Plug the other end of the car adapter into your car’s cigarette
lighter outlet.

J Never expose the car adapter to dripping or sprayed water! Moreover, never put

objects or containers filled with liquids (for example, a vase) onto the device!

J Do not charge the non-rechargeable battery.
J Do not disassemble or repair the device.
J If the devise is not to be used, remove it and place the cigarette lighter back into its outlet.

EN-23

Charging the Battery

Using the AC power adapter may charge the battery or operate the camera as power supply. Make sure
that the power of the camera is off and then insert the battery before starting.

1. Insert one end of the AC power adapter into the DC IN 5V
terminal of the camera.

2. Insert the other end of the AC power adapter into a wall outlet.

J The status LED flashes green when charging is started and

lights green when charging is completed. The LED lights red
when a charging error has occurred.

J It is recommended to fully discharge the battery before

recharging.

J Charging time varies according to the ambient temperature

and the status of battery.

J This camera must be used with specified AC power adapter. Damage caused by the use of an

incorrect adapter is not covered under the warranty.

J Always make sure that the camera is off before removing the battery.

J The battery may feel warm after it has been charged or immediately after being used. This is

normal and not a malfunction.

J When using the camera in cold conditions, keep the camera and battery warm by storing it in a

warm place such as an interior pocket between shots.

J If you open the battery cover without removing the battery, the battery power will not be

disconnected.

J If you remove the battery, you have to insert the battery within 2 hours in order to make sure that

the date and time will not be reset.

EN-24

Using an AC Power Adapter

Using an AC power adapter prevents the camera from automatically powered off while transferring files
to your computer.
Perform the steps in the preceding section “Charging the Battery”.

Make sure to use only the AC power adapter specified for the digital camera. Damage caused by
the use of an incorrect adapter is not covered under the warranty.

Inserting and Removing an SD Memory Card

The digital camera comes with approx. 32 MB of internal memory (26 MB available for image storage),
allowing you to store captured still images or video clips in the digital camera. However, you can also
expand the memory capacity by using an SD memory card so that you can store more files.

Inserting an SD memory card

1. Open the battery / SD memory card cover.

2. Insert the SD memory card in the correct orientation shown.
Hold the SD memory card with its front side (printed arrow)
facing the rear side of the camera, and then insert the card as
far as it can go.

3. Close the battery / SD memory card cover.

Removing an SD memory card

Open the battery / SD memory card cover, press lightly on the edge of the SD memory card and it will eject.

To prevent valuable data from being accidentally erased from an SD
memory card you can slide the write-protected tab (on the side of the
SD memory card) to “LOCK”.
However, to save, edit or erase data on an SD memory card, you must
unlock the card.
Be sure to format an SD memory card with this digital camera before using it. Refer to section in
this manual titled “Formatting an SD Memory Card or Internal Memory” for further details.
To prevent the damage of an SD memory card, please turn off the power when inserting or
removing the SD memory card. If inserting or removing the SD memory card with power on, the
camera turns off automatically.

EN-25

Turning the Power On/Off

1. Load the battery or connect the AC power adapter to your
camera.

2. Press the POWER button to turn on your camera.

The status LED lights green and the camera is initiated.
The power indicator lights on when the camera power is turned
on.
When the power is turned on, the camera will start in the
mode that is currently selected.

3. To turn off your camera, press the POWER button again.

The power is turned off automatically when the camera has not been operated for a defined period
of time. To resume the operation condition, turn the power on again. Refer to section in this
manual titled “Auto OFF” in the Setup1 Menu for further details.
When the power is turned on, it may take several seconds to charge the flash. While the flash is
being charged, the status LED lights orange.
The camera is not ready until the flash has charged. The camera is ready when the status LED
is off.

EN-26

Setting the Date and Time

The date/time needs to be set if/when:

Camera is turned on for the first time.

Camera is turned on after leaving the camera without the battery for an extended period of time.
When the date and time information is not displayed on the LCD monitor, follow these steps to set the
correct date and time.

1. Slide the mode switch to [

2. Select [Setup2] with the X button.

3. Select [Date/Time] with the S / T buttons, and press the SET

button.

The Date/Time setting screen will be displayed.

4. Select the item’s field with the W / X buttons and adjust the

value for the date and time with the S / T buttons.

The date and time is set in the order year-month-day-hour­minute.
The time is displayed in 24-hour format.

5. After confirming all settings are correct, press the SET button.

The setting will be stored and the screen will return to the
Setup2 menu.

6. To exit from the Setup2 menu, press the MENU button.

], and press the MENU button.

EN-27

Choosing the Display Language

Choose an On-Screen Display (OSD) language for information to be displayed on the LCD monitor.

1. Slide the mode switch to [

2. Select [Setup2] with the X button.

3. Select [Language] with the S / T buttons, and press the SET

button.

The language setting screen will be displayed.

4. Select the displayed language with the S / T buttons and press

the SET button.

The setting will be stored.

5. To exit from the Setup2 menu, press the MENU button.

EN-28

], and press the MENU button.

Formatting an SD Memory Card or Internal Memory

This function formats the internal memory (or memory card) and deletes all stored still images / video clips
and data.

1. Slide the mode switch to [

2. Select [Setup1] with the X button.

3. Select [Format] with the S / T buttons, and press the SET

button.

4. Select [Execute] with the S / T buttons, and press the SET

button.

To cancel formatting, select [Cancel].

5. To exit from the Setup1 menu, press the MENU button.

To format the internal memory, do not insert an SD memory card into the camera. Otherwise, you
will format the SD memory card.
Formatting the SD memory card also erases the protected images. All data other than images are
also erased. Before formatting the card, make sure that all the images are unnecessary.
Formatting is an irreversible action and data cannot be recovered at a later time.
An SD memory card having any problem cannot be properly formatted.

], and press the MENU button.

EN-29

Setting Image Resolution and Quality

Resolution and quality settings determine the pixel size (dimension), image file size, and compression
ratio for your images. These settings affect the number of images that can be stored. As you get to know
the camera, it is recommended that you try each quality and resolution setting to get an appreciation for
the effects that these settings will have on your images.
Higher resolution and higher quality images offer the best photographic results, but produce large file
sizes. Therefore, few images will take up a lot of memory space.
High resolution and quality settings are recommended for printed output and situations requiring the
finest detail. Lower resolution/quality images take up less memory space and may be quite suitable for
sharing images via e-mail, in a report, or on a web page.

To change image resolution or image quality, perform these steps below:

1. Slide the mode switch to [
the photography modes.

2. Press the MENU button.

J [Capture] of the photography menu is displayed.

3. Select [Size] with the S / T buttons, and press the SET button.

4. Select the desired setting with the S / T buttons, and press the
SET button.

5. Select [Quality] with the S / T buttons, and press the SET
button.

6. Select the desired setting with the S / T buttons, and press the
SET button.

7. To exit from the photography menu, press the MENU button.

] and set the mode dial to one of

AE/AWB

EN-30

Possible number of shots (still image)

The following table shows the approximate shots that you can capture at each setting based on the
capacity of the internal memory and an SD memory card.

Size

3264 x 2448

2560 x 1920

1600 x 1200

640 x 480

* The numbers would be different depending on the subjects to be captured.

TIFF

Quality

Fine

Standard

Economy

TIFF

Fine

Standard

Economy

Fine

Standard

Economy

Fine

Standard

Economy

Internal

Memory

6

12

24

1

10

20

38

25

49

90

131

214

343

32MB 64MB 128MB 256MB 512MB

7

13

27

1

11

22

43

28

54

99

145

237

379

SD memory card capacity

14

28

55

3

23

45

88

57

110

204

298

484

775

28

57

111

8

46

92

178

116

223

412

602

979

1566

57

113

222

15

93

183

354

232

445

821

1200

1951

3121

115

229

448

32

188

369

714

468

897

1653

2417

3927

6284

1GB

223

441

863

61

362

711

1374

902

1727

3182

4650

7557

12092

EN-31

Possible recording time / sec (video clip)

Size

640 x 480

* Frame rate of video recording would be different depending on the SD memory card access speed.

If using a low access speed SD memory card, it influences the frame rate and recording time.

* If the access speed of your memory card is not high enough (over 2MB/Sec for random write), the

video clip will automatic stop or some unexpected situation may occur while recording. In this case,
change into a high-speed memory card or select standard quality.

EN-32

Quality

Fine

Standard

Internal

Memory

0:19 0:22 0:44 1:30 3:01 5:50 11:44

0:39 0:43 1:29 3:00 6:00 11:37 23:15

32MB

SD memory card capacity

64MB 128MB 256MB 512MB

1GB

PHOTOGRAPHY MODE

[ ] Auto Mode

Auto photography mode is the most commonly used photography mode. Images can be captured simply
because the exposure (the combination of shutter speed and aperture setting) is determined automatically
to suit the photographic conditions.
Your camera is equipped with a 2.8” TFT color LCD monitor to help you compose images, playback
recorded images/movie clips or adjust menu settings.

1. Press the POWER button to turn on the camera.

2. Slide the mode switch to [

3. Compose your image in the LCD monitor.

4. Press the shutter button down halfway.

J Pressing the shutter button down halfway automatically

focuses and adjusts the exposure.

J The focus-area frame turns green and the status LED lights

green when the camera is focused and exposure is
determined.

J When the focus or exposure is not suitable, the frame of the

focus area turns red and the status LED flashes red.

5. Press the shutter button down fully to capture the image.

J If the photographic preview is set to “On”, images (the captured

image) will be displayed while the image is being recorded
onto the memory.

J When the voice memo is set to “On”, [VOICE RECORDING]

will be displayed on the screen immediately after the image
is captured and voice memo recording will start.

J Press the shutter button one more time during recording, or

wait for 30 seconds, [VOICE RECORD END] will be displayed
and the recording will end. A [ ] icon is displayed with
images that have been recorded with a voice memo.

J A press of the SET button in the photography mode permits

playback of the last-captured image. One more press of the
SET button returns the camera to the photography mode.
Pressing the

button allows to delete the last-captured

image during playback.

] and set the mode dial to [ ].

1

Press down halfway

2

Press down fully

EN-33

Recording Voice Memos

A voice memo can be recorded once for 30 seconds at still image mode immediately following a still
image capture.

1. Slide the mode switch to [ ] and set the mode dial to one of

the photography modes, except for [ ] and [ ] modes.

2. Press the MENU button, and select the [Function] menu with

the X button.

J [Function] menu is displayed.

3. Select [Voice Memo] with the S / T buttons, and press the SET

button.

4. Select [On] with the S / T buttons, and press the SET button.

5. Press the MENU button to exit from the menu.

J [ ] icon is displayed on the screen.

6. Compose the image, press the shutter button down halfway, then press it down fully.

J [VOICE RECORDING] is displayed on the screen immediately, and the voice memo recording

starts.

7. Press the shutter button one more time during recording, or wait for 30 seconds

J [VOICE RECORD END] will be displayed and the recording will end.
J A [ ] icon is displayed with images that have been recorded with a voice memo.

J Voice memo is only available in [Single] capture mode.
J Voice memo is automatically fixed at [Off] in [Continuous], [AEB], [Burst], [Burst + flash], [Pre-Shot]

or [Coupling Shot] capture mode.

EN-34

Using the Optical Zoom

Zoom photography allows you to capture images magnified up to 6 times or wide-angle photography
depending on the distance up to the subject. You can also enlarge the center of the screen and capture
images in the digital zoom mode.

1. Slide the mode switch to [
the photography modes.

2. Compose the image with the zoom button.

J Pressing the button zooms in on the subject, and enlarges

the subject on the LCD monitor.

J Pressing the button provides a wider angle image.
J The lens position moves according to the zoom button

setting.

3. Press the shutter button down halfway, then press it down fully.

] and set the mode dial to one of

EN-35

Using the Digital Zoom

Using a combination of 6 times optical zoom and 8.5 times digital zoom permits zoom photography up to
51 times to suit the subject and the distance. While digital zoom can be a useful feature, the more an
image is enlarged (zoomed), the more pixelated (grainier) the image will appear.

1. Slide the mode switch to [
the photography modes, except for [

2. To enable the digital zoom:
a. Press the MENU button.
b. Select [Function] with the X button.
c. Select [Digital Zoom] with the S / T buttons, and press the

SET button.

d. Select [On] with the S / T buttons again, and press the SET

button.
e. Press the MENU button to exit from the menu screen.
f. To activate the digital zoom, press and hold the

completely until the image on the LCD monitor expands.

3. Press the shutter button to capture a “zoomed” image.

] and set the mode dial to one of

] mode.

button

EN-36

Optical zoom 1X to 6X

J The zoom setting is automatically cancelled by either turning the camera off or the activation of

the Auto OFF function.

Digital zoom 1X to 8.5X

Setting the Flash

Set the flash for capturing images. The flash firing mode can be set to suit for the photographic conditions.

1. Slide the mode switch to [

2. Toggle the

button to select the desired flash mode.

].

EN-37

The available flash settings in different photography modes:

[Blank] Auto

Mode Dial

Scene Mode

Capture Mode

Focus Mode

Auto {{{ { {
Program {{{ { {
Shutter Speed Priority X {{ { {
Aperture Priority X {{ { {
Manual X {{ { {
User Setting {{{ { {
Video X X X X X
Panorama {{{ { {
Anti-Shake {{{ { {
Sport X X X { X
Portrait X { XX X
Night Portrait X { XX X
Night X X X { X
Candlelight X X X { X
Fireworks X X X { X
Landscape X X X { X
Natural Green X X X { X
Sunrise X X X { X
Sunset X X X { X
Text X X X { X
Black & White {{X { X
Sepia {{X { X
Splash Water {{{ { {
Flowing Water X X X { X
Pets {{{ { {
Single {{{ { {
Continuous X X X { X
AEB X X X { X
Burst {{{ { {
Burst + flash X X { X {
Pre-Shot {{{ { {
Coupling Shot {{{ { {
Normal Auto Focus {{{ { {
Macro Auto Focus X X X { X
Super Macro Auto Focus X X X { X
Infinity X X X
3m {{{ { {
Manual Focus {{{ { {

{ X

* This table is for reference only and varies according to different combination of photography modes.
* {: Available X: Unavailable

EN-38

The table below will help you choose the appropriate flash mode:

Flash mode Description

The flash fires automatically to suit the photographic conditions.

[ Blank] Automatic Flash

This mode is only available when the camera is set to the [

], [P], [ ] and
[ ] mode.
Use this mode to reduce the red-eye phenomenon when you want to
capture natural- looking images of people and animals in low-light conditions.

[ ] Red-eye Reduction

When the camera mode is [

], [P] and [M], the flash will fire to suit the
brightness of the subject.
When the camera mode is [Tv] and [Av], the flash will always fire.

] Pre-Flash

[

The “Pre-flash” mode allows you to brighten the subject prior to taken the
final picture and firing the flash.
Use this mode when capturing images using indoor lighting, for stages and

[ indoor competitions, and when the subject is too far away for the flash to be

] Flash Off

effective.

] Forced Flash

[

In this mode, the flash always fires. Use this mode for photographing under

artificial light such as backlighting, fluorescent lighting, etc.

EN-39

Setting the Focus

Images can be captured with the distance to the subject set by Normal Auto Focus, [ ] Macro Auto
Focus, [

1. Slide the mode switch to [

2. Toggle the

The table below will help you choose the appropriate focus mode:

Focus mode Description

[Blank] Normal Auto Select normal auto focus for most occasions when you want the camera to automatically

[

[

[

[3M] 3m

[ MF ] Manual Focus

s

] Super Macro Auto Focus, [ ] Infinity, [3M] 3m or [ MF ] Manual Focus.

] and set the mode dial to one of

the photography modes.

The available focus settings will depend on the selected
photography mode.

button to select the desired focus mode.

Focus determine the focus setting.

] Macro Auto Selects this when you want to capture a close up image.

Focus Wide (zoom off): Approximately 0.07m to 0.4m.

s

] Super Macro Selects this when you want to capture a more close up image.

Auto Focus Wide (zoom off): Approximately 0.02m to 0.4m.

] Infinity Select the infinity-focus setting when you want to capture images of subjects at a distance

Wide (zoom off): Approximately 0.3m to infinity.
Tele (at optical zoom 6x): Approximately 1.8m to infinity.

Tele (at optical zoom 6x): Approximately 0.9m to 1.8m.

of infinity.

Select this when you want to capture images of subjects at a distance of 3m
from the camera.

Select this when you want to capture a manual focus image.
Wide (zoom off): Approximately 0.02m to infinity.

Tele (at optical zoom 6x): Approximately 0.7m to infinity.

J When you capture a close-up image at macro mode, the resolution of the corner image may be

inferior. This is normal and not a malfunction.

EN-40

Setting the Self-timer

This setting allows images to be captured with the self-timer.

1. Slide the mode switch to [ ] and set the mode dial to one of the
photography modes.

2. Toggle the button to select the setting.

Each press of the button moves the icon one step through
the sequence and displays it on the screen.
For [Single] capture mode.
OFF [ 10s] 10 sec. [ 2s ] 2 sec.

[ 10+2s ] 10+2 sec.

For [ ], [ ], [ ], [Continuous], [AEB], [Burst], [Burst + flash],
[Pre-Shot] and [Coupling Shot] capture modes.
OFF [ 10s ] 10 sec. [ 2s ] 2 sec.

3. Compose the image, press the shutter button down halfway, then press it down fully.

The self-timer LED flashes and the image will be captured after the preset time has elapsed.
The countdown is displayed on the LCD monitor.
To cancel the self-timer during operation, press the SET button.

The table below will help you choose the appropriate self-timer mode:

Self-timer mode Description

[ 10s] 10 sec. The image is captured about 10 seconds after the shutter button is pressed.
[ 2s] 2 sec. The image is captured about 2 seconds after the shutter button is pressed.

[ 10+2s]10+2 sec.

The first image is captured about 10 seconds after the shutter button is
pressed, and then the second image is captured 2 seconds later. The 10+2
mode is convenient when capturing group images in succession.

The self-timer setting is automatically cancelled after an image is captured.
Use of the [ 2s] or [ 10s] self-timer setting is effective in preventing motion-blur that can
result when the shutter button is pressed at long exposure times. Use a tripod for best results.

EN-41

Exposure Compensation/Backlight Correction

Images can be captured with the overall scene intentionally made brighter or darker. These settings are
used when a suitable brightness (exposure) cannot otherwise be obtained in circumstances where the
difference in brightness between the subject and the background (the contrast) is large, or when the
subject that you wish to capture is very small within the scene. Exposure can be set in 1/3 EV units.

1. Slide the mode switch to [
[Av], [

2. Set the exposure value with the S / T buttons.

], [ ] or [ ] and press the button.
Each press of the button displays the setting in the
order of [
Compensation.

Press the S button to increase the value.
Press the T button to decrease the value.
The setting range of the exposure compensation is as follows:-2.0, -1.7, -1.3, -1.0, -0.7, -0.3, 0, +0.3,
+0.7, +1.0, +1.3, +1.7, +2.0.
Press the button to confirm the setting.
The larger the value, the brighter the image. The smaller the value, the darker the image. The set
value is displayed on the screen.

] Backlight Correction and [ ] Exposure

Effective Subjects and Set Values

+ (positive) compensation
* Printed matter comprising black text on whitish paper
* Backlighting
* Bright scenes or strong reflected light such as ski slopes
* When the sky accounts for a large area on the screen

- (negative) compensation
* People illuminated by a spotlight, in particular, against dark background

EN-42

] and set the mode dial to [P], [Tv],

* Printed matter comprising white text on blackish paper
* Weak reflecting bodies such as evergreen trees or darkish leaves
Backlight correction (+1.3 EV, fixed)
* When the background is bright and the subject is dark.
* When subjects (people) have a light source such as the sun to their backs.

For [ ] mode, only backlight correction can be set.

[SCN] Scene Mode

By simply selecting one of the following 16 modes, you can capture the image with most appropriate settings.

Slide the mode switch to [ ] and set the mode dial to [SCN].

1.
a. Press the MENU button.
b. Select [Scene Mode], and press the SET button.
c. Select the desired scene mode with the S /T buttons,

and press the SET button.

2. Compose the image, press the shutter button down halfway,
and then press it down fully.

EN-43

The table below will help you choose the appropriate scene mode:

Scene mode Description

[ ] Sport Select this mode when you want to capture fast-moving subjects.

] Portrait

[

] Night Portrait

[

[ ] Night Select this mode when you want to capture dark scenes such as night views.

] Candlelight

[

] Fireworks

[

[ ] Landscape Select this mode when you want to capture landscape photos with bright color.
[ ] Natural Green Select this when you want to capture the green scenery background such as forest.

] Sunrise

[

] Sunset

[

[TEXT] Text

[ ] Black & White Select this mode when you want to capture a black & white image.
[ ] Sepia Select this mode when you want to capture a sepia image.
[ ] Splash Water Select this mode when you want to capture photos of splashing water.

] Flowing Water

[

[

] Pets Select this mode when you want to capture your pets. Shoot from the eye level of your pets.

Select this mode when you want to capture an image that makes the person stand out
against a defocused (blurred) background.
Select this mode when you want to capture people with an evening or night
scene background.

Select this mode when you want to capture photos of candlelit scene, without spoiling the
atmosphere.
Select this mode when you want to capture fireworks clearly with optimal exposure.
The shutter speed becomes slower, so using a tripod is recommended.

Select this mode when you want to capture photos of a scene at sunrise. This mode helps
keep the deep hues in the scene.
Select this mode when you want to capture photos of a scene at sunset. This mode helps
keep the deep hues in the scene.
Select this mode when you want to capture an image that contains black andwhite
subjects like printed documents.

Select this mode when you want to capture the soft flowing water. Shutter speed is
automatically slowed down while maintaining proper exposure, which produces an image
with the water blurred into smooth flowing lines along with a sharply focused background.

EN-44

The available capture modes in different scene modes:

Sport O O O O X X X
Portait O O O O X O X *1
Night Portrait O X X X X O O
Night O O O O X X X
Candlelight O O O O X O O
Fireworks O X X X X X X
Landscape O O O O X X X
Natural Green O O O O X O O *1
Sunrise O O O O X X X
Sunset O O O O X X X
Text O O O O X X X
Black & White O O O O O O O *1
Sepia O O O O O O O *1
Splash Water O O O O O O O *1
Flowing Water O O O O X X X
Pets O O O O X X X *1

Single Continuous AEB Burst Burst + flash Pre-Shot Coupling Shot Remark

* 1: In [Continuous] or [AEB] capture mode, the flash is automatically fixed at "OFF".

[P] Program (Automatic Exposure) Photography Mode

The camera automatically sets the shutter speed and the aperture to suit the brightness of the subject.
This allows you to capture image with ease just like when the [ ] mode is selected.

1. Slide the mode switch to [ ] and set the mode dial to [P].

2. Compose the image, press the shutter button down halfway,

then press it down fully.

J Exposure compensation and backlight correction can be set.

EN-45

[Tv] Shutter Speed Priority Photography Mode

In this mode, images are captured with the priority given to shutter speed. The aperture is automatically
set according to the shutter speed. If you set a fast shutter speed, you can capture images of moving
subjects that look as if they are still. If you set a slow shutter speed, you can capture images that give
the impression that the subject is in motion.

1. Slide the mode switch to [

2. Adjust the shutter speed with the S / T buttons.

J Press the S button to select faster shutter speeds.
J Press the T button to select slower shutter speeds.
J The setting range of the shutter speed is as follows:

1/1500, 1/1250, 1/1000, 1/820, 1/650,1/500, 1/400, 1/320,
1/250, 1/200,1/160, 1/125, 1/100, 1/80, 1/64, 1/50,1/40, 1/32,
1/25, 1/20, 1/16, 1/13, 1/10, 0.13s, 0.16s, 0.2s, 0.25s, 0.3s,

0.4s, 0.5s, 0.6s, 0.8s, 1.0s, 1.3s, 1.6s, 2.0s, 2.5s, 3.2s, 4.0s.

J The shutter speed and corresponding aperture value

ardisplayed on the screen. If an appropriate combination
cannot be set, the aperture value is displayed in red, but
images can be captured regardless.

3. Compose the image, press the shutter button down halfway,
and then press it down fully.

J In the flash photography mode, when [ ] and [ ] are set, the fastest shutter speed is 1/500

second.

J In the [Pre-Shot] and [Coupling Shot] modes, the slowest shutter speed is 1/2 second.

EN-46

] and set the mode dial to [Tv].

[Av] Aperture Priority Mode

In this mode, images are captured with the priority given to aperture. The shutter speed is automatically
set according to the aperture. The aperture will affect the depth-of-field of the camera.
If you set a small aperture (higher F value), you can capture portrait images with an out-of-focus
background. Alternatively, if you set a large aperture (lower F value), both close objects and distant
objects will be in focus, for example when capturing landscape images.

1. Slide the mode switch to [

2. Adjust the aperture with the S / T buttons.

J Press the S button to increase the value.
J Press the T button to decrease the value.
J The setting range of the aperture value is as follows:

F6.7, F5.6, F4.8, F4.0, F3.5, F2.8 (Wide).
F4.8, F5.6, F6.7, F8.0, F9.5, F11.0 (Tele).

J The aperture value and corresponding shutter speed are

displayed on the screen. If an appropriate combination cannot
be set, the shutter speed is displayed in red, but images can
be captured regardless.

3. Compose the image, press the shutter button down halfway,
and then press it down fully.

J The aperture value varies depending on the position of the zoom lens.

] and set the mode dial to [Av].

EN-47

[M] Manual Mode

In manual mode, the aperture value and the shutter speed can be varied individually.

1. Slide the mode switch to [

2. Toggle the

button to select the shutter speed or aperture.

3. Adjust the shutter speed or aperture with the S / T buttons.

4. Compose the image, press the shutter button down halfway,
and then press it down fully.

J In the flash photography mode, when [ ] and [ ] are set, the fastest shutter speed is 1/500

second.

J In the [Pre-Shot] and [Coupling Shot] modes, the slowest shutter speed is 1/2 second.

EN-48

] and set the mode dial to [M].

[ ] User Setting Mode

This mode allows you manually set the setting parameters and all these settings will be memorized.

1. Slide the mode switch to [

] and set the mode dial to [ ].

2. Compose the image, press the shutter button down halfway,
then press it down fully.

[ ] Video Mode

This mode allows you to record video clips at a resolution of 640 x 480 pixels. Voice can also be
recorded.

1. Slide the mode switch to [

2. Compose the scene with the zoom button.

J Optical and digital zoom can be used while composing the

scene.

3. Fully press down the shutter button.

J The recording of the video clip will start.
J Pressing the shutter button again will end the recording.
J The recording time depends on the storage size and the subject of the image to be recorded.
J Zoom function can be used during video recording. If [Video Zoom] is set to [On], you can use

optical zoom and select to enable or disable digital zoom function during recording. If [Video Zoom]
is set to [Off], optical and digital zoom function cannot be used during recording.

J If you use zoom function during recording video clip, the acoustic noise will be recorded. This

acoustic noise can be excluded during the video recording by setting [Audio] to [Off] in the
[Function] menu.

J When recording video clips, the flash cannot be used.
J If the access speed of your SD memory card is not enough for recording video clips in the

currently selected quality, a warning icon [
In this case, select a video quality lower than the current one.

] and set the mode dial to [ ].

] will appear, and then the movie recording will stop.

EN-49

[ ] Panorama Mode

This mode is designed to make it easier to take a series of shots then stitch them together with software
to make a single photo. You can capture a photographic subject that won’t fit into a single frame, such
as a landscape, and stitch it together later with a program such as Cool 360 or Photoshop application.

1. Slide the mode switch to [

2. Shoot the first image.

J The next image appears beside the previous image.

3. Orient the camera so that the second frame overlaps a small
portion of the photographic subject of the first image and press
the shutter button to capture the next image.

4. Follow the same steps to capture subsequent images in the
sequence.

5. Finish the sequence by pressing the SET button after the last
image has been recorded.

] and set the mode dial to [ ].

[ ] Anti-Shake Mode

The anti-shake function works according to the luminance of the target object. This function uses special
image data processing for getting high sensitivity of CCD. High sensitivity can use higher shutter speed
compared with normal mode, so it reduces influence of hand shaking. From the resolution point of view,
it becomes worse than normal mode. Maximum size of image becomes 5 mega pixels (2560 x 1920).

1. Slide the mode switch to [

2. Compose the image, press the shutter button down halfway,
then press it down fully.

EN-50

] and set the mode dial to [ ].

Recording a Subject onto an Existing Background Image (Pre-Shot)

Pre-Shot helps you get the background you want, even if you need to ask someone else to record the
image for you. Basically, Pre-Shot is a two-step process.

1. You compose the background you want and press the shutter button, which causes a semi-transparent
image of the background to remain on the monitor screen.

2. Ask someone else to record a shot of you against your original background, telling him/her to
compose the image by using the semi-transparent monitor screen image as a guide.

The camera stores the image produced by step 2 only.
Depending on how the image is actually composed in step 2, its background may not be exactly
the same as the one you composed in step 1.

Freeze the background
on the monitor screen.

Record the image, using
the background on the
monitor screen as a guide.

Only the second image is
recorded.

EN-51

1. Slide the mode switch to [
] and [ ].

[

] and set the mode dial to one of the photography modes, except for [ ],

a. Press the MENU button.
b. Select [Function] with the X button and press the SET button.
c. Select [Capture Mode], and press the SET button.
d. Select [Pre-Shot], and press the SET button.

2. Compose the background you want on the monitor screen, and then press the shutter button to

temporarily record it as a reference image.

This operation causes a semi-transparent image of the background to appear on the monitor
screen, but the displayed image is not actually saved in camera memory.

3. Now you can stand in front of the background and ask someone else to snap your picture, using the

semi-transparent background on the monitor screen as a composition guide.

4. After composing the final image (using the semi-transparent background as a guide), the person with

the camera should press the shutter button to record.

Note that the semi-transparent background image you temporarily record in step 2 is for composition
purposes only. The final image contains only what is in front of the camera when the shutter
button is pressed in step 4.

EN-52

Combining Shots of Two People into a Single Image (Coupling Shot)

The Coupling Shot mode lets you record images of two people and combine them into a single image.
This makes it possible for you to include yourself in group images, even when there is no one else around
to record the image for you.

First Image Second Image

Combined Images

This is the part of the
image that does not
include the person who is
recording the first image.

1. Slide the mode switch to [ ] and set the mode dial to one of the photography modes, except for
], [ ] and [ ].

[
a. Press the MENU button.
b. Select [Function] with the X button.
c. Select [Capture Mode], and press the SET button.
d. Select [Coupling Shot], and press the SET button.

2. Align the focus frame on the screen with the subject you want on the left side of the image.

3. Press the shutter button to record the left side of the image.

4. Next compose the subject you want in the right side of the image, taking care to align the actual

background with the semi-transparent image of the background of the first image, which is shown on
the screen.

5. When everything is aligned correctly, record the right side of the image.

Making sure that the
background of the image is
aligned correctly, record the
image of the person who
recorded the first image.

EN-53

[ ] PLAYBACK MODE

Playing Back Still Images

You can play back the still images on the LCD monitor.

1. Slide the mode switch to [

J The last image appears on the screen.

2. The images can be displayed in reverse or forward with the W / X

buttons.

J To view the previous image, press W.
J To view the next image, press X .

Image Display Information

You can switch the information display by pressing the button
when playing back images. Each press of the
the information display state in the following order:

J Pressing the S / T buttons during image playback will rotate the image 90 degrees.
J The S button rotates the image clockwise, whereas the T button rotates the image

counterclockwise. A press of the button opposite to the direction in which the image was rotated
will return the image to the normal display.

J A [ ] icon is displayed with the video data. Video clips cannot be rotated.
J A [ ] icon is displayed with images which have an audio memo recorded.

J Press the SET button to play back voice memos.Press it again to stop voice memo playback.

].

button switches

EN-54

Playing Back Video Clips

You can play back recorded video clips on the LCD monitor. You can also play back voice.

1. Slide the mode switch to [

J The last image appears on the screen.

2. Select the desired video clip with the W / X buttons.

J A [ ] icon is displayed with the video data.

3. Press the SET button to play back a video clip.

J Pressing the X / W buttons during playback initiates fast forward/fast reverse.

Button Operations

During Playback

(Forward play)

X button

W button

S button

Pressing the X button will sequentially
invoke 2x fast-forward, 4x fast-forward,
regular play.
(Reverse play)
Pressing the W button will sequentially
invoke 2x fast-reverse, 4x fast- feed
reverse, regular play.

].

Sound On/Off

During a Pause

1-frame feed

Reverse 1-frame

During a Stop

The next image is
displayed.

The previous image is
displayed.

T button

SET button

J Video clips cannot be displayed rotated or enlarged.

Stop (The display returns to the 1st frame playback).

Pause Cancel pause

Regular forward play

EN-55

Playing Back Still Images/Video Clips on a TV

You can also play back your images on a TV screen. Before connecting to any video devices, make sure
to select NTSC/PAL to match the broadcast standard of the video equipment you are going to connect
to the camera. Using the AC power adapter is recommended when transferring the recorded images and
video files.

1. Slide the mode switch to [

2. Connect one end of the A/V cable to
the A/V OUT terminal of the camera.

3. Connect the other end to the A/V input
socket of the TV set.

4. Turn the TV and camera on.

5. Play back the still images/video clips.

J The method of operation is the same as playing back still

images and video clips on the camera.

J Refer to the section in this manual titled “Video Output” in the Setup2 Menu for further

details.

EN-56

].

Attaching Voice Memos

A maximum of 30 seconds of audio can be recorded like a memo annotation for each still image. The
voice memo can be recorded only once.

1. Slide the mode switch to [

J The last image appears on the screen.

2. Select the image where you want to attach the voice memo with the W / X buttons.

3. Press the shutter button.

J [VOICE RECORDING] is displayed on the screen and recording starts.

4. To stop recording voice memo during recording, press the shutter button again.

J [VOICE RECORD END] will be displayed and the recording will end.
J A [ ] is displayed with images that have been recorded with a voice memo.

Playing back voice memo

Pressing the SET button displays [VOICE PLAYBACK] and plays back the voice memo. Pressing it again
stops voice memo playback.

J Voice memo is only available for still images.

].

EN-57

Thumbnail Display

This function allows you to view 9 thumbnail images on the LCD monitor at the same time which can help
to quickly search for the image that you want.

1. Slide the mode switch to [

J The last image appears on the screen.

2. Press the

J The images are displayed in the thumbnail display.
J Images that have been selected with the S / T / W / X

buttons will be indicated by a green frame.

J When there are ten or more images, scroll the screen with

the S / T buttons.

3. Press the S / T / W / X buttons to select the image to be
displayed at regular size.

4. Press the SET button.

J The selected image is displayed at its regular size.

button.

Page Jump Function

This function allows you to select the image to be displayed immediately from a lot of recorded images.

1. Slide the mode switch to [

2. Press the

3. Press the
is indicated by a red frame.

4. For page selection, follow the steps below:

J Pressing the S button jumps to the first image.
J Pressing the T button jumps to the last image.
J Pressing the W button jumps to the previous thumbnail page.
J Pressing the X button jumps to the next thumbnail page.

5. Press the

J To select the image to be displayed at regular size, follow

button to enter thumbnail display.

button to enter page jump function and the image

button to resume normal thumbnail display.

the steps 3-4 in the above section.

J A [ ], [ ], [ ], [ ] icon will be displayed in a thumbnail display.

].

].

EN-58

Zoom Playback

103-0006

This mode also allows you to enlarge your image on the selected portion of the image to check for small details.

1. Slide the mode switch to [

2. Press the W / X buttons to select the image you want to enlarge.

J You can also select the image you want to enlarge from the

thumbnail display.

3. Adjust the zoom ratio with the

J Pressing the button enlarges the image.
J To return to normal magnification, press the button.
J The magnification factor is displayed on the LCD monitor.
J The image is displayed enlarged, and a white frame and

green frame are displayed on the LCD monitor.

J The white frame indicates the entire image, while the green frame shows the location of the

currently enlarged area.

4. Press the S / T / W / X buttons to select the area to enlarge.

5. To return to regular display, toggle the button until the regular display appears on the screen.

J Pressing the button magnifies the image from 1x —>2x—> 4x—>8x.
J Pressing the button reduces the image from 8x—>4x —>2x—> 1x.

].

/ buttons.

EN-59

Slideshow Display

The slideshow function enables you to play back your still images automatically in sequential order as a
slideshow. This is very useful and entertaining feature for reviewing captured images and for presentations.

1. Slide the mode switch to [

2. Press the MENU button.

J The playback menu is displayed.

3. Select [Slide Show] with the S / T buttons, and press the SET button.

J The slideshow starts.

4. To stop the slide show during playback, press the SET button.

J The image is displayed on screen when you press the SET button.

J The Auto OFF function does not operate during slide show.
J All still images in the folder are automatically played back.

EN-60

].

Protecting Images

Set the data to read-only to prevent images from being erased by mistake.

Protecting Images

1. Slide the mode switch to [

2. Select the image that you want to protect with the W / X buttons.

3. Press the MENU button.

J The playback menu is displayed.

4. Select [Protect] with the S / T buttons, and press the SET button.

5. Select [Single] or [All] with the S / T buttons, and press the

SET button.

6. Select [Set] with the S / T buttons, and press the SET button.

J Protection is applied to the image and the camera returns to

the playback mode.

J The protect icon [ ] is displayed with protected images.

When [All] has been selected, [

].

] is displayed with all the images.

EN-61

Canceling the Protection

To cancel protection, display the image that you want to remove the image protection.

1. Select [Protect] with the S / T buttons from the playback menu, and press the SET button.

2. Select [Single] or [All] with the S / T buttons, and press the SET button.

3. Select [Cancel Protect] with the S / T buttons, and press the SET button.

J The removal of image protection is executed and the camera returns to the playback mode.

Protecting multiple images simultaneously

1. Select [Protect] with the S / T buttons from the playback menu, and press the SET button.

2. Select [Select] with the S / T buttons, and press the SET button.

J The images are displayed in the thumbnail display.

3. Select the image you want to protect with the S / T / W / X buttons, and press the

J The protect icon [ ] is displayed with protected images. Selecting a protected image and

pressing the

button again will cancel the protection. This procedure is repeated to select

button.

multiple images.

4. Press the SET button.

J Protection and cancellation the protection are executed and the camera returns to playback

mode.

J Formatting an SD memory card (or internal memory) overrides protection, and erases all

images regardless of their protected status.

EN-62

DPOF Settings

DPOF is the abbreviation for Digital Print Order Format, which allows you to embed printing information
on your memory card. You can select the images to be printed and how many prints to make with the
DPOF menu in the camera and insert the memory card to the card compatible printer. When the printer
starts printing, it will read the embedded information on the memory card and print the specified images.

1. Set the mode dial to [

2. Select the image that you want to set DPOF with the W / X buttons.

3. Press the MENU button.

J The playback menu is displayed.

4. Select [DPOF] with the S / T buttons, and press the SET button.

J The DPOF setting screen is displayed.

5. Select [Single] or [All] with the S / T buttons, and press the SET button.

J Single: Sets DPOF for each individual image.
J All: Sets DPOF for all images at once.

6. Select [Print Num.] with the S / T buttons, and press the SET button.

J This displays the number of prints setting screen.

7. Set the number of prints with the S / T buttons, and press the

SET button.

J You can set up to 9 prints for each image.

8. Select [Date] with the S / T buttons, and press the SET button.

J The date setting screen appears.

].

Setup1

Setup2

EN-63

9. Select date to [On] or [Off] with the S / T buttons, and press the SET button.

979-0008

1

J On: The date of the photograph will also be printed.
J Off: The date of the photograph will not be printed.

10. Select [Print Enable] with the S / T buttons, and press the SET button.

11.Select [Execute] with the S / T buttons, and press the SET button.

J This creates a file containing the DPOF information, and when the operation is finished, the

screen returns to the playback mode.

J The DPOF icon [ ] is displayed on each image that have

set up DPOF settings.

J The date that is printed on the photo is the date set on the camera. To print the correct

date on the photo, set the date on the camera before you photograph the image. Refer to
section in this manual titled “Setting the Date and Time” for further details.

J For DPOF settings on images stored in the internal memory, be sure to copy those files to

an SD memory card first. Refer to section in this manual titled “Copying Files from Internal
Memory to a Memory Card” for further details.

EN-64

Copying Files from Internal Memory to a Memory Card

This function allows you to copy your files from the digital still camera’s internal memory to a memory card.
Of course, you can only do this if you have a memory card installed and some files in internal memory.

1. Set the mode dial to [

2. Select the image that you want to copy to a memory card with

the W / X buttons.

3. Press the MENU button.

J The playback menu is displayed.

4. Select [Copy] with the S / T buttons, and press the SET button.

5. Select [Execute] with the S / T buttons, and press the SET

button.

J To not copy, select [Cancel] with the S / T buttons, and

press the SET button.

].

EN-65

Changing Start Up Screen

You may select an image captured by this camera as your new start up screen.

1. Set the mode dial to [

2. Select the image that you want to be a new start up screen.

3. Press the MENU button.

4. Select [Setup1] with the X button.

5. Select [Start Logo] with the S / T buttons, and press the SET
button.

6. Select [User Image] with the S / T buttons, and press the SET
button.

7. Select [Execute] with the S / T buttons, and press the SET
button.

J The image that you selected will be your new start up screen

when you power on the camera next time.

EN-66

].

J The selected image for new start up screen is saved in the internal memory.
J Formatting internal memory also deletes user-selected image. In this case, the default image will

become start up screen.

J If user replaces start up image through USB (Mass storage device class), and that image is not

fit in data format, the start up screen will be broken.

J It is not possible to display correctly if the start up image is captured by another camera.
J “NO IMAGE” message is displayed when “User Image” is selected and no images are stored in the

SD memory card or internal memory.

J “ MEDIA FULL” message is displayed when the free space on the internal memory is insufficient

for saving user-selected image.

J If the image recorded voice memo is selected to be a start up screen, the voice memo function

will fail.

J The capacity for saving user image is only one. The previous start up image will not be recovered

if you select another one as a new start up screen.

EN-67

[ ] Deleting Images

Immediate Erasure (Quick Delete Function)

The quick delete function enables you to delete the last-captured image during capture.

1. Slide the mode switch to [
the photography modes.

2. Press the

J The last image and quick delete menu appear on the screen.

3. Press the

J You may also press the SET button to confirm the deletion.
J To not delete, select [Cancel], and press the SET button.

button.

button again to delete the image.

EN-68

] and set the mode dial to one of

Deleting in Playback Mode

103-0006

Deleting a single image/Deleting all images

1. Slide the mode switch to [

J The last image will be displayed on the screen.

].

2. Select the image you want to erase with the W / X buttons.

3. Press the

J The deletion menu will be displayed.

button.

4. Select [Single] or [All] with the S / T buttons, and press the SET button.

J Single: Erases the selected image or the last image.
J All: Erases all of the images except for the protected images.
J Select: Erases a number of selected images.

5. Select [Execute] with the S / T buttons, and press the SET

button.

J To not erase, select [Cancel], and press the SET button.

J Deleting an image will not affect sequential image numbering. For example, if you delete

image number 240, the next captured image will be numbered 241 even though 240 no
longer exists. In other words, an image-number is retired when an image is deleted and will
not be reused or reassigned to another subsequently captured image.

EN-69

Deleting selected images

103-0006

This deletes a number of selected images.

1. Slide the mode switch to [

2. Press the

J The deletion menu will be displayed.

button.

].

3. Select [Select] with the S / T buttons, and press the SET button.

J The images are displayed in the thumbnail display.

4. Select the image you want to erase with the S / T / W / X
buttons, and press the

J The [ ] icon will be displayed. One more press of the

button.

button will cancel the operation. Repeat this procedure and
select all the images that you want to erase.

5. Press the SET button.

EN-70

100-0010100-0010

MENU OPTIONS

Photography Menu (Capture tab)

This menu is for basic settings used when capturing images in the photography modes. These settings
are retained even if the camera is turned off or the Auto OFF function is activated.

Available menu options in each photography mode:

Auto

Capture Function

Size Capture Mode
Quality Voice Memo
Sharpness LCD Bright.
Contrast Digital Zoom
Color Preview

Date Print
Beep

Scene

Capture Function

Scene Mode Capture Mode
Size Voice Memo
Quality LCD Bright.

Digital Zoom
Preview
Date Print
Beep

Program / Tv / Av / M / User Setting

Capture Function AE/AWB

Size Capture Mode White Balance
Quality Voice Memo Manual WB
Sharpness LCD Bright. ISO
Contrast Digital Zoom Metering
Color Preview Focus Area

Date Print Flash Offset
Beep

Video

Capture Function AE/AWB

Quality LCD Bright. White Balance
Contrast Digital Zoom Manual WB
Color Video Zoom

Audio
Beep

Panorama

Capture Function AE/AWB

Size LCD Bright. White Balance
Quality Beep Manual WB
Sharpness ISO
Contrast Metering
Color Flash Offset

EN-71

Anti-Shake

Capture Function AE/AWB

Size Voice Memo White Balance
Quality LCD Bright. Manual WB
Sharpness Digital Zoom Metering
Contrast Preview Focus Area
Color Date Print Flash Offset

Beep

1. Slide the mode switch to [ ] and set the mode dial to one of
the photography modes.

2. Press the MENU button.

J [Capture] menu is displayed.

3. Select the desired [Capture] option item with the S / T buttons,
and press the SET button to enter its respective menu.

4. Select the desired setting with the S / T buttons, and press the
SET button.

5. To exit from the menu, press the MENU button.

EN-72

Scene Mode

Refer to section in this manual titled “Scene Mode” for further details.

Size (resolution)

This sets the resolution of the still-image that will be captured.

] 3264 x 2448: 3264 x 2448 pixels (8 Megapixel resolution)

*[

] 2560 x 1920: 2560 x 1920 pixels (5 Megapixel resolution)

*[

] 1600 x 1200: 1600 x 1200 pixels (2 Megapixel resolution)

*[

] 640 x 480: 640 x 480 pixels (VGA resolution)

*[

Quality

This sets the quality (compression rate) at which the image is captured.
* Fine / Standard / Economy / TIFF

J [Economy] setting is not available for [ ] mode.
J TIFF is not available in [ ], [ ] and [ ] modes.
J TIFF is only available when size is set at 3264 x 2448 pixels.

Sharpness

The camera can automatically emphasize the borders between light and dark areas of the image. This
will make the image’s edges look sharper. In some scenes you may prefer sharper edge detail. In other
scenes you may prefer softer edge detail.
This sets the sharpness of the image that will be captured.
* Hard / Normal / Soft

Contrast

This sets the difference between the bright and dark portions of the images that will be captured.
* Hard / Normal / Soft

Color

This sets the color of the image that will be photographed.

Standard / Vivid / Sepia / Monochrome / Red / Green / Blue / Yellow / Purple

*

EN-73

Photography Menu (Function tab)

1. Slide the mode switch to [ ] and set the mode dial to one of
the photography modes.

2. Press the MENU button, and select the
[Function] menu with the X button.

J The [Function] tab of the photography menu is displayed.

3. Select the desired [Function] option item with the S / T buttons,
and press the SET button to enter its respective menu.

4. Select the desired setting with the S / T buttons, and press the
SET button.

5. To exit from the photography menu, press the MENU button.

Capture Mode

This sets the recording method at the time of capturing images.
*[Blank] Single: Capture an image at a time.
*[ ] Continuous: Permits continuous photography of 3 images max.
*[AEB] AEB: Permits 3 consecutive images in the order of standard exposure, underexposure and

*[ ] Burst: The “Burst” capture mode allows you to fully use the available memory capacity (internal

*[ ] Burst+flash: The “Burst+flash” capture mode lets you shoot a sequence of 3 pictures with flash.

*[ ] Pre-Shot: Pre-shot helps you get the background you want, even if you need to ask someone else to

*[

EN-74

overexposure compensation.

or via memory card) by pressing and holding the shutter button. As long as you hold the
shutter button pressed, pictures are captured until the memory capacity is exhausted.

record the image for you. Basically, Pre-shot is a two-step process.

] Coupling Shot: The Coupling Shot mode lets you record images of two people and combine them into a

single image. This makes it possible for you to include yourself in group images, even when there is no
one else around to record the image for you.

J In [Continuous], [AEB], [Burst], [Burst + flash], [Pre-Shot] and [Coupling Shot] capture mode,

the voice memo is automatically fixed at [Off].

Voice Memo

Refer to section in this manual titled “Recording Voice Memos” for further details.
* On / Off

J When [Preview] is set to [Off], [Voice Memo] setting is also fixed at [Off].

LCD Bright.

Select a brightness level for the LCD monitor. The LCD becomes
brighter with the S button and darker with the T button. The
adjustment range is from -5 to +5.

Digital Zoom

This sets whether or not to use digital zoom at the time of photography.
* On / Off

Preview

This sets whether or not to display the captured image on the screen immediately after the image is captured.
* On / Off

J When [Preview] is set to [Off], [Voice Memo] setting is also fixed at [Off].

Date Print

The date and time of recording can be printed directly on the still images.
This function must be activated before the image is captured.
* On / Off

Beep

Enables or disables the sounds (beeps) associated with camera button
functions.
* On / Off

Video Zoom

This sets whether or not to activate zoom function at the time of video recording.
* On / Off

Audio

This sets whether or not to record audio at the time of video recording.
* On / Off

EN-75

Photography Menu (AE/AWB tab)

1. Slide the mode switch to [ ] and set the mode dial to one of
the photography modes.

2. Press the MENU button, and select the [AE/AWB] menu with the
X button.

J The [AE/AWB] tab of the photography menu is displayed.

3. Select the desired [AE/AWB] option item with the S / T buttons,
and press the SET button to enter its respective menu.

4. Select the desired setting with the S / T buttons, and press the
SET button.

5. To exit from this menu, press the MENU button.

White Balance

This sets the white balance capturing under a variety of lighting conditions and permits images to be
captured that approach the conditions that are seen by the human eye.

*

[ Blank ] Auto
[ ] Incandescent

*

] Fluorescent 1

[

1

*

2

] Fluorescent 2

[

*

[ ] Day Light

*

] Cloudy

[

*

[

] Manual

*

Manual WB

This manually sets the white balance and stores it. Use of this is convenient when the white balance does
not offer a good match.
Before select [Execute] determine the subject (such as a white paper) that will be used to set the white balance.

Cancel / Execute

*

EN-76

ISO

This sets the sensitivity for capturing images. When the sensitivity is raised (and the ISO figure is increased),
photography will become possible even in dark locations, but the more pixelated (grainier) the image will appear.
* 64 / 100 / 200 / 400 / Auto

J In the [Auto] setting, the ISO value is automatically selected from ISO 64 to ISO 200.
J In the [ ] mode, the ISO function cannot be used. And the ISO setting will be automatically set

between ISO 64 and ISO 400.

J [Auto] setting is not available for [Tv], [Av] and [M] mode.

Metering

This sets the metering method for calculating the exposure.

[

] Multi: The entire area of the screen is measured, and the exposure is calculated.

*

[ ] Spot: A very small portion of the center of the screen is measured,

*

* [ ] Average: The exposure is measured all of the image area.

and the exposure is calculated.

Focus Area

This sets the focusing area.
* Multi: The function of auto focus finds the best proper position from 9 blocks of focus area.
* Center: The function of auto focus adjusts focus at the center of image.

Flash Offset

This sets the flash strength. The flash power becomes strong when selecting “+” values. The flash power
becomes soft when selecting “-“ values.
* +2 / +1 / 0 / -1 / -2

EN-77

Playback Menu

In the [ ] mode, set which settings are to be used for playback.

1. Slide the mode switch to [

2. Press the MENU button.

J The playback menu is displayed.

3. Select the desired option item with the S / T buttons, and press
the SET button to enter its respective menu.

4. Select the desired setting with the S / T buttons, and press the
SET button.

5. To exit from the menu, press the MENU button.

Slide Show

Refer to section in this manual titled “Slideshow Display” for further details.

DPOF

Refer to section in this manual titled “DPOF Settings” for further details.

Protect

Refer to section in this manual titled “Protecting Images” for further details.

Copy

Refer to the section in this manual titled “Copying Files from Internal Memory to a Memory Card” for
further details.

LCD Bright.

Refer to section in this manual titled “LCD Bright.” in Photography Menu (Function tab) for further details.

EN-78

].

Setup1 Menu

Set your camera’s operating environment.

1. Slide the mode switch to [

2. Press the MENU button, and select the [Setup1] menu with the

X button.

J The [Setup1] menu is displayed.

3. Select the desired setting with the S / T buttons, and press the

SET button to enter its respective menu.

4. Select the desired setting with the S / T buttons, and press the

SET button.

5. To exit from the menu, press the MENU button.

Media Info.

This displays the free capacity of the SD memory card (or internal memory). If the SD memory card is not
inserted, free capacity of internal memory is displayed.

Fr. No. Reset

This creates a new folder. The photographed images are recorded to the newly created folder from
number 0001.
* Cancel / Execute

Format

Refer to section in this manual titled “Formatting an SD Memory Card or Internal Memory” for further details.

Beep

Refer to section in this manual titled “Beep” in Photography Menu (Function tab) for further details.

Auto OFF

If no operation is performed for a specific period of time, the power to the camera is automatically turned
off. This feature is useful to reduce battery wear.
* 1 Min. / 2 Min. / 3 Min.

Start Logo

Refer to section in this manual titled “Changing Start Up Screen” for further details.

].

EN-79

Setup2 Menu

1. Slide the mode switch to [ ].

2. Press the MENU button, and select the [Setup2] menu with the
X button.

J The [Setup2] menu is displayed.

3. Select the desired [Setup2] option item with the S / T buttons,
and press the SET button to enter its respective menu.

4. Select the desired setting with the S / T buttons, and press the
SET button.

5. To exit from the menu, press the MENU button.

Date/Time

Refer to section in this manual titled “Setting the Date and Time” for further details.

Sys. Reset

This returns all basic settings to the camera’s default settings. The time setting will not be reset.
* Cancel / Execute

Language

Refer to section in this manual titled “Choosing the Display Language” for further details.

Video Output

This sets video output system of the video equipment that you are going to connect to the camera.
* NTSC / PAL

System Info.

This displays the firmware version of the camera.

EN-80

TRANSFERRING RECORDED IMAGES AND VIDEOS
TO YOUR COMPUTER

To transfer images/video clips from the camera to your computer, follow these steps:

Step 1: Installing the USB driver (Windows 98 users only)
Step 2: Connecting the camera to your computer
Step 3: Downloading images and video files

System Requirements (Windows)

J Pentium 166 MHz or higher
J Windows 98/98SE/Me/2000/XP
J 128MB RAM
J 128MB hard disk space
J CD-ROM drive
J Available USB port

System Requirements (Macintosh)

J PowerPC G3/G4
J OS 9.0 or later
J 128MB RAM
J 128MB hard disk space
J CD-ROM drive
J Available USB port

EN-81

Step 1: Installing the USB Driver

Windows 98 computers
The USB driver on the CD-ROM is exclusively for Windows 98 computers. Installing the USB driver on
computers running Windows 2000/ME/XP is not necessary.

1. Insert the CD-ROM that came with the camera into your CD-ROM drive. The welcome screen appears.

2. Click “INSTALL USB DRIVER”. Follow the on-screen instructions to complete the installation. After the
USB driver has been installed, restart your computer.

Macintosh OS 9.0 computers

For Mac OS 9.0 or higher, the computer will automatically recognize the camera and load its own USB
drivers.

EN-82

Step 2: Connecting the Camera to Your Computer

1. Connect one end of the USB cable to the USB terminal of the
camera.

2. Connect the other end of the USB cable to an available USB
port on your computer.

3. Turn on your camera.

J The [USB] screen appears.

4. Select [PC] and press the SET button.

5. From the Windows desktop, double click on “My Computer”.

6. Look for a new “Removable disk” icon. Typically, the camera will
be assigned drive letter “e” or higher.

7. Double click on the removable disk and locate the DCIM folder.

8. Double click on the DCIM folder to open it to find more folders.

J Your recorded images and video clips will be inside these

folders.

J Copy & Paste or Drag-N-Drop image and video files to a

folder on your computer.

Mac users: Double-click the “untitled” or “unlabeled” disk drive icon on our desktop. iPhoto may automatically
launch.

J The data saved to the internal memory (memory card) may be damaged if the power to the camera

is cut off during image transfer. We recommend that you use the AC power adapter when
connecting the camera to the PC.

EN-83

Step 3: Downloading Images and Video Files

When the camera is turned on and connected to your computer, it is considered to be a disk drive, just
like a floppy disk or CD. You can download (transfer) images by copying them from the “Removable disk”
(“untitled” or “unlabeled” disk on a Macintosh) to your computer hard drive.

Windows

Open the “removable disk” and subsequent folders by double clicking on them. Your images are inside
these folder(s). Select the images that you want, and then choose “Copy” from the “Edit” menu. Open the
destination location (folder) and choose “Paste” from the “Edit” menu. You may also drag and drop image
files from the camera to a desired location.

Macintosh

Open the “untitled” disk icon, and the destination location on your hard disk. Drag and drop from the
camera to the desired destination.

J Do not open the battery cover during USB cable connection.
J Memory card users may prefer to use a memory card reader (highly recommended).
J A video playback application is not included with the package. Make sure that a video playback

application has been installed in your computer.

J If you cannot download images/video clips stored in the internal memory, you may copy those

files to an SD memory card first and then transfer to your computer. Refer to section in this
manual titled “Copying Files from Internal Memory to a Memory Card” for further details.

EN-84

CONNECTING TO A PICTBRIDGE COMPLIANT PRINTER

If a printer that supports PictBridge is available, images can be printed by connecting the digital still
camera directly to the PictBridge-compatible printer without using a computer.

Connecting the camera to the printer

1. Connect one end of the USB cable to your camera.

2. Connect the other end of the USB cable to the USB port on the

printer.

3. Turn on your camera.

4. The [USB] screen is displayed. Select [PRINTER] with the S /T

buttons, and press the SET button.

Printing images

When the camera is properly connected to a PictBridge compliant printer, the PictBridge menu is
displayed on the monitor.

1. Select the item you want to configure with the S/T buttons, and press

the SET button.

J [Images]: Select whether you want to print specific image or

J [Date Print]: According to the printer type, select whether you want to

J [Paper Size]: Select the desired paper size according to the printer type.
J [Layout]: Select the desired printing layout according to the

J [Print]: After all settings are configured, select this item to

2. If you select [Images] in the previous step, the figure shown on the

right hand side will appear. Select [Single] or [All] with the S/T buttons,
and press the SET button.

J [Single]:Select to print one specific image.
J [All]: Select to print all images.

J [Exit]: Exit from Images option.

all images. You may also select printing number for
specific image.

print the image with date imprint or not.

printer type.

start printing.

EN-85

3. If you select [Single] in the previous step, the figure shown on the
right hand side will appear.

J Select the image that you want to print with the W/Xbuttons.
J Select the [Print Num.] (up to 99) with the S/T buttons.
J After selecting the desired image and printing number, press the

SET button to confirm.

4. Select [Exit] with the S/T buttons, and press the SET button.

5. Select [Print] with the S/T buttons, and press the SET button to
start printing.

6. The printing starts and the figure shown on the right hand side
appears.

J The [Complete] will be displayed temporarily, reminding you that

the printing procedure is finished.

J If a print error is detected, the [Print Error] will be displayed.

The image printing may be failed if the power to the camera is cut off.

We recommend that you use the AC power adapter/charger when connecting the camera to the printer.

EN-86

EDITING SOFTWARE INSTALLATION

Installing Photo Explorer

Ulead®Photo Explorer provides a simple and efficient way to transfer, browse, modify and distribute
digital media. Acquire photos, video or sound clips from various digital device types and easily browse or
add personal descriptions; make timely modifications; or distribute the media through the medium of your
choice: E-mail, Print, Slideshow Presentations. It is an indispensable all-in-one tool for owners of digital
cameras, WebCams, DV camcorders, scanners, or anyone who strives to effectively organize a large
collection of digital media.

To install Photo Explorer:

1. Insert the CD-ROM that came with the camera into your CD-ROM drive. The welcome screen appears.

2. Click “INSTALL PHOTO EXPLORER 8.0”. Follow the on-screen instructions to complete the installation.

J For more information about the operation of Photo Explorer application software, refer to

its respective help documentation.

J For Windows 2000/XP users, please make sure to install and use the Photo Explorer in

“Administrator” mode.

J Photo Explorer is not supported on the Mac. iPhoto or iPhoto2 is recommended.

User¡¦s Manual >>

EN-87

Installing Photo Express

Ulead® Photo Express is a complete photo project software for digital images. The step-by-step workflow,
visual program interface, and in-program help assist users in creating exciting photo projects. Acquire
digital photos effortlessly from digital cameras or scanners. Organize them conveniently with the Visual
Browse mode. Use hundreds of ready-to-use templates such as albums, cards, posters, slideshows, and
more. Edit and enhance images with photo editing tools, photographic filters, and special effects.
Embellish projects by adding creative design elements such as frames, callouts, and stamp objects.
Share results with family and friends via e-mail and multiple print options.

To install Photo Express:

1. Insert the CD-ROM that came with the camera into your CD-ROM drive. The welcome screen appears.

2. Click “INSTALL PHOTO EXPRESS 5.0”. Follow the on-screen instructions to complete the installation.

J For more information about the operation of Photo Express application software, refer to its

respective help documentation.

J For Windows 2000/XP users, please make sure to install and use the Photo Express in

“Administrator” mode.

J Photo Express is not supported on the Mac.

EN-88

Installing Cool 360

Ulead® COOL 360™ quickly and easily allows photo editing consumers to transform a series of photos

o

into 360
interface and easy-to-use wizard deliver great-looking panoramas fast while advanced warping, blending
and alignment tools ensure excellent results. Share finished panoramas via email, create Web pages or
insert them into documents and presentations.

To install Cool 360:

1. Insert the CD-ROM that came with the camera into your CD-ROM drive. The welcome screen appears.

2. Click “INSTALL Cool 360 SE”. Follow the on-screen instructions to complete the installation.

or wide-angle panoramic scenes for an immersive viewing experience. COOL 360’s intuitive

J For more information about the operation of Cool 360 application software, refer to its

respective help documentation.

J For Windows 2000/XP users, please make sure to install and use the Cool 360 in

“Administrator” mode.

J Cool 360 is not supported on the Mac.

EN-89

CAMERA SPECIFICATIONS

Item Description

Image sensor 1/1.8” CCD sensor (8.1 Mega pixels)

Image resolution

LCD monitor 2.8” full color TFT LCD (230K pixels)
Recording media 32 MB internal memory (26 MB available for image storage)

File format

Lens

Shutter speed 1/2s - 1/1500s; Tv&Manual modes: 4s - 1/1500s; Fireworks: 2s - 1/1500s
Frame rate 15 - 30 frames/sec. (based on SD memory card access speed)

Digital zoom

Flash effective range 0.5m – 2.7m (Wide)

Terminal

Power supply

Dimension (W x H x D) Approx. 93 x 57 x 25.5mm (without protruding parts)
Weight Approx. 164g (without battery and SD memory card)

*Design and specifications are subject to change without notice.

EN-90

<Still image>
3264 x 2448, 2560 x 1920, 1600 x 1200, 640 x 480
<Video clip>
640 x 480

Supports SD memory card (up to 1 GB)
JPEG, DCF, EXIF 2.2, DPOF, Motion JPEG
6x optical zoom lens
F =2.8(W) – 4.8(T)
f =7.8mm – 46.8mm (equivalent to 37mm – 222mm on a 35mm camera)

8.5x (Capture mode)
2x, 4x & 8x (Playback mode)

DC IN 5V terminal
A/V OUT terminal
USB 2.0 (High speed)
Rechargeable Lithium-ion battery (1050mAh, 3.7V)
AC power adapter (5V/3A)

TROUBLESHOOTING

Refer to the symptoms and solutions listed below before sending the camera for repairs. If the problem
persists, contact your local reseller or service center.

Power Supply

Symptom

The power does not come
on.

The power cuts out during
use.

The battery runs out quickly.

The battery or camera feels
warm.

Cause

The battery in not inserted.
The battery is exhausted.
The AC power adapter is not
connected correctly.
The camera was left unattended and
unused, so the auto power off cuts it off.
The battery is exhausted.

It is being used in extreme low
temperature.
Many shots are being captured in
dark places inside, requiring flash.
The battery is not fully charged.
The battery is not used for an
extended period of time after
charged.
Long period of continuous use of the
camera or the flash.

Solution

Insert the battery correctly.
Recharge the battery.
Reconnect it properly.

Turn the power back on.

Recharge or use the AC power
adapter.

Fully charge the battery and
discharge it for at least one complete
cycle before use to maximize its
performance and lifetime.

EN-91

Shooting

Symptom

Even if I press the shutter
button, the camera does
not shoot.

Images do not appear on
the LCD monitor.

Although it is set to auto
focus, it does not focus.

The flash does not fire.
The flash cannot recharge.

Even though the flash fired,
the image is dark.

The image is dark.

The image is too bright.

The image lacks natural color.

EN-92

Cause

The battery is running low.
The power is not on.
The camera is not in shooting mode.
The shutter button is not pressed all
the way down.
The memory card does not have any
free capacity.
End of memory card life.
The flash is charging.

The memory card is unrecognized by
the camera.

The auto power off function is activated.
The memory card is write-protected.
The power is not on.

LCD monitor is dark.

The lens is dirty.
The distance to the subject is smaller

than the effective range.

The flash is set to flash off.

The distance to the subject is greater
than flash effective range.
The flash is too soft.
The image is captured in a dark place
while set to flash off.

It is under-exposed.

The flash is too soft.

It is over-exposed.
The flash is too strong.

The image was captured in
conditions that are hard for auto white
balance to adjust to.

Solution

Recharge the battery.
Turn the power on.
Slide the mode switch to shooting mode.
Press the shutter button all the way
down.
Insert a new memory card, or delete
unwanted files.
Insert a new memory card.
Wait until the status LED off.
Format the memory card in this camera
before its first use or when it was used
other than this camera.
Turn the power on again.
Remove the write-protection.
Turn the power on.
Adjust the brightness of the LCD
monitor in the menu.
Wipe clean with a soft, dry cloth or
lens paper.
Get your subject within the effective
focus range.
Set the flash to something other than
flash off mode.
Get closer to your subject and shoot.

Adjust the flash offset.
Set the flash to something other than
flash off mode.
Set the exposure compensation to a
larger value.
Adjust the flash offset.
Set the exposure compensation to a
smaller value.

Adjust the flash offset.

Add a white object to the composition.

Playback

Symptom

Cannot playback.
The contents of memory card
cannot be played back.

Files cannot be deleted.

Cannot format a memory
card.
The playback image is dark

though I used the flash.

Cause

It is not set to playback mode.
You played back a memory card that
was not formatted by this device.
The file is protected.
You played back a memory card that
was not formatted by this device.
The memory card is write-protected.
The memory card is write-protected.
End of memory card life.

The LCD monitor is too dark.

Other Problems

Symptom

Even when the camera’s
buttons are pressed, it does
not operate.
The date and time is wrong.
The date set has disappeared.

Cause

The battery is running low.

The correct date and time is not set.
The battery is removed with the power still on.

About connecting to your computer/software

Symptom

Cannot download images.

Cannot playback video clips on
Windows 98 or Windows Me.

Cause

The free space on the hard disk in
your computer may be insufficient.

No power supply.

The USB driver is not installed (for
Windows 98/98SE).

DirectX has compatibility issue with
Video Driver.

Solution

Slide the mode switch to playback mode.
Insert a memory card that was
formatted and stored on by this device.
Cancel protection.
Insert a memory card that was
formatted and stored on by this device.
Remove the write-protection.
Remove the write-protection.
Insert a new memory card.

Adjust the brightness of LCD monitor.

Solution

Recharge the battery.

Set the correct date and time.
Set the date and time again.

Solution

Check whether the hard disk has a
space for running Windows, and if
the drive for loading image files has
a capacity at least that of the memory
card inserted in the camera.
Recharge the battery.
Use AC power adapter.
Turn the power on.

Install USB driver.

Download and install DirectX 9.0
from Microsoft website.

EN-93

Attention: Your

product is marked

with this symbol. It

means that used

electrical and electronic

products should not

be mixed with general

household waste.

There is a separate

collection system for

these products.

EN-94

A. Information on Disposal for Users (private households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin!

Used electrical and electronic equipment must be treated separately and in accordance with legislation
that requires proper treatment, recovery and recycling of used electrical and electronic equipment.
Following the implementation by member states, private households within the EU states may return
their used electrical and electronic equipment to designated collection facilities free of charge*. In
some countries* your local dealer may also take back your old product free of charge if you
purchase a similar new one.
*) Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of
these separately beforehand according to local requirements.

By disposing of this product correctly you will help ensure that the waste undergoes the necessary
treatment, recovery and recycling and thus prevent potential negative effects on the environment
and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct
method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the
dealer, even if you don’t purchase a new product. Further collection facilities are listed on the
homepage of www.swico.ch or www.sens.ch.

B. Information on Disposal for Business Users

1. In the European Union

If the product is used for business purposes and you want to discard it:

Please contact your local dealer who will inform you about the take-back of the product. You might
be charged for the costs arising from take-back and recycling. Small products (and small amounts)
might be taken back by your local collection facilities.

For Spain: Please contact the established collection system or your local authority for take-back
of your used products.

2. In other Countries outside the EU

If you wish to discard of this product, please contact your local authorities and ask for the correct
method of disposal.
